A Practical Smart Metering System Supporting Privacy Preserving Billing and Load Monitoring

A Practical Smart Metering System Supporting Privacy Preserving Billing and Load Monitoring. Hsiao-Ying Lin National Chiao Tung University Joint work with Wen-Guey Tzeng , Shiuan-Tzuo Shen , Bao-Shuh P. Lin. Meter. Electricity transmission & distribution.

marcel
Télécharger la présentation

A Practical Smart Metering System Supporting Privacy Preserving Billing and Load Monitoring

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A Practical Smart Metering System Supporting Privacy Preserving Billing and Load Monitoring Hsiao-Ying LinNational Chiao Tung University Joint work with Wen-GueyTzeng, Shiuan-TzuoShen, Bao-Shuh P. Lin

  2. Meter Electricity transmission & distribution Smart Grid =Intelligence + Automation + Power Grid Substation Massive electricity generator Resident area • Increase energy efficiency • Improve system reliability & quality Intra/Internet Grid operator Renewable energy generator Power flow Communication flow

  3. Smart Grid Features • Features • Two-way power flows • Communication systems among electricity entities Smart Grid Application Advanced Meter Infrastructure Automatic Meter Reading

  4. Meter & Meter Reading • Measurement of power consumption • Traditional: manually record per month • Smart meter: automatically record per minute ~ millisecond

  5. Smart Grid Applications • Automatic billing • Support many price policies • Load monitoring • Monitor current state of smart grid Electricity Service Provider(ESP) Price information Power consumption Time Price Bill Load Monitoring Center(LMC) Power consumption

  6. Example: Ontario Time-of-use Pricing • During Winter Midnight Off-Peak 6.5 ￠/kWh 7 P.M. A.M. 7 5 On-Peak 11.7 ￠/kWh Mid-Peak 10 ￠/kWh 11 Noon

  7. Privacy Issue • Detailed meter readings reveal daily activities • When and what appliances are used Stove Burner Refrigerator Time(Min) Hart, G.W: Nonintrusive appliance load monitoring, IEEE Proceedings 1992

  8. Privacy Preserving Automatic Billing • Trusted third party computes the bill • The grid operator • Homomorphic commitment + zero knowledge proof (ZKP) • Meter readings are committed • The bill is computed by the consumer • Only the bill is opened to ESP • ESP verifies correctness of the bill by using ZKP

  9. Privacy Preserving Load Monitoring • Trusted third party aggregates the power consumption • Secret shares of 0 among meters • Need handling meter leaving and joining • Random noises on meter readings • LMC gets approximate sum of meter readings ELMC(reading1) ELMC(sum of readings) LMC TTP ELMC(reading2) sum of readings ELMC(reading3) Reading1+secret share1 LMC Reading2+secret share2 sum of readings Reading3+secret share3

  10. Our Contribution • A smart metering system • Supporting automatic billing & load monitoring • Privacy preserving against service providers • Electricity service provider (ESP) • Load monitoring center (LMC) • Storage service provider • Using pseudo-random numbers & TPM • Without a trusted third party • Without mutual communication among meters

  11. System Model Storage system Time … Electricity Service Provider (ESP) … H1M1 Load monitoring center (LMC) Area 1 … H2M2 … … Area 2 … Meter Meter readings display Barcode ID TPM module Area 2 Area 1

  12. Meter Model • A meter has a trusted platform module • Power consumption is measured in Wh per 5 min • Present meter readings in integers

  13. Arrange Encrypted Meter Readings Current time unit Current time window W (L time units) L = 4 H1M1 Area 1 H2M2 H3M3 H4M4 Area 2 H5 M5 H6M6 H7M7 H8M8 H9M9 Area 3

  14. Requirements • Assume all entities are semi-honest • ESP can only query a meter for power consumption of aLcontinuous time units (each query) • LMC can only query meters for meter readingsat a time unit in a current time window W

  15. Arrange Encrypted Meter Readings Current time unit L = 4 H1M1 ESP Area 1 H2M2 H3M3 H4M4 Area 2 H5 M5 H6M6 H7M7 H8M8 H9M9 Area 3 LMC

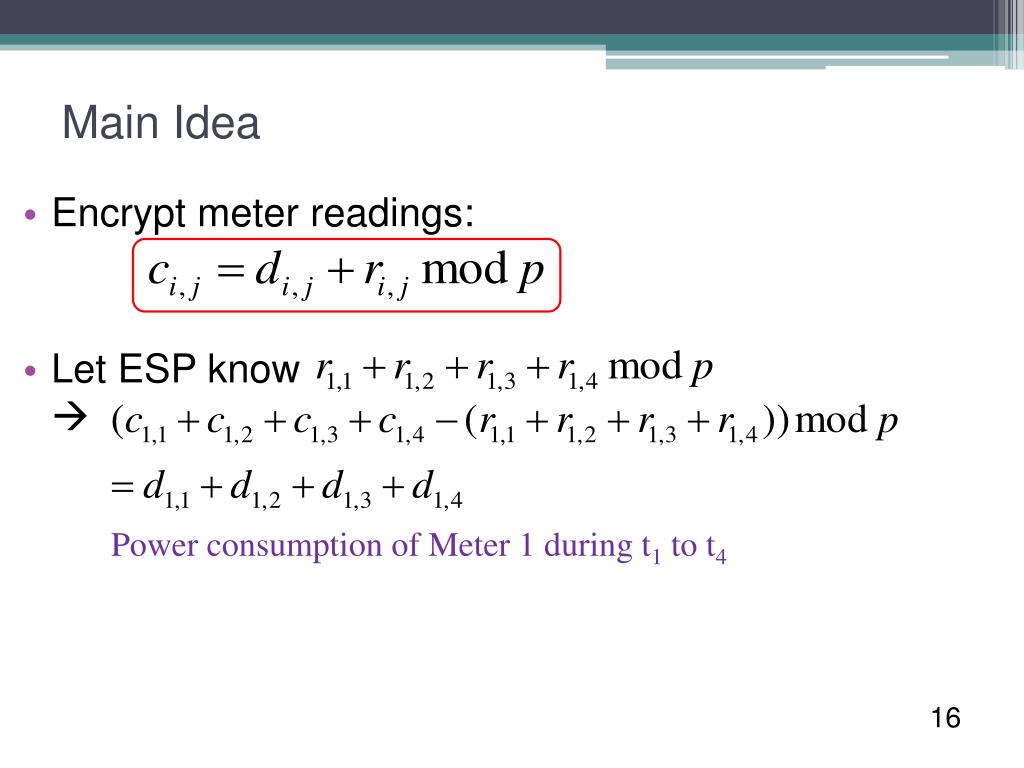

  16. Main Idea • Encrypt meter readings: • Let ESP know Power consumption of Meter 1 during t1to t4

  17. Main Idea • Encrypt meter readings: • Service providers interact with meters • ESP queries a meter for a sum of random numbers spanning over aL time units (horizontal block) • LMC queries a set of meters for noised random numbers at a time unit in current time window W (vertical block) A meter has to remember all used random numbers

  18. Arranging Random Numbers of a Meter • TPM generates random numbers • Driver computes random numbers L FIFO memory slots … … …

  19. Construction • System parameter: A large number p • Meter Initialization • Pseudorandom number generator g • Hash functions h and h’ Master key ki =h’(si||SNi) Mi Seed si SNi g(ki,t2) g(ki,t1) g(ki,tL-1) L FIFO memory slots

  20. Storage of meter readings • At time unit tj • Encrypt current reading d by using current r and store c • Generate a new R: • Compute a new r from R and store it in a memory slot ri,j+1 ri,j ri,j+L-2 ri,j+L-1 ri,j+1 ri,j+L ri,j+L-2 ri,j+L-1

  21. Supporting Automatic Billing • ESP accesses the storage system • ESP queries Mi for L continuous time units • Mi returns Ri,jwhere • ESP computes the power consumption • ESP can query aL continuous time units for any integer a>0 H1M1 Area 1

  22. Privacy Requirement • We consider honest-but-curious ESP • ESP cannot get individual meter readings of a household • We prove that ESP cannot distinguish two sets of meter readings which have the same sum • The proof relies on pseudorandom number generator g

  23. Supporting Load Monitoring • LMC accesses the storage system • W is the current time window containing L time units • LMC queries meters in an area for data in time unit tj in W A meter cannot directly return the random number r

  24. Supporting Load Monitoring • A meter returns [random number + noise] • Normal distribution • Select a random noise according to • Read the random number from the FIFO memory slot • Compute • LMC computes [meter reading – noise] Prevent overflowing random number + noise

  25. Correctness & Privacy • LMC gets an approximate sum of m meter readings • Real sum • Define error ratio • By Chebyshev inequality • LMC gets only an approximate value Average of meter reading per time unit Tradeoff : correctness and privacy A smaller a better approximate

  26. Performance Analysis • |p|=64, a time unit is 5 min • Commercial TPM chip • 1024-bit RSA signature: 100ms • Assumption • 1024-bit random number generation:100ms • 64-bit random number is about 7ms • 64-bit modular addition: 7ms Computation can be done in a time unit

  27. Summary • Design a smart metering system • Using external storage service • Supporting privacy preserving billing & load monitoring • W/O a trusted third party and heavy crypto-operation

  28. Future Work • Consider integrity of meter readings • Evaluate performance by prototype systems • Eliminate interactions between meters & providers • Consider a bidirectional smart meter model
