  1. Dag Viggo Lokøen and Øyvind Bech Supervisor: Yngve Lamo Osterøy 2010 A model editor for DPF

  2. Motivation

  3. UML • Industry standard in modeling • Needsexternalconstraintlanguage (OCL)

  4. Current state of art

  5. Editors all thewaydown (today)

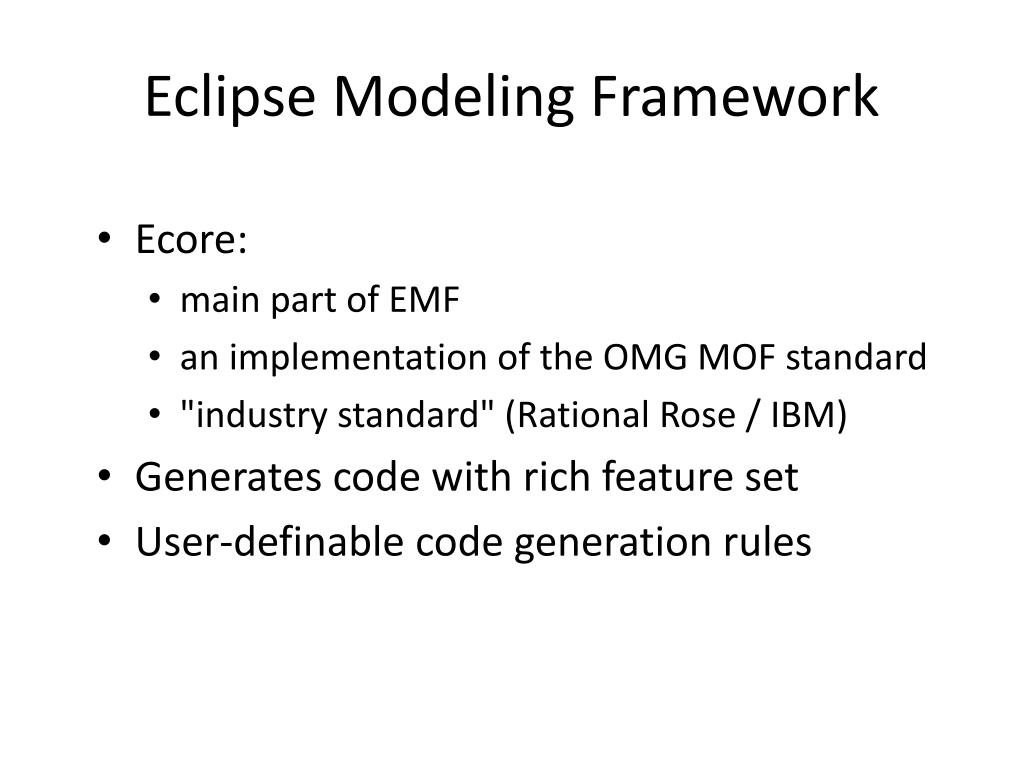

  6. Eclipse Modeling Framework • Ecore: • main part of EMF • an implementation of the OMG MOF standard • "industry standard" (Rational Rose / IBM) • Generates code with rich feature set • User-definable code generation rules

  7. Eclipse / EMF demo • EMF’s implementation of MOF/MDA • What is .ecore? • What is .ecore_diagram? • What is .genmodel?

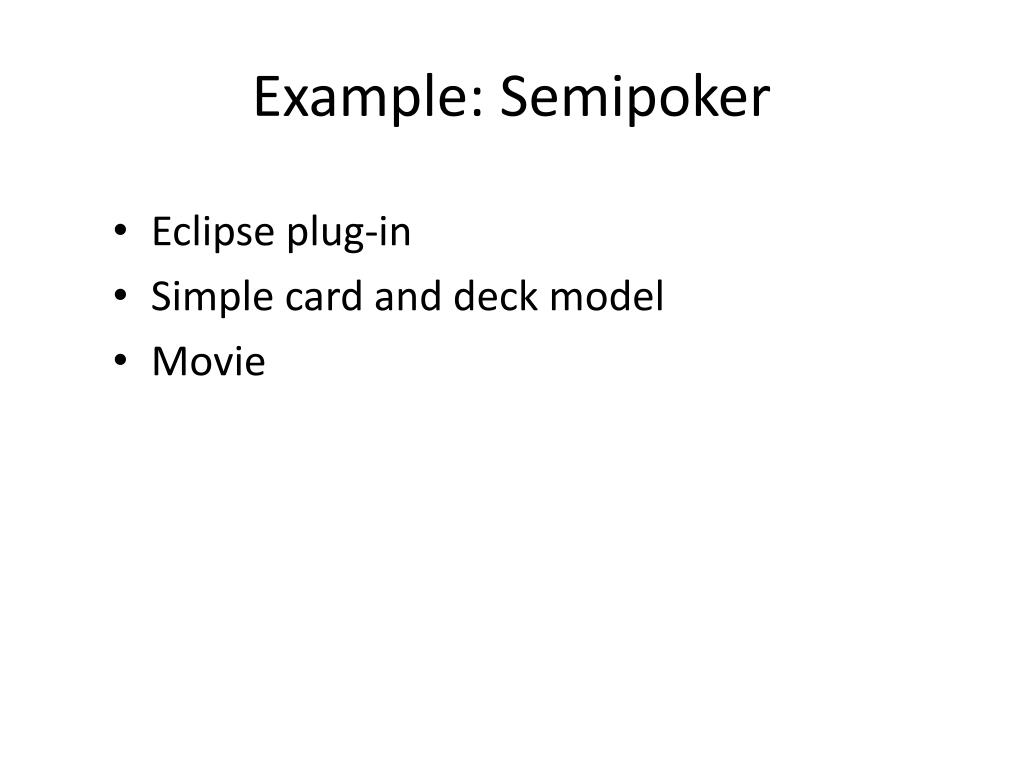

  8. Example: Semipoker • Eclipse plug-in • Simple card and deck model • Movie

  9. Editors all thewaydown (tomorrow?)

  10. Diagrammatic Predicate Framework • Based on Generalized Sketches • Boxes and arrows, configurable appearance and semantics through signatures (no tacked-on constraint language) • Old-time editor (Sketcher 95)

  11. The Future™ • Problems with existing solutions • Sketcher 95 • Sketcher .Net • SSK/GMF solution • Goal of project • Functional editor for DPF • Use model transformations in editor generation
