V i t a l i s. Design Review. Wireless Biometric Sensor. ECE 477 - Spring 2013 TEAM 13. Team Members. Shantanu Joshi / Aakash Lamba / Di Mo / Yi Shen. Paste a photo of team members here, annotated with names of team members . PCB Layout: Overall PCB (3.8 x 3.25). Power Board.
E N D
V i t a l i s Design Review Wireless Biometric Sensor • ECE 477 - Spring 2013 • TEAM 13
Team Members Shantanu Joshi /AakashLamba / Di Mo / Yi Shen Paste a photo of team members here, annotated with names of team members.
PCB Layout: Overall PCB (3.8 x 3.25) Power Board Main Board
PCB Layout: Overall PCB (2.9 x 1.15)(GND Highlighted) Trace Size for 3.3 V, 5 V and GND is 0.032
PCB Layout: Overall PCB (2.9 x 1.15) Decoupling Capacitors (C1,C2) for Power Traces Charger/Booster Power Connect Fuel Gauge 5 V Step Up
PCB Layout: Main PCB (2.8x 3.25)(GND Highlighted) Trace Size: 3.3 V, 5 V and GND - 0.032 Others – 0.012 Hole Size (Diameter): Power - 0.04330709 Others – 0.02362205
PCB Layout: Main PCB (2.8x 3.25) 5 6 8 10 7 9 3 4 Decoupling Capacitors for Micro: C3,C7,C9 (Size:0805) Decoupling Capacitors for VCC/GND: C10 Decoupling Capacitors for Accelerometer : C4 Decoupling Capacitors for OLED : C5,C8 Decoupling Capacitors for Wi-Fi : C6 (Size:1210) *All passive components are surface-mounted

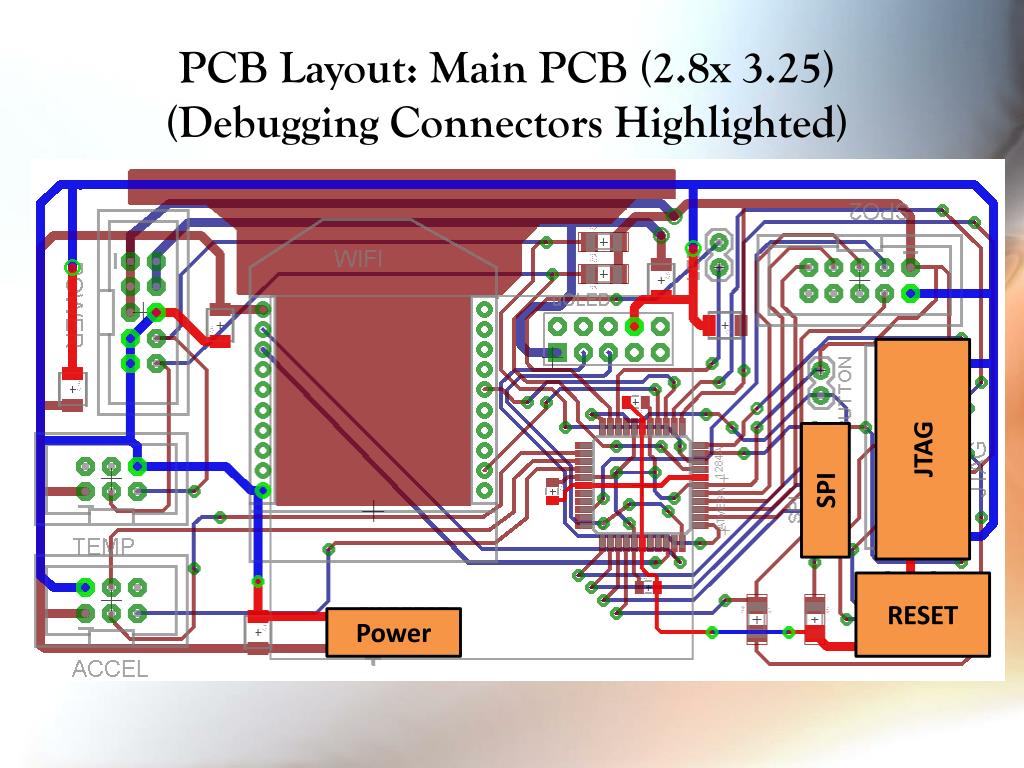

PCB Layout: Main PCB (2.8x 3.25)(Debugging Connectors Highlighted) JTAG SPI RESET Power
PCB Layout: Main PCB (2.8x 3.25)(Sensor Connectors and Others Highlighted) LED SPO2 POWER Wi-Fi OLED BUTTON Temperature Sensor Accelerometer
