Exploring Metric System for Universal Measurement

Dive into the Metric or SI system, covering parameters like mass, volume, length, and temperature. Learn about basic units like kilogram and liter, along with prefixes for easy calculations. Use equivalents to estimate masses and lengths in everyday objects.

mari-west
Télécharger la présentation

Exploring Metric System for Universal Measurement

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Assign # 30 pts. Notes – Systems of Measurement

  2. Notes – Systems of Measurement • Metric or SI system (System de Internationale) • Universal System of Measurement

  3. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass (Weight) 2) Volume 3) Length 4) Temperature

  4. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass (Weight) 2) Volume 3) Length 4) Temperature

  5. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass (Weight) 2) Volume 3) Length 4) Temperature

  6. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass (Weight) 2) Volume 3) Length 4) Temperature

  7. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass – Amount of matter in a substance (Weight) 2) Volume 3) Length 4) Temperature

  8. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass – Amount of matter in a substance (Weight) – Amount of gravitational pull (Force = N) 2) Volume 3) Length 4) Temperature

  9. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass – Amount of matter in a substance (Weight) – Amount of gravitational pull (Force = N) 2) Volume – Amount of space a substance takes up. 3) Length 4) Temperature

  10. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass – Amount of matter in a substance (Weight) – Amount of gravitational pull (Force = N) 2) Volume – Amount of space a substance takes up. 3) Length 4) Temperature

  11. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass – Amount of matter in a substance (Weight) – Amount of gravitational pull (Force = N) 2) Volume – Amount of space a substance takes up. 3) Length 4) Temperature

  12. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass – Amount of matter in a substance (Weight) – Amount of gravitational pull (Force = N) 2) Volume – Amount of space a substance takes up. 3) Length – Distance 4) Temperature

  13. Metric or SI system (System de Internationale) Parameters of measure: 1) Mass – Amount of matter in a substance (Weight) – Amount of gravitational pull (Force = N) 2) Volume – Amount of space a substance takes up. 3) Length – Distance 4) Temperature – How fast particles are moving

  14. Basic Units of Measure 1) Mass = kilogram (kg) (Weight) 2) Volume 3) Length 4) Temperature

  15. Basic Units of Measure 1) Mass = kilogram (kg) (Weight) = Newton (N) 2) Volume 3) Length 4) Temperature

  16. Basic Units of Measure 1) Mass = kilogram (kg) (Weight) = Newton (N) 2) Volume = Liter (L) 3) Length 4) Temperature

  17. Basic Units of Measure 1) Mass = kilogram (kg) (Weight) = Newton (N) 2) Volume = Liter (L) 3) Length = meter (m) 4) Temperature

  18. Basic Units of Measure 1) Mass= kilogram (kg) (Weight) = Newton (N) 2) Volume = Liter (L) 3) Length = meter (m) 4) Temperature = Celsius or Centigrade (oC) (metric) or Kelvin (K) (SI)

  19. Prefixes- Universal precursors • M = mega- • k = kilo- • d = deci- • c = centi- • m = milli-

  20. Prefixes- Universal precursors • M = mega- = x 1 000 000 • MHz • k = kilo- • d = deci- • c = centi- • m = milli-

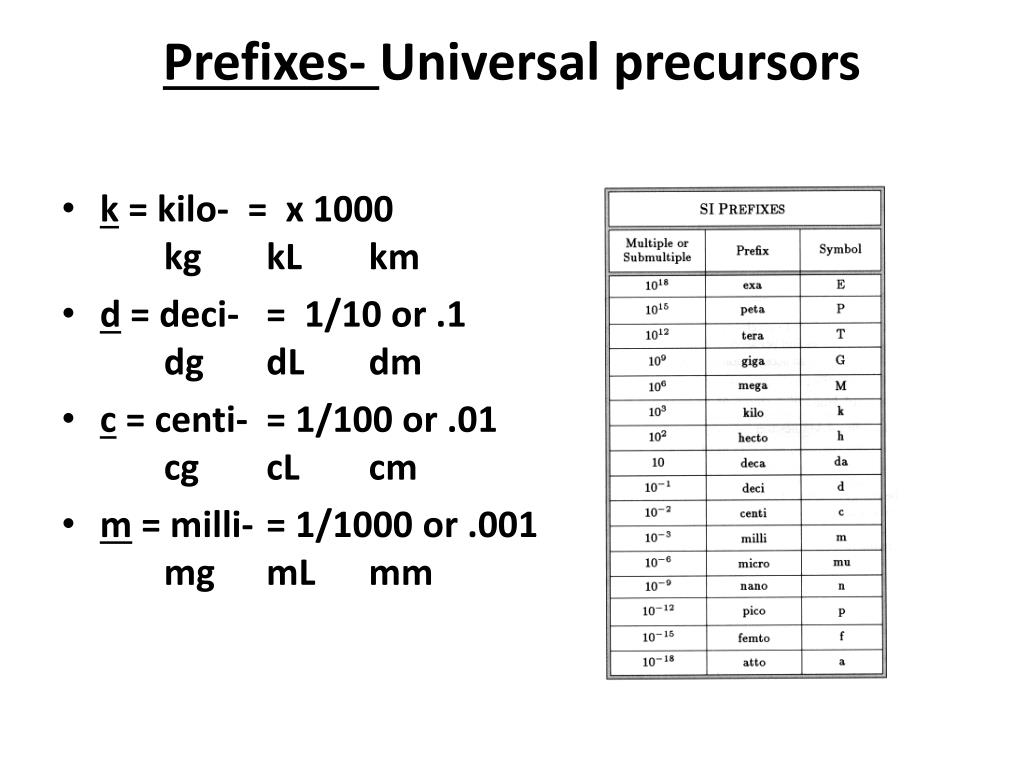

  21. Prefixes- Universal precursors • k = kilo- = x 1000 kg kL km • d = deci- • c = centi- • m = milli-

  22. Prefixes- Universal precursors • k = kilo- = x 1000 kg kL km • d = deci- = 1/10 or .1 dg dL dm • c = centi- • m = milli-

  23. Prefixes- Universal precursors • k = kilo- = x 1000 kg kL km • d = deci- = 1/10 or .1 dg dL dm • c = centi- = 1/100 or .01 cg cL cm • m = milli-

  24. Prefixes- Universal precursors • k = kilo- = x 1000 kg kL km • d = deci- = 1/10 or .1 dg dL dm • c = centi- = 1/100 or .01 cg cL cm • m = milli- = 1/1000 or .001 mg mL mm

  25. Equivalents for Estimation • Mass - 1 gram = 1 raisin

  26. Equivalents for Estimation • Mass - 1 gram = 1 raisin 500 gram = 1 can of soup

  27. Equivalents for Estimation • Mass - 1 gram = 1 raisin 500 gram = 1 can of soup 1 kilogram = 1 pair of shoes

  28. Equivalents for Estimation • Mass - 1 gram = 1 raisin 500 gram = 1 can of soup 1 kilogram = 1 pair of shoes • Length– 1 millimeter = thickness of a dime

  29. Equivalents for Estimation • Mass - 1 gram = 1 raisin 500 gram = 1 can of soup 1 kilogram = 1 pair of shoes • Length– 1 millimeter = thickness of a dime 1 centimeter = width of little finger nail

  30. Equivalents for Estimation • Mass - 1 gram = 1 raisin 500 gram = 1 can of soup 1 kilogram = 1 pair of shoes • Length– 1 millimeter = thickness of a dime 1 centimeter = width of little finger nail 1 meter = 1 golf club

  31. Equivalents for Estimation • Mass - 1 gram = 1 raisin 500 gram = 1 can of soup 1 kilogram = 1 pair of shoes • Length– 1 millimeter = thickness of a dime 1 centimeter = width of little finger nail 1 meter = 1 golf club 1 kilometer = 5 city blocks 5 city blocks

  32. Equivalents for Estimation • Mass - 1 gram = 1 raisin 500 gram = 1 can of soup 1 kilogram = 1 pair of shoes • Length– 1 millimeter = thickness of a dime 1 centimeter = width of little finger nail 1 meter = 1 golf club 1 kilometer = 5 city blocks • 10 km = 6.2 miles 100 km = 1000 km = 1 km =

  33. Equivalents for Estimation • Volume – 1 liter = 1 medium milk carton (quart)

  34. Equivalents for Estimation • Volume – 1 liter = 1 medium milk carton (quart) 1 milliliter = contents of one eyedropper (15 drops)

  35. Equivalents for Estimation • Volume – 1 liter = 1 medium milk carton (quart) 1 milliliter = contents of one eyedropper (15 drops) 5 milliliters = 1 teaspoon

  36. Equivalents for Estimation • Volume – 1 liter = 1 medium milk carton (quart) 1 milliliter = contents of one eyedropper (15 drops) 5 milliliters = 1 teaspoon 1 mL = 1 cubic centimeter (cc or cm3)

  37. Equivalents for Estimation • Volume – 1 mL = 1 cubic centimeter (cc or cm3) 1 L = 1000 cm3

  38. Equivalents for Estimation • Volume – 1 mL = 1 cubic centimeter (cc or cm3) 1 L = 1000 cm3 1 gram of water = 1 cc = 1 mL

  39. Equivalents for Estimation • Volume – 1 mL = 1 cubic centimeter (cc or cm3) 1 L = 1000 cm3 1 gram of water = 1 cc = 1 mL 1 L = 1000 g or 1 kg water

  40. Equivalents for Estimation • Boiling water = 100 oC or 212 oF • Freezing water = 0 oC or 32 oF • Temperature oC Science   Room temperature = 20-25 oC or 70-75 oF •  SI Kelvin = -273.15 oC = 0 K • Coldest possible temperature = Absolutezero

  41. Scientific Notation • For displaying very large and very small numbers. • All numbers changed to 2-3 digit power of 10. 1,000,000 = 1 x 106 • 1,000 = 1 x 10? • .0000000001 = 1 x 10?

  42. Scientific Notation • For displaying very large and very small numbers. • All numbers changed to 2-3 digit power of 10. 1,000,000 = 1 x 106 • 1,000 = 1 x 103 • .0000000001 = 1 x 10-10

  43. Scientific Notation • When multiplying with scientific notation, you add the exponents • 1,000,000 x 1,000 • 1 x 106 x 1 x 103 = • 1x 109 • When dividing with scientific notation, you subtract the exponents

  44. Converting to Scientific Notation • 1) Numbers are changed to 1- 3 significant digits and a number from 1 to 9 • 2) Uses powers of 10 with exponents to denote power • 3) Moving decimal to the left increases the exponent number. Moving to the right decreases the number • 12,345 = • 100 = 10-1 = • 101 = 10-2 = • 102 = 10-3= • 10,000 = 1 x 10? • .0001 = 1 x 10?

  45. Converting to Scientific Notation • 1) Numbers are changed to 1-3 significant digits and a number from 1 to 9 • 2) Uses powers of 10 with exponents to denote power • 3) Moving decimal to the left increases the exponent number. Moving to the right decreases the number • 12,345 = 12,300 • 100 = 1 10-1 = 1/10 or .1 • 101 = 10 10-2 =1/100 or .01 • 102 = 100 10-3= 1/1000 or .001 • 10,000 = 1 x 104 • .0001 = 1 x 10-4

  46. Converting to Standard Notation • 1) For positive exponents move the decimal to the right the number of exponents • 2) For negative exponents move the decimal to the left the number of exponents • 3.46 x 104 = • 1.23 x 10-5 =

  47. Converting to Standard Notation • 1) For positive exponents move the decimal to the right the number of exponents • 2) For negative exponents move the decimal to the left the number of exponents • 3.46 x 104 = 3.46 • 1.23 x 10-5 = 1.23

  48. Scientific Notation • When multiplying with scientific notation, you add the exponents • 1,000,000 x 1,000 • 1 x 106 x 1 x 103 = • 1x 109 • When dividing with scientific notation, you subtract the exponents • 1 x 106 =106-3 = 1 x 103 • 1 x 103

  49. Dimensional analysis • The method of treating units as algebraic quantities that can be cancelled. • Units or factor conversions are multiplied till correct units are displayed • Unit conversions = 1 • - 1 = 1000 mL 1 L • Convert 2 years to seconds 2 yx__dx __hrx __minx __s 1 y d hr min

  50. Dimensional analysis • The method of treating units as algebraic quantities that can be cancelled. • Units or factor conversions are multiplied till correct units are displayed • Unit conversions = 1 • - 1 = 1000 mL 1 L • Convert 2 years to seconds 2 yx 365 d x24 hrx60 minx60 _s 1 1 y 1 d 1 hr min Convert 2 kg to g :
