  1. Benoit Donnet joint work with Philippe Raoult, Timur Friedman and Mark Crovella Sigmetrics 2005 – Banff (Canada) Efficient Algorithms for Large-ScaleTopology Discovery

  2. Context • Network measurement • Internet topology discovery using distributed traceroute monitors • IP interface level • Existing tools: • Skitter (CAIDA) • TTM (RIPE NCC) • AMP (NLANR) • DIMES (Tel Aviv U.)

  3. Scaling Problem • More monitors means more load on • network resources • destinations • Classical approaches either • stay small (skitter, TTM, AMP) • trace slowly (DIMES) • Can we trace more efficiently?

  4. Contributions • Quantification of scaling problems • Intra-monitor redundancy • Inter-monitor redundancy • Efficient cooperative topology discovery algorithm • Doubletree

  5. Intra-monitor Redundancy (1)

  6. Intra-monitor Redundancy (2)

  7. Inter-monitor Redundancy (1)

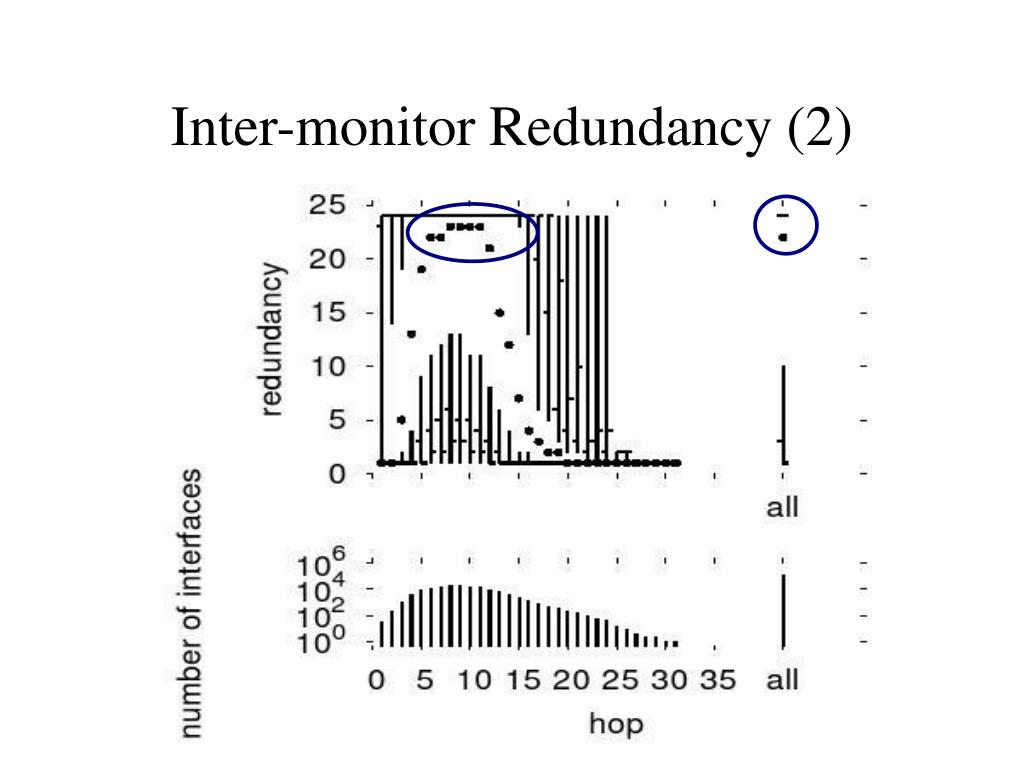

  8. Inter-monitor Redundancy (2)

  9. Doubletree: Tree-like Structure of Routes • Both redundancy (i.e. inter and intra) suggest two different probing schemes • They are based on the tree-like structure of routes • Intra-monitor • monitor-rooted tree (first suggested by Govindan et al.) • Inter-monitor • destination-rooted tree

  10. Doubletree: Monitor-rooted Tree

  11. Doubletree: Destination-rooted Tree

  12. Doubletree: Reconciliation • Backward and forward probing are opposite schemes • How can we reconciliate them? • Starts probing at some hop h • First, performing forward probing from h • Second, performing backward probing from h-1

  13. Doubletree: Stop Sets • Not necessary to maintain the whole tree structure. • Each monitor uses stop sets: {(interface, root)} • Local Stop Set B: {interface} • Backward probing • Global Stop Set F: {(interface, destination)} • Forward probing • Shared between monitors

  14. Doubletree: Results (1)Intra-Monitor Doubletree skitter

  15. Doubletree: Results (2)Inter-Monitor Doubletree skitter

  16. Conclusion • We point out redundancy in classical topology discovery approaches using two metrics: • Intra-monitor redundancy • Inter-monitor redundancy • Based on these metrics, we define the Doubletree algorithm: • Measurement load reduction up to 76% • Interface and link coverage above 90%
