Understanding Adversarial Search in Game Playing: Minimax and Alpha-Beta Pruning

DESCRIPTION

This paper reviews adversarial search strategies in game playing with a focus on the Minimax algorithm. It details how players can assume optimal moves using a tree structure to evaluate game outcomes, demonstrating concepts with a checkers example. Key topics include depth-first search for optimal strategies, utility functions for game states, and the incorporation of heuristic evaluations to enhance search efficiency through techniques like Alpha-Beta pruning. The material aims to provide a comprehensive understanding of game AI development.

1 / 23

Télécharger la présentation

Understanding Adversarial Search in Game Playing: Minimax and Alpha-Beta Pruning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Adversarial Search: Game Playing Reading: Chess paper

  2. Agenda • Review of game-playing approaches • A how-to example: Checkers • Your homework

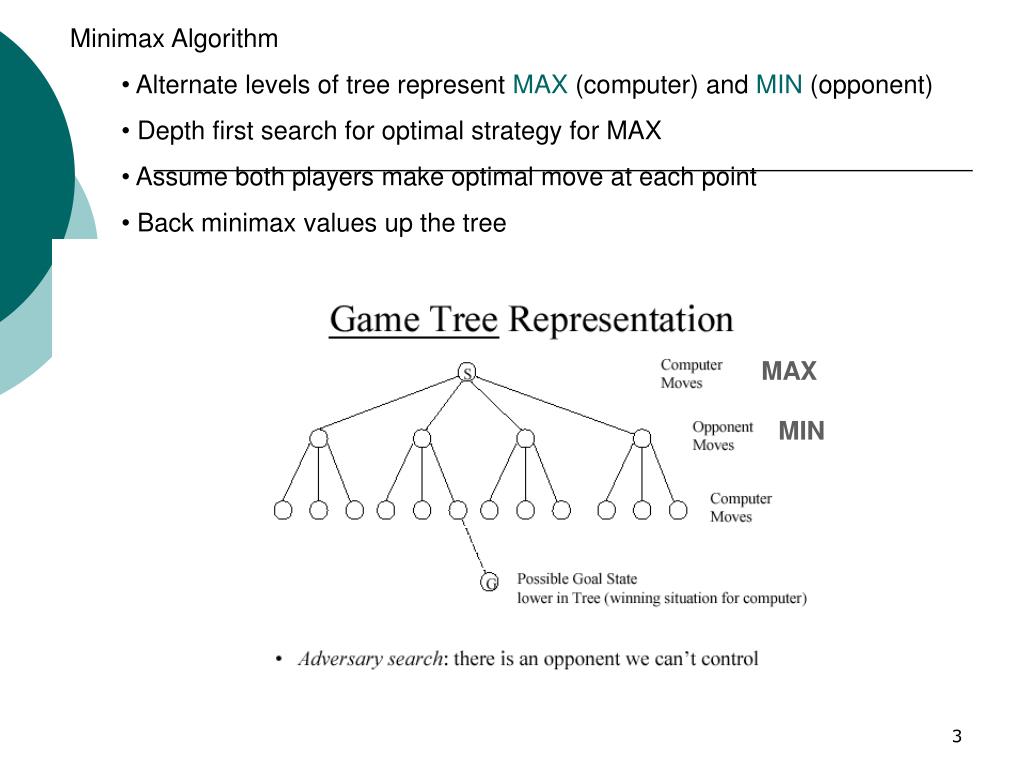

  3. Minimax Algorithm • Alternate levels of tree represent MAX (computer) and MIN (opponent) • Depth first search for optimal strategy for MAX • Assume both players make optimal move at each point • Back minimax values up the tree MAX MIN

  4. Search Formulation • States: board configurations • Operators (Successor function): legal moves • Goal test: (for max) a terminal state with high utility • Utility function: numeric values for final states. E.g., win, loss, draw with values 1, -1, 0

  5. MAX MIN -1

  6. MAX MIN -1 -1

  7. MAX MIN -1 -1 -1

  8. MAX MIN -1 -1 -1 1

  9. MAX MIN -1 1 1 -1 1 -1 1

  10. MAX MIN -1 1 1 -1 1 -1 1

  11. Move: A turn by P1 and response by P2 Ply: A level in the tree corresponding to a single turn Ply is used to specify how deep a program searches

  12. Which values are necessary? X X

  13.  value is a lower-bound on the actual value of a MAX node •  value is an upper-bound on actual value of a MIN node  ≥ 3  ≤ 3

  14.  ≥ 3  > β so no need to look further  ≤ 3  ≤ 2

  15. Pruning Methods • Alpha-Beta pruning • Heuristic evaluation functions • Evaluate a board state to produce an estimate of the utility at end game • Order nodes by evaluation function results

  16. Heuristics: evaluation functions • Bound the depth of search, and use an evaluation function to estimate value of current board configurations • E.g., Othello: #white pieces - #black pieces • E.g., Chess: Value of all white pieces – Value of all black pieces • Typical values from –infinity (lost) to +infinity (won) or [-1,+1]  turn non-terminal nodes into terminal leaves And, - pruning continues to apply -> Use expert knowledge and/or machine learning

  17. Building a program to play checkers • Play the game: http://www.darkfish.com/checkers/Checkers.html • What are good strategies? http://dqsoft.com/checkerstips.html

  18. The α-β algorithm

  19. Suppose • We want to add in heuristic evaluation function • We want to specify how many ply the program will search • We want to make it specific to checkers • We want to order expansion of nodes by evaluation function
