Fiber Patchcord

Fiber Patchcord. LC Multimode Patchcord. LC-LC Duplex 2.0/3.0 mm LC-LC simplex 2.0/3.0 mm LC-LC simplex 0.9 mm Spec. : Insertion Loss≦0.3 dB. LC Singlemode Patchcord. LC-LC Duplex 2.0/3.0 mm LC-LC simplex 2.0/3.0 mm LC-LC simplex 0.9 mm LC-LC simplex 2.0/3.0 mm APC

marion
Télécharger la présentation

Fiber Patchcord

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Fiber Patchcord

  2. LC Multimode Patchcord • LC-LC Duplex 2.0/3.0 mm • LC-LC simplex 2.0/3.0 mm • LC-LC simplex 0.9 mm • Spec. : Insertion Loss≦0.3 dB

  3. LC Singlemode Patchcord • LC-LC Duplex 2.0/3.0 mm • LC-LC simplex 2.0/3.0 mm • LC-LC simplex 0.9 mm • LC-LC simplex 2.0/3.0 mm APC • Spec. : Insertion Loss≦0.3 dB Return Loss≧50 dB APC Return Loss≧60 dB

  4. MTRJ Multimode Patchcord • MTRJ-MTRJ Duplex 1.8 mm • Spec. : Insertion Loss≦0.5 dB

  5. SC Multimode Patchcord • SC-SC Duplex 2.0/3.0 mm • SC-SC simplex 2.0/3.0 mm • SC-SC simplex 0.9 mm • Spec. : Insertion Loss≦0.3 dB

  6. SC Singlemode Patchcord • SC-SC Duplex 2.0/3.0 mm • SC-SC simplex 2.0/3.0 mm • SC-SC simplex 0.9 mm • SC-SC simplex 2.0/3.0 mm APC • Spec. : Insertion Loss≦0.3 dB Return Loss≧50 dB APC Return Loss≧60 dB

  7. FC Multimode Patchcord • FC-FC Duplex 2.0/3.0 mm • FC-FC simplex 2.0/3.0 mm • FC-FC simplex 0.9 mm • Spec. : Insertion Loss≦0.3 dB

  8. FC Singlemode Patchcord • FC-FC Duplex 2.0/3.0 mm • FC-FC simplex 2.0/3.0 mm • FC-FC simplex 0.9 mm • FC-FC simplex 2.0/3.0 mm APC • Spec. : Insertion Loss≦0.3 dB Return Loss≧50 dB APC Return Loss≧60 dB

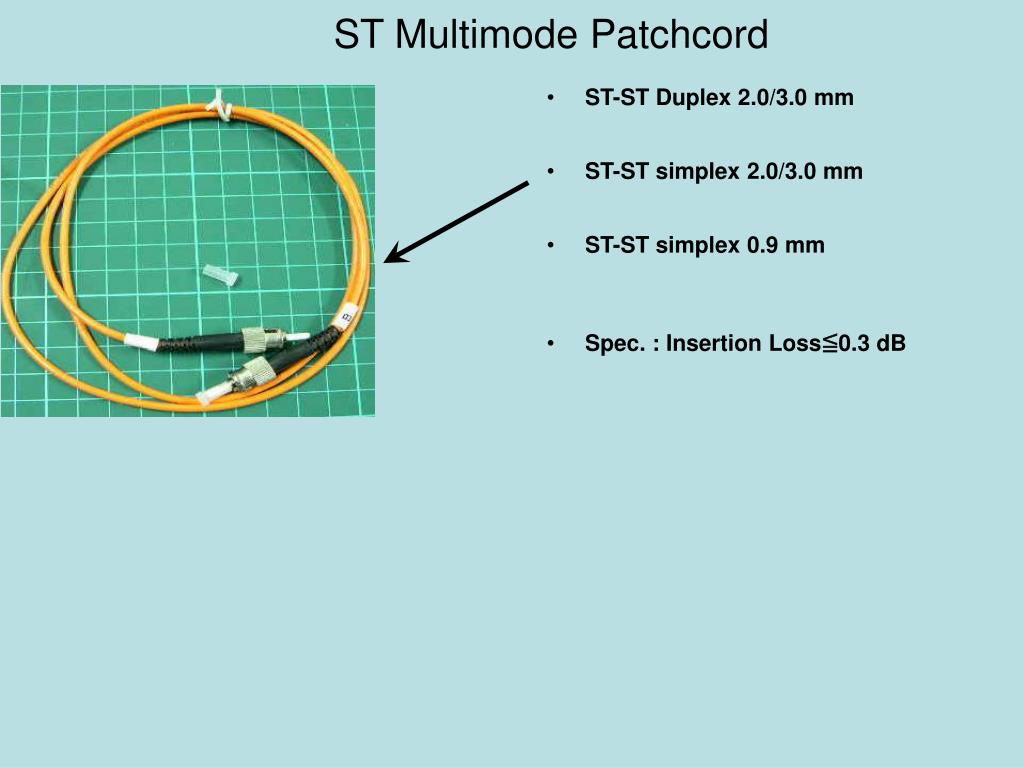

  9. ST Multimode Patchcord • ST-ST Duplex 2.0/3.0 mm • ST-ST simplex 2.0/3.0 mm • ST-ST simplex 0.9 mm • Spec. : Insertion Loss≦0.3 dB

  10. ST Singlemode Patchcord • ST-ST Duplex 2.0/3.0 mm • ST-ST simplex 2.0/3.0 mm • ST-ST simplex 0.9 mm • Spec. : Insertion Loss≦0.3 dB Return Loss≧50 dB
