Fusion Proteins and Mechanisms of Action

Fusion Proteins and Mechanisms of Action. Synaptic vesicle fusion: SNARES and C2 domains Viral Fusion: Class I and Class II Fusion Protiens. Influenza hemagglutinin. 6 helical bundle: target of many inhibitory drugs. HA is class I viral fusion protein.

marlie
Télécharger la présentation

Fusion Proteins and Mechanisms of Action

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

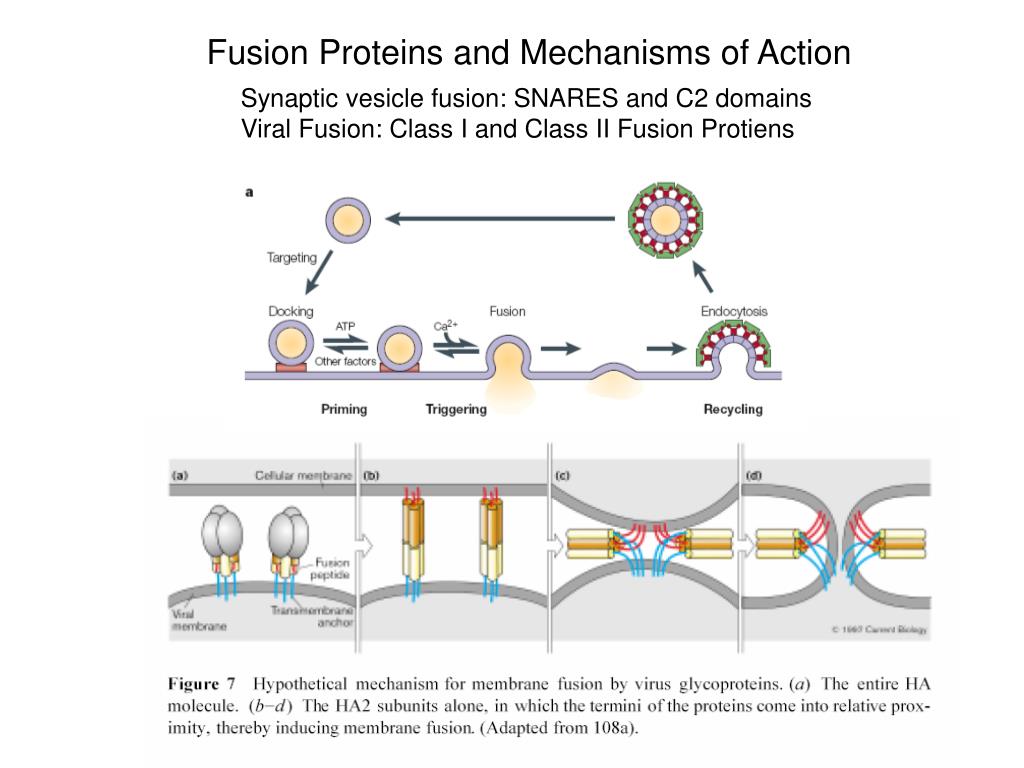

  1. Fusion Proteins and Mechanisms of Action Synaptic vesicle fusion: SNARES and C2 domains Viral Fusion: Class I and Class II Fusion Protiens

  2. Influenza hemagglutinin

  3. 6 helical bundle: target of many inhibitory drugs HA is class I viral fusion protein. HIV, SIV, MoMLV, HTLV, SV5, HRSV and Ebola are also class 1. All have trimeric bundle of helical hairpin with the N and C termini pointing in the same direction (fusion active form – low pH). Note: X-ray of most fusion proteins are non-complete forms, that is the transmembrane segments are removed for aid in crystallization

  4. Class II viral membrane fusion proteins consist of three domains and form dimers on the membrane surface. pH in the endosome is the fusion “trigger”. The dimer changes to trimer. These proteins are mostly beta sheet in secondary structure. The “fusion” peptide is a short loop that protrudes from the tips of the dimerization domain Semliki virus fusion protein
