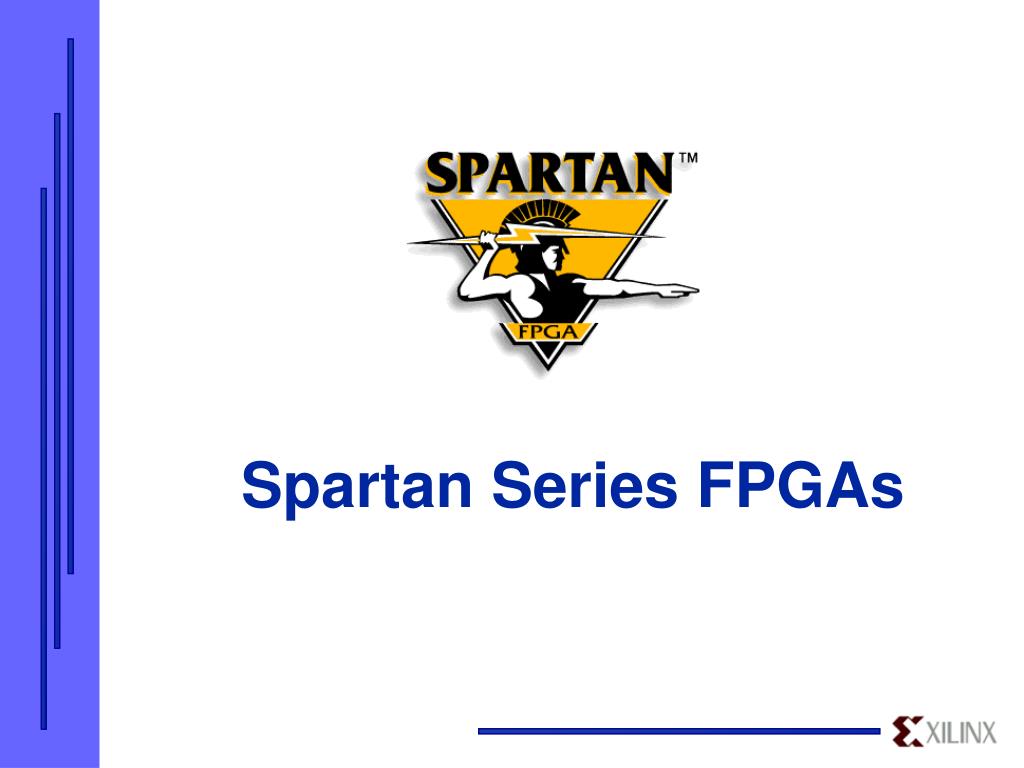

  1. Spartan Series FPGAs

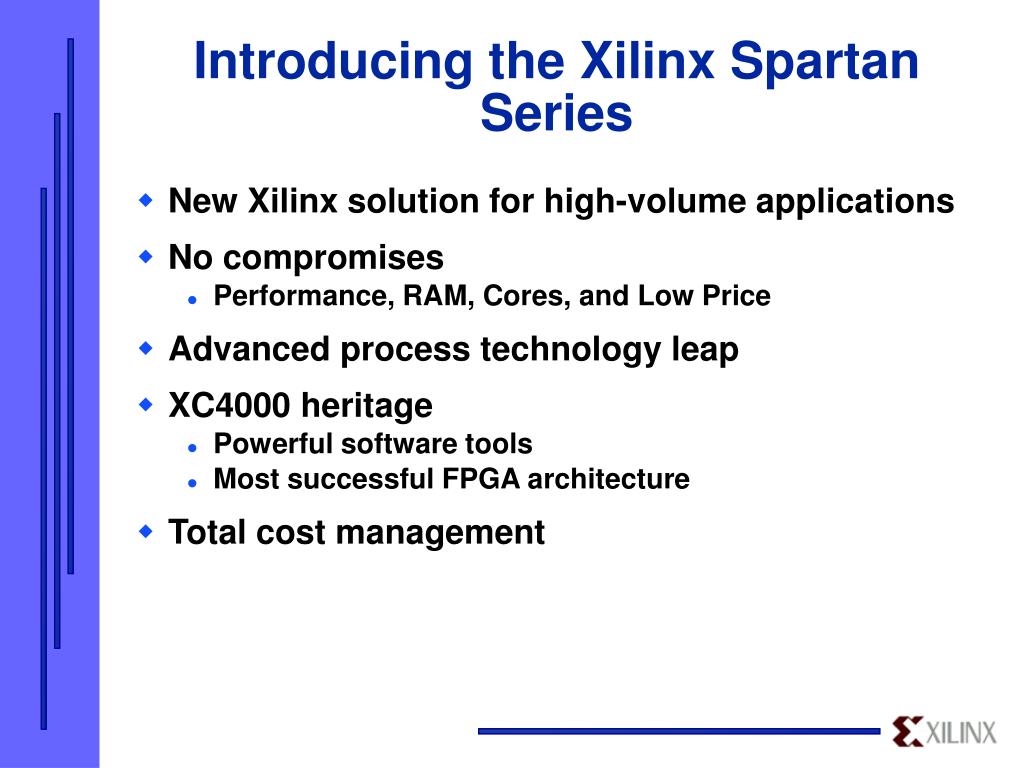

  2. Introducing the Xilinx Spartan Series • New Xilinx solution for high-volume applications • No compromises • Performance, RAM, Cores, and Low Price • Advanced process technology leap • XC4000 heritage • Powerful software tools • Most successful FPGA architecture • Total cost management

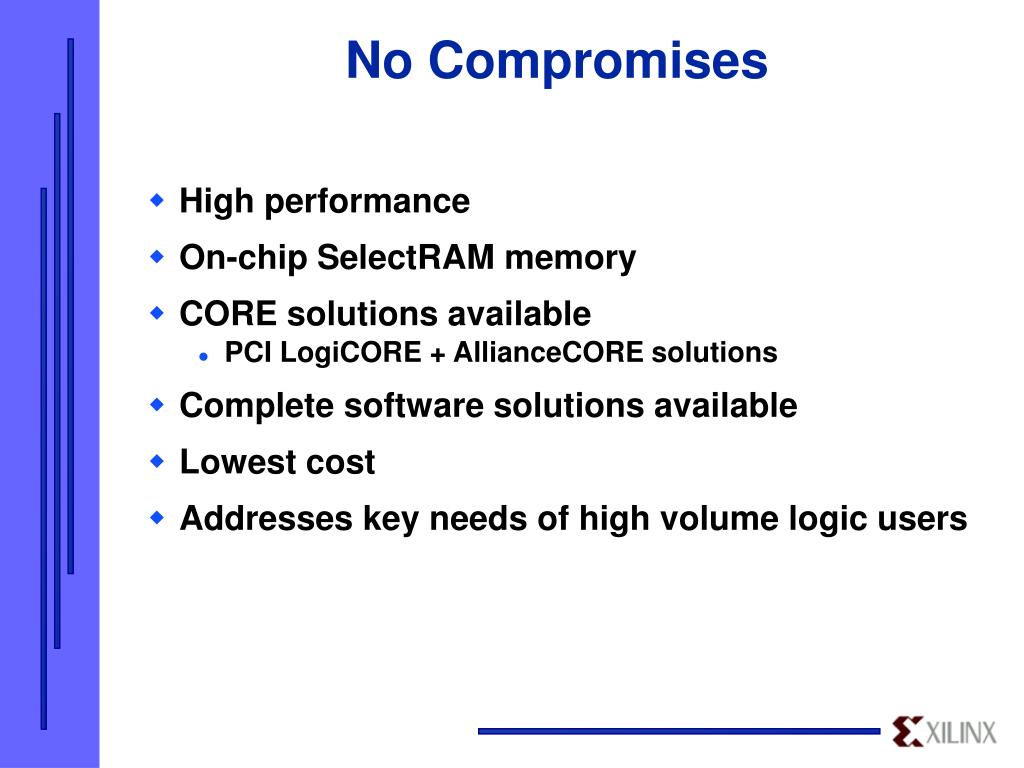

  3. No Compromises • High performance • On-chip SelectRAM memory • CORE solutions available • PCI LogiCORE + AllianceCORE solutions • Complete software solutions available • Lowest cost • Addresses key needs of high volume logic users

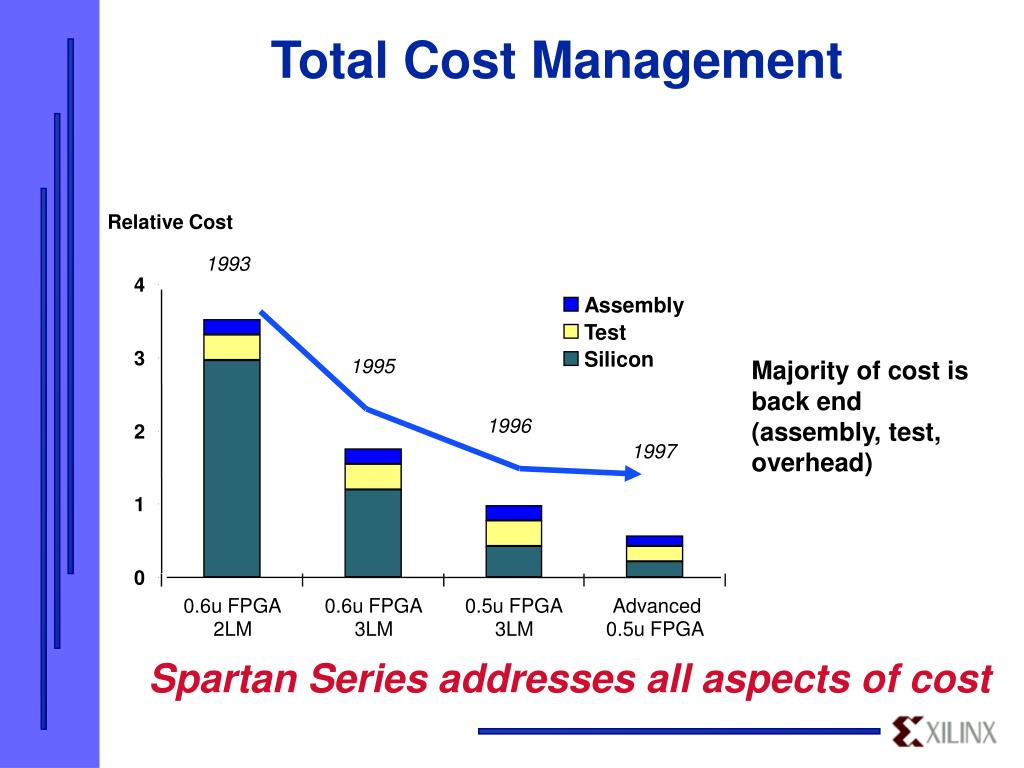

  4. Total Cost Management Relative Cost 1993 4 Assembly Test 3 Silicon 1995 Majority of cost is back end (assembly, test, overhead) 1996 2 1997 1 0 0.6u FPGA 0.6u FPGA 0.5u FPGA Advanced 2LM 3LM 3LM 0.5u FPGA Spartan Series addresses all aspects of cost

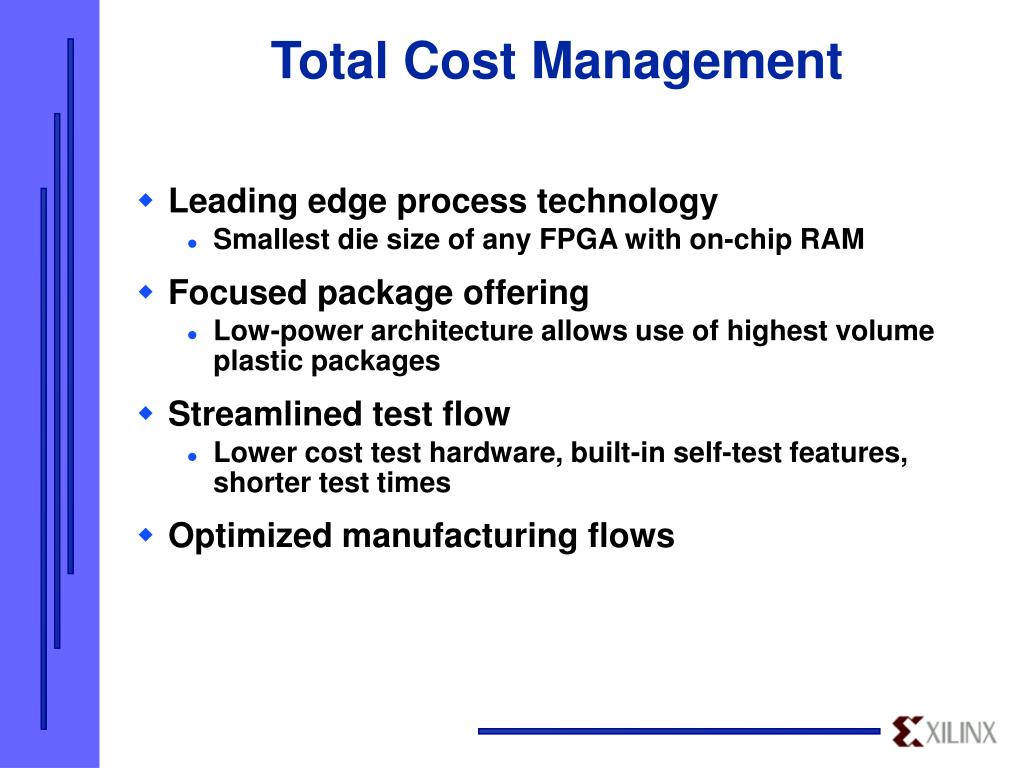

  5. Total Cost Management • Leading edge process technology • Smallest die size of any FPGA with on-chip RAM • Focused package offering • Low-power architecture allows use of highest volume plastic packages • Streamlined test flow • Lower cost test hardware, built-in self-test features, shorter test times • Optimized manufacturing flows

  6. 1997 1998 1999 2000 2001 2002 Priced for High-Volume Leadership 200K • New Applications • Set Top Box • DVD • Digital Camera • PC Peripherals • Consumer Electronics 100K Density (System Gates) 60K 100K 60K 25K 40K 10K Gates/$ in 2002! 15K 100K unit volume price projections

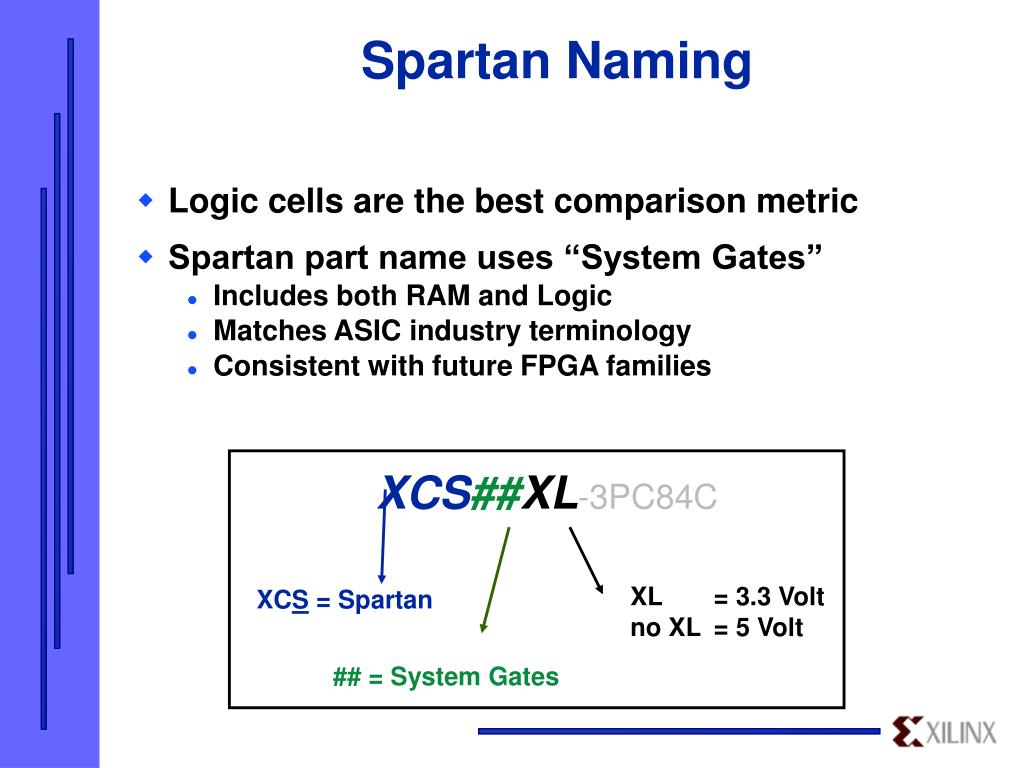

  7. Spartan Naming • Logic cells are the best comparison metric • Spartan part name uses “System Gates” • Includes both RAM and Logic • Matches ASIC industry terminology • Consistent with future FPGA families XCS##XL-3PC84C XL = 3.3 Volt no XL = 5 Volt XCS = Spartan ## = System Gates

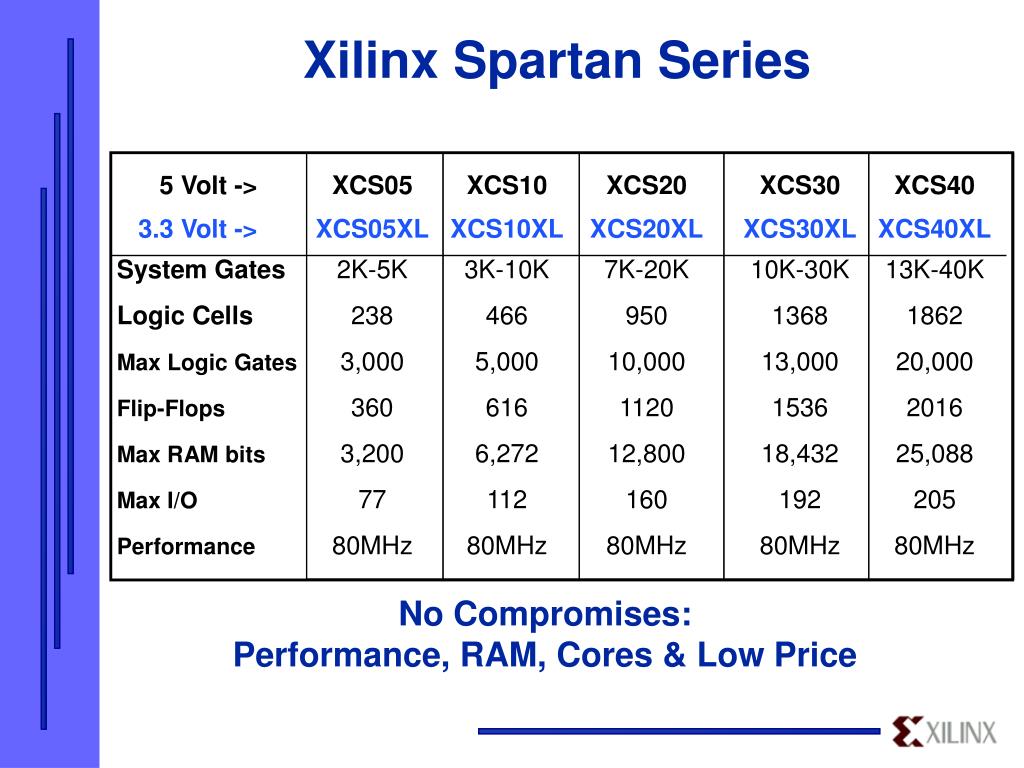

  8. Xilinx Spartan Series 5 Volt -> XCS05 XCS10 XCS20 XCS30 XCS40 3.3 Volt -> XCS05XL XCS10XL XCS20XL XCS30XL XCS40XL System Gates 2K-5K 3K-10K 7K-20K 10K-30K 13K-40K Logic Cells 238 466 950 1368 1862 Max Logic Gates 3,000 5,000 10,000 13,000 20,000 Flip-Flops 360 616 1120 1536 2016 Max RAM bits3,200 6,272 12,800 18,432 25,088 Max I/O 77 112 160 192 205 Performance 80MHz 80MHz 80MHz 80MHz 80MHz No Compromises: Performance, RAM, Cores & Low Price

  9. Spartan Series Footprint Compatibility • Highest volume ASIC plastic packages • Footprint compatible in common packages 5 Volt XCS05 XCS10 XCS20 XCS30 XCS40 3.3 Volt XCS05XL XCS10XL XCS20XL XCS30XL XCS40XL PC84 PC84 VQ100 VQ100 VQ100 VQ100 TQ144 TQ144 TQ144 PQ208 PQ208 PQ208 PQ240 PQ240 BG256 BG256

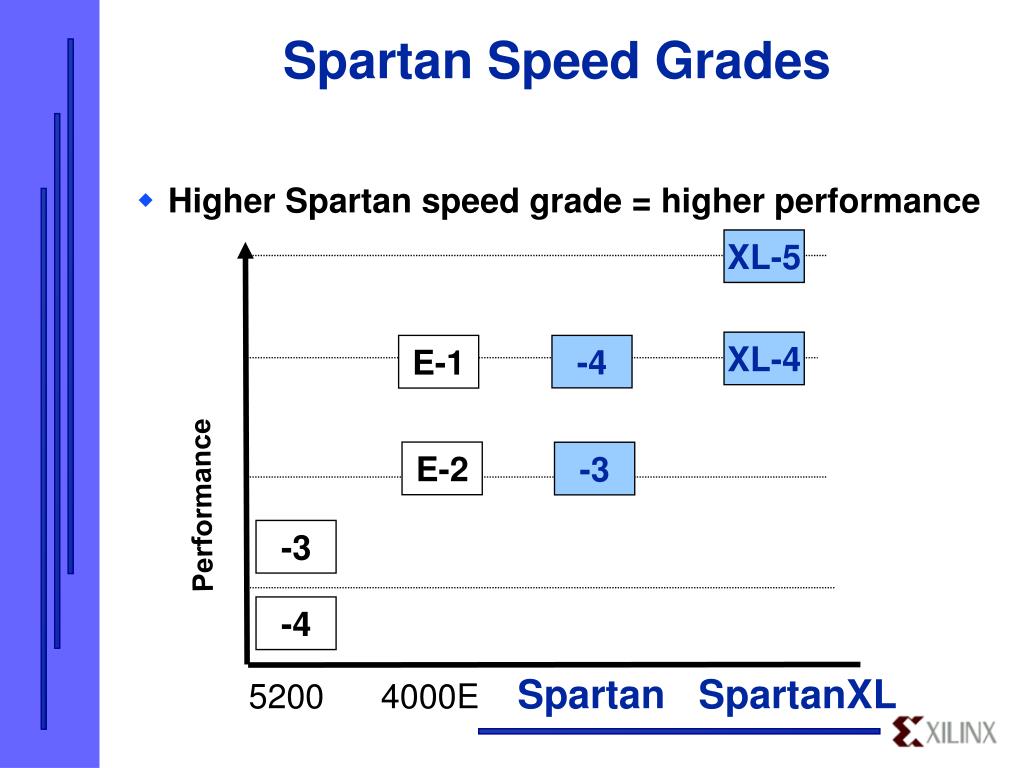

  10. Spartan Speed Grades • Higher Spartan speed grade = higher performance XL-5 XL-4 E-1 -4 E-2 -3 Performance -3 -4 5200 4000E Spartan SpartanXL

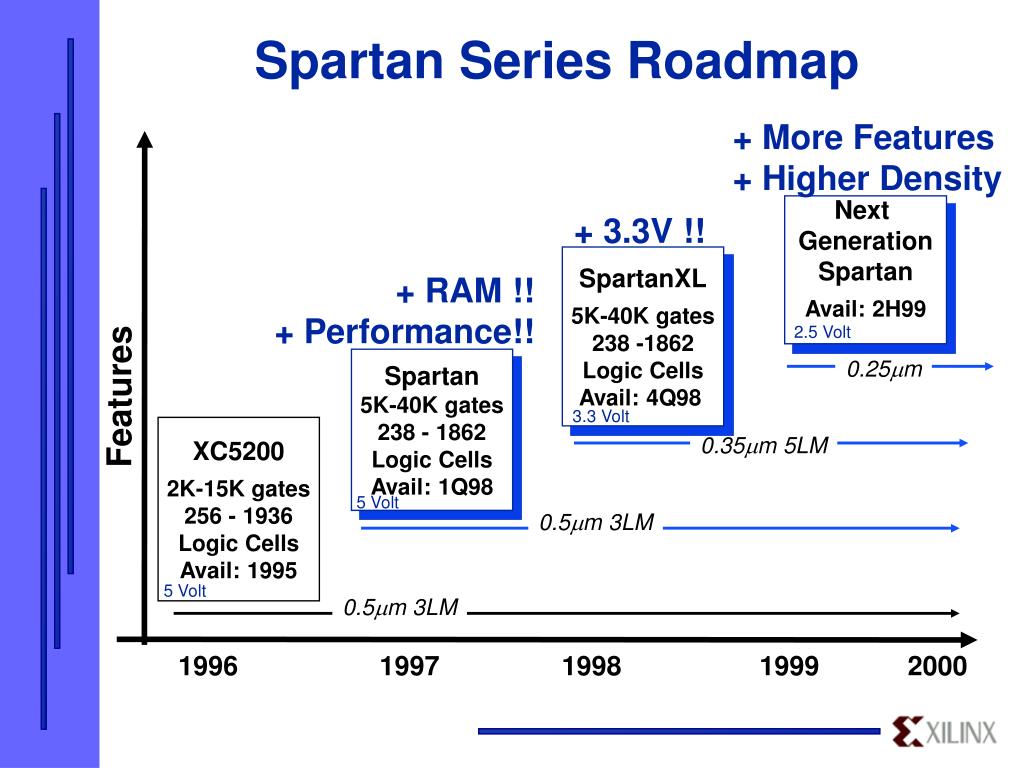

  11. Spartan Series Roadmap + More Features + Higher Density Next Generation Spartan Avail: 2H99 + 3.3V !! SpartanXL 5K-40K gates 238 -1862 Logic Cells Avail: 4Q98 + RAM !! + Performance!! 2.5 Volt Spartan 5K-40K gates 238 - 1862 Logic Cells Avail: 1Q98 0.25m Features 3.3 Volt XC5200 2K-15K gates 256 - 1936 Logic Cells Avail: 1995 0.35m 5LM 5 Volt 0.5m 3LM 5 Volt 0.5m 3LM 1996 1997 1998 1999 2000

  12. SpartanXL Family Availability SpartanXL (3.3V) Production XCS05XL mid-Feb. ‘99 XCS10XL Now XCS20XL Now XCS30XL Now XCS40XL Now SpartanXL -5 speed file available in March SpartanXL software support in Alliance Series 1.5 and Foundation Series 1.5

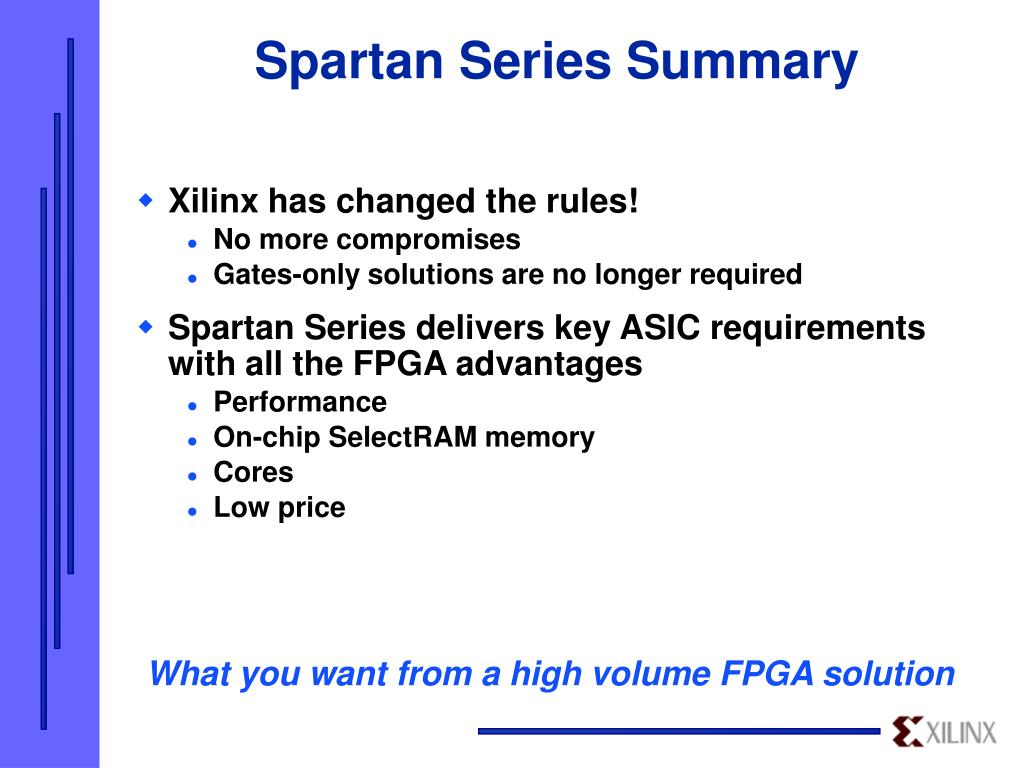

  13. Spartan Series Summary • Xilinx has changed the rules! • No more compromises • Gates-only solutions are no longer required • Spartan Series delivers key ASIC requirements with all the FPGA advantages • Performance • On-chip SelectRAM memory • Cores • Low price What you want from a high volume FPGA solution
