STANDING WAVES

STANDING WAVES. Nodes. Antinodes. The distance between adjacent antinodes is λ /2. The distance between adjacent nodes is λ /2. The distance between a node and an adjacent antinode is λ /4. FIXED ENDS. fundamental/1 st harmonic. 2nd harmonic. Normal modes. 3rd harmonic.

marrim
Télécharger la présentation

STANDING WAVES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

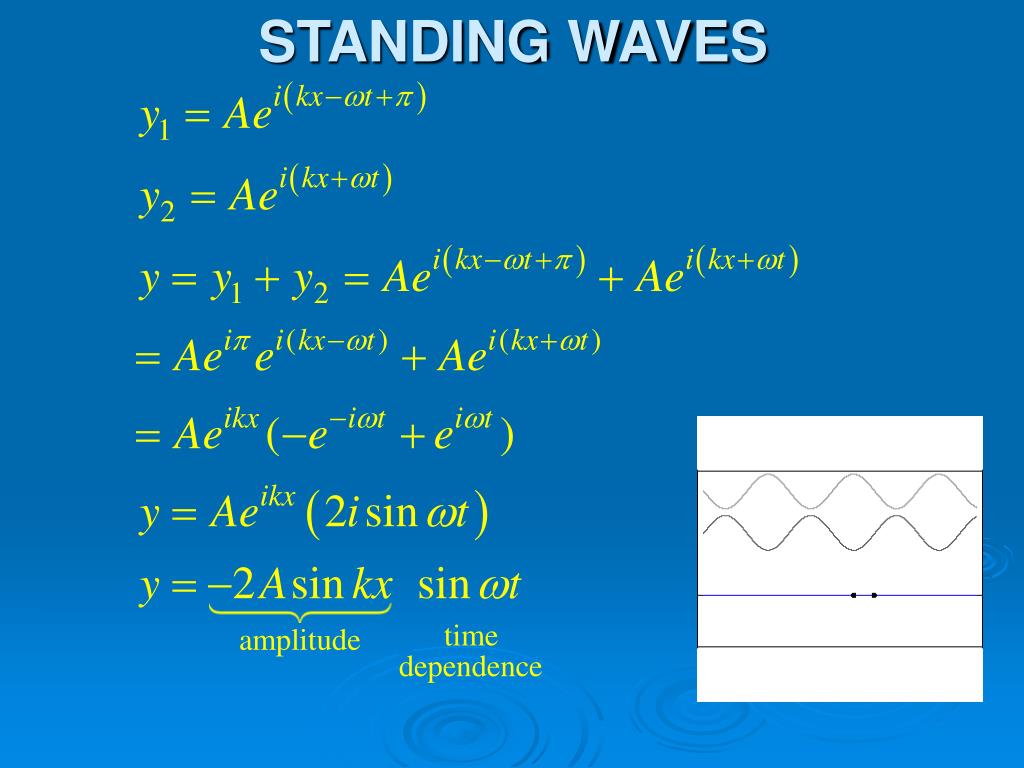

  1. STANDING WAVES

  2. Nodes

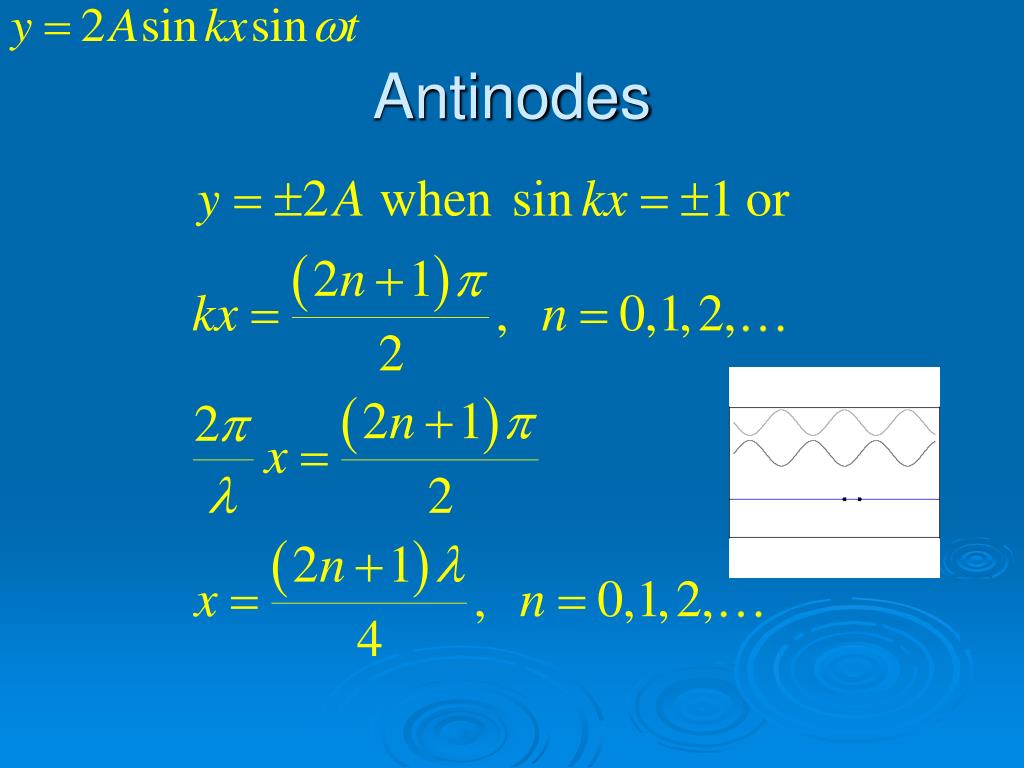

  3. Antinodes

  4. The distance between adjacent antinodes is λ/2. The distance between adjacent nodes is λ/2. The distance between a node and an adjacent antinode is λ/4.

  5. FIXED ENDS fundamental/1st harmonic 2nd harmonic Normal modes 3rd harmonic 4th harmonic

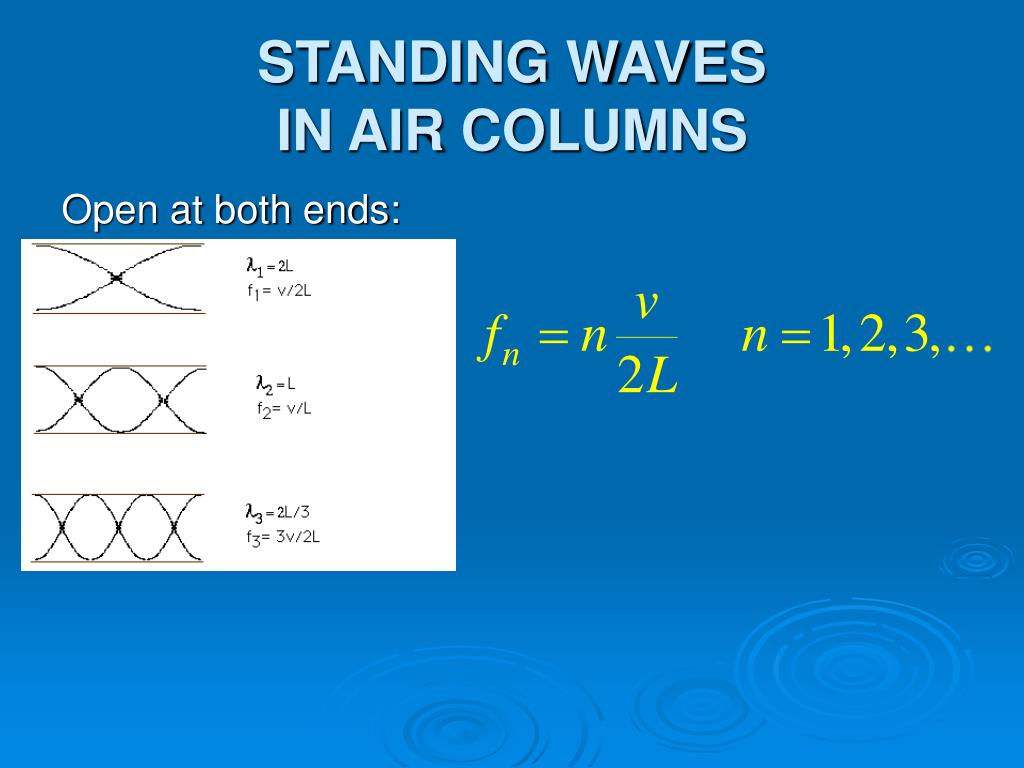

  6. STANDING WAVES IN AIR COLUMNS Open at both ends:

  7. Closed at one end:

  8. Fixed at both ends Open at both ends Fixed at one end – open at the other

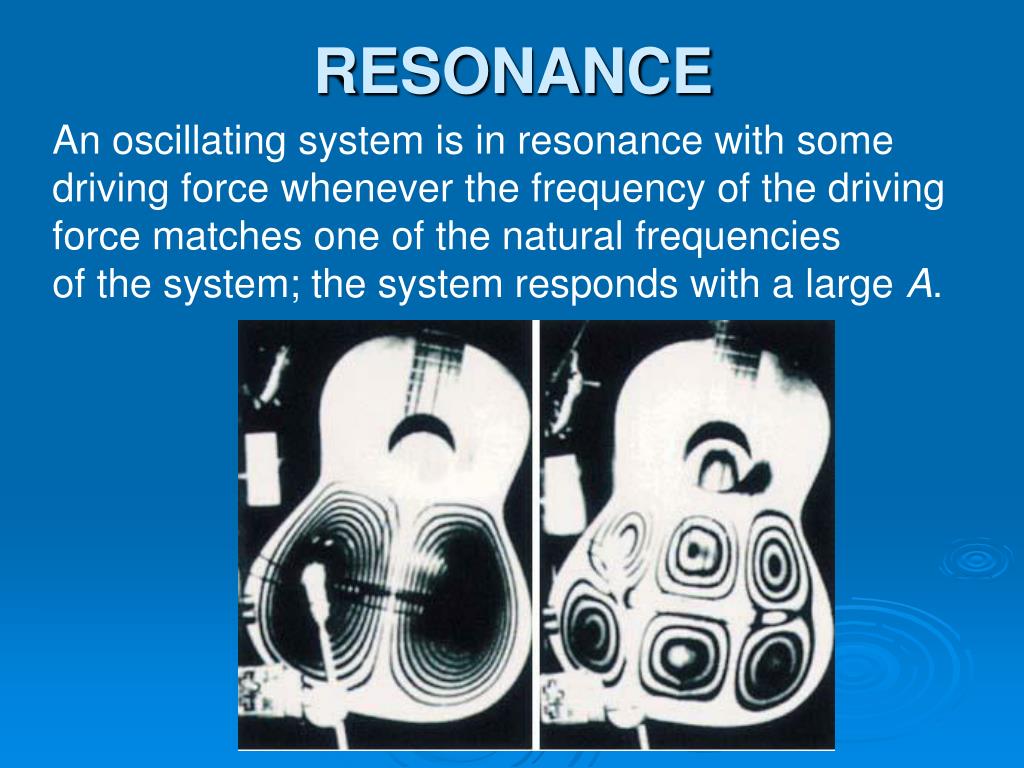

  9. RESONANCE An oscillating system is in resonance with some driving force whenever the frequency of the driving force matches one of the natural frequencies of the system; the system responds with a large A.

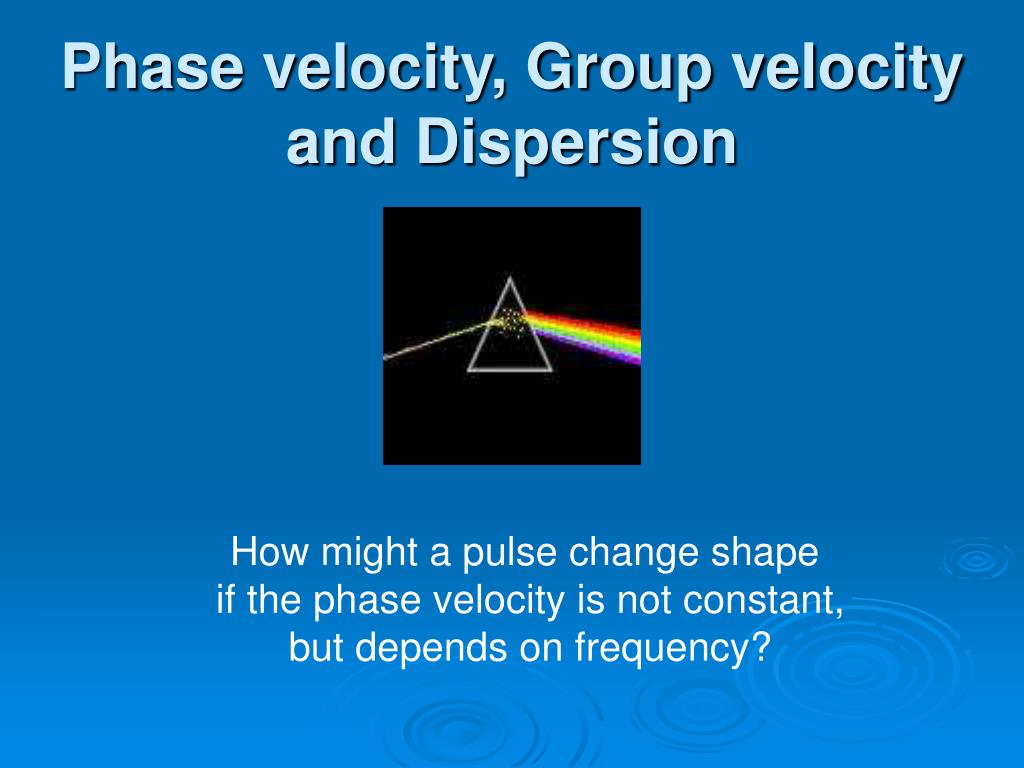

  10. Phase velocity, Group velocity and Dispersion How might a pulse change shape if the phase velocity is not constant, but depends on frequency?

  11. Phase velocity

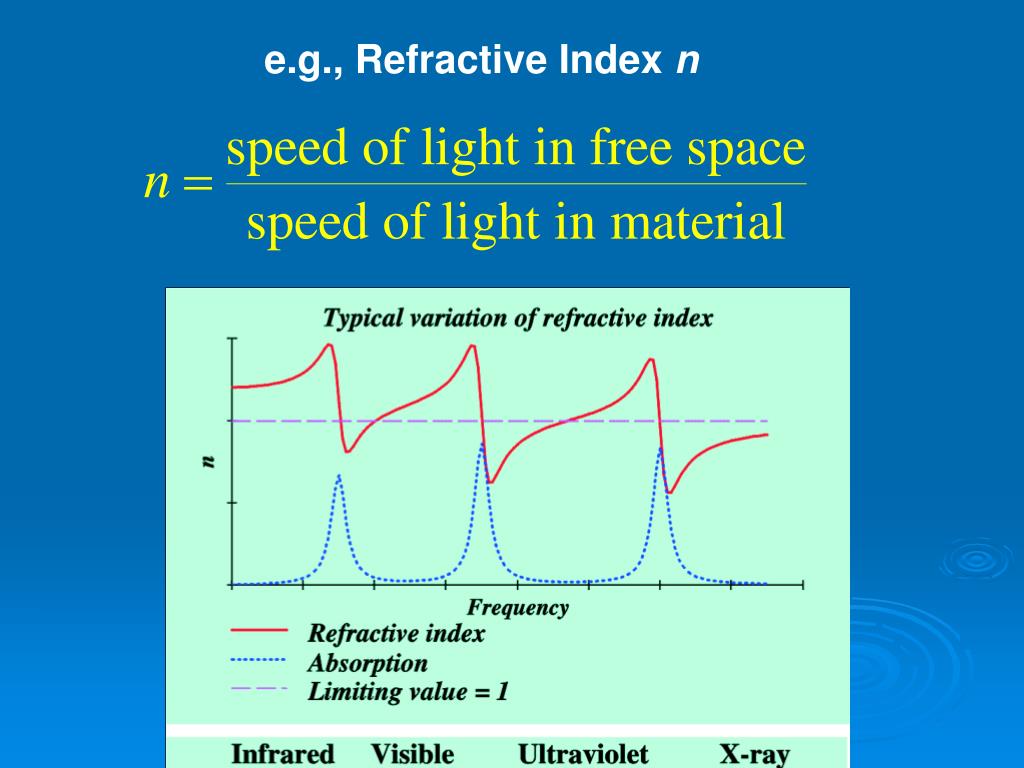

  12. e.g., Refractive Index n
