  1. Welcome to the Today’s 1-Hour Solution: Panasonic® TDA/TDE/NCP System IP Networking via the IP Gateway Card 2008

  2. Panasonic IP Networking Feature Installation Programming Operation Q&A Today’s Agenda

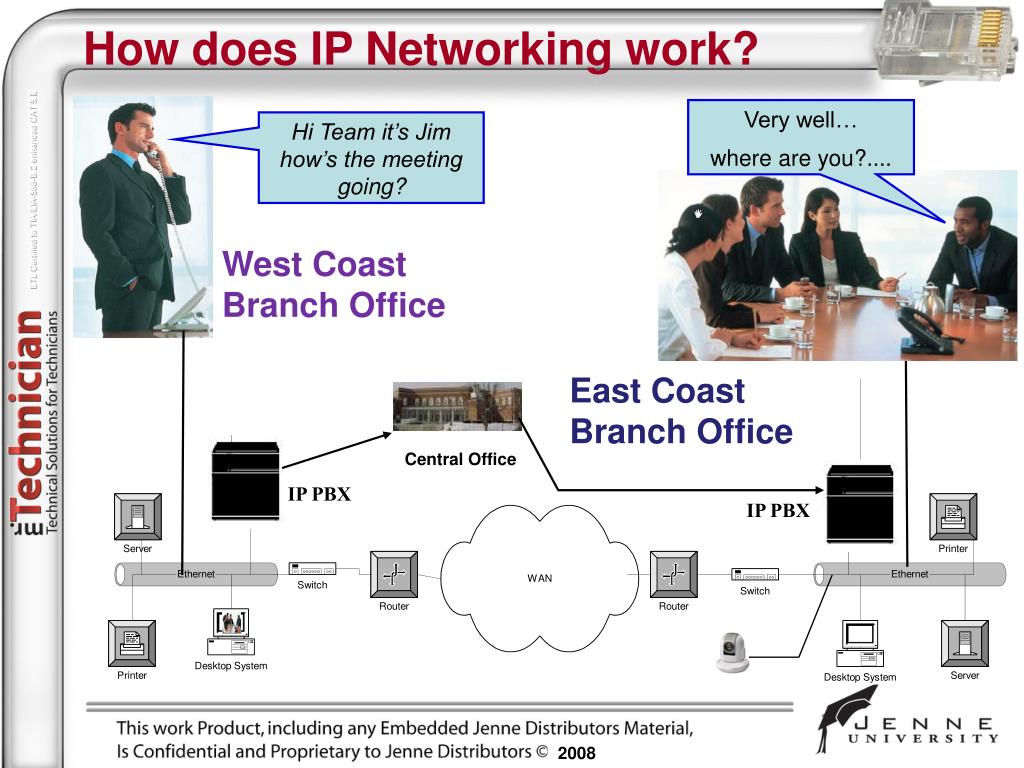

  3. How does IP Networking work? Very well… where are you?.... Hi Team it’s Jim how’s the meeting going? West Coast Branch Office East Coast Branch Office Central Office IP PBX IP PBX

  4. Networking provides… Lower Operational Cost (Centralized Resources) Quicker Response Time (Customer Satisfaction) Automatic Failsafe (Network Failure Redirects to PSTN) Features

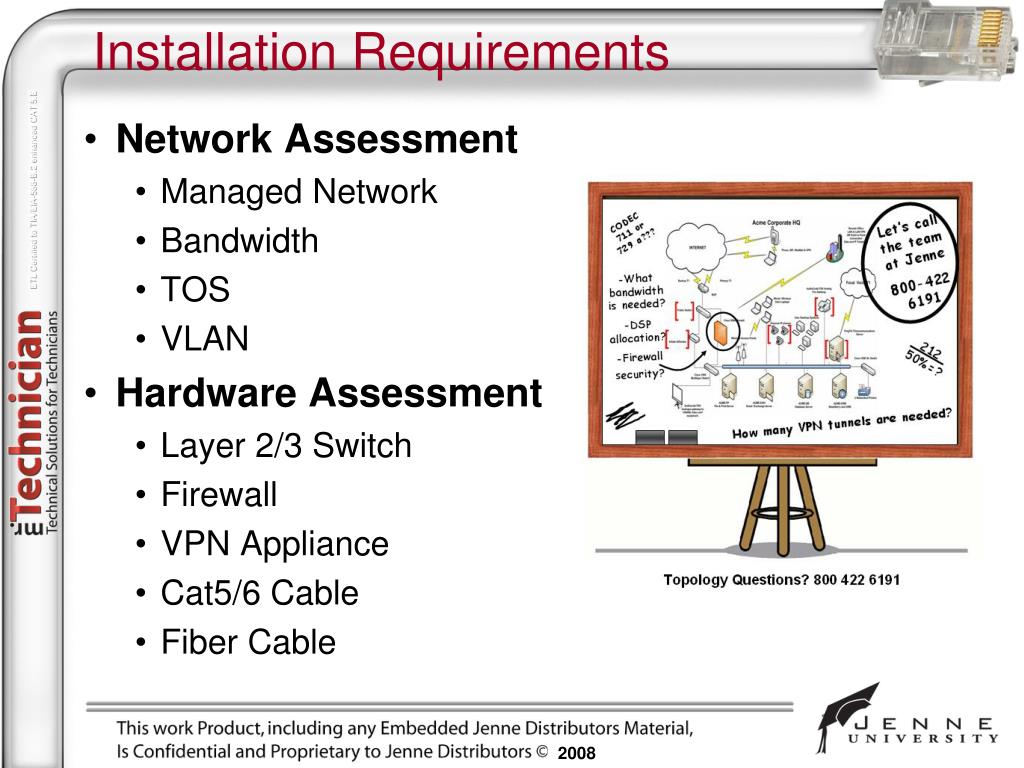

  5. Network Assessment Managed Network Bandwidth TOS VLAN Hardware Assessment Layer 2/3 Switch Firewall VPN Appliance Cat5/6 Cable Fiber Cable Installation Requirements

  6. KX-TDA50 KX-TDA5480 IP-GW4 IP Voice Channels KX-TDA100/200/600 KX-TDA0484 IP-GW4E IP Voice Channels KX-TDA0494 IP-GW16 IP Voice Channels Panasonic Requirements

  7. KX-TDE100/200 KX-TDA0484 IP-GW4E 4 IP Voice Channels KX-TDA0494 IP-GW16 16 IP Voice Channels KX-NCS4102 -2 IP Trunks KX-NCS4104 -4 IP Trunks DSP16 1 x 4 IP Trunk Activation Key DSP64 4 x 4 IP Trunk Activation Key DSP16/64 32 IP Trunks Maximum Panasonic Requirements

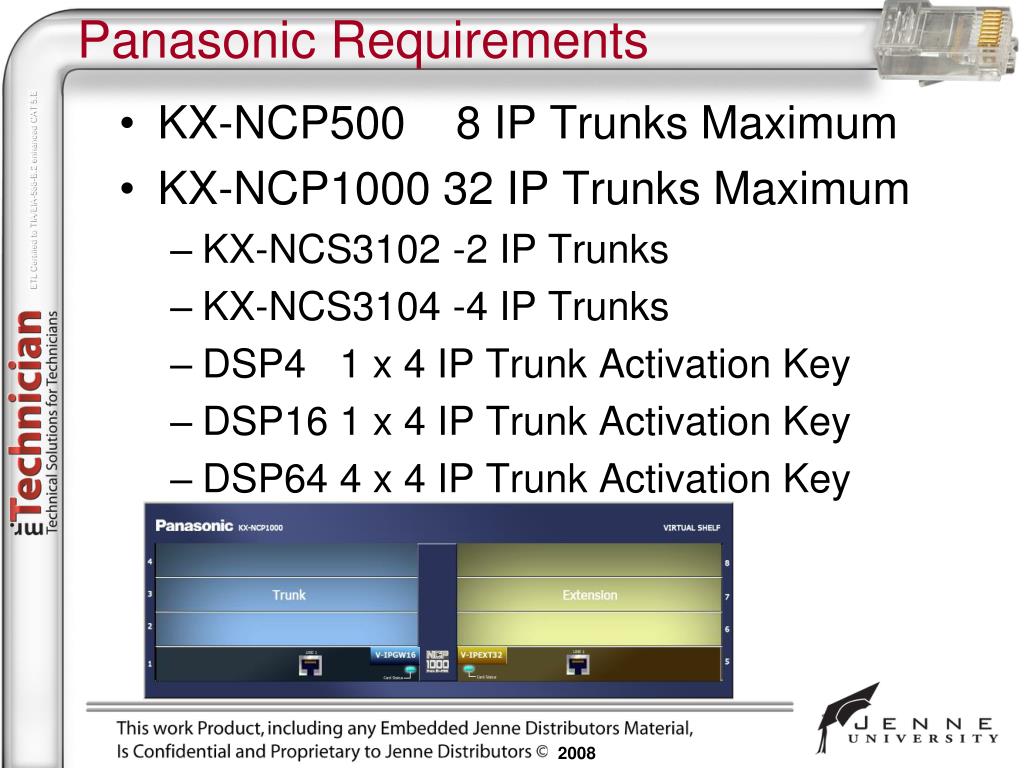

  8. Panasonic Requirements • KX-NCP500 8 IP Trunks Maximum • KX-NCP1000 32 IP Trunks Maximum • KX-NCS3102 -2 IP Trunks • KX-NCS3104 -4 IP Trunks • DSP4 1 x 4 IP Trunk Activation Key • DSP16 1 x 4 IP Trunk Activation Key • DSP64 4 x 4 IP Trunk Activation Key

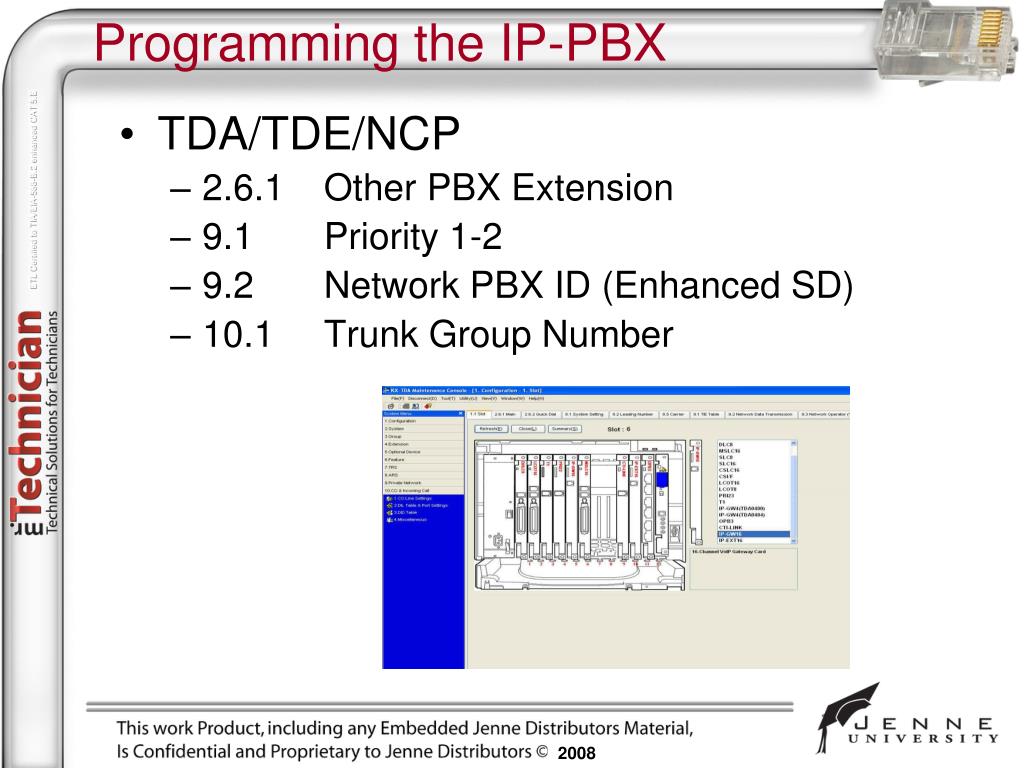

  9. TDA/TDE/NCP 2.6.1 Other PBX Extension 9.1 Priority 1-2 9.2 Network PBX ID (Enhanced SD) 10.1 Trunk Group Number Programming the IP-PBX

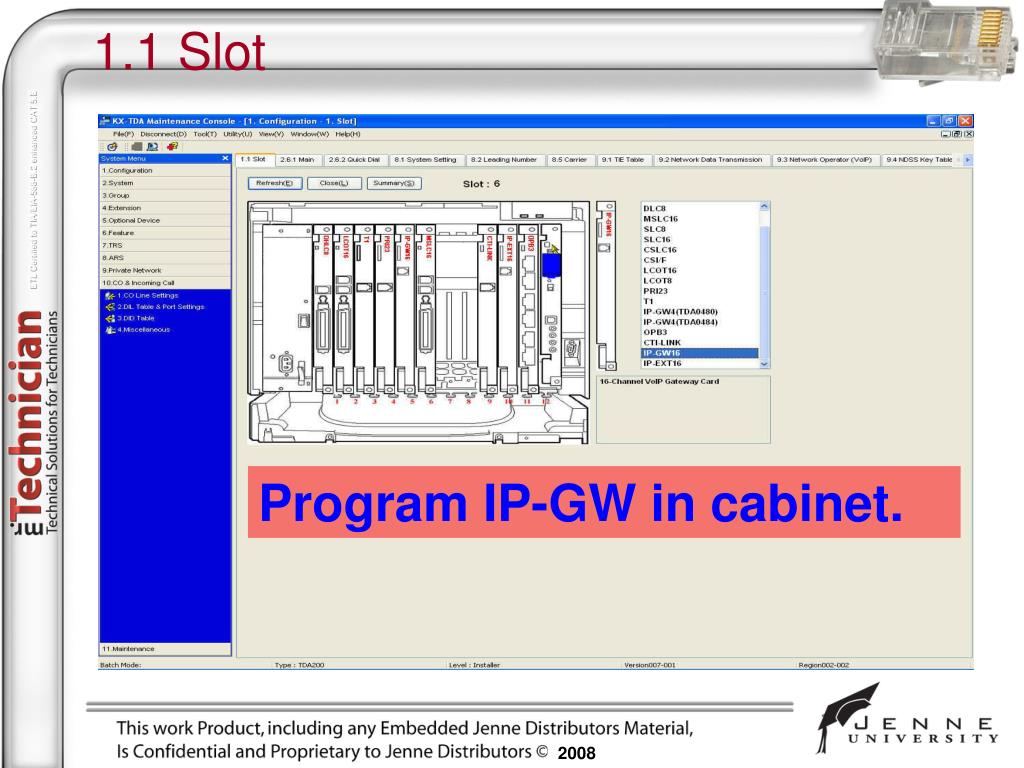

  10. 1.1 Slot Program IP-GW in cabinet.

  11. 2.6.1 Main - Extension Program the Extension Leading Digits of each PBX.

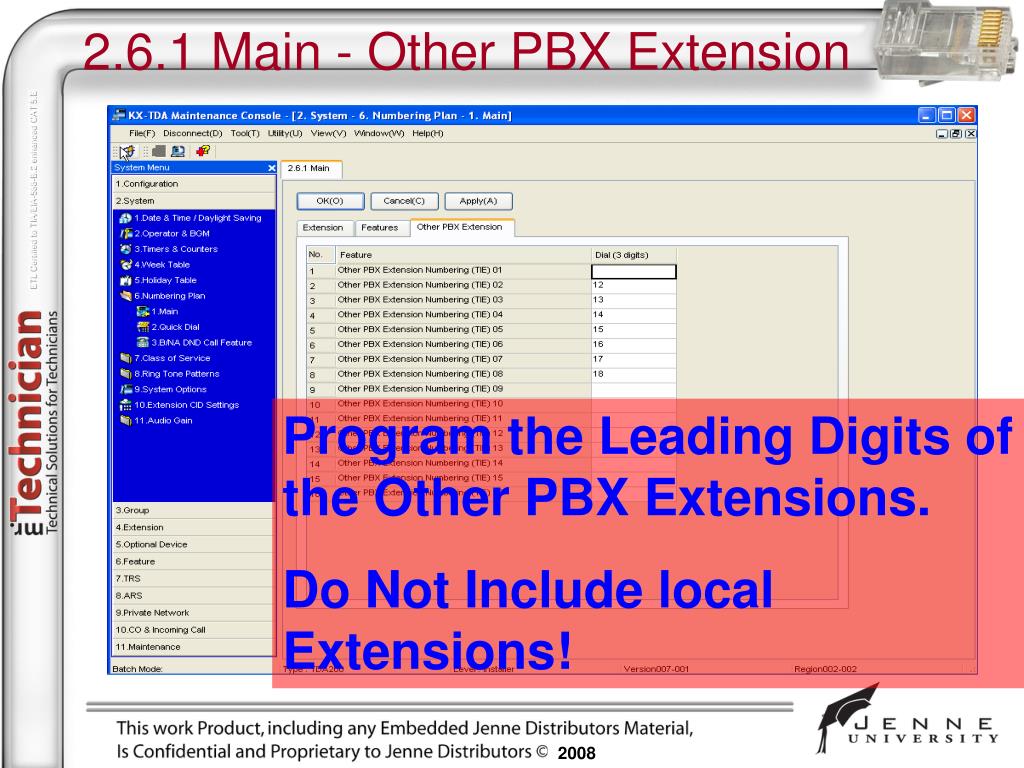

  12. 2.6.1 Main - Other PBX Extension Program the Leading Digits of the Other PBX Extensions. Do Not Include local Extensions!

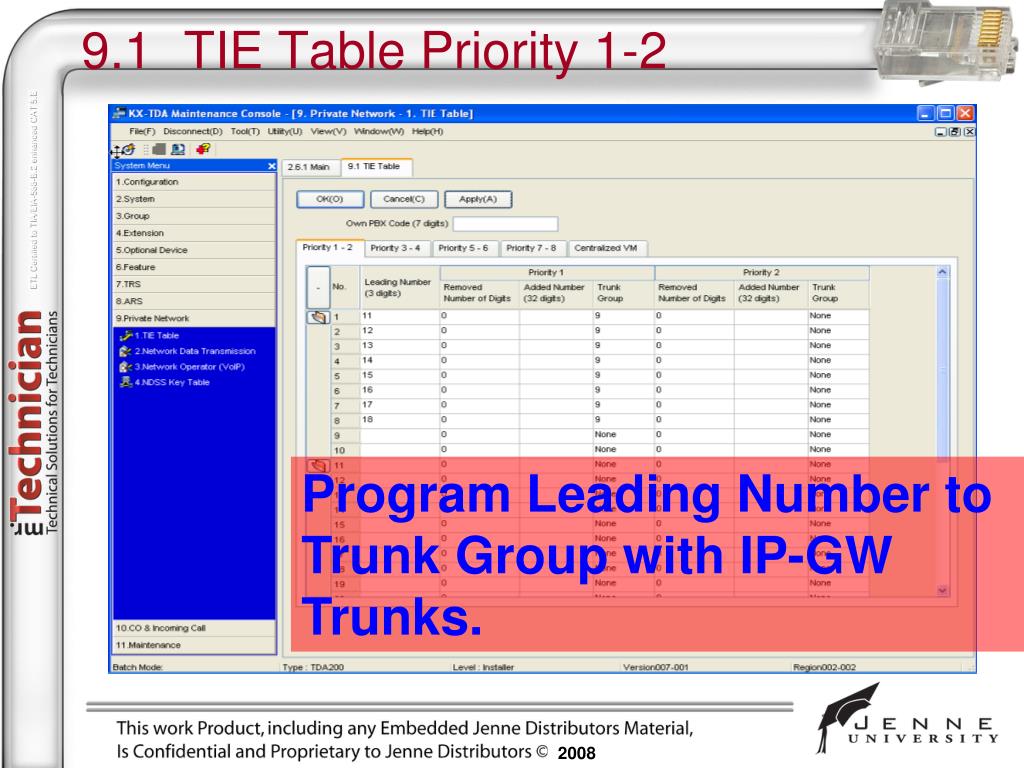

  13. 9.1 TIE Table Priority 1-2 Program Leading Number to Trunk Group with IP-GW Trunks.

  14. 10.1 CO Line Settings Program IP-GW lines in any unused trunk group

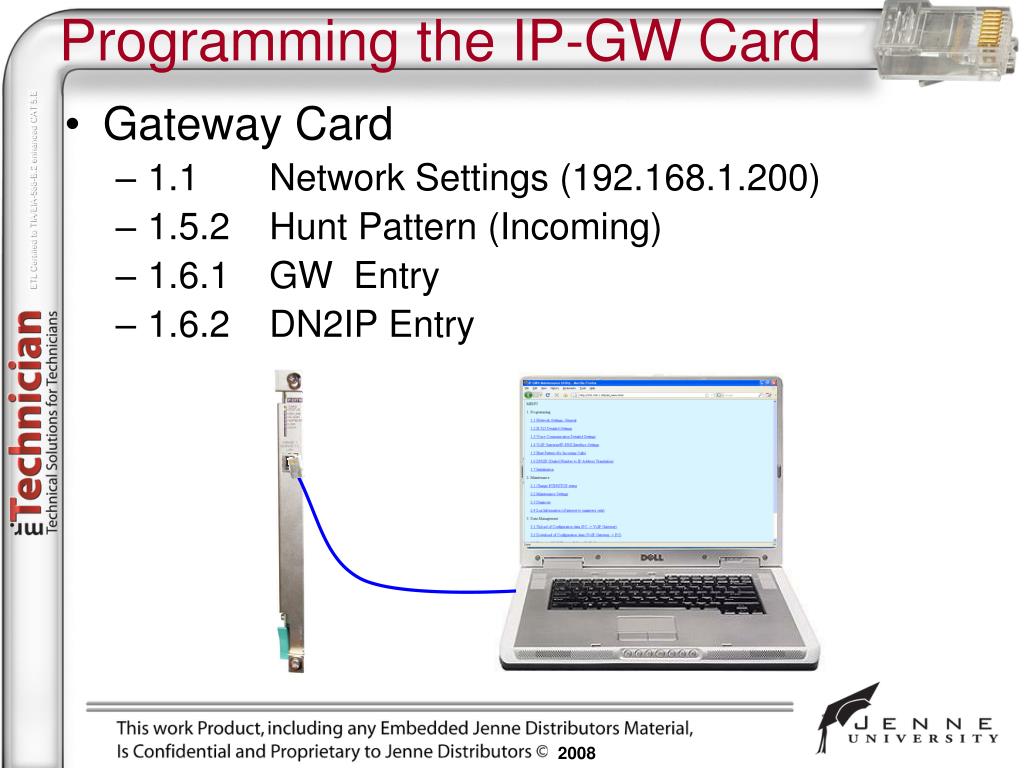

  15. Programming the IP-GW Card • Gateway Card • 1.1 Network Settings (192.168.1.200) • 1.5.2 Hunt Pattern (Incoming) • 1.6.1 GW Entry • 1.6.2 DN2IP Entry

  16. IP-GW Login Login: User Name Password

  17. IP-GW Program Menu To Program: 2.1 Change RUN/STOP Status of the Card

  18. RUN/STOP Status Circle with Green Dot will be the Status of the card when OK is clicked.

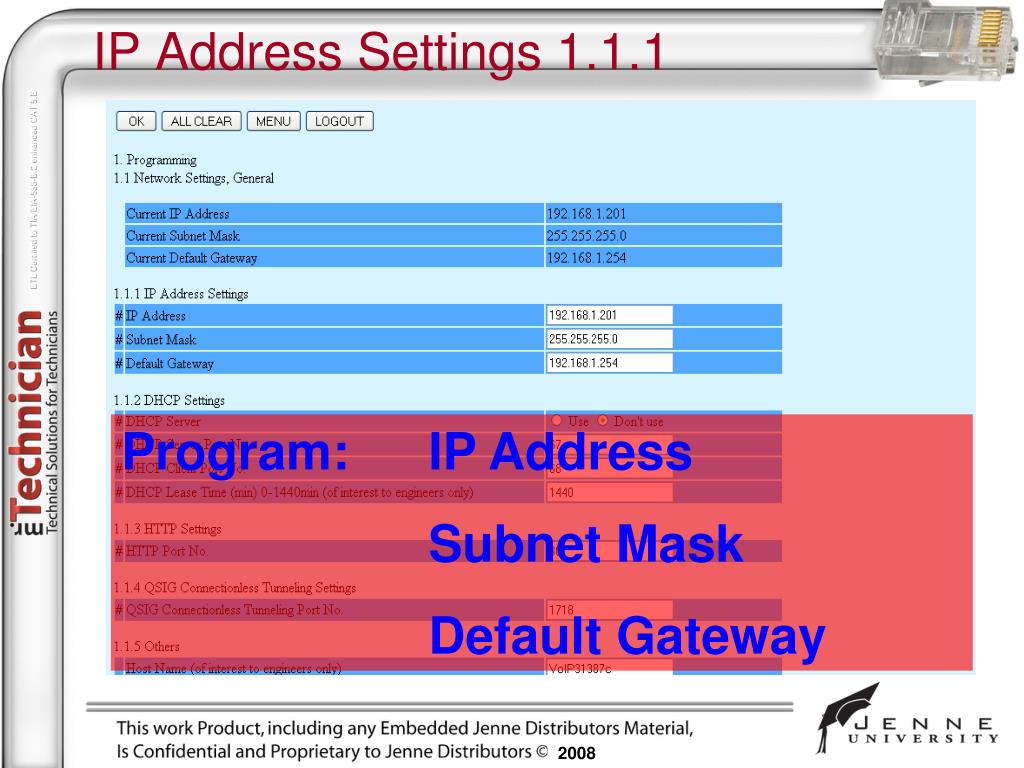

  19. IP Address Settings 1.1.1 Program: IP Address Subnet Mask Default Gateway

  20. Hunt Pattern 1.5.2 Controls Incoming Calls. Must match system dial plan.

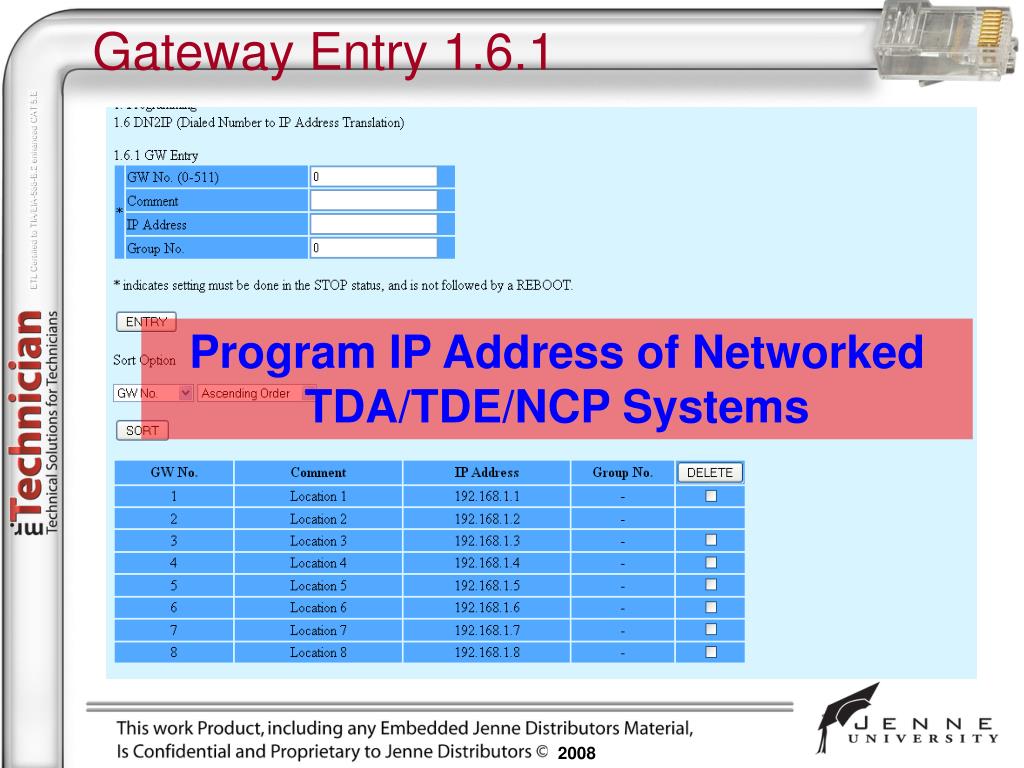

  21. Gateway Entry 1.6.1 Program IP Address of Networked TDA/TDE/NCP Systems

  22. DN2IP Entry 1.6.2 Controls Outbound calls. Translate Numbers to IP address.

  23. Download - Upload Write the DN2IP Once Upload to Multiple Systems

  24. Reboot to Save and Activate REBOOT to Activate IP-GW Changes to RUN

  25. TDE 1.1 Physical Slot Card Property IPCMPR LAN Setting 1.1 Virtual Slot Shelf Property GW Setting DN2IP Hunt Pattern Programming TDE Pure IP-PBX

  26. KX-TDE Configuration Slot Select Shelf – Virtual Slot Drag V-IPGW16 into Slot

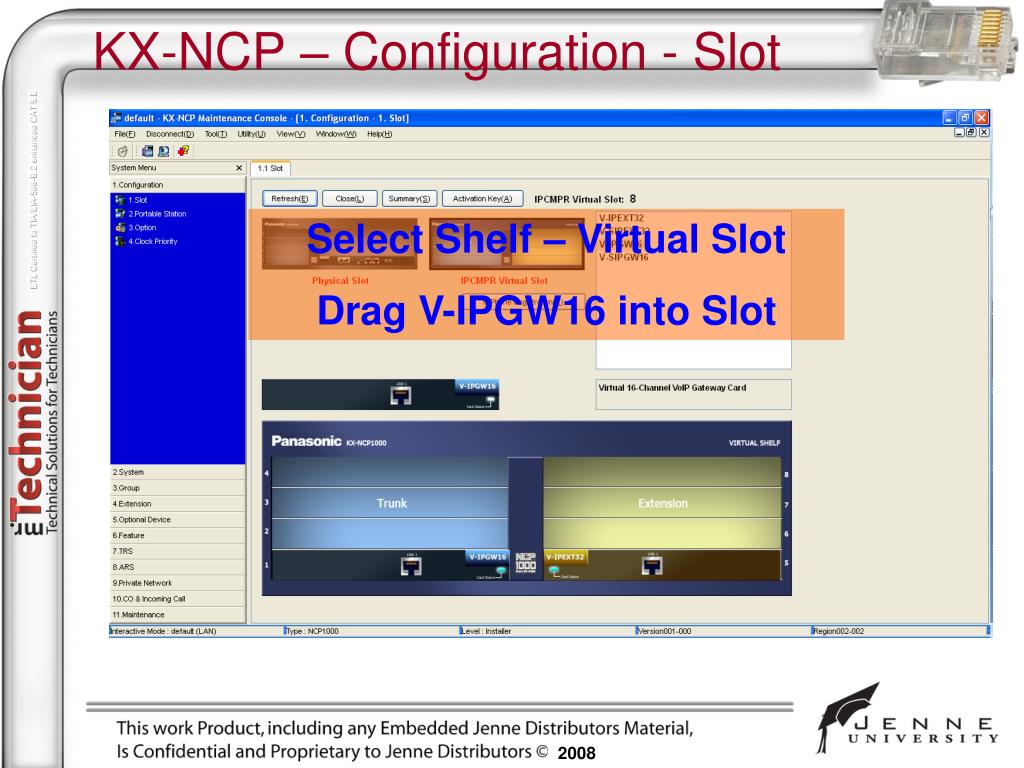

  27. KX-NCP – Configuration - Slot Select Shelf – Virtual Slot Drag V-IPGW16 into Slot

  28. Shelf Property - Hunt Pattern Controls Incoming Calls. Must match system dial plan.

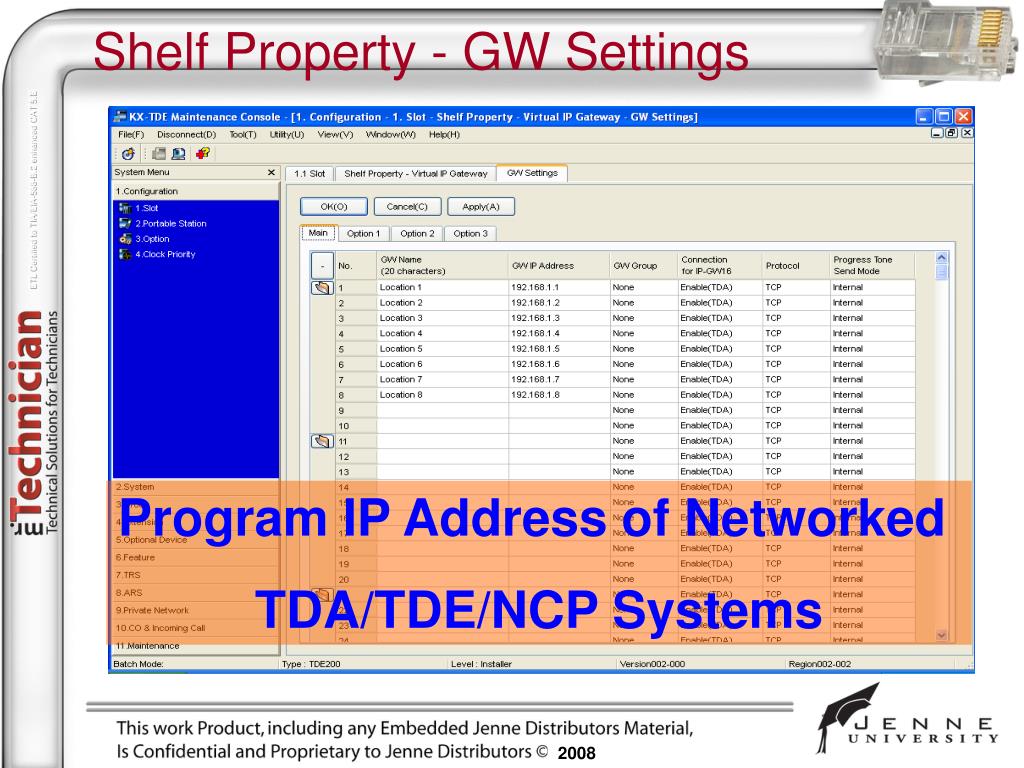

  29. Shelf Property - GW Settings Program IP Address of Networked TDA/TDE/NCP Systems

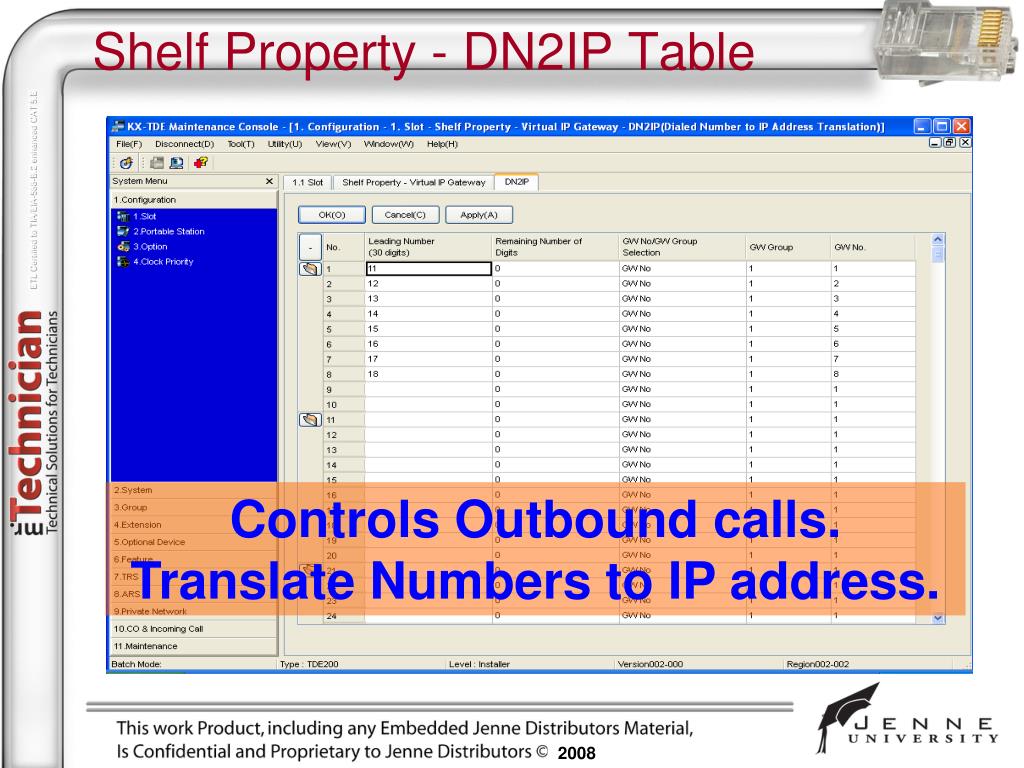

  30. Shelf Property - DN2IP Table Controls Outbound calls. Translate Numbers to IP address.

  31. Enhanced SD Card or KX-NCS4910 License Required Required in each System Up to 8 Systems Centralized Voicemail NDSS Network ICD Group Advanced Networking

  32. Centralized Voicemail QSIG INFORMATION CALLER ID QSIG ENHANCED DID NUMBER TIME MODE CALLER ID DID NUMBER CALLER ID DID NUMBER FORWARD TO VM Thank you for calling The voicemail of David.

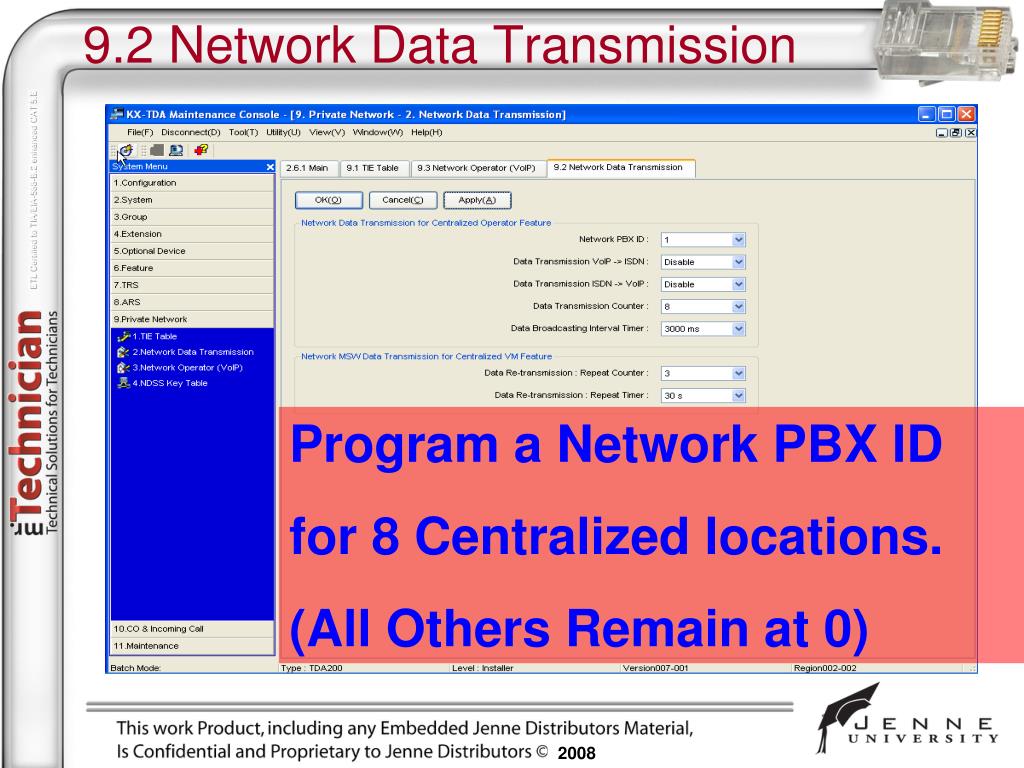

  33. 9.2 Network Data Transmission Program a Network PBX ID for 8 Centralized locations. (All Others Remain at 0)

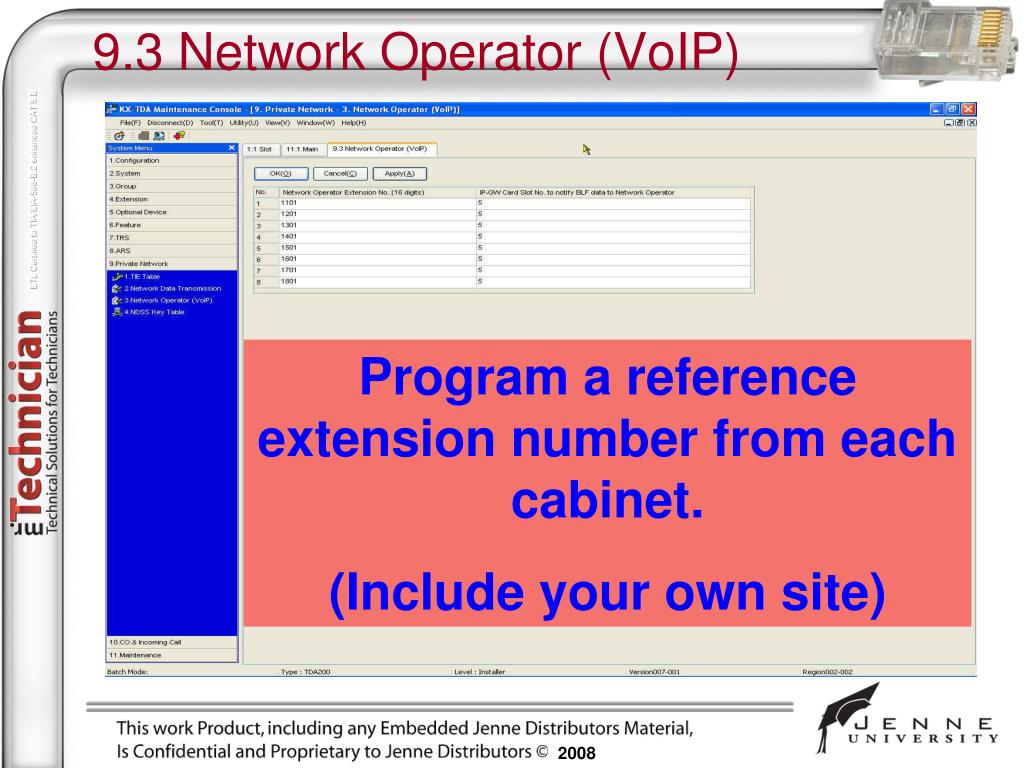

  34. 9.3 Network Operator (VoIP) Program a reference extension number from each cabinet. (Include your own site)

  35. 9.4 NDSS Key Table Program NDSS extension numbers from other locations to monitor.

  36. NDSS Monitor 250 Stations

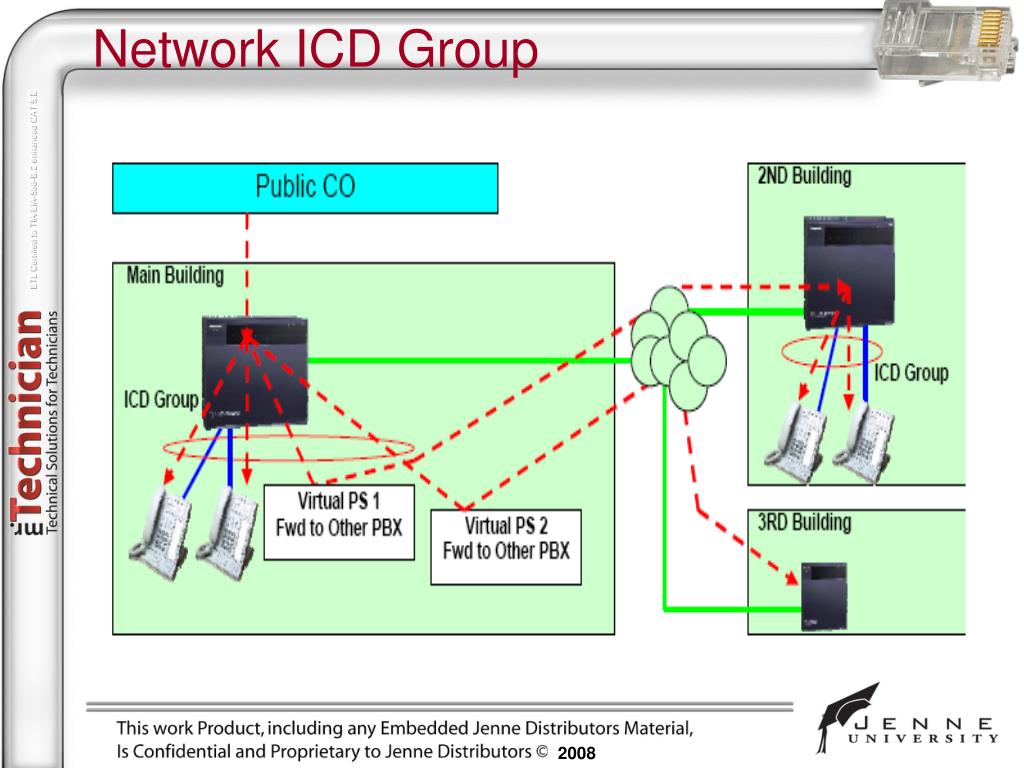

  37. Network ICD Group

  38. IP-GW Failover to PSTN (216) 563 1001 X1301 X1301 X1601 (216) 563 1001 (213) 566 1001

  39. In Summary… Networking TDA/TDE/NCP Systems is a solution for the customer who wants connect to multiple offices via the corporate LAN/WAN! If the customer selects the IP Networking Solution they can present a seamless operation across time zones and countries!! Networked TDA/TDE/NCP Systems with the Enhanced SD Card create an intelligent communication system based on IP technology !!!

  40. What Questions do you have? (800) 422-6191 Press 4+2 ? ? ? ? ? ? ? ? ? ? ? ? ? ?

  41. Topic suggestions? Email topic suggestions to ebutler@jenne.com for future Mr. Technician webinars and, if selected you’ll receive Jenne’s Promo Package.

  42. Thank You! Jenne appreciates you taking the time to participate in our Mr. Technician webinar
