Solving Node Voltage Circuit Analysis: ECE 201

This assessment focuses on applying the node voltage method to determine the voltages (v1, v2) and current (i1) in a circuit. Students will identify all relevant voltages and currents, write KCL (Kirchhoff's Current Law) equations at each node, and analyze power delivery by current sources within the given circuit featuring 10V and 60V sources. Successful completion of this task will enhance understanding of circuit theory, specifically in analyzing and solving node voltage problems.

marshall-jaidyn
Télécharger la présentation

Solving Node Voltage Circuit Analysis: ECE 201

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Assessment Problem # 4.1 ECE 201 Circuit Theory I

  2. Use the node-voltage method to find v1, v2, and i1 + v1 - + v2 - i1 ECE 201 Circuit Theory I

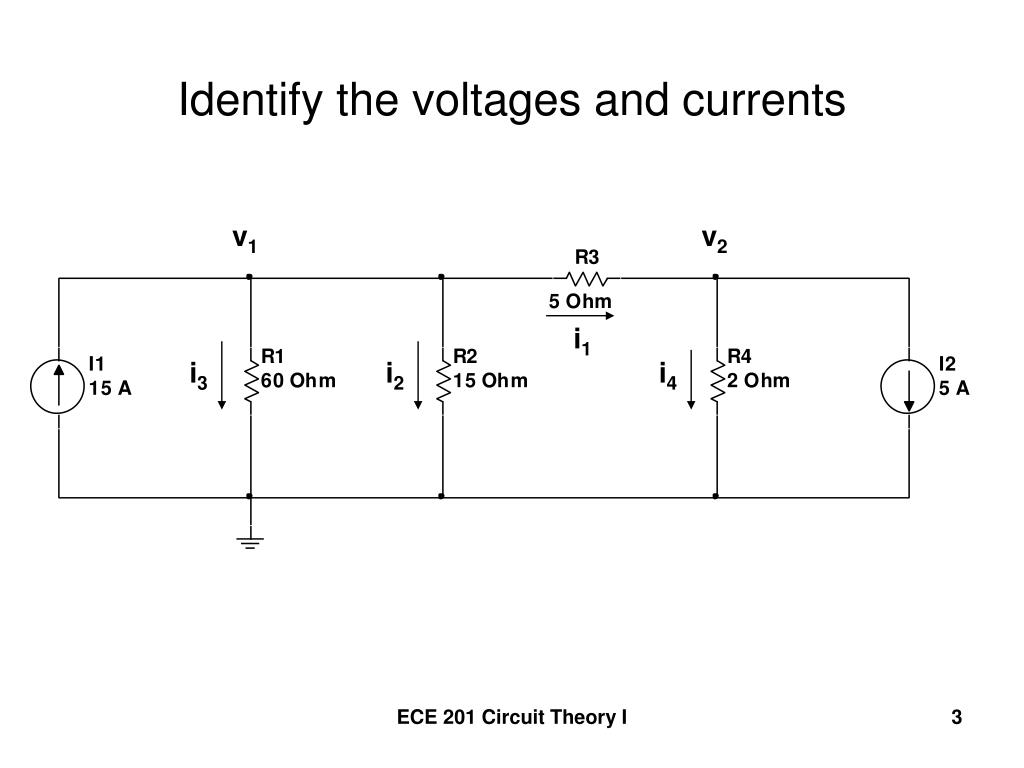

  3. Identify the voltages and currents v1 v2 i1 i3 i2 i4 ECE 201 Circuit Theory I

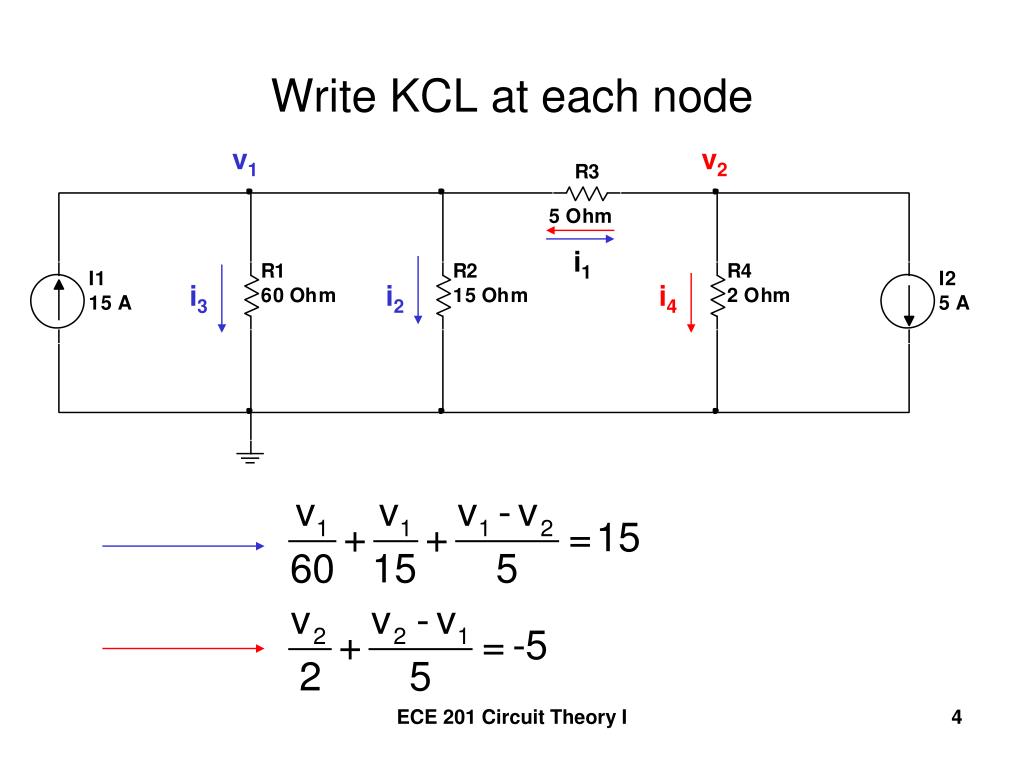

  4. Write KCL at each node v1 v2 i1 i3 i2 i4 ECE 201 Circuit Theory I

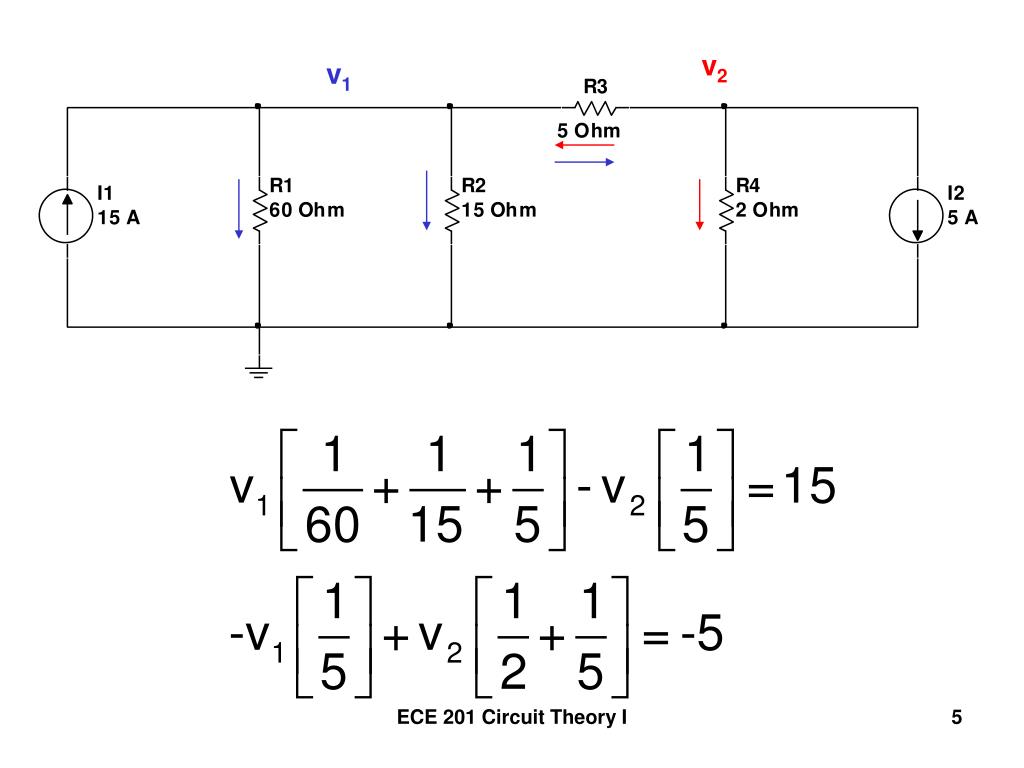

  5. v2 v1 ECE 201 Circuit Theory I

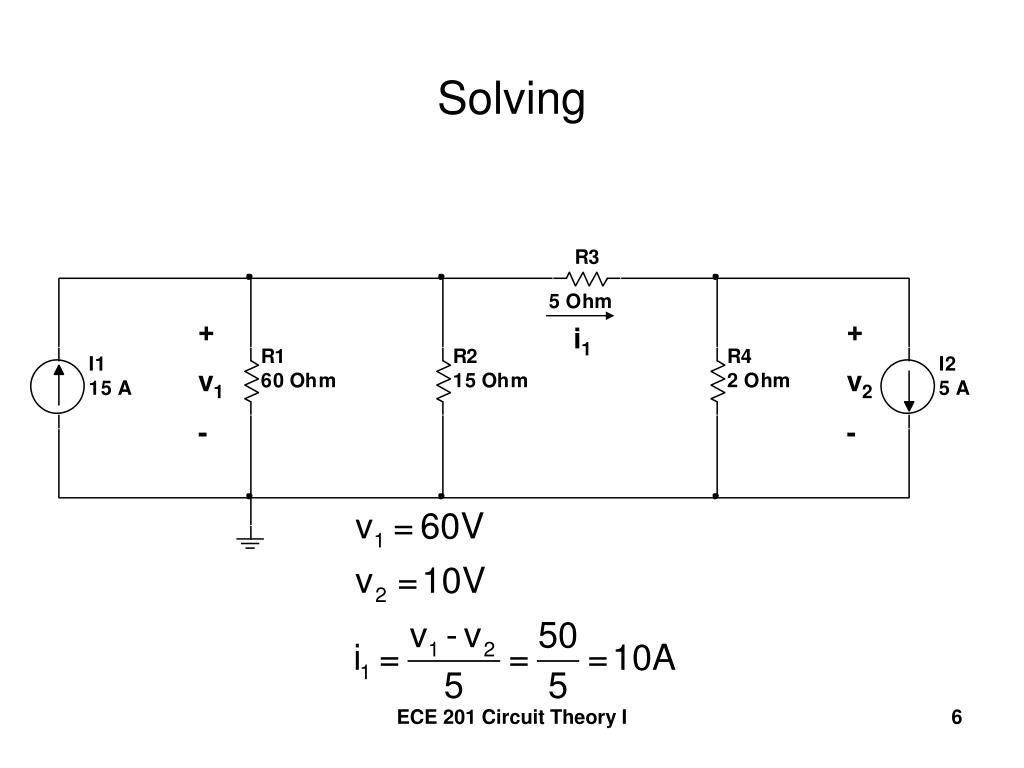

  6. Solving + v1 - + v2 - i1 ECE 201 Circuit Theory I

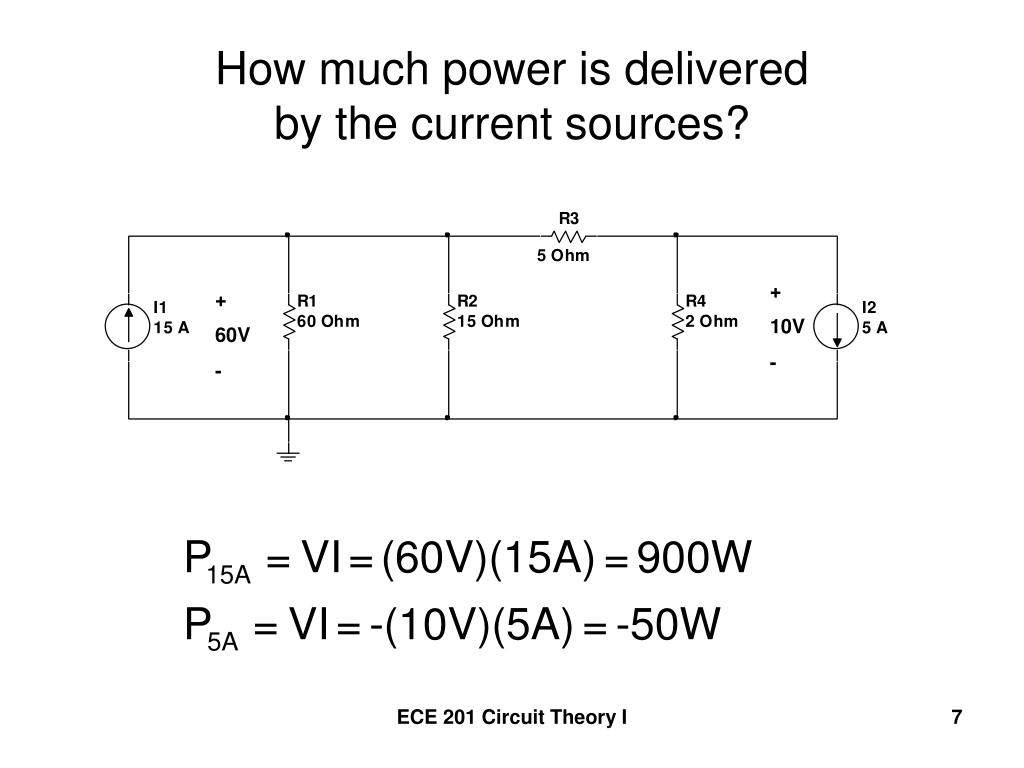

  7. How much power is delivered by the current sources? + 10V - + 60V - ECE 201 Circuit Theory I
