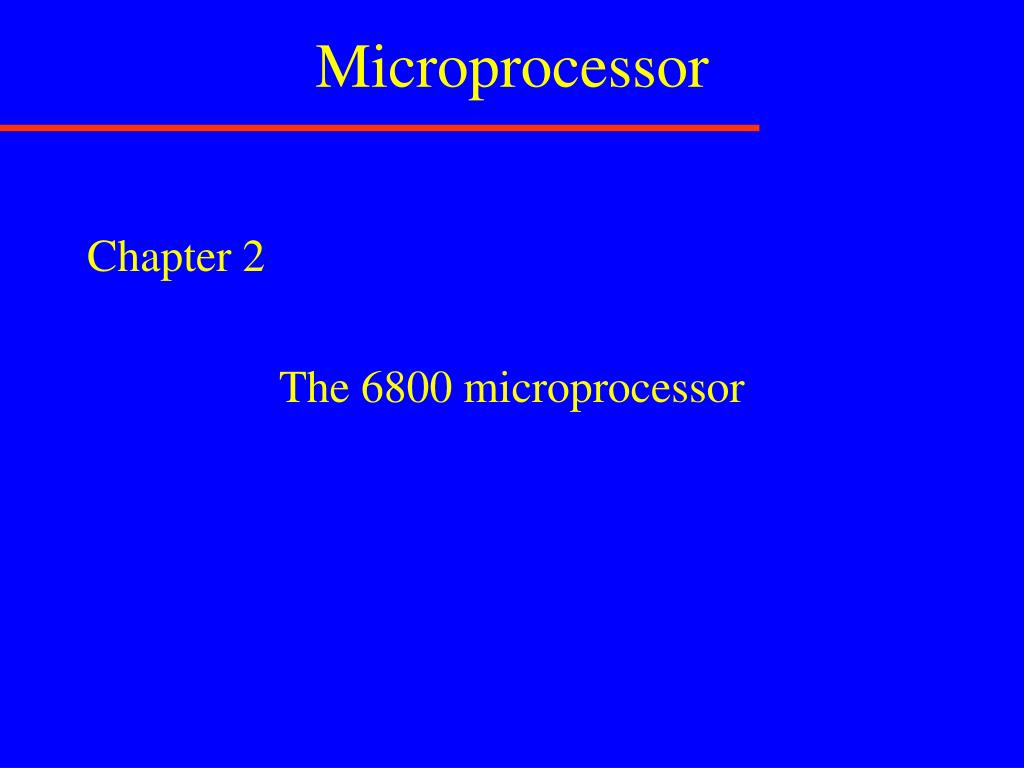

  1. Microprocessor Chapter 2 The 6800 microprocessor

  2. A Typical Computer Architecture (follow the links for explanations of the terms) Serial Devices (e.g. Modem) • Input Devices • Keyboard • Mouse • Scanner Parallel Devices (e.g. Printer) • Output Devices • Monitor • Loudspeaker Serial Port Driver Parallel Port Driver Control Bus Address Bus Data Bus CPU Program Counter Controller Arithmetic and Logic Unit • File Storage • Hard Disk • Floppy Disk • Tape • CD Clock • Memory • RAM • ROM • PROM Control Unit

  3. Microprocessor Characteristics • Number of address wires • Number of data wires • Speed • Architecture • Language (Assembly language)

  4. Characteristics of the 6800 Microp. • 16 address wires => it can address 216 memory locations • It is an 8 bit microprocessor => 8 data bits • Speed may be 4 MHZ • Architecture??

  5. 6800 architecture • Architecture: • Registers • Logic and Arithmetic unit • Control unit • Program counter • Stack pointer • …

  6. 6800 registers Accumulator A Accumulator B Index Register X=XH : XL Stack Pointer, SP Program Counter, PC Condition Code Data bus from and to memory Instruction register 8 Control unit Temp 8 8 ALU Address wires from PC

  7. PC: Program counter • Program counter contain the address of the memory containing the next instruction to be executed. • It is incremented automatically after each instruction • In 6800, it is a 16 bits register

  8. First instruction: ABA • ABA: opcode=?? • First, the instruction is fetched in the instruction register (IR is used to fixx the command for the control unit during processing) • The control unit command the registers in the following way: • Command register A to put its contain on the internal bus • Command the register TEMP to take the data on the bus • Command the register B to put its contain on the bus • Command the ALU to add • Command A register to take the result

  9. instruction • LDA A #$90 86 90 • If this instruction is written in the memory address: $5000, the program counter contain $5000 when executed. • Procedure: • PC=5000 so the data 86, read from this memory address, goes to the instruction register • The control unit analyse this data and command the registers: • Command the PC to be incremented, the data $90 in the address $5001 can be read now. Data are on the internal bus • Command the register A to take these Data

  10. Example • Add: $3D and $E2 0011 1101 1110 0010 ------------- 1 0001 1111 C=1, Z=0, V=0, N=0 H=0

  11. Example • Add: $BD and $A3 1011 1101 1010 0011 ------------- 1 0110 0000 C=1, Z=0, V=1, N=0 H=1

  12. Some instructions Instruction = Opcode + Operand • LDA A #$4E = 86 4E • STA A $2EA5 B7 2E A5 Opcode Operand Opcode Operand

  13. First program • Write a program which can add the register A to $4E and then put the result in the memory location $2346 • Find the machine code of this program

  14. Program • Write a program which can add the two numbers: $2E and $8A and put the result in the memory location 349A

  15. Stack pointer SP • Used to point to the memory location where all registers will be saved when an interrupt occurs or when a subroutine is called • It is a 16 bit register, contain an address of a memory

  16. Interrupt • During the processing of a program, the microprocessor can stop its work and execute another emergency program. This is the technique of interrupt. • 2 hardware pins can be found in the 6800 microprocessor: IRQ and NMI (both active low) • IRQ: interrupt request • NMI: Non maskable interrupt • If IRQ occurs, the address of its corresponding program is written in : FFF8 and FFF9 • If NMI occurs, the address of its corresponding program is written in : FFFC and FFFD

  17. Interrupt • IRQ may be stopped by the bit I in the status register • I=1 IRQ will not be executed (stopped) • I=0 IRQ will be executed • NMI non maskable interrupt, it is executed whatever the bit I • SWI is a software interrupt: Program address: FFFA and FFFB

  18. Addressing modes • Immediate mode LDA A #$89  A=$89 LDA B #$F3  B=$F3 • Inherent mode ABA A+B  A INCA A+1A DECB B-1B INS S+1S

  19. Addressing modes • Extended mode (2 bytes operand) LDA A $15CD STA A $078C • Direct mode (one byte operand) LDA $12 Equilvalent to LDA $0012

  20. Adresing modes • Indexed (using X register. LDA A $05,X STA A $08,X This register is used as a base address when we want to make the addressing for a series of successive memories

  21. Addressing modes • Relative mode (Branch instructions) BEQ: Branch if equal: if z=1 BNE : branch if not equal : if z=0 BME : branch if minus: if N=1 B PL: branch if positive : if N=0 BCS : branch if carry set : if C=1 BCC : branch if carry clear : if C=0

  22. Program LDA A #$89 LDA B $6789 INC A BPL here STA A $1928 INCB LDX #$98F5 here STA A $09 LDX #$9000 RTS Write the machine code of this program

  23. Instructions • ADD • SUB • …

  24. Instructions • ROR • ROL • Stack pointer instructions • PUSH • PULL

  25. Programs • P1: write a program to add the memory contents: from A9F0 to A9FF and put the result in the memory location 0002. • P2: write a program to transfer the memory contents: from 9000 - 90FF to A000 - A0FF. • Write a program to compute the integer part of: (1+2+4+8+16)/4

  26. A program CLI LDA A #$26 LDX $2608 LDA B $02,X (IRQ arrives here) CMP A $25FE BNE here ABA RTS here TAB RTS Interrupt program 1 5040: LDA A #$50 LDA B $2602 ABA RTI

  27. 6800 Pins • power and ground • Address bus (A0-A15) • tri-state: controlled by BA or TSC • VMA (valid memory address) and dummy access • Data bus (D0-D7) • R/W – high impedance if BA=1 and TSC is asserted • Reset, HALT, NMI, IRQ • BA (bus available), BS (bus status): • normal (00), interrupt or reset acknowledge (01), sync acknowledge (10), and halt acknowledge(11) • Clocks E and Q

  28. 6800 Pins (continued) • Busy: • read and modify cycles, double-byte operation, indirect or vector fetch • AVMA: advance VMA • MPU will use the bus in the following cycle • LIC: last instruction cycle • instruction fetch if transitions from high to low • TSC: three-state control • direct control when E is low • latched on the rising edge of E
