  1. Thermal Headaches in Advanced LIGO Input Optics Guido Mueller, Rupal Amin, David Guagliardo, David Tanner, and David Reitze Physics Department University of Florida Gainesville, FL LIGO-G010130-00-Z

  2. Input Optics Functions • RF Modulation • Mode Cleaning • Mode Matching • Optical Isolation • Distribution of Control Beams • Self Diagnostics

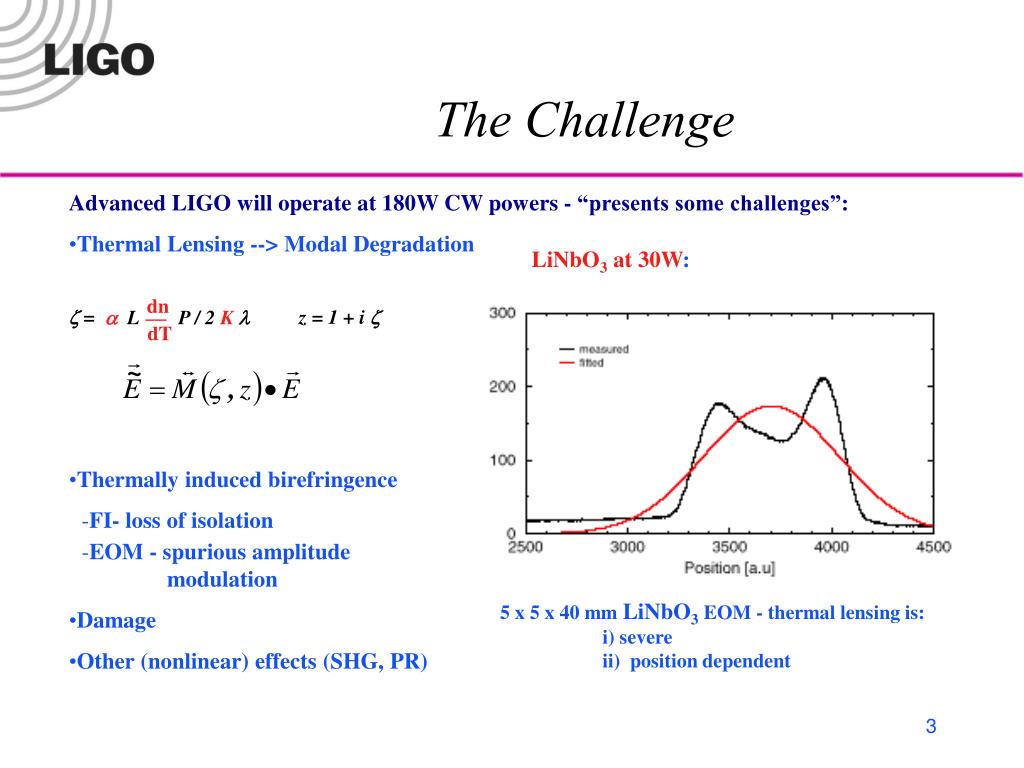

  3. dn aL P / 2 Kl dT The Challenge • Advanced LIGO will operate at 180W CW powers - “presents some challenges”: • Thermal Lensing --> Modal Degradation • z = z = 1 + i z • Thermally induced birefringence • FI- loss of isolation • EOM - spurious amplitude • modulation • Damage • Other (nonlinear) effects (SHG, PR) LiNbO3 at 30W: 5 x 5 x 40 mm LiNbO3 EOM - thermal lensing is: i) severe ii) position dependent

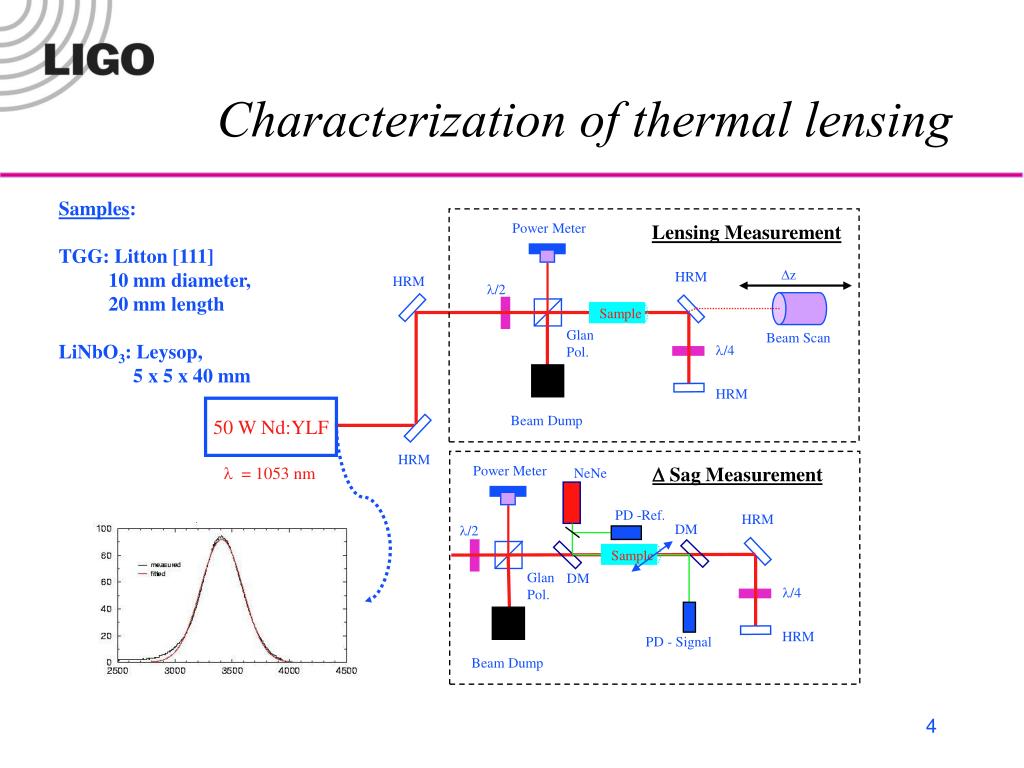

  4. Sample Characterization of thermal lensing Samples: TGG: Litton [111] 10 mm diameter, 20 mm length LiNbO3: Leysop, 5 x 5 x 40 mm Power Meter Lensing Measurement Dz HRM HRM l/2 Sample Glan Pol. Beam Scan l/4 HRM 50 W Nd:YLF Beam Dump HRM Power Meter D Sag Measurement l = 1053 nm NeNe PD -Ref. HRM DM l/2 Glan Pol. DM l/4 HRM PD - Signal Beam Dump

  5. Optical Path Difference Measurements Theory: Hello-Vinet P=50 W Absolute DL (hot - cold): 10 mm DOPD (1/e intensity): ~ 100 nm 250 nm @ 125W

  6. Optical Path Difference Measurements Mansell, et al., Appl. Opt., 2001

  7. Propagation Measurements I w(z)

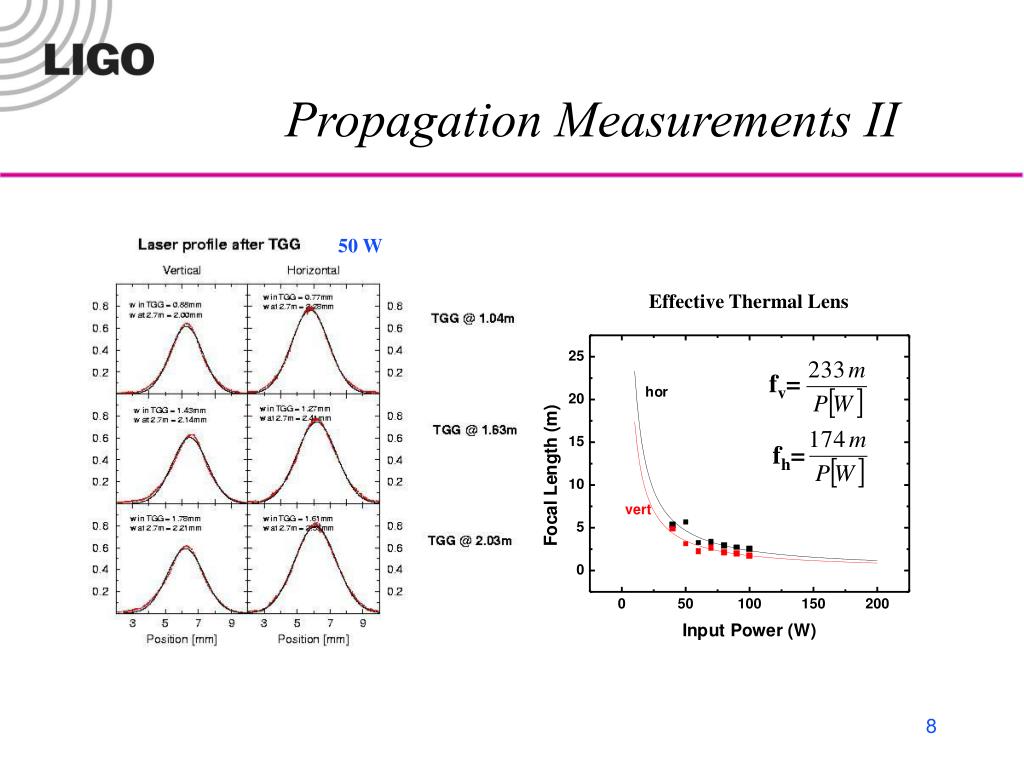

  8. fh= fv= Propagation Measurements II 50 W Effective Thermal Lens

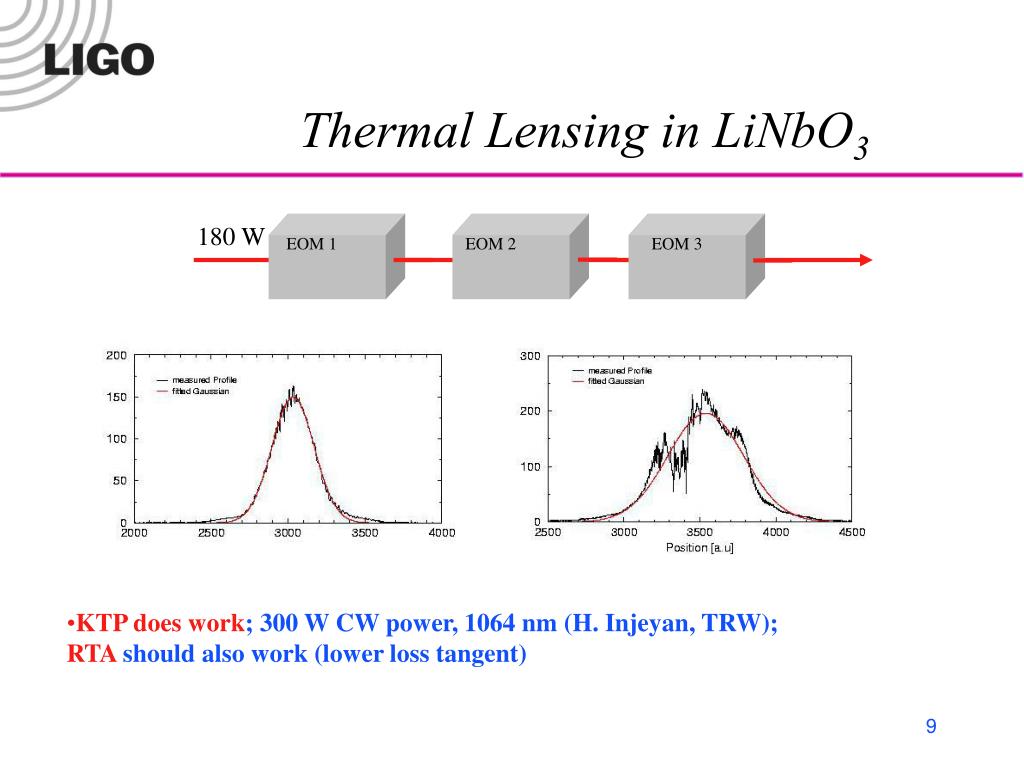

  9. 180 W EOM 1 EOM 2 EOM 3 Thermal Lensing in LiNbO3 • KTP does work; 300 W CW power, 1064 nm (H. Injeyan, TRW); • RTA should also work (lower loss tangent)

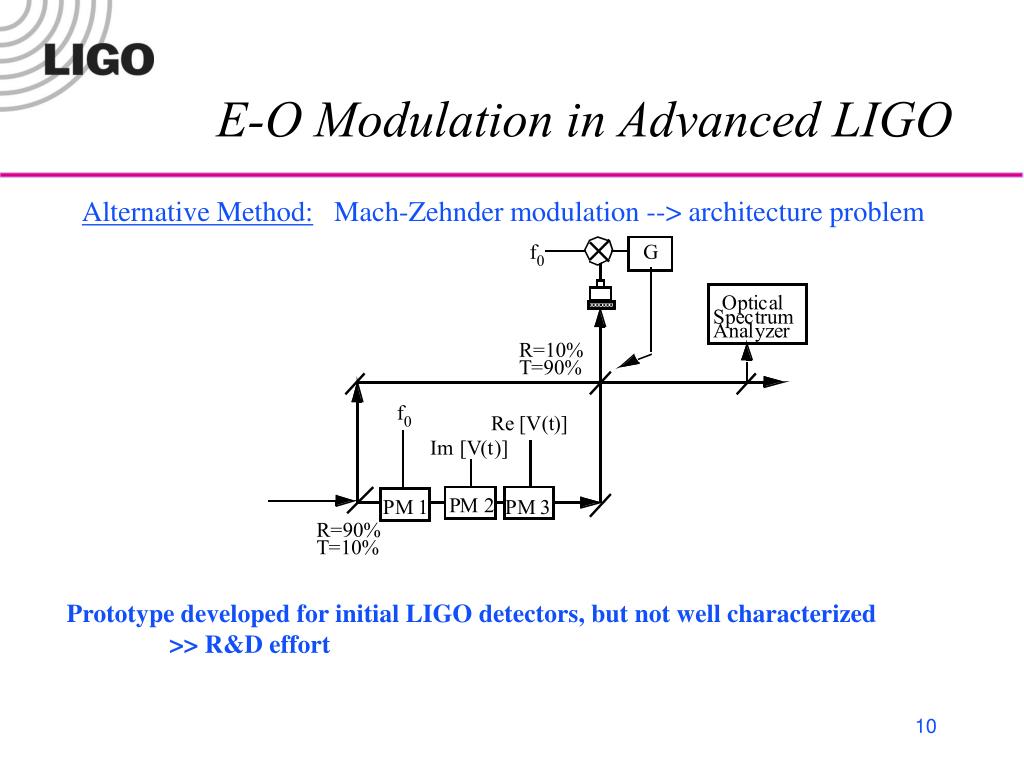

  10. E-O Modulation in Advanced LIGO Alternative Method: Mach-Zehnder modulation --> architecture problem Prototype developed for initial LIGO detectors, but not well characterized >> R&D effort

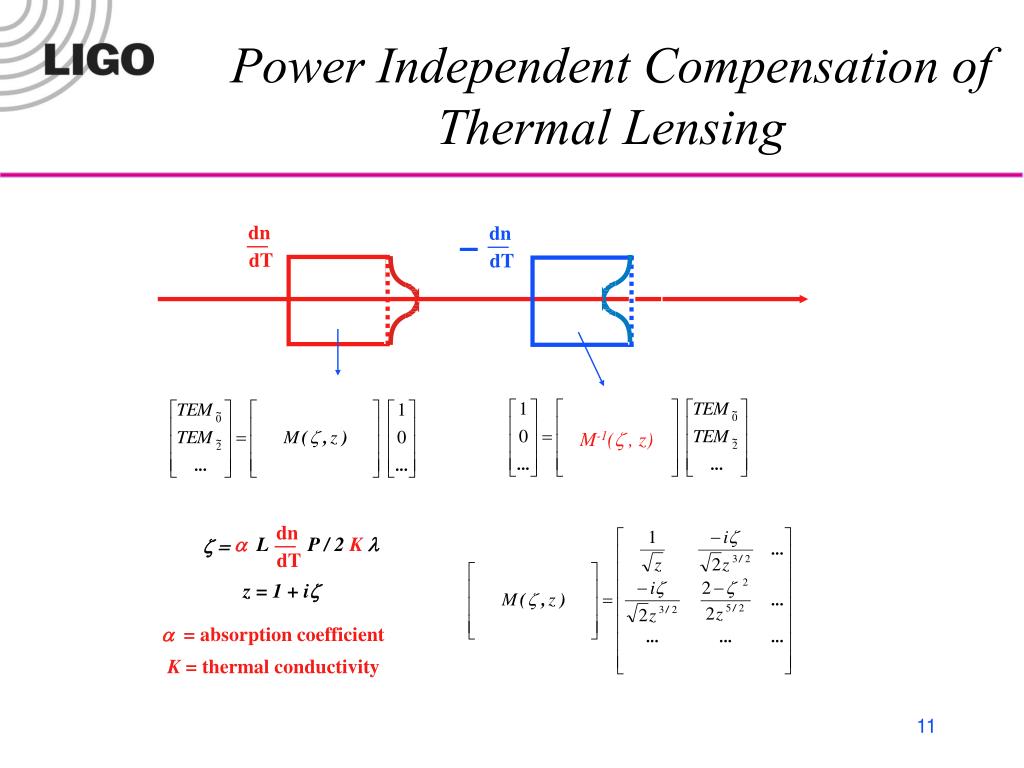

  11. dn dn dT dT dn dT M-1(z , z) Power Independent Compensation of Thermal Lensing aL P / 2 Kl z = z = 1 + iz a = absorption coefficient K = thermal conductivity

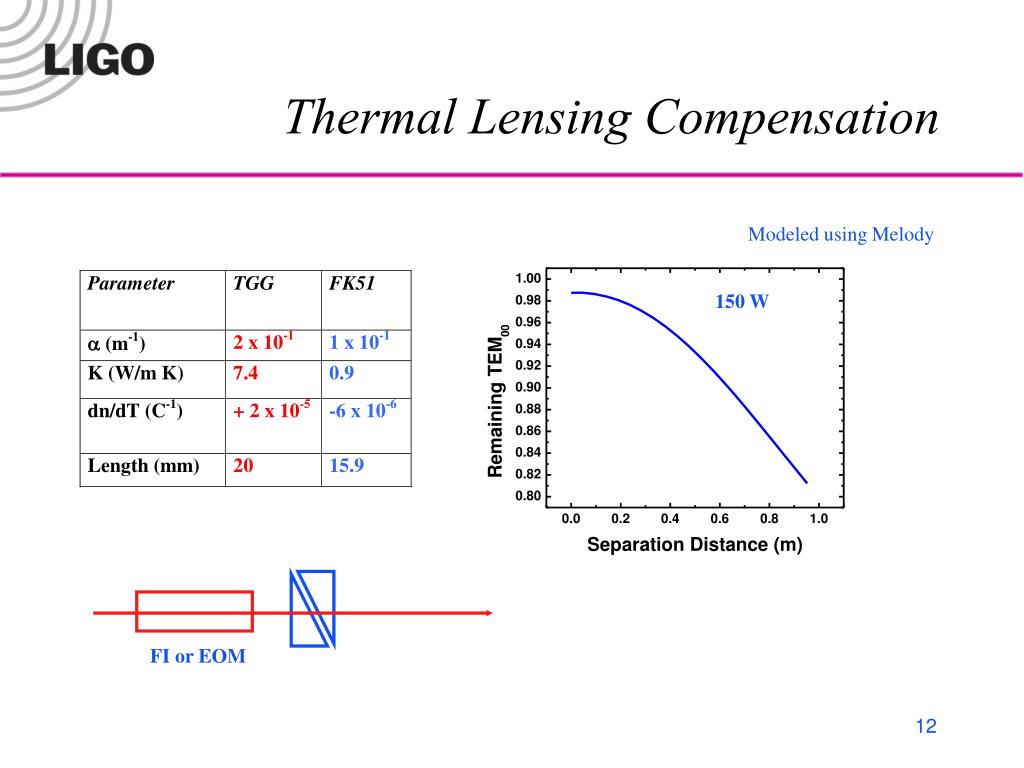

  12. Thermal Lensing Compensation Modeled using Melody 150 W FI or EOM

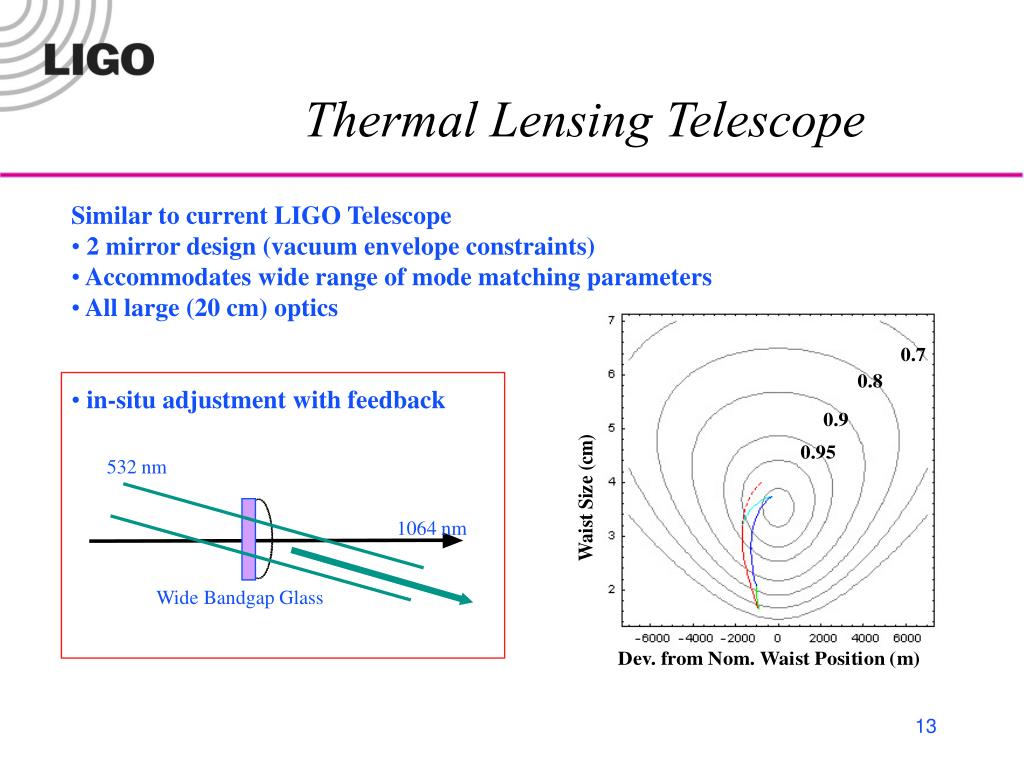

  13. Thermal Lensing Telescope • Similar to current LIGO Telescope • 2 mirror design (vacuum envelope constraints) • Accommodates wide range of mode matching parameters • All large (20 cm) optics • in-situ adjustment with feedback 532 nm 1064 nm Wide Bandgap Glass

  14. R&D Issues Still to be Faced • Modulator Development: • RTA performance • MZ modulation • Isolator Development: • Full FI system test (TCFI, EOT) • Possible thermal compensation (-dn/dT materials) • Telescope Development: • in-situ mode matching adjustment
