DC2 – First 10% Runs

DC2 – First 10% Runs. Data Set: All Gamma - GR-v7r0p2-Big (10M All Gammas). Pruning Cuts: (Gltword&14)(Valid Trigger = 3IR| CalLO| CalHi) Onboard Filter Engaged

maryam-sampson
Télécharger la présentation

DC2 – First 10% Runs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

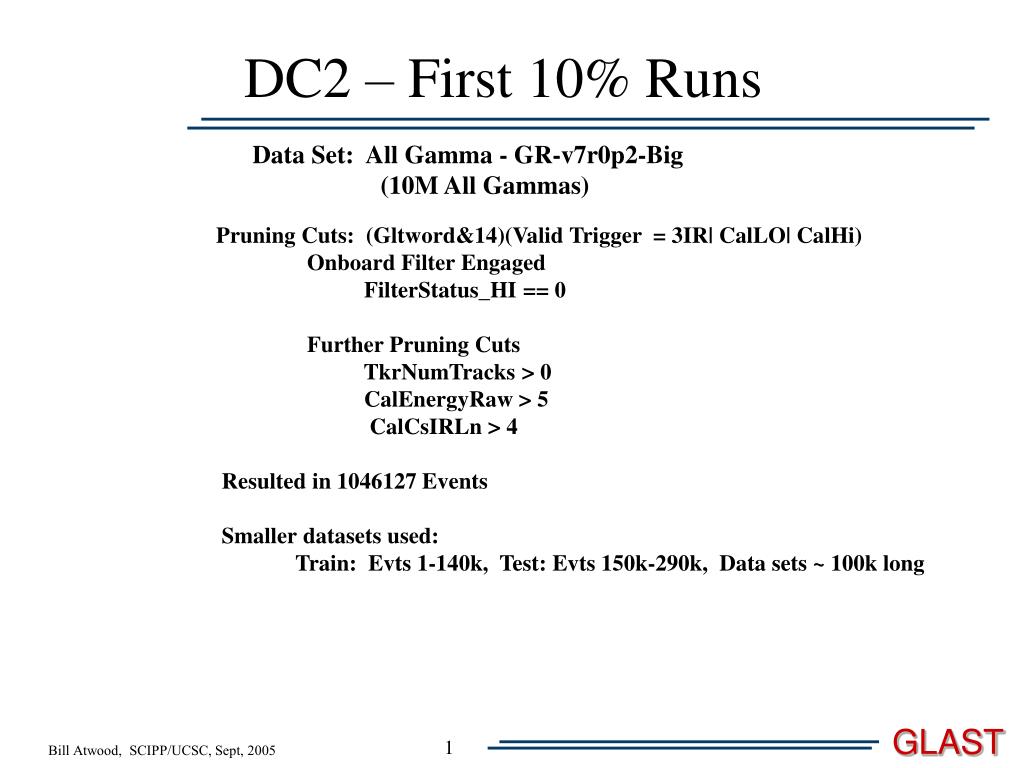

  1. DC2 – First 10% Runs Data Set: All Gamma - GR-v7r0p2-Big (10M All Gammas) Pruning Cuts: (Gltword&14)(Valid Trigger = 3IR| CalLO| CalHi) Onboard Filter Engaged FilterStatus_HI == 0 Further Pruning Cuts TkrNumTracks > 0 CalEnergyRaw > 5 CalCsIRLn > 4 Resulted in 1046127 Events Smaller datasets used: Train: Evts 1-140k, Test: Evts 150k-290k, Data sets ~ 100k long

  2. Good Energy Analysis Profile Energy Resolution Model Last Layer Tracker sModel = .02+.6/(McLogEnergy)2.5 + .005*(McLogEnergy-2.)2 Parametric

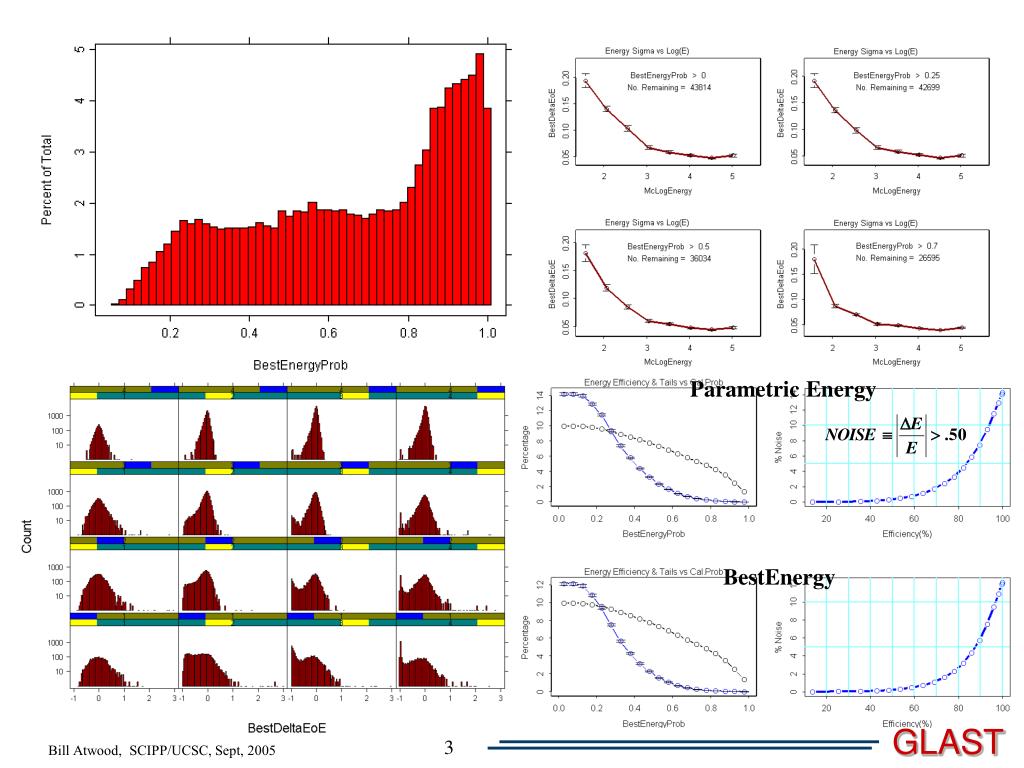

  3. Parametric Energy BestEnergy

  4. Energy Method Breakdown

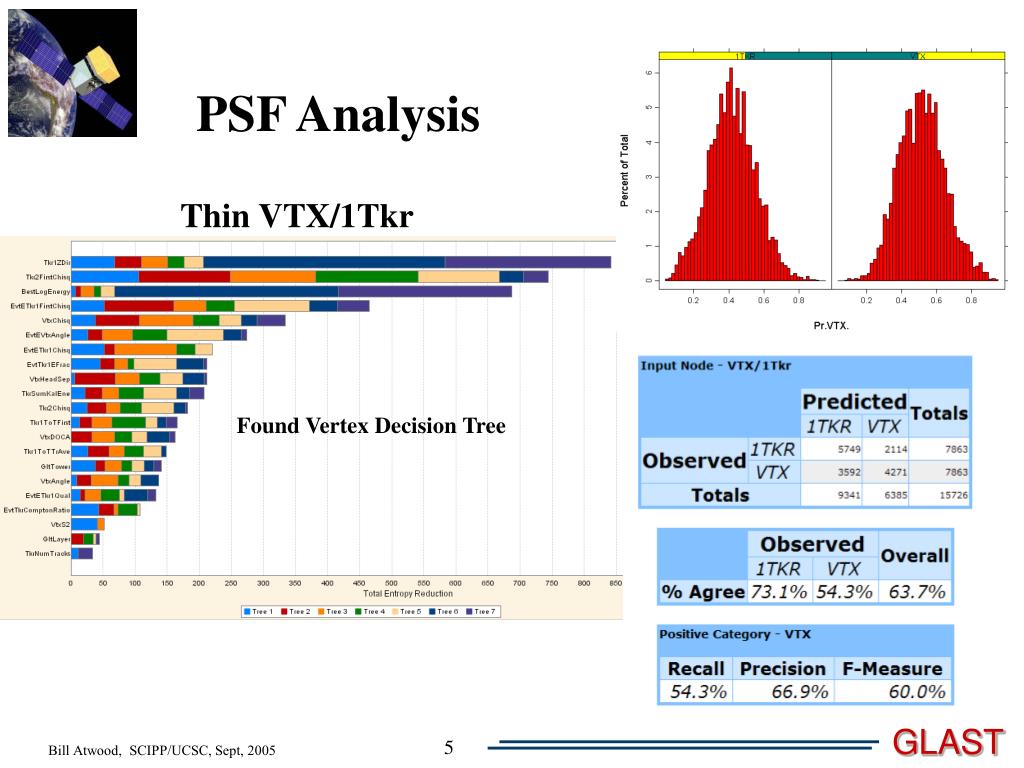

  5. PSF Analysis Thin VTX/1Tkr Found Vertex Decision Tree

  6. Thin PSF Core/Tail 1Tkr Class VTX Class Assessment Variable Importance Good PSF Probabilities

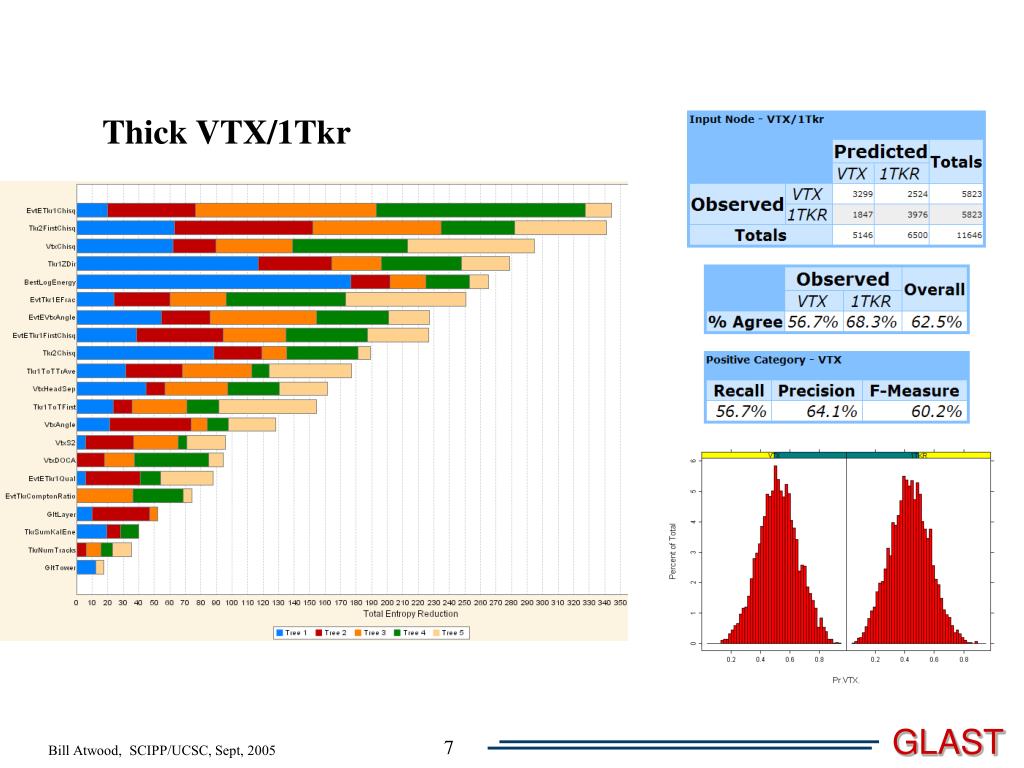

  7. Thick VTX/1Tkr

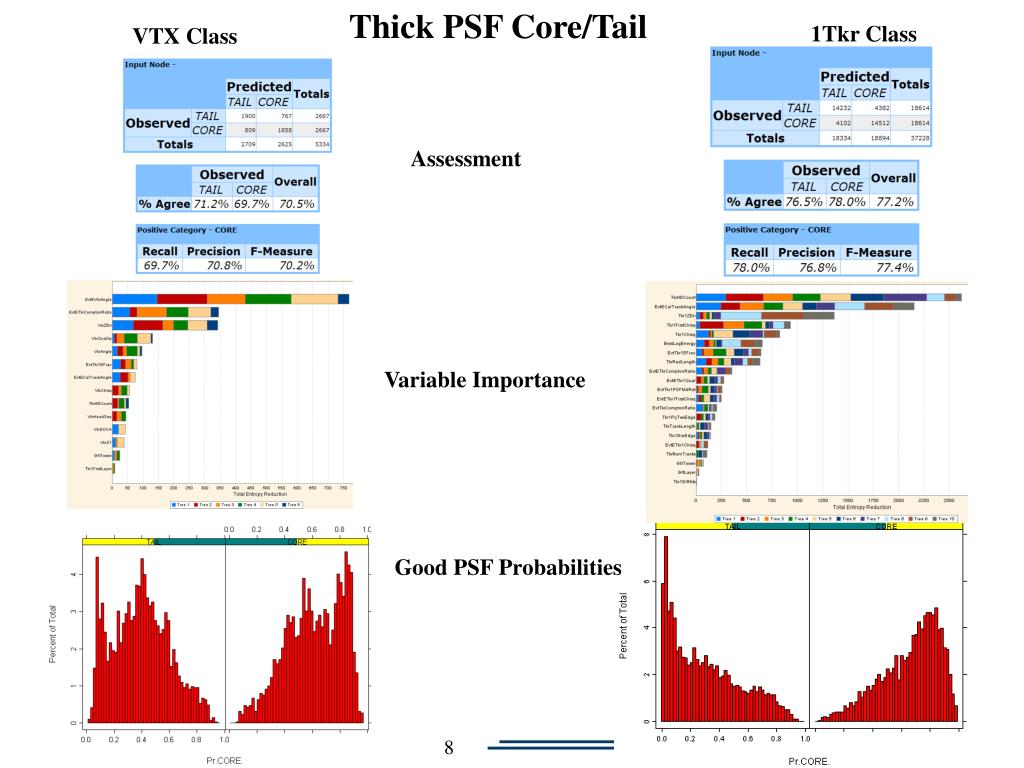

  8. Thick PSF Core/Tail 1Tkr Class VTX Class Assessment Variable Importance Good PSF Probabilities

  9. PSF Analysis Results cos(q) < -.2 cos(q) < -.95

  10. Back Ground file : backgndavgpdr-GR-v7r0p2-merit-TKR-prune.root Pruning Cuts: FilterStatus_HI == 0 TkrNumTracks > 0 1210517 events After NoCal: CalEnergyRaw > 5: 541135 events CalCsIRLn > 4 : 475770 events After Loose ACD Cut: AcdDOCA > 250 || Tkr1SSDVeto > 0: 111177 and 97200 AG (AG Eff. = .972) After BestEnergyProb > .20: 104851 and 93760 AG (Eff = .965 (Last 2 Cuts: AG Eff. = .938)) AllGamma (AG) Sample: From 137k post FilterStatus_HI==0 Cut) & 100k AG After Prob PSF > .10: 80132 Bkg & 86810 AG (AG Eff. = .926)

  11. VTX Class CalEnergyRaw < 350 Prefilter - Exclude These: Input Output g Eff. : .734 Bkg. Eff.: .093

  12. VTX Class 350 < CalEnergyRaw < 3500 Prefilter - Exclude These: Input Output g Eff. : .944 Bkg. Eff.: .110

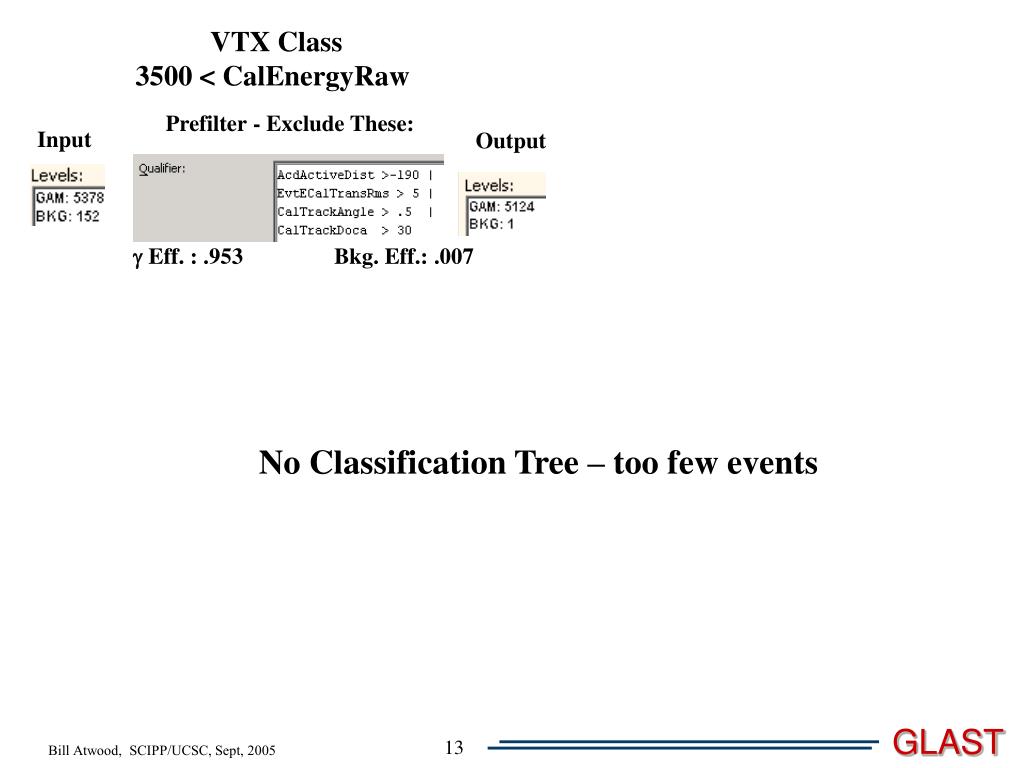

  13. VTX Class 3500 < CalEnergyRaw Prefilter - Exclude These: Input Output g Eff. : .953 Bkg. Eff.: .007 No Classification Tree – too few events

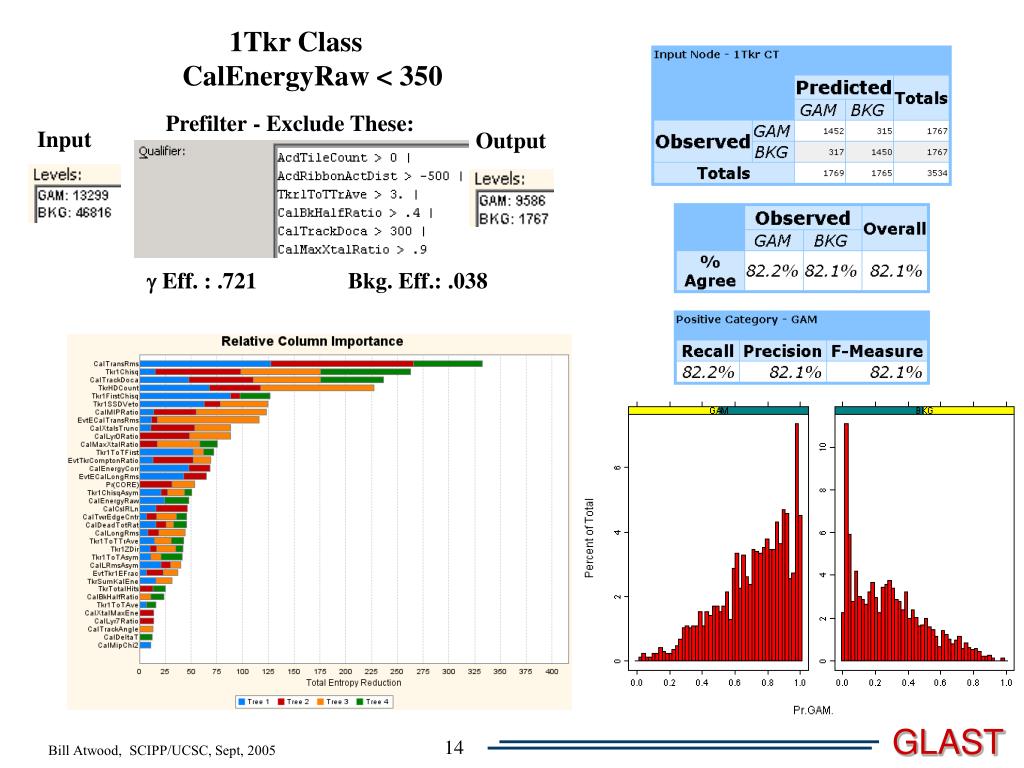

  14. 1Tkr Class CalEnergyRaw < 350 Prefilter - Exclude These: Input Output g Eff. : .721 Bkg. Eff.: .038

  15. 1Tkr Class 350 < CalEnergyRaw < 3500 Prefilter - Exclude These: Input Output g Eff. : .928 Bkg. Eff.: .026

  16. 1Tkr Class 3500 < CalEnergyRaw Prefilter - Exclude These: Input Output g Eff. : .922 Bkg. Eff.: .015

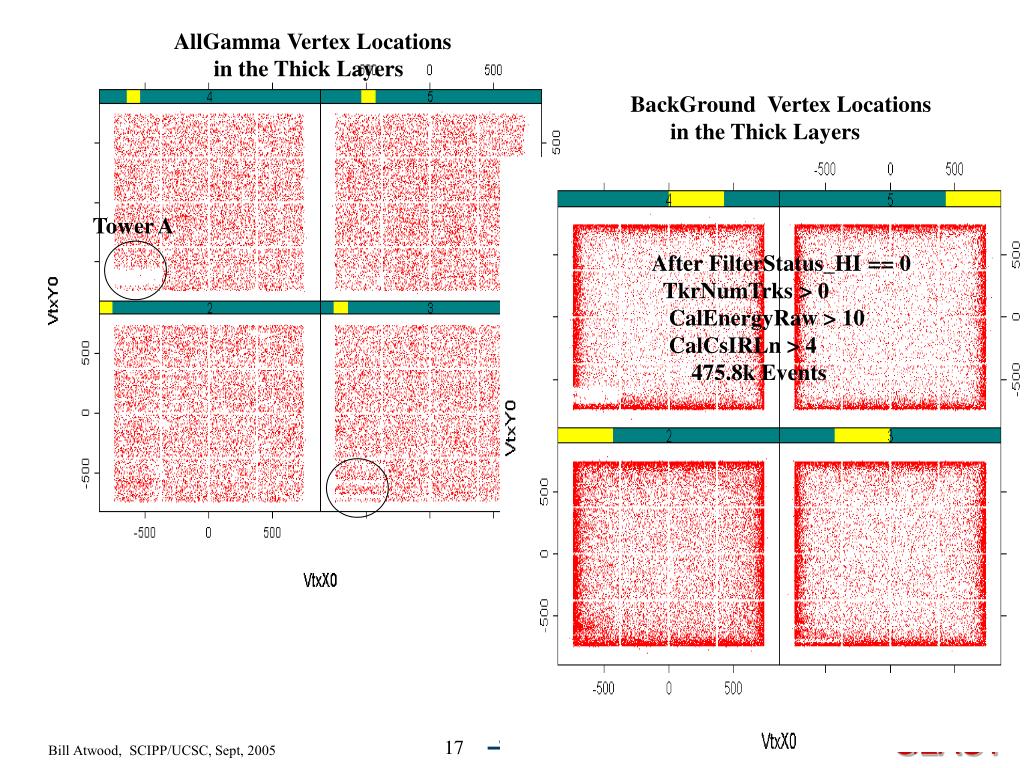

  17. AllGamma Vertex Locations in the Thick Layers BackGround Vertex Locations in the Thick Layers Tower A After FilterStatus_HI == 0 TkrNumTrks > 0 CalEnergyRaw > 10 CalCsIRLn > 4 475.8k Events

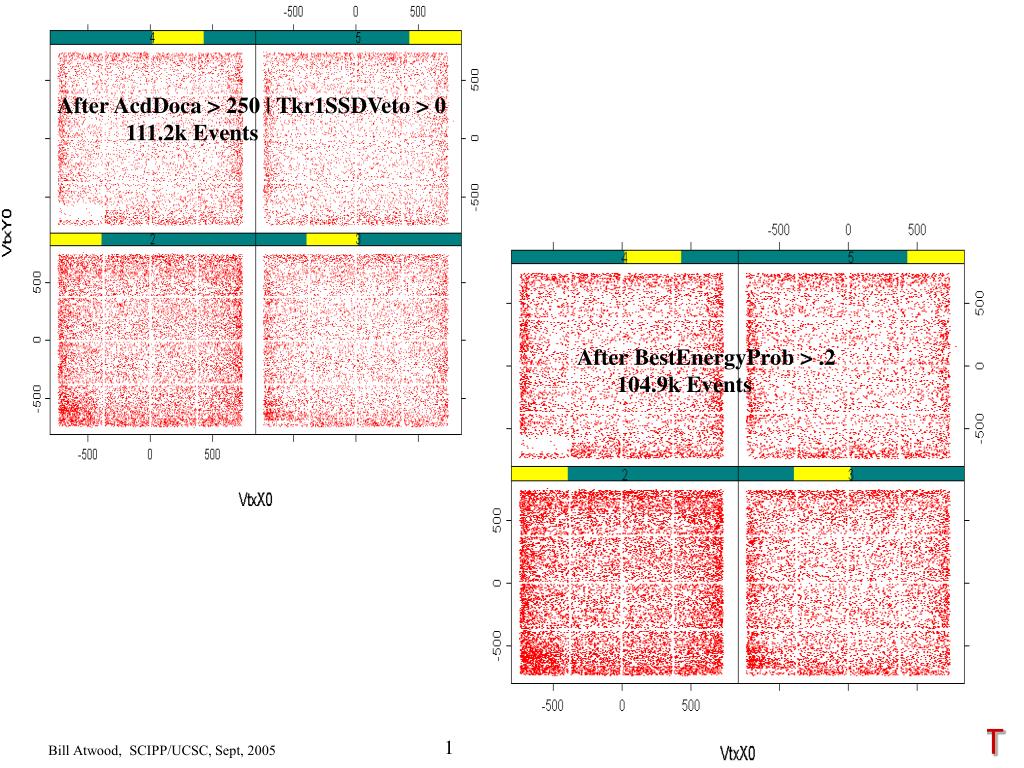

  18. After AcdDoca > 250 | Tkr1SSDVeto > 0 111.2k Events After BestEnergyProb > .2 104.9k Events

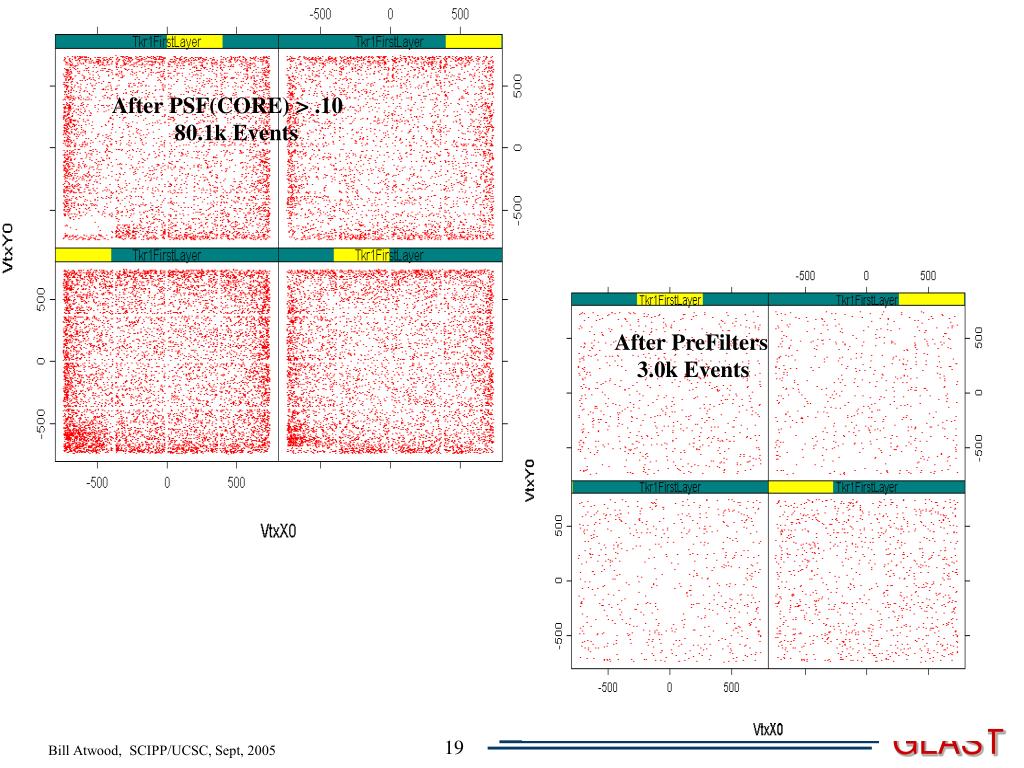

  19. After PSF(CORE) > .10 80.1k Events After PreFilters 3.0k Events

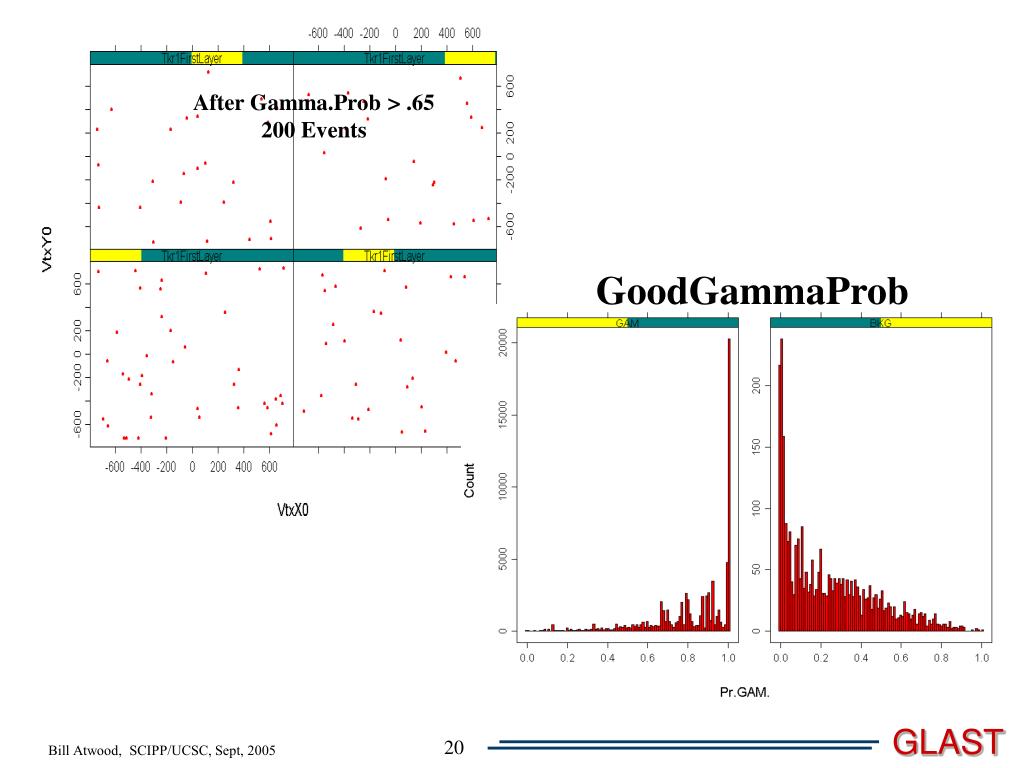

  20. After Gamma.Prob > .65 200 Events GoodGammaProb
