Multicasting

1. Multicasting Ju Seong-ho 2002. 05.14

2. Previous work behind main one

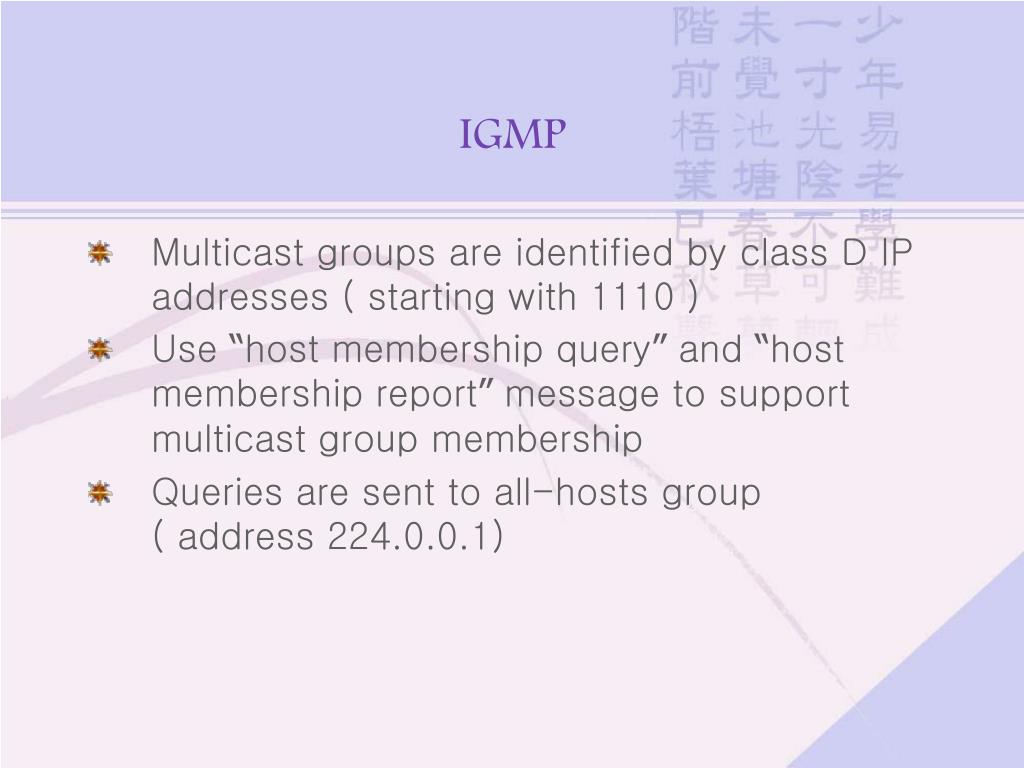

3. IGMP • Multicast groups are identified by class D IP addresses ( starting with 1110 ) • Use “host membership query” and “host membership report” message to support multicast group membership • Queries are sent to all-hosts group ( address 224.0.0.1)

4. DVMRP • Employ RPM(reverse path multicast) to send multicast packets • Assign each communication link a metric and threshold to specify link cost and to limit the scope of multicast, respectively • Periodically exchange routing table update messages with their neighbors

5. MOSPF • Extend OSPF by adding a new type of LSA, group membership LSA • Use IGMP to keep track of group membership information • Distribute the information by flooding throughout AS • SPT is computed on demand to conserve CPU and memory resource

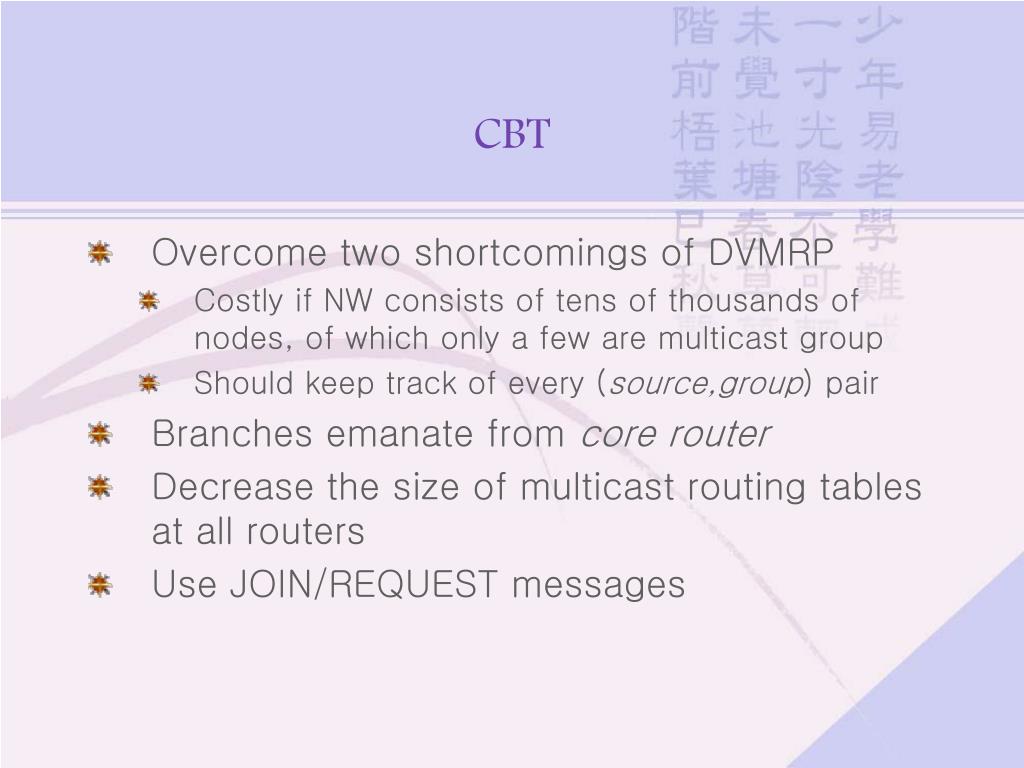

6. CBT • Overcome two shortcomings of DVMRP • Costly if NW consists of tens of thousands of nodes, of which only a few are multicast group • Should keep track of every (source,group) pair • Branches emanate from core router • Decrease the size of multicast routing tables at all routers • Use JOIN/REQUEST messages

7. PIM • Avoid the overhead of broadcasting packets when group members sparsely populate the Internet • Two modes of operation : PIM-SM, PIM-DM • PIM-SM ( sparse mode ) • employ per-group rendezvous points • Use unidirectional shared trees • PIM-DM ( dense mode ) • employ DVMRP method • Used only if data rates exceed a certain value

8. BGMP • Facilitate multicast communication across different ASes • Use TCP as its transport protocol • Border routers set up a TCP connection between themselves and exchange BGMP messages • MIGP component to participate in the MIGP protocol within AS • BGMP component to construct a bidirectional center-based tree with other border routers

9. Source Filtering in IP Multicast Routing

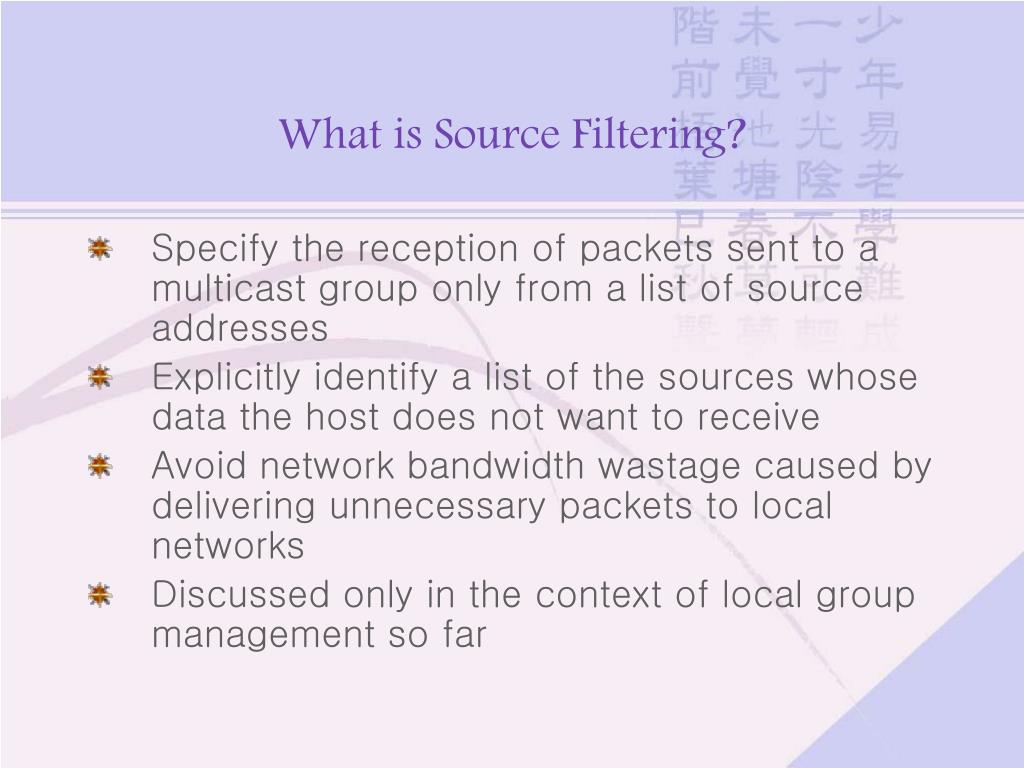

10. What is Source Filtering? • Specify the reception of packets sent to a multicast group only from a list of source addresses • Explicitly identify a list of the sources whose data the host does not want to receive • Avoid network bandwidth wastage caused by delivering unnecessary packets to local networks • Discussed only in the context of local group management so far

11. Objectives • A multicast router will receive a multicast packet from a particular source if and only if at least one host in its directly attached network for from any downstream routers • Promptly react to SF state updates • Ensure scalability in terms of low overhead in computing and communications • Minimize modification to existing multicast routing protocols to support SF

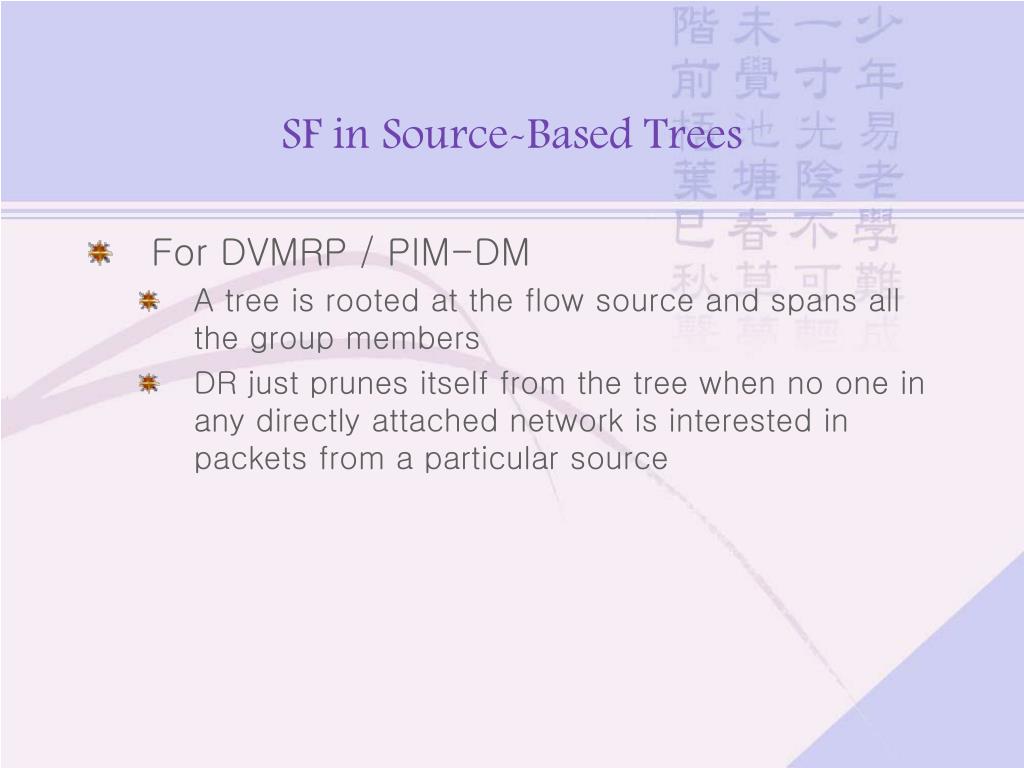

12. SF in Source-Based Trees • For DVMRP / PIM-DM • A tree is rooted at the flow source and spans all the group members • DR just prunes itself from the tree when no one in any directly attached network is interested in packets from a particular source

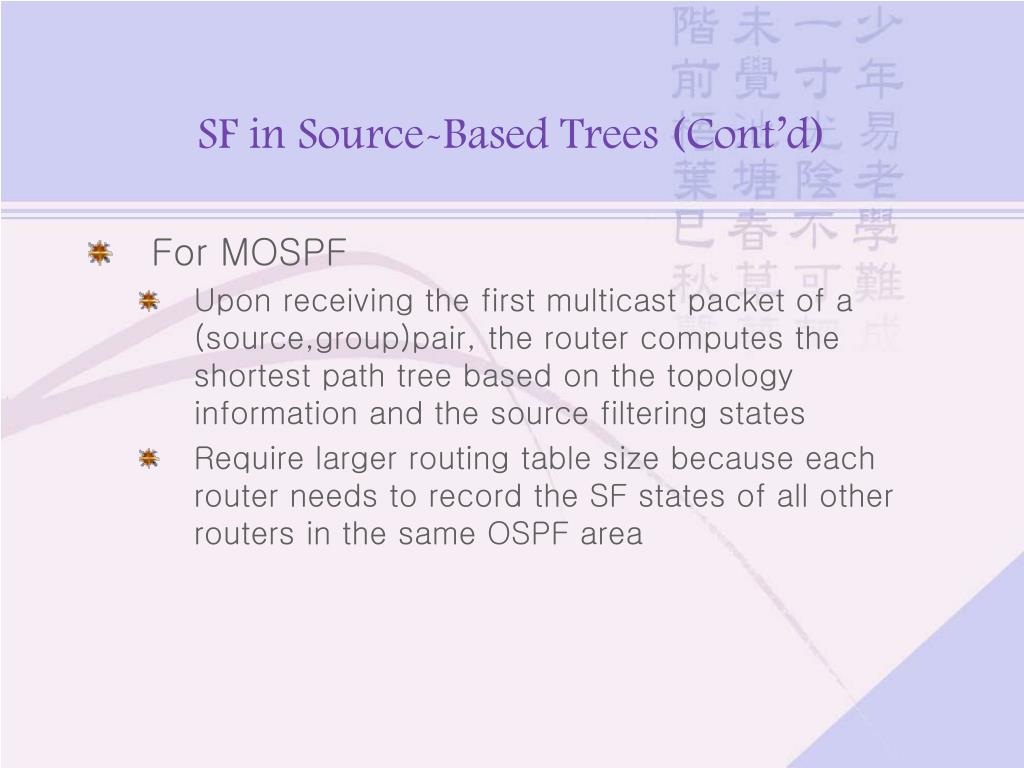

13. SF in Source-Based Trees (Cont’d) • For MOSPF • Upon receiving the first multicast packet of a (source,group)pair, the router computes the shortest path tree based on the topology information and the source filtering states • Require larger routing table size because each router needs to record the SF states of all other routers in the same OSPF area

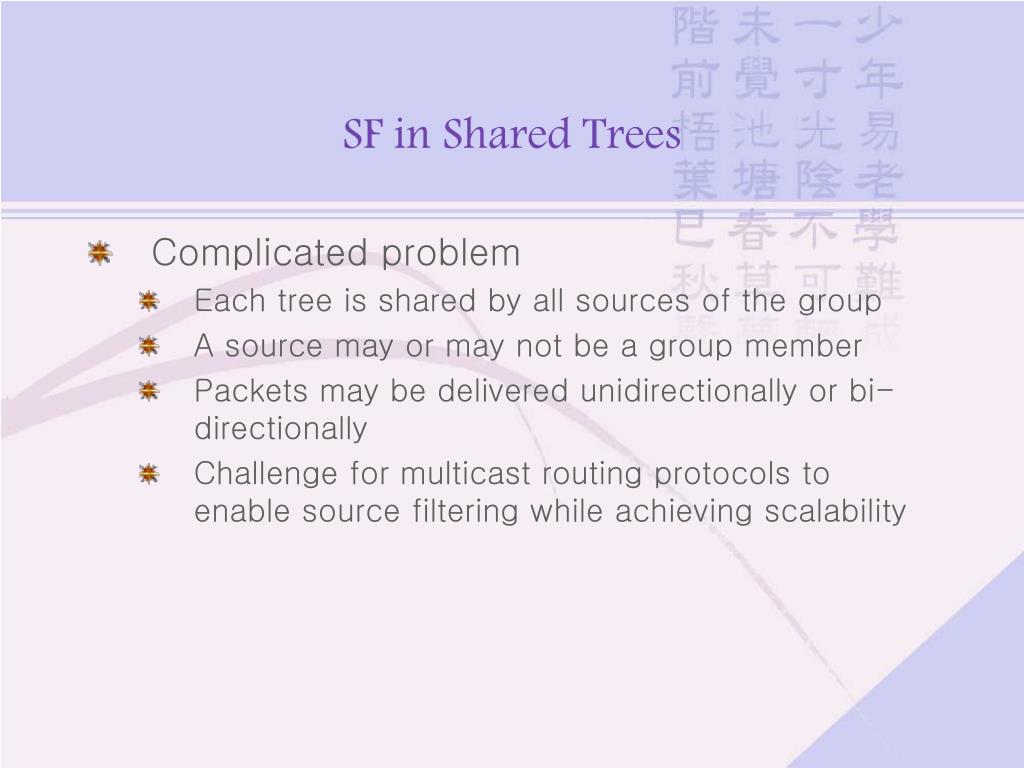

14. SF in Shared Trees • Complicated problem • Each tree is shared by all sources of the group • A source may or may not be a group member • Packets may be delivered unidirectionally or bi-directionally • Challenge for multicast routing protocols to enable source filtering while achieving scalability

15. Proposed Mechanism • Simple and low-overhead source filtering • Comprised of two parts • Forwarding part • Identify SF states stored in each interface • Determine to which interfaces a received multicast packet should be forwarded • Message exchange part • Exchange message to ensure the correctness of the SF tree • Minimize network bandwidth wastage

16. First Forwarding Approach • Associate each outgoing interface with multiple SF states, each of which records the state of each downstream LAN • Unambiguously identify the outgoing interfaces to forward packets upon receiving them • Don’t scale well because the memory size required by each SF router is proportional to the number of downstream LANs

17. Second Forwarding Approach • Associate each outgoing interface with one single SF state which summarizes the requirements of all the downstream LANs • Activate outgoing interface when at least one host in any downstream LAN of the interface is interested in receiving source packets • Significantly reduce forwarding table size of each router • Improve routing efficiency

18. Forwarding Mechanism • Each entry in forwarding table stores the SF state information for one interface • Each SF state includes a group address, a filter mode, and a source list • Activate outgoing interface when • Filter mode is “include” and the source is in the associated source list • Filter mode is “Exclude” and the source is not in the associated source list

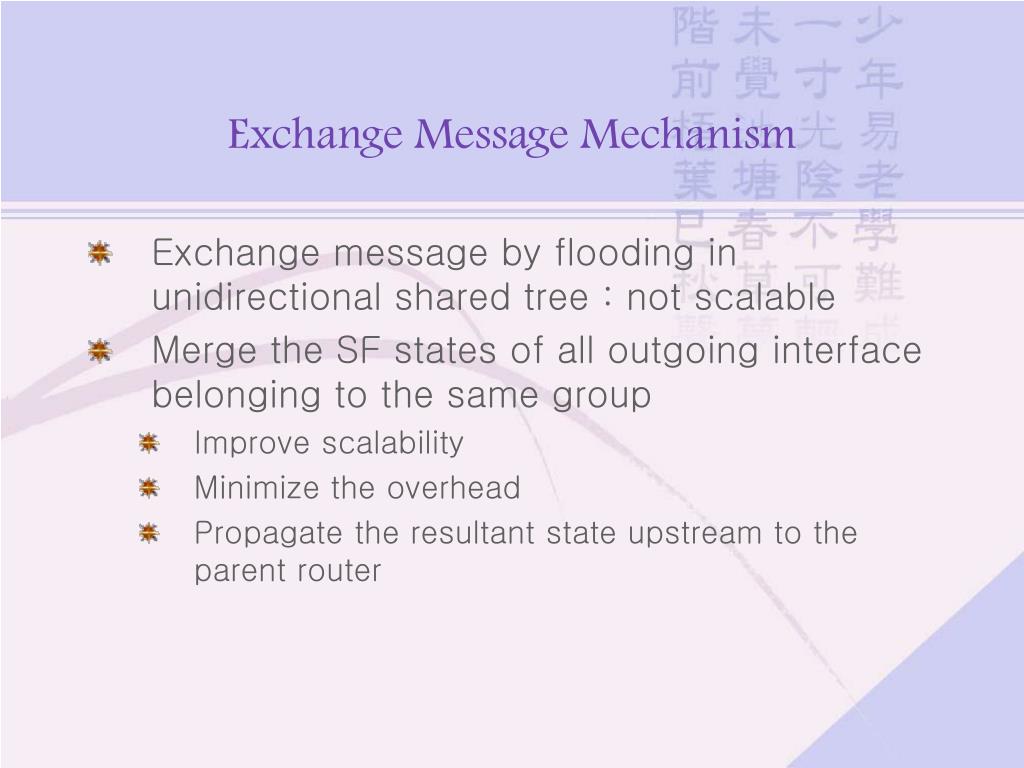

19. Exchange Message Mechanism • Exchange message by flooding in unidirectional shared tree : not scalable • Merge the SF states of all outgoing interface belonging to the same group • Improve scalability • Minimize the overhead • Propagate the resultant state upstream to the parent router

20. Exchange Message Mechanism(I) • Consider all the interfaces of an SF router • m “include” filter modes with m source lists ( I1, I2, …, Im ) • N “exclude” filter modes with m source lists ( E1, E2,…, En ) • Filter mode Mu, source list Su • Let I = I1∪ I2, ∪… ∪ Im , E = E1 ∪ E2 ∪ … ∪En • If n=0, set Mu = include and Su = I ; otherwise, set Mu = exclude and Su = E-I

21. Exchange Message Mechanism (Cont’d) • Allow hosts to freely change their SF states • Require its upstream routers to reflect his change accordingly • Merge the table entries of all the other interfaces to generate a new state as soon as an SF state update is received from an interface • Forward the new state to its immediate upstream router

22. Exchange Message Mechanism (Cont’d) • Three drawbacks exist (1) Computational complexity of the merge operation is proportional to the number of interfaces times the size of the source lists of the interfaces (2) New merged state must be propagated upstream, irrespective of whether the new state remains unchanged (3) If new state is slightly different from old state, it is inefficient to perform a merge to all entries and forward the result

23. Exchange Message Mechanism (Cont’d) • Solution for (2) • Introduce “merge” entry storing merged state • Don’t forward the resultant state if the merge entry remains unchanged after merging • Solution for (3) • Use IGMP message : Update, Allow, and Block • Update : deliver an entire SF state • Allow, Block : no filter mode, source list only

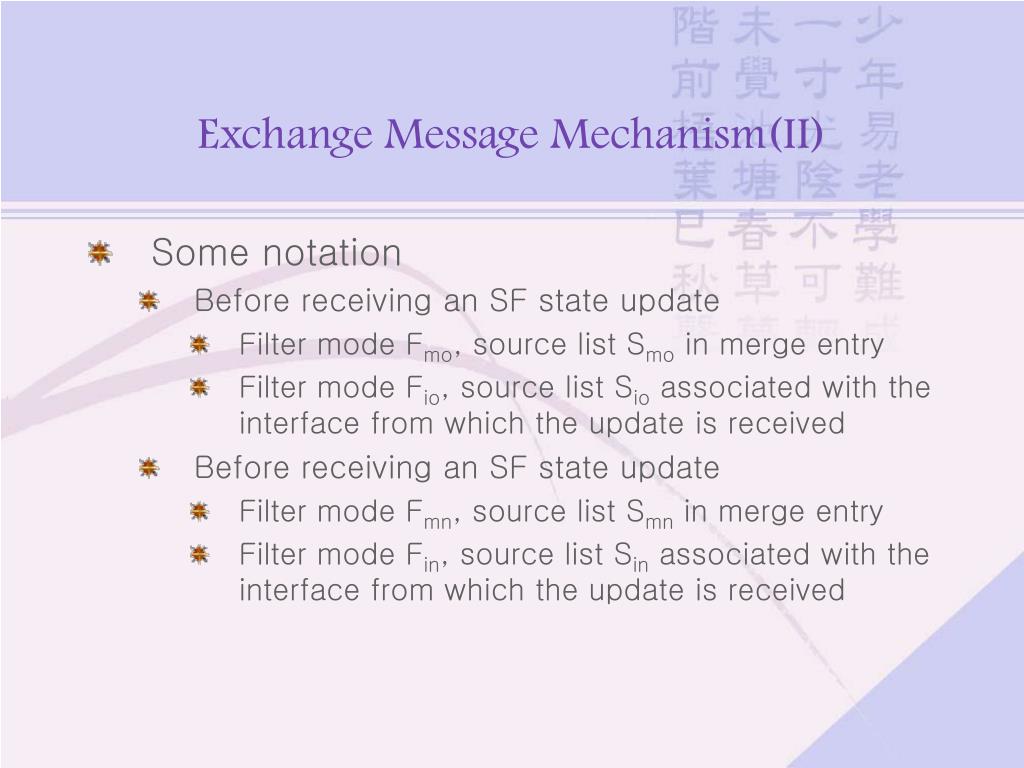

24. Exchange Message Mechanism(II) • Some notation • Before receiving an SF state update • Filter mode Fmo, source list Smo in merge entry • Filter mode Fio, source list Sio associated with the interface from which the update is received • Before receiving an SF state update • Filter mode Fmn, source list Smn in merge entry • Filter mode Fin, source list Sin associated with the interface from which the update is received

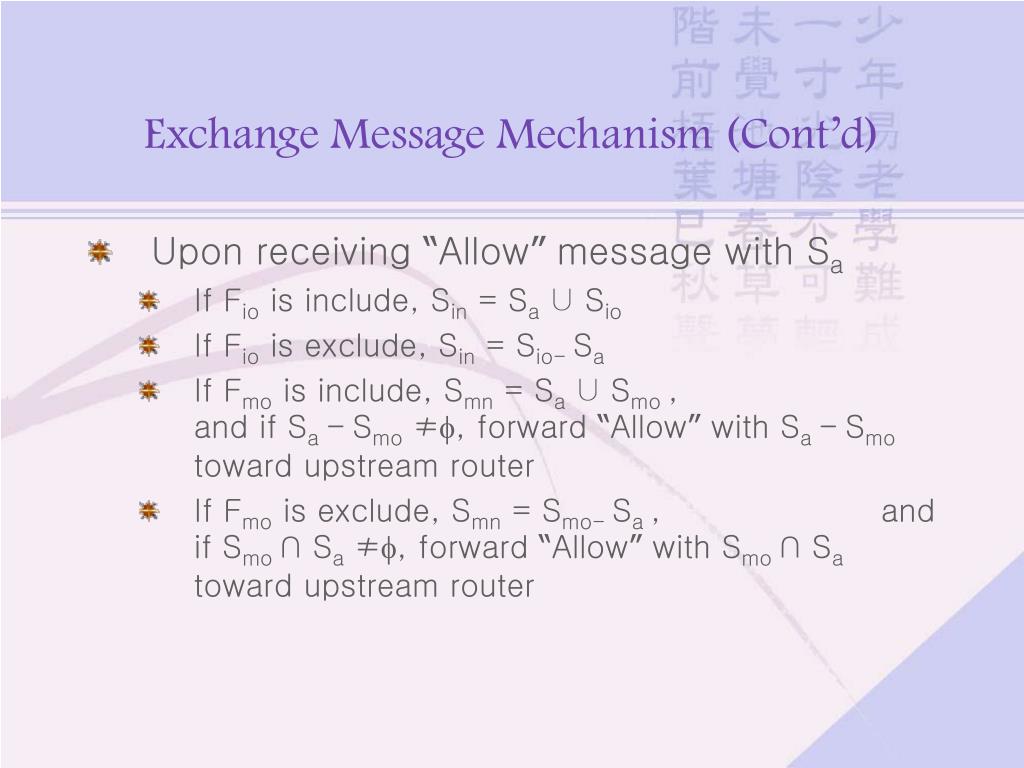

25. Exchange Message Mechanism (Cont’d) • Upon receiving “Allow” message with Sa • If Fio is include, Sin = Sa ∪Sio • If Fio is exclude, Sin = Sio- Sa • If Fmo is include, Smn = Sa ∪Smo , and if Sa -Smo ≠, forward “Allow” with Sa -Smo toward upstream router • If Fmo is exclude, Smn = Smo- Sa , and if Smo ∩ Sa ≠, forward “Allow” with Smo ∩ Sa toward upstream router

26. Exchange Message Mechanism (Cont’d) • Upon receiving “Allow” message with Sb • If Fio is include, Sin = Sio-Sb • If Fio is exclude, Sin = Sio∪Sb • If Fmo is include, and check if any other interfaces are interested in source list Smo∪Sb If none exists, Smo= Smo-(Smo∪Sb) and then forward “Block” with source list Smo∪Sb • If Fmo is exclude, and check if any other interfaces are interested in source list Sb-Smo If none exists, Smn = Smo∪Sb-Smo and then forward “Block” with source list Sb-Smo

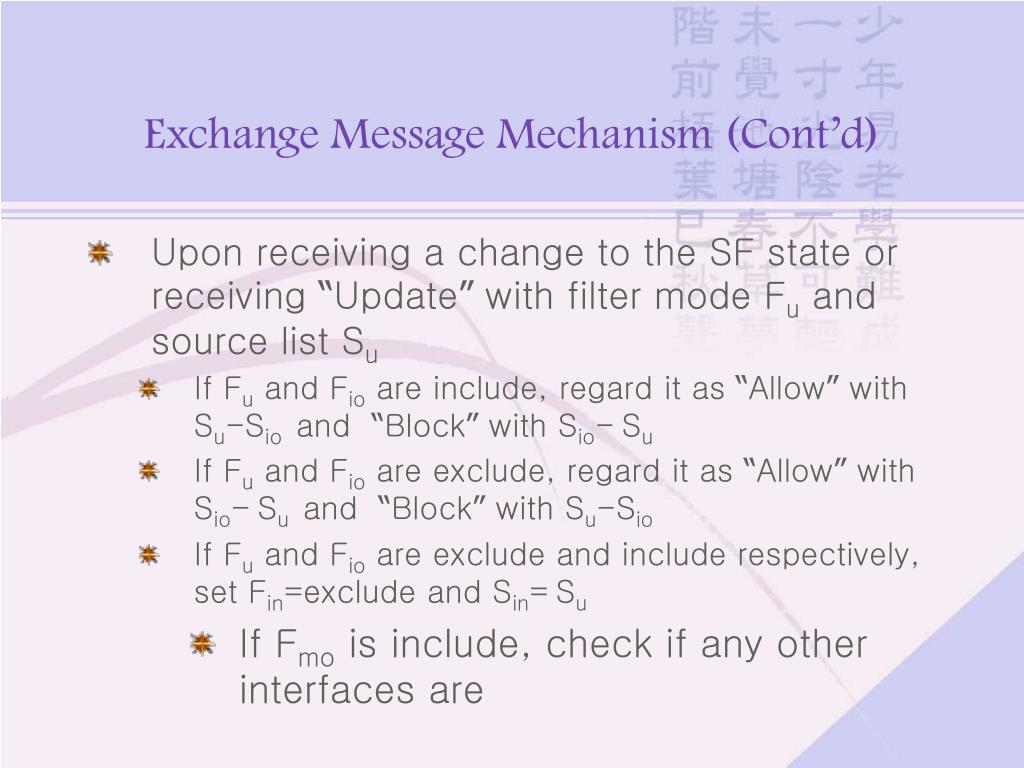

27. Exchange Message Mechanism (Cont’d) • Upon receiving a change to the SF state or receiving “Update” with filter mode Fu and source list Su • If Fu and Fio are include, regard it as “Allow” with Su-Sio and “Block” with Sio-Su • If Fu and Fio are exclude, regard it as “Allow” with Sio-Su and “Block” with Su-Sio • If Fu and Fio are exclude and include respectively, set Fin=exclude and Sin=Su • If Fmo is include, check if any other interfaces are

28. Exchange Message Mechanism (Cont’d) interested in source list Su∩Sio If none exists, set Fin=exclude and Smn=(Su-Smo) ∪(Su∩Sio), then forward “Update” with Fmn andSmn • If Fmo is exclude, check if any other interfaces are interested in source list Su ∩ Sio If none exists, set Fin=exclude and Smn=(Su∩Smo) ∪(Su∩Sio), then forward “Update” with Fmn andSmn

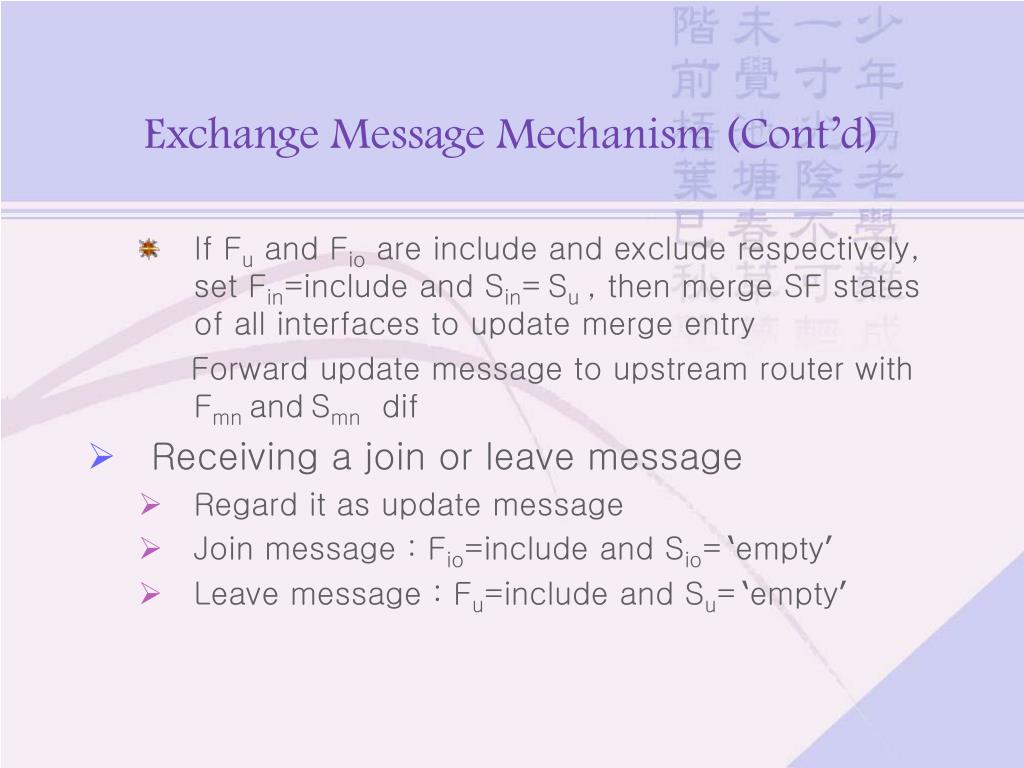

29. Exchange Message Mechanism (Cont’d) • If Fu and Fio are include and exclude respectively, set Fin=include and Sin=Su , then merge SF states of all interfaces to update merge entry Forward update message to upstream router with Fmn andSmn dif • Receiving a join or leave message • Regard it as update message • Join message : Fio=include and Sio=‘empty’ • Leave message : Fu=include and Su=‘empty’

30. Scalability of SF in IP Multicasting • A forwarding table in an SF router should be small - Reduce memory size ( cost ) - Make forwarding efficiency - Support more multicast group • Communication and computational overhead should be as small as possible - applicable even for a sizeable network

31. For Source-Based Trees • In source-based tree, a tree is constructed for each (source,group) pair • Adopting DVMRP or PIM-DM • Memory size of a router • Communication overhead of the entire network

32. For Source-Based Trees (Cont’d) • Adopting MOSPF • Memory size required by each router • Communication overhead of the entire network

33. For Shared Trees • In shared tree, a tree is shared by all sources of the group • Required memory size • Generated communication overhead

34. Simulation Results Unidirectional shared tree Bi-directional shared tree

35. Simulation Results (Cont’d)

36. Conclusion • Propose a new mechanism to support the capability of source filtering in IP multicast routing protocols • As compared with non-SF multicasting, better bandwidth utilization and scalability in terms of control overhead and forwarding table size • Efficient use of resources for IP multicasting

37. Making Qos Aware Multicast Scalable in Terms of Link State Advertisement

38. Qos Aware Multicast Procedures • Qos aware multicast tree construction and resource reservation • Qosaware forwarding • Multicast datagrams of a multicast group will be forwarded along with the Qosaware multicast tree for this traffic • Link state advertisement and Qosrouting information update • Routing information including network topology and available bandwidth of links

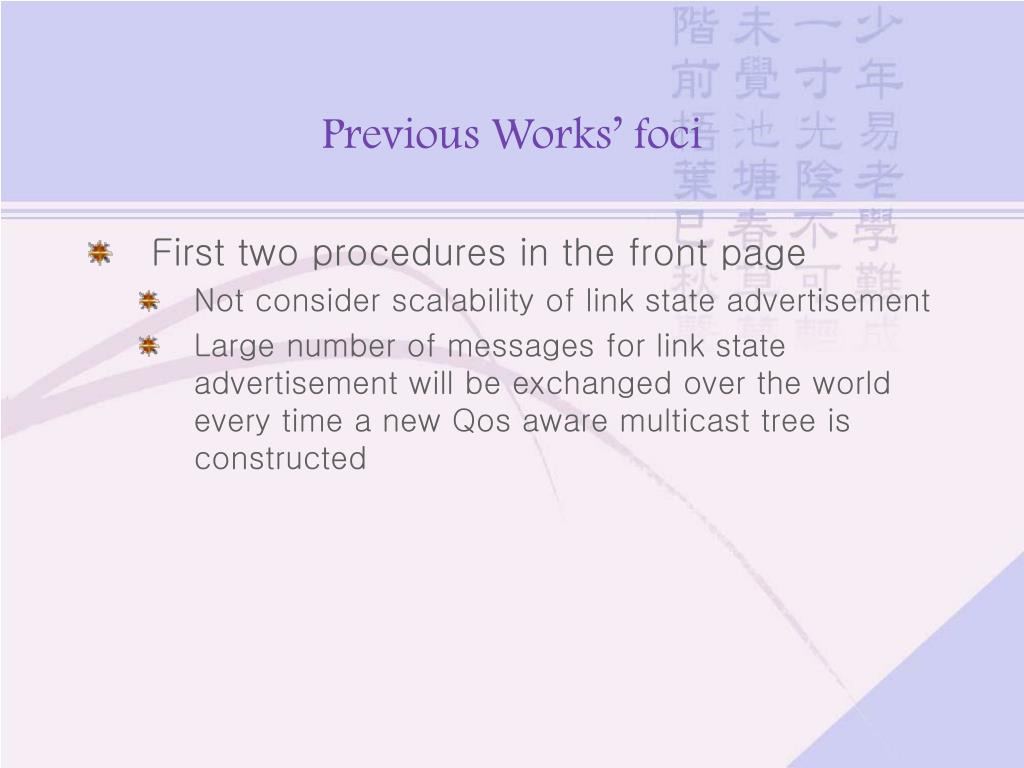

39. Previous Works’ foci • First two procedures in the front page • Not consider scalability of link state advertisement • Large number of messages for link state advertisement will be exchanged over the world every time a new Qos aware multicast tree is constructed

40. Proposed Protocol • Advertisement of information on links within a domain is limited within that domain • Only link state information of inter-domain links is advertised among the border multicast routers • Crank back mechanism is used • Retry to construct a new Qosaware multicast tree

41. Design Principles • Multicast network is divided into domains • Intra-domain and inter-domain is introduced • Range of link state advertisement exchange is limited for intra-domain and inter-domain levels • For the intra-domain multicasting • Use PIM-SM as an intra-domain multicast routing protocol and OSPF for intra-domain link state advertisement • Use SPT as a Qos aware multicast tree

42. Design Principles (Cont’d) • For the inter-domain multicasting • Use BGMP as an inter-domain multicast routing protocol and BGP-4 for inter-domain link state advertisement • Others are the same as intra-domain • When an SPT spreads over multiple domains • Use only the information on available bandwidth of links within this domain and inter-domain links • The construction will be failed because of no knowledge about other domains

43. Design Principles (Cont’d) • Crank back mechanism • A failure of tree construction is reported back to the original domain of Qos Join message • Another trial of SPT construction is performed through different domains • Introduce Join NACK message to PIM-SM and BGMP

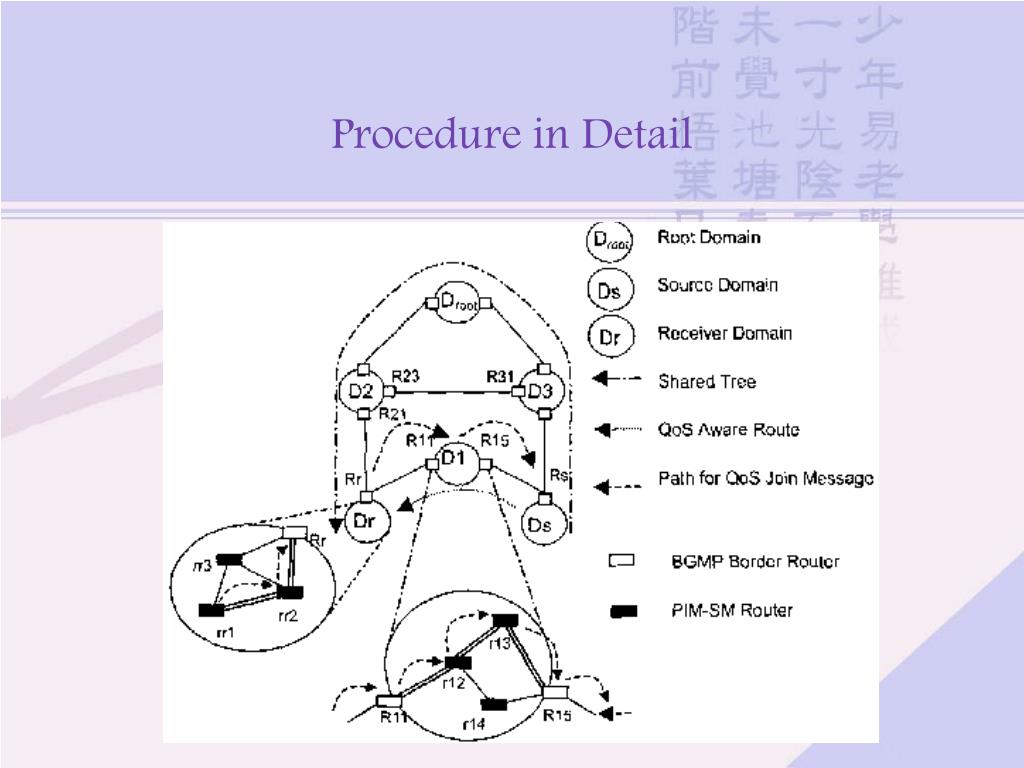

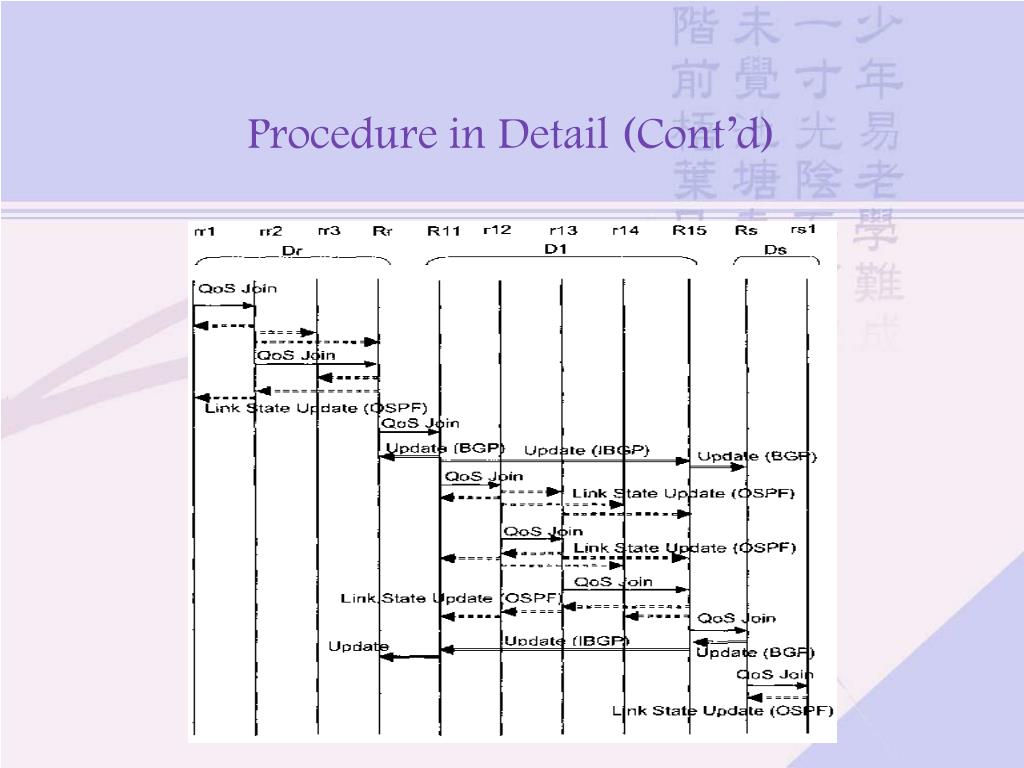

44. Procedure in Detail

45. Procedure in Detail (Cont’d)

46. Procedure in Detail (Cont’d)

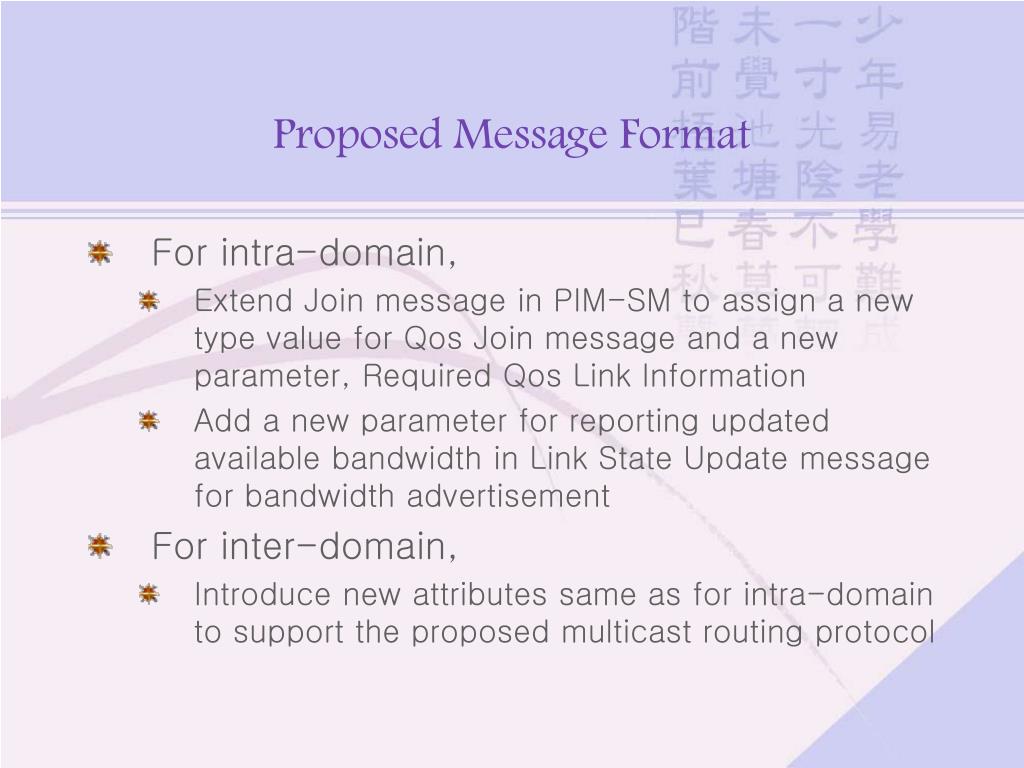

47. Proposed Message Format • For intra-domain, • Extend Join message in PIM-SM to assign a new type value for Qos Join message and a new parameter, Required Qos Link Information • Add a new parameter for reporting updated available bandwidth in Link State Update message for bandwidth advertisement • For inter-domain, • Introduce new attributes same as for intra-domain to support the proposed multicast routing protocol

48. Crank Back Mechanism

49. Crank Back Mechanism (Cont’d) < Format of Join NACK Message for BGMP > < Format of Join NACK Message for PIM-SM >

50. Simulation
