  1. Web-based tool for expert elicitation of the variogram Phuong Truong, Gerard Heuvelink, John Paul Gosling Wageningen University (NL) University of Leeds (UK) UncertWeb Workshop, Muenster 10 Sep, 2012

  2. Outline • Introduction of Statistical Expert Elicitation • Expert Elicitation in UncertWeb Project • Expert Elicitation for the Variogram • Introduction of the Web-based tool • Introduction of the Case study • Demo of the Web-based tool

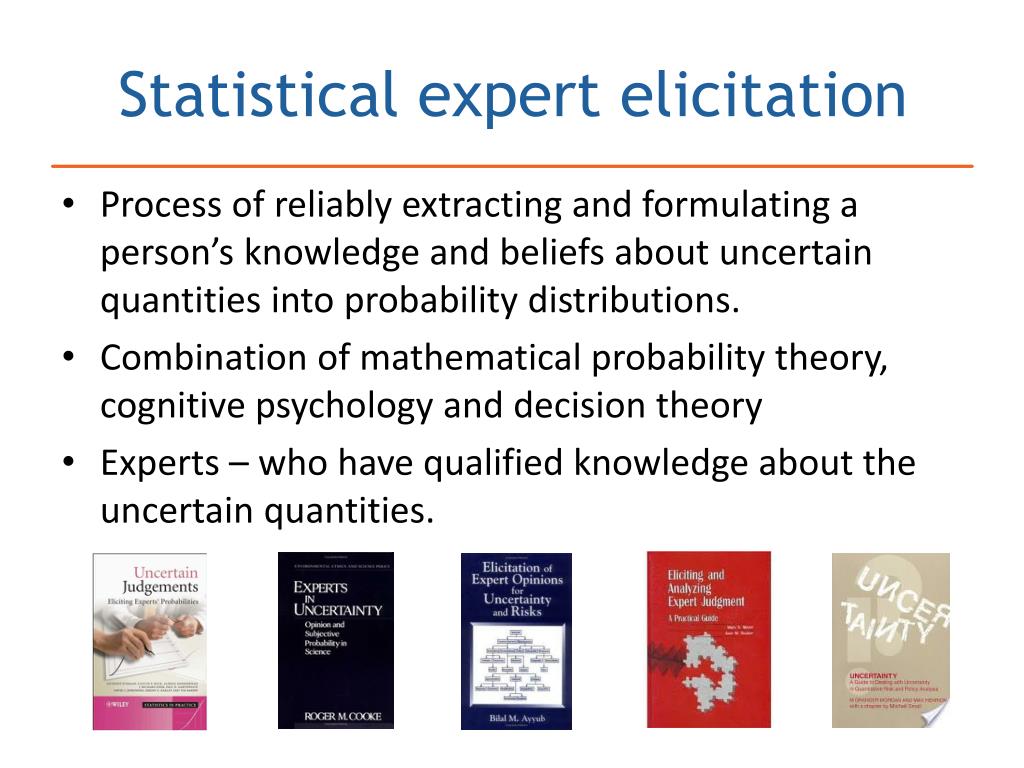

  3. Statistical expert elicitation • Process of reliably extracting and formulating a person’s knowledge and beliefs about uncertain quantities into probability distributions. • Combination of mathematical probability theory, cognitive psychology and decision theory • Experts – who have qualified knowledge about the uncertain quantities.

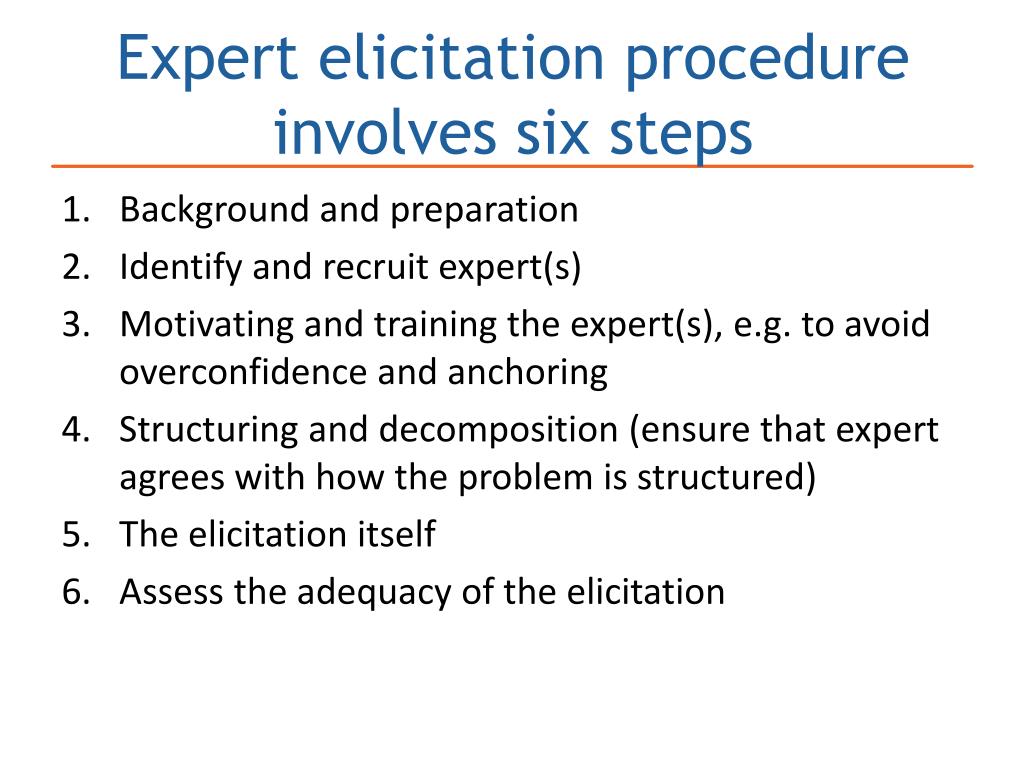

  4. Expert elicitation procedure involves six steps • Background and preparation • Identify and recruit expert(s) • Motivating and training the expert(s), e.g. to avoid overconfidence and anchoring • Structuring and decomposition (ensure that expert agrees with how the problem is structured) • The elicitation itself • Assess the adequacy of the elicitation

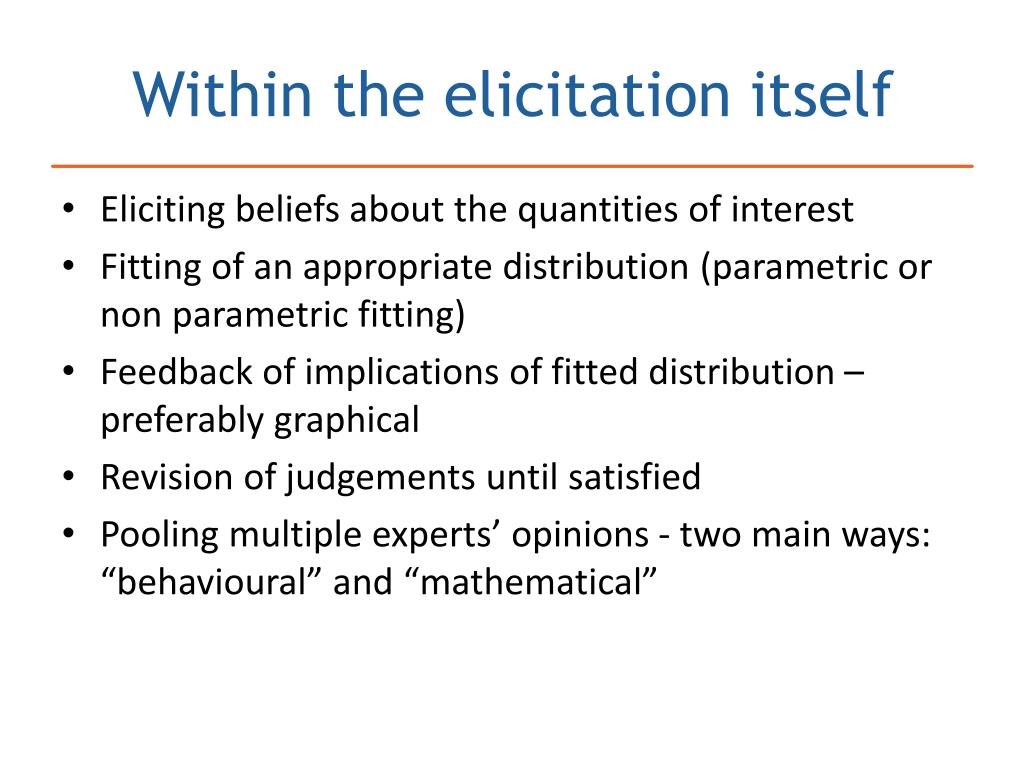

  5. Within the elicitation itself • Eliciting beliefs about the quantities of interest • Fitting of an appropriate distribution (parametric or non parametric fitting) • Feedback of implications of fitted distribution – preferably graphical • Revision of judgements until satisfied • Pooling multiple experts’ opinions - two main ways: “behavioural” and “mathematical”

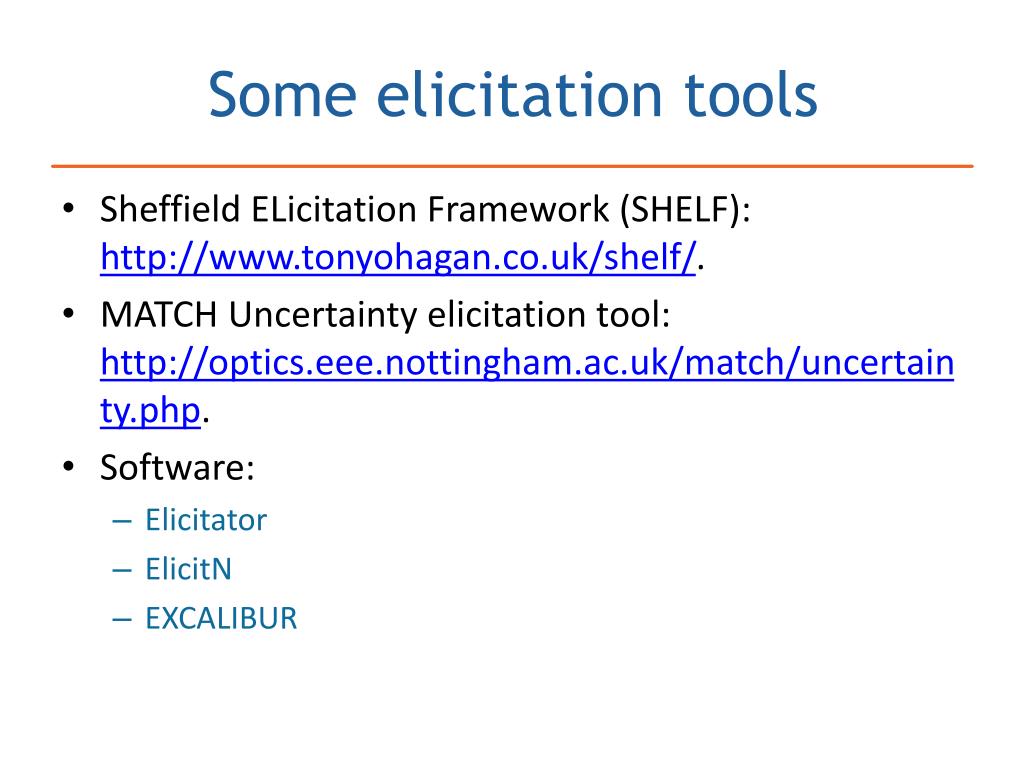

  6. Some elicitation tools • Sheffield ELicitation Framework (SHELF): http://www.tonyohagan.co.uk/shelf/. • MATCH Uncertainty elicitation tool: http://optics.eee.nottingham.ac.uk/match/uncertainty.php. • Software: • Elicitator • ElicitN • EXCALIBUR

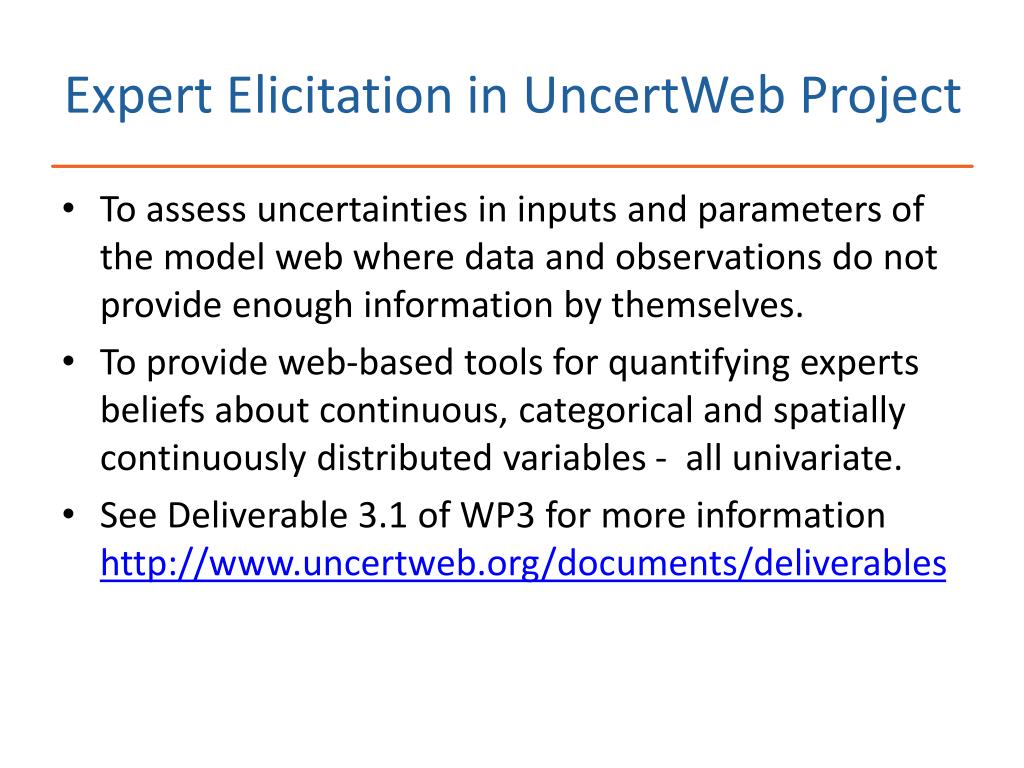

  7. Expert Elicitation in UncertWeb Project • To assess uncertainties in inputs and parameters of the model web where data and observations do not provide enough information by themselves. • To provide web-based tools for quantifying experts beliefs about continuous, categorical and spatially continuously distributed variables - all univariate. • See Deliverable 3.1 of WP3 for more information http://www.uncertweb.org/documents/deliverables

  8. The ElicitatorQuantifying multiple experts' beliefs about continuous & categorical variables http://elicitator.uncertweb.org

  9. Expert elicitation for the variogram • Demand for estimation of the variogram when few or no observations available. • Demand for a priori variogram in Bayesian geostatistics and spatial sampling optimization. • Expert knowledge – an important source of information about spatial variability of environmental variables. • Elicitation protocol and tool to facilitate eliciting the variogram from expert knowledge not available.

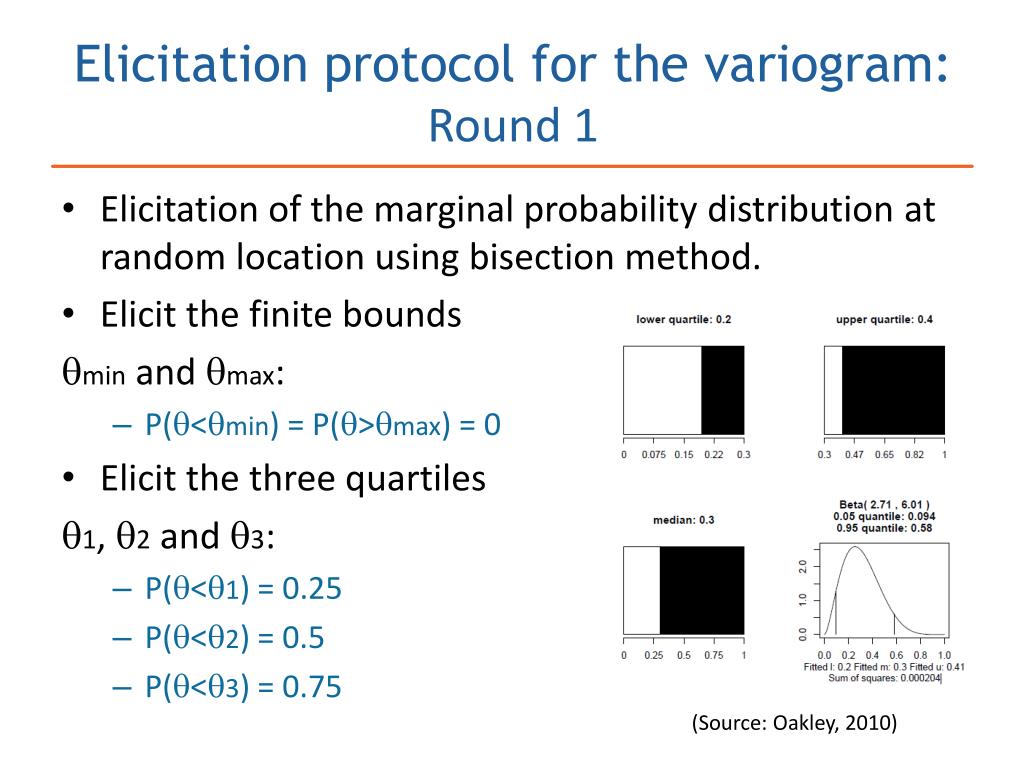

  10. Elicitation protocol for the variogram:Round 1 • Elicitation of the marginal probability distribution at random location using bisection method. • Elicit the finite bounds min and max: • P(<min) = P(>max) = 0 • Elicit the three quartiles 1, 2 and3: • P(<1) = 0.25 • P(<2) = 0.5 • P(<3) = 0.75 (Source: Oakley, 2010)

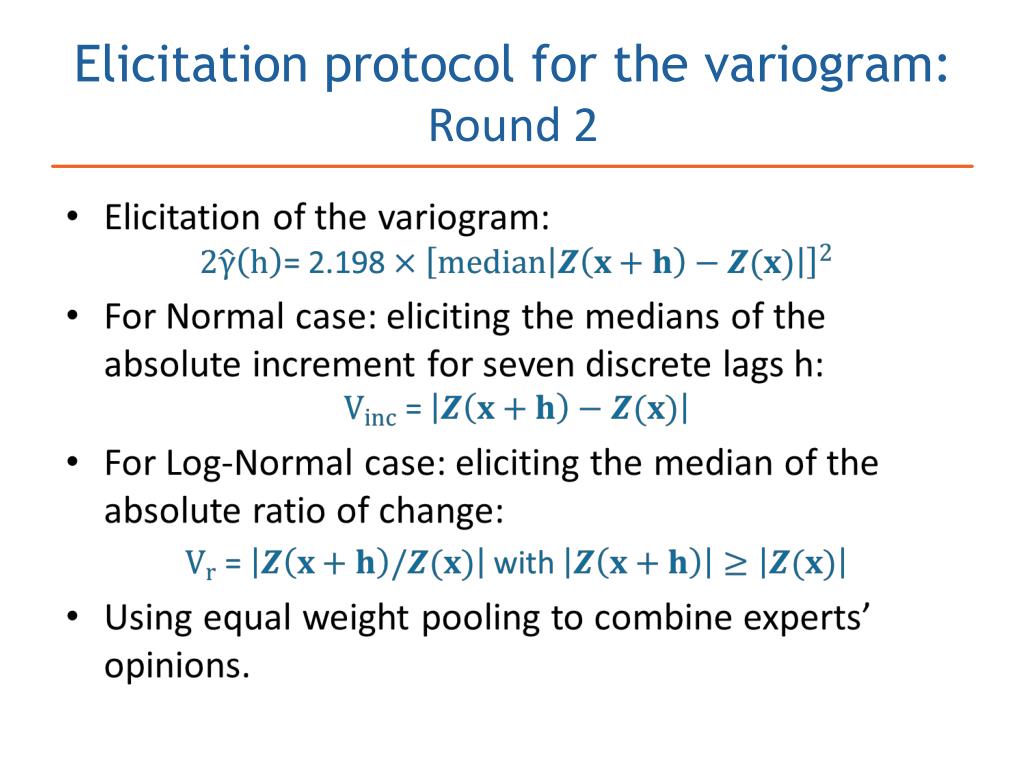

  11. Elicitation protocol for the variogram:Round 2

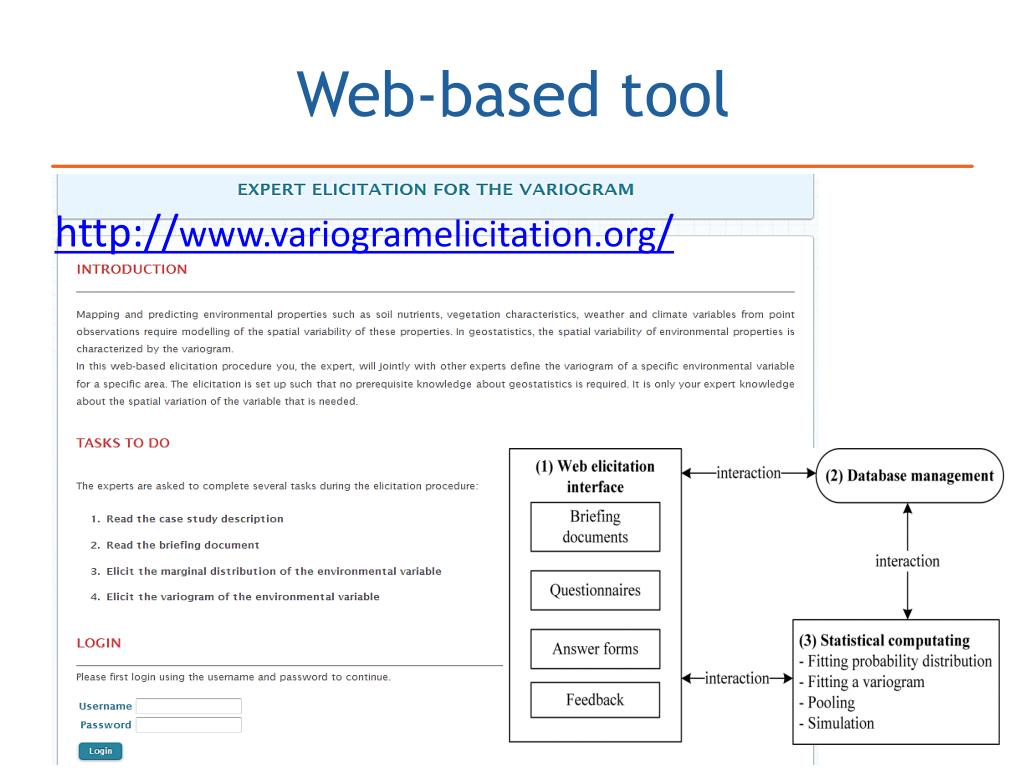

  12. Web-based tool http://www.variogramelicitation.org/

  13. Case study: surface temperature in the Netherlands • Maximum daily surface temperatureon April 1st, 2020. • Spatially continuously distributed variable at fixed time slot.

  14. Let’s try the live demo • Access the URL: http://www.variogramelicitation.org • Everyone is given username and password to login • Carefully read the information provided in the websites • Answer the questions in given orders

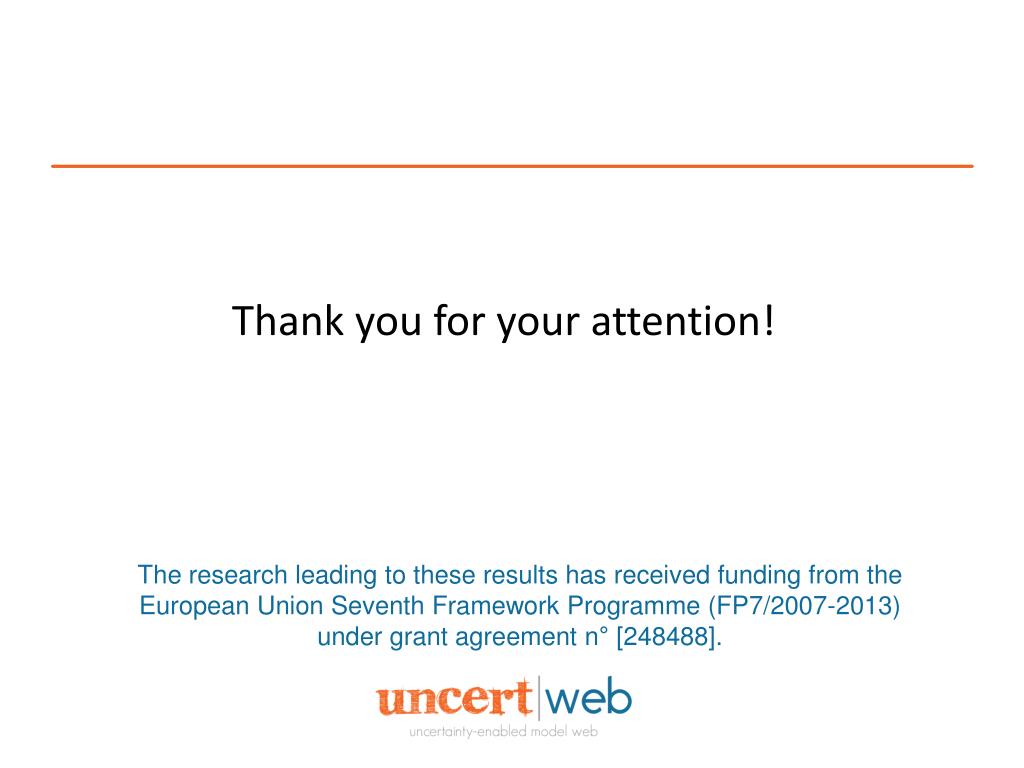

  15. Thank you for your attention! The research leading to these results has received funding from the European Union Seventh Framework Programme (FP7/2007-2013) under grant agreement n° [248488].

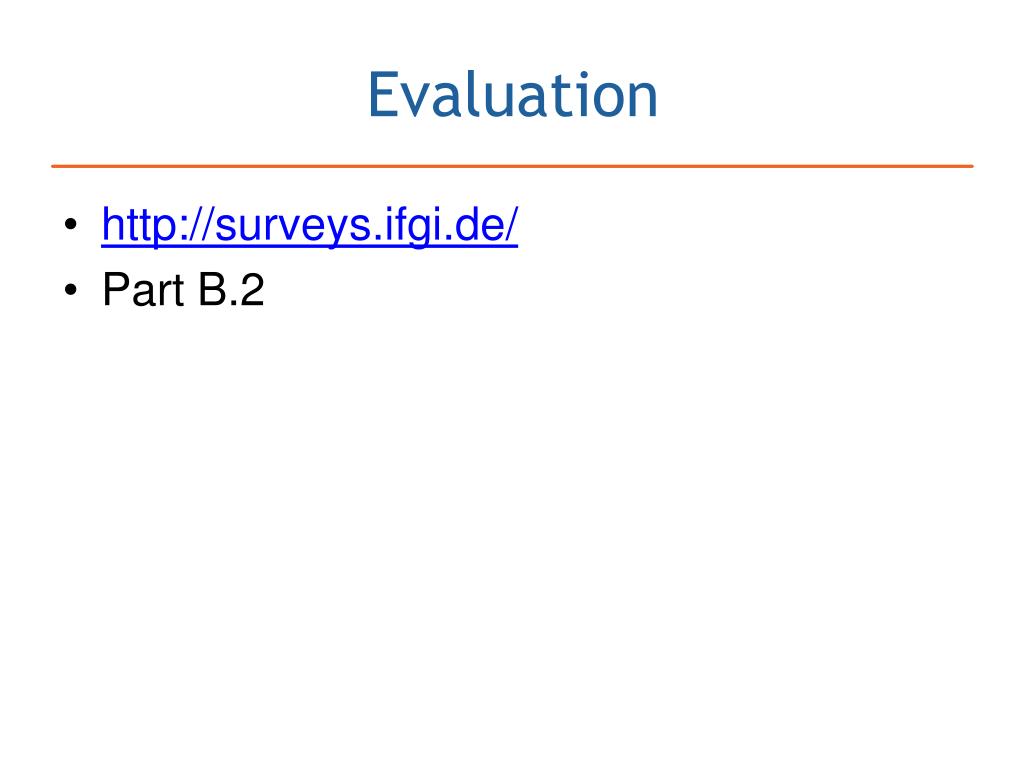

  16. Evaluation • http://surveys.ifgi.de/ • Part B.2
