  1. GALAXY®GX2Automated Test System Product Presentation

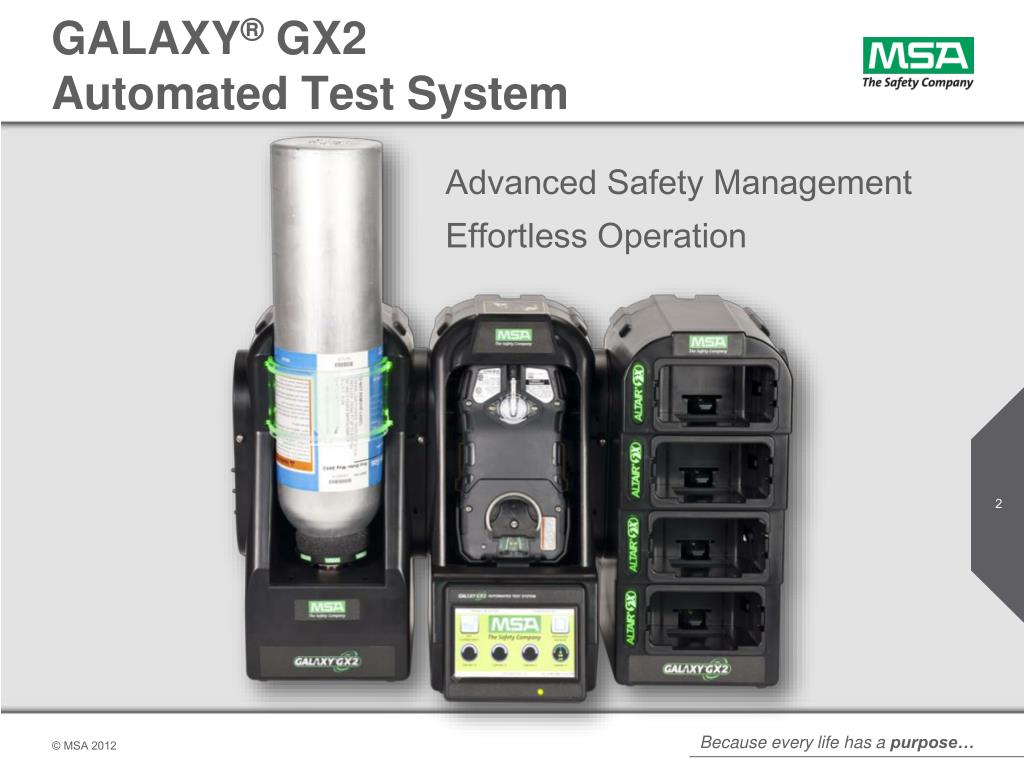

  2. GALAXY®GX2Automated Test System Advanced Safety Management Effortless Operation

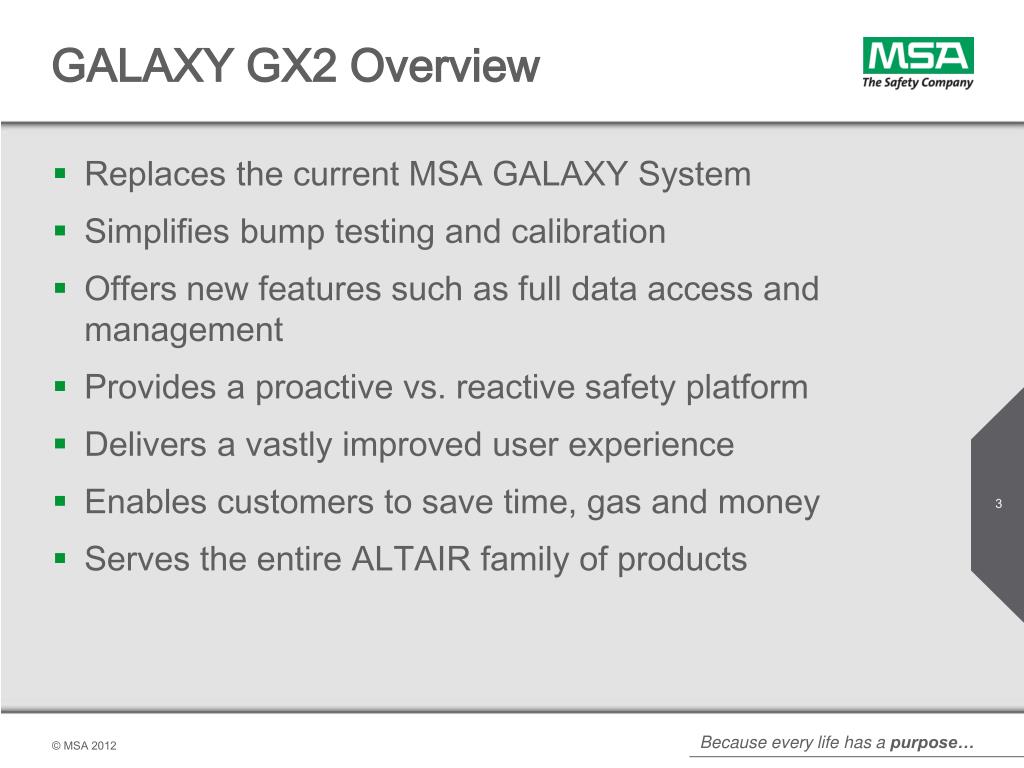

  3. GALAXY GX2 Overview • Replaces the current MSA GALAXY System • Simplifies bump testing and calibration • Offers new features such as full data access and management • Provides a proactive vs. reactive safety platform • Delivers a vastly improved user experience • Enables customers to save time, gas and money • Serves the entire ALTAIR family of products

  4. Same Great GALAXY Features • Testing is fully automatic • No user intervention is required at the test stand • Tests up to 10 instruments simultaneously • Based on MSA’s patented gas delivery system • Supplies enough gas to all ten test stands • Saves time and money • True standalone operation • No PC required for test stand operation • Datalog access (MSA Link Pro) requires PC

  5. NEW Features of GALAXY GX2 • Ease of use improvements • Color touch screen with 18 language options • Easy access to all data with the MSA Link Pro • Dashboard view of alerts and other key information • Easy system setup • Cost-of-ownership savings • Faster testing and calibration – Saves time • Reduced calibration gas use – Saves Money • Proactive gas detection fleet management by addressing: • Gas exposure issues and trending • Missing/failed calibrations and bump tests • Low calibration gas volumes and gas expiration warnings

  6. GALAXY® GX2 Background

  7. Definition – Bump Test & Calibration • Bump Test – Qualitative function check • Check unit’s ability to respond to a challenge gas within a given amount time. For typical applications, a bump test is sufficient to determine the general functionality of the detector. • A bump test confirms that gas entries are free and that the sensor(s) are functioning. • Full Calibration – Accuracy adjustment • Adjustment of the sensor(s) output to match the known traceable calibration gas concentration. Full calibration ensures maximum accuracy of the instrument.

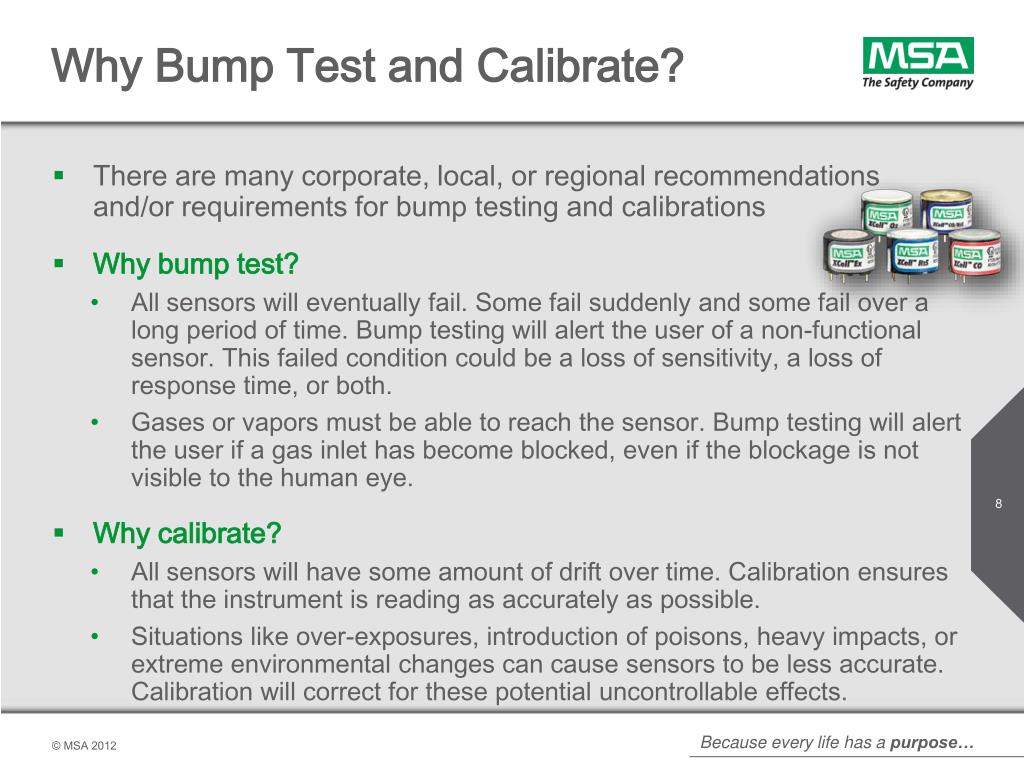

  8. Why Bump Test and Calibrate? • There are many corporate, local, or regional recommendations and/or requirements for bump testing and calibrations • Why bump test? • All sensors will eventually fail. Some fail suddenly and some fail over a long period of time. Bump testing will alert the user of a non-functional sensor. This failed condition could be a loss of sensitivity, a loss of response time, or both. • Gases or vapors must be able to reach the sensor. Bump testing will alert the user if a gas inlet has become blocked, even if the blockage is not visible to the human eye. • Why calibrate? • All sensors will have some amount of drift over time. Calibration ensures that the instrument is reading as accurately as possible. • Situations like over-exposures, introduction of poisons, heavy impacts, or extreme environmental changes can cause sensors to be less accurate. Calibration will correct for these potential uncontrollable effects.

  9. Why use an Automated Test System? • Makes bump testing and calibration so easy, that anyone can do it • Records/stores bump testing and calibration records for traceability • Tracks bump testing and calibrations over an entire fleet of instruments, and can provide alerts of failures or overdue units • Can print bump receipts or calibration labels to provide visual indication of compliance • Can download alarm indications, datalogs, and other information from the instruments into customizable reports so that the entire instrument fleet can be easily and proactively managed • Track gas usage, gas expiration, end of sensor life warnings, sensor replacements, and instrument history to reduce down-time and overall maintenance costs

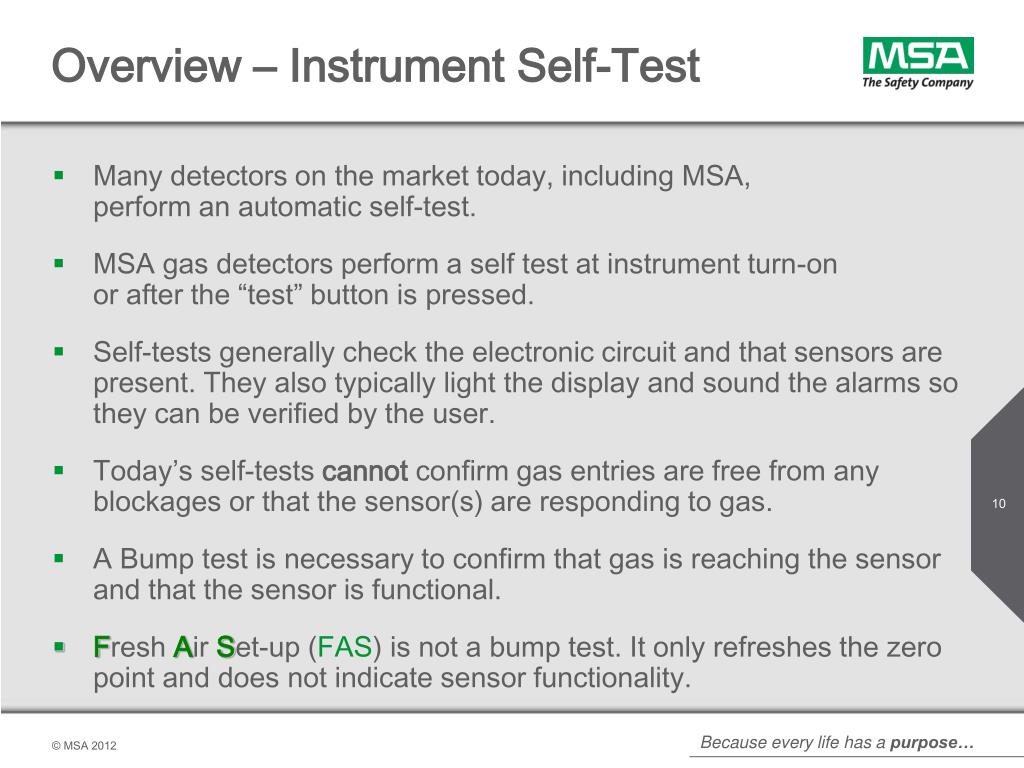

  10. Overview – Instrument Self-Test • Many detectors on the market today, including MSA, perform an automatic self-test. • MSA gas detectors perform a self test at instrument turn-on or after the “test” button is pressed. • Self-tests generally check the electronic circuit and that sensors are present. They also typically light the display and sound the alarms so they can be verified by the user. • Today’s self-tests cannot confirm gas entries are free from any blockages or that the sensor(s) are responding to gas. • A Bump test is necessary to confirm that gas is reaching the sensor and that the sensor is functional. • Fresh Air Set-up (FAS) is not a bump test. It only refreshes the zero point and does not indicate sensor functionality.

  11. MSA Recommendation • Bump test frequency is often stipulated by national or corporate regulations; however, bump testing before each day’s use is the accepted best safety practice to verify proper instrument operation. • Customers who want to maintain the maximum amount of accuracy may choose to calibrate each day instead of bump testing. • A calibration should be performed after a failed bump test. • A full calibration should be performed at regular intervals according to national standards or internal company policies, and after any failed bump tests. • If high accuracy is desired, a daily calibration is allowed and will not damage the sensors or shorten their life. • If a calibration of one or more sensors repeatedly fails, the sensor(s) need to be replaced or instrument should be removed for servicing.

  12. GALAXY® GX2 Description

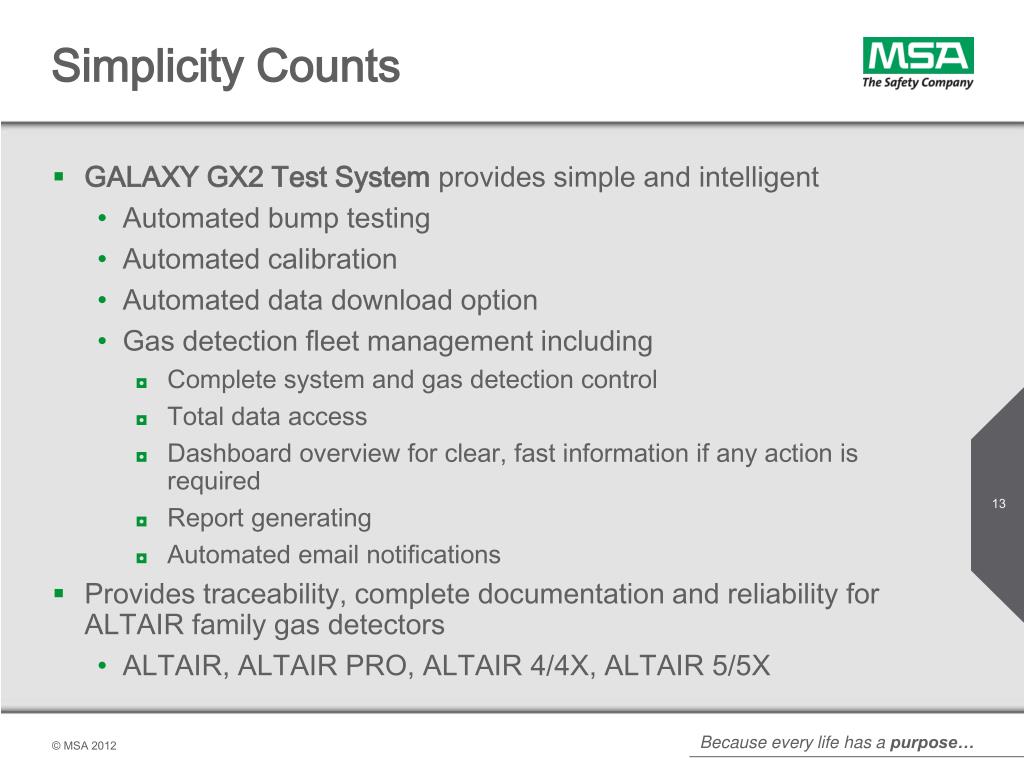

  13. Simplicity Counts • GALAXY GX2 Test System provides simple and intelligent • Automated bump testing • Automated calibration • Automated data download option • Gas detection fleet management including • Complete system and gas detection control • Total data access • Dashboard overview for clear, fast information if any action is required • Report generating • Automated email notifications • Provides traceability, complete documentation and reliability for ALTAIR family gas detectors • ALTAIR, ALTAIR PRO, ALTAIR 4/4X, ALTAIR 5/5X

  14. GALAXY GX2 Test Stand Robust industrial housing Status LED Green- Test stand fully functional Blinking Green - Test Stand istesting or datalog downloading Blinking yellow - Test stand errorRed - last calibration or bump test failed Touch screen display

  15. GALAXY GX2 Test Stand Test stand to test stand connection SD Card port USB port Gas plugs – need to be in place if test stand is the farthest right

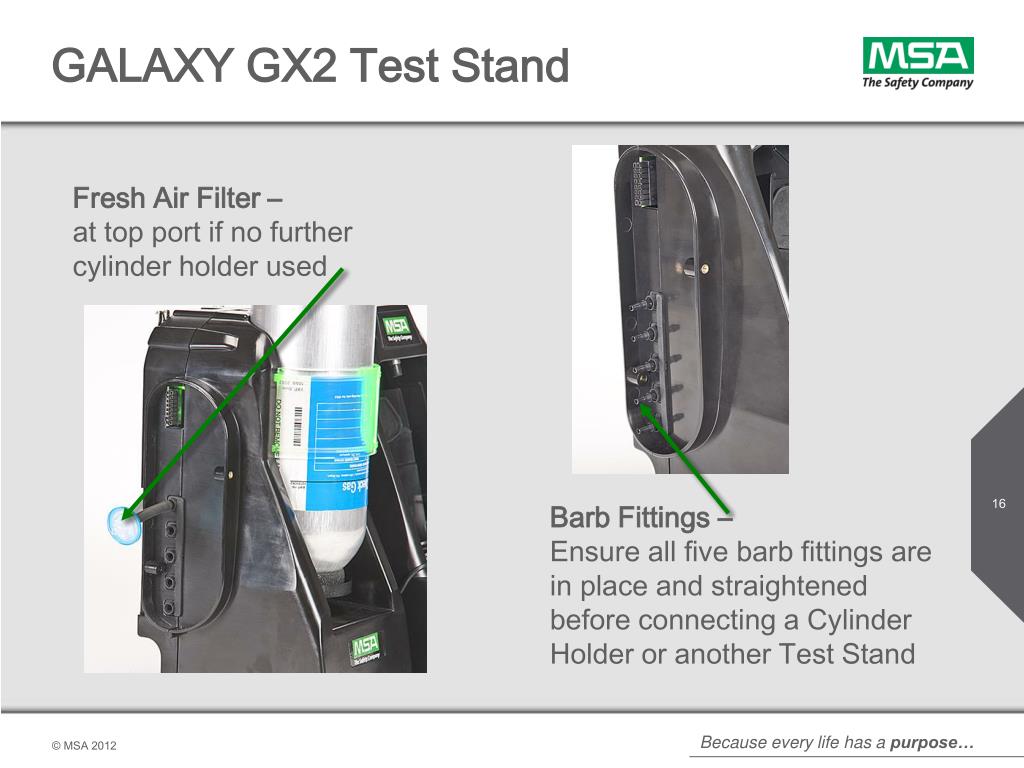

  16. GALAXY GX2 Test Stand Fresh Air Filter – at top port if no further cylinder holder used Barb Fittings – Ensure all five barb fittings are in place and straightened before connecting a Cylinder Holder or another Test Stand

  17. GALAXY GX2 Test Stand Power supply connection Test Stand Ethernet Ports – Needed for use with optional MSA Link Pro.Connect and communicate between multiple test stands. One USB port on the Master Test Stand is used to communicate with the MSA Link Pro software application on a PC.

  18. GALAXY GX2 Test Stand • Pre-configured plugs, barbs, fresh air filter • Power supply with corresponding plug (NA, EN, UK, Australia) • Spare parts kit (gas tubing, barbs, plugs) • Ethernet cable (For connection between test stands) • Product CD • Quick-Start Guide • Screen protector • The GALAXY GX2 System test stand comes with

  19. Important System Components • Smart electronic cylinder holder • Includes integrated gas regulator • For use with RFID-tagged MSA calibration gas cylinders • Non-electronic cylinder holder (without regulator)

  20. Other Gas Delivery Options • Manual gas set-up allowed for non-MSA gases • Each of four gas channels will have six entry slots for gases • Expiration date only provided via RFID Tag • Can still directly connect gas to GALAXY GX2 • To reduce cost, cylinder holder not required • Large, floor standing cylinders can be connected

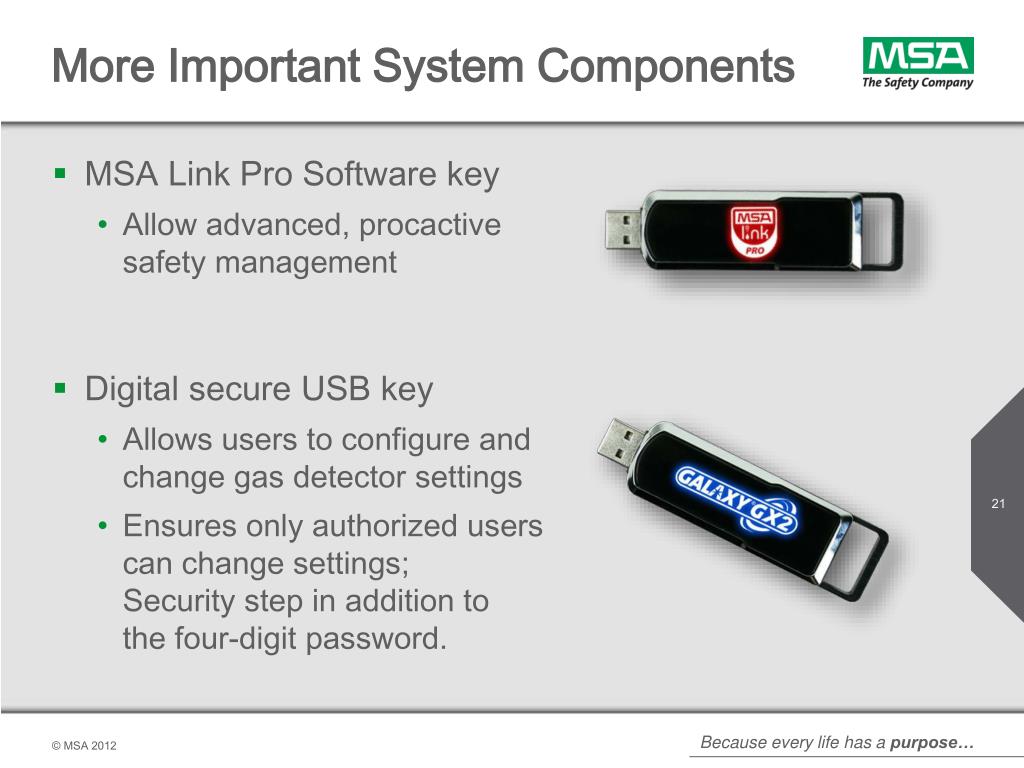

  21. More Important System Components • MSA Link Pro Software key • Allow advanced, procactive safety management • Digital secure USB key • Allows users to configure and change gas detector settings • Ensures only authorized users can change settings; Security step in addition to the four-digit password.

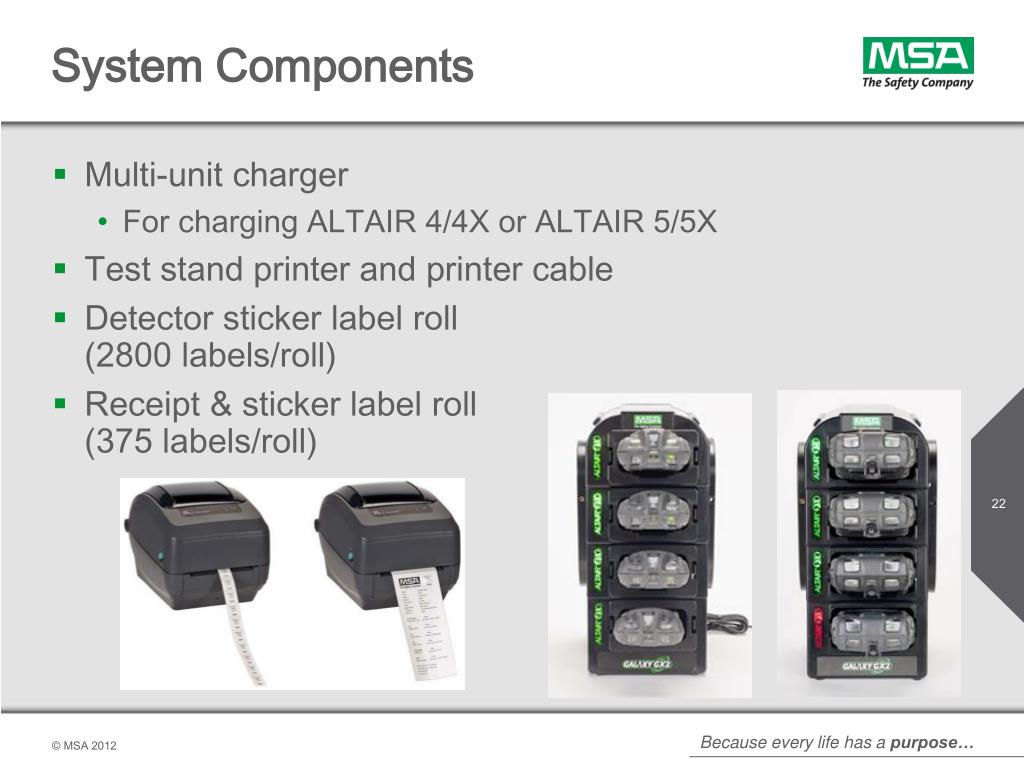

  22. System Components • Multi-unit charger • For charging ALTAIR 4/4X or ALTAIR 5/5X • Test stand printer and printer cable • Detector sticker label roll (2800 labels/roll) • Receipt & sticker label roll (375 labels/roll)

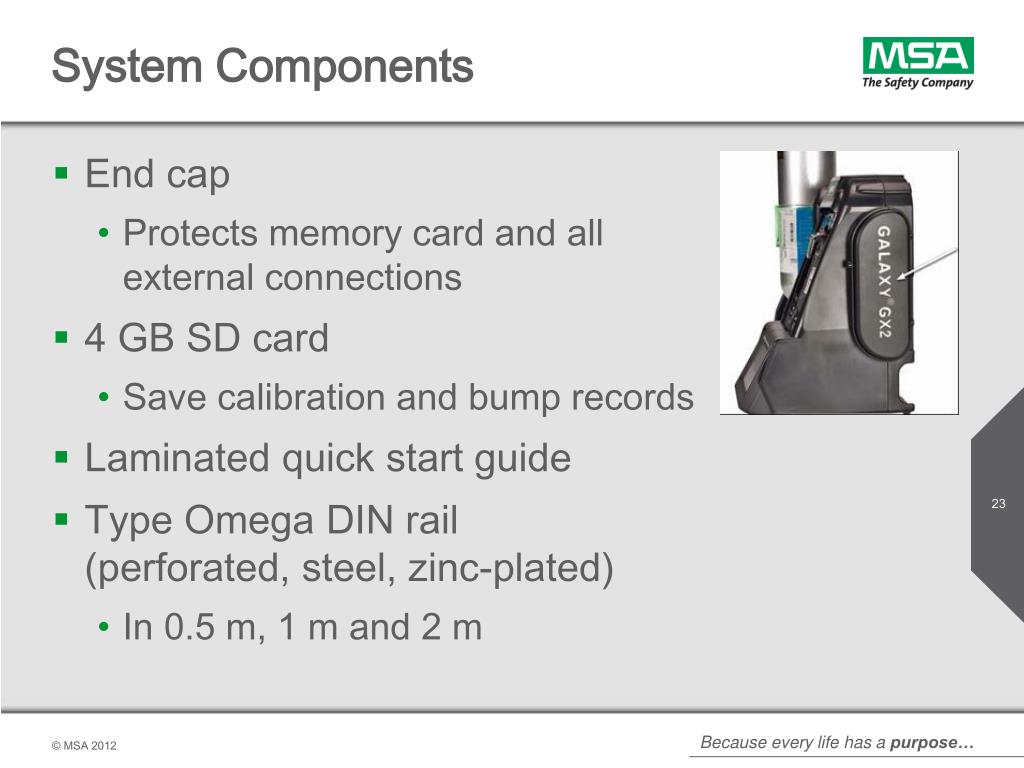

  23. System Components • End cap • Protects memory card and all external connections • 4 GB SD card • Save calibration and bump records • Laminated quick start guide • Type Omega DIN rail (perforated, steel, zinc-plated) • In 0.5 m, 1 m and 2 m

  24. GALAXY® GX2 Features & Benefits

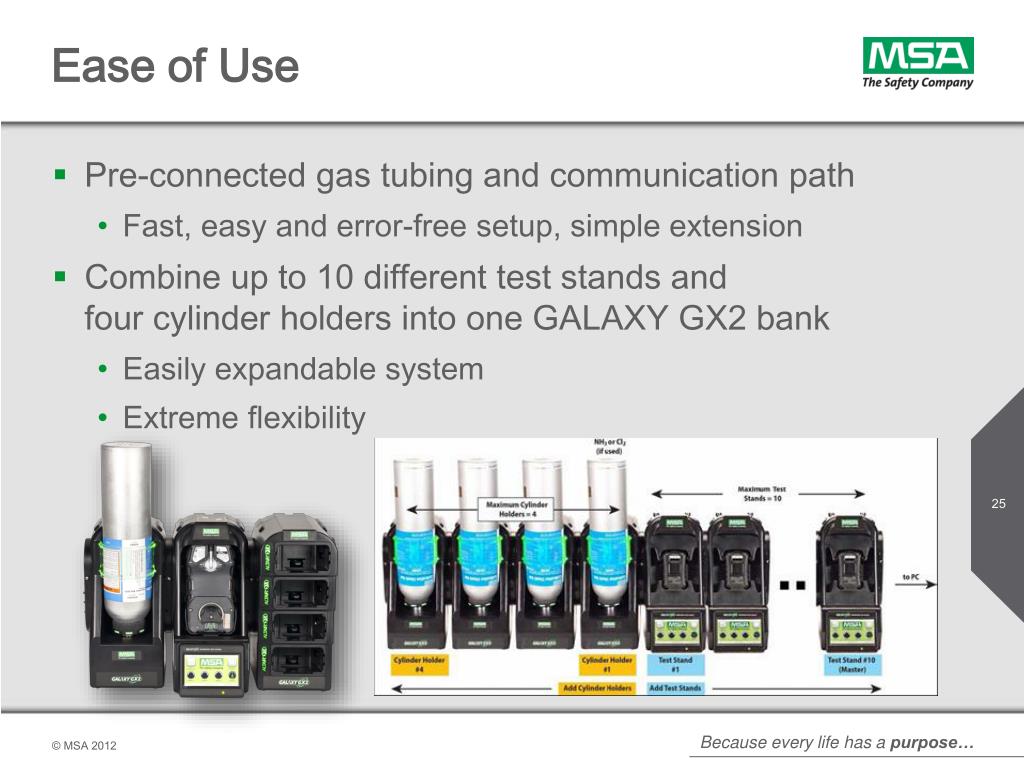

  25. Ease of Use • Pre-connected gas tubing and communication path • Fast, easy and error-free setup, simple extension • Combine up to 10 different test stands and four cylinder holders into one GALAXY GX2 bank • Easily expandable system • Extreme flexibility

  26. Ease of Use • Color Touch Screen • Intuitive menu-driven operation; minimal training needed • Enhanced user experience at the test stand • Multilingual - 18 languages • Simplifies use and reduces training

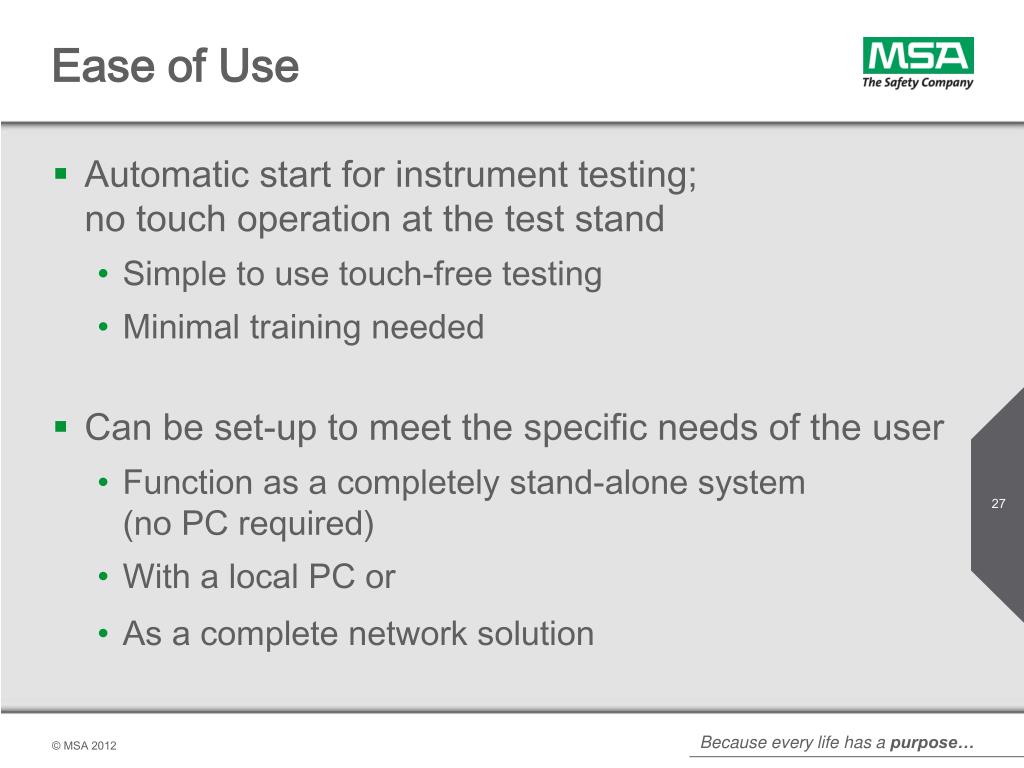

  27. Ease of Use • Automatic start for instrument testing; no touch operation at the test stand • Simple to use touch-free testing • Minimal training needed • Can be set-up to meet the specific needs of the user • Function as a completely stand-alone system (no PC required) • With a local PC or • As a complete network solution

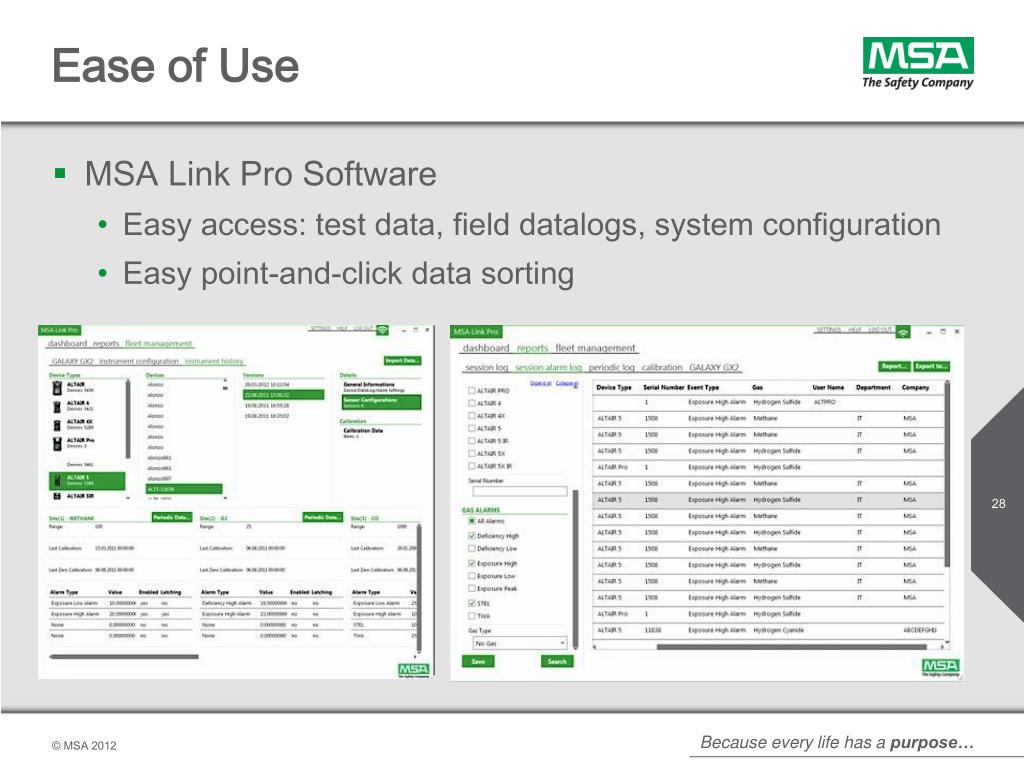

  28. Ease of Use • MSA Link Pro Software • Easy access: test data, field datalogs, system configuration • Easy point-and-click data sorting

  29. Cost of Ownership Reduction • Optimized for MSA XCell Sensors • Fast response time combined with • Smart stability-based calibration algorithms in the GALAXY GX2 • Faster bump tests • Faster span calibration time • Minimize time and gas usage…saves you money

  30. Cost of Ownership Reduction • Simultaneous testing or calibration of up to 10 gas detectors in parallel • Saves employee’s time and overall maintenance costs • Remote setting changes of instruments via digital secure USB key • Easy change of setting to an entire instrument fleet • Reducing downtime, maintenance time and costs

  31. Cost of Ownership Reduction • Fully automated calibration gas recognition by MSA RFID-tagged calibration gas cylinder • Automatically enters gas cylinder information • Providing exceptionally easy setup and ensures the use of correct gas • Easily track gas usage and gas expiration

  32. Proactive Safety - MSA Link Pro Software • Dashboard view, with ability to filter • End-user knows at a glance if action is required

  33. Proactive Safety - MSA Link Pro • Advanced MSA Link Pro Software • At a glance dashboard overview • Clear, fast information if any action required • Proactively manage safety by addressing gas exposure information and missing or failed calibrations and bump tests • Query the system for gas exposures or detectors overdue for bump/cal, and then email responses to users

  34. Manage Safety = MSA Link Pro • Give customers access to the data they want and make it usable • Access to all Testing Data • Bump & Calibration Records • Access to all Datalog • Lo, High, TWA, STEL Exposures • Session & Periodic • Access to GALAXY banks • View gas pressure and expiry status (MSA gas) • Configure GALAXY systems remotely

  35. Manage Safety = MSA Link Pro • Ability to sort and report with one click • End-user customizable • Print and/or save individual calibration & bump reports • Calibration/Bump Records • Print and/or save exposure records

  36. Proactive Safety – MSA Link Pro Software • Reporting page example

  37. Proactive Safety – MSA Link Pro Software • Reporting page example

  38. Proactive Safety – Smart Cylinder Holder • Electronic cylinder holder offers: • RFID tag readings (on MSA labeled calibration gas) • Fully automated calibration gas setup providing part numbers, gas types, concentrations, expiration date and lot number • Reduction of user errors • Traceability • Live diagnostics by active monitoring of pressure and gas expirations • Low calibration gas volume and expiration warnings

  39. Proactive Safety – Smart Cylinder Holder • Pre-warn – visual clues to cal gas status via • Light band and three LED colors – green, yellow, red • Email alerts • MSA Link Pro software dashboards alerts • View status at a glance

  40. Proactive Safety • Print calibration stickers for gas detectors and cal & bump receipt • Provide easy and fast user information Cal Sticker

  41. Proactive Safety • End-of-Sensor-Life Warnings • Reports or notifications can be generated forXCell sensor End-of-Sensor-Life warnings • Allows proactive maintenance & reduced downtime • Automated e-mail alerts • List of conditions and events can be sent via the test stand or MSA Link Pro software with an active network connection

  42. Integrated Multi-Charger • Cost- and space-effective design • Can be used: • Independently • Attached to GALAXY GX2 bank • Available for • ALTAIR 4/4X or ALTAIR 5/5X

  43. GALAXY®GX2 Practical Use

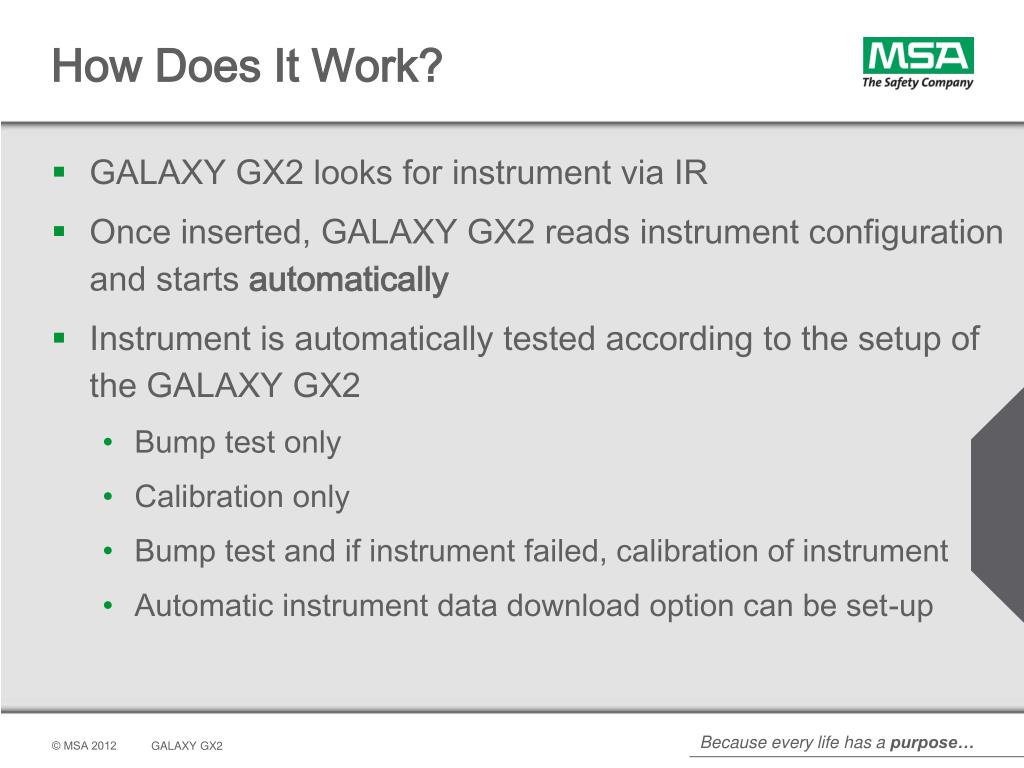

  44. How Does It Work? • GALAXY GX2 looks for instrument via IR • Once inserted, GALAXY GX2 reads instrument configuration and starts automatically • Instrument is automatically tested according to the setup of the GALAXY GX2 • Bump test only • Calibration only • Bump test and if instrument failed, calibration of instrument • Automatic instrument data download option can be set-up

  45. Easy Operation • Insert instrument into test stand* • Wait for pass/fail indication • Green (PASS) means • Red (FAIL) means *Note – For ALTAIR and ALTAIR Pro models, the button on the instrument must be pressed prior to inserting unit into the test stand

  46. GALAXY®GX2 Review – Unique Features

  47. Ease of UseEffortlessly Test, Calibrate, Download • Extremely simple to use • Automatic start • Operates without the touch of a single button at the test stand • Color touch screen • Enhances user experience at the test stand • 18 languages available for test stand and MSA Link Pro • Simplifies usage and reduces training • Very flexible system • Completely stand-alone system – No PC or controller required • Can also be used with local PC or as a complete network solution • Combine up to 10 different test stands and 4 cylinder holders into one GALAXY GX2 bank

  48. Cost of OwnershipSave Time, Save Gas, Save Money • Optimized for MSA XCell Sensors • Up to 50% reduction in cost of ownership, based on reduced calibration gas expenses and reduced testing and calibration time • Simultaneously test or calibrate up to 10 gas detectors • Saves employee’s time and overall costs • Fully automated calibration gas recognition by MSA RFID-tagged calibration gas cylinder • Exceptionally easy setup; ensures correct gas usage • Easily track gas consumption and gas expiration • Built-in pressure transducer alerts for low gas volume

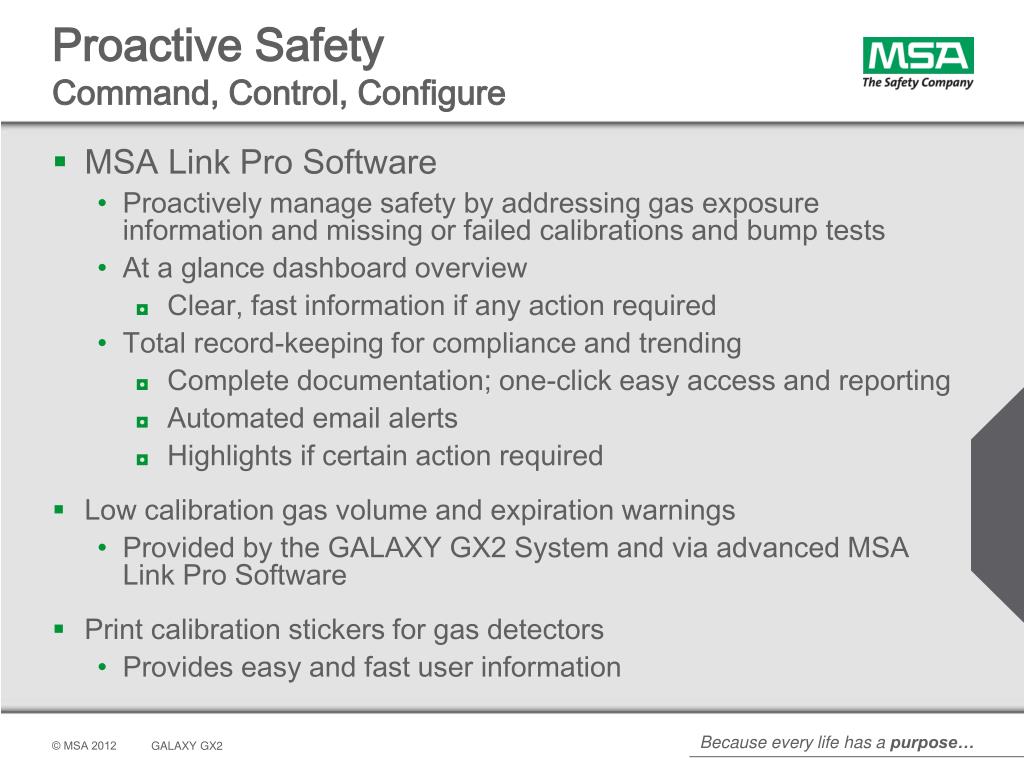

  49. Proactive SafetyCommand, Control, Configure • MSA Link Pro Software • Proactively manage safety by addressing gas exposure information and missing or failed calibrations and bump tests • At a glance dashboard overview • Clear, fast information if any action required • Total record-keeping for compliance and trending • Complete documentation; one-click easy access and reporting • Automated email alerts • Highlights if certain action required • Low calibration gas volume and expiration warnings • Provided by the GALAXY GX2 System and via advanced MSA Link Pro Software • Print calibration stickers for gas detectors • Provides easy and fast user information

  50. GALAXY®GX2Automated Test System Questions? Advanced Safety Management Effortless Operation
