  1. Figure 7-1 Softswitch Components Universal Media Gateway MGCP SGCP Signaling Gateway Softswitch SIP MGCP (Media Gateway Control Protocol) SGCP (Simple Gateway Control Protocol) call agent SIP ( Session Initiation Protocol) Feature Server

  2. IP Network PC PC Voice Gateway Class 4 Switch Telephone Figure 7-2 PC to PC and PC to phone

  3. IP Network IP Telephone IP Telephone IP Telephone Data Server Softswitch Figure 7-3 IP phone on an IP network

  4. IP Network Telephone Telephone Telephone Telephone Telephone Data Server Softswitch Figure 7-4 SOHO grade gateways

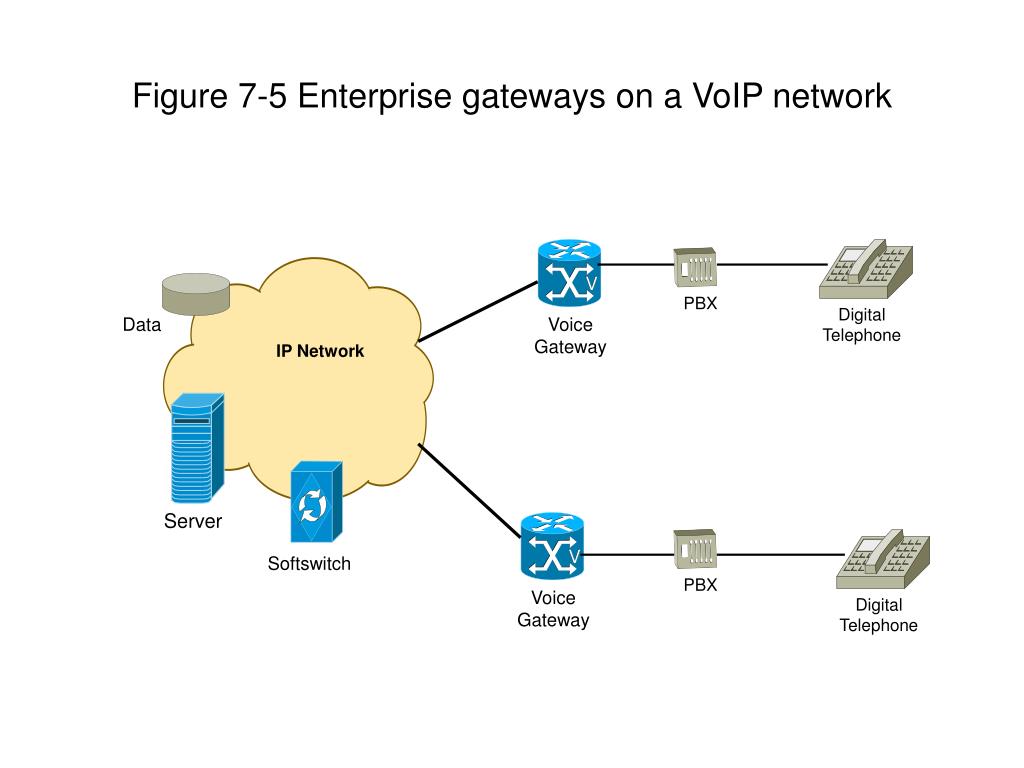

  5. IP Network PBX PBX Data Digital Telephone Digital Telephone Server Voice Gateway Voice Gateway Softswitch Figure 7-5 Enterprise gateways on a VoIP network

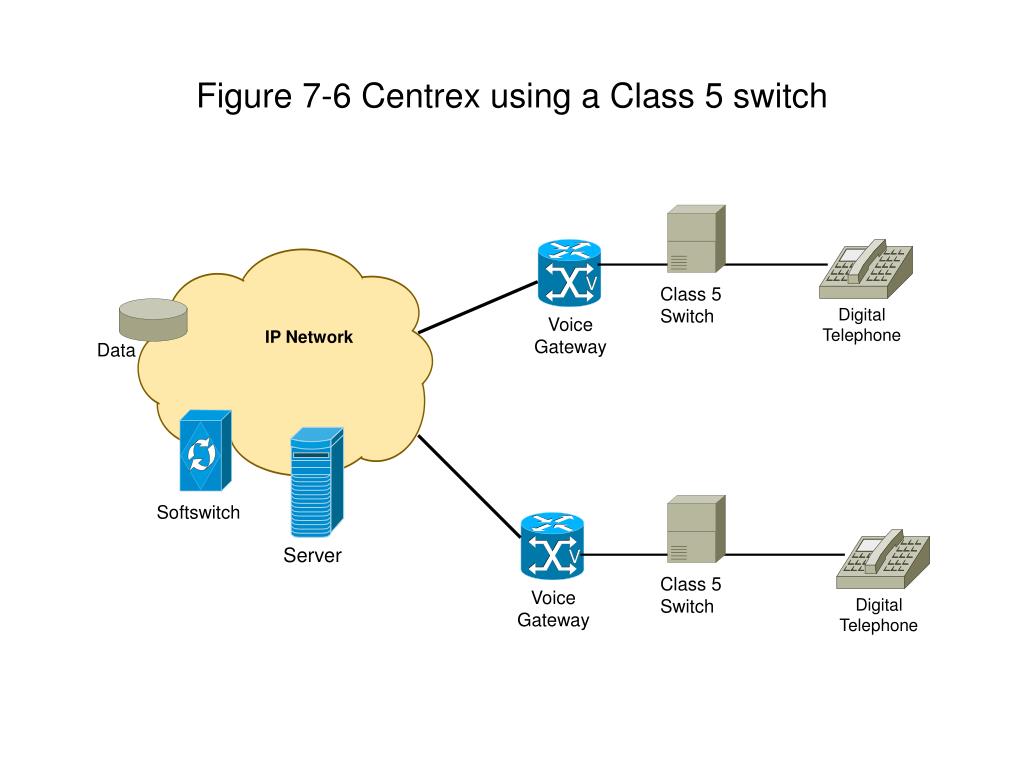

  6. IP Network Data Digital Telephone Digital Telephone Server Voice Gateway Voice Gateway Class 5Switch Class 5Switch Softswitch Figure 7-6 Centrex using a Class 5 switch

  7. IP Network IP PBX IP Telephone IP Telephone Figure 7-7 IP PBX also known as soft PBX

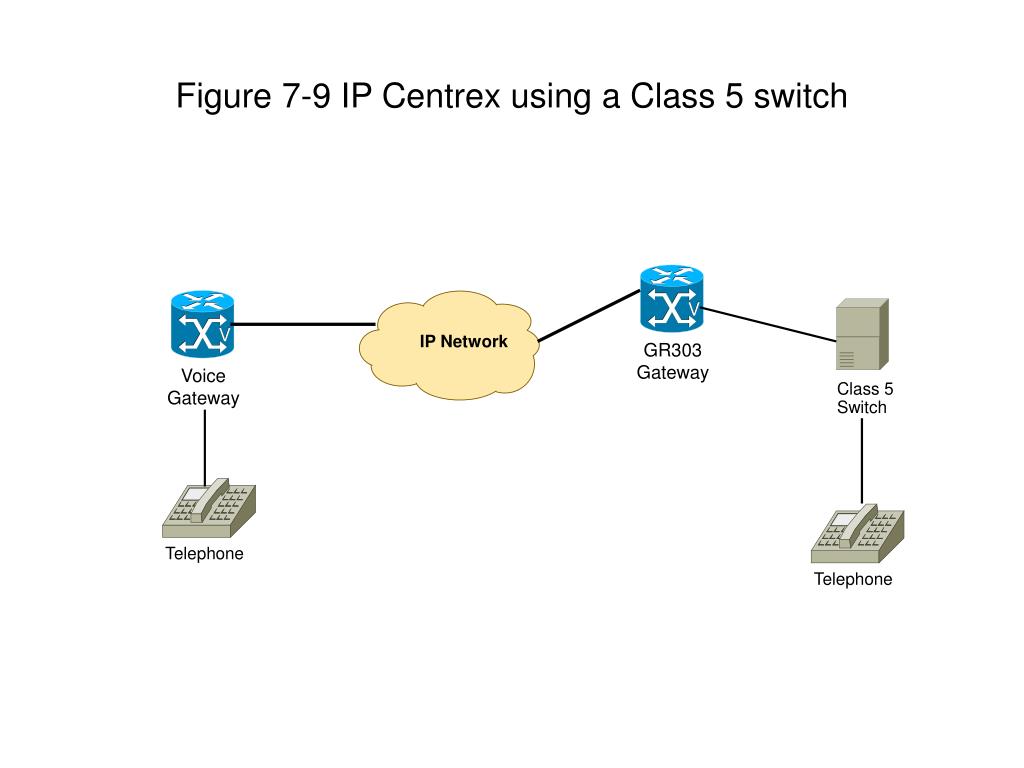

  8. IP Network Telephone Telephone Voice Gateway GR303 Gateway Class 5 Switch Figure 7-9 IP Centrex using a Class 5 switch

  9. IP Network PBX PBX Data Digital Telephone Digital Telephone Server Voice Gateway Voice Gateway Softswitch Figure 7-9 IP Centrex with Softswitch

  10. IP Network Data Telephone Telephone Server Voice Gateway Voice Gateway Class 5 Switch Class 5 Switch Softswitch Class 4 Switch Class 4 Switch Figure 7-10 Architecture of Class 4 and Class 5 switches with VoIP gateways

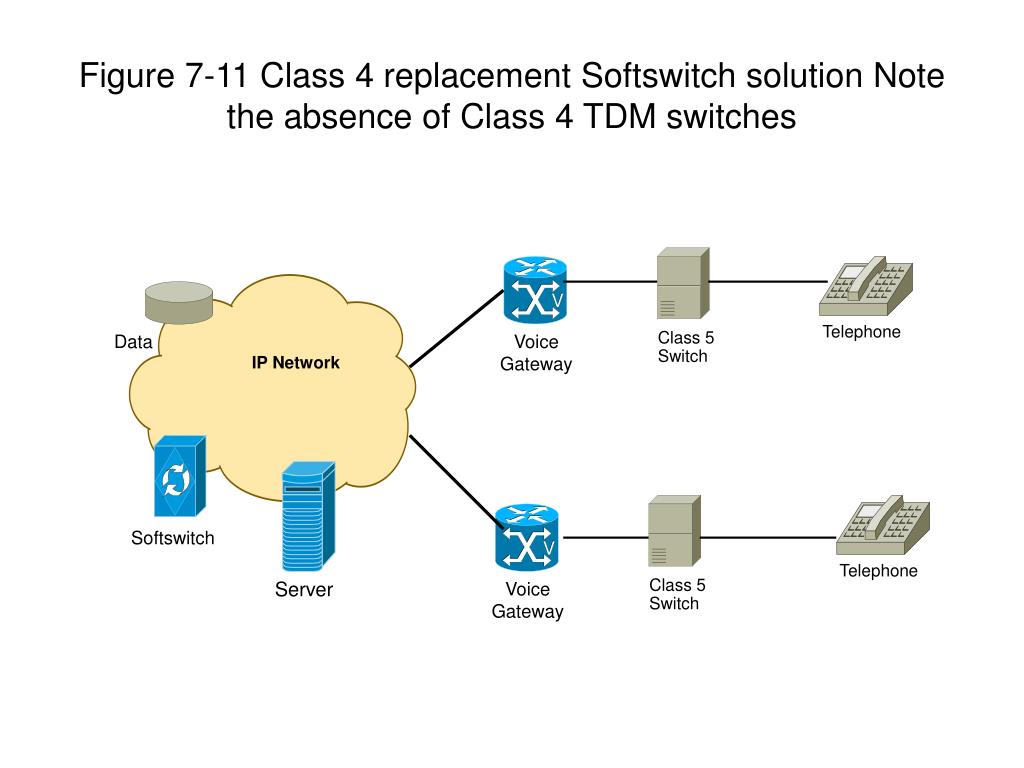

  11. IP Network Data Telephone Telephone Server Voice Gateway Voice Gateway Class 5 Switch Class 5 Switch Softswitch Figure 7-11 Class 4 replacement Softswitch solution Note the absence of Class 4 TDM switches

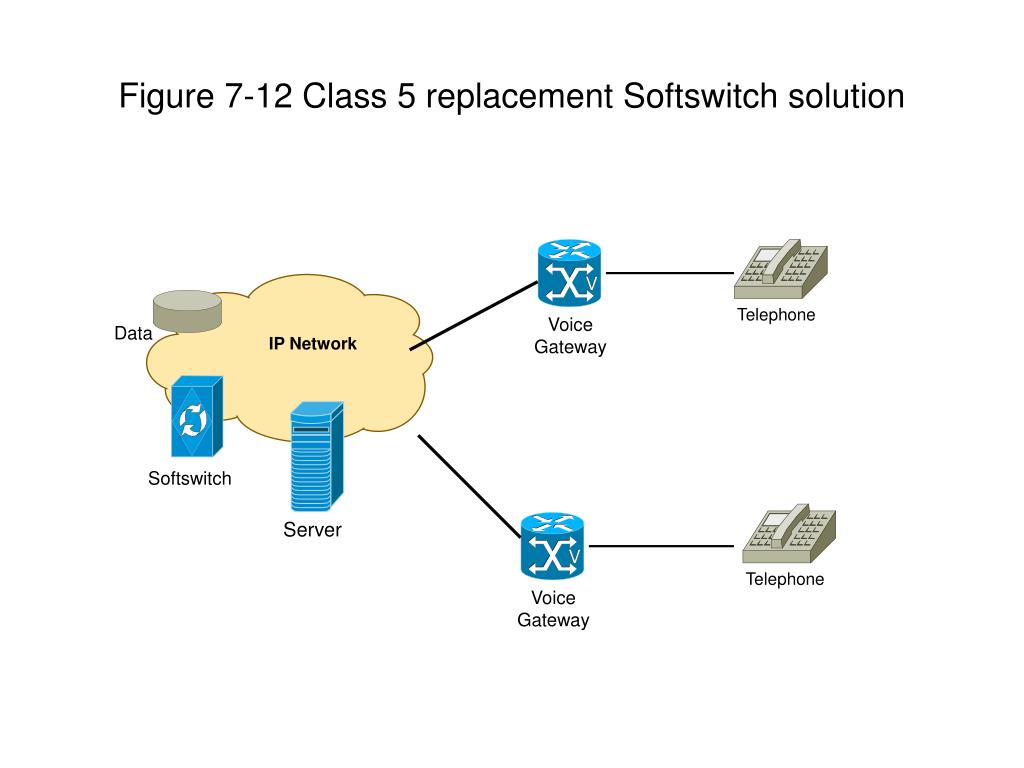

  12. IP Network Data Telephone Telephone Server Voice Gateway Voice Gateway Softswitch Figure 7-12 Class 5 replacement Softswitch solution

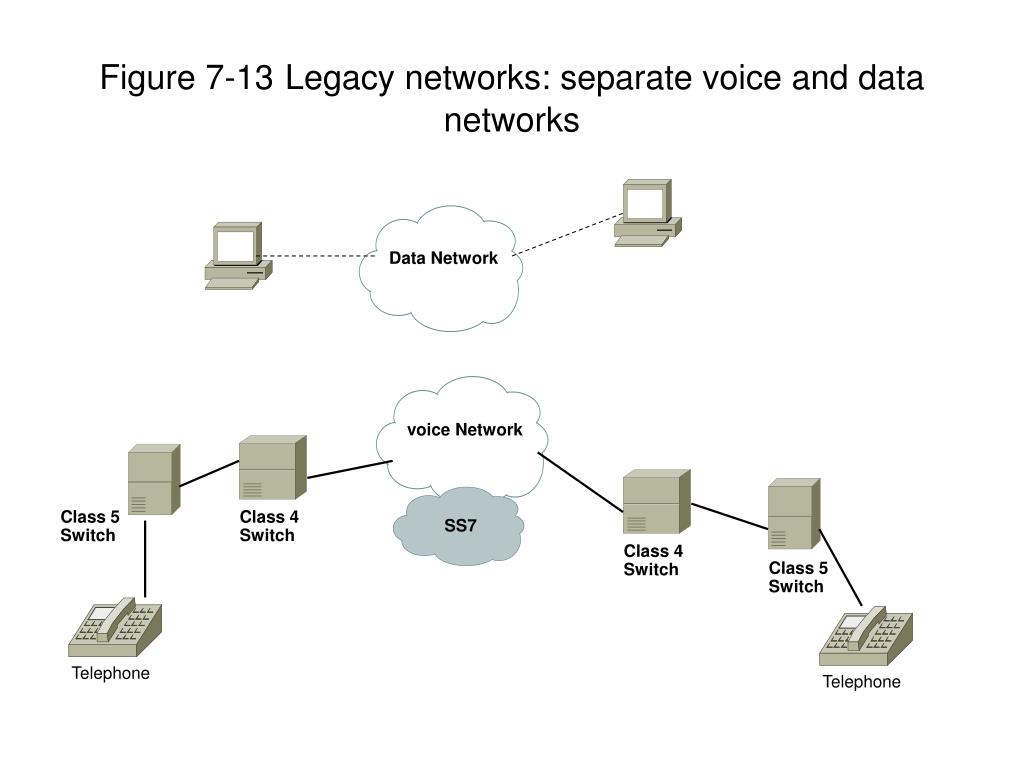

  13. Data Network voice Network SS7 Telephone Telephone Class 5 Switch Class 5 Switch Class 4 Switch Class 4 Switch Figure 7-13Legacy networks: separate voice and data networks

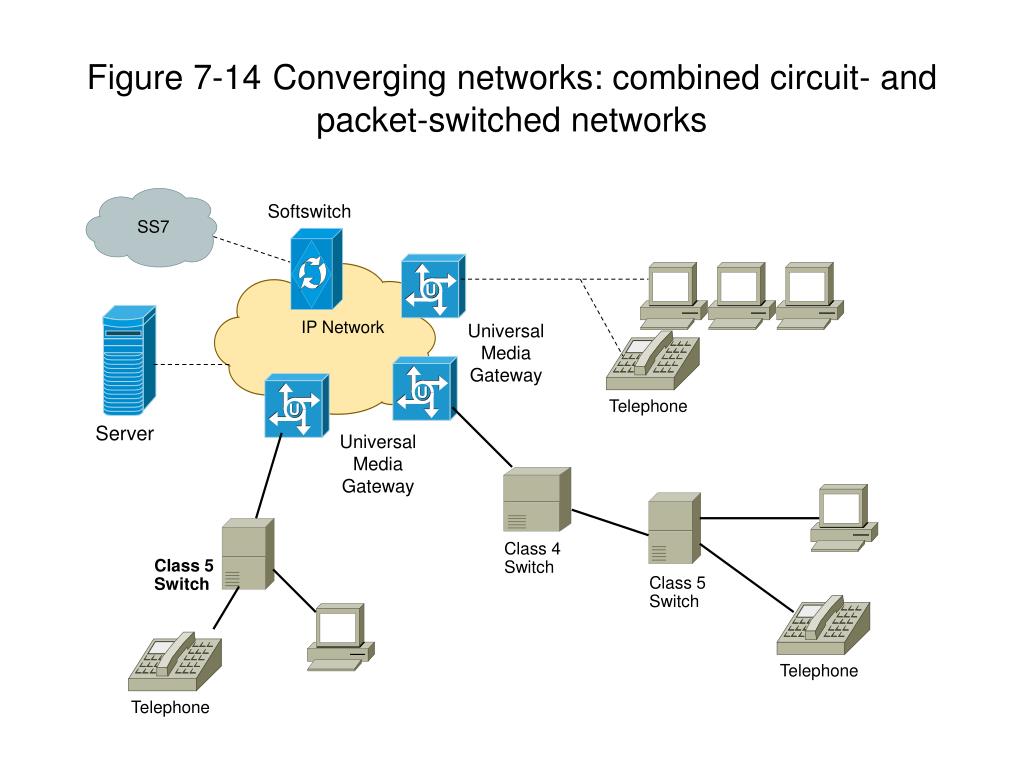

  14. IP Network Softswitch SS7 Universal Media Gateway Telephone Telephone Telephone Universal Media Gateway Server Class 5 Switch Class 5 Switch Class 4 Switch Figure 7-14Converging networks: combined circuit- and packet-switched networks

  15. IP Network Softswitch IP SOHO Media Gateway IP IP Telephone Telephone Telephone IP IP Enterprise Media Gateway Server IP Telephone Carrier Grade Media Gateway Figure 7-15 A converged network voice and data on the same network
