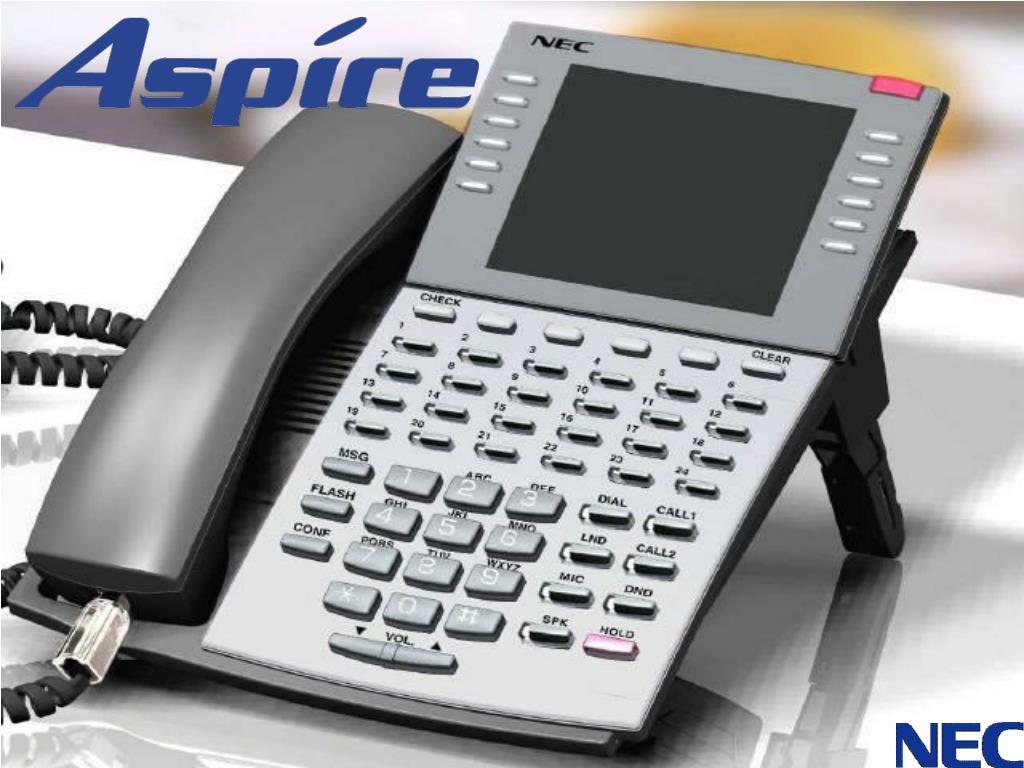

  1. ACD Automatic Call Distribution

  2. Outline of the Nine Key Elements of ACD • Automatic Call Distribution • Agent • Agent Groups • ACD Routing • Queue Announcements • Supervisor Positions • Flexible Work Schedules • Enhanced Positions • In-Depth Software

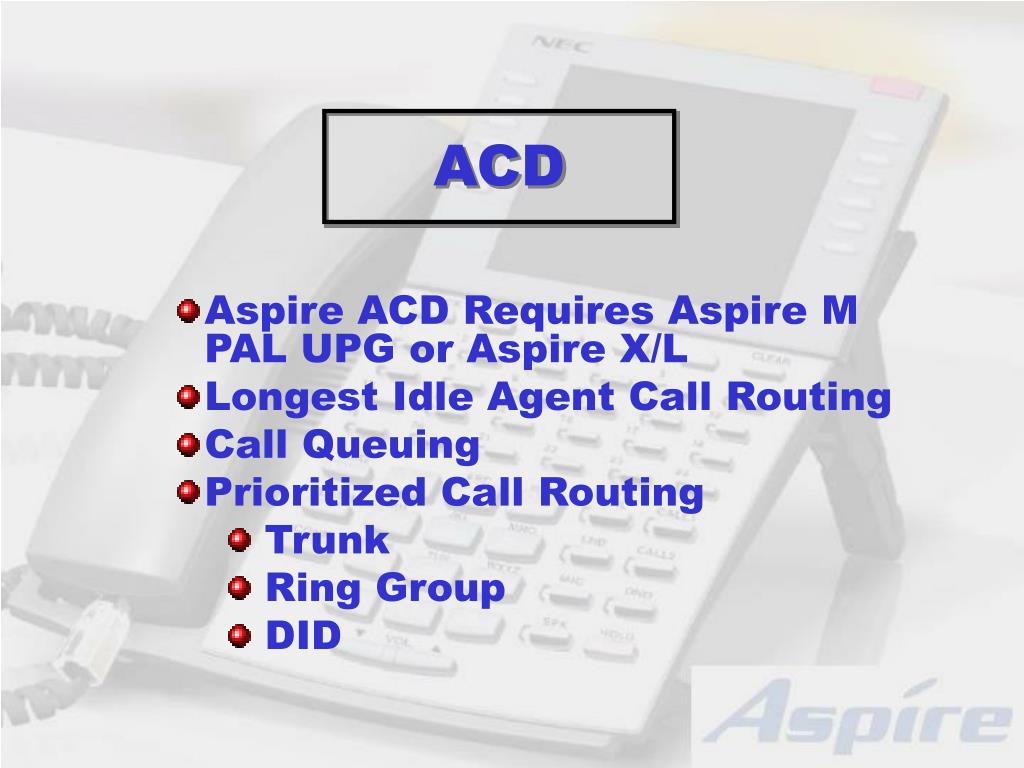

  3. ACD • Aspire ACD Requires Aspire M PAL UPG or Aspire X/L • Longest Idle Agent Call Routing • Call Queuing • Prioritized Call Routing • Trunk • Ring Group • DID

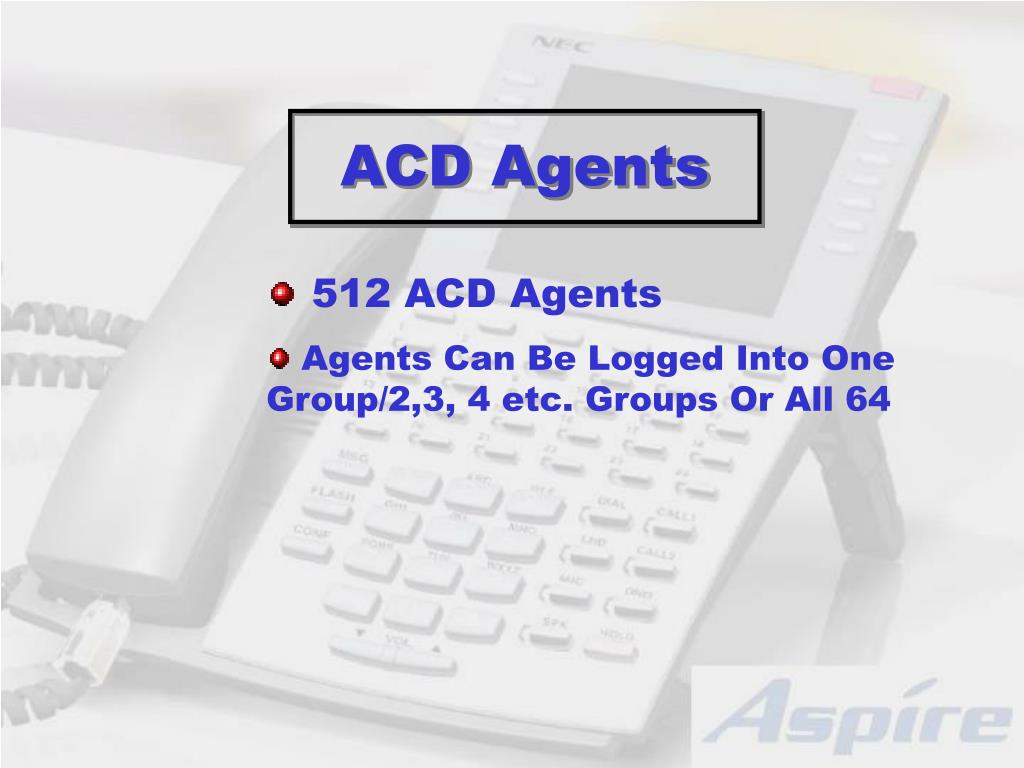

  4. ACD Agents • 512 ACD Agents • Agents Can Be Logged Into One Group/2,3, 4 etc. Groups Or All 64

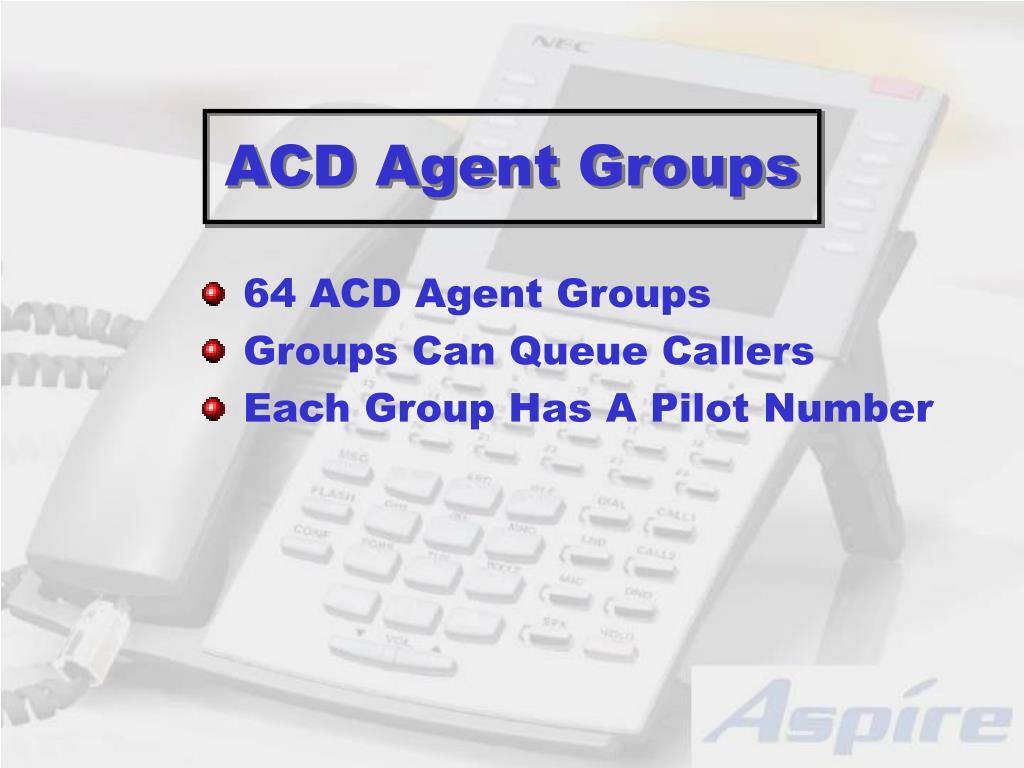

  5. ACD Agent Groups • 64 ACD Agent Groups • Groups Can Queue Callers • Each Group Has A Pilot Number

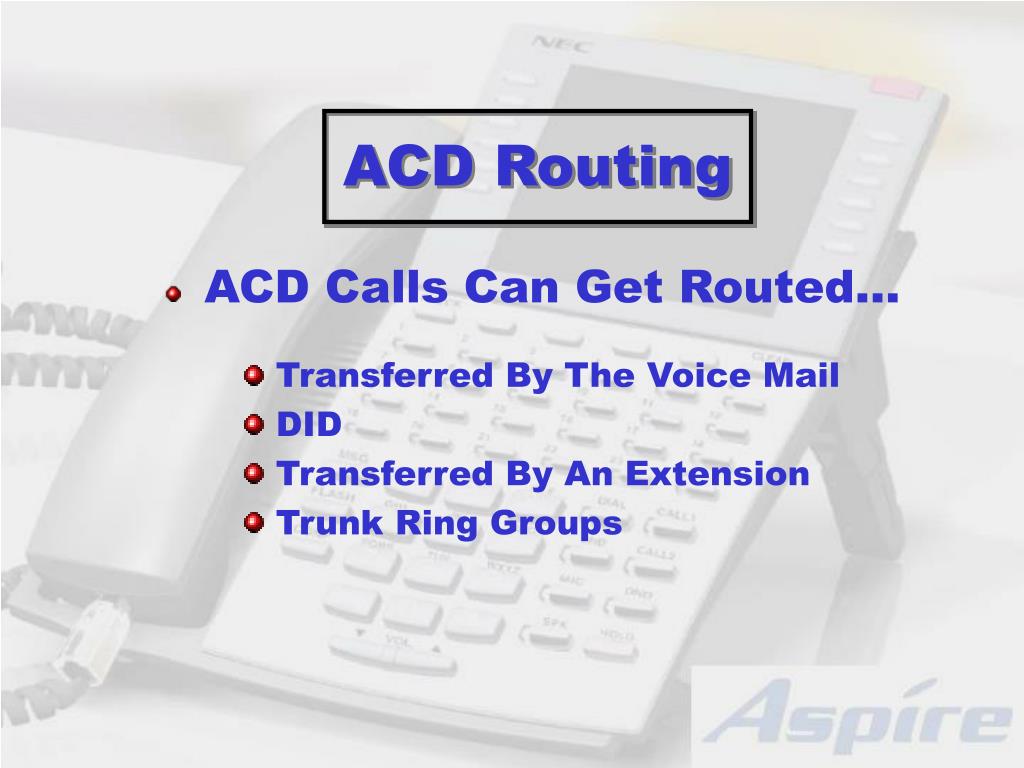

  6. ACD Routing • ACD Calls Can Get Routed… • Transferred By The Voice Mail • DID • Transferred By An Extension • Trunk Ring Groups

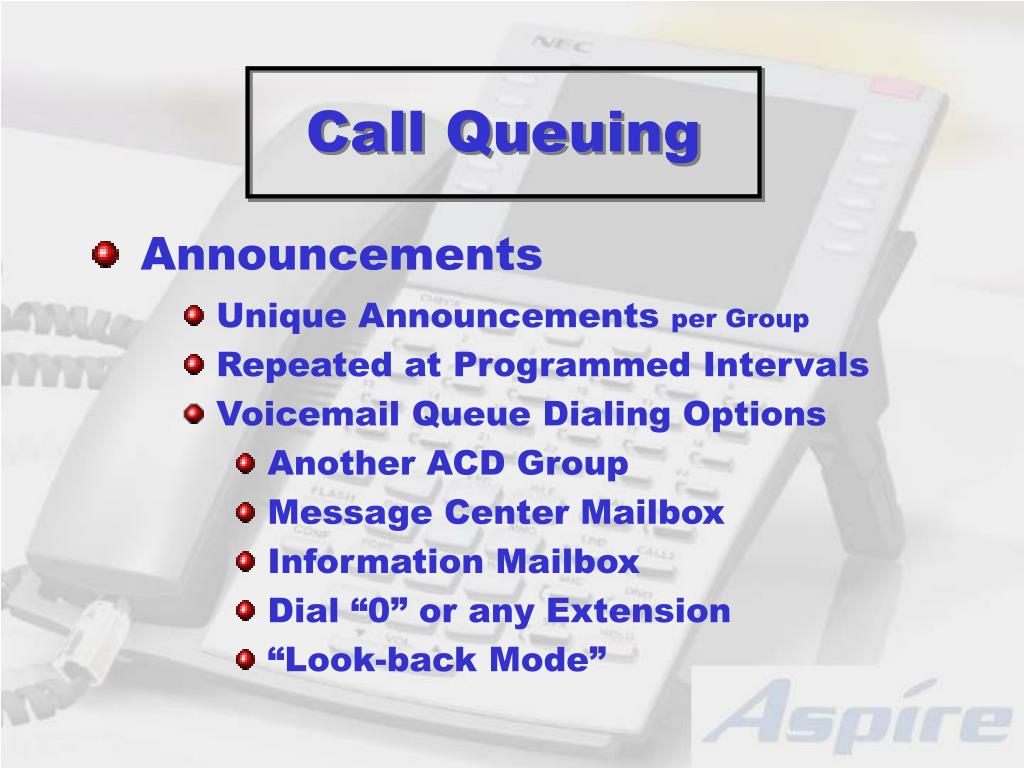

  7. Call Queuing • Announcements • Unique Announcements per Group • Repeated at Programmed Intervals • Voicemail Queue Dialing Options • Another ACD Group • Message Center Mailbox • Information Mailbox • Dial “0” or any Extension • “Look-back Mode”

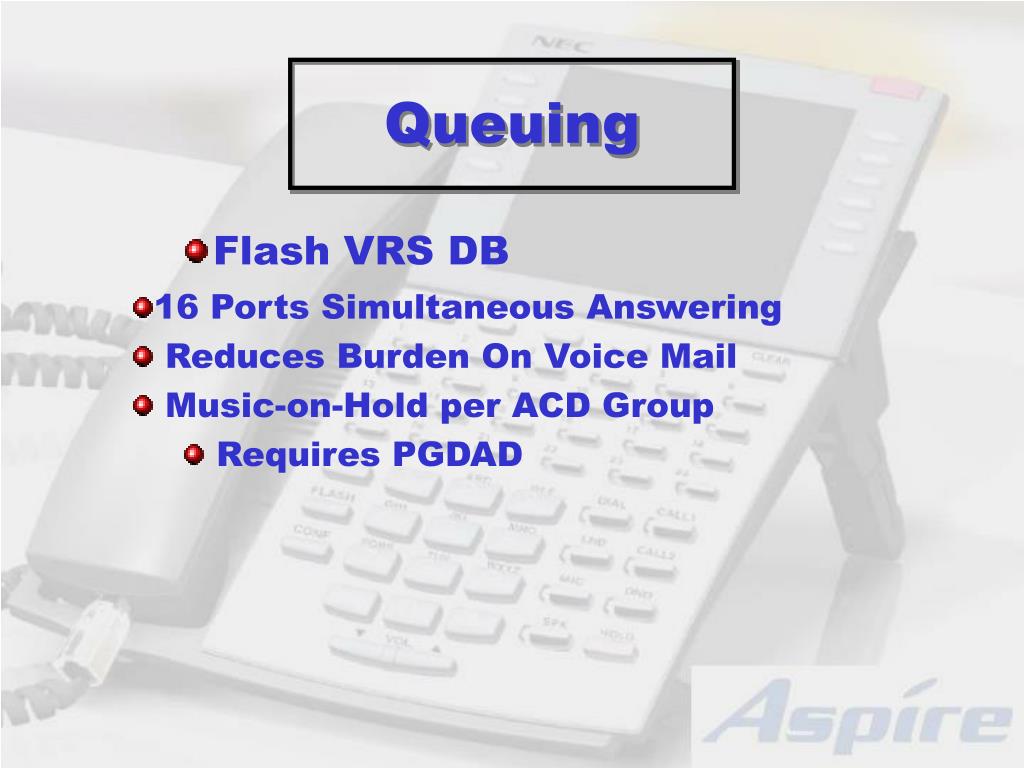

  8. Queuing • Flash VRS DB • 16 Ports Simultaneous Answering • Reduces Burden On Voice Mail • Music-on-Hold per ACD Group • Requires PGDAD

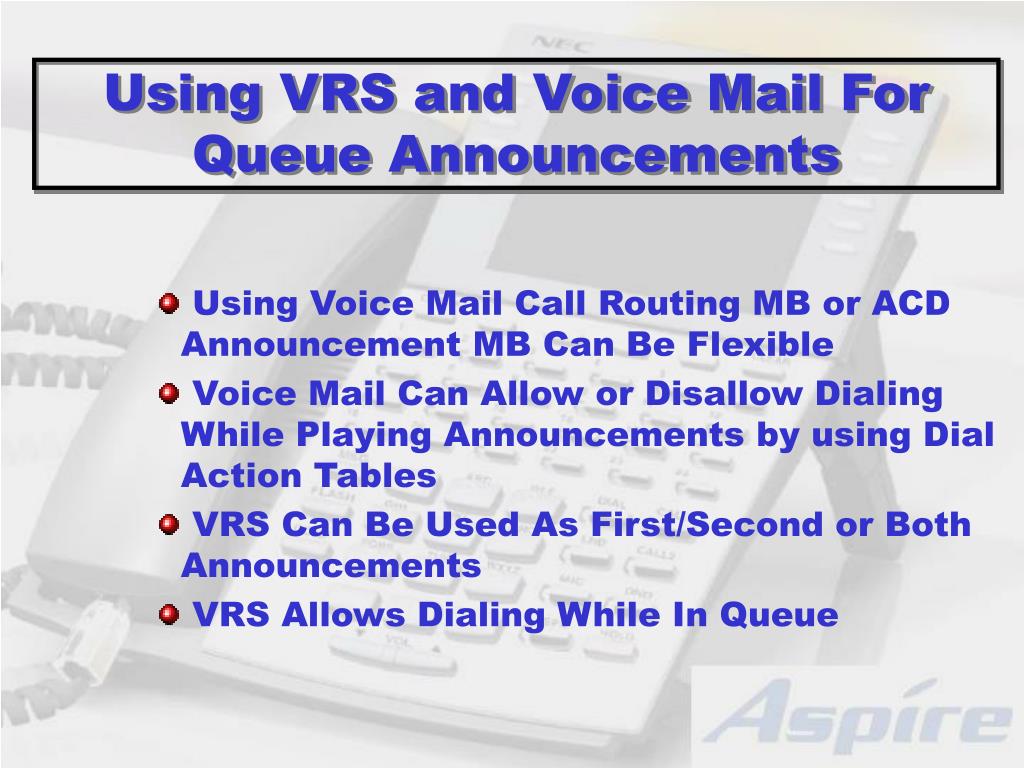

  9. Using VRS and Voice Mail For Queue Announcements • Using Voice Mail Call Routing MB or ACD Announcement MB Can Be Flexible • Voice Mail Can Allow or Disallow Dialing While Playing Announcements by using Dial Action Tables • VRS Can Be Used As First/Second or Both Announcements • VRS Allows Dialing While In Queue

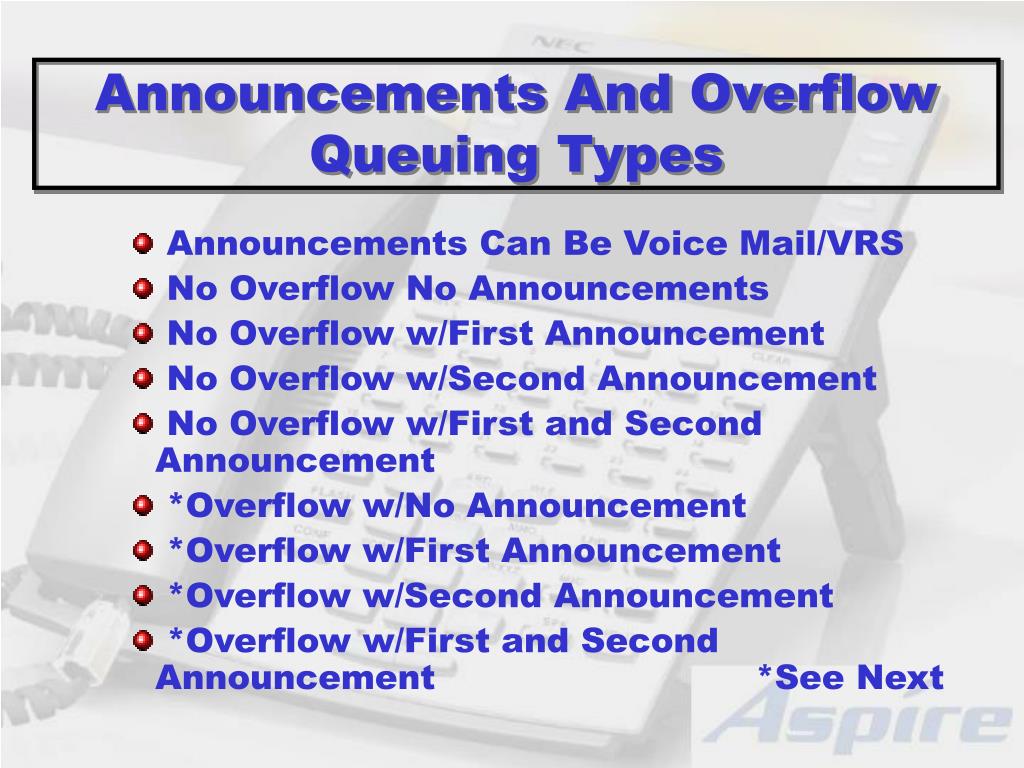

  10. Announcements And Overflow Queuing Types • Announcements Can Be Voice Mail/VRS • No Overflow No Announcements • No Overflow w/First Announcement • No Overflow w/Second Announcement • No Overflow w/First and Second Announcement • *Overflow w/No Announcement • *Overflow w/First Announcement • *Overflow w/Second Announcement • *Overflow w/First and Second Announcement *See Next

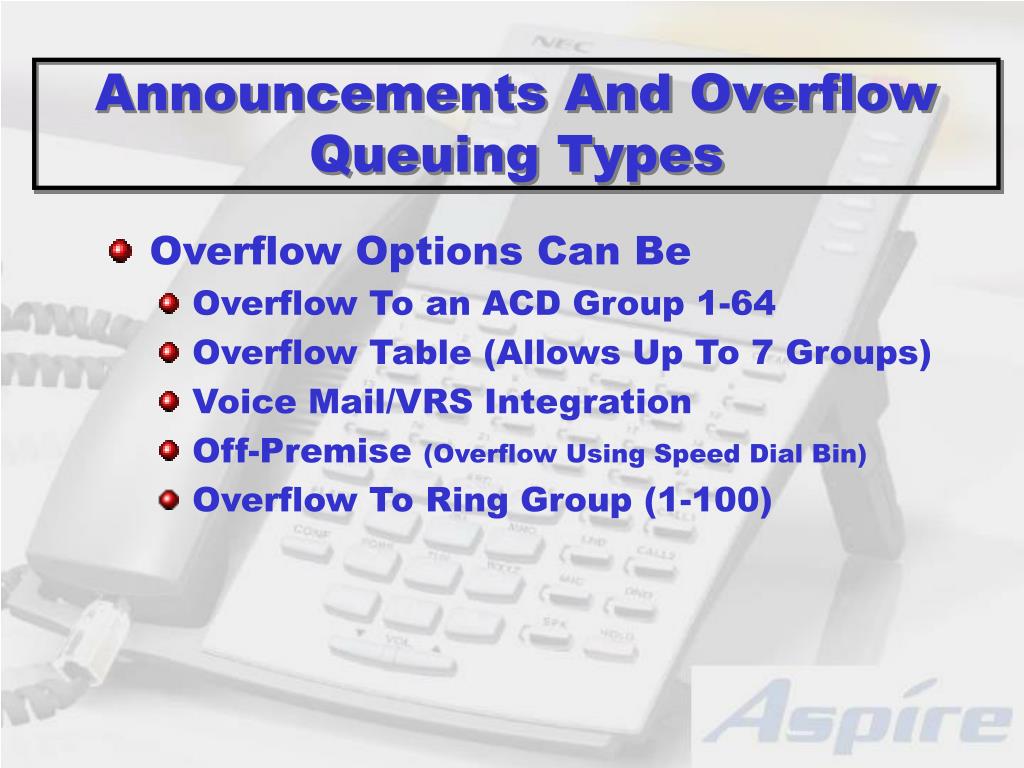

  11. Announcements And Overflow Queuing Types • Overflow Options Can Be • Overflow To an ACD Group 1-64 • Overflow Table (Allows Up To 7 Groups) • Voice Mail/VRS Integration • Off-Premise (Overflow Using Speed Dial Bin) • Overflow To Ring Group (1-100)

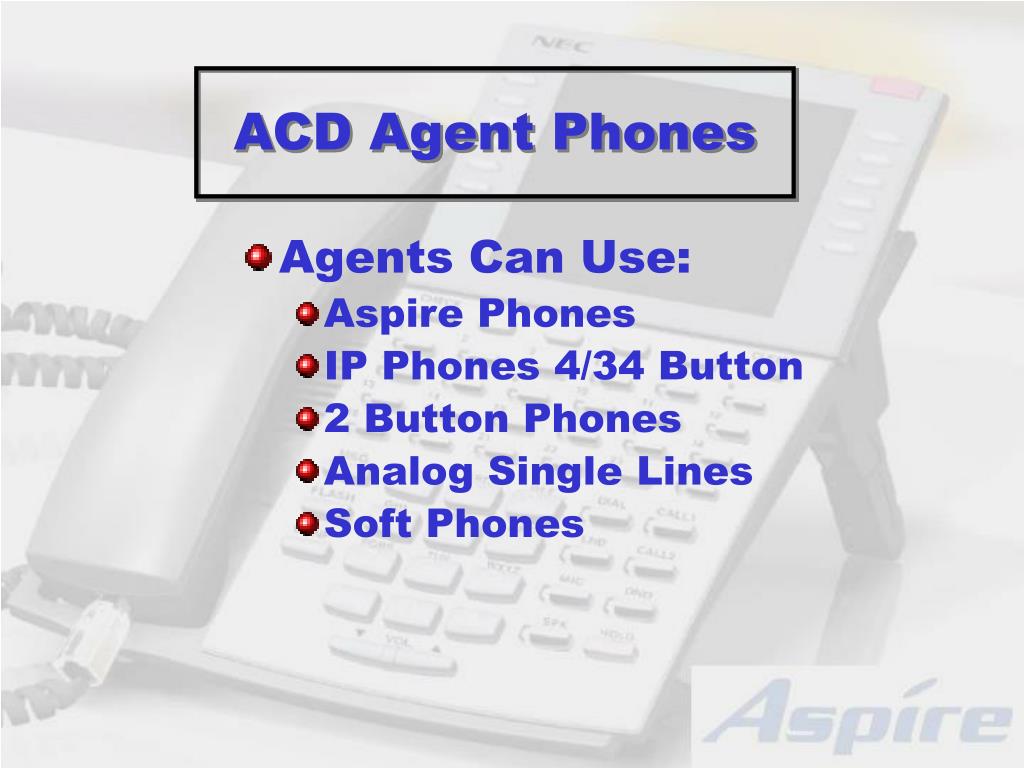

  12. ACD Agent Phones • Agents Can Use: • Aspire Phones • IP Phones 4/34 Button • 2 Button Phones • Analog Single Lines • Soft Phones

  13. Common ACD Programmable Keys • ACD Log In/Out Key • ACD Call Coverage Key • ACD Queue Status Key • Headset Key With Auto Headset –Answer Mode • ACD Hotline Key Indications • Emergency Call Key • Split Key “Combined w/Emergency Key For Supervisor” • Work/Wrap Mode Key • Off Duty/Rest Mode Key • Voice Over • Reverse Voice Over

  14. ACD Log In/Out Key • ACD Log In/Out Key • Used To Log In Or Out • Shows Indication Of Status • Pressing Key And “1” Will Log Out Agent • “Wait ACD Log In” Will Be Displayed When Logged Out Unless AIC Is Used • Can Use Service Code Instead Of Key *5 Log In And *51 Log Out

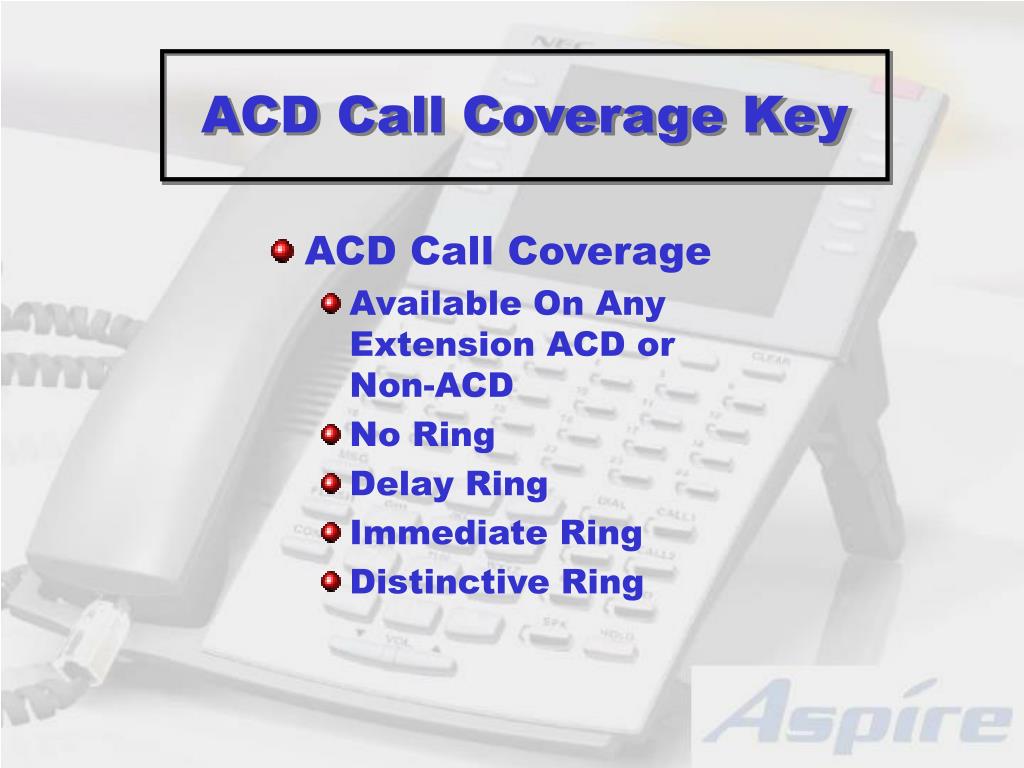

  15. ACD Call Coverage Key • ACD Call Coverage • Available On Any Extension ACD or Non-ACD • No Ring • Delay Ring • Immediate Ring • Distinctive Ring

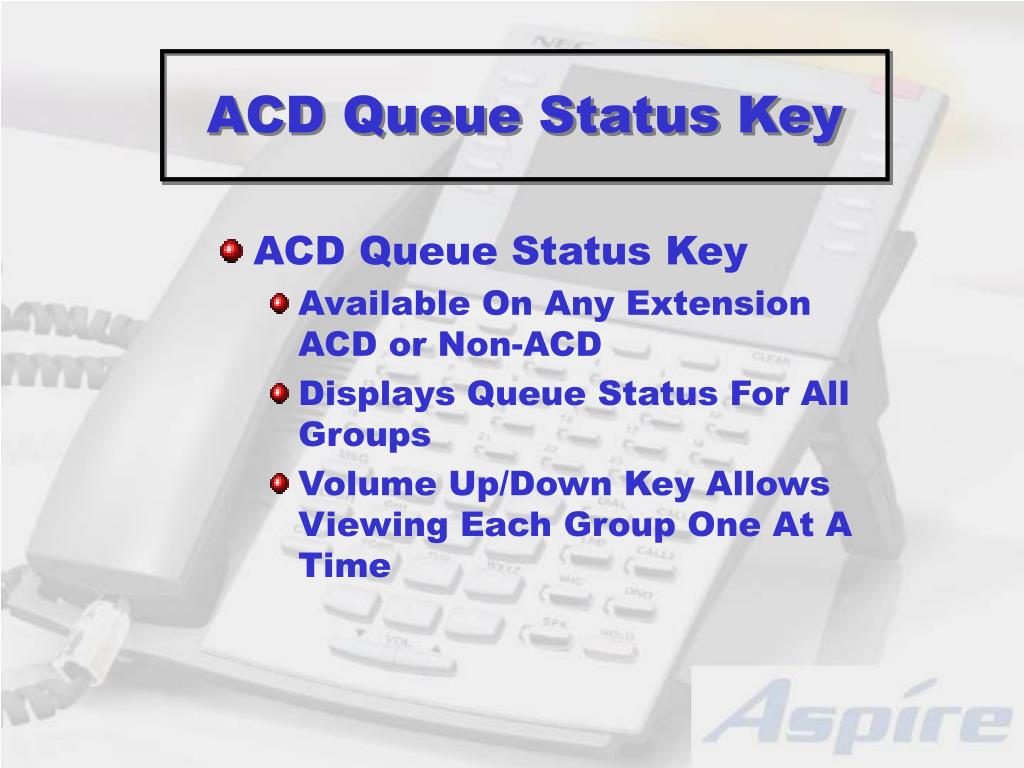

  16. ACD Queue Status Key • ACD Queue Status Key • Available On Any Extension ACD or Non-ACD • Displays Queue Status For All Groups • Volume Up/Down Key Allows Viewing Each Group One At A Time

  17. Agent Queue Status Number of Calls in Queue Time of Oldest Call in Queue Grp 001 002 Line-004 01:29 Number of ACD Group Being Viewed Name of Trunk With Longest Call in Queue

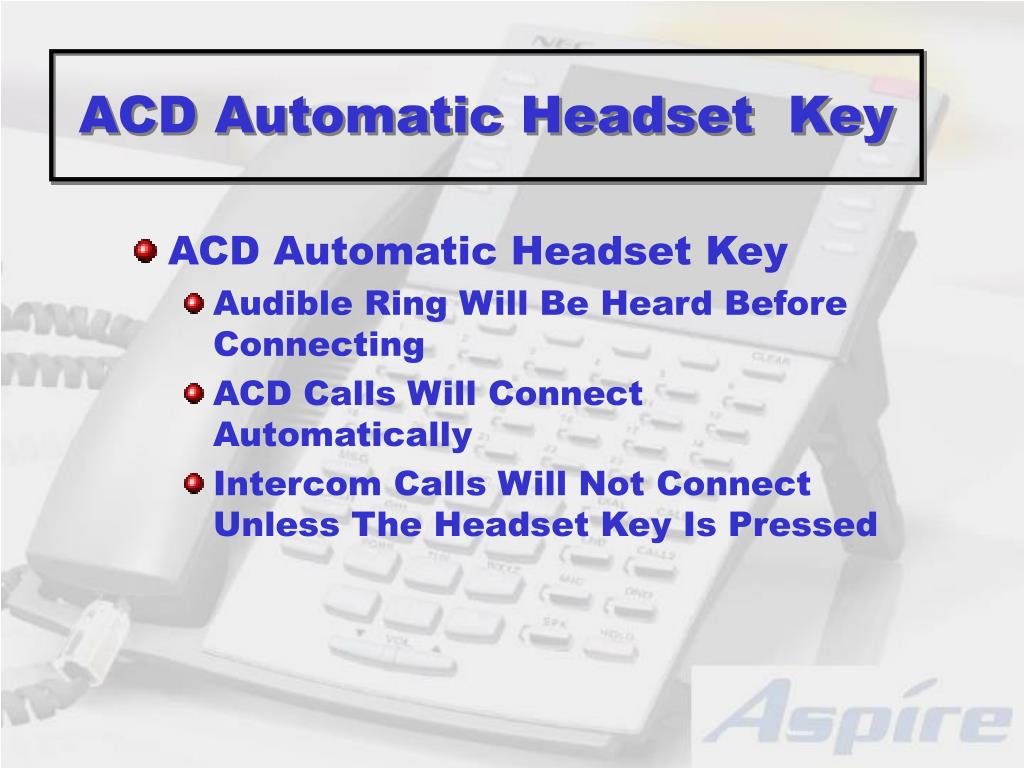

  18. ACD Automatic Headset Key • ACD Automatic Headset Key • Audible Ring Will Be Heard Before Connecting • ACD Calls Will Connect Automatically • Intercom Calls Will Not Connect Unless The Headset Key Is Pressed

  19. ACD Hotline Key • ACD Hotline Key • Agent Idle • Agent Busy • Agent Logged Off/On • Emergency Call • Agent Not Installed

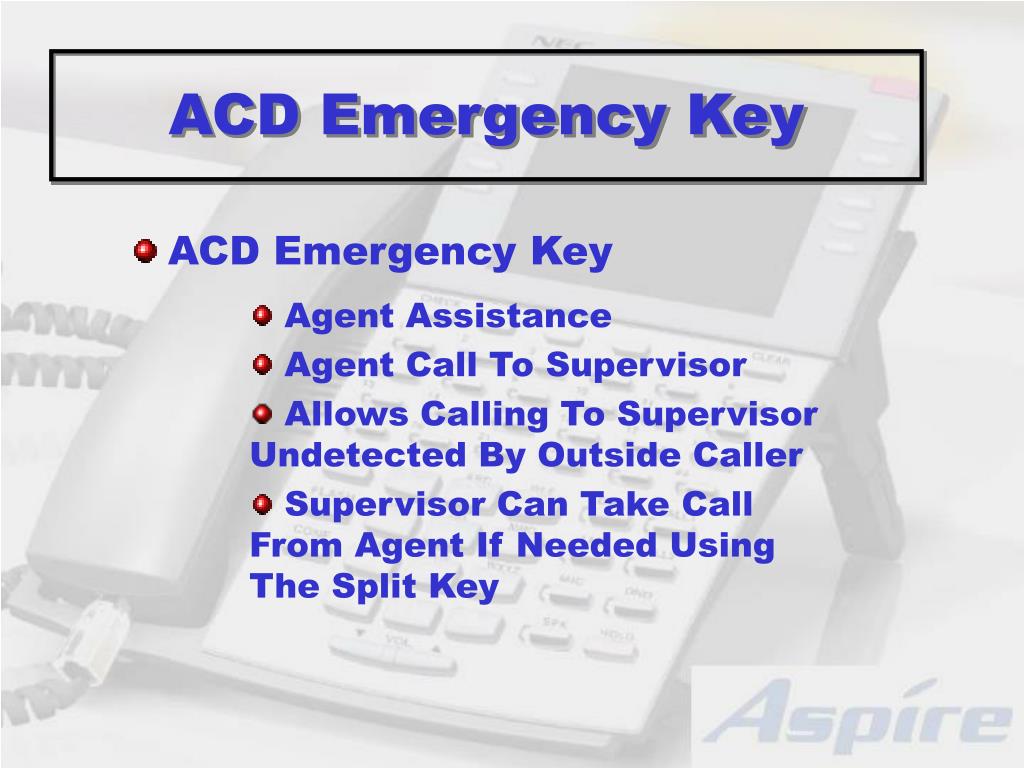

  20. ACD Emergency Key • ACD Emergency Key • Agent Assistance • Agent Call To Supervisor • Allows Calling To Supervisor Undetected By Outside Caller • Supervisor Can Take Call From Agent If Needed Using The Split Key

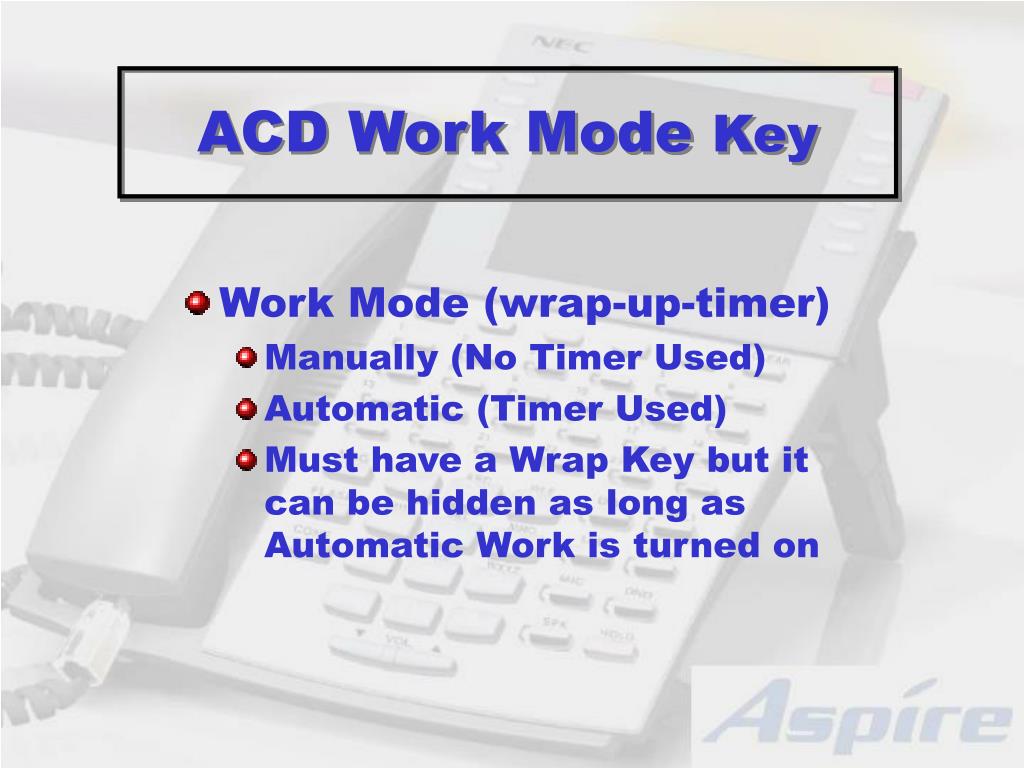

  21. ACD Work Mode Key • Work Mode (wrap-up-timer) • Manually (No Timer Used) • Automatic (Timer Used) • Must have a Wrap Key but it can be hidden as long as Automatic Work is turned on

  22. ACD Off Duty/Rest Key • Off Duty/Rest Mode Key • Manually (Pressed While Idle) • Automatic (Timer Used) Does Not Time Out Once On • Can Be Set As Exclusive DND • Must Have A Off Duty Key On Agents Phone For Feature

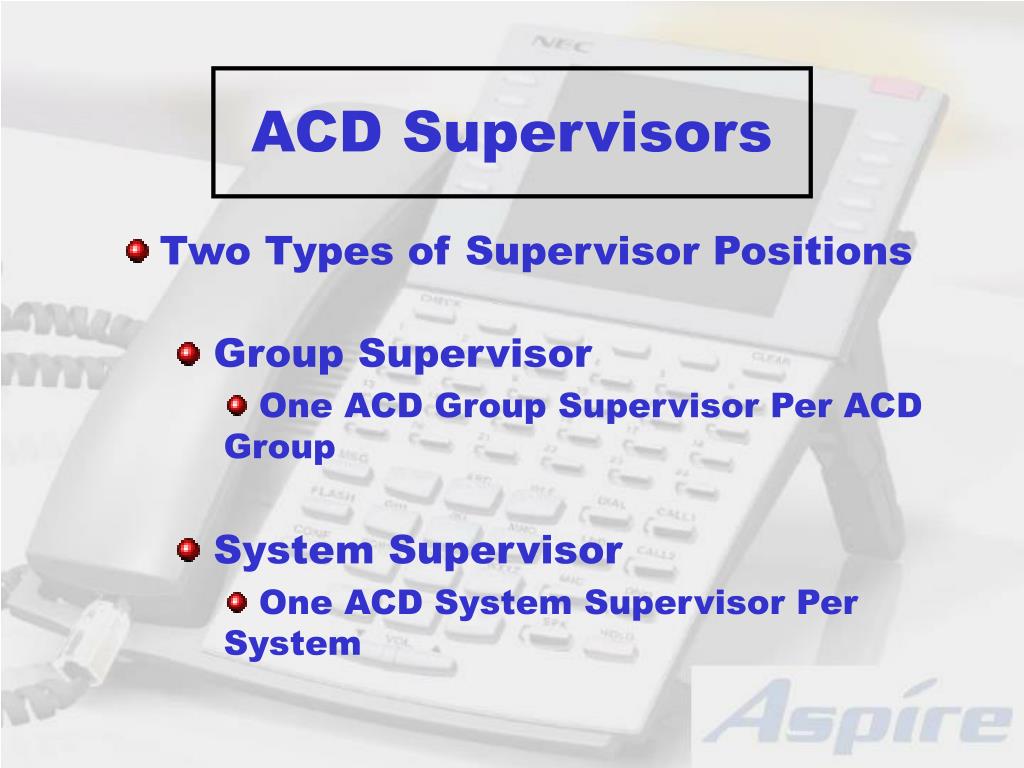

  23. ACD Supervisors • Two Types of Supervisor Positions • Group Supervisor • One ACD Group Supervisor Per ACD Group • System Supervisor • One ACD System Supervisor Per System

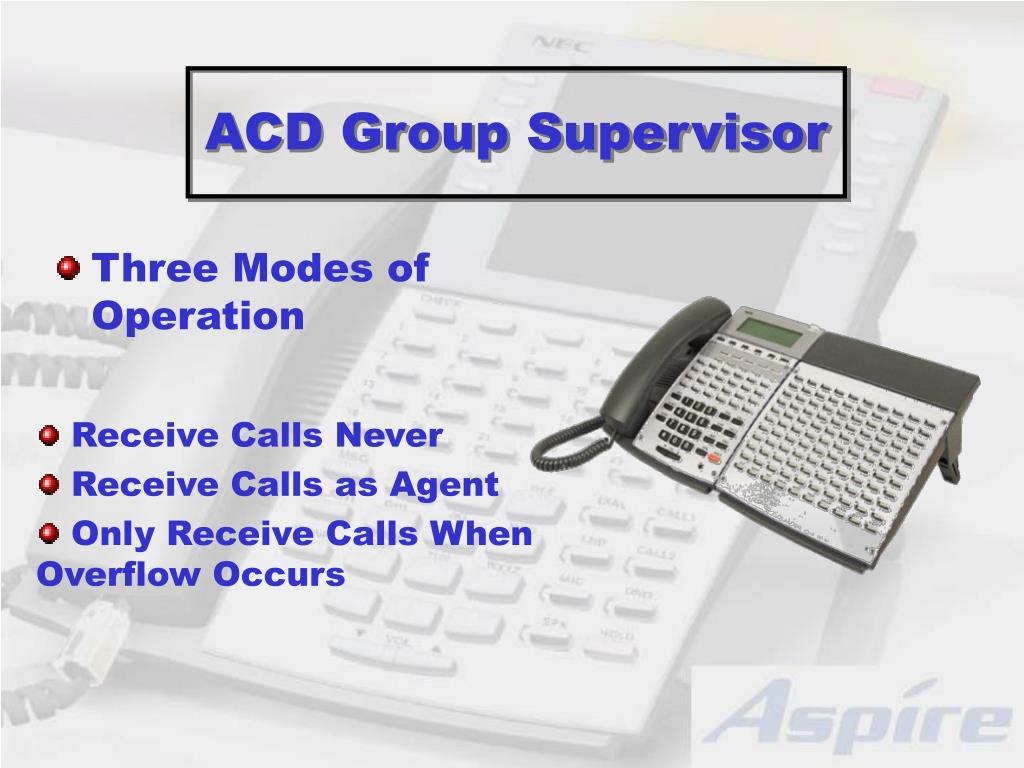

  24. ACD Group Supervisor • Three Modes of Operation • Receive Calls Never • Receive Calls as Agent • Only Receive Calls When Overflow Occurs

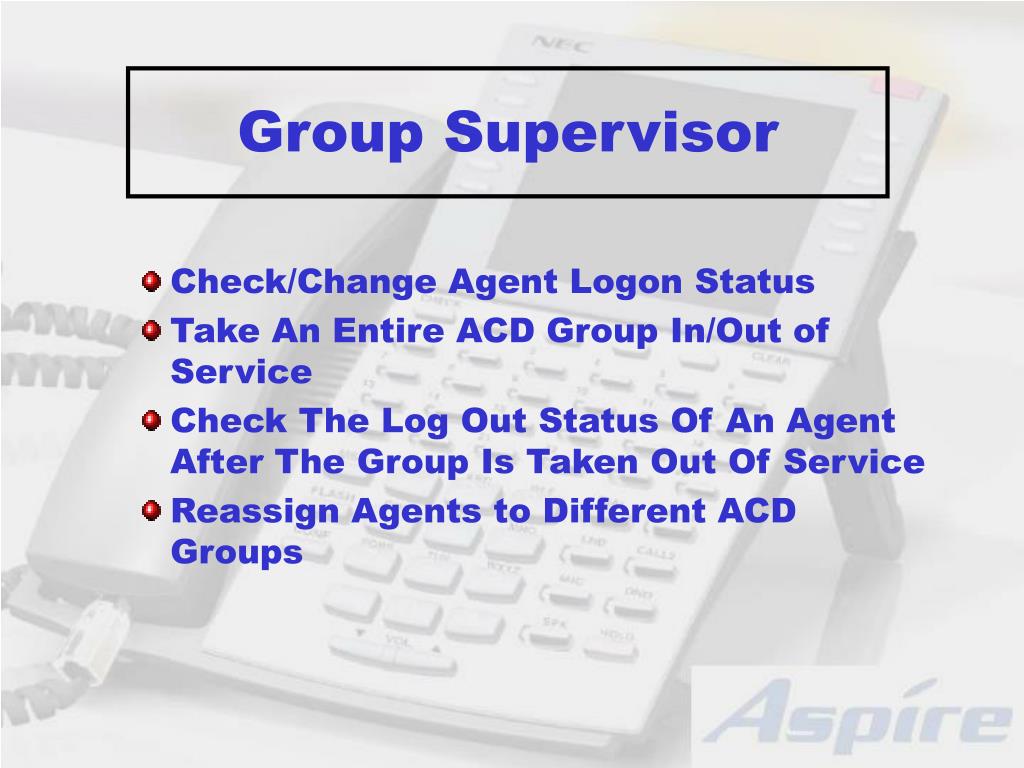

  25. Group Supervisor • Check/Change Agent Logon Status • Take An Entire ACD Group In/Out of Service • Check The Log Out Status Of An Agent After The Group Is Taken Out Of Service • Reassign Agents to Different ACD Groups

  26. Supervisor Lamped Hotline Keys Will Indicate: • Agent Idle • Agent Busy • Agent Logged Off/On • Emergency Call • Agent Not Installed

  27. System Supervisor • Take All ACD Groups Out Of Service Simultaneously • Restore All ACD Groups Out Of Service Simultaneously • Log In/Out An ACD Agent • Reassign Agents to Different ACD Groups

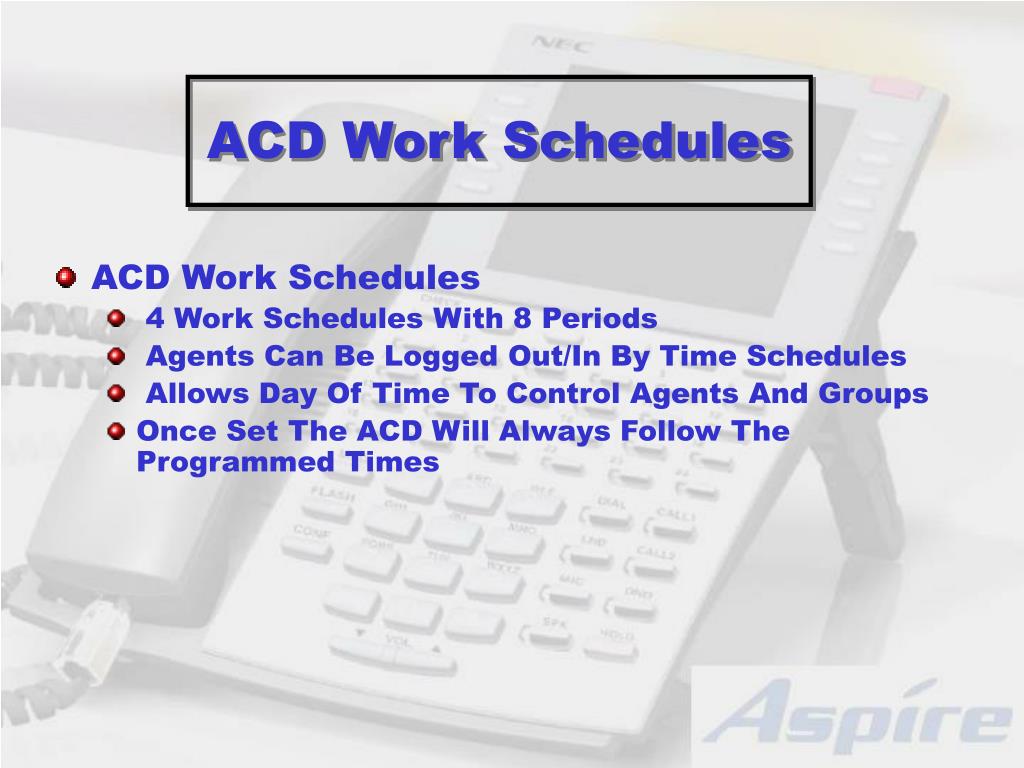

  28. ACD Work Schedules • ACD Work Schedules • 4 Work Schedules With 8 Periods • Agents Can Be Logged Out/In By Time Schedules • Allows Day Of Time To Control Agents And Groups • Once Set The ACD Will Always Follow The Programmed Times

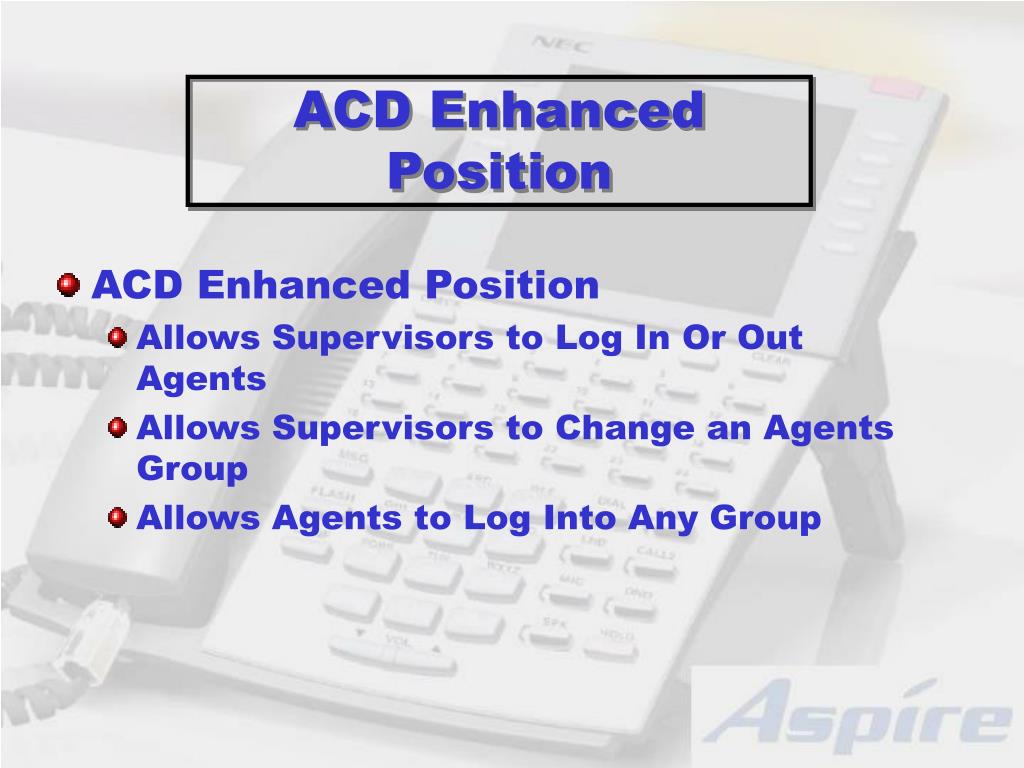

  29. ACD Enhanced Position • ACD Enhanced Position • Allows Supervisors to Log In Or Out Agents • Allows Supervisors to Change an Agents Group • Allows Agents to Log Into Any Group

  30. ACD Login Code • ACD (Login Codes) • Allows Agents to Log In Using A PIN Code • The PIN Code Can Be 0 – 20 Digits Log • The System With Not Allow Duplicate Pins • PIN Codes Can Be Used For Hot Seat • PIN Codes Can Be Used For ACD Tracking Software Like inDepth

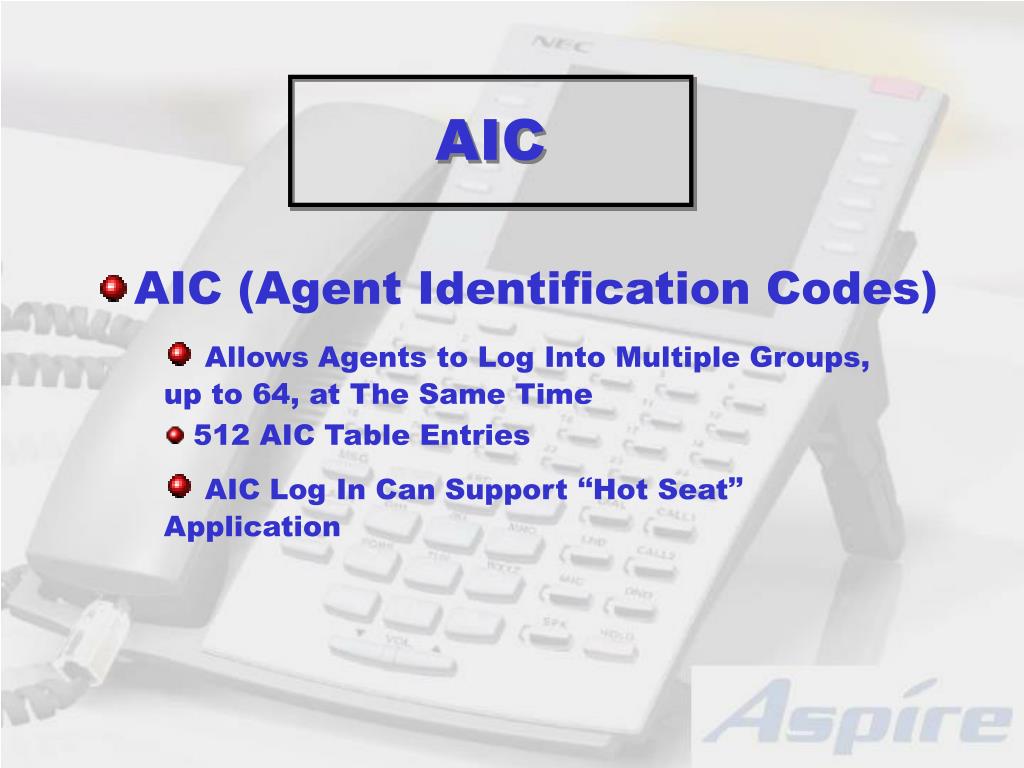

  31. AIC • AIC (Agent Identification Codes) • Allows Agents to Log Into Multiple Groups, up to 64, at The Same Time • 512 AIC Table Entries • AIC Log In Can Support Hot Seat Application

  32. Supervisor PositionAspire Phone with ConsoleIn-Depth Call Center Software

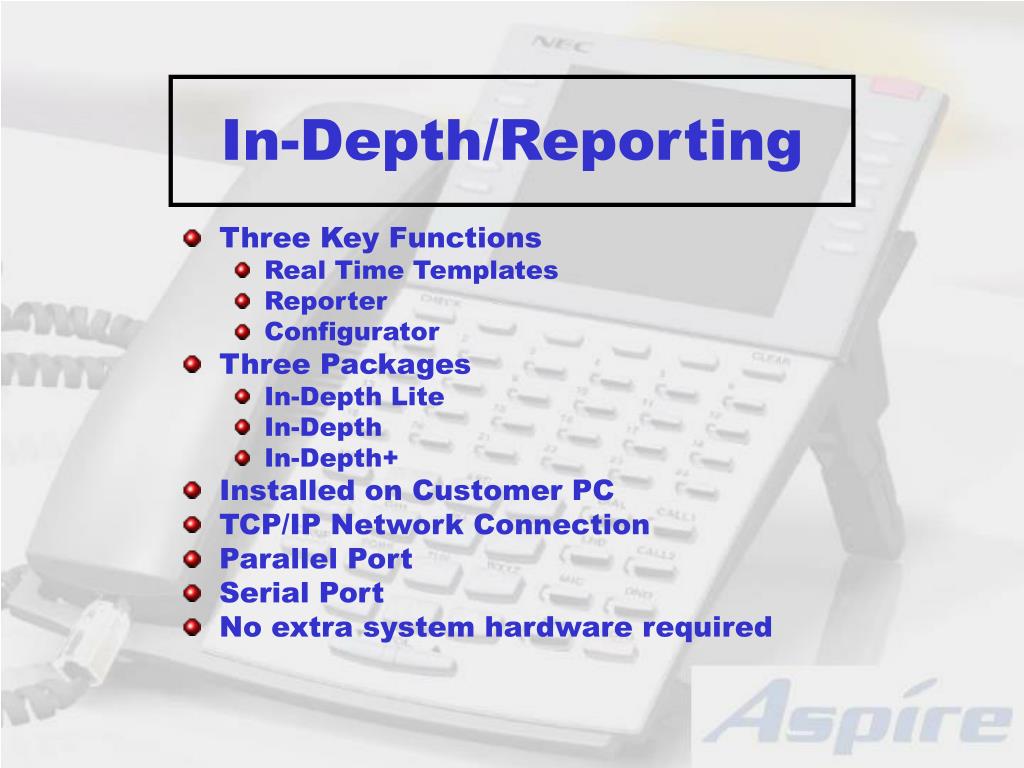

  33. In-Depth/Reporting • Three Key Functions • Real Time Templates • Reporter • Configurator • Three Packages • In-Depth Lite • In-Depth • In-Depth+ • Installed on Customer PC • TCP/IP Network Connection • Parallel Port • Serial Port • No extra system hardware required

  34. Sample Screen Shot
