LOI Backup Document: R&D. Feb Stave Mtg 2012. Topics. Overview of systems needs for R&D: The R&D needed for the tracker falls into a number of broad categories, detailed below.

mayes
Télécharger la présentation

LOI Backup Document: R&D

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LOI Backup Document: R&D Feb Stave Mtg 2012

  2. Topics • Overview of systems needs for R&D: The R&D needed for the tracker falls into a number of broad categories, detailed below. • Mechanical: The basic element of the tracker is a stave, built up from a thermo-mechanical stave core. The stave core is composed of various carbon based materials, adhesives, and cooling structures. These materials and their fabrication and assembly is an R&D topic. The staves are mounted on light carbon fiber barrels, also a topic of R&D. • Sensors: This covers the design of prototyping of silicon strip sensors. • Cooling: This covers the basic cooling system, cooling plant, and requirement. • Electrical: This covers the FEE, hybrids, modules, and data transmission within the stave. • Powering: This covers the alternative powering schemes, serial and DC-DC, and their control, monitoring, and power protection aspects. This also covers the HV distribution and monitoring within the stave. • Services: This covers all the off-stave services, in particular optical vs copper, cable plant and cable use/re-use scenarios, and coolant distribution. • Assembly: This covers the processes for manufacturing during production including hybrids, modules, cores, flex, staves, and module mounting. • Alignment: This covers mechanical alignment and monitoring with is not part of the assembly process. • Trigger: This covers the application of the stave tracker to a Level 1 track trigger.

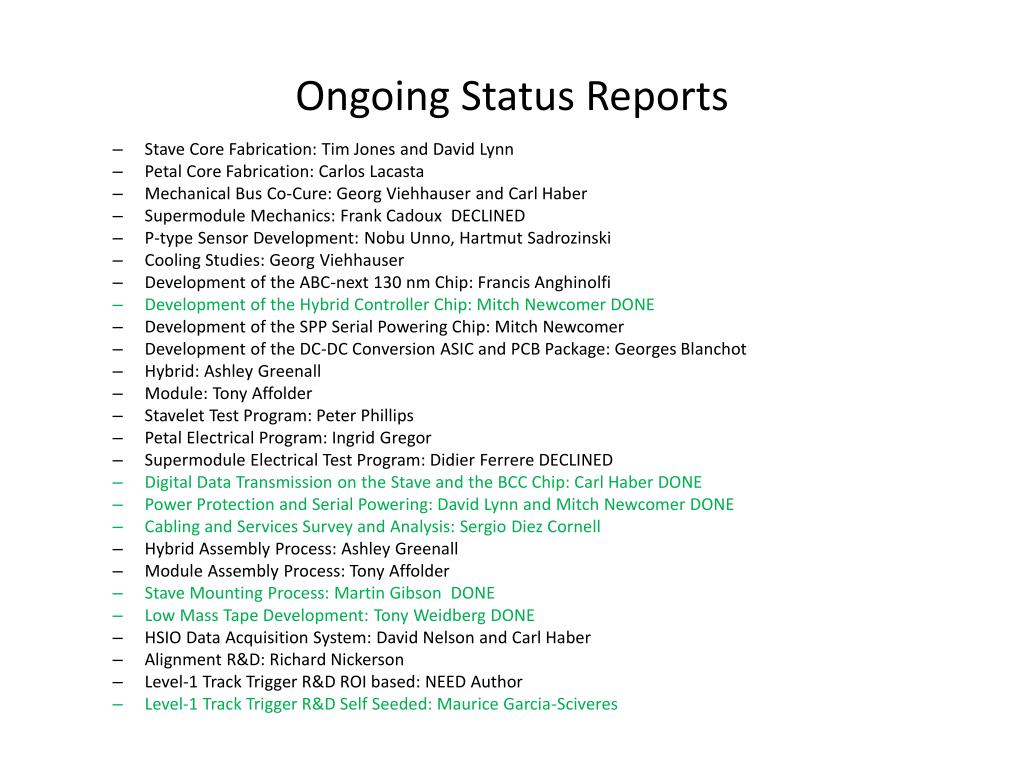

  3. Ongoing Status Reports • Stave Core Fabrication: Tim Jones and David Lynn • Petal Core Fabrication: Carlos Lacasta • Mechanical Bus Co-Cure: Georg Viehhauser and Carl Haber • Supermodule Mechanics: Frank Cadoux DECLINED • P-type Sensor Development: NobuUnno, HartmutSadrozinski • Cooling Studies: Georg Viehhauser • Development of the ABC-next 130 nm Chip: Francis Anghinolfi • Development of the Hybrid Controller Chip: Mitch Newcomer DONE • Development of the SPP Serial Powering Chip: Mitch Newcomer • Development of the DC-DC Conversion ASIC and PCB Package: Georges Blanchot • Hybrid: Ashley Greenall • Module: Tony Affolder • Stavelet Test Program: Peter Phillips • Petal Electrical Program: Ingrid Gregor • Supermodule Electrical Test Program: Didier Ferrere DECLINED • Digital Data Transmission on the Stave and the BCC Chip: Carl Haber DONE • Power Protection and Serial Powering: David Lynn and Mitch Newcomer DONE • Cabling and Services Survey and Analysis: Sergio Diez Cornell • Hybrid Assembly Process: Ashley Greenall • Module Assembly Process: Tony Affolder • Stave Mounting Process: Martin Gibson DONE • Low Mass Tape Development: Tony Weidberg DONE • HSIO Data Acquisition System: David Nelson and Carl Haber • Alignment R&D: Richard Nickerson • Level-1 Track Trigger R&D ROI based: NEED Author • Level-1 Track Trigger R&D Self Seeded: Maurice Garcia-Sciveres

  4. Pending R&D Needs • HV Multiplexing: David Lynn DONE • Additional Cabling Studies: Sergio Diez-Cornell • Optical Data Transmission to the Stave: Tony Weidberg • The Petlet Program: Ingrid Gregor • Application of the RCE system to stave DAQ Su Dong
