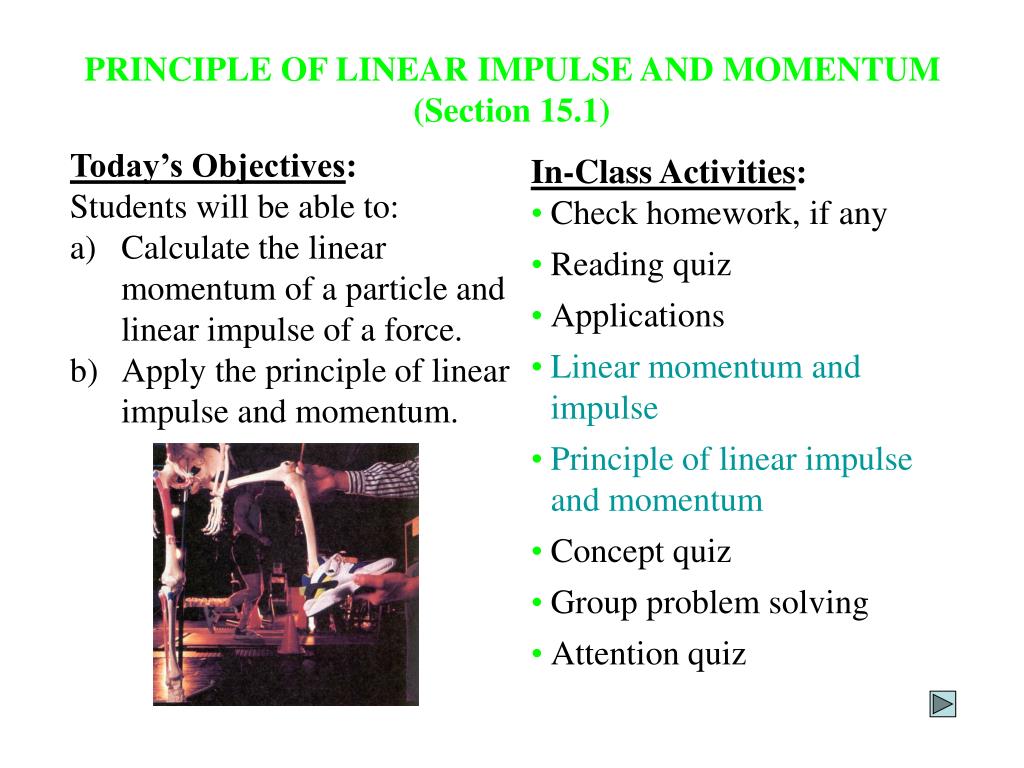

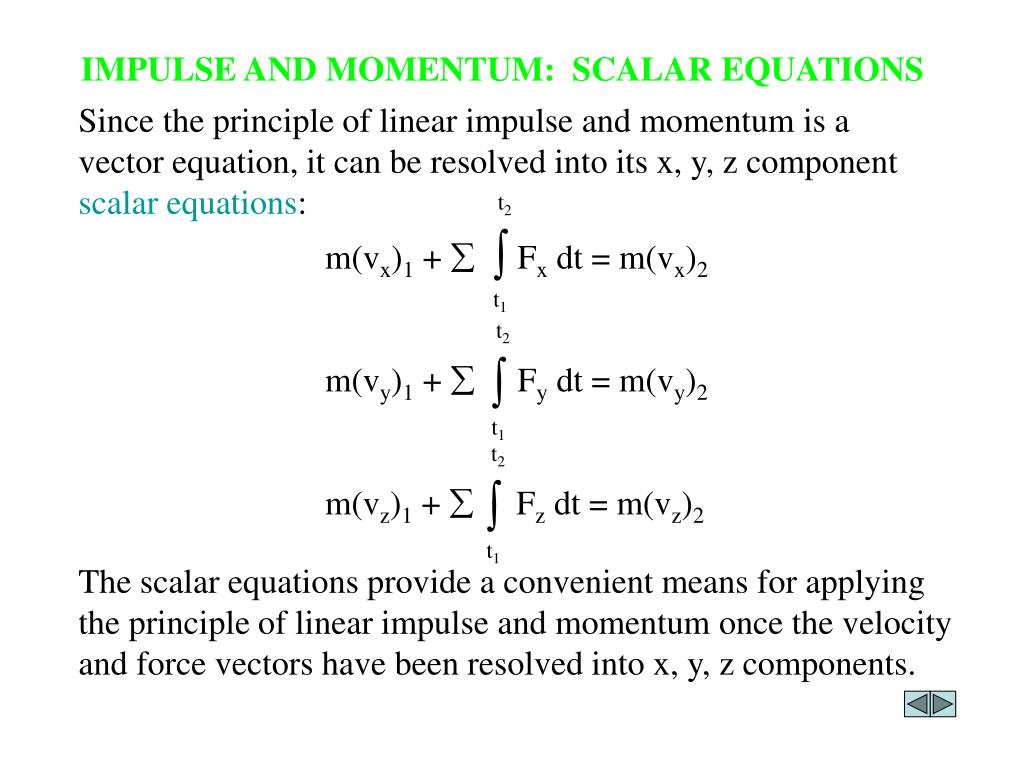

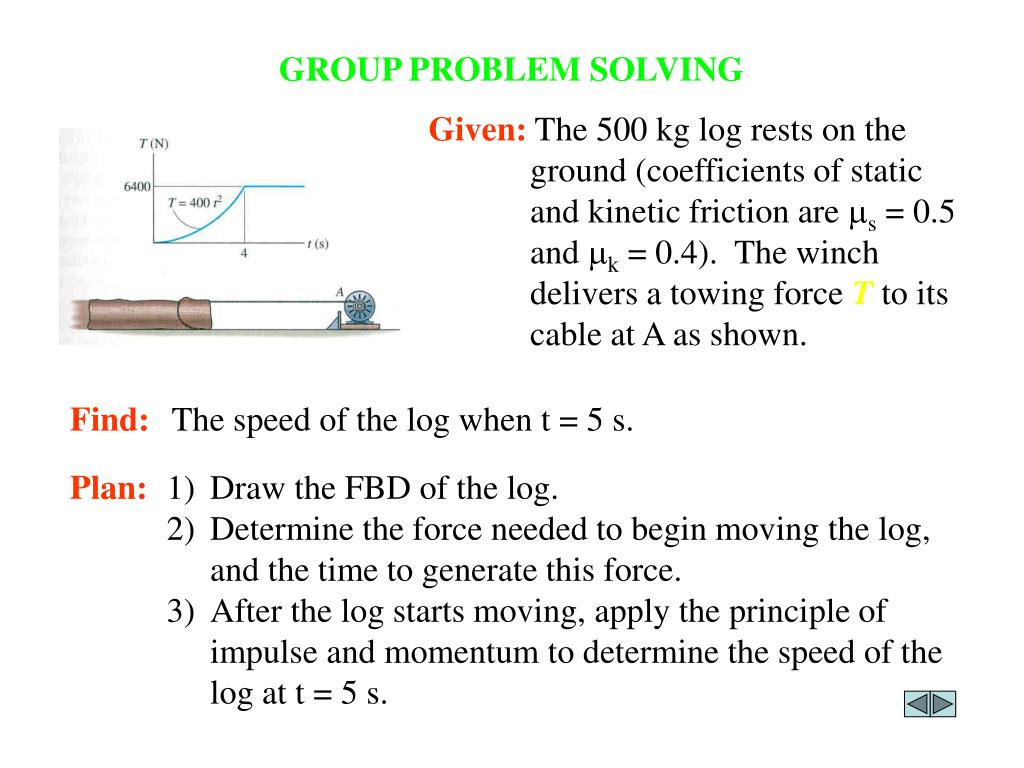

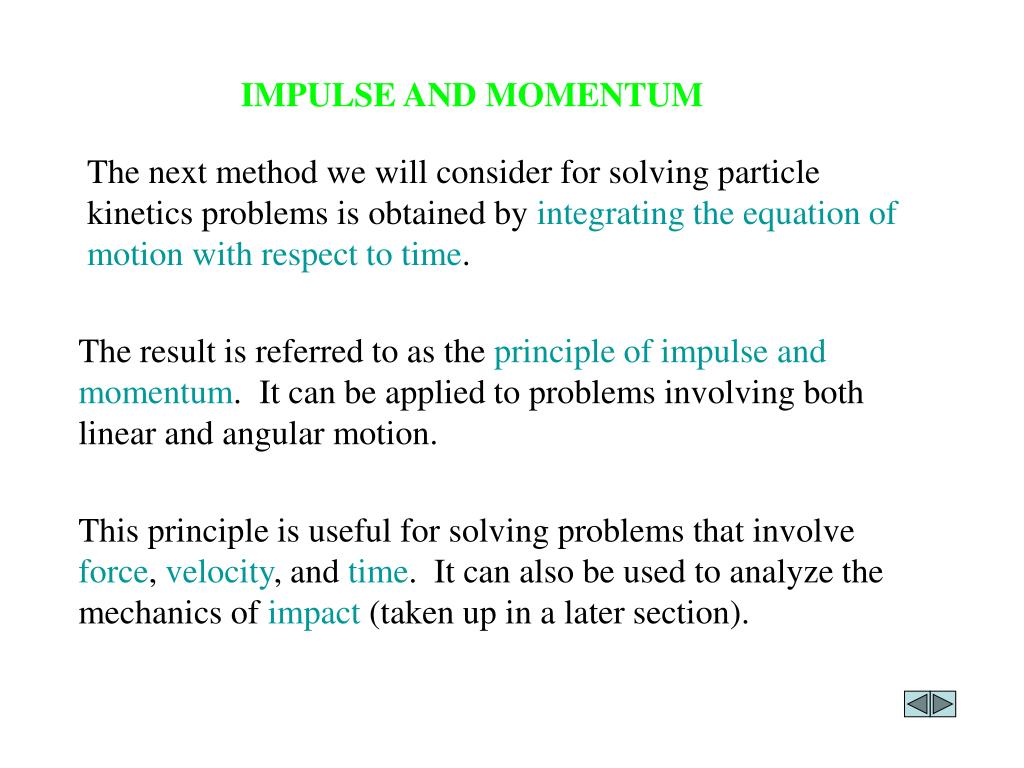

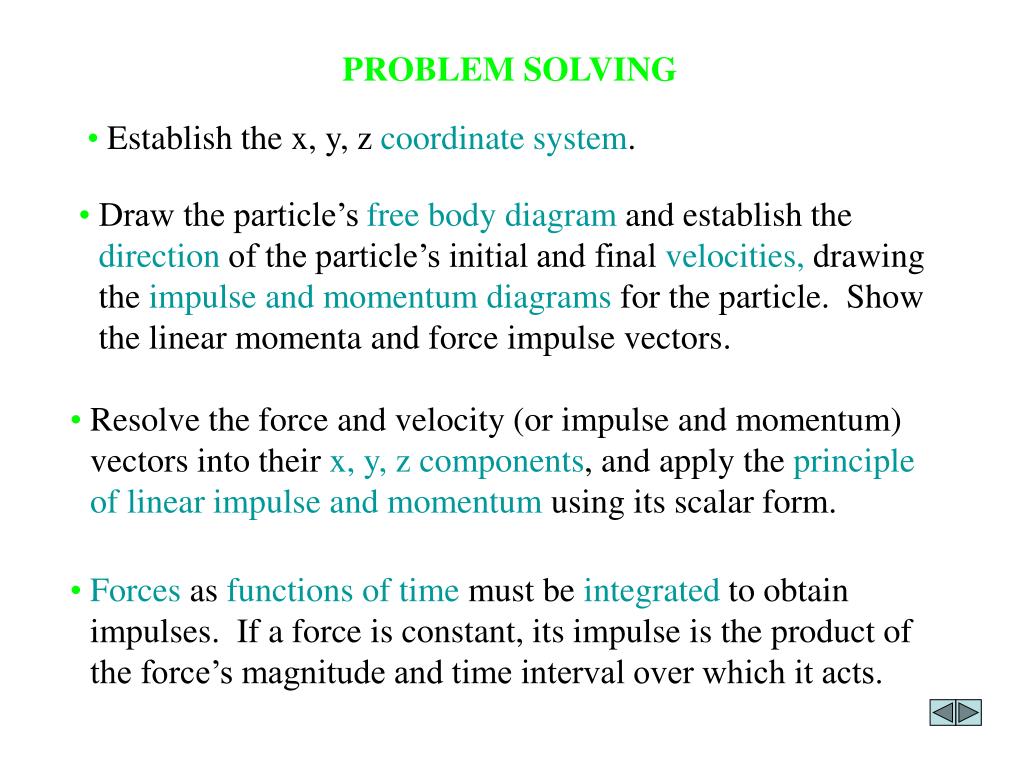

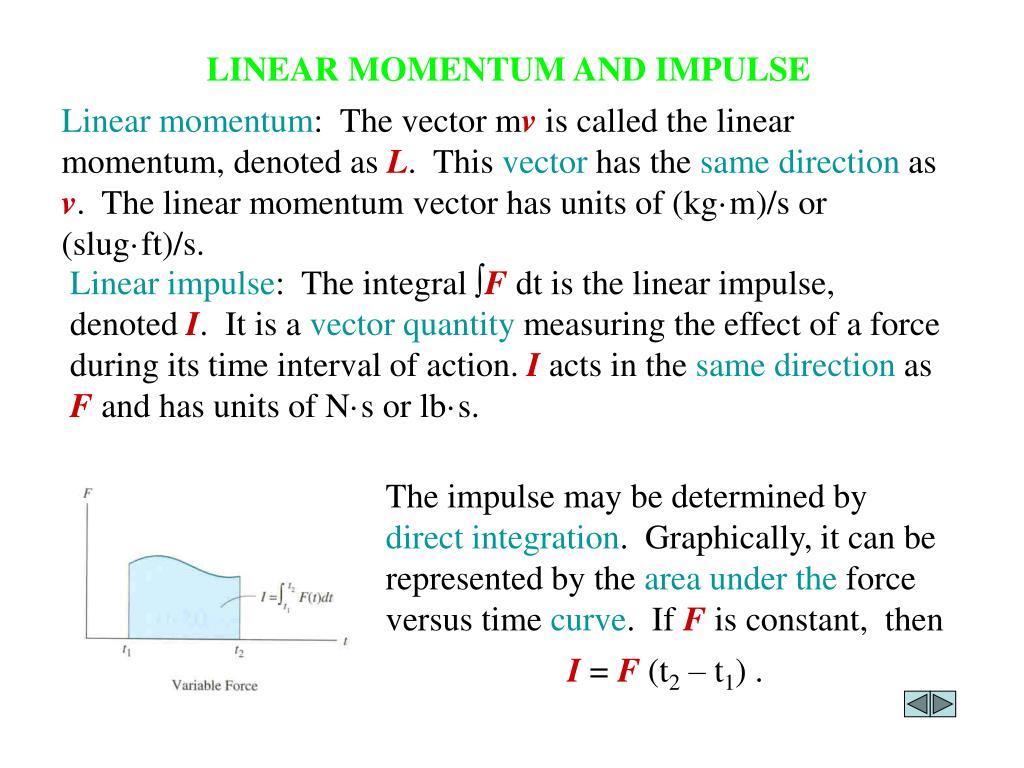

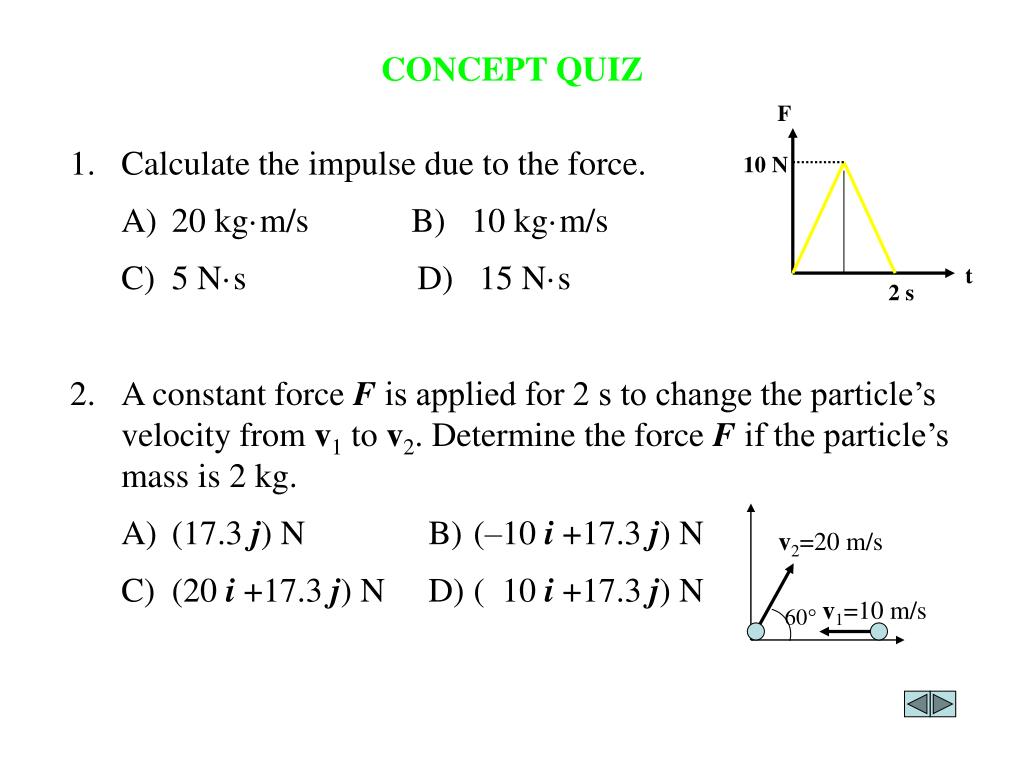

PRINCIPLE OF LINEAR IMPULSE AND MOMENTUM (Section 15.1). Today’s Objectives : Students will be able to: a) Calculate the linear momentum of a particle and linear impulse of a force. b) Apply the principle of linear impulse and momentum. In-Class Activities : • Check homework, if any
