Using ArcMap GIS: Part 2

1. Using ArcMapGIS: Part 2 Learning the Basics of ArcView 3.3 Updated 4/29/2010 Using Arc/View pt. 1

2. Areas to be covered today Tools demonstrated here • Saving a project – how to and how not to • Making a jpeg from a layout • Feature and Image themes (data types) • Adding an Image Theme • Scale – how to insure it appears on your final map • Proclib – what is it and what is required Using ArcView Part 2

3. Saving Your Project

4. Saving a Project • A project file DOES NOT SAVE DATA • A project file saves a path to data • Thus when you resume work on a project the path (location must be the same as in the past) Using ArcView Part 2

5. Always save and manage your project from ArcMap or allied Arc Products Save early and often Create new folders for new work Use project names that are informative

6. Note the new file folder I have created and am ready to create a project file name In ESRI speak our mapping project here is called a “map document” and has the file ending “.mxd”

7. There are many kinds of Arc Documents, but for the moment we will only be concerned with an “ArcMap document” or more simply map document ArcGIS documents In ArcGIS, you work with system documents and files such as: • ArcMap documents (.mxd) • ArcGlobe documents (.3dd) • Layer files (.lyr) • Python scripts (.py) • AML scripts (.aml) ArcGIS applications use a series of documents for saving work created in ArcGIS. These documents define how maps, map elements, map layers, globes, globe elements, and geoprocessing models are managed and used within the software. For example, a map document specifies the set of map elements contained in a map along with the map layers and their display properties used to present GIS datasets. Once you create a map document, you can use it simply by selecting the document and opening it. This will launch the ArcMap application for the selected map. Each ArcGIS document is saved as a file in a disk folder.

8. A Map Document (.mxd) does not save data!!! It only has pointers telling the program where the data resides, if you move the data or the map document this may mean you have to re-locate the data. (for example if you go to your home computer instead of a campus computer the data may not be available) In this class we recommend that you always work in our labs utilizing either your U drive or the J drive, this should eliminate the need to be concerned with where the data is located, because you never change locations

9. Saving a Project • I suggest getting into the practice of saving your project on your U: drive. Later in the quarter we will talk about saving elsewhere. Using ArcView Part 2

10. Creating a JPEG of your Map

12. With the Layout Showing from the File tab click on Export Map

13. Choose a place to save your map, choose a format – I recommend JPEG, give it a title that makes sense and SAVE

14. jpeg • Once you have a jpeg or other image format for your map you can easily insert it into a report, power point, poster,…

15. Feature and Image Data

16. Feature and Image data • Our example using the simple exercise data set should well illustrate this • Also check-out Some Definitions on the Course Web Page Feature data Image data Using ArcView Part 2

17. First a refresher:How To -- Definition Building • Divide text or powerpoint material into bullets • Rank them by order of importance • Translate these points into sentence(s) using your own words (not copy and paste with a little paraphrasing thrown in) • Insert examples into the definition Using ArcView Part 2

18. Feature Data Using ArcView Part 2

19. Feature Data or Vector Data One method of storing vector data is in Shape Files . The vectors are stored in one file and their related attributes are stored in tables known as attribute tables. A shape file is one way to store vectors information. In these each class of features (points, lines or polygons) are stored in a separate shapefile and each has its own attribute table. Attribute tables contain one record for each particular feature (such as a point) of that class in the coverage. Classes of features • Points: Points represent features found at discrete locations, such as telephone poles, wells and mountain peaks. • Arcs: Arcs represent linear features such as streams, streets and contours. • Polygons: Polygons represent areas enclosed by specific boundaries, such as countries, states, land parcels and soil types. Using ArcView Part 2

20. Feature Data: Entity & Attribute Here we will open the attribute table that is linked to the FISHHAB vector (shape) file Do this by right clicking on FISHHAB Using ArcView Part 2

21. Feature Data: Entity & Attribute Now all three parts to our basic data set are visible on the screen Entities in the Data View window, Attributes in a separate window and Geocodes at the bottom of the window

22. Adding Image Data • Using the black cross we will now add Image data to the Data View. • Note that the file extension for all of the vector data here is .shp (shape file) • For this data set the image data has an extension .BIL • Click and add Using ArcView Part 2

23. Don’t worry about this projection statement We will deal with this later. Click OK

24. Refresher – now may be a good time to save your work Always save and manage your projects from ArcMap or allied Arc Products Save early and often Create new folders for new work Use project names that are informative

25. I have now turned on a shaded relief image underlying my area and zoomed in a bit

26. Image Data Note there are no Attribute Tables Available with this Image Data Using ArcView Part 2

27. Image data – ESRI Definition (my highlights) An image is a graphic representation or description of an object that is typically produced by an optical or electronic device. Some common examples of image data include remotely sensed data, such as satellite data, scanned data, and photographs. • Image data is a form of raster data where each grid-cell, or pixel, has a certain value depending on how the image was captured and what it represents. For example, if the image is a remotely sensed satellite image, each pixel represents light energy reflected from a portion of the Earth's surface. If, however, the image is a scanned document, each pixel represents a brightness value associated with a particular point on the document. • To change the way an image looks and to derive additional information from an image you can edit an image's legend. (Aside: but this is very limited) • Images are often used as the background to views, with spatial data being drawn on top of them. Themes representing images are therefore normally moved to the bottom of the view's Table of Contents, so that they are drawn on the view first. • The main difference between image data and feature-based spatial data is that images do not contain attribute data about the features they show. Using ArcView Part 2

28. Now you do it • Take a moment to build a definition for each feature and image data Using ArcView Part 2

29. REMEMBER Always save and manage your projects from ArcMap or allied Arc Products Save early and often Create new folders for new work Use project names that are informative

30. ADDING SCALE

31. Note that the default for Geocodes is lat/long reported in Decimal Degrees which makes no sense here (maximum value should be 180.0 decimal degrees

32. Add scale • Usually Shape Files for ESRI products set the coordinate system and you don’t have to worry about this, default is lat/long decimal degrees • This set, made by Whatcom County, is not the ordinary type, so we have to explain to the ArcMap what the county folks did • Let’s fix this map. Through experimentation I know that this is in a bastardized version of UTM • Once we have saved our work this map will always be properly set, but the raw data will not be changed.

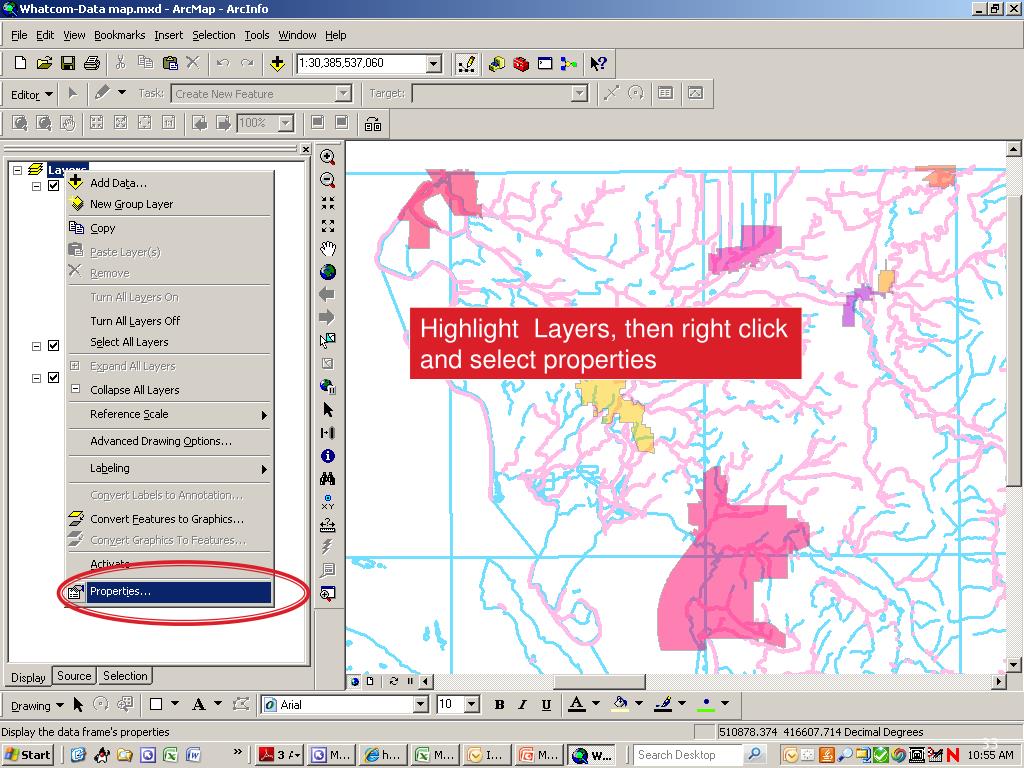

33. Highlight Layers, then right click and select properties

34. If we click on the General Tab you will notice that both our map and display units (Geocode measures) are unknown. Not GOOD. (Mr. Huph: Sit down, Bob. [Bob sits down, and Mr. Huph fixes one of his pencils to get back in line with the other pencils] Mr. Huph: I'm not happy, Bob. Not... happy. [gets off of his chair] Ask me why. …not happy, Bob”)

35. Click on Coordinate Systems Tab, then Predifined

36. Click on Projected Coordinate Systems

37. Scroll down and click UTM (because we know it is in UTM)

38. Under UTM we will choose NAD 1927 Note NAD 1927 stands for North American Datum 1927 – basically a “datum” or sphere fit to the world based on our best guess in 1927 that made North America look least distorted

39. Now scroll down to Zone 10 and click – this is the Zone that WA state is in, then click OK

40. Note that our Geocodes have changed to meters in hundreds of thousands – just what we want

41. Check General Tab again and now we have both map and display units in that measurement system that ‘… cannot be named”.

42. Some members of Congress attempted to ban use of the metric system on federal highways in 1992 and 1993.[10][11] These bills were not popular in the House of Representatives and failed before a vote.

43. Now let’s measure some distances on our map, click on the Measure tool.

44. Choose “measuring tape” units

45. Set it to distance

46. Set this to the ever popular Miles

47. Click and drag and distance will appear in box. Single click allows turning a corner. Double click stops measurement Now I’m Happy, Bob.

48. Now you can add a scale bar to your map. If the coordinates are set correctly automatically you don’t need to do all of this

49. Additional Whatcom County Data Already Rectified Can be found at: J:\GEO\GEO_data\WHATCOM_County\1_What_Co_data
