1. Univerisdad simon bolívar Id - 2125 Spatial organization Clemente, jessenia Zambrano, Jesús

2. CONTENT • WHAT IS SPATIAL ORGANIZATION? • 3 concepts • Some useful words • Components • Spatial relations • Types of organizations • Conclusion

3. Spatial organization an arrangement of what???

4. Spatial organization • Can be observed when components of a group are arranged non-randomly in space.

5. Spatial organization • 1.- Is the capacity to situate ourselves into space in order to determine our position in relation to external references.

6. Spatial organization • 2.-Is the capacity to order the different elements of a set. • 3.-is The capacity to appreciate the relation that exists between me, the other people and the objects, considering topological, projective and metric aspects.

7. school Useful words • Points, lines, areas and volumes are the four geometric features with which spatial organization can be easily described.

8. Useful words • The descriptive process of spatial organization uses concepts such as location, distance, direction, density, and arrangement to capture spatial relationships .

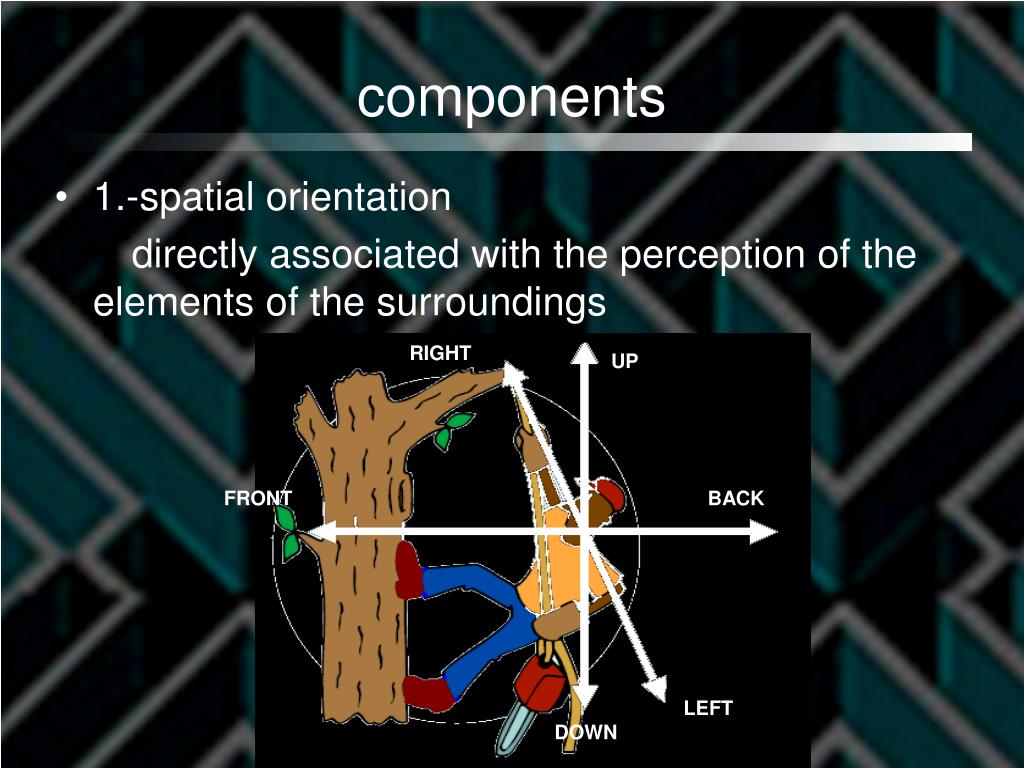

9. RIGHT UP FRONT BACK LEFT DOWN components • 1.-spatial orientation directly associated with the perception of the elements of the surroundings

10. components • 2.-spatial structuration associated with the abstraction and reasoning, using the perception and memory

11. Spatial relations: • topological: -contiguity: the CLOCK is near the LAMP. -order: the children are lined up in row -interiority: the DOG IS IN the BEDROOM

12. Spatial relations: • Proyective Relations: -perspectives -points of view

13. Spatial relations: • Metrics: -Use of maps, scales and measures, cardinal points, angles.

14. Hatshepsut’s Temple Ancient Egypt

15. Radial Organization Karlsruhe, Germany

16. Radial Organization Eastern StatePenintentiary, Pennsylvania, USA.

17. Central Organization Warrambui’s Dome, Australia

18. Central Organization Palmanova, Italy

19. Linear Organization Edfu Temple, Egypt.

20. Linear Organization AmsterdamAvenue, Netherlands

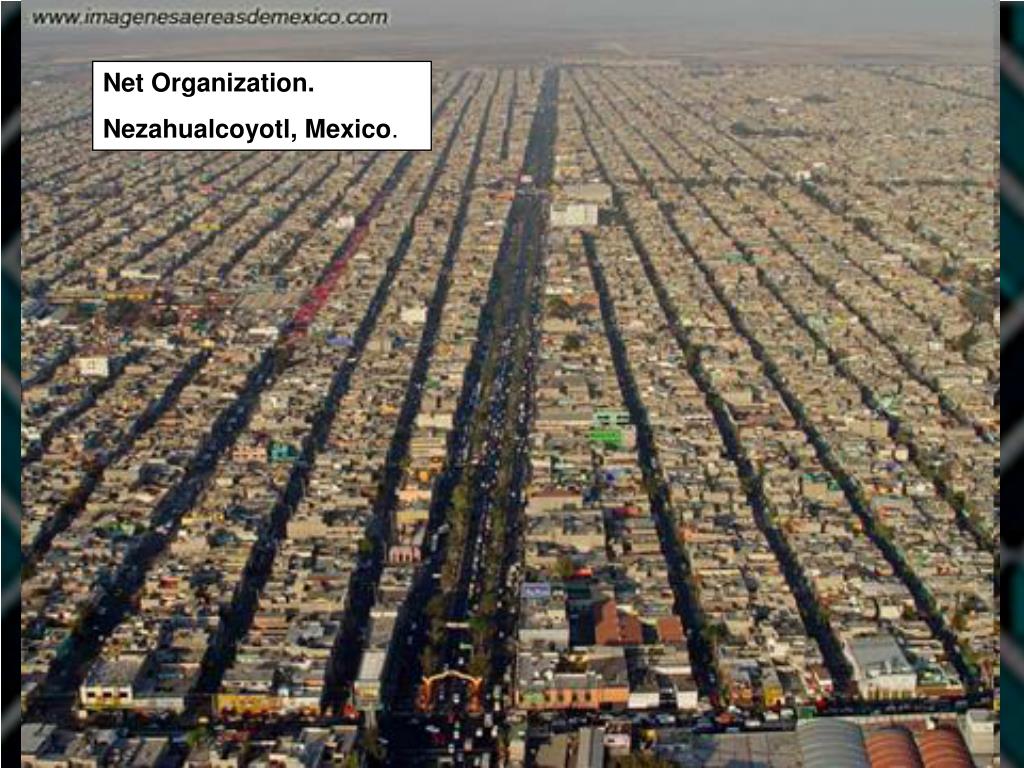

21. Net Organization. Nezahualcoyotl, Mexico.

22. Net Organization Murcia Office Building, Spain.

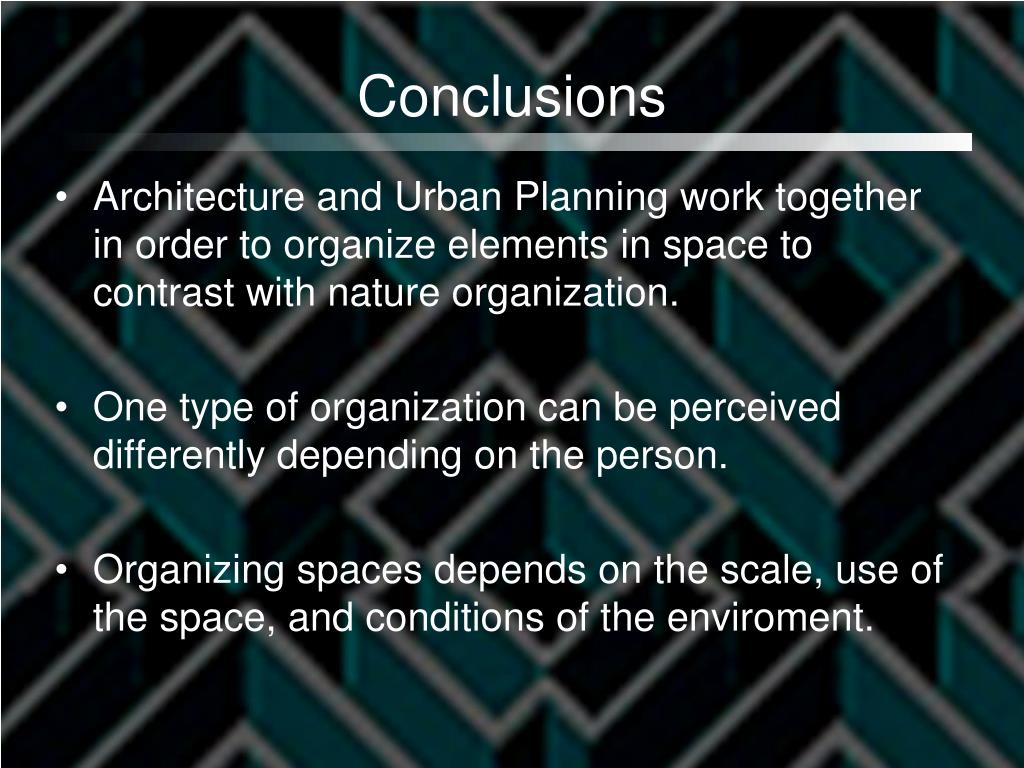

23. Conclusions • Architecture and Urban Planning work together in order to organize elements in space to contrast with nature organization. • One type of organization can be perceived differently depending on the person. • Organizing spaces depends on the scale, use of the space, and conditions of the enviroment.
