  1. Nesting

  2. Eta Model

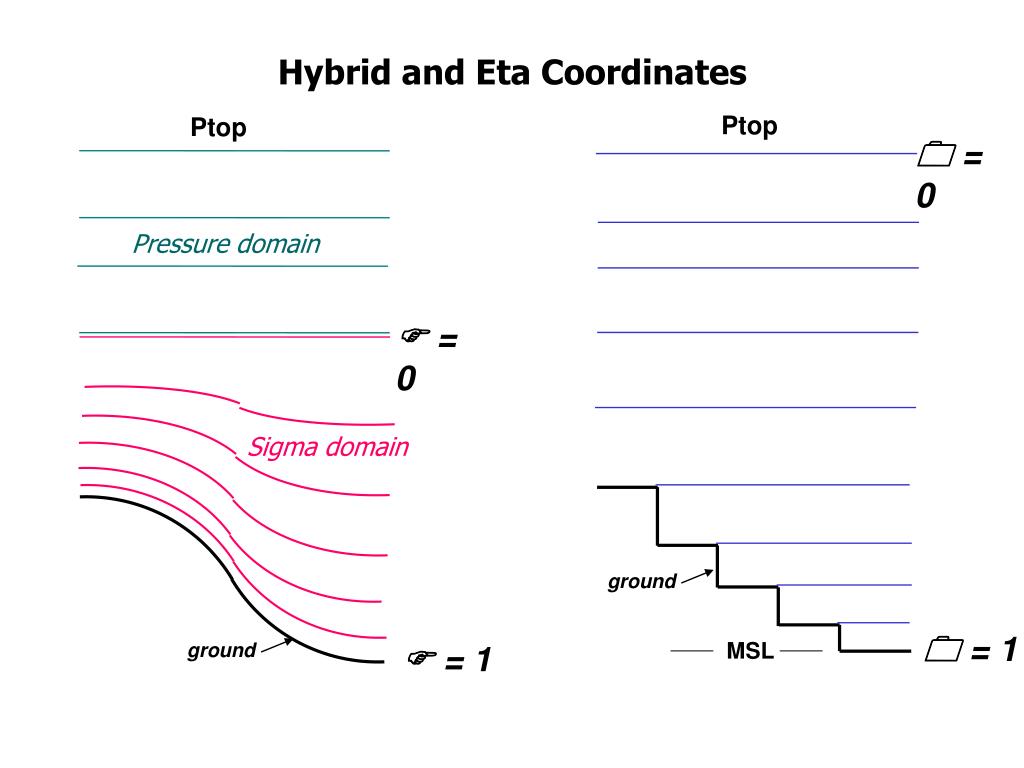

  3. ground ground Hybrid and Eta Coordinates Ptop Ptop  = 0 Pressure domain  = 0 Sigma domain  = 1 MSL  = 1

  4. Horizontal resolution of 12 km 12-km terrain

  5. WRF Model Family A Tale of Two Dynamical Cores

  6. Why WRF? • An attempt to create a national mesoscale prediction system to be used by both operational and research communities. • A new, state-of-the-art model that has good conservation characteristics (e.g., conservation of mass) and good numerics (so not too much numerical diffusion) • A model that could parallelize well on many processors and easy to modify. • Plug-compatible physics to foster improvements in model physics. • Designed for grid spacings of 1-10 kmeta

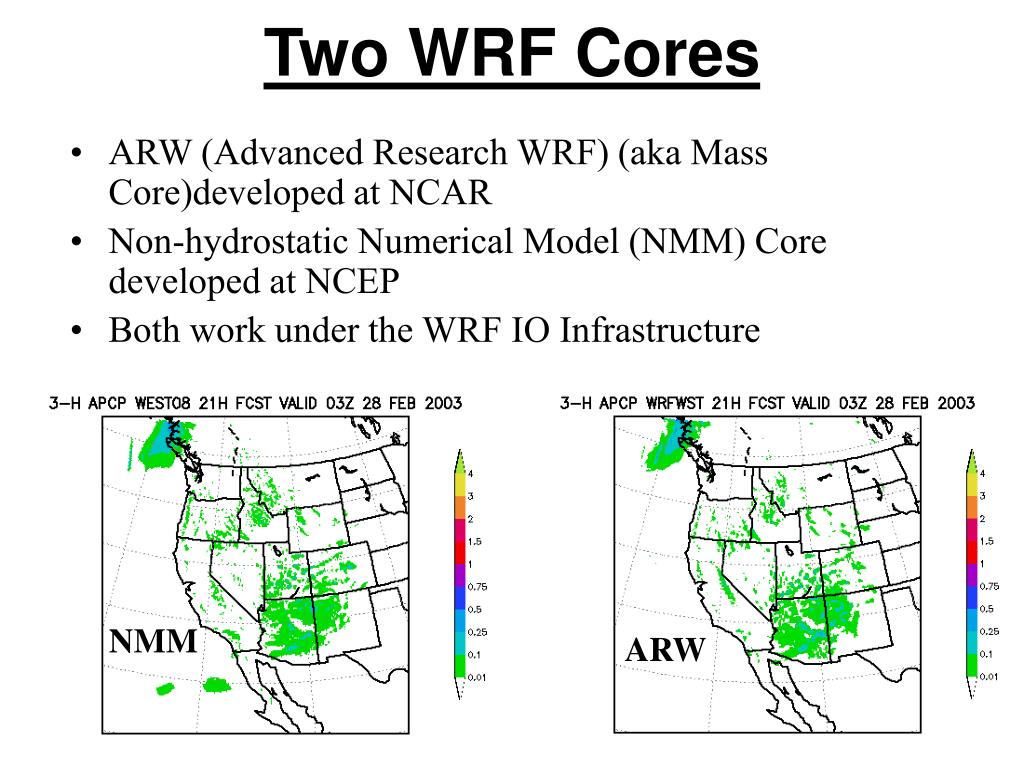

  7. Two WRF Cores • ARW (Advanced Research WRF) (aka Mass Core)developed at NCAR • Non-hydrostatic Numerical Model (NMM) Core developed at NCEP • Both work under the WRF IO Infrastructure NMM ARW

  8. The NCAR ARW Core Model: (See: www.wrf-model.org) • Terrain following hydrostatic mass (p) vertical coordinate, arbitrary vertical resolution • Arakawa C-grid, two-way nesting, any ratio • 3rd order Runge-Kutta time-split differencing • Conserves mass, entropy and scalars using up to 6th order spatial differencing equ for fluxes (5th order upwind diff. is default) • NCAR physics package (converted from MM5 and Eta), NOAH unified land-surface model, NCEP physics adapted too

  9. The NCEP Nonhydrostatic Mesoscale Model: NMM (Janjic et al. 2001) • Hybrid sigmapressure vertical coord. • Arakawa E-grid, 3:1 nesting ratio • Adams-Bashforth time differencing, time splitting • Conserves kinetic energy, enstrophy and momentum using 2nd order differencing equation • Separate set of equations for hydrostatic versus non-hydrostatic terms • Modified Eta physics, Noah unified land-surface model, NCAR physics adapted too • Parallelized within WRF infrastructure

  10. WRF Software Infrastructure Dynamic Cores Mass Core NMM Core … Static Initialization Post Processors, Verification Obs Data, Analyses 3DVAR Data Assimilation Standard Physics Interface Physics Packages WRF Modeling System

  11. Top-level “Driver” layer Isolates computer architecture concerns Manages execution over multiple nested domains Provides top level control over parallelism patch-decomposition inter-processor communication shared-memory parallelism Controls Input/Output “Mediation” Layer Specific calls to parallel mechanisms Low-Level “Model” layer Performs actual model computations Tile-callable Scientists insulated from parallelism General, fully reusable Mediation Layer uv prep filter scalars physics big_step recouple decouple advance w advance Model Layer WRF Hierarchical Software Architecture Driver Layer wrf initial_ config alloc _and_configure init _domain integrate solve_interface solve

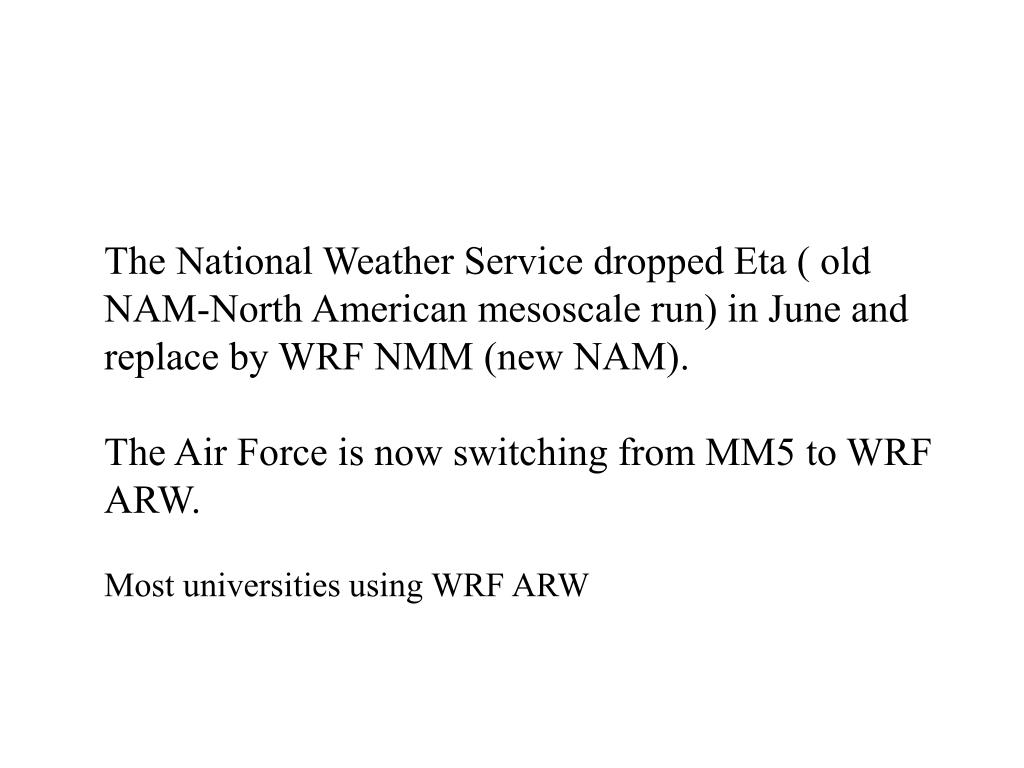

  12. The National Weather Service dropped Eta ( old NAM-North American mesoscale run) in June and replace by WRF NMM (new NAM). The Air Force is now switching from MM5 to WRF ARW. Most universities using WRF ARW

  13. On June 13, 2006 starting with the 12 UTC model run, NCEP will replace the forecast model used in its North American Mesoscale (NAM) time slot. Currently the the Eta forecast model is used for the NAM, but on this date it will be replaced with the Non-hydrostatic Mesoscale Model (NMM) in the WRF framework The WRF/NMM with continue to run over the same domain and same horizontal resolution (12 km) as the Eta and its output will be available at the same time. Specifics on the differences between the Eta and WRF/NMM systems are as follows: 1. Model Changes - Replace Eta prediction model with WRF version of the Non-hydrostatic Meso Model (WRF-NMM) - Extended model top pressure from 25 mb to 2 mb - Replace Eta step-mountain vertical coordinate with NMM hybrid sigma-pressure vertical coordinate - Refined/retuned numerous aspects of the Eta model physics for use in the NMM - Replace Eta 3DVAR analysis system with the new unified GSI analysis system that has been adapted for application to the WRF-NMM

  14. WRF-NMM • Same domain as Eta • Sixty levels like Eta • Essentially same physics as ETA • Much better in terrain…doesn’t share the eta’s problems.

  15. 12 UTC 19 June 15 UTC 19 June

  16. Round OneSubjective Impressions • Surface and near surface wind and temperature fields are similar • WRF has more intense, detailed, and more extensive precipitation structures.

  17. Round TwoObjective Verifications • Both WRF and MM5 were verified against large array of surface observations over the Pacific Northwest. • Model output was linearly interpolated to observation sites within the 12-km domain encompassing the Pacific Northwest. • Will show statistics from 12 UTC March 29 to 12 UTC June 6, 2005

  18. 2- m Temperature Mean Absolute Error oC Forecast Hour 12-km domain, 12 UTC initialization, roughly 60,000 observations in each

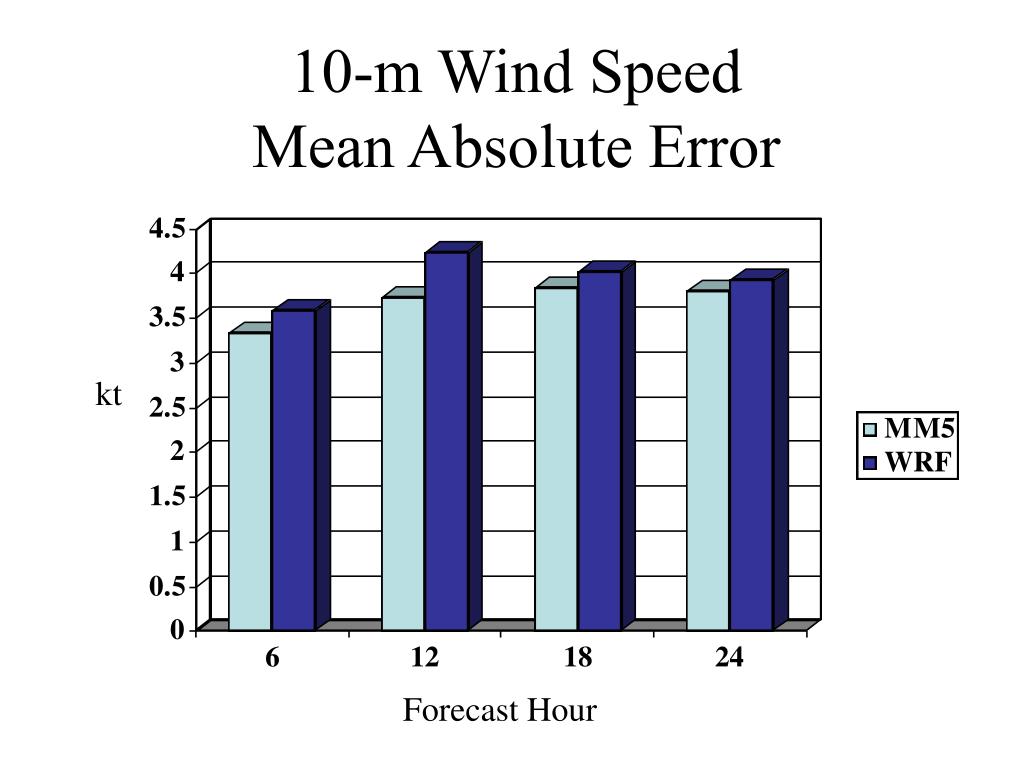

  19. 10-m Wind SpeedMean Absolute Error kt Forecast Hour

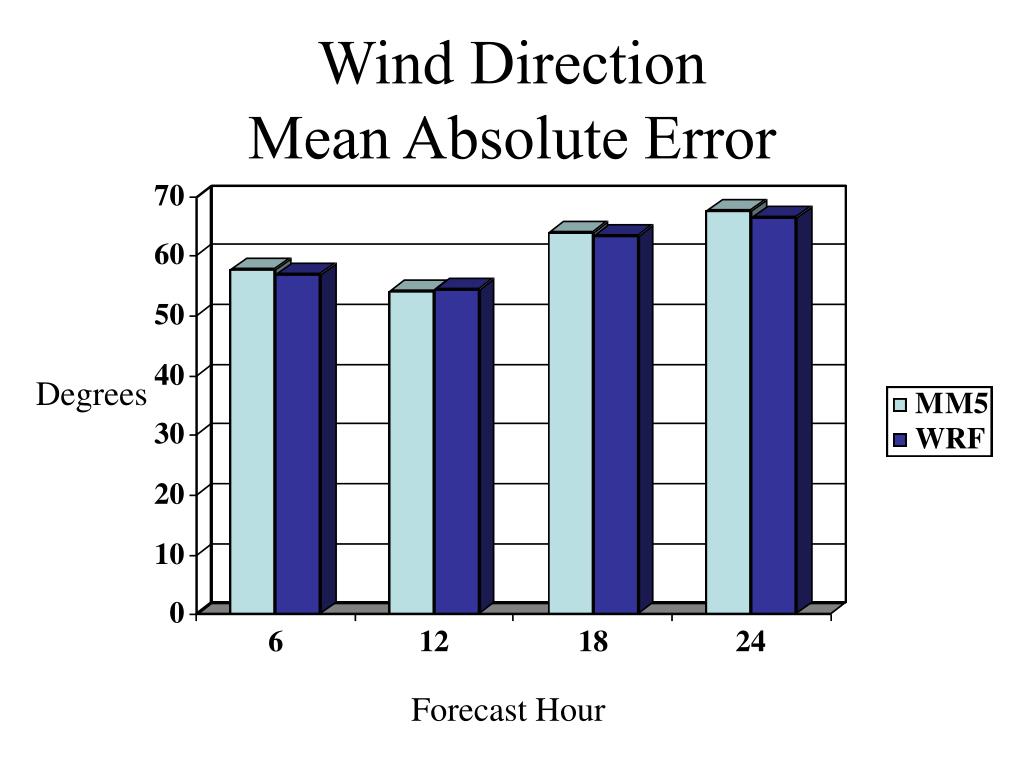

  20. Wind DirectionMean Absolute Error Degrees Forecast Hour

  21. Surface PressureMean Absolute Error mb Forecast Hour

  22. 6-h PrecipitationMean Absolute Error inch Forecast Hour
