Making Recombinant Plasmids

meghan avatar
10 diapositives · 252 Views · Jul 30, 2014

This guide details the process of creating recombinant plasmids from the genomic DNA (gDNA) of Pseudomonas fluorescens. The gDNA is fragmented and combined with commercial plasmids and restriction enzymes, allowing segments of gDNA to attach to these plasmids. After introducing the plasmids into E. coli, many bacteria fail to uptake them. To select for successful transformations, we use plasmids that confer resistance to kanamycin, ensuring that only the E. coli containing plasmids survive in antibiotic broth. Each successful E. coli represents a distinct subset of P. fluorescens gDNA, which can subsequently be amplified and sequenced.

Making Recombinant Plasmids - slide 1
01 / 10Making Recombinant Plasmids
1 / 17

Télécharger la présentation

Making Recombinant Plasmids
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation
  1. Making Recombinant Plasmids

  2. Pseudomonas fluorescens

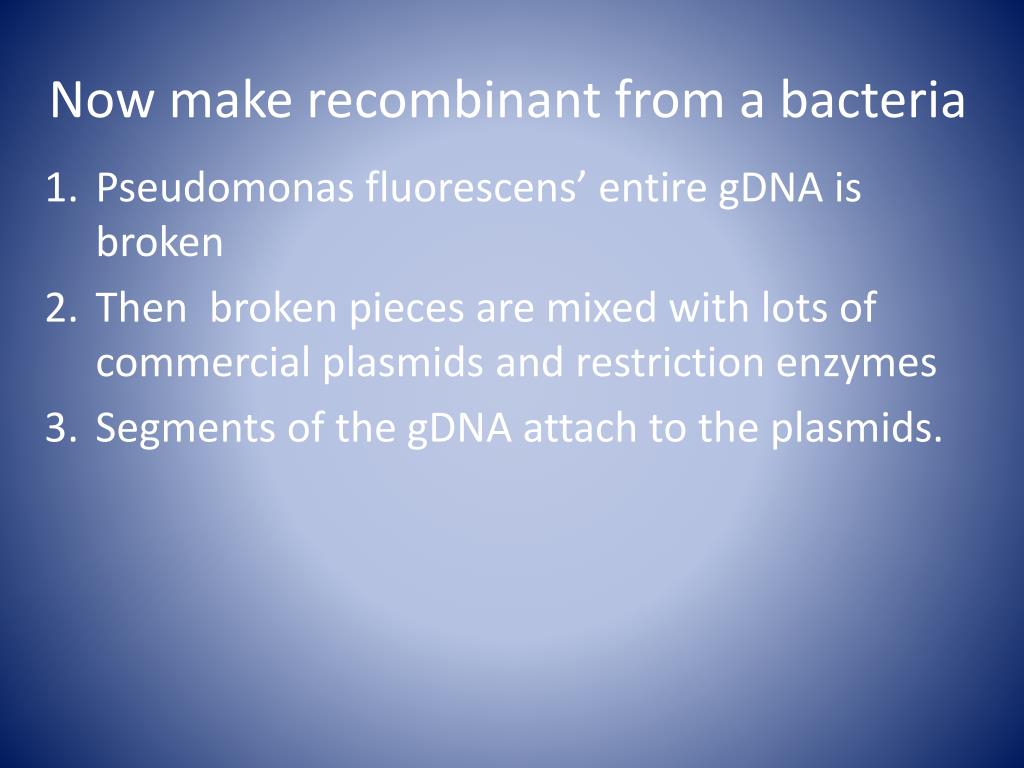

  3. Now make recombinant from a bacteria Pseudomonas fluorescens’ entire gDNA is broken Then broken pieces are mixed with lots of commercial plasmids and restriction enzymes Segments of the gDNA attach to the plasmids.

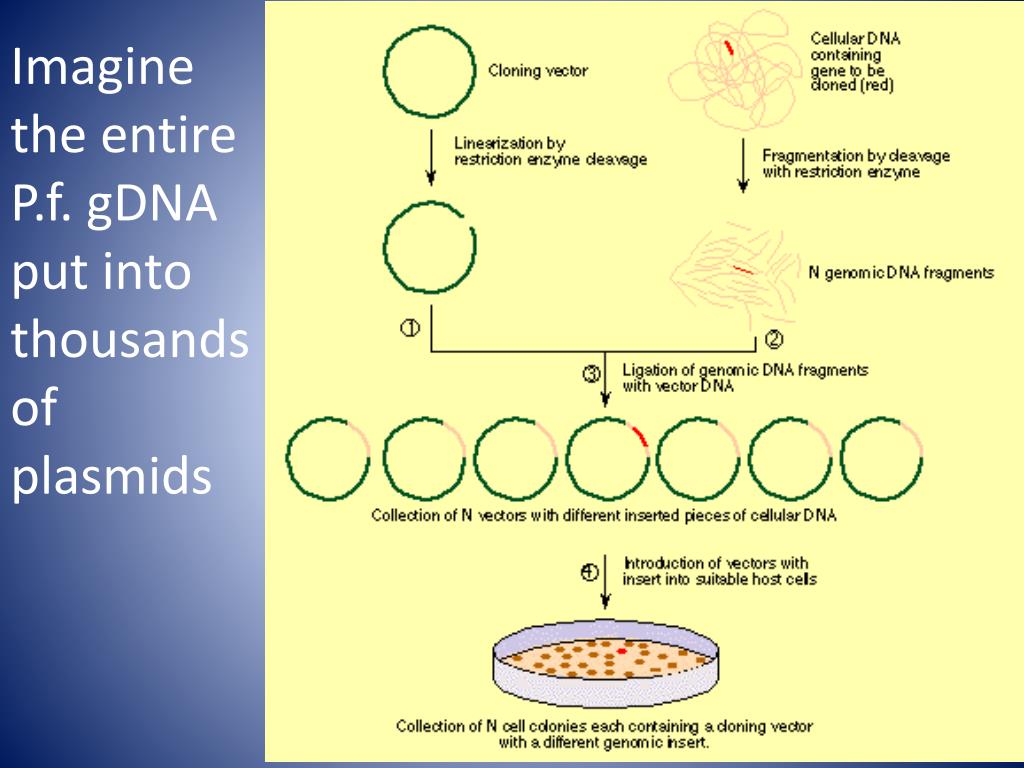

  4. Imagine the entire P.f. gDNA put into thousands of plasmids

  5. Then the plasmids are allowed to enter commercially available E. coli.

  6. But a problem arises . . . Some E coli don’t take on plasmids. Draw that (show 5 E coli) So we have thousands of E coli WITH plasmids and thousands WITHOUT them.

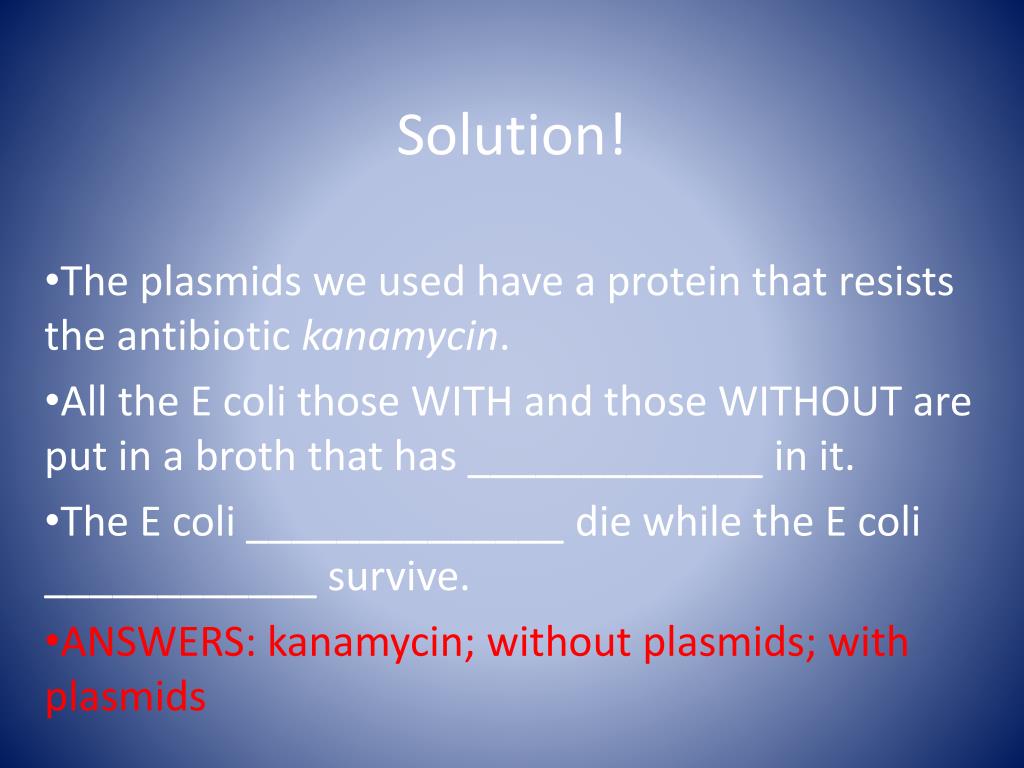

  7. Solution! The plasmids we used have a protein that resists the antibiotic kanamycin. All the E coli those WITH and those WITHOUT are put in a broth that has _____________ in it. The E coli ______________ die while the E coli ____________ survive. ANSWERS: kanamycin; without plasmids; with plasmids

  8. All the pieces of Pseudomonas fluorescens’ genomic DNA: have been _________ into plasmids. Inserted And then the plasmids went in ________ E. coli bacteria—18,432 E. coli to be precise! And each of the 18,432 E. coli were ________ in a broth until there were ____________. Cultured or grown; millions And each of those 18,432 E. coli has a distinct subset of the ___________ from Pseudomonas flourescens. Genomic DNA or gDNA. We will call it a P.f. sequence The actual ______ ______ of that P.f. are unknown. Base pairs

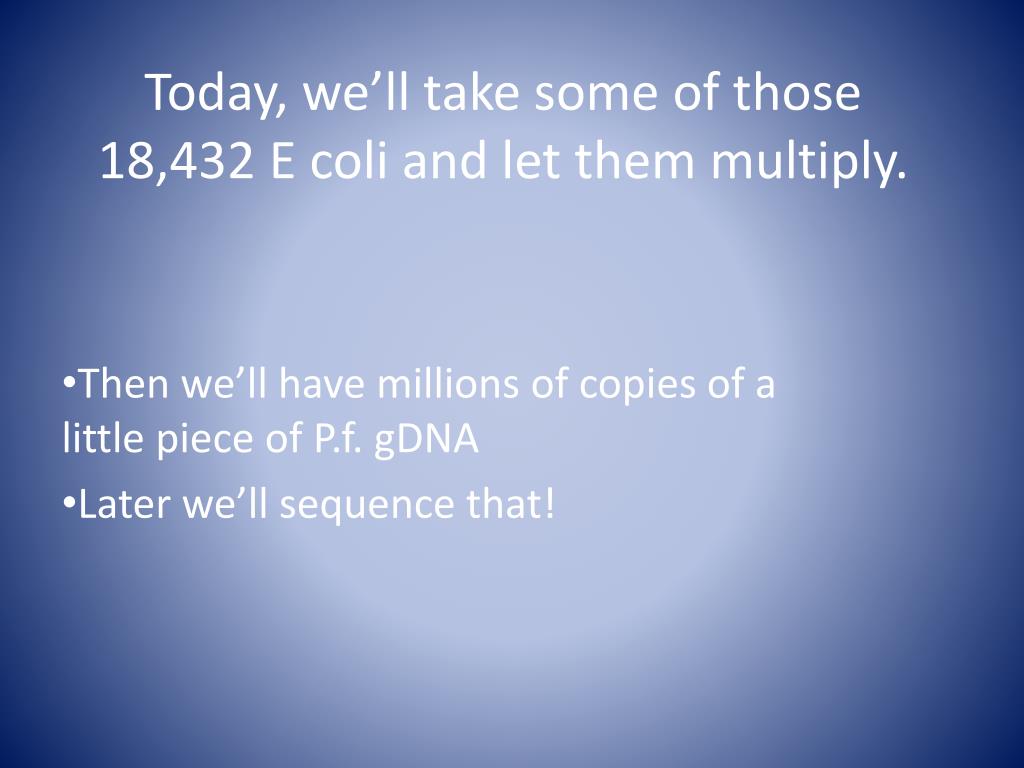

  9. Today, we’ll take some of those 18,432 E coli and let them multiply. Then we’ll have millions of copies of a little piece of P.f. gDNA Later we’ll sequence that!
