Three Dimensional Graphing

Lesson 13.5. Three Dimensional Graphing. What is 3 dimensional Graphing?. There are 3 axes that are mutually perpendicular. x-axis, y-axis & z-axis Ordered pairs are (x, y, z). Graph the point (2, 3, 5). Go 2 spaces in the positive x-direction, Then go 3 spaces in the positive y-direction.

meira
Télécharger la présentation

Three Dimensional Graphing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lesson 13.5 Three Dimensional Graphing

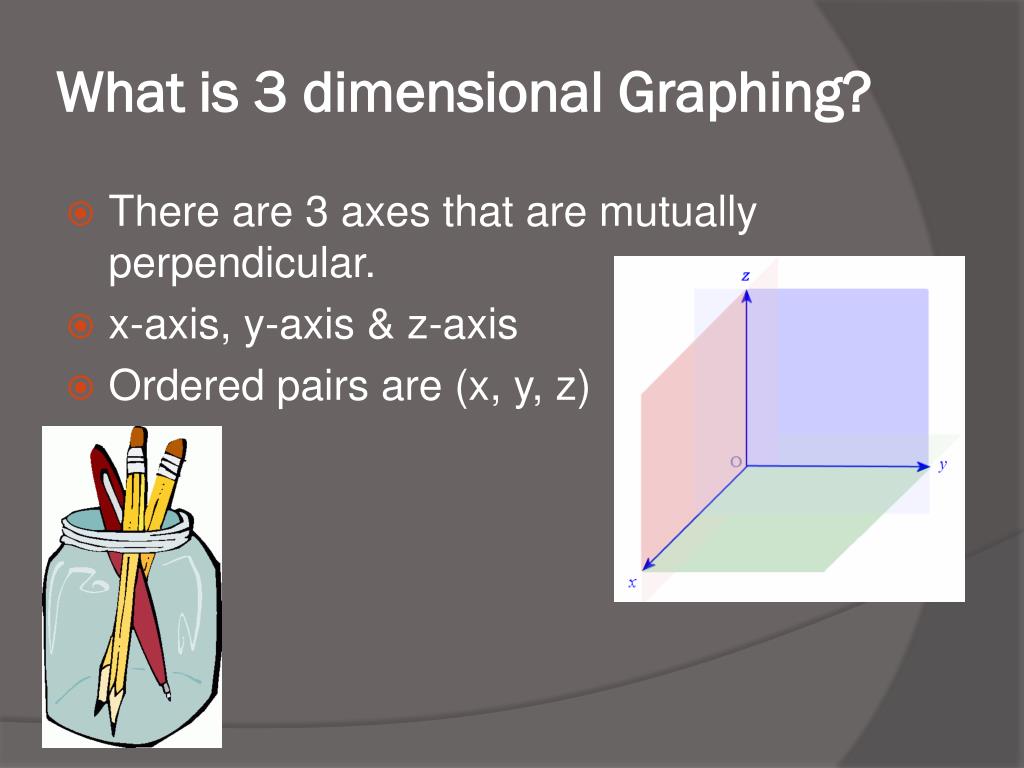

  2. What is 3 dimensional Graphing? • There are 3 axes that are mutually perpendicular. • x-axis, y-axis & z-axis • Ordered pairs are (x, y, z)

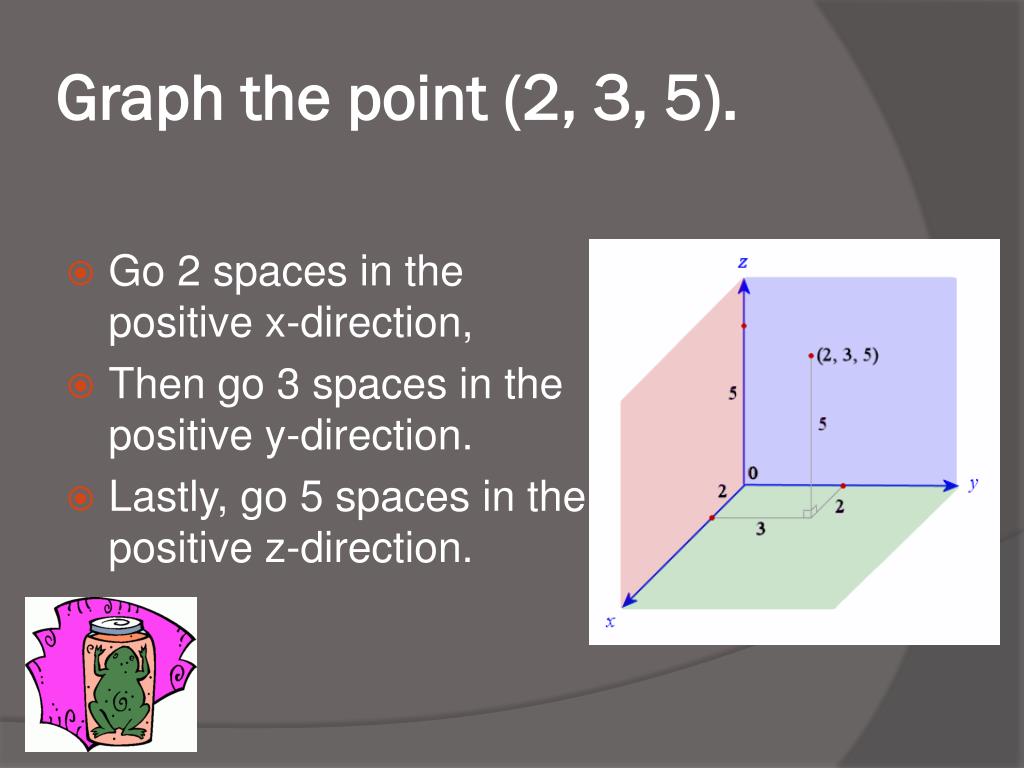

  3. Graph the point (2, 3, 5). • Go 2 spaces in the positive x-direction, • Then go 3 spaces in the positive y-direction. • Lastly, go 5 spaces in the positive z-direction.

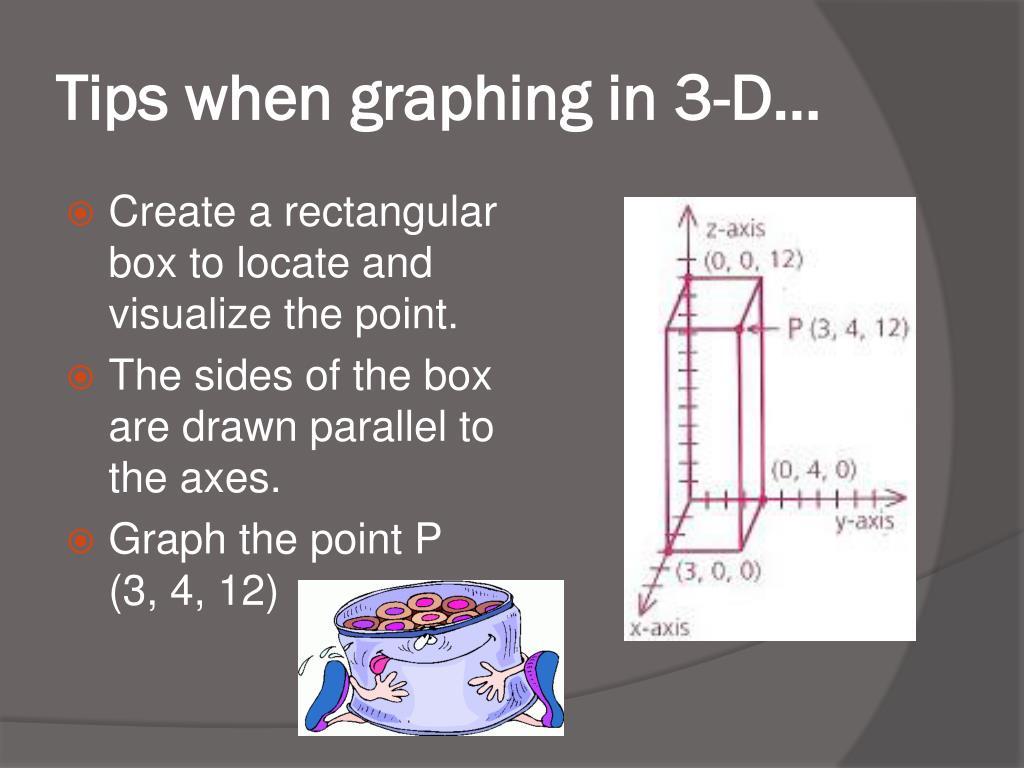

  4. Tips when graphing in 3-D… • Create a rectangular box to locate and visualize the point. • The sides of the box are drawn parallel to the axes. • Graph the point P (3, 4, 12)

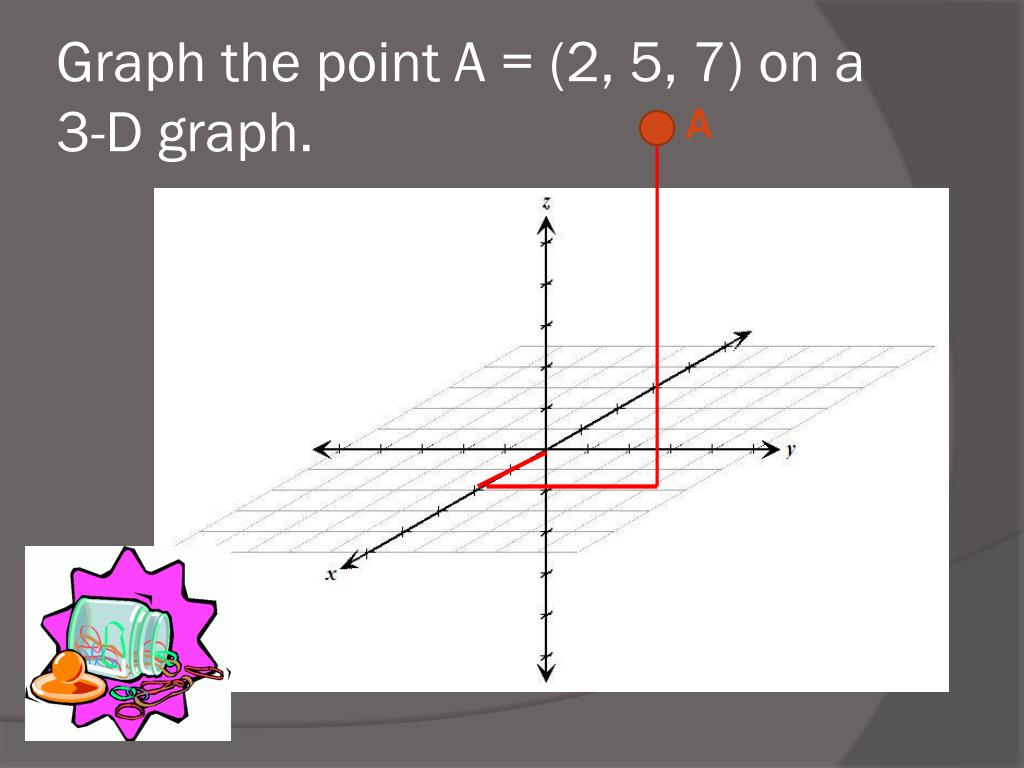

  5. Graph the point A = (2, 5, 7) on a 3-D graph. A

  6. Theorem 126: • If P = (x1, y1, z1) and Q = (x2, y2, z2) are any two points, then the distance between them can be found with the formula:

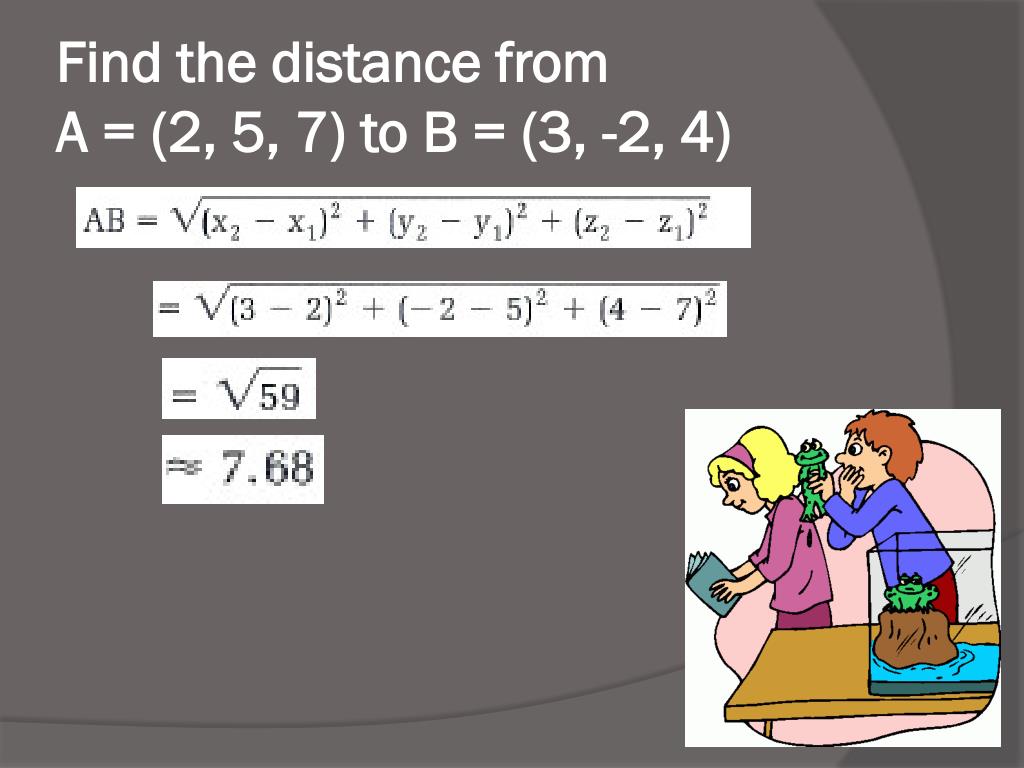

  7. Find the distance from A = (2, 5, 7) to B = (3, -2, 4)
