  1. Technology Solutions Research & Development Inspection Solution PackagesInnovative NDT/NDE Software & Instrumentation

  2. Problematic Inspection Solutions • Modern ultrasonic instruments are now capable of supporting conventional, TOFD and phased array • These instruments and software can run combinations of all three with multiple probes as standard • Historic problematic inspection can now be re-visited and potentially these techniques may solve the inspection demands

  3. In-Place Solution Packages Does your organization offer these services? • Nozzle Inspection • High Temperature Phased Array & TOFD • Flange Seal Face Inspection • Bolt, Pin and Shaft Inspection • Girth Weld Inspection • Small Pipe Butt Weld Inspection If Not Why Not?

  4. Bolt Scanner - On the Pad Field inspection of deflection shield and under pad structure towers

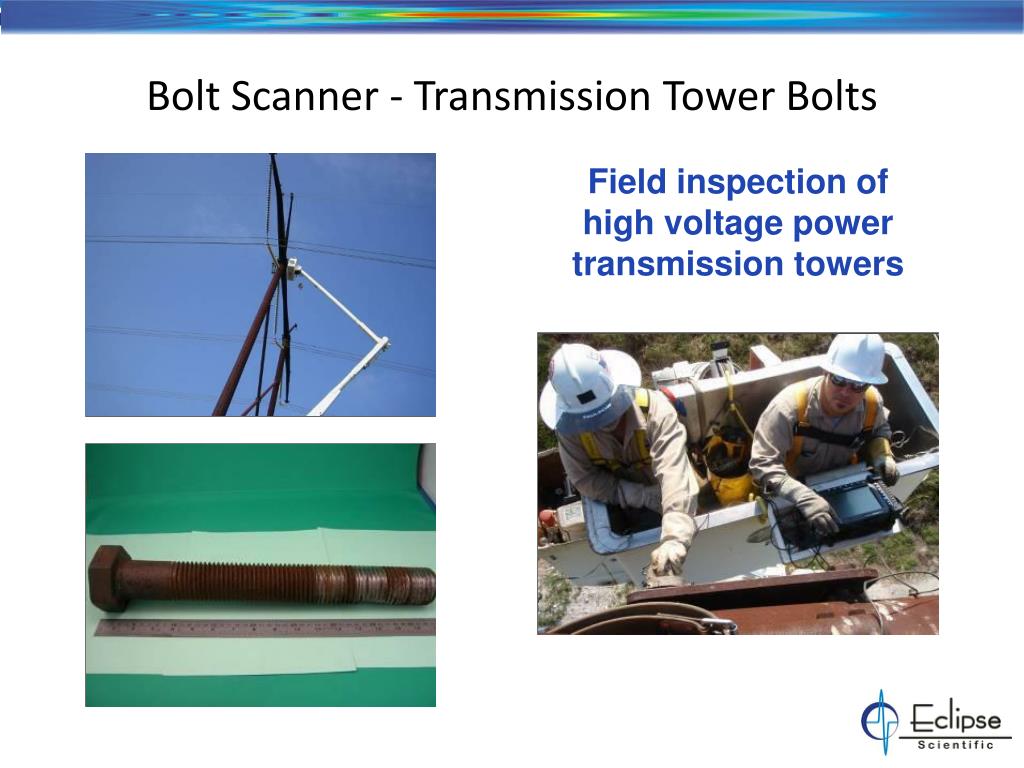

  5. Bolt Scanner - Transmission Tower Bolts Field inspection of high voltage power transmission towers

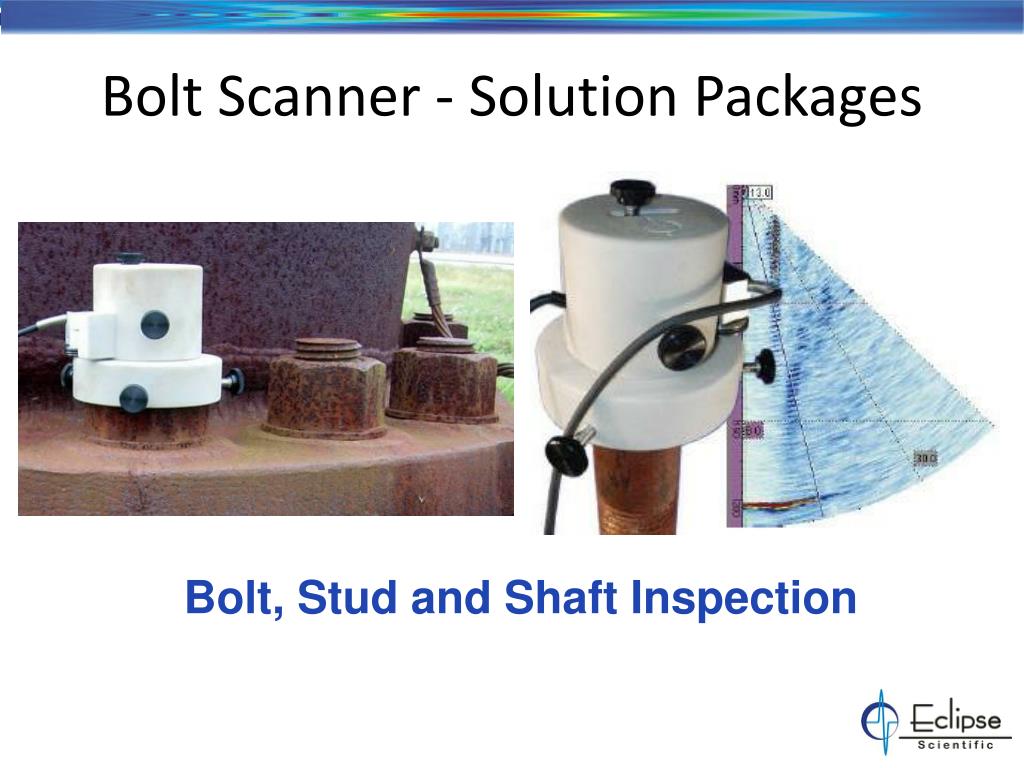

  6. Bolt Scanner - Solution Packages Bolt Scanner - Solution Packages Bolt, Stud and Shaft Inspection

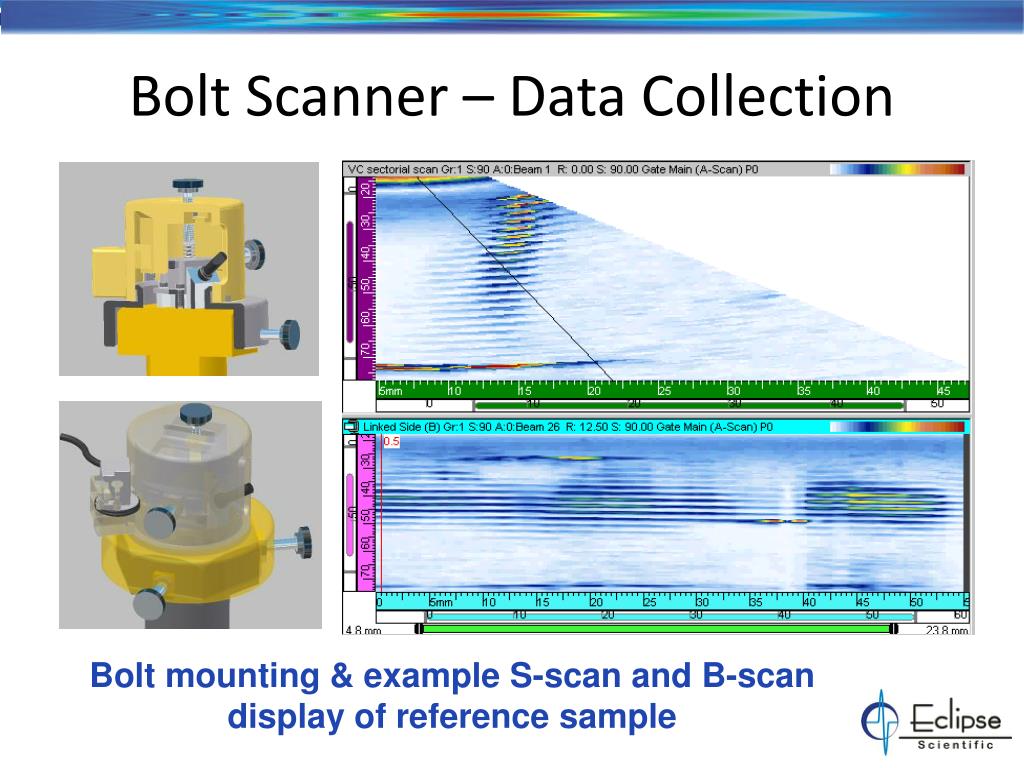

  7. Bolt Scanner – Data Collection Bolt mounting & example S-scan and B-scan display of reference sample

  8. Bolt Scanner - Data

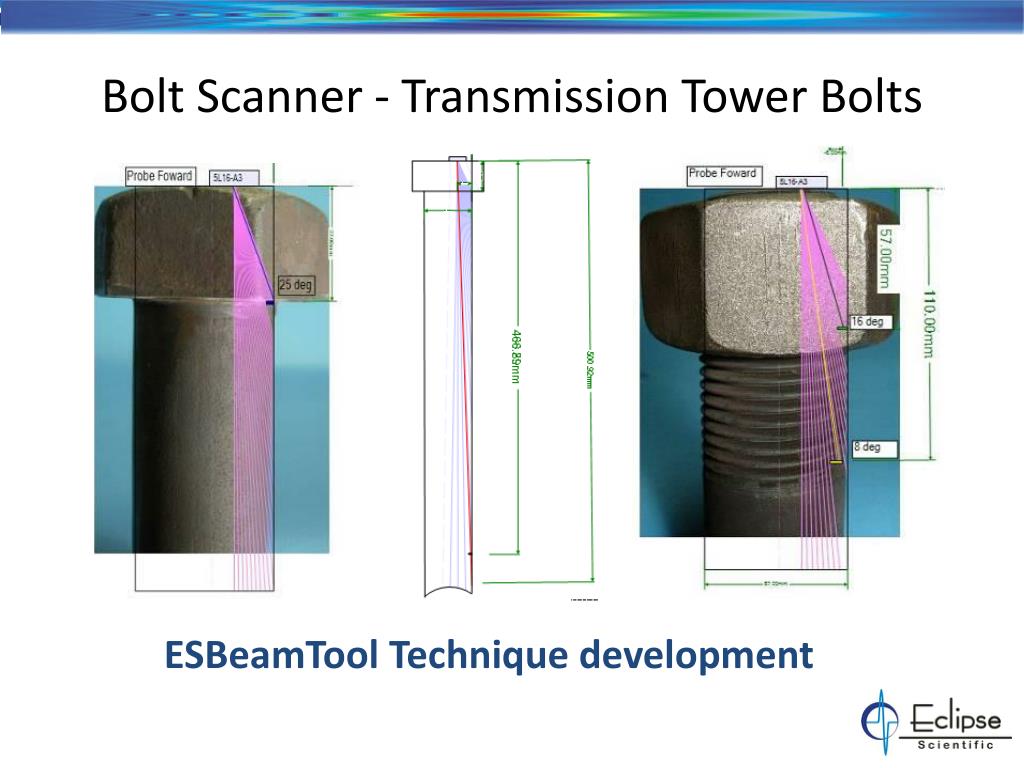

  9. ESBeamTool Technique development Bolt Scanner - Transmission Tower Bolts

  10. Indications from nut end Bolt Scanner - Tower Bolt Analysis

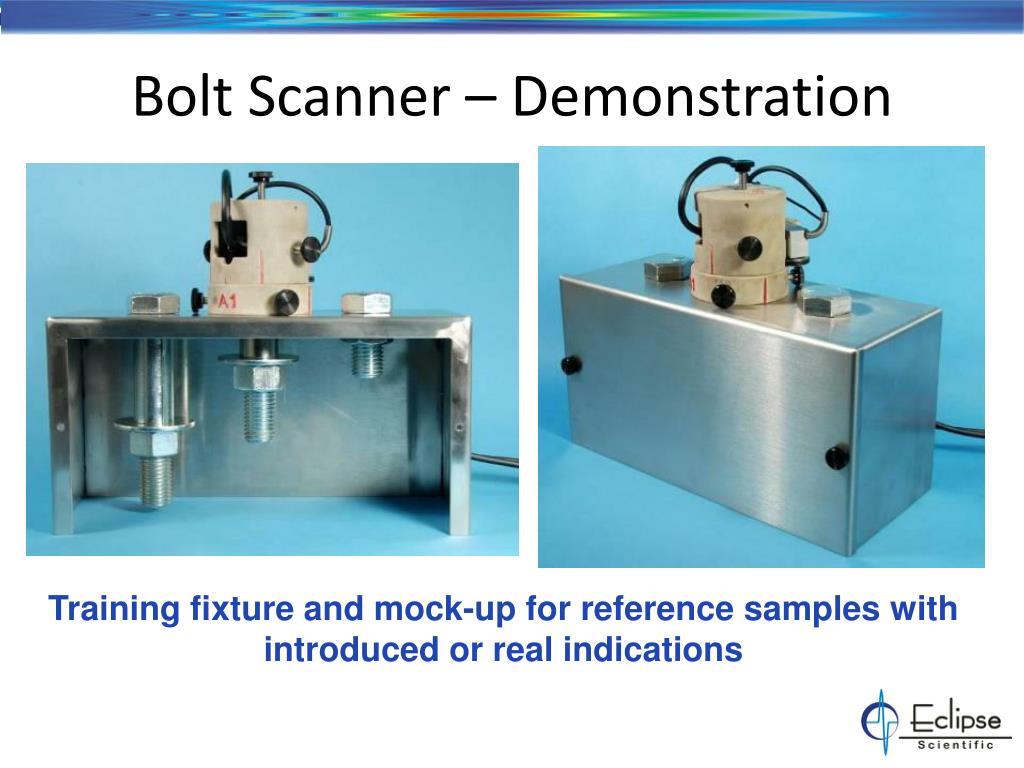

  11. Bolt Scanner – Demonstration Training fixture and mock-up for reference samples with introduced or real indications

  12. Bridge Pin Mock-up • Instrument: OmniScan MX – 16/128 or 32-128 • Calibration Blocks – NAVSHIP Block • Mock-up Pins – • Introduced targets • Clean sample

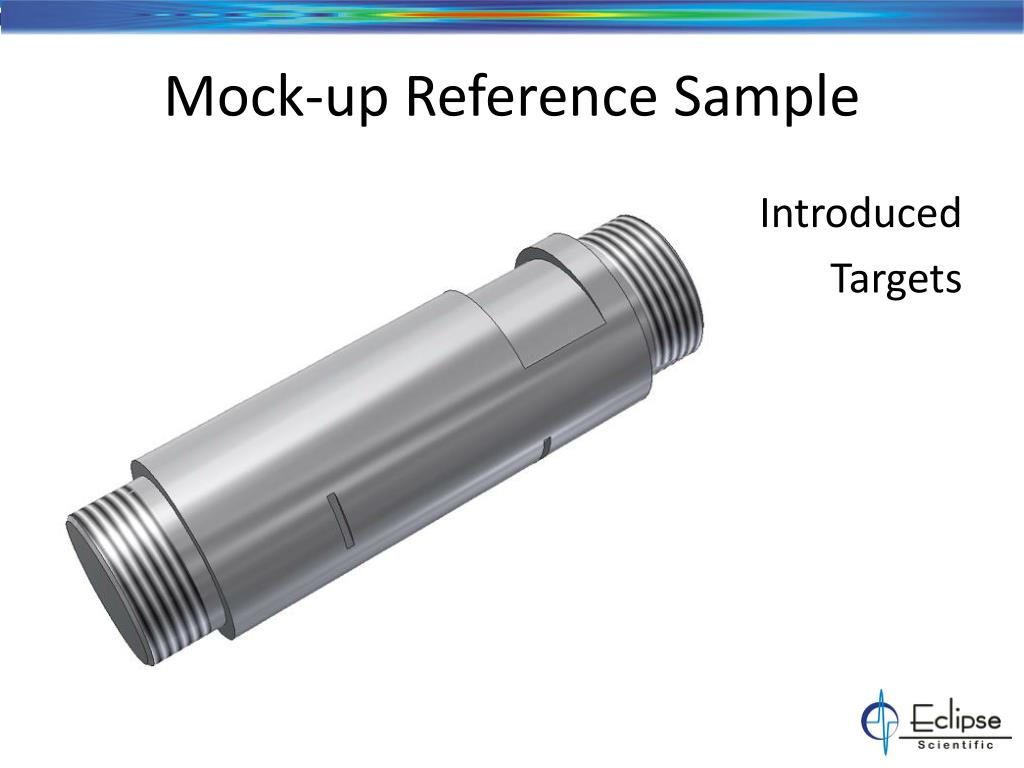

  13. Mock-up Reference Sample Introduced Targets

  14. Bridge Pin With Scanning Fixture • OmniScan Data – Group 2

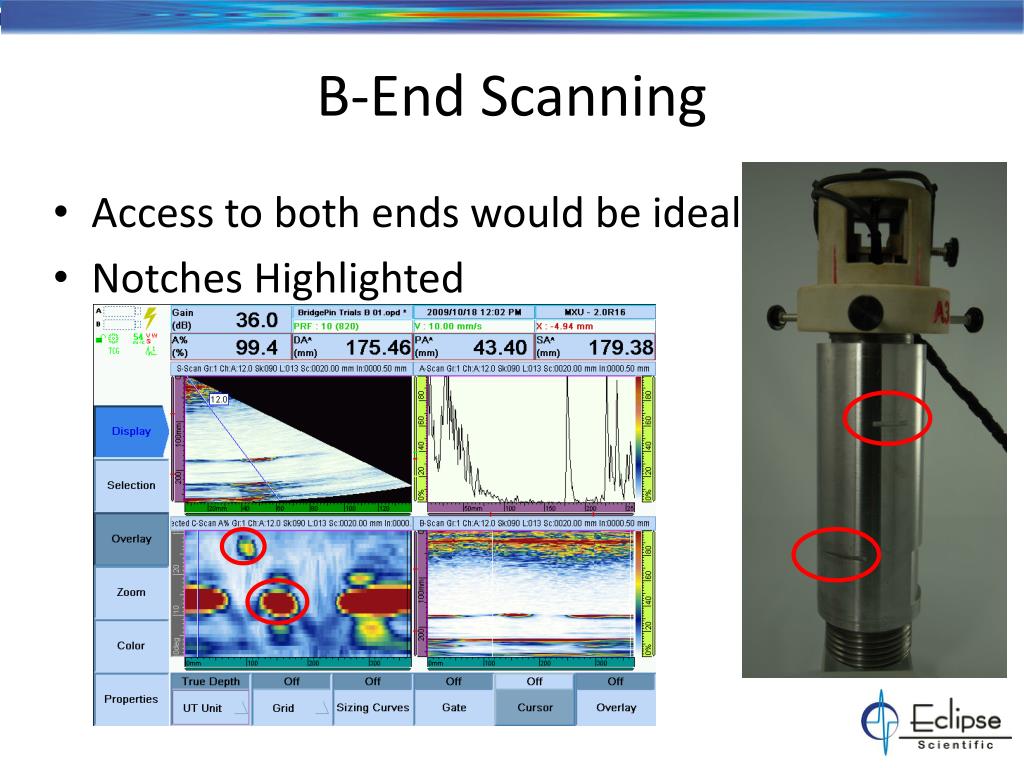

  15. B-End Scanning • Access to both ends would be ideal • Notches Highlighted

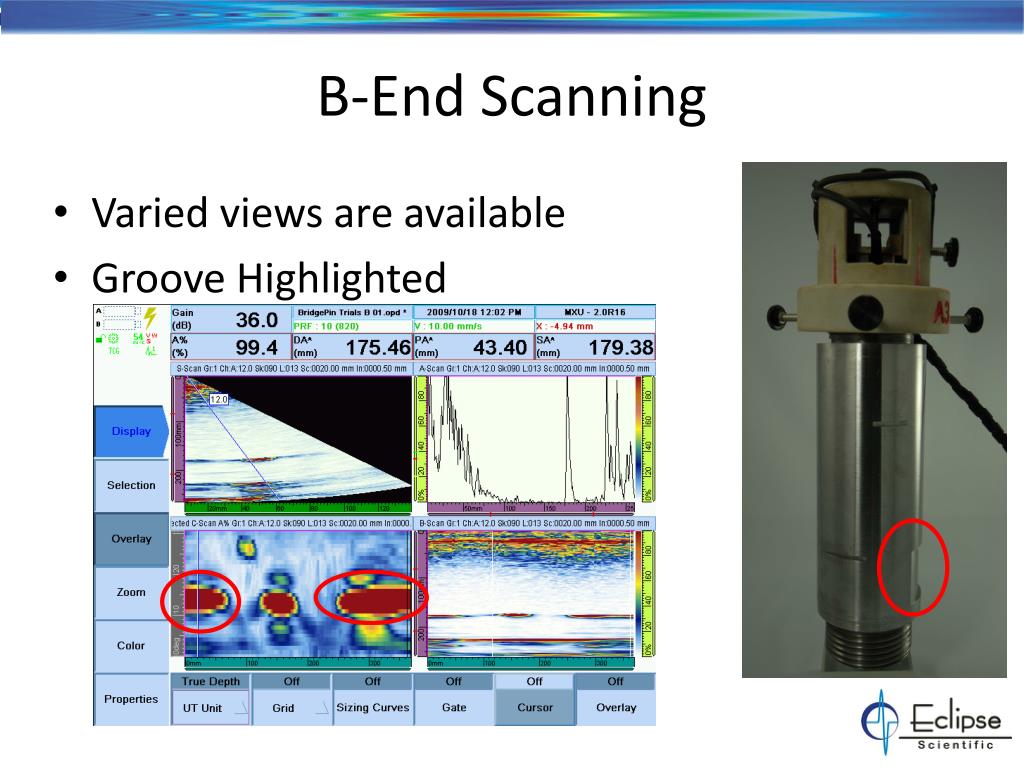

  16. B-End Scanning • Varied views are available • Groove Highlighted

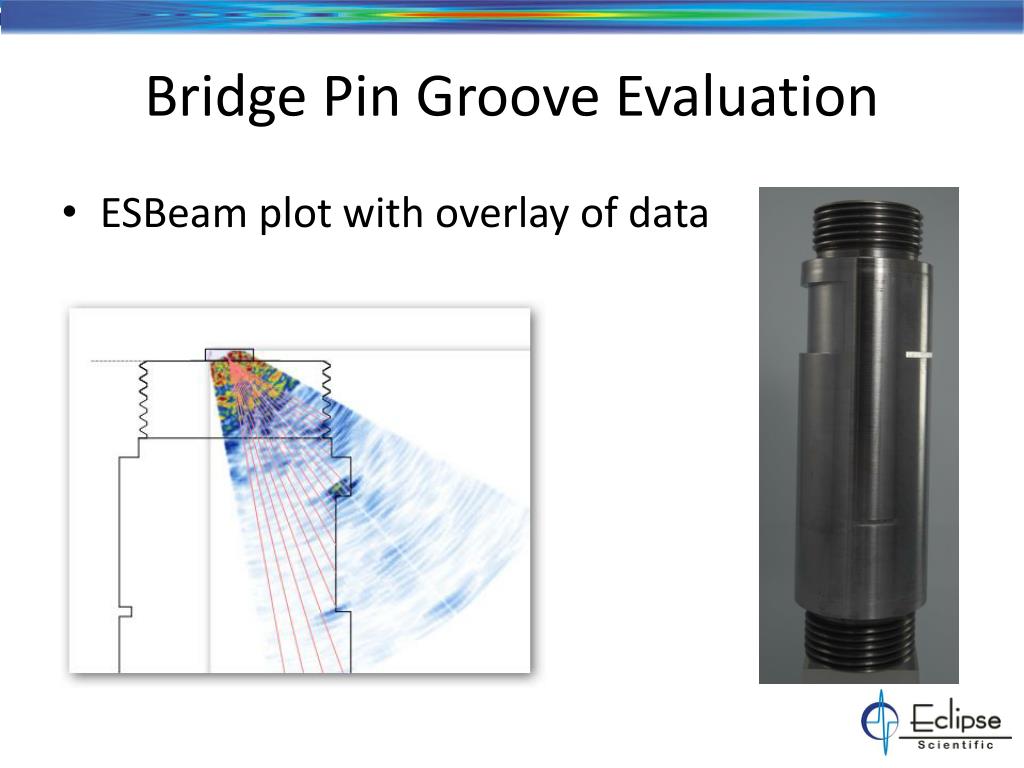

  17. Bridge Pin Groove Evaluation • ESBeam plot with overlay of data

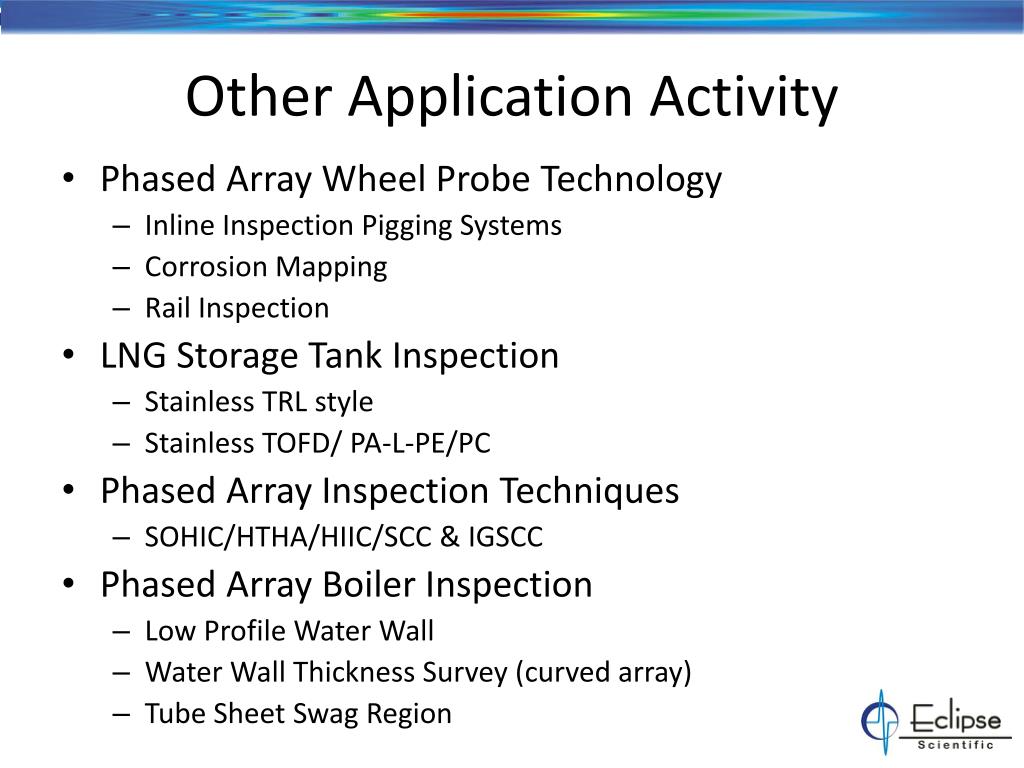

  18. Other Application Activity • Phased Array Wheel Probe Technology • Inline Inspection Pigging Systems • Corrosion Mapping • Rail Inspection • LNG Storage Tank Inspection • Stainless TRL style • Stainless TOFD/ PA-L-PE/PC • Phased Array Inspection Techniques • SOHIC/HTHA/HIIC/SCC & IGSCC • Phased Array Boiler Inspection • Low Profile Water Wall • Water Wall Thickness Survey (curved array) • Tube Sheet Swag Region

  19. Tell Eclipse Scientific Your Problematic Inspection And Let’s Solve That Problem Visit our web site to learn more about Eclipse www.eclipsescientific.com
