  1. Kernel Density Estimation Theory and Application in Discriminant Analysis Thomas Ledl Universität Wien

  2. Contents: • Introduction • Theory • Aspects of Application • Simulation Study • Summary

  3. Introduction

  4. 0 1 2 3 4 Introduction Theory Application Aspects Simulation Study Summary 25 observations: Which distribution? Introduction

  5. 0 1 2 3 4 ? ? ? ? ?

  6. 0 1 2 3 4 Introduction Theory K(.) and h to choose Application Aspects Simulation Study Summary Kernel density estimator model:

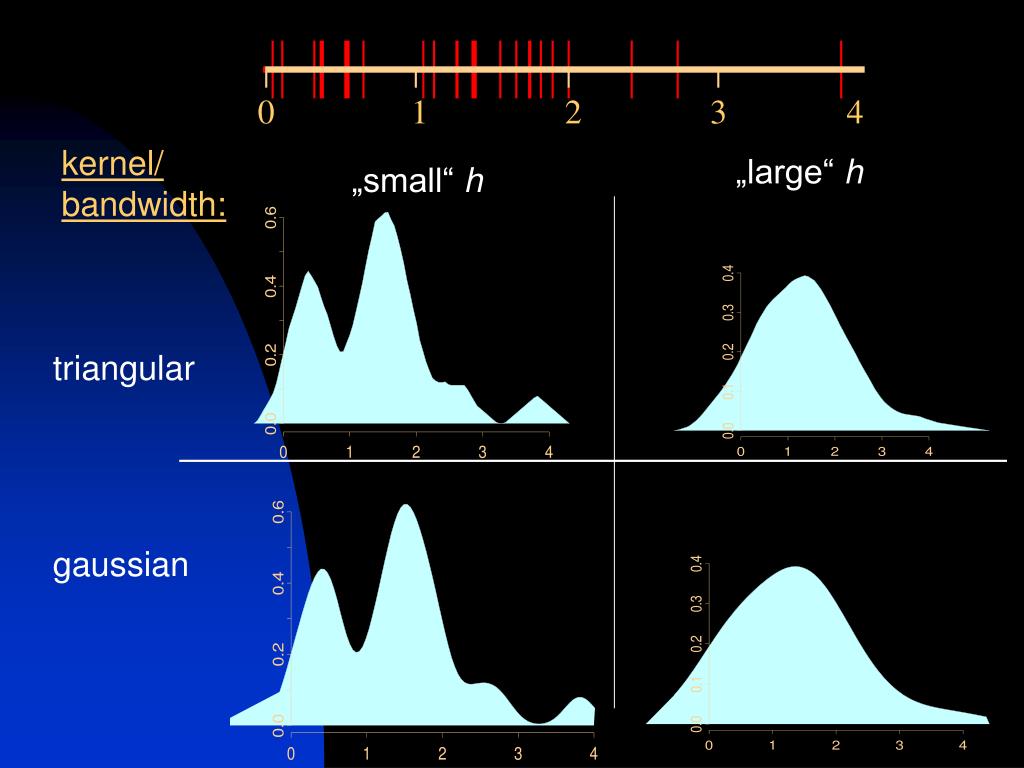

  7. 0 1 2 3 4 kernel/ bandwidth: „large“ h „small“ h triangular gaussian

  8. Introduction Theory Application Aspects Simulation Study Summary Question 1: Which choice of K(.) and h is the best for a descriptive purpose?

  9. Introduction Theory Application Aspects Simulation Study Summary Classification: Introduction

  10. Introduction Theory Application Aspects Simulation Study Summary Classification: Levelplot – LDA (based on assumption of a multivariate normal distribution): Introduction

  11. Introduction Theory Application Aspects Simulation Study Summary Classification: Introduction

  12. Introduction Theory Application Aspects Simulation Study Summary Classification: Levelplot – KDE classificator: Introduction

  13. Introduction Theory Application Aspects Simulation Study Summary Question 2: Performance of classification based on KDE in more than 2 dimensions? Introduction

  14. Theory

  15. Introduction Theory Application Aspects Simulation Study Summary Essential issues • Optimization criteria • Improvements of the standard model • Resulting optimal choices of the model parameters K(.) and h

  16. Introduction Theory Application Aspects Simulation Study Summary Essential issues • Optimization criteria • Improvements of the standard model • Resulting optimal choices of the model parameters K(.) and h

  17. Introduction Theory Application Aspects Simulation Study Summary Optimization criteria Lp-distances:

  18. Introduction Theory Application Aspects Simulation Study Summary f(.) g(.)

  19. Introduction Theory Application Aspects Simulation Study Summary

  20. =IAE „Integrated absolute error“ =ISE „Integrated squared error“ Introduction Theory Application Aspects Simulation Study Summary

  21. =IAE „Integrated absolute error“ =ISE „Integrated squared error“ Introduction Theory Application Aspects Simulation Study Summary

  22. Minimization of the maximum vertical distance Introduction Theory Application Aspects Simulation Study Summary Other ideas: • Consideration of horizontal distances for a more intuitive fit (Marron and Tsybakov, 1995) • Compare the number and position of modes

  23. L1-distance=IAE L-distance=Maximum difference „Modern“ criteria, which include a kind of measure of the horizontal distances L2-distance=ISE, MISE,AMISE,... Difficult mathematical tractability Does not consider overall fit Difficult mathematical tractability Introduction Theory Application Aspects Simulation Study Summary Overview about some minimization criteria • Most commonlyused

  24. ISE is a random variable MISE=E(ISE), the expectation of ISE AMISE=Taylor approximation of MISE, easier to calculate Introduction Theory Application Aspects Simulation Study Summary ISE, MISE, AMISE,...

  25. Introduction Theory Application Aspects Simulation Study Summary Essential issues • Optimization criteria • Improvements of the standard model • Resulting optimal choices of the model parameters K(.) and h

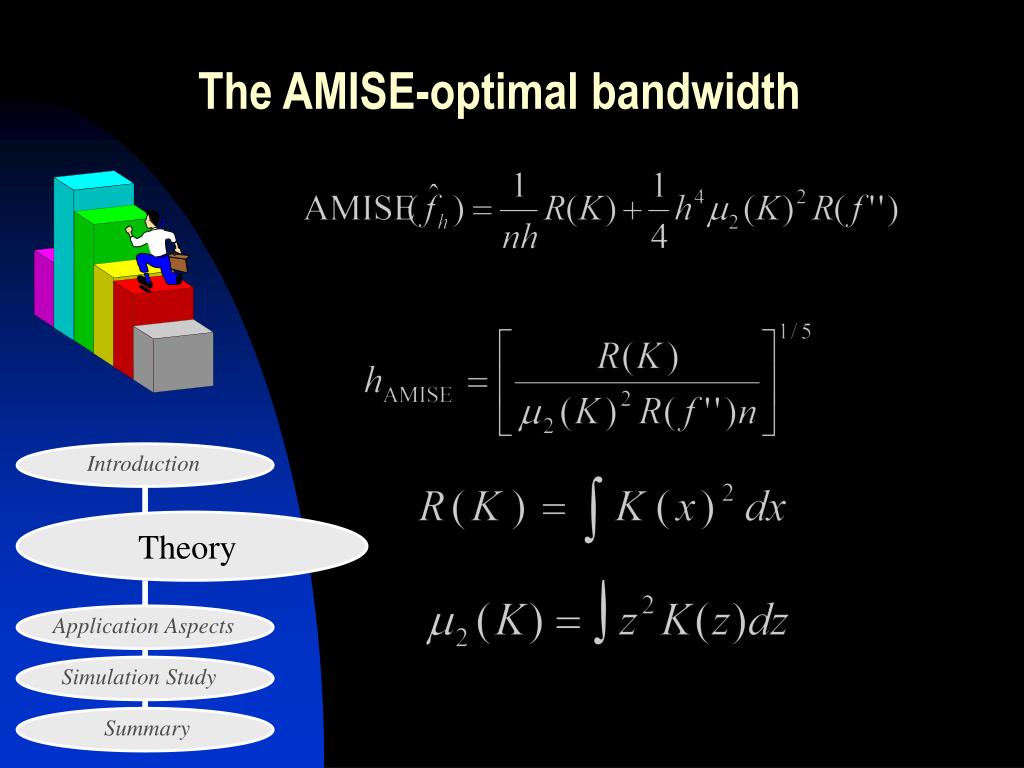

  26. Introduction Theory Application Aspects Simulation Study Summary The AMISE-optimal bandwidth

  27. dependent on the kernel function K(.) Introduction minimized by Theory „Epanechnikov kernel“ Application Aspects Simulation Study Summary The AMISE-optimal bandwidth

  28. dependent on the unknown density f(.) Introduction Theory Application Aspects Simulation Study Summary The AMISE-optimal bandwidth How to proceed?

  29. Maximum Likelihood Cross-Validation Least-squares cross-validation (Bowman, 1984) Leave-one-out selectors Criteria based on substituting R(f“) in the AMISE-formula Introduction Theory Application Aspects Simulation Study Summary Data-driven bandwidth selection methods • „Normal rule“ („Rule of thumb“; Silverman, 1986) • Plug-in methods (Sheather and Jones, 1991; Park and Marron,1990) • Smoothed bootstrap

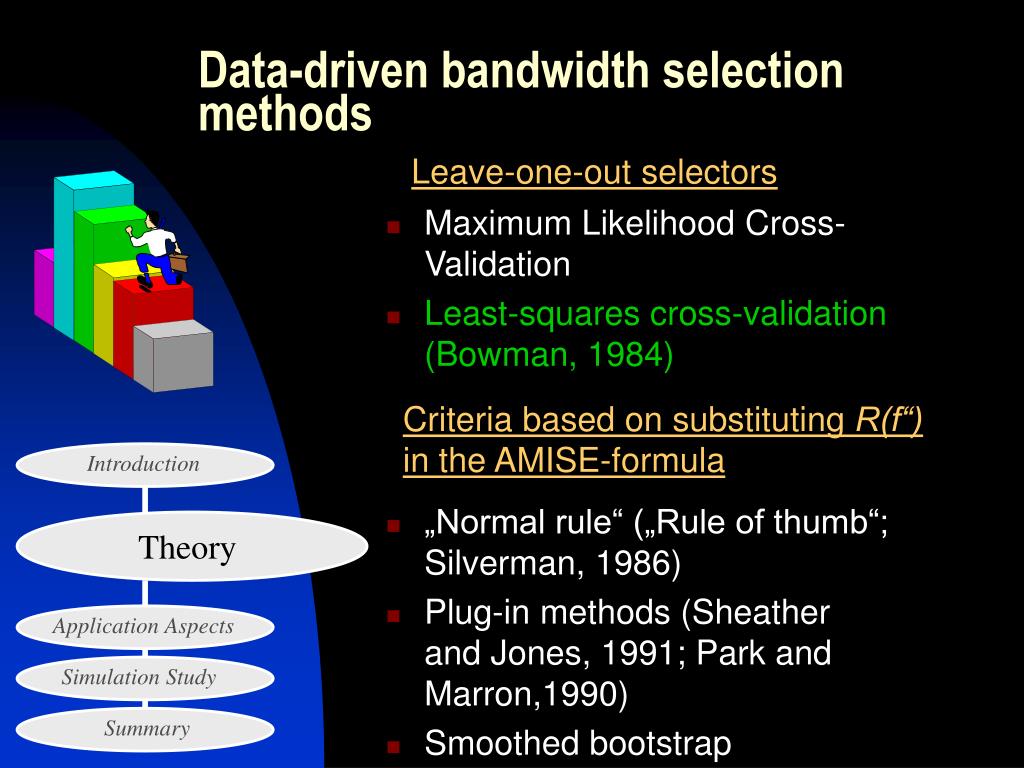

  30. Introduction Theory Application Aspects Simulation Study Summary Data-driven bandwidth selection methods Leave-one-out selectors • Maximum Likelihood Cross-Validation • Least-squares cross-validation (Bowman, 1984) Criteria based on substituting R(f“) in the AMISE-formula • „Normal rule“ („Rule of thumb“; Silverman, 1986) • Plug-in methods (Sheather and Jones, 1991; Park and Marron,1990) • Smoothed bootstrap

  31. Introduction Theory Application Aspects Simulation Study Summary Least squares cross-validation (LSCV) • Undisputed selector in the 1980s • Gives an unbiased estimator for the ISE • Suffers from more than one local minimizer – no agreement about which one to use • Bad convergence rate for the resulting bandwidth hopt

  32. Maximum Likelihood Cross-Validation Least-squares cross-validation (Bowman, 1984) Introduction Theory Application Aspects Simulation Study Summary Data-driven bandwidth selection methods Leave-one-out selectors Criteria based on substituting R(f“) in the AMISE-formula • „Normal rule“ („Rule of thumb“; Silverman, 1986) • Plug-in methods (Sheather and Jones, 1991; Park and Marron,1990) • Smoothed bootstrap

  33. The resulting bandwidth is given by: Introduction Theory Application Aspects Simulation Study Summary Normal rule („Rule of thumb“) • Assumes f(x) to be N(,2) • Easiest selector • Often oversmooths the function

  34. Maximum Likelihood Cross-Validation Least-squares cross-validation (Bowman, 1984) Introduction Theory Application Aspects Simulation Study Summary Data-driven bandwidth selection methods Leave-one-out selectors Criteria based on substituting R(f“) in the AMISE-formula • „Normal rule“ („Rule of thumb“; Silverman, 1986) • Plug-in methods (Sheather and Jones, 1991; Park and Marron,1990) • Smoothed bootstrap

  35. Introduction Theory Application Aspects Simulation Study Summary Plug in-methods (Sheather and Jones, 1991; Park and Marron,1990) • Does not substitute R(f“) in the AMISE-formula, but estimates it via R(f(IV)) and R(f(IV)) via R(f(VI)),etc. • Another parameter i to chose (the number of stages to go back) – one stage is mostly sufficient • Better rates of convergence • Does not finally circumvent the problem of the unknown density, either

  36. Introduction Theory Application Aspects Simulation Study Summary The multivariate case h H...the bandwidth matrix

  37. Introduction Theory Application Aspects Simulation Study Summary Issues of generalization in d dimensions • d2 instead of one bandwidth parameter • Unstable estimates • Bandwidth selectors are essentially straightforward to generalize • For Plug-in methods it is „too difficult“ to give succint expressions for d>2 dimensions

  38. Aspects of Application

  39. Introduction Theory Application Aspects Simulation Study Summary Essential issues • Curse of dimensionality • Connection between goodness-of-fit and optimal classification • Two methods for discrimatory purposes

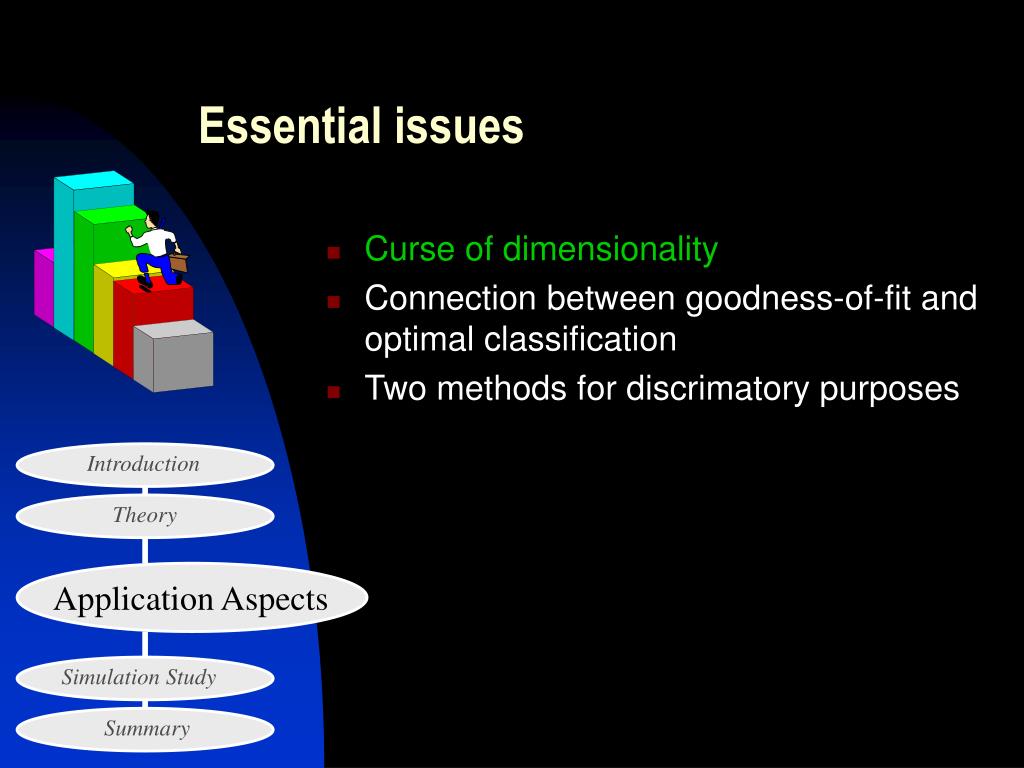

  40. Introduction Theory Application Aspects Simulation Study Summary Essential issues • Curse of dimensionality • Connection between goodness-of-fit and optimal classification • Two methods for discrimatory purposes

  41. Introduction Theory Application Aspects Simulation Study d :a good fit in the tails is desired! Summary The „curse of dimensionality“  The data „disappears“ into the distribution tails in high dimensions

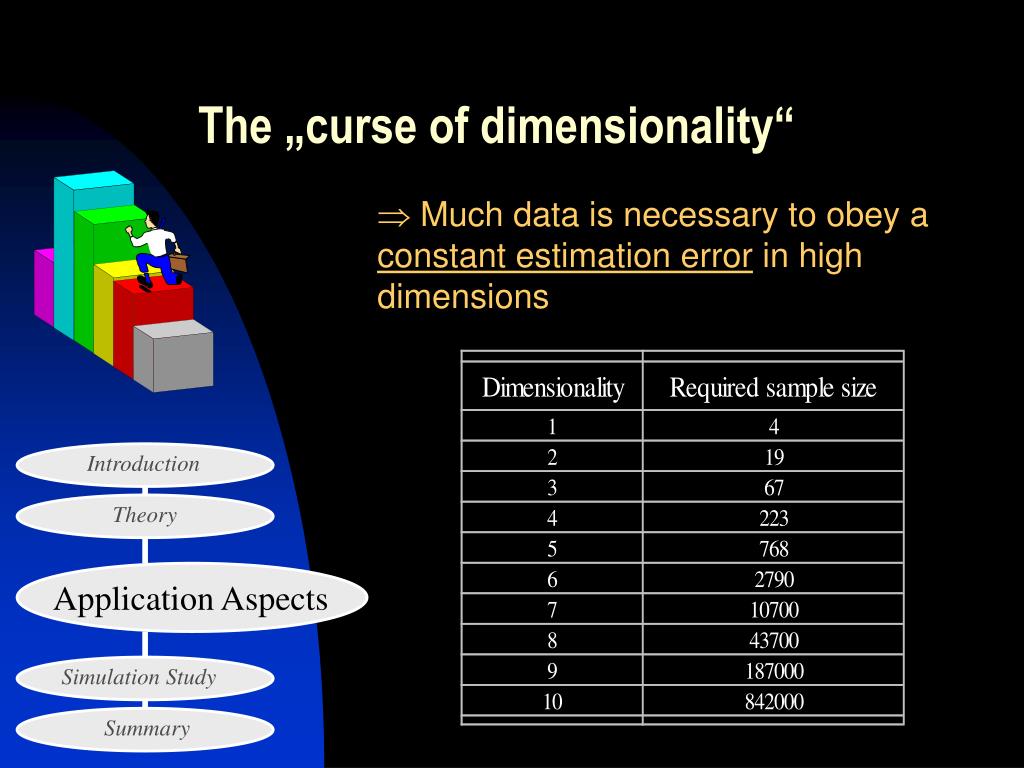

  42. Introduction Theory Application Aspects Simulation Study Summary The „curse of dimensionality“  Much data is necessary to obey a constant estimation error in high dimensions

  43. Introduction Theory Application Aspects Simulation Study Summary Essential issues • Curse of dimensionality • Connection between goodness-of-fit and optimal classification • Two methods for discrimatory purposes

  44. Optimal classification (in high dimensions) AMISE-optimal parameter choice • L2-optimal • L1-optimal (Misclassification rate) • Worse fit in the tails • Estimation of tails important • Calculation intensive for large n • Many observations required for a reasonable fit Essential issues

  45. Introduction Theory Application Aspects Simulation Study Summary Essential issues • Curse of dimensionality • Connection between goodness-of-fit and optimal classification • Two methods for discrimatory purposes

  46. Introduction Theory Application Aspects Simulation Study Summary Method 1: • Reduction of the data onto a subspace which allows a somewhat accurate estimation, however does not destoy too much information  „trade-off“ • Use the multivariate kernel density concept to estimate the class densities

  47. Introduction Theory Application Aspects Simulation Study Summary Method 2: • Use the univariate concept to „normalize“ the data nonparametrically • Use the classical methods like LDA and QDA for classification • Drawback: calculation intensive

  48. Introduction Theory Application Aspects Simulation Study Summary Method 2:

  49. Simulation Study

  50. Introduction Theory Application Aspects Simulation Study Summary Criticism on former simulation studies • Carried out 20-30 years ago • Out-dated parameter selectors • Restriction to uncorrelated normals • Fruitless estimation because of high dimensions • No dimension reduction
