Frictional Force

Frictional Force. Force of friction depends on the surfaces in contact and the Normal Force between them. Friction Force. Ff = μ Fn Ff = force of friction, Fn = normal force μ = coefficent of friction which is a property of the materials involved.

mercia
Télécharger la présentation

Frictional Force

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Frictional Force Force of friction depends on the surfaces in contact and the Normal Force between them

  2. Friction Force • Ff = μFn • Ff = force of friction, Fn = normal force • μ = coefficent of friction which is a property of the materials involved. • μ is a number without units and is typically has a value between 0.1 and 1.

  3. Frictional Force • Values for the coefficient of friction, μ

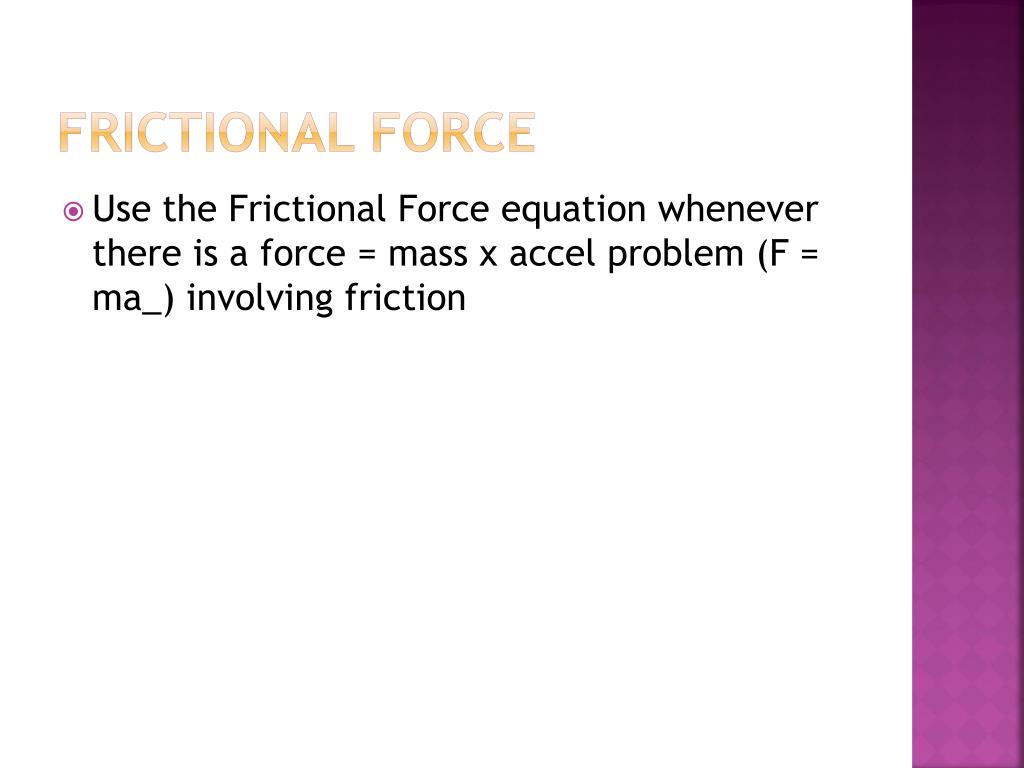

  4. Frictional Force • Use the Frictional Force equation whenever there is a force = mass x accel problem (F = ma_) involving friction

  5. Force of Friction • Solving problems with friction • Draw force diagram • Write Fnet = ma for both x- and y- axis • Solve

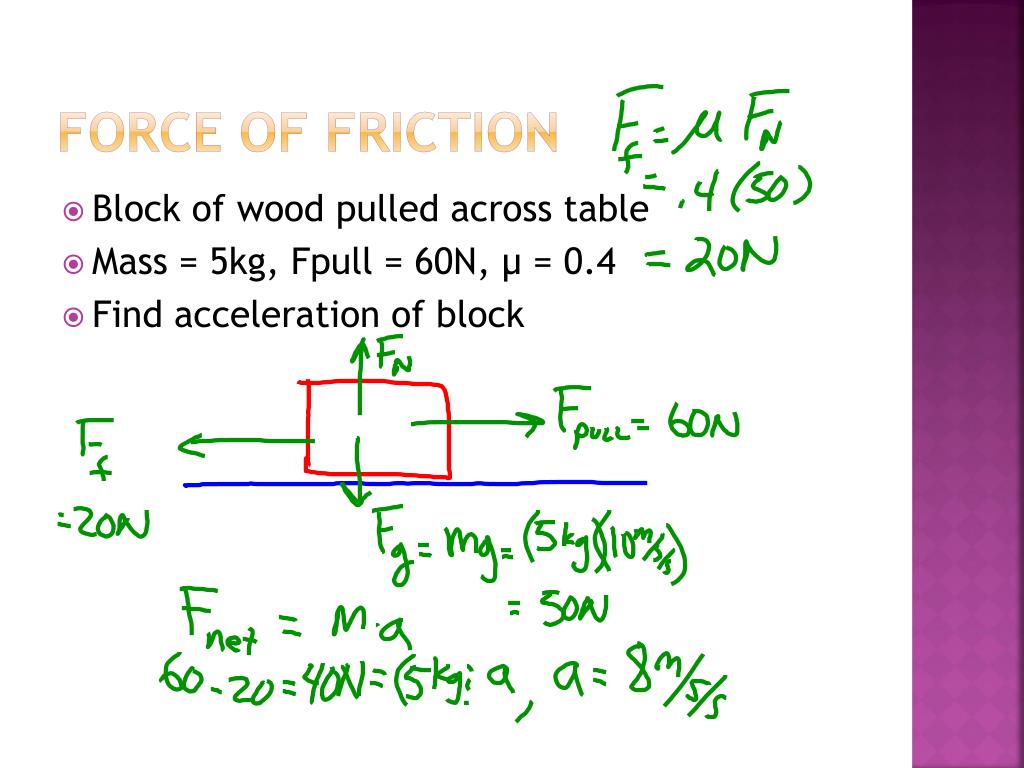

  6. Force of Friction • Block of wood pulled across table • Mass = 5kg, Fpull = 60N, μ = 0.4 • Find acceleration of block
