Temperature and Ground Hog day

1. Temperature and Ground Hog day

2. Ground Hog Day • Ground Hog Day - if the ground hog sees his shadow there will be 6 more weeks of winter. • German superstition used animals to predict weather. Germany used a hedgehog. • Pennsylvania - German settlements - 1887 - first ground hog named Phil. Today is the 5th generation in Pennsylvania - 7:00 a.m. Penn. Time in Globber Hill -Ground Hog Club. A very big tradition - people dress up and many tourists come to see the festival. Ground Hogs usually hibernate. They are woken up for the tradition. Phil is about 14 pounds.

4. Proclaimation being read for ground hog day at Globber Nob

5. Punxsutawney Phil making his annoucement!

6. Feb 2, 2013

7. Atmospheric Properties that describe weather conditions

8. Temperature vs. Heat • Temperature vs. Heat - Temperature measures how rapidly or slowly molecules move around. • Heat is the transfer of energy because of difference of temperature between substances. • Temperature Scales:

9. Causes of weather • Meteorology – study of atmospheric phenomena Greek meaning of Meteors – high in the air Types of atmospheric meteors Clouds, raindrops, snow flakes, fog, dust, rainbows

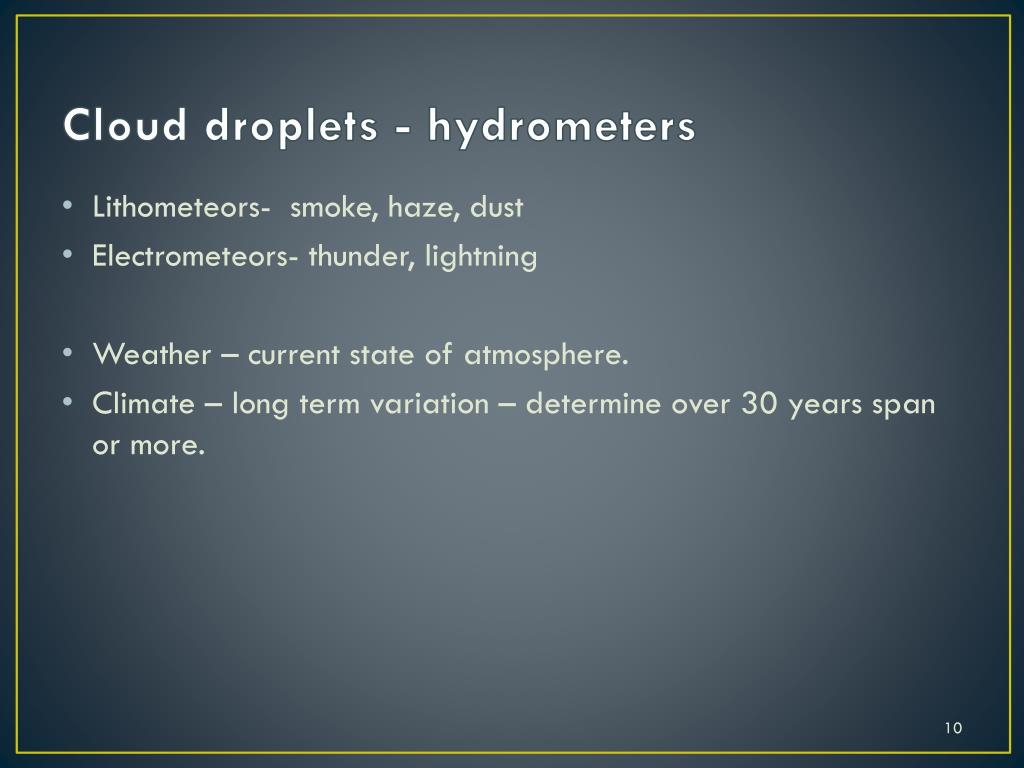

10. Cloud droplets - hydrometers • Lithometeors- smoke, haze, dust • Electrometeors- thunder, lightning • Weather – current state of atmosphere. • Climate – long term variation – determine over 30 years span or more.

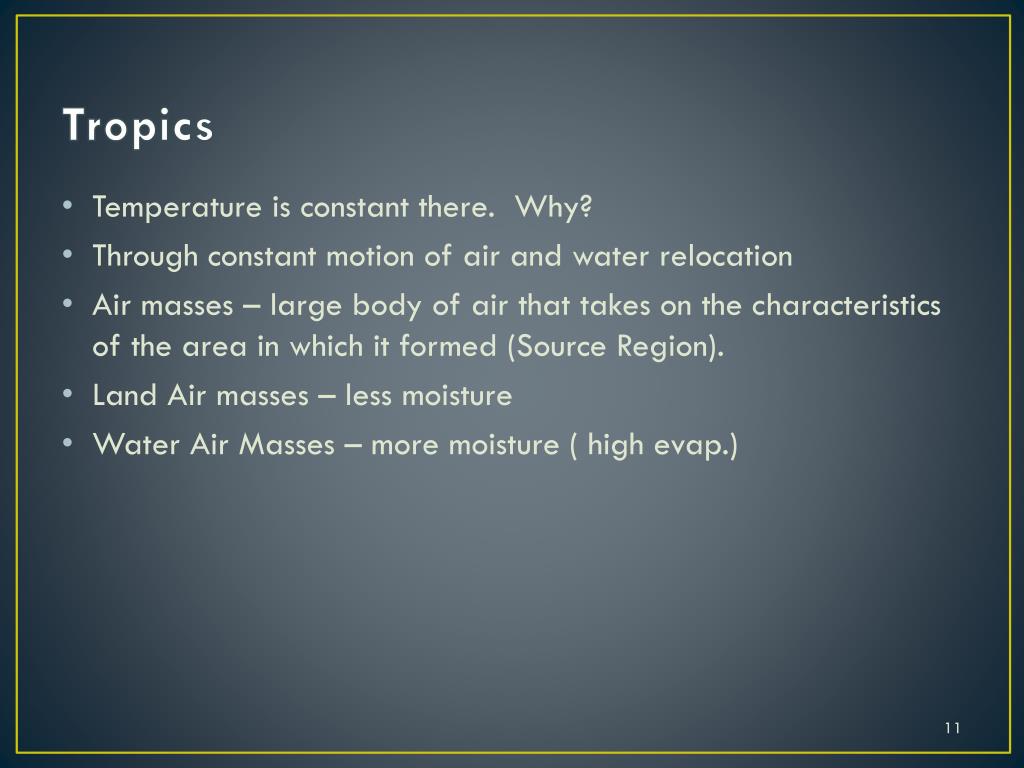

11. Tropics • Temperature is constant there. Why? • Through constant motion of air and water relocation • Air masses – large body of air that takes on the characteristics of the area in which it formed (Source Region). • Land Air masses – less moisture • Water Air Masses – more moisture ( high evap.)

12. Classification of Air Masses . • According to source region • (CT) Continental Tropical –warm and dry • (MT) Martime Tropical – warm and humid • (CP) Continental polar – cold and dry • (MP) Maritime polar – cold and humid • ( A) Arctic – Much colder – same as continental polar air masses associated with very high pressure.

14. Source Region • 5 main types of air masses in the U.S. – due to the continents location to the source regions associated with each air mass. • Maritime polar (California) –Forms over the North Atlantic and North Pacific. • This is why we have heavy rains in the winter.

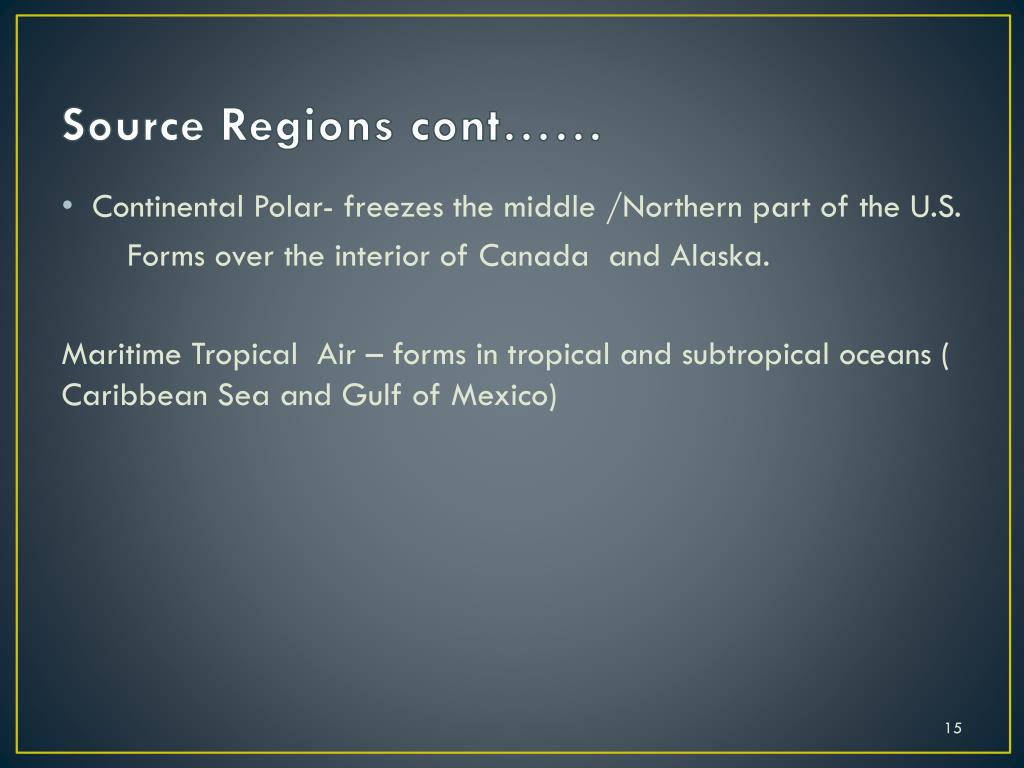

15. Source Regions cont…… • Continental Polar- freezes the middle /Northern part of the U.S. Forms over the interior of Canada and Alaska. Maritime Tropical Air – forms in tropical and subtropical oceans ( Caribbean Sea and Gulf of Mexico)

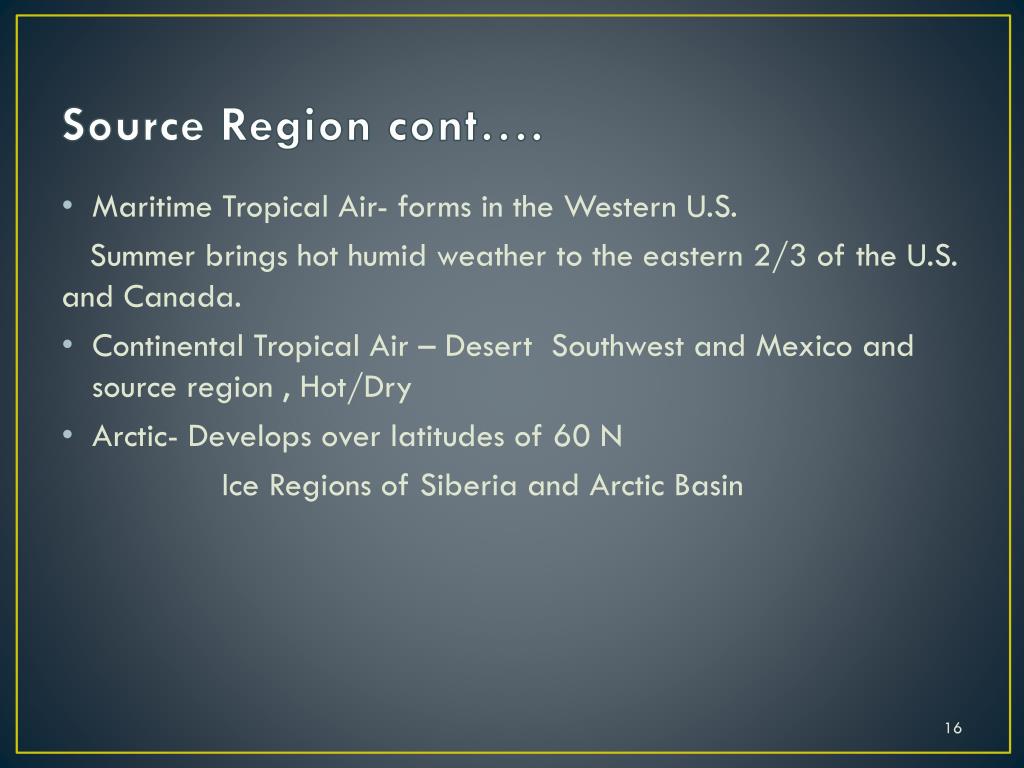

16. Source Region cont…. • Maritime Tropical Air- forms in the Western U.S. Summer brings hot humid weather to the eastern 2/3 of the U.S. and Canada. • Continental Tropical Air – Desert Southwest and Mexico and source region , Hot/Dry • Arctic- Develops over latitudes of 60 N Ice Regions of Siberia and Arctic Basin

17. Air Mass Modification • As air masses move over the surface of the earth, they acquire the characteristics of other source regions, In time loses it’s identity. • Weather systems- earth rotates around the sun , • The rotations causes the Coriolis Effect. • S, Hemisphere: deflect to left • N Hemisphere : deflect to right

18. Hadley Cell • This cell creates a belt of high pressure. • It causes weak surface winds. • Called Horse Latitude

19. ITCZ • Inter Tropical Convergence Zone Air converges and is formed upward. Area of low pressure forms over a large area. Low pressure migrates wit movement of the sun’s rays. Weather is normally cloudy with showers. Great for the tropical rain forest.

21. Trade Winds • Between 30 * N and 30* S • Air sinks, warms and moves back toward 30* and sinks again ( warm air rises, cold air sinks). Example of a Convection cell.

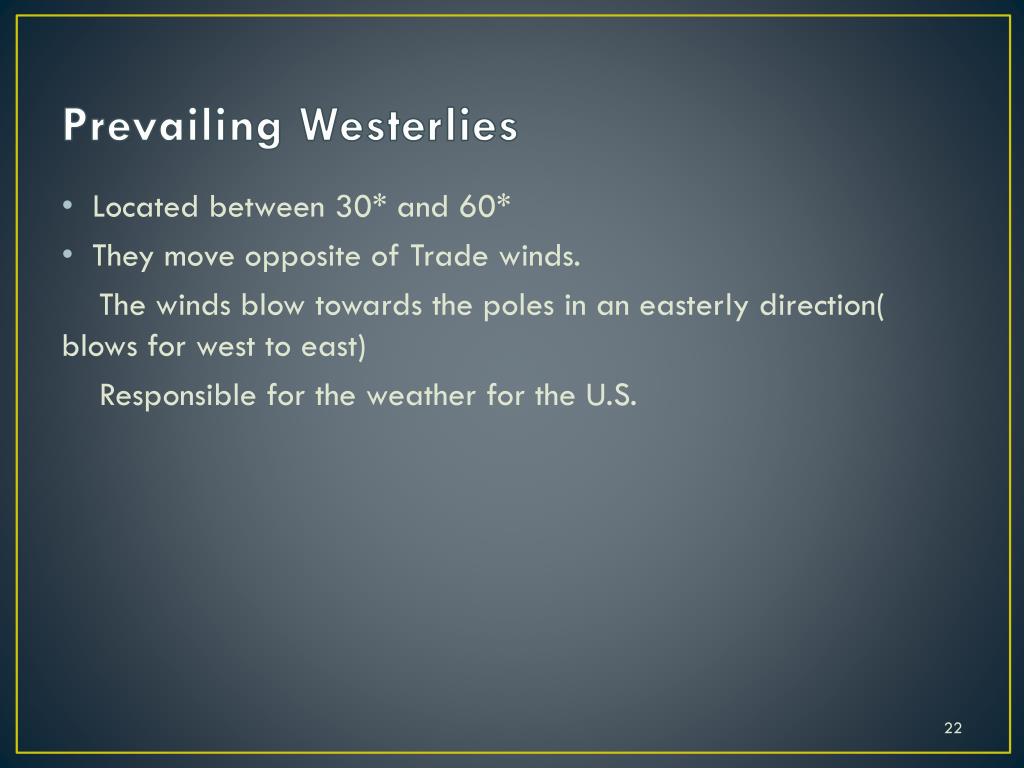

22. Prevailing Westerlies • Located between 30* and 60* • They move opposite of Trade winds. The winds blow towards the poles in an easterly direction( blows for west to east) Responsible for the weather for the U.S.

23. Polar Easterlies • Lies 60 * N and 60* S • Characterized by cold air.

24. Jet Streams • Narrow band of fast, high altitude westerly winds • Speed are up to 185 km/hr 2 Jet Streams Polar Jet – separates Easterlies from prevailing westerlies. Subtropical Jet Stream-Where trade winds meet prevailing westerlies.

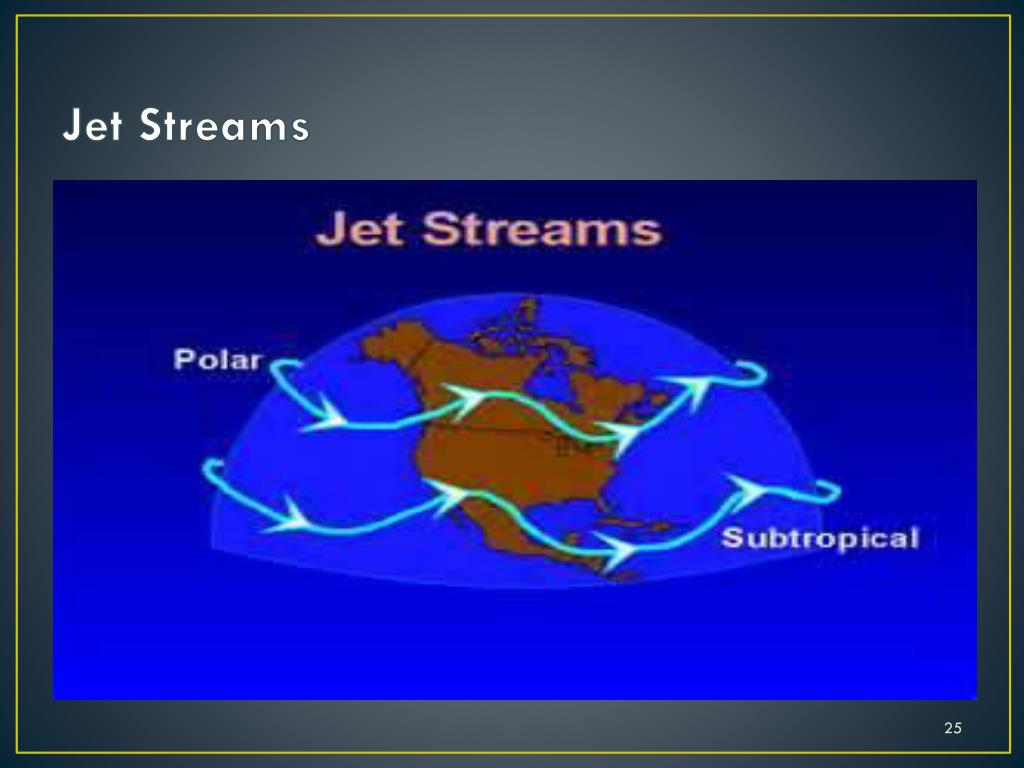

25. Jet Streams

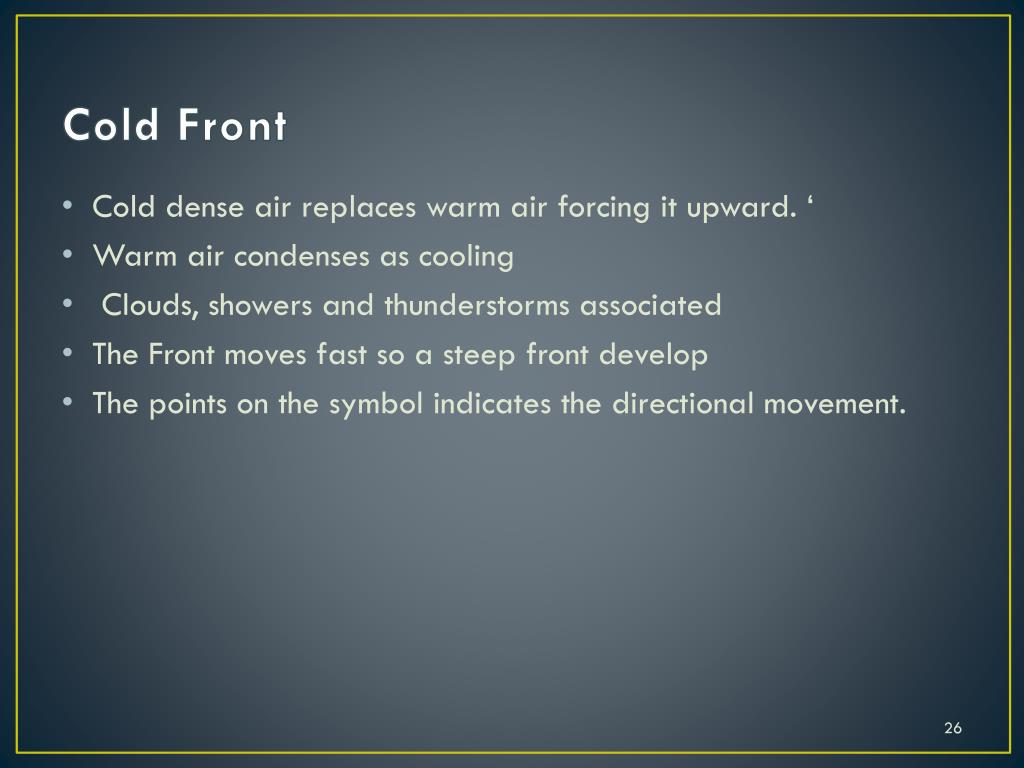

26. Cold Front • Cold dense air replaces warm air forcing it upward. ‘ • Warm air condenses as cooling • Clouds, showers and thunderstorms associated • The Front moves fast so a steep front develop • The points on the symbol indicates the directional movement.

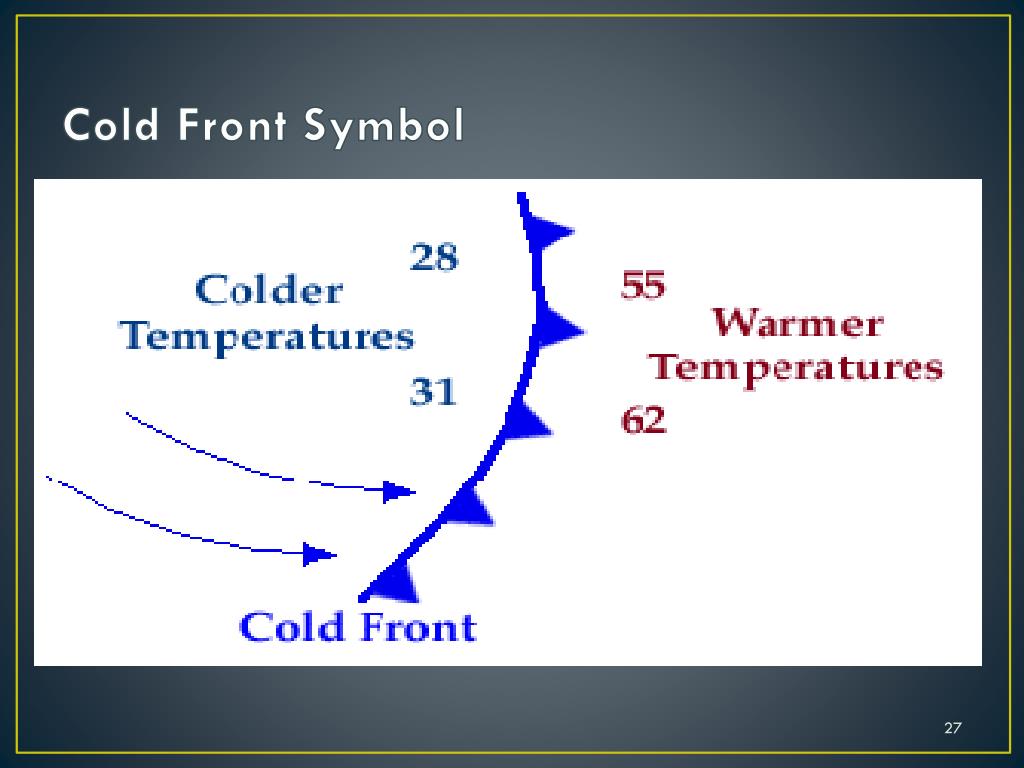

27. Cold Front Symbol

28. Warm Front • Warm air displaces the cold air • Warm front is a gradual slope due to the air in front moving slower. • The warm front encounters less friction Weather is extensive cloudiness and precipitation. Points on the symbol point in the directional movement.

29. Warm Front symbol

31. Stationary Front • The meeting of two air masses and neither is moving in a direction. • Occurs due to modifications that have occurred there is little imbalances. • Weather patterns are similar to a warm front.

34. Occluded Front • Cloud air mass moves so rapidly it overtakes a warm front • Cold air mass wedge pushes the warm air upwards.

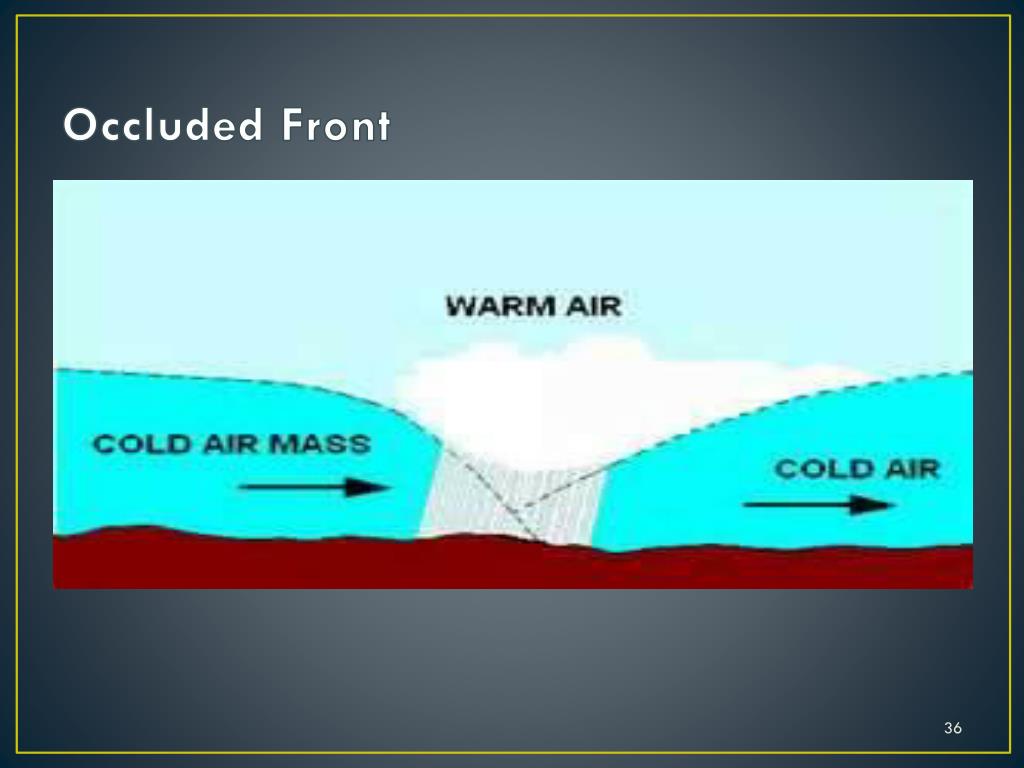

36. Occluded Front

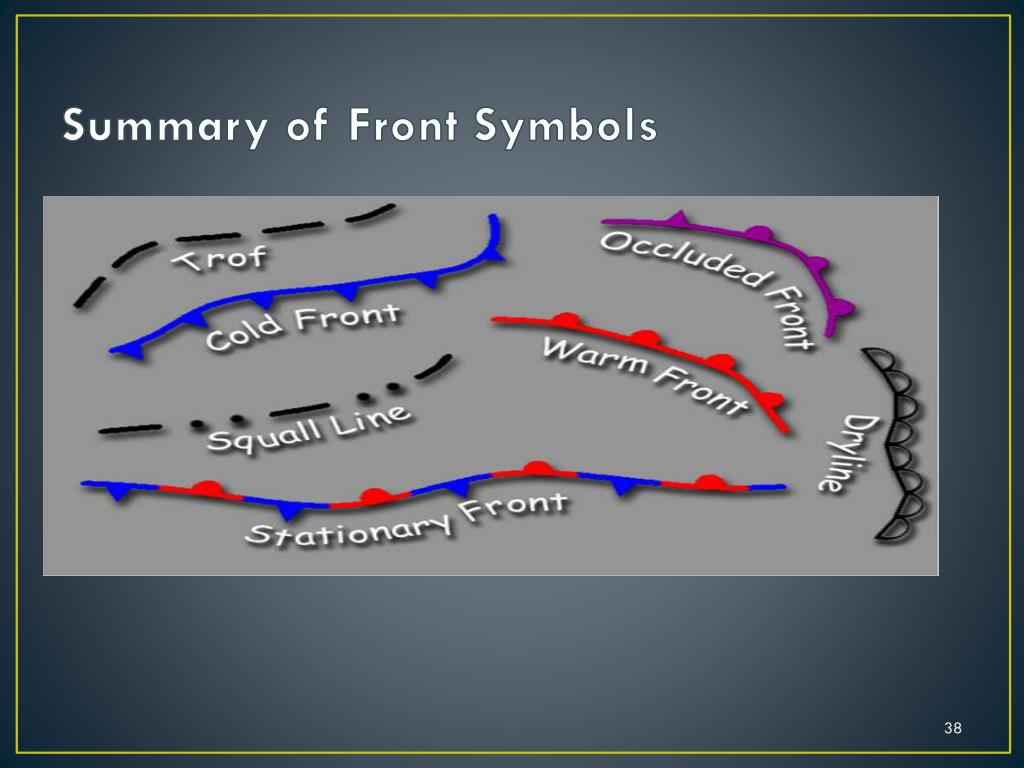

38. Summary of Front Symbols

39. Pressure Systems • Rising air associated with low pressure • Sinking air associated with high pressure Weather is basically rotating High and low pressure produced by rising and sinking air combined with the Coriolis effect

40. Rotation of Pressure

41. High Pressure • Air sinks • The air reaches the surface and spreads out • Air is deflected to the right or clockwise in the Northern Hemisphere. It rotates to the counter clockwise in the Southern Hemisphere. • Associated with cold air masses, fair weather • Found in subtropical oceans

42. High Pressure

43. Low Pressure • Air rises and is replaced by air from outside the system so it flows toward the center. • Weather is cloudy and precipitation • Found in the middle latitudes • Wave cyclone begins along a stationary front Imbalances occur and pushes the front south and another part north. Weather produced affects large areas.

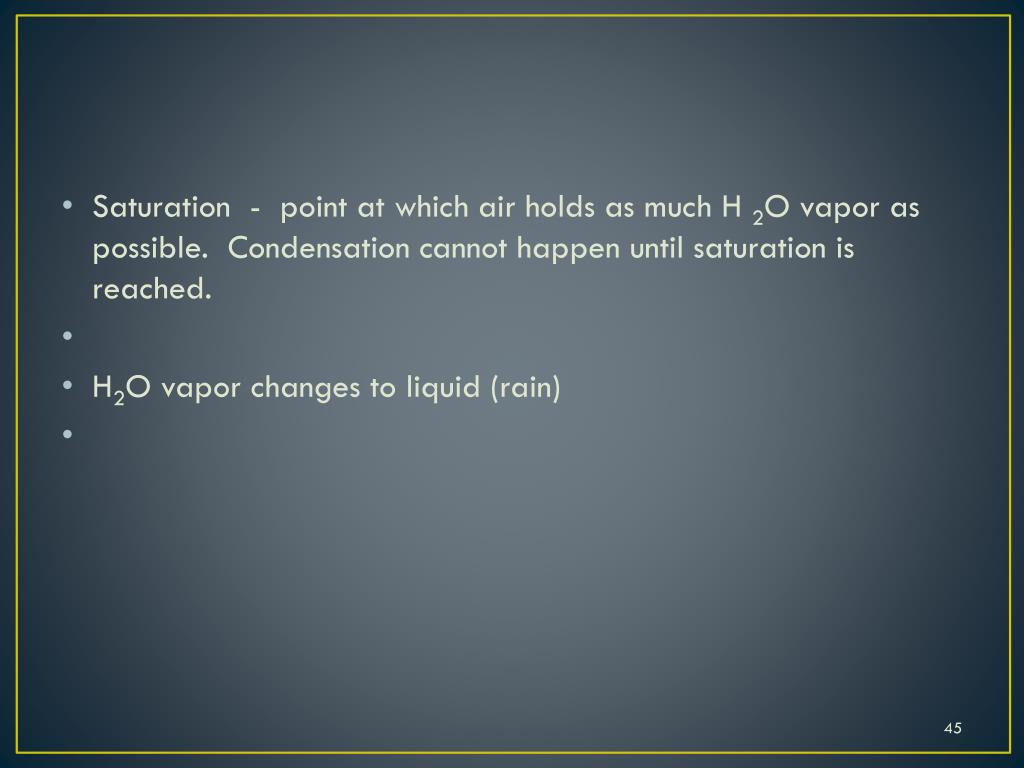

45. Saturation - point at which air holds as much H 2O vapor as possible. Condensation cannot happen until saturation is reached. • H2O vapor changes to liquid (rain)

46. Saturation of Air

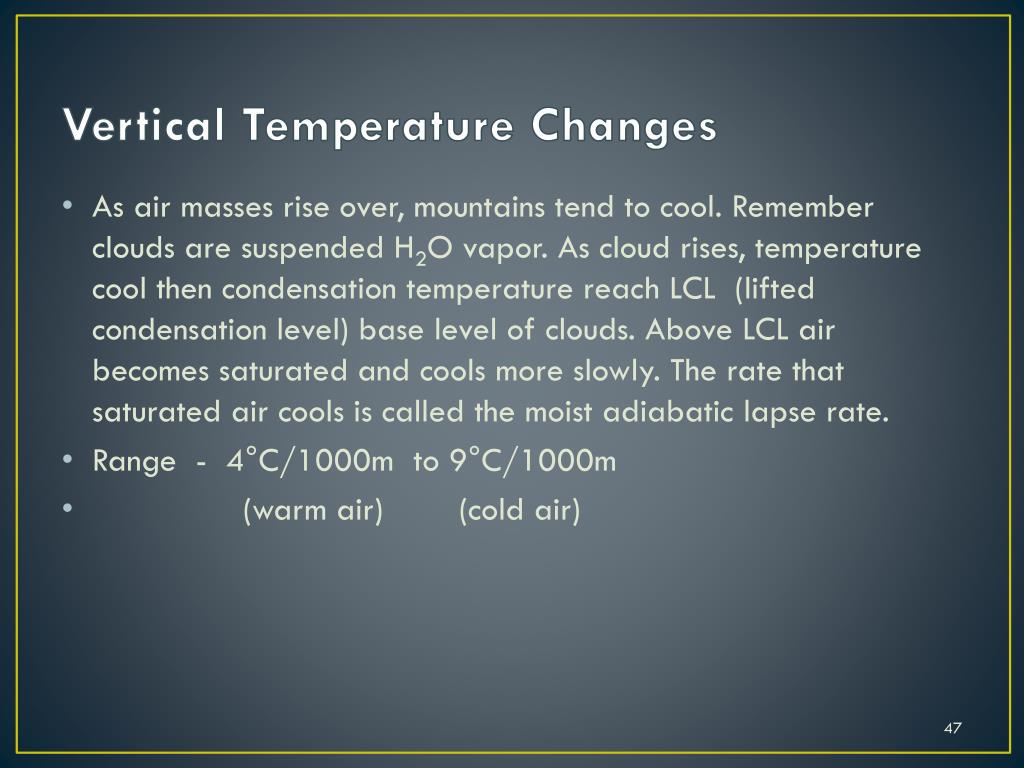

47. Vertical Temperature Changes • As air masses rise over, mountains tend to cool. Remember clouds are suspended H2O vapor. As cloud rises, temperature cool then condensation temperature reach LCL (lifted condensation level) base level of clouds. Above LCL air becomes saturated and cools more slowly. The rate that saturated air cools is called the moist adiabatic lapse rate. • Range - 4°C/1000m to 9°C/1000m • (warm air) (cold air)

48. Meteorologist measure atmospheric variables: • temperature; air pressure; wind; relative humidity to make accurate weather forecasts • The two most important factors of weather forecasting are: accuracy and density of data

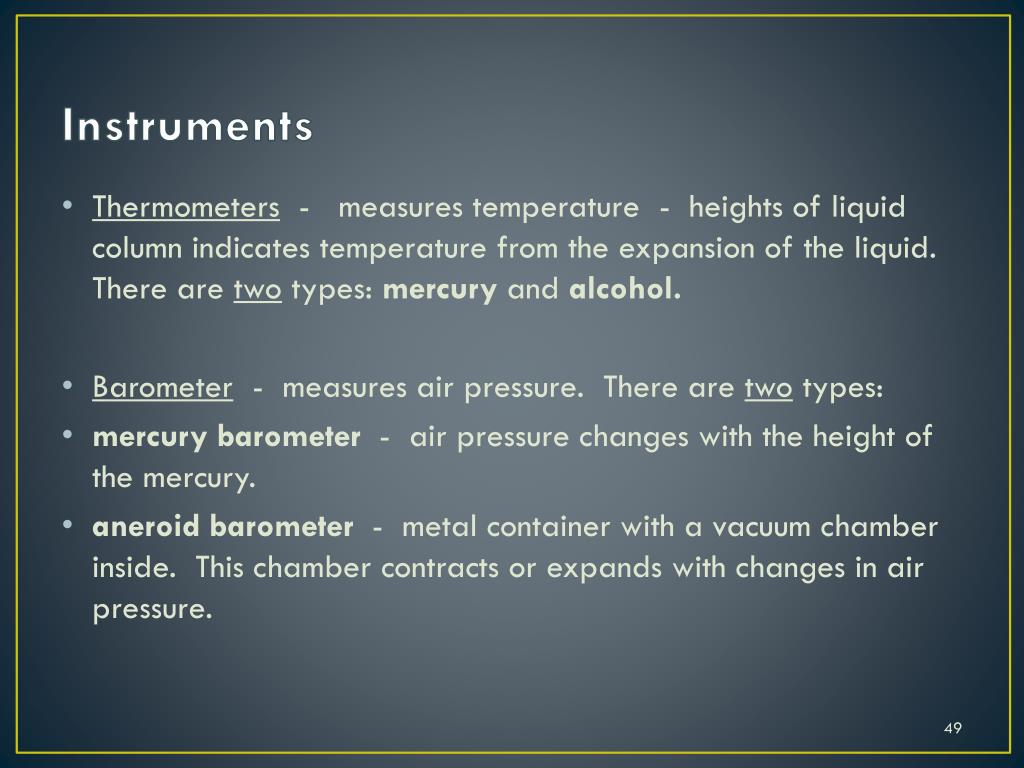

49. Instruments • Thermometers - measures temperature - heights of liquid column indicates temperature from the expansion of the liquid. There are two types: mercury and alcohol. • Barometer - measures air pressure. There are two types: • mercury barometer - air pressure changes with the height of the mercury. • aneroid barometer - metal container with a vacuum chamber inside. This chamber contracts or expands with changes in air pressure.

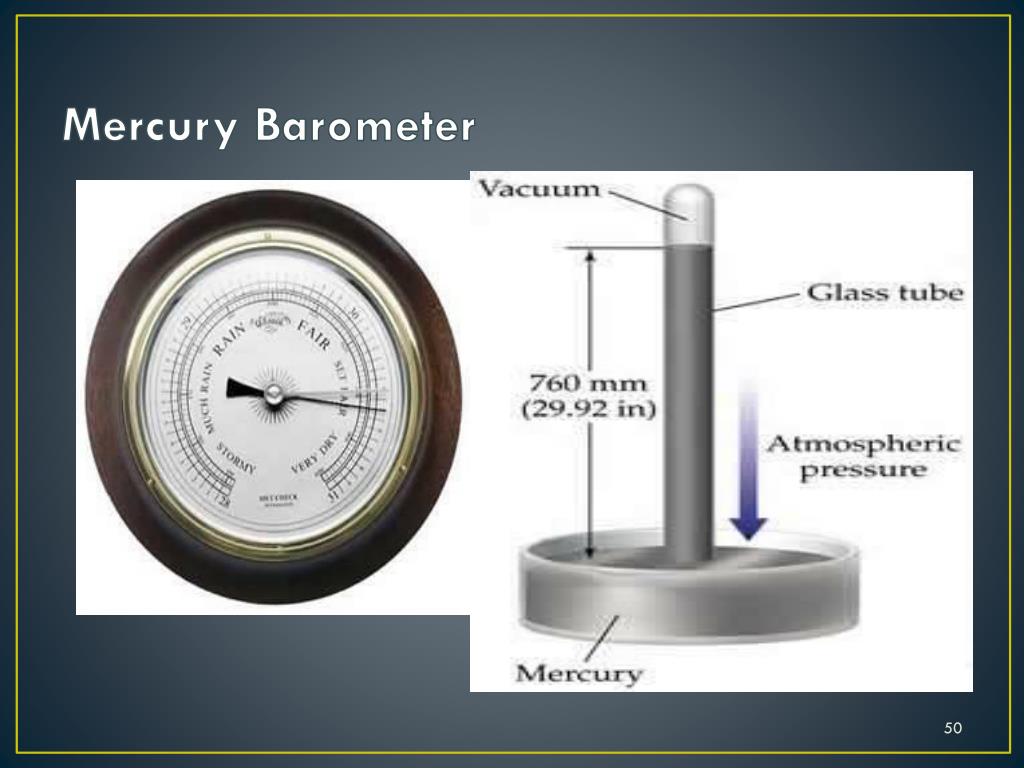

50. Mercury Barometer
