  1. LIMBICSYSTEM NBIO 401 Friday, December 3, 2010 Robinson

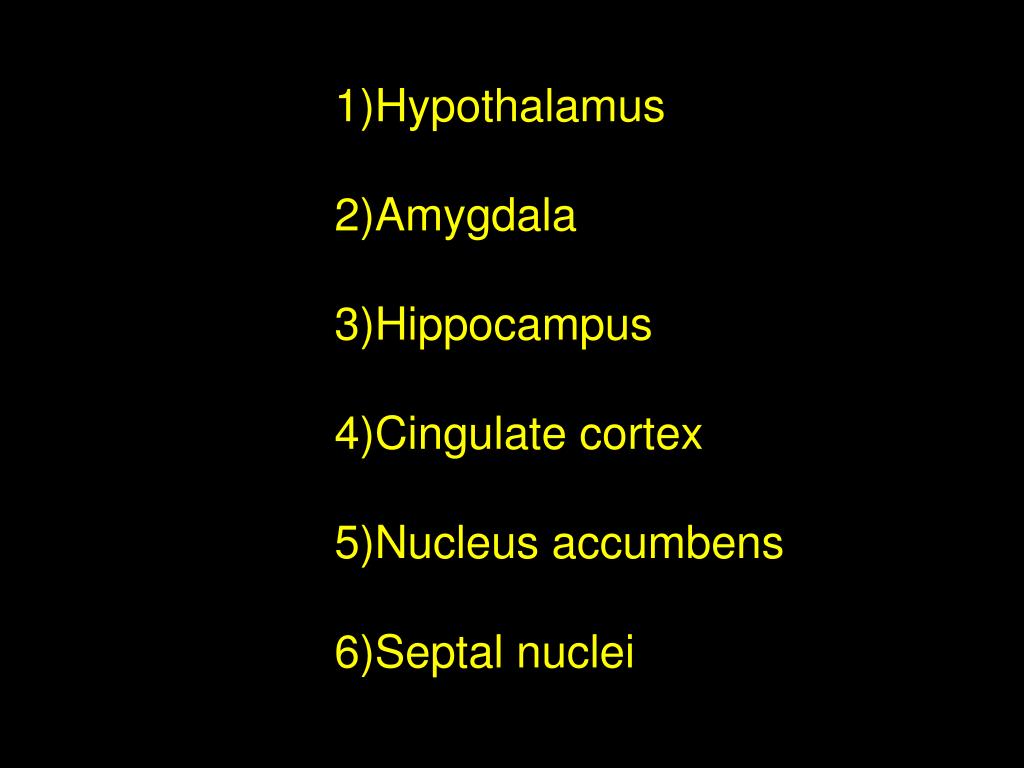

  2. Hypothalamus • Amygdala • Hippocampus • Cingulate cortex • Nucleus accumbens • Septal nuclei

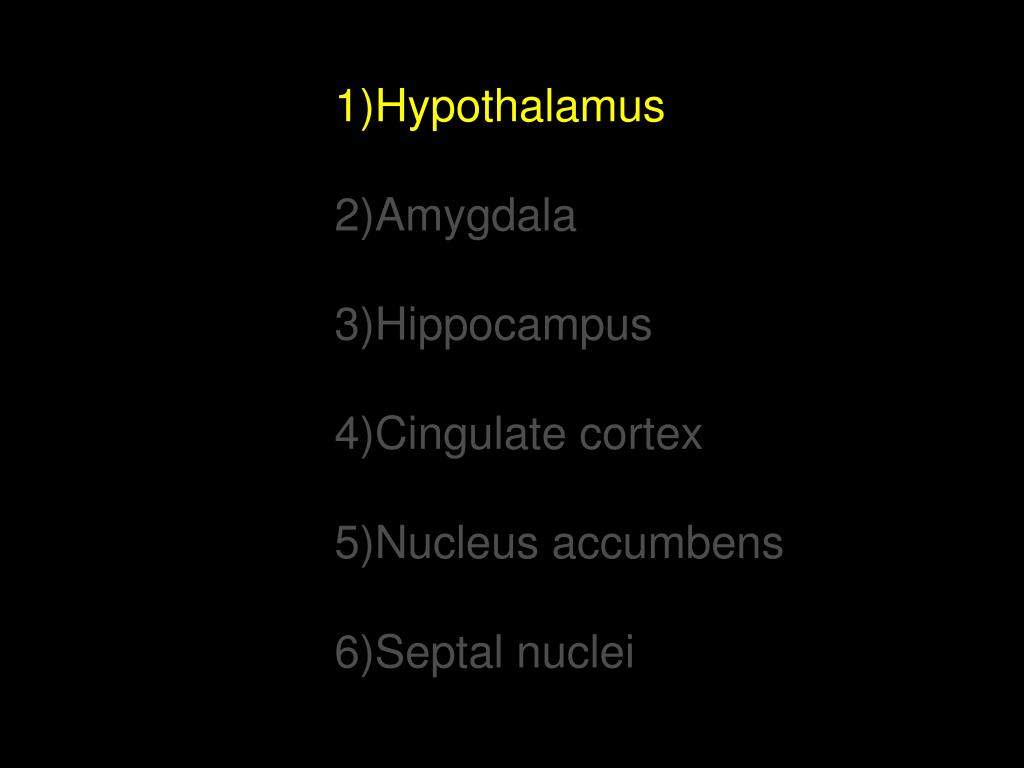

  3. Hypothalamus • Amygdala • Hippocampus • Cingulate cortex • Nucleus accumbens • Septal nuclei

  4. HYPOTHALAMUS

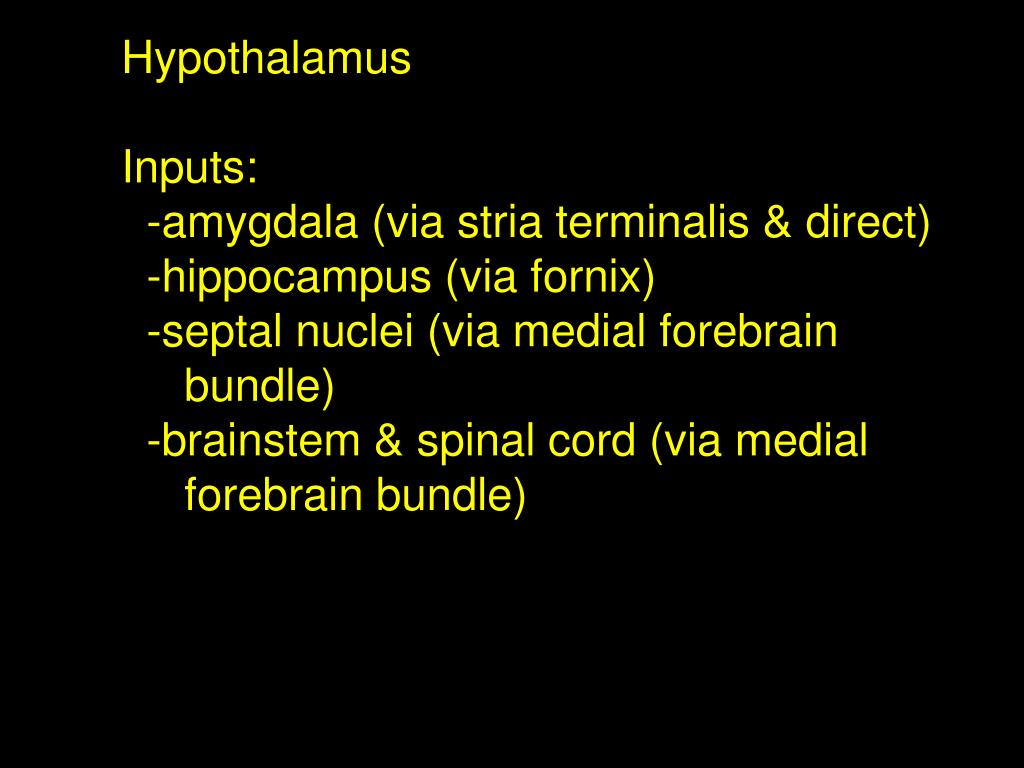

  5. Hypothalamus Inputs: -amygdala (via stria terminalis & direct) -hippocampus (via fornix) -septal nuclei (via medial forebrain bundle) -brainstem & spinal cord (via medial forebrain bundle)

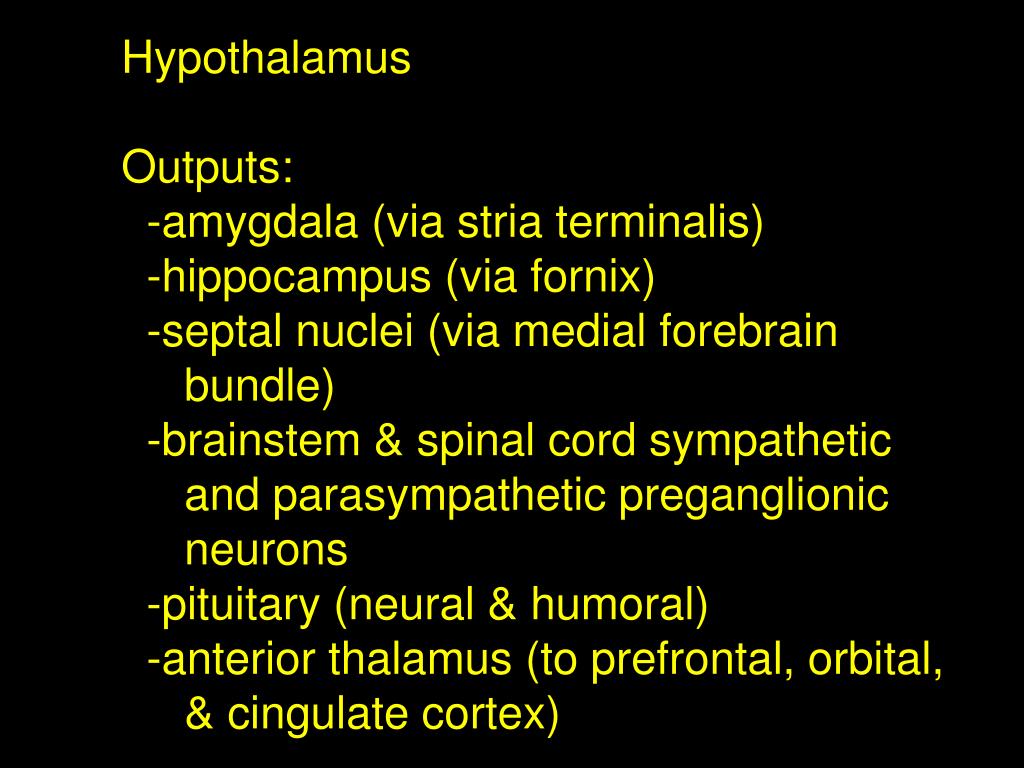

  6. Hypothalamus Outputs: -amygdala (via stria terminalis) -hippocampus (via fornix) -septal nuclei (via medial forebrain bundle) -brainstem & spinal cord sympathetic and parasympathetic preganglionic neurons -pituitary (neural & humoral) -anterior thalamus (to prefrontal, orbital, & cingulate cortex)

  7. OPTIC CHIASM INFUNDIBULUM (stalk of pituitary)

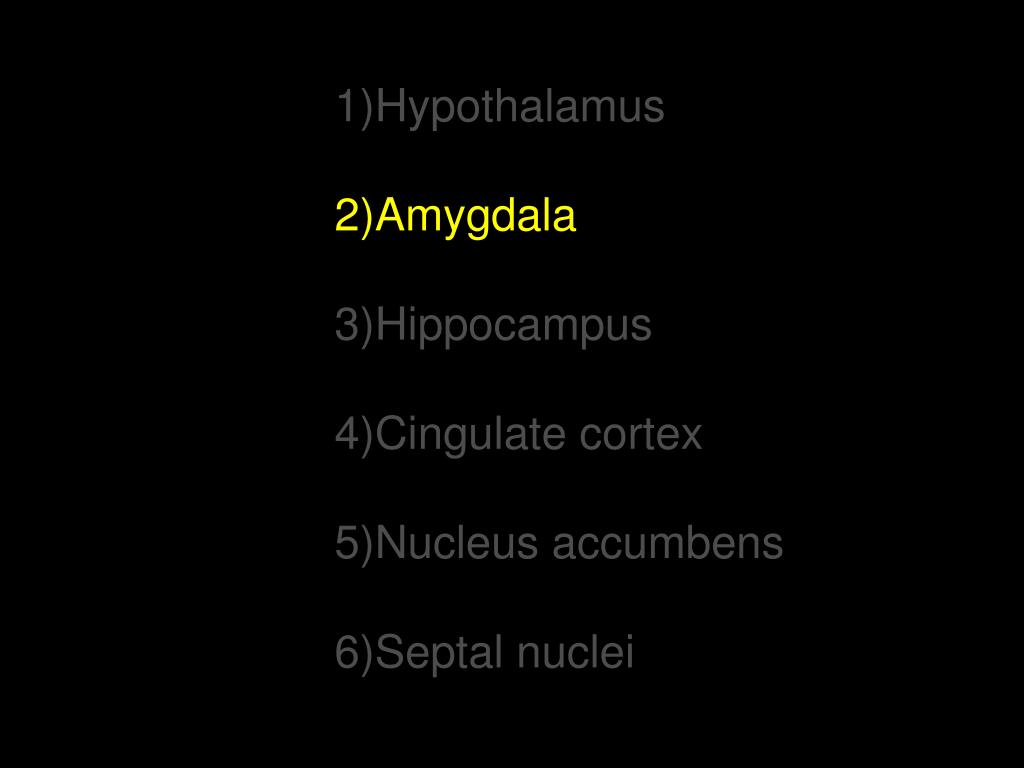

  8. Hypothalamus • Amygdala • Hippocampus • Cingulate cortex • Nucleus accumbens • Septal nuclei

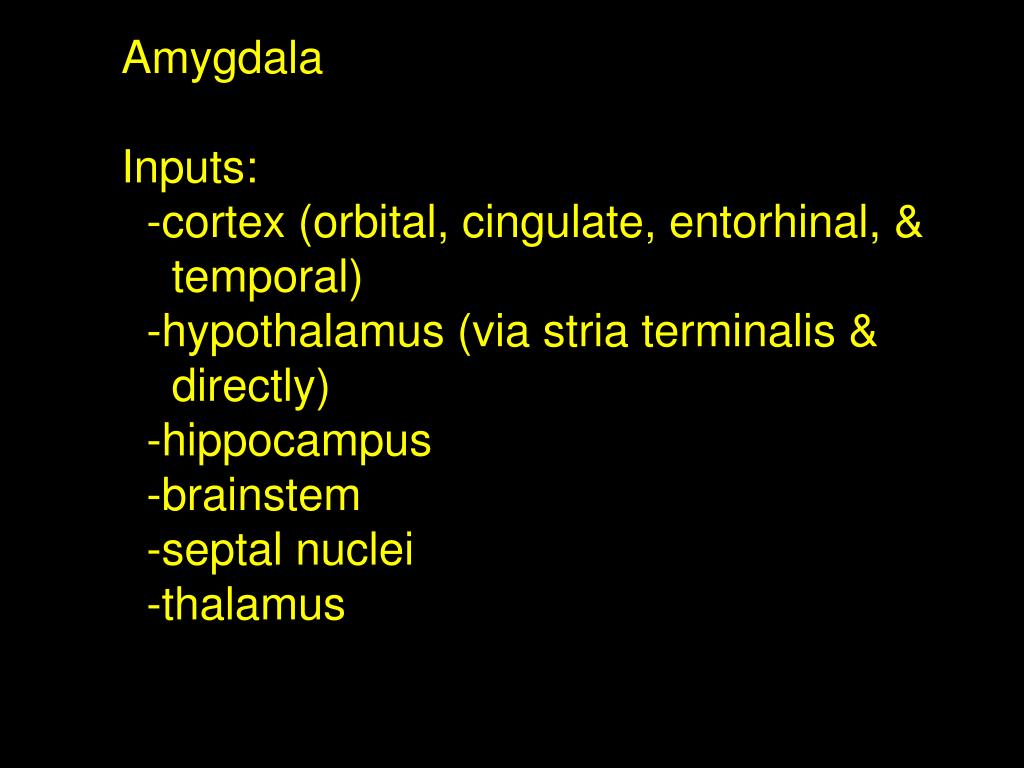

  9. Amygdala Inputs: -cortex (orbital, cingulate, entorhinal, & temporal) -hypothalamus (via stria terminalis & directly) -hippocampus -brainstem -septal nuclei -thalamus

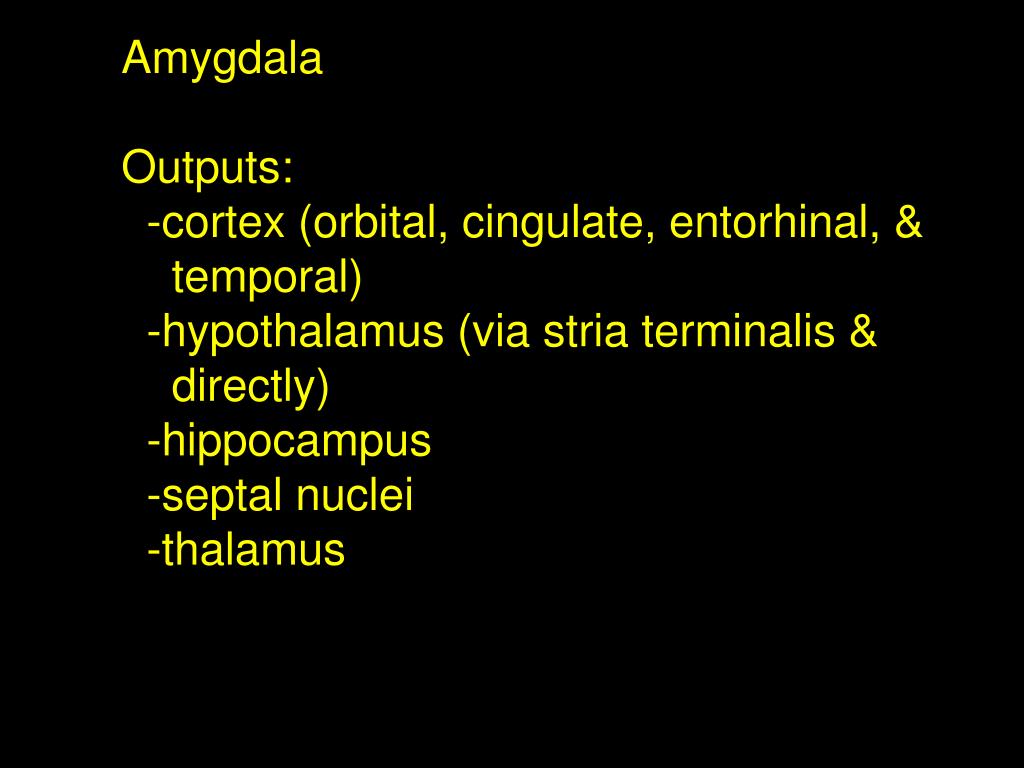

  10. Amygdala Outputs: -cortex (orbital, cingulate, entorhinal, & temporal) -hypothalamus (via stria terminalis & directly) -hippocampus -septal nuclei -thalamus

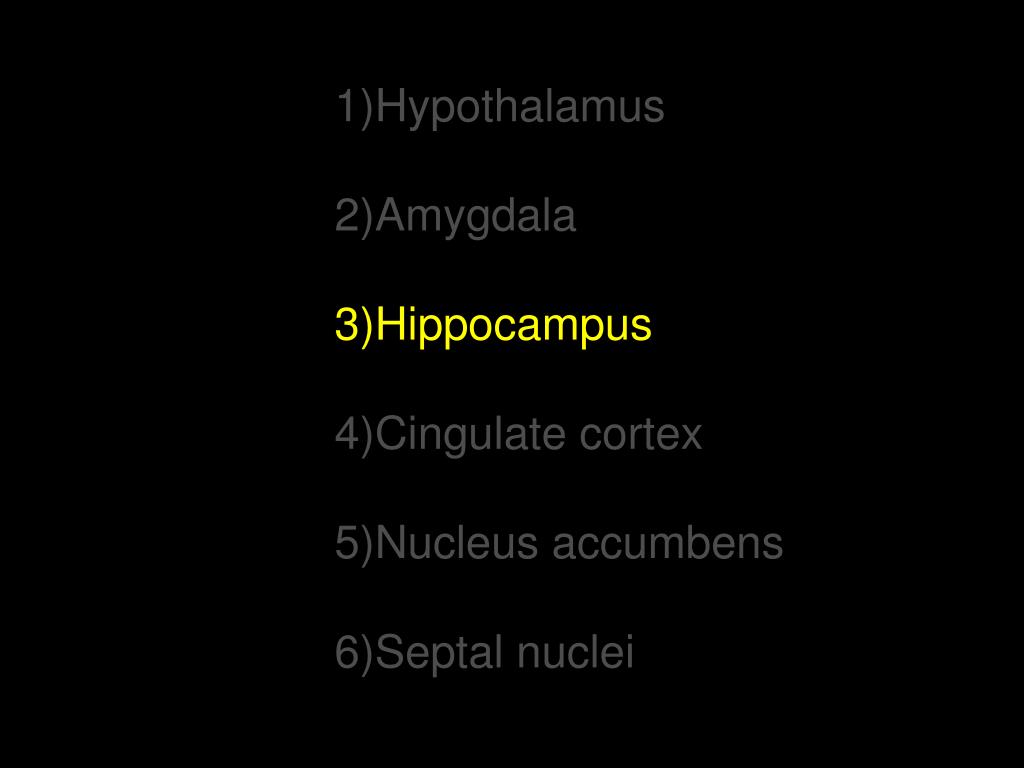

  11. Hypothalamus • Amygdala • Hippocampus • Cingulate cortex • Nucleus accumbens • Septal nuclei

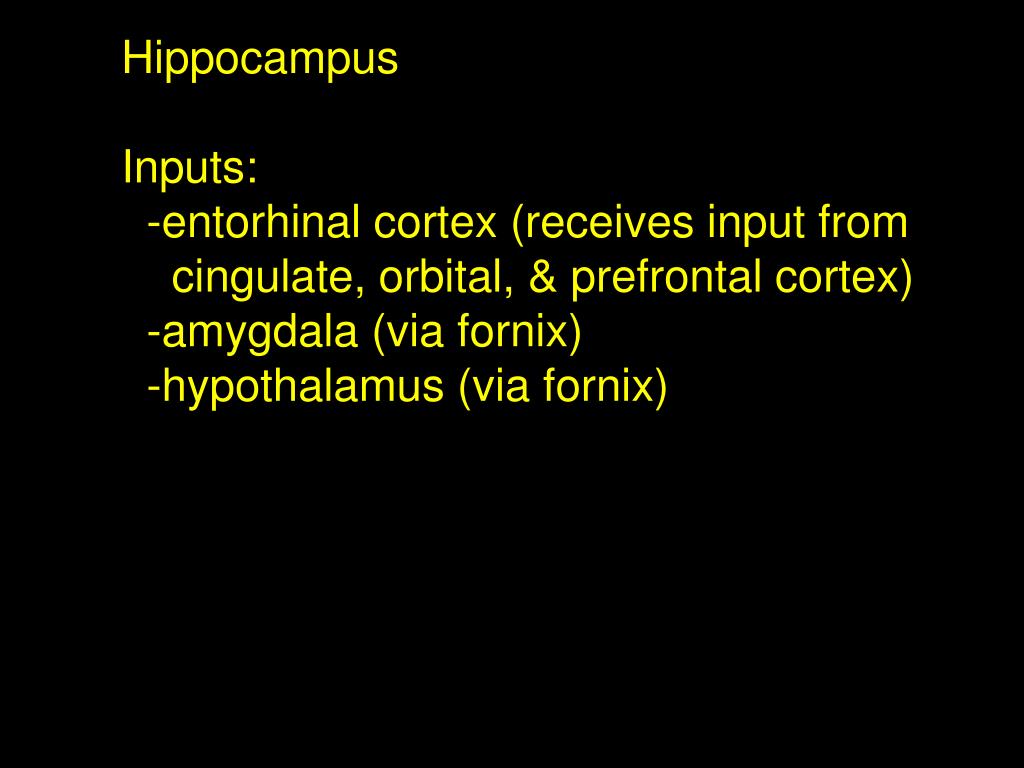

  12. Hippocampus Inputs: -entorhinal cortex (receives input from cingulate, orbital, & prefrontal cortex) -amygdala (via fornix) -hypothalamus (via fornix)

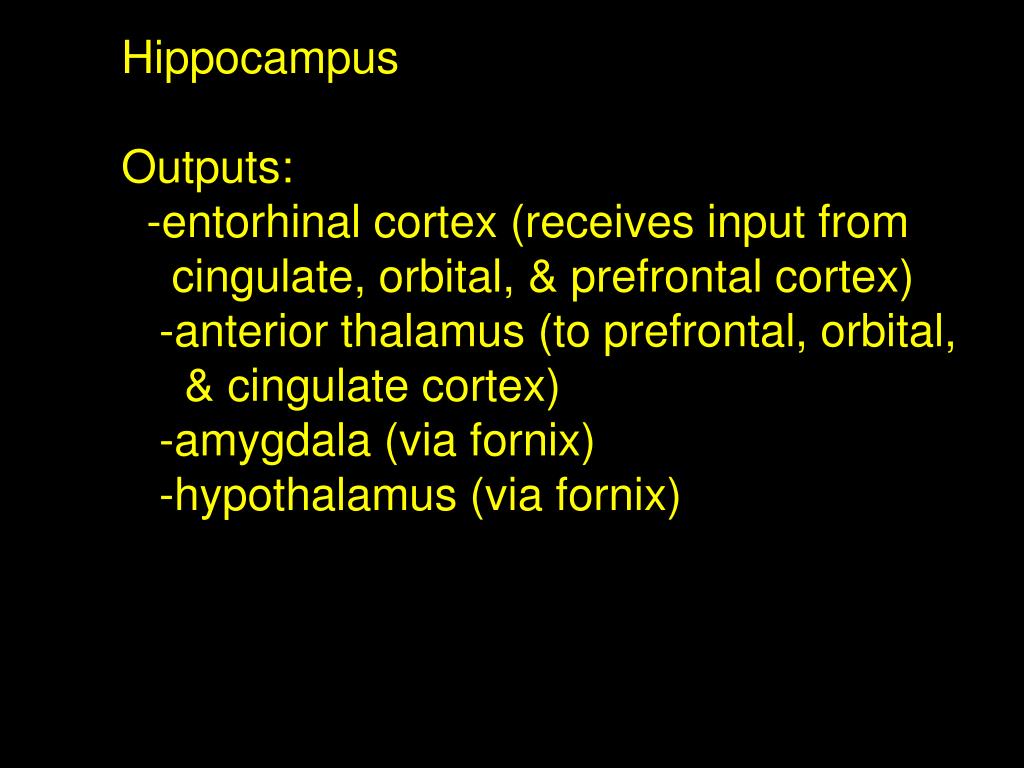

  13. Hippocampus Outputs: -entorhinal cortex (receives input from cingulate, orbital, & prefrontal cortex) -anterior thalamus (to prefrontal, orbital, & cingulate cortex) -amygdala (via fornix) -hypothalamus (via fornix)

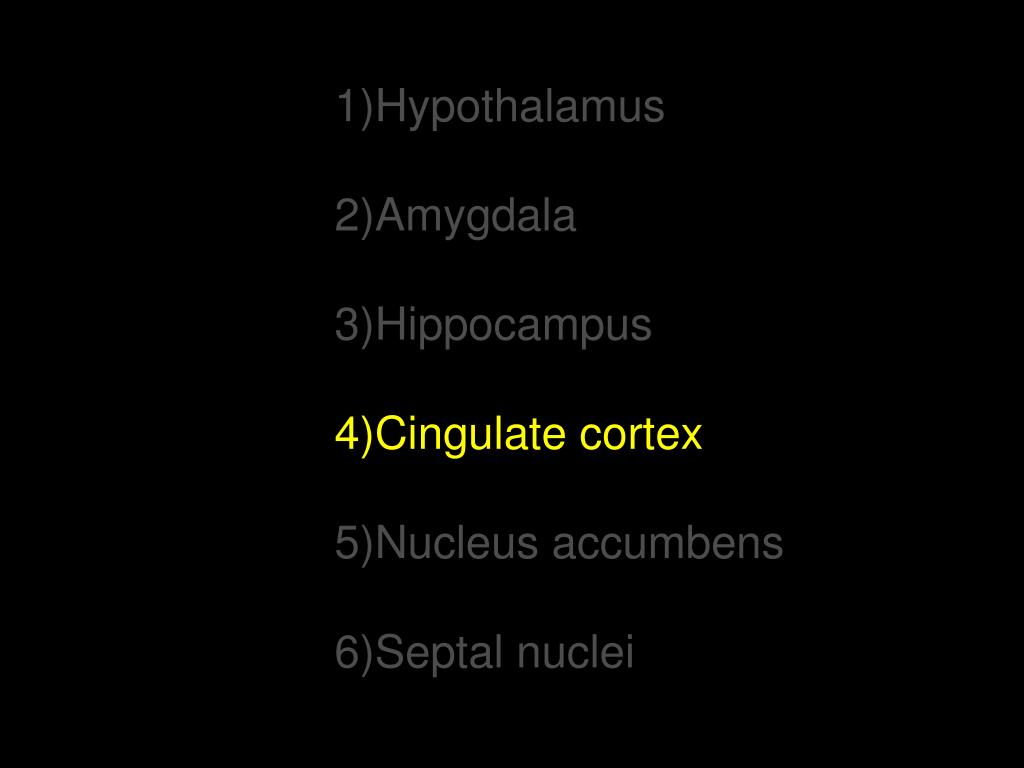

  14. Hypothalamus • Amygdala • Hippocampus • Cingulate cortex • Nucleus accumbens • Septal nuclei

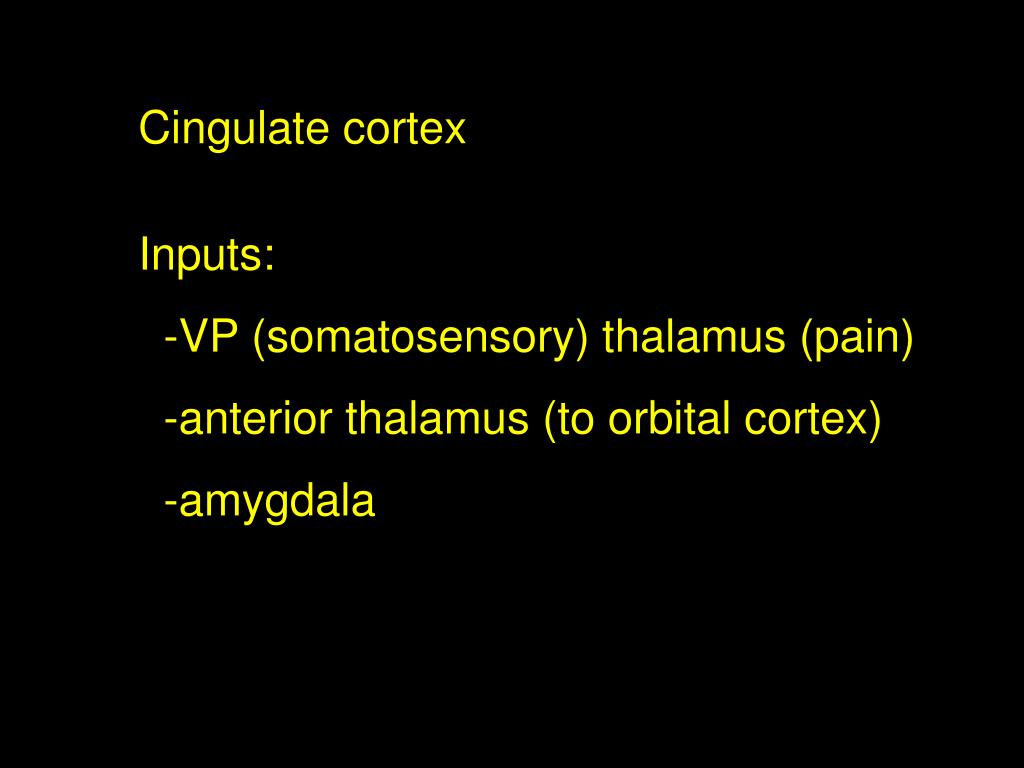

  15. Cingulate cortex Inputs: -VP (somatosensory) thalamus (pain) -anterior thalamus (to orbital cortex) -amygdala

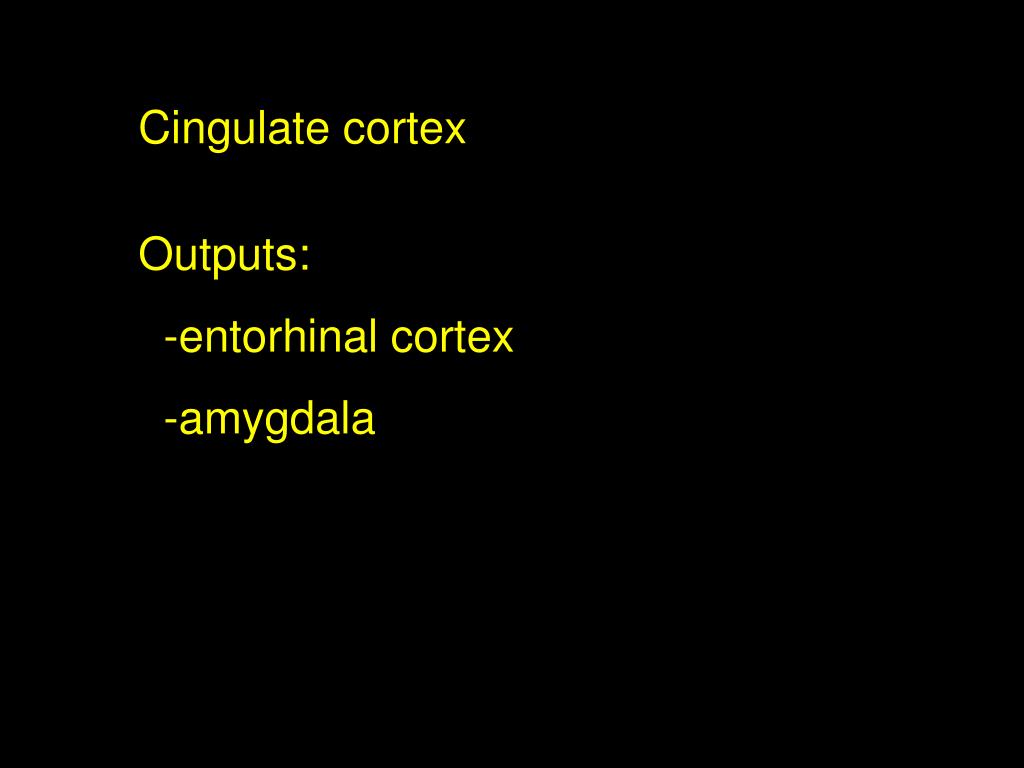

  16. Cingulate cortex Outputs: -entorhinal cortex -amygdala

  17. Hypothalamus • Amygdala • Hippocampus • Cingulate cortex • Nucleus accumbens • Septal nuclei

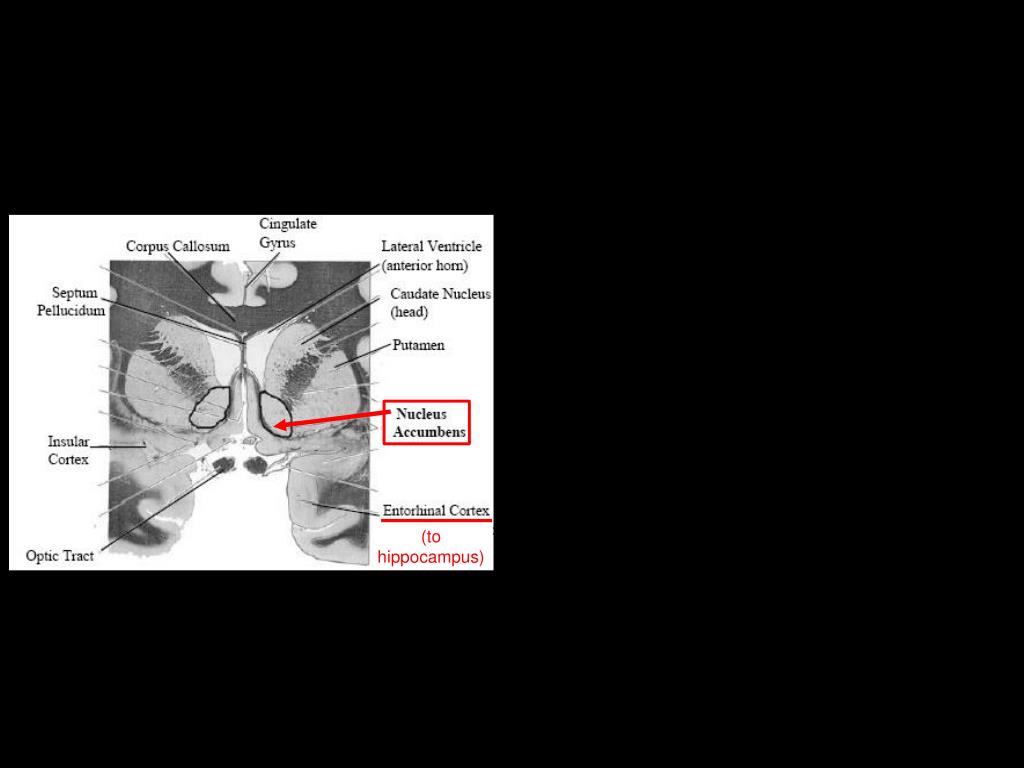

  18. (to hippocampus)

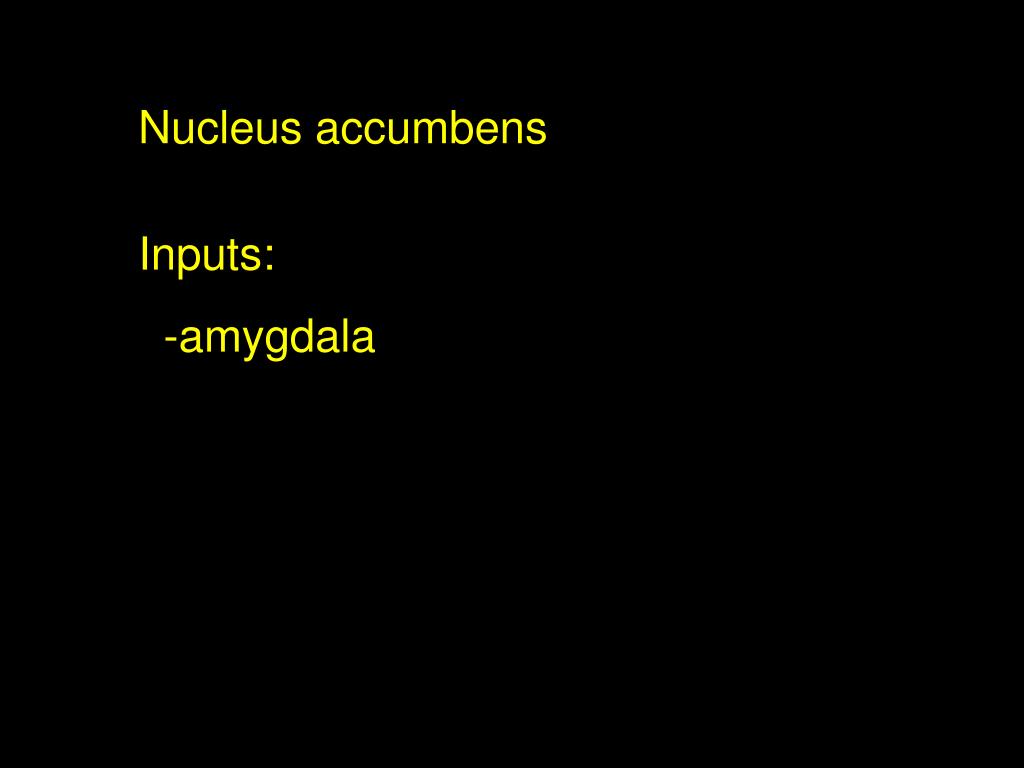

  19. Nucleus accumbens Inputs: -amygdala

  20. Nucleus accumbens Outputs: -basal ganglia

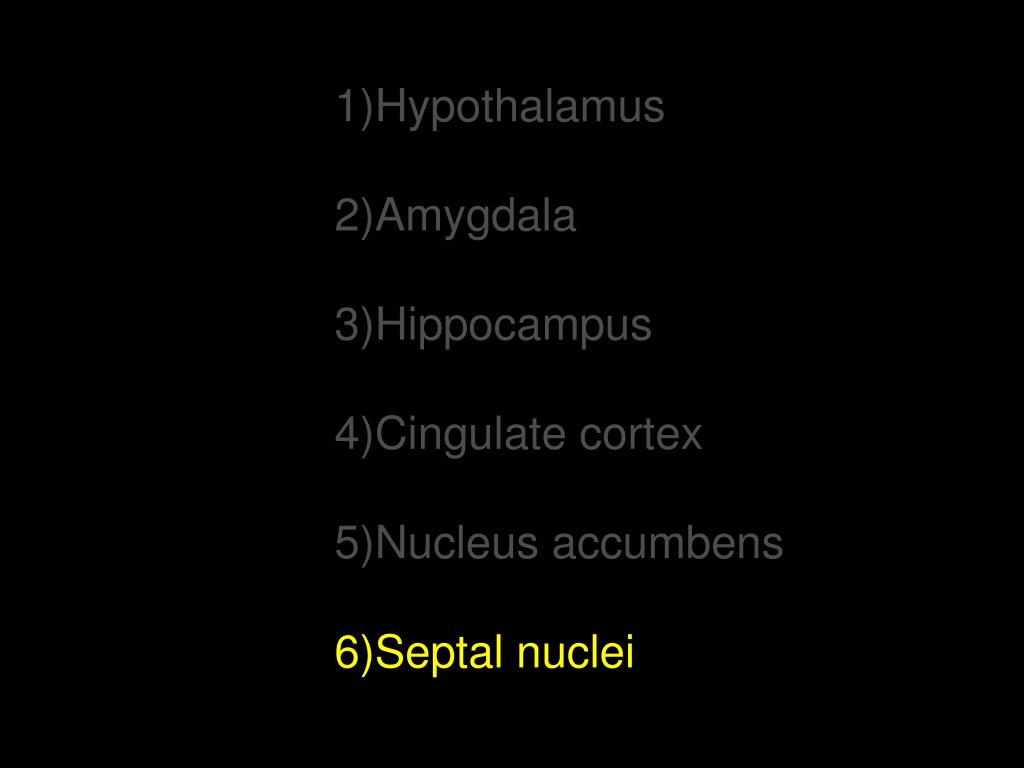

  21. Hypothalamus • Amygdala • Hippocampus • Cingulate cortex • Nucleus accumbens • Septal nuclei

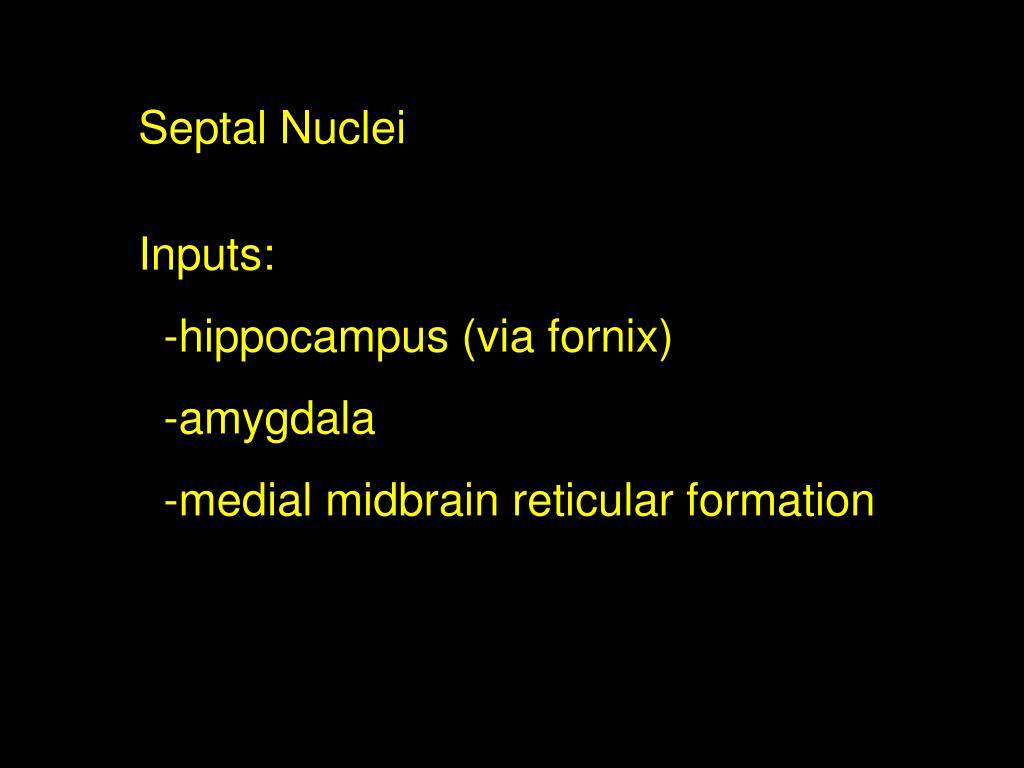

  22. Septal Nuclei Inputs: -hippocampus (via fornix) -amygdala -medial midbrain reticular formation

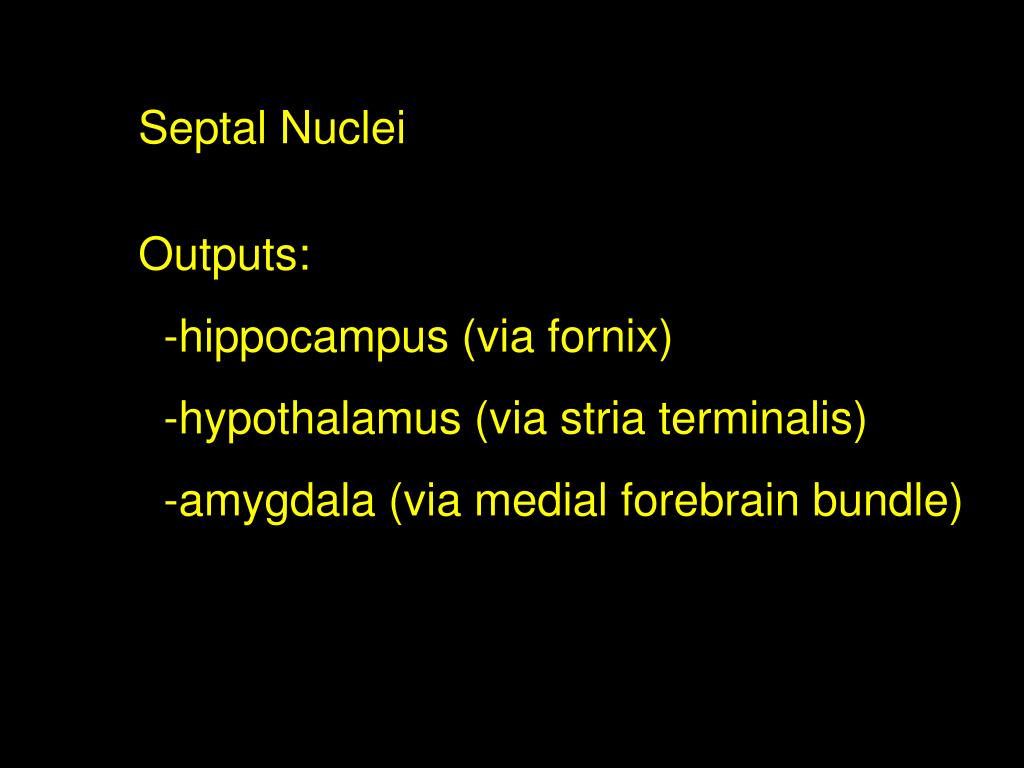

  23. Septal Nuclei Outputs: -hippocampus (via fornix) -hypothalamus (via stria terminalis) -amygdala (via medial forebrain bundle)

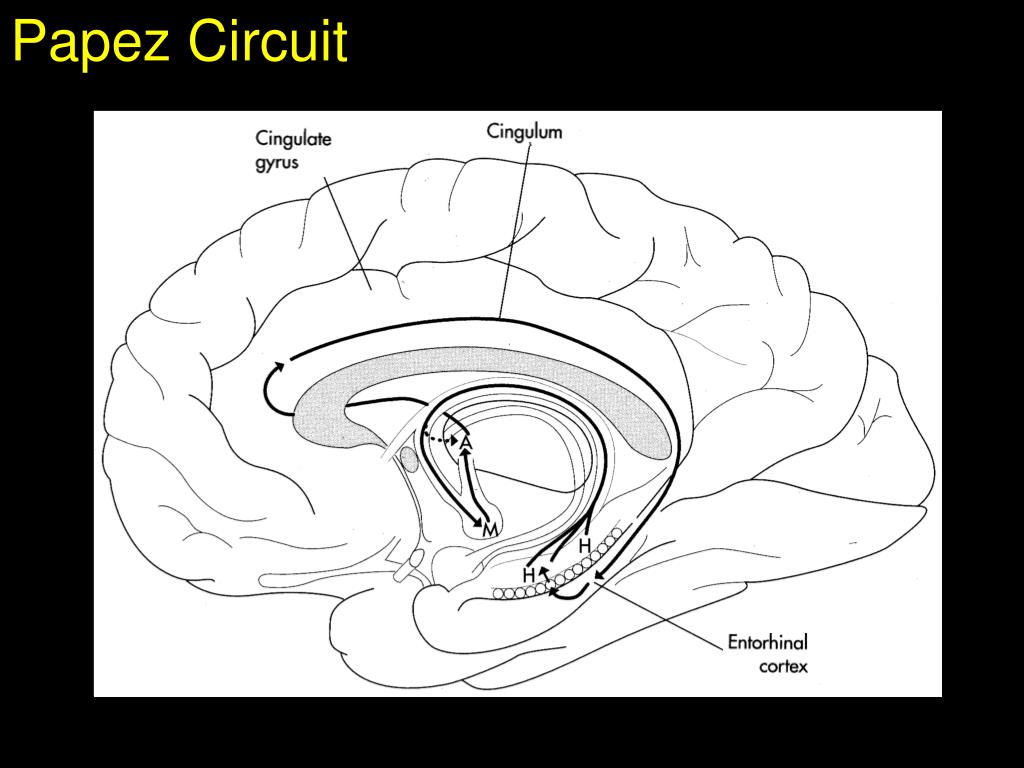

  24. Papez Circuit

  25. Ende
