Function Decomposition

Function Decomposition. from David Ullman, The Mechanical Design Process , 1997. Function, “ what the product must do” can be described as logical flow of energy, material and information Step 1: Find the Overall Function Step 2: Create Sub-Function Description

metta
Télécharger la présentation

Function Decomposition

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

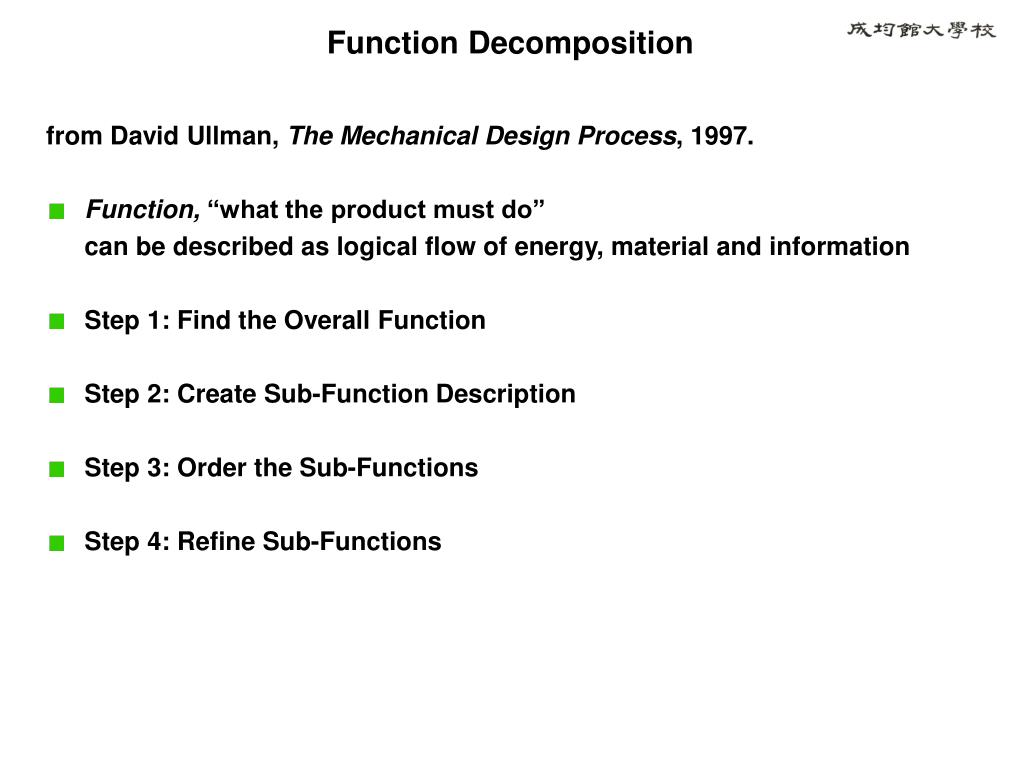

  1. Function Decomposition from David Ullman, The Mechanical Design Process, 1997. • Function, “ what the product must do” can be described as logical flow of energy, material and information • Step 1: Find the Overall Function • Step 2: Create Sub-Function Description • Step 3: Order the Sub-Functions • Step 4: Refine Sub-Functions

  2. Function Decomposition • Step 1: Find the Overall Function • Black Box: Input, output, other resources • Energy & material must be conserved. • All interfacing objects must be identified. • When adding information flows, ask “how will I know if it is performing?”

  3. Function Decomposition • Step 1: Find the Overall Function • Black Box: Input, output, other resources • Energy & material must be conserved. • All interfacing objects must be identified. • When adding information flows, ask “how will I know if it is performing?”

  4. Function Decomposition • Step 2: Create Sub-Function Description • Action Verb + Objects + Modifier 무엇을 (명사) 어떻게한다 (능동적 동사) + 수식어 (상세내용) • What, not how. • Break the function down as finely as possible • List all alternative functions • Preparation, use and conclusion • Ex) Product dissection to find sub-functions

  5. Function Decomposition • Step 2: Create Sub-Function Description • Action Verb + Objects + Modifier 무엇을 (명사) 어떻게한다 (능동적 동사) + 수식어 (상세내용) • What, not how. • Break the function down as finely as possible • List all alternative functions • Preparation, use and conclusion • Ex) Product dissection to find sub-functions

  6. Function Decomposition • Step 3: Order the Sub-Functions • Logical manner, time sequence: Block Diagram • Redundant ones identified and combined • Different sub-functional options left as options • Eliminate outside ones

  7. Function Decomposition • Step 3: Order the Sub-Functions • Logical manner, time sequence: Block Diagram • Redundant ones identified and combined • Different sub-functional options left as options • Eliminate outside ones

  8. Function Decomposition • Step 4: Refine Sub-Functions • Decomposition continues until “atomic” functions are developed. • Atomic function: the one fulfilled by existing objects.

  9. Function Decomposition • Step 4: Refine Sub-Functions • Decomposition continues until “atomic” functions are developed. • Atomic function: the one fulfilled by existing objects.
