  1. A Pattern for WS-Security Presented by Keiko Hashizume

  2. Outline • Introduction • A Pattern for WS-Security • Conclusion

  3. Introduction • Web services standards are confusing which makes it difficult for vendors to develop products that comply with standards and for users to decide what product to use. • That is why we need to develop patterns for these standards. • Patterns embody the knowledge and experience of software developers about a recurrent problem. A pattern solves a specific problem in a given context and can be tailored to fit different situations.

  4. WS-Security Standard • Originally developed by IBM, Microsoft, VeriSign, and Forum Systems. • OASIS Specification • Latest Version: WS-Security 1.1 • Approved on February 2006

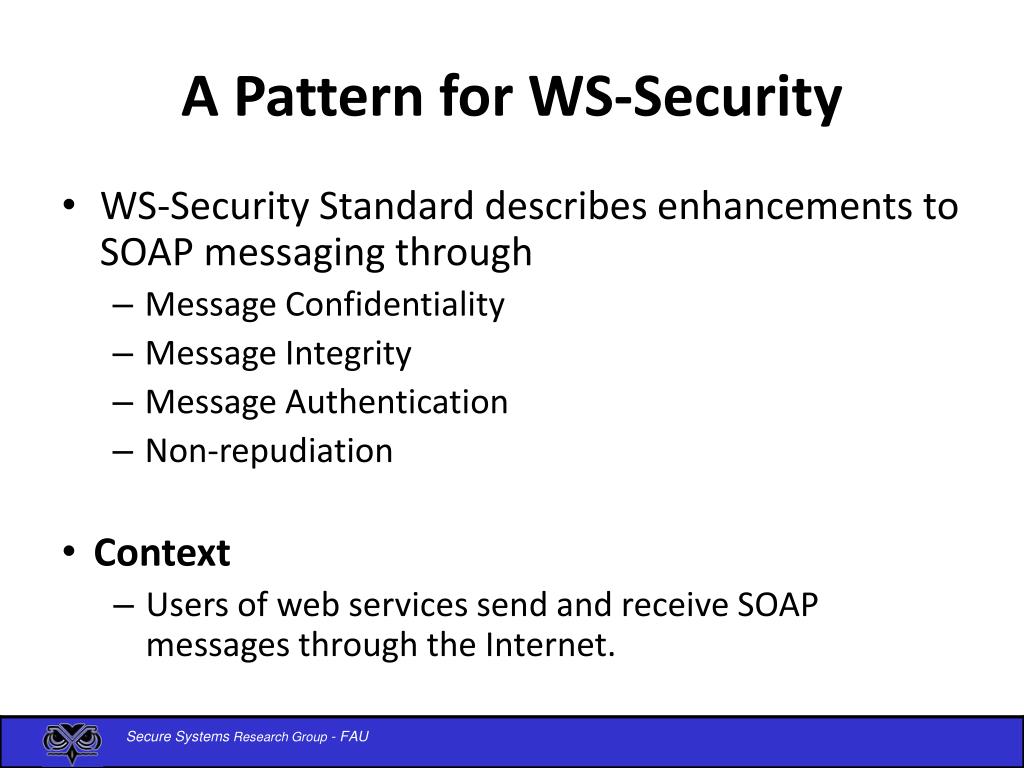

  5. A Pattern for WS-Security • WS-Security Standard describes enhancements to SOAP messaging through • Message Confidentiality • Message Integrity • Message Authentication • Non-repudiation • Context • Users of web services send and receive SOAP messages through the Internet.

  6. A Pattern for WS-Security • Problem • Forces: • We need to prevent unauthorized users from reading data during transit. • We need to protect data in transit from being modified by attackers. • We need to verify the producer of the message. • We need to prevent message replay.

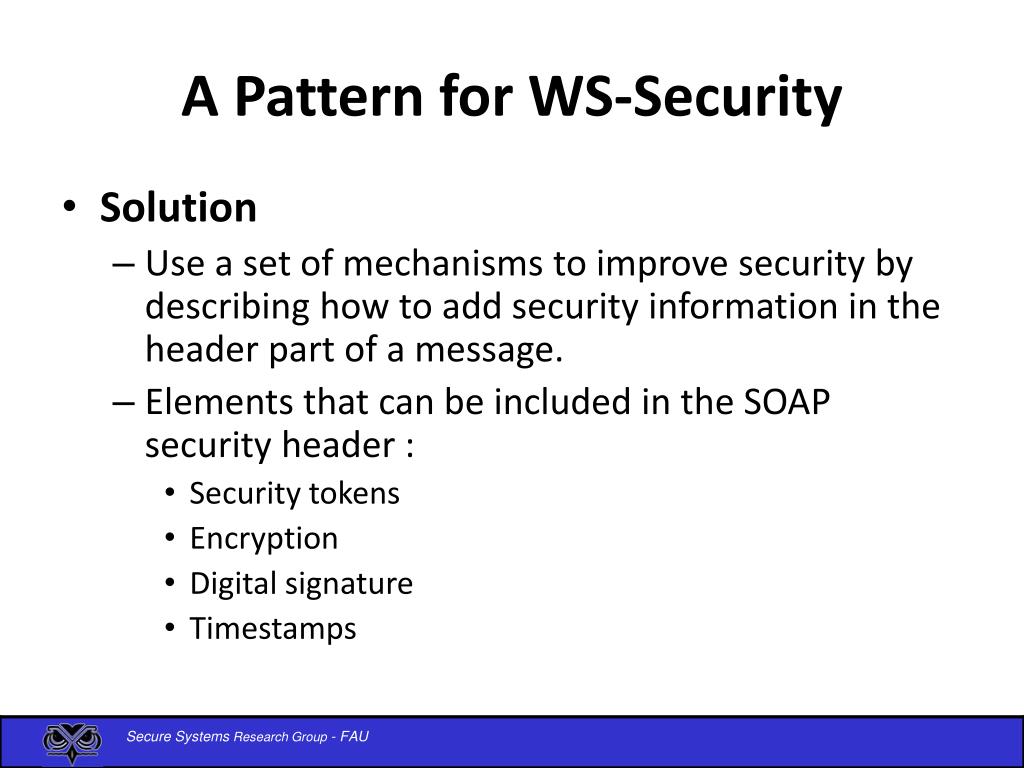

  7. A Pattern for WS-Security • Solution • Use a set of mechanisms to improve security by describing how to add security information in the header part of a message. • Elements that can be included in the SOAP security header : • Security tokens • Encryption • Digital signature • Timestamps

  8. Structure - Class Diagram

  9. Dynamics • Sequence Diagram for the UC: Encrypt an element using Security Tokens

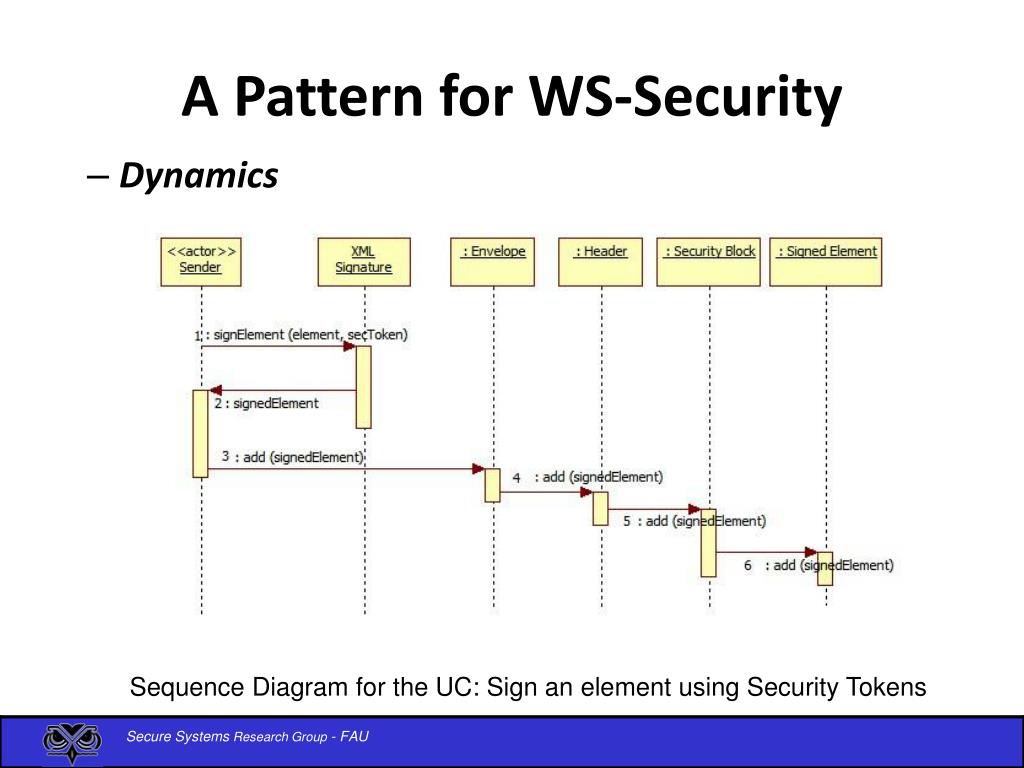

  10. A Pattern for WS-Security • Dynamics • Sequence Diagram for the UC: Sign an element using Security Tokens

  11. A Pattern for WS-Security • Consequences This pattern presents the following advantages: • XML Encryption allows to hide information from unauthorized users. • XML Digital signature is used to verify whether a message was modified in transit. • The combination of XML Signature and security tokens verifies that the user is who he claims to be. • We can prevent message replay using timestamps . The pattern also has some (possible) liabilities: • This pattern does not describe fixed security protocols.

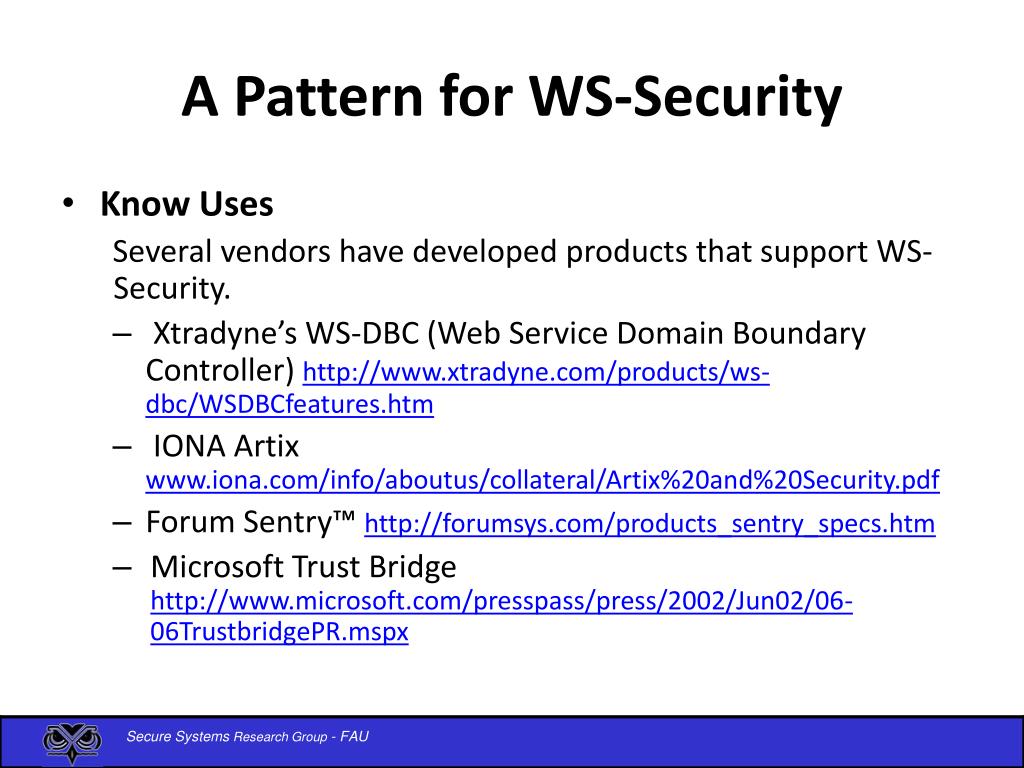

  12. A Pattern for WS-Security • Know Uses Several vendors have developed products that support WS-Security. • Xtradyne’s WS-DBC (Web Service Domain Boundary Controller) http://www.xtradyne.com/products/ws-dbc/WSDBCfeatures.htm • IONA Artixwww.iona.com/info/aboutus/collateral/Artix%20and%20Security.pdf • Forum Sentry™ http://forumsys.com/products_sentry_specs.htm • Microsoft Trust Bridge http://www.microsoft.com/presspass/press/2002/Jun02/06-06TrustbridgePR.mspx

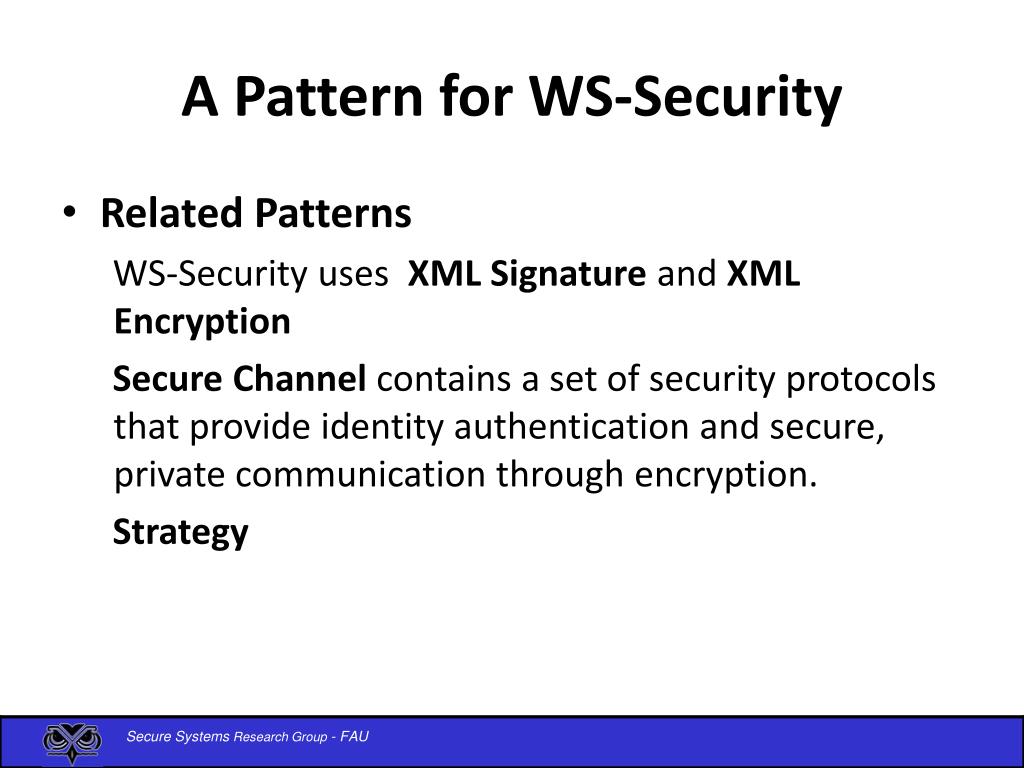

  13. A Pattern for WS-Security • Related Patterns WS-Security uses XML Signature and XML Encryption Secure Channel contains a set of security protocols that provide identity authentication and secure, private communication through encryption. Strategy

  14. Conclusion • We need to develop related patterns such as XML Encryption and XML Signature. • We need to develop patterns for the WS – family such as WS-Policy, WS-Privacy, WS-SecureConversation, WS-Federation, and WS-Authorization.
