  1. System Controller WV-CU650 ideas for life Quick Operation Guide Main Functions • Camera Setting and • Operation • Move cursor • Recording/Playback/Search • Login ID input • Camera and Monitor Select CAM(SET) • HD300 recording or playback operation from CU650 is possible only when selecting “Monitor 2 output” of HD300. (1) WV-CU650 Start Up Login Display 1. Turn on the power and wait Login standby display. Display 2. Press the CAM(SET) button, then enter User ID by using numeric buttons and press CAM(SET) button. Default Setting User ID: 650 Password: 650 * If more than 5 seconds with no operation, display returns to Login standby. Display 3. Enter password by using numeric buttons and press the CAM(SET) button.

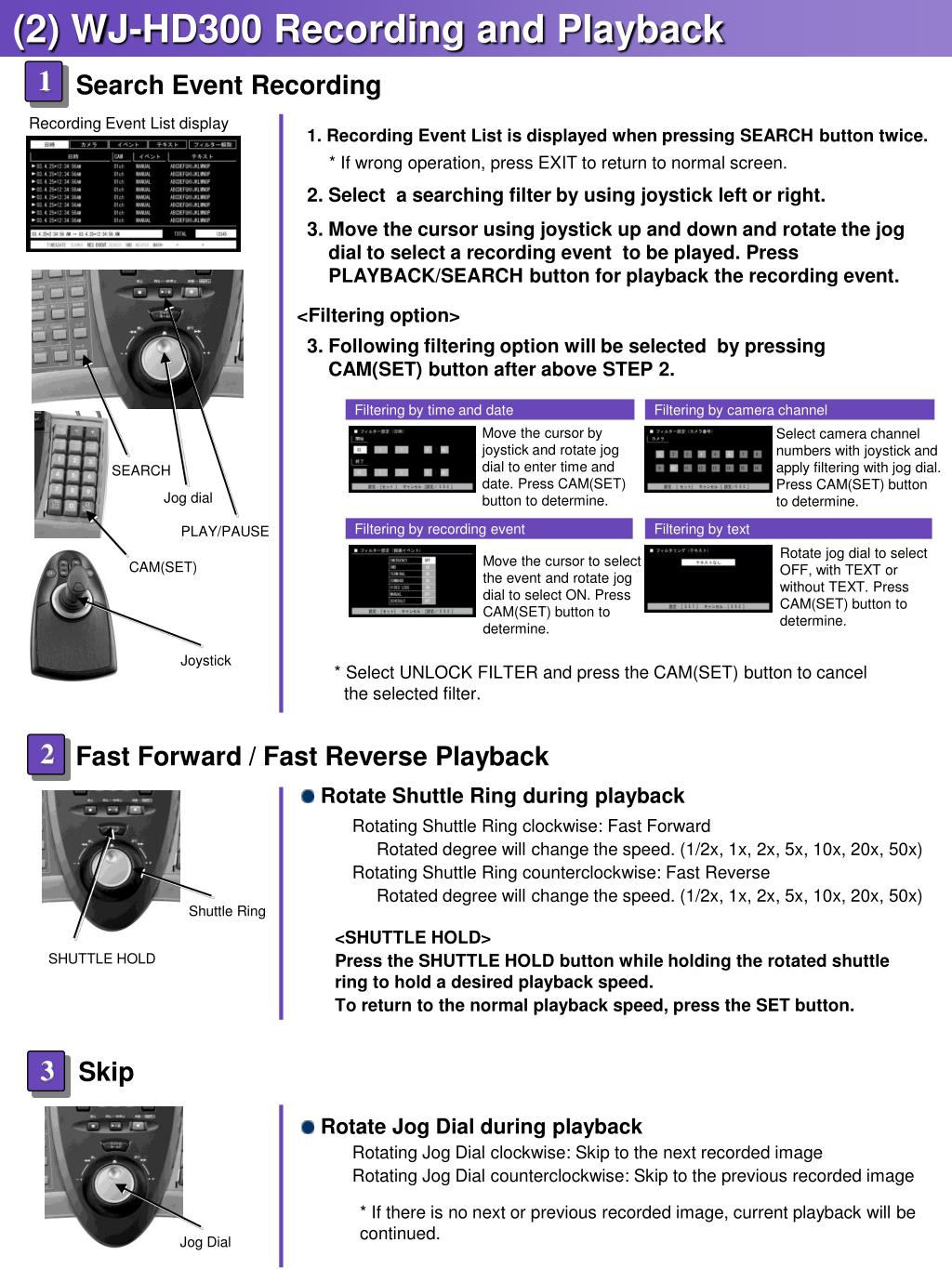

  2. (2) WJ-HD300 Recording and Playback 3 2 1 Search Event Recording Recording Event List display 1. Recording EventList is displayed when pressing SEARCH button twice. * If wrong operation, press EXIT to return to normal screen. 2. Select a searching filter by using joystick left or right. 3. Move the cursor using joystick up and down and rotate the jog dial to select a recording event to be played. Press PLAYBACK/SEARCH button for playback the recording event. <Filtering option> 3. Following filtering option will be selected by pressing CAM(SET) button after above STEP 2. Filtering by time and date Filtering by camera channel Select camera channel numbers with joystick and apply filtering with jog dial. Press CAM(SET) button to determine. Move the cursor by joystick and rotate jog dial to enter time and date. Press CAM(SET) button to determine. SEARCH Jog dial PLAY/PAUSE Filtering by recording event Filtering by text Move the cursor to select the event and rotate jog dial to select ON. Press CAM(SET) button to determine. Rotate jog dial to select OFF, with TEXT or without TEXT. Press CAM(SET) button to determine. CAM(SET) Joystick * Select UNLOCK FILTER and press the CAM(SET) button to cancel the selected filter. Fast Forward / Fast Reverse Playback • Rotate Shuttle Ring during playback Rotating Shuttle Ring clockwise: Fast Forward Rotated degree will change the speed. (1/2x, 1x, 2x, 5x, 10x, 20x, 50x) Rotating Shuttle Ring counterclockwise: Fast Reverse Rotated degree will change the speed. (1/2x, 1x, 2x, 5x, 10x, 20x, 50x) Shuttle Ring <SHUTTLE HOLD> Press the SHUTTLE HOLD button while holding the rotated shuttle ring to hold a desired playback speed. To return to the normal playback speed, press the SET button. SHUTTLE HOLD Skip • Rotate Jog Dial during playback Rotating Jog Dial clockwise: Skip to the next recorded image Rotating Jog Dial counterclockwise: Skip to the previous recorded image * If there is no next or previous recorded image, current playback will be continued. Jog Dial

  3. (3) Select Camera and Monitor 1 2 2 1 1 2 <About Display> Numeric Key display and System Unit Number Current Selected Camera Current Selected Monitor Select Monitor 1. Select monitor number to be displayed by numeric buttons and press MON(ESC) button to determine. Numeric Keys * If invalid monitor number selected, it returns to the previously selected monitor. MON(ESC) Select Camera 2. Select camera number to be monitored by numeric buttons and press CAM(SET) button to determine. Numeric Keys * If invalid camera number is selected, “Invalid” appears on the display and previously selected camera is displayed. CAM(SET) (4) Camera Operation Valid only for the Panasonic unitized camera such as WV-CS850B/CW860A/CS320/NS320 etc. Panning and Tilting Operation 1. Select camera number by entering camera number to be operated with numeric buttons and press CAM(SET) button. Numeric Keys 2. Moving the joystick to desired direction for panning and tilting control. Joystick CAM(SET) Zooming Operation 1. Select camera number by entering camera number to be operated by numeric buttons and press CAM(SET) button. Numeric Keys Zoom wheel 2. Moving zoom wheel to desired position for Telephoto image and wide image. CAM(SET) (5) Camera Adjustment Iris Adjustment Iris Button 1. Select camera number by entering camera number to be operated by numeric buttons and press CAM(SET) button. Numeric Keys “A” Button 2. Iris can be adjusted by pressing Iris Open or Iris Close button. * Iris Resetting by pressing “A” button Joystick CAM(SET) Focus Adjustment Focus Button 1. Select camera number by entering camera number to be operated by numeric buttons and press CAM(SET) button. 2. Auto Focus can be set by pressing “B” button or “Top” button. * Manual focus adjustment is also possible by pressing Focus Far or Focus Near buttons. Numeric Keys “B” Button Top Button CAM(SET)

  4. Other Functions 1 2 Multi Screen Display 1. It is possible to display images in multi-screen format by pressing MULTI SCREEN button. (4, 7, 9, 10, 13 and 16 screen for HD316, 4,7 and 9 for HD309) * If single screen needs to be displayed, enter desired camera number by numeric keys and press CAM(SET) button. MULTI SCREEN Electronic Zoom 1. Select desired camera and monitor to operate. 2. Pressing EL-ZOOM button displays 2 times or 4 times zooming image. Note: Picture quality of the enlarged image by electronic zoom will be decreased than standard image quality. * Displayed image position can be changed during electronic zoom by operating joystick. EL-ZOOM Joystick Message in LCD Display Invalid • When entering wrong User ID or Password • When entering invalid numbers Note: “Invalid” will be disappears in a few seconds. Prohibited • When operating restricted functions by user management setting. Note: “Prohibited” will be disappears in a few seconds. Unit Error • When selected unit is not connected properly Note: Make sure all connection on the rear panel of WJ-HD300 series. Controller No.1 No Exist Error • When Unit Address 1 is not created Set Rotary Switch to position 1 and create Unit Address 1 Project Big Bang, SSD GSG Version 1.0
