  1. JPEG 2000 Overview Detlef Götting Philips Semiconductors Systems Lab Hamburg Philips Electronics CONFIDENTIAL

  2. JPEG2000 - Introduction • ISO/IEC JTC 1 / SC 29 / WG 1 • ISO 15444 - 1 “Baseline core”ISO 15444 - 2 “Extensions”ISO 15444 - 3 “Motion-JPEG2000” ? Philips Electronics CONFIDENTIAL

  3. JPEG2000 - Status Part 1 • Current : WD Document “N1457” • Dezember 1999 : CD • November 2000 : DIS • March 2001 : IS Philips Electronics CONFIDENTIAL

  4. JPEG2000 - Status Part II • Current : Pre-WD • March 2000 : WD • July 2000 : CD • March 2001 : DIS • July 2001 : IS Philips Electronics CONFIDENTIAL

  5. ISO 15444 - 1 • JPEG2000 is based on 16 Bit markers and variable length data segments. • The arithmetic entropy coding used iscompliant to the “MQ Codec” from JBIG-2 Philips Electronics CONFIDENTIAL

  6. ISO 15444 - 1 • The wavelet coefficients are arranged into rectangular code blocks within each subband. • These code blocks are then coded bit-plane wise (MSBP to LSBP) into three passes (significance, refinement and clean up). Philips Electronics CONFIDENTIAL

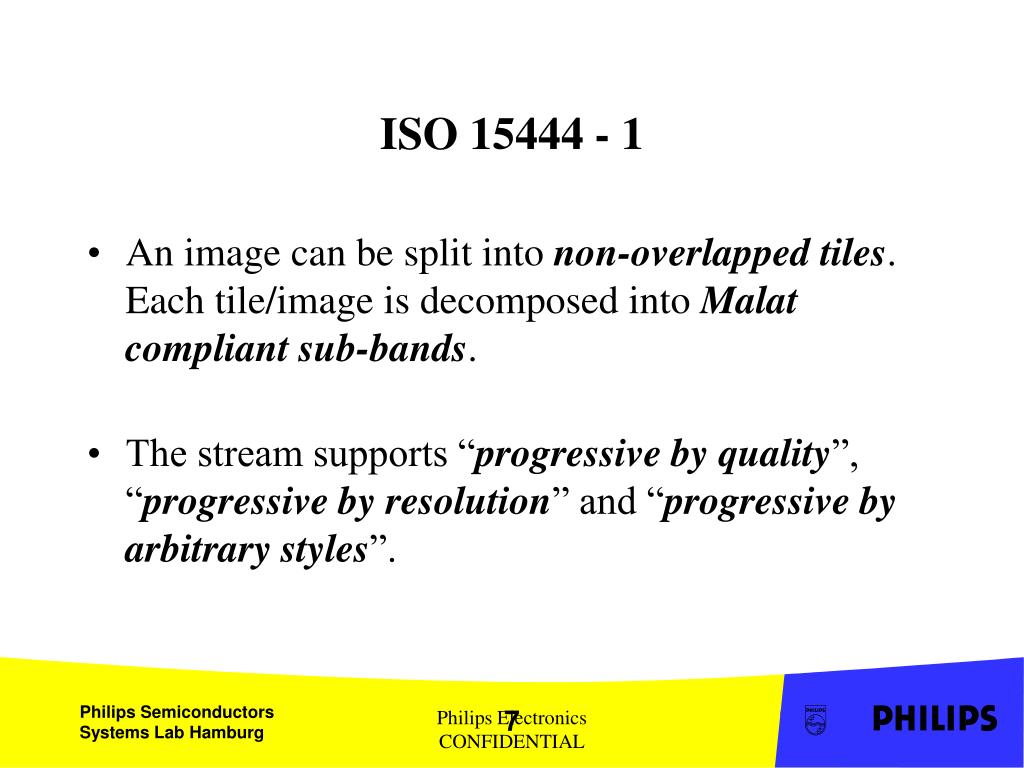

  7. ISO 15444 - 1 • An image can be split into non-overlapped tiles.Each tile/image is decomposed into Malat compliant sub-bands. • The stream supports “progressive by quality”, “progressive by resolution” and “progressive by arbitrary styles”. Philips Electronics CONFIDENTIAL

  8. ISO 15444 - 1 • The baseline core makes use of a scalar quantizer. In the extension it is possible to use also a trellis-based quantizer. • The transformation of the image/tile data is done by block or line based FDWT/IDWTs. Philips Electronics CONFIDENTIAL

  9. ISO 15444 - 1 • The supported region of interest coding is compliant to the scaling based method MAXSHIFT. • This allows arbitrary shaped ROIs( Part I : rectangular / Part II : any shape ) without shape information. Philips Electronics CONFIDENTIAL

  10. ISO 15444 - 1 • The standard allows multiple components. • The standard supports error resilience. • A ISO 15444 compliant file is identified by the extension “.JP2” Philips Electronics CONFIDENTIAL
