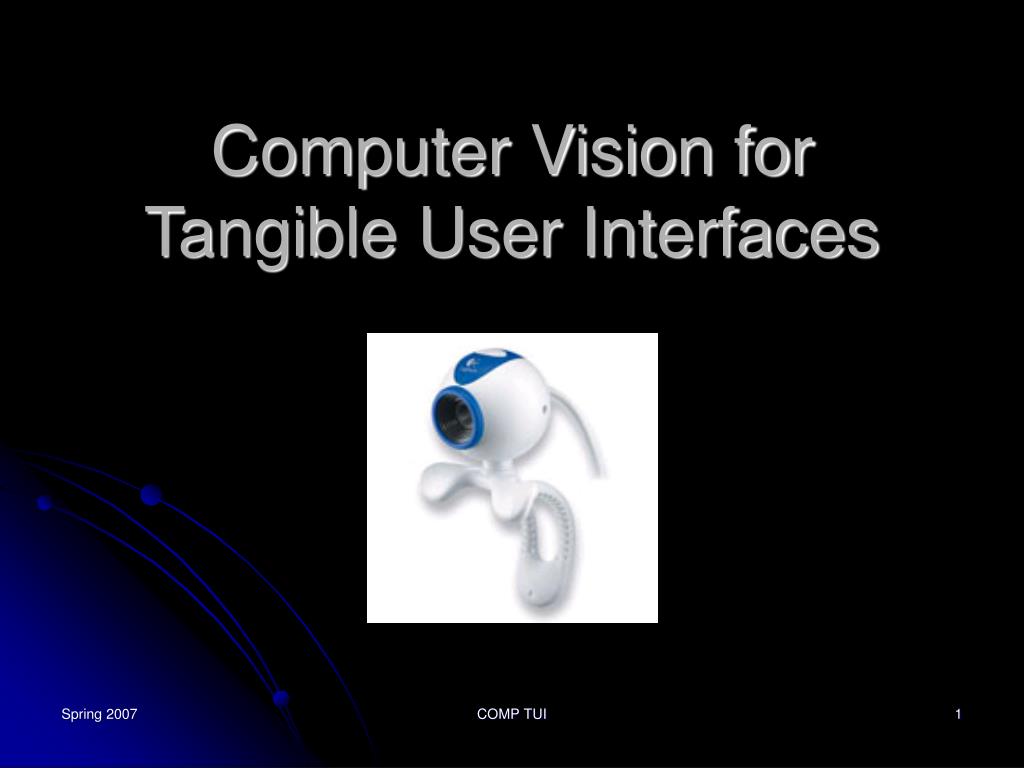

1. Computer Vision for Tangible User Interfaces COMP TUI

2. Computer Vision • Method for extracting information from images and video streams • Includes object identification and tracking • Commonly combined with video projectors in TUI applications to augment physical objects with digital information. COMP TUI

3. Computer Vision • Strengths: • Fast way to do mockups and prototypes • Can track position and orientation of multiple objects • Weaknesses: • Can be sensitive to lighting and obstructions • Not portable • Often not robust • Computationally expensive COMP TUI

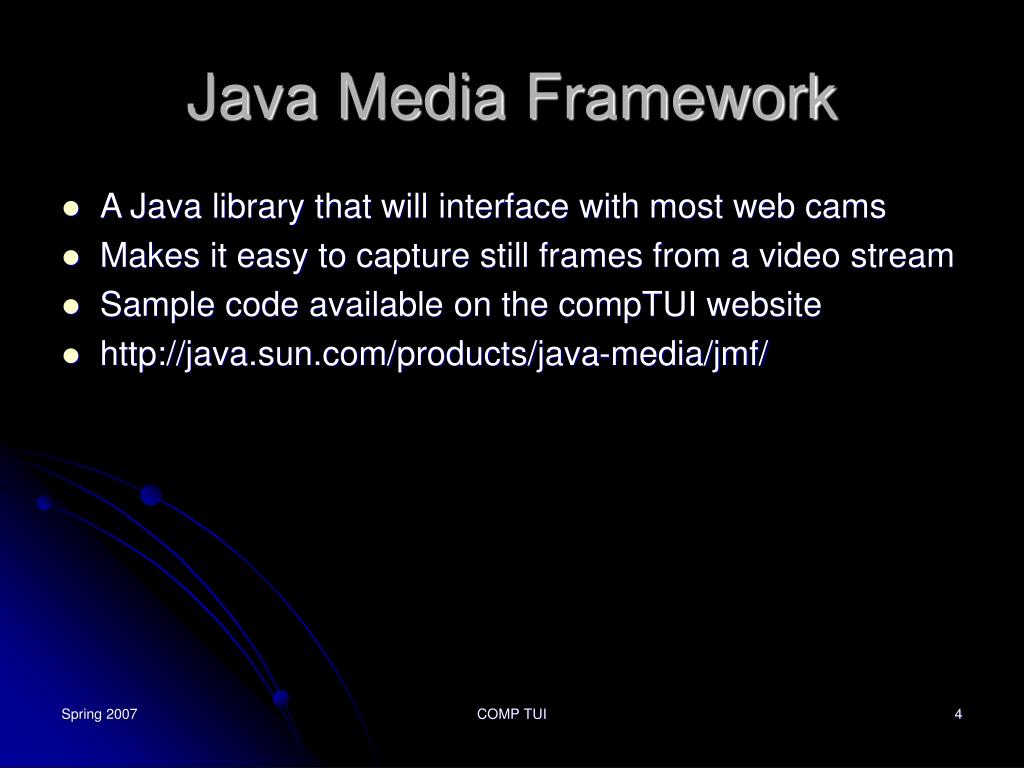

4. Java Media Framework • A Java library that will interface with most web cams • Makes it easy to capture still frames from a video stream • Sample code available on the compTUI website • http://java.sun.com/products/java-media/jmf/ COMP TUI

5. ARToolkit • Open source library • Tracks the position and orientation of physical markers • Real time performance • Markers use simple black squares • Pattern matching allows any marker patterns to be used • http://www.hitl.washington.edu/artoolkit/ COMP TUI

6. Intel’s Open Source Computer Vision Library (opencv) • Real time computer vision library • Open source • Object Identification • Face Recognition • Gesture Recognition • Motion Tracking • Tracks the position and orientation of physical markers • Real time performance • http://www.intel.com/technology/computing/opencv/ COMP TUI

7. TopCodes • Tangible Object Placement Codes • Designed for fast and accurate computer vision • Each TopCode encodes a 13-bit number • Can track position, size, and angular orientation of multiple objects • Self-calibrating • 100% Java • Code available on the compTUI website COMP TUI
