Presentation Transcript

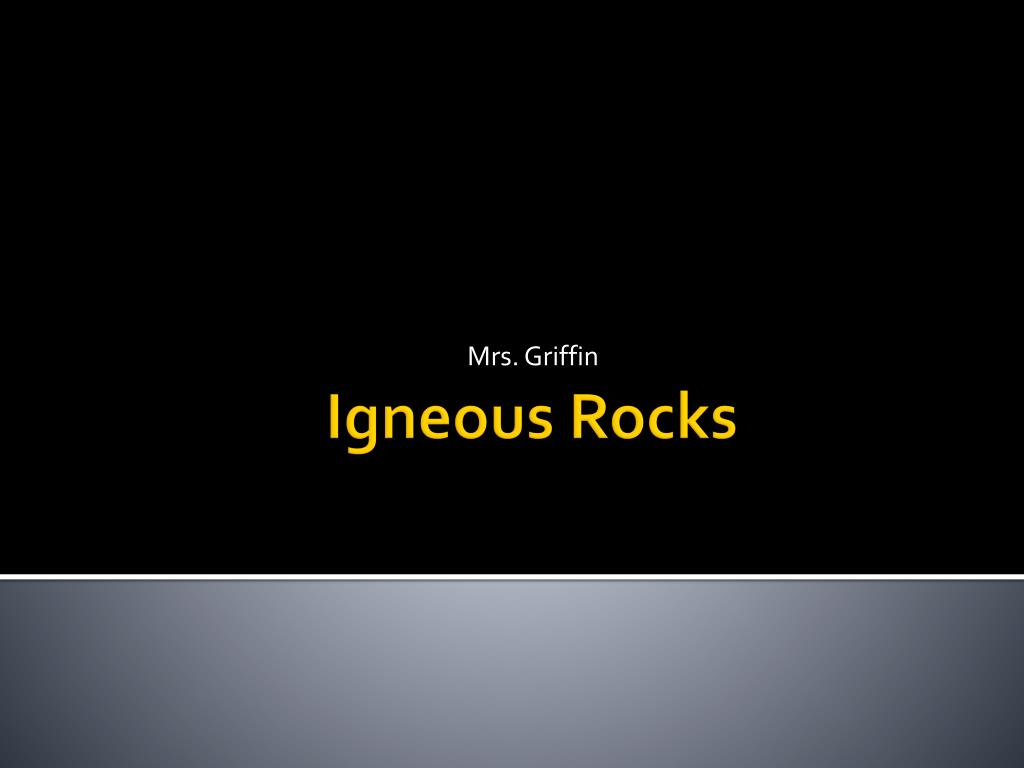

  1. Mrs. Griffin Igneous Rocks

  2. Igneous uses and resources • Granite, very durable. • Rhodes Memorial in Cape Town, South Africa…..De Beers? • Cecil Rhodes • Vietnam Memorial

  3. What are igneous rocks? • Igneous rocks are formed from the crystallization of magma. • Lava is magma that flows out onto Earth’s surface.

  4. Types of Igneous Rocks • Extrusive- fine-grained, that cool on Earth’s surface. • Intrusive-coarse-grained, that cool slowly beneath Earth’s surface. • Granite

  5. Composition of Magma • Slushy mix of molten rock, gases, and mineral crystals. • Elements are the same as the major elements found in Earth’s crust: O, Si, Al, Fe, Mg, Ca, K, Na. • Silica (SiO2) is the most abundant compound found in magma. Magmas are classified as basaltic , andesitic, and rhyolitic based on the amount of silica they contain: • Basaltic 50%, andesitic 60%, rhyolitic 70%

  6. Factors that Affect Magma Formation • Temperature, pressure, water content, and mineral composition. • Temperature and pressure/Earth’s crust: increase or decrease? • Water-> changes the melting point of rocks; as water content increases, the melting point decreases. • Different minerals have different melting points.

  7. How do rocks melt? • Water, candle wax, and ice tray. • Rocks contain different minerals and therefore have different melting points….this is why magma is often slushy. • Partial melting: where some minerals melt at low temperatures while others remain solid. • Fractional crystallization: the process where different minerals form at different temperatures. • The 1st minerals to crystallize from magma are the last minerals to melt during partial melting.

  8. Classifying Igneous Rocks • Further classify by mineralcomposition: 3 main groups of igneous rocks: • Felsic- granite, light-colored, & have high silica content, and contain quartz and the feldspars orthoclase and plagioclase. • Mafic rocks-include gabbro, dark colored, lower silica contents, rich in iron and magnesium. • Ultramafic- peridotite and dunite, have low silica content and high levels of iron and magnesium. • Diamonds are found in ultramafic rocks known as kimberlites. • Kimberly Diamond Mine in South Africa

  9. Classifying Igneous Rocks cont. • Grain size- obsidian no visible mineral grains vs. gabbro. • Texture, such as glassy. • Porphyritic texture- characterized by large, well-formed crystals surrounded by finer grained crystals of the same mineral or different minerals.

  10. Review • What are igneous rocks? How are they formed? • Compare and contrast intrusive/extrusive rocks? • What is partial melting? • Explain fractional crystallization.

  11. Mrs. Griffin Sedimentary & Metamorphic Rocks

  12. Formation of Sedimentary Rocks • Much of Earth’s surface is covered with sediments- pieces of solid material that have been deposited on Earth’s surface by wind, water, ice, gravity, or chemical precipitation. • Up or down? • When these sediments become cemented together they form sedimentary rocks. This process begins when weathering and erosion produce sediments.

  13. Weathering • A set of physical and chemical processes that break rock into smaller pieces. • Produces rock and mineral fragments known as clastic sediments. How is a solid rock formed from clastic sediments? • Weathering • Erosion and transport • Deposition • Burial and lithification

  14. Features of sedimentary rocks • The primary feature of sedimentary rocks is bedding. • Graded bedding- particle sizes become progressively heavier and coarser towards the bottom layer. • Cross bedding- inclined layers of sediment move forward across a horizontal surface.

  15. Features continued • The best-known features of sedimentary rocks is what??? • Fossils

  16. Types of Sedimentary Rocks • The most common type of sedimentary rocks are clastic rocks. These can be further classified according to the sizes of their particles. • Coarse-grained- breccia • Medium-grained- sandstone, an important feature: porosity, the % of open spaces b/w grains in a rock. • Fine-grained- siltstone.

  17. Metamorphic Rocks • When rocks are buried at great depths, pressure and temperature increase -> rocks melt and form magma. • What happens if they don’t get to this point? • Rock will change form while remaining solid, metamorphism. • When high temperature and pressure affect large region’s of the Earth’s crust they produce large belts of regional metamorphism.

  18. Metamorphic Textures • Classified into two textural groups: • Foliated- wavy layer and bands of minerals, schist and gneiss. • Nonfoliated- lack mineral grains with long axes in one direction, quartzite and marble.

  19. The Rock Cycle • The continues changing and remaking of rocks.
