  1. Lessons in Messaging Steven P. Reiss Brown University

  2. Our Experiences • FIELD • Tool integration using messaging • Information pipelines • Desert • Cooperative programming • ToolTalk integration • Tango • Interesting events • Other Lessons In Messaging

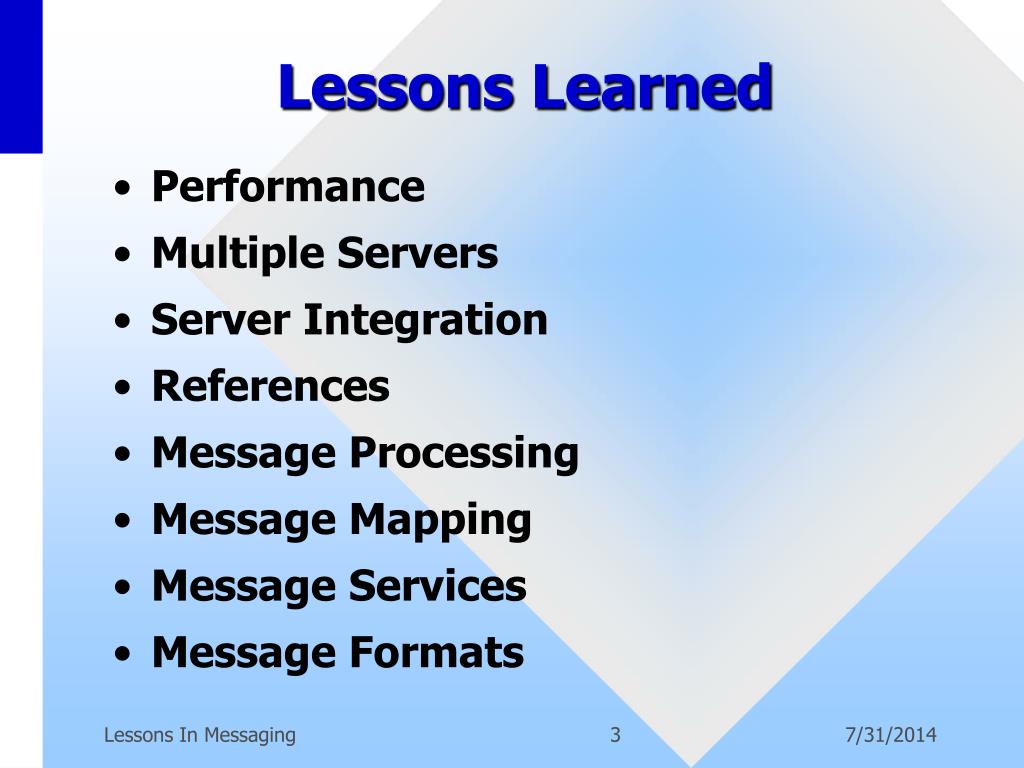

  3. Lessons Learned • Performance • Multiple Servers • Server Integration • References • Message Processing • Message Mapping • Message Services • Message Formats Lessons In Messaging

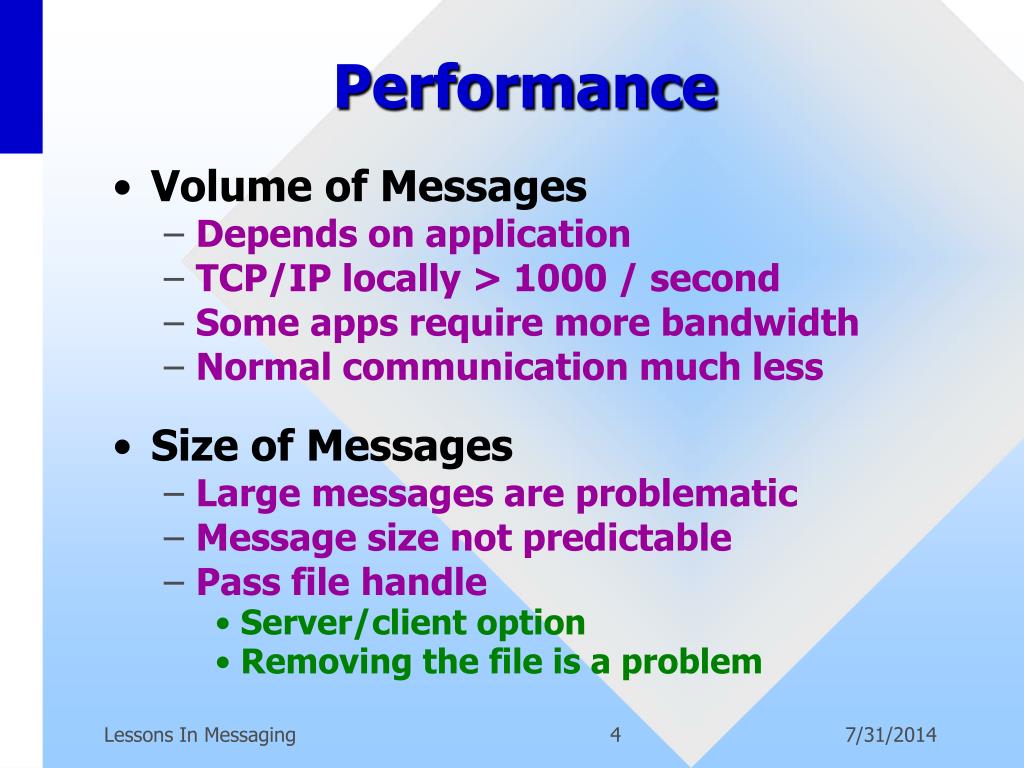

  4. Performance • Volume of Messages • Depends on application • TCP/IP locally > 1000 / second • Some apps require more bandwidth • Normal communication much less • Size of Messages • Large messages are problematic • Message size not predictable • Pass file handle • Server/client option • Removing the file is a problem Lessons In Messaging

  5. Multiple Servers • Causes • Multiple programming sessions • Might want to switch in the middle • Might want a common server • Group versus Local Communication • Multiple applications (debugging) • Effects • Need to identify server Lessons In Messaging

  6. Multiple Servers • Message groups (DEC) • Single physical, multiple logical servers • Good for local operations • Multiple Physical Servers • Separate local and global messages • Separate unrelated applications • Notes • How does tool find the proper server • Current working directory Lessons In Messaging

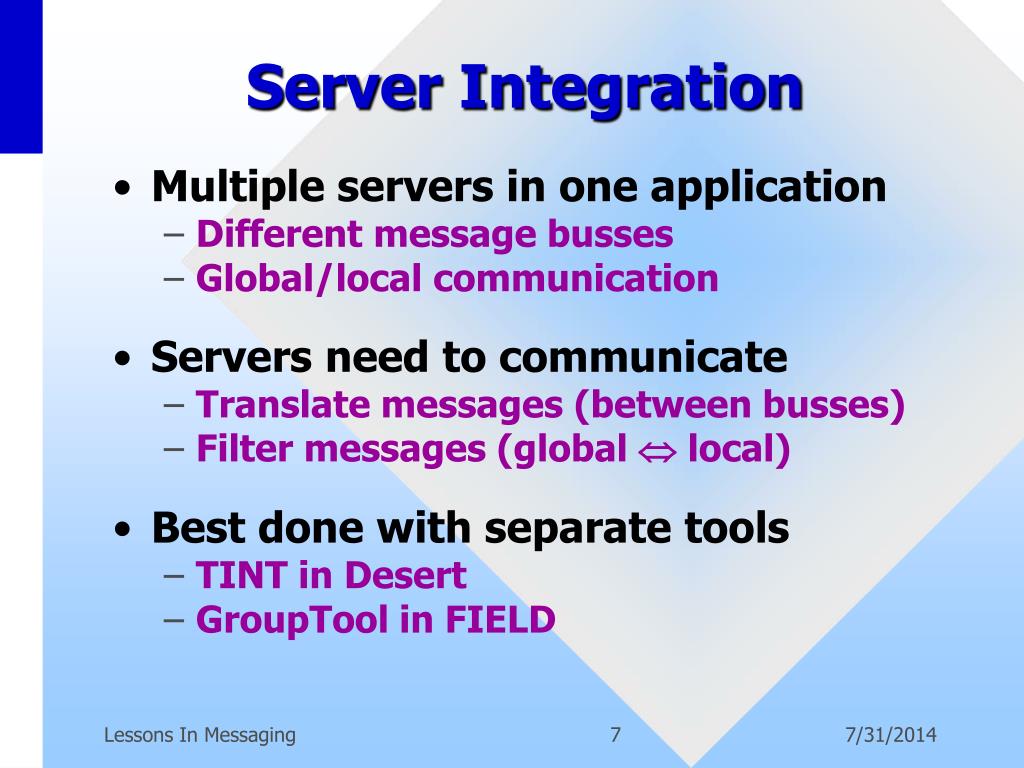

  7. Server Integration • Multiple servers in one application • Different message busses • Global/local communication • Servers need to communicate • Translate messages (between busses) • Filter messages (global  local) • Best done with separate tools • TINT in Desert • GroupTool in FIELD Lessons In Messaging

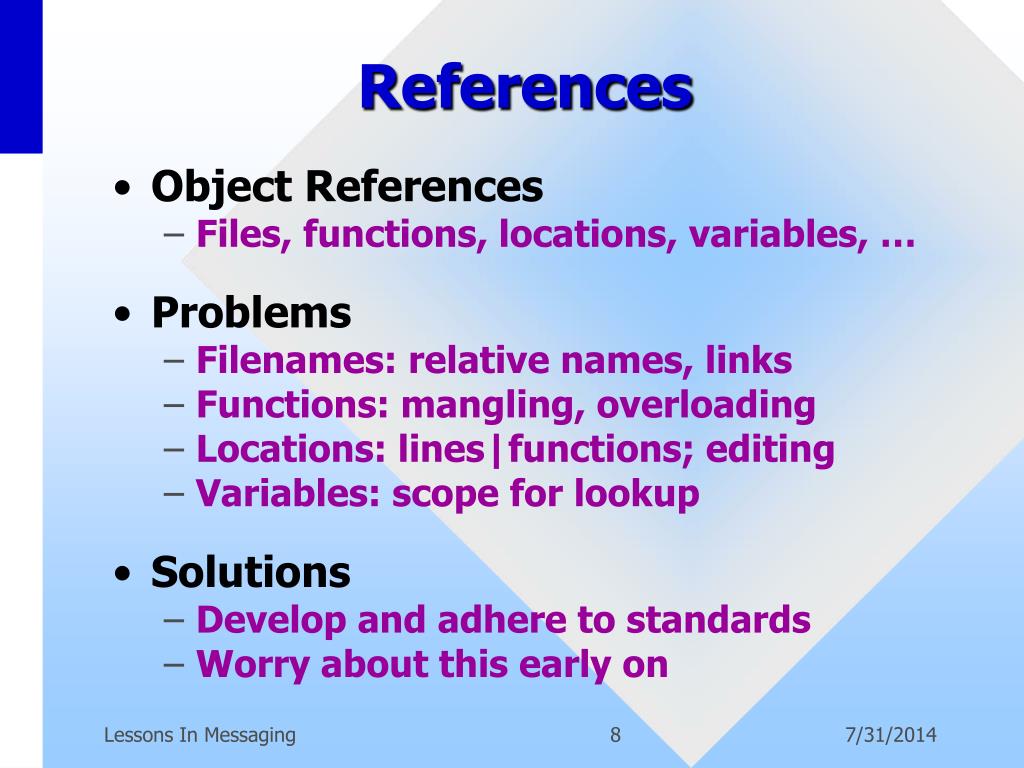

  8. References • Object References • Files, functions, locations, variables, … • Problems • Filenames: relative names, links • Functions: mangling, overloading • Locations: lines|functions; editing • Variables: scope for lookup • Solutions • Develop and adhere to standards • Worry about this early on Lessons In Messaging

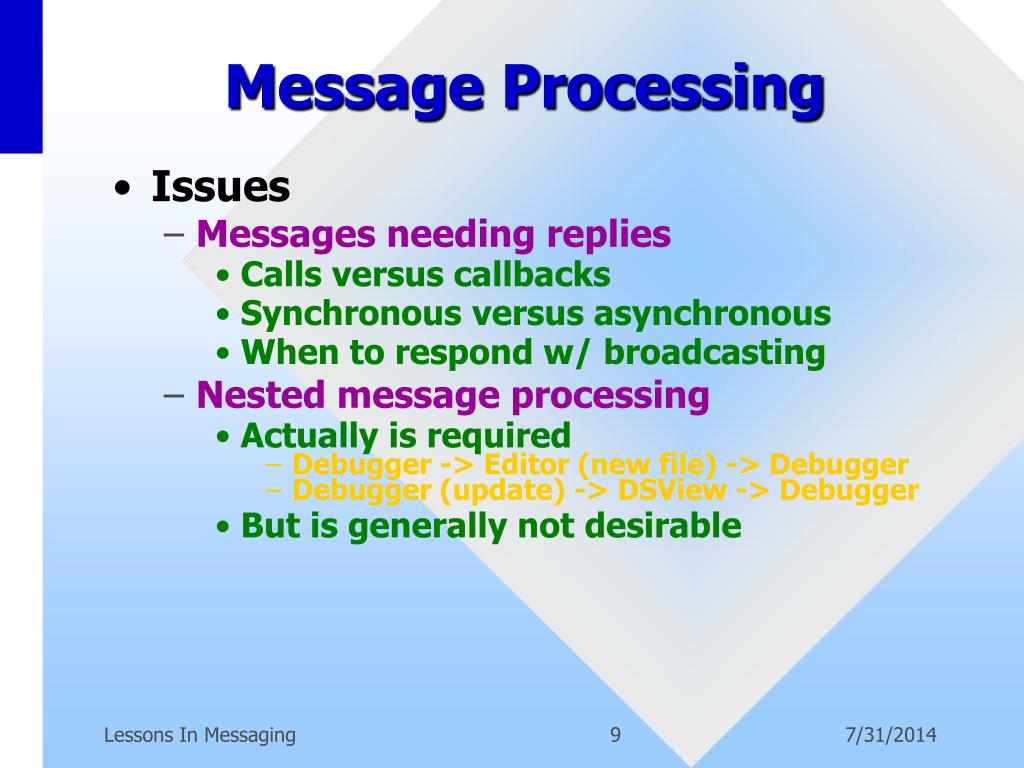

  9. Message Processing • Issues • Messages needing replies • Calls versus callbacks • Synchronous versus asynchronous • When to respond w/ broadcasting • Nested message processing • Actually is required • Debugger -> Editor (new file) -> Debugger • Debugger (update) -> DSView -> Debugger • But is generally not desirable Lessons In Messaging

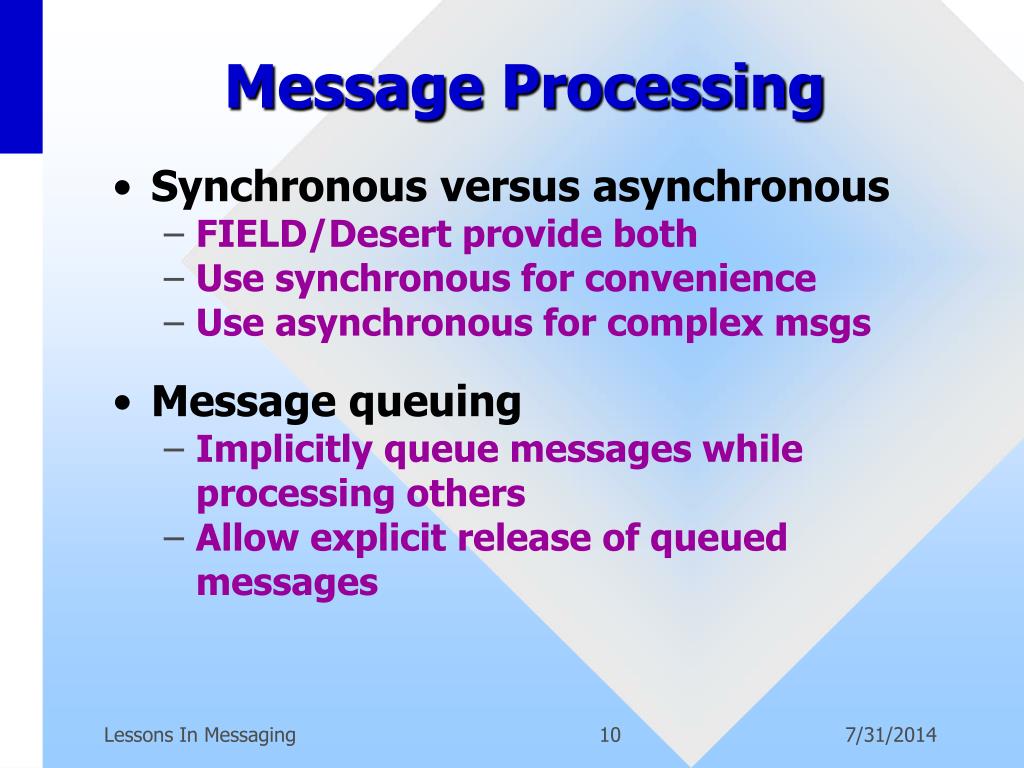

  10. Message Processing • Synchronous versus asynchronous • FIELD/Desert provide both • Use synchronous for convenience • Use asynchronous for complex msgs • Message queuing • Implicitly queue messages while processing others • Allow explicit release of queued messages Lessons In Messaging

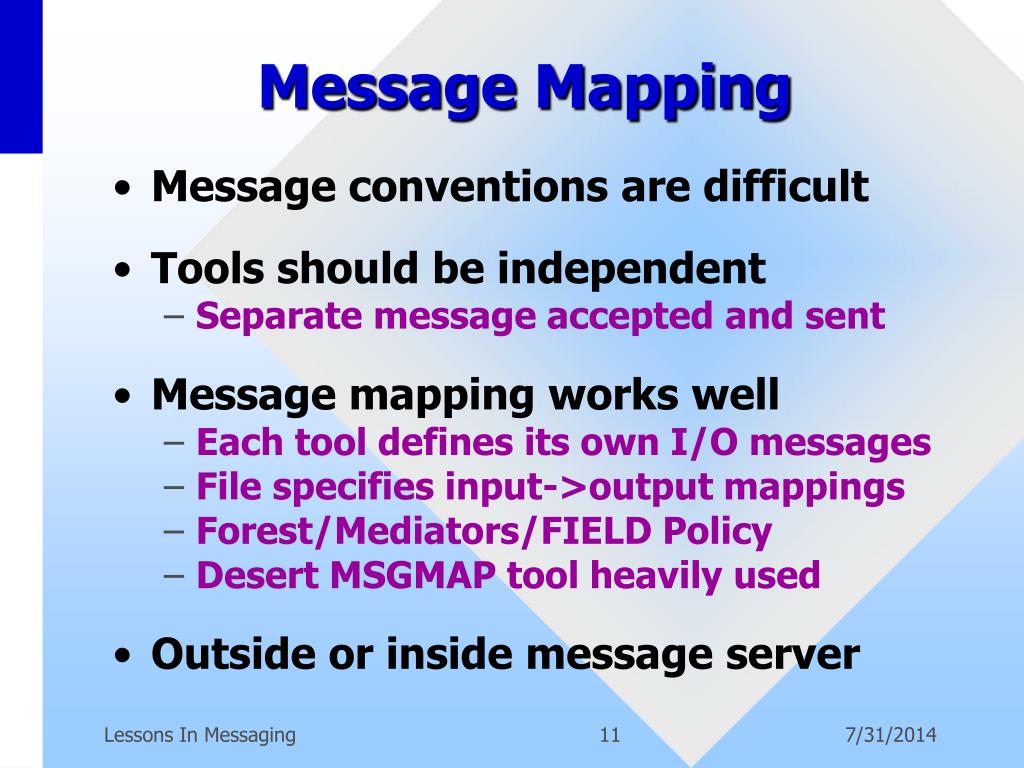

  11. Message Mapping • Message conventions are difficult • Tools should be independent • Separate message accepted and sent • Message mapping works well • Each tool defines its own I/O messages • File specifies input->output mappings • Forest/Mediators/FIELD Policy • Desert MSGMAP tool heavily used • Outside or inside message server Lessons In Messaging

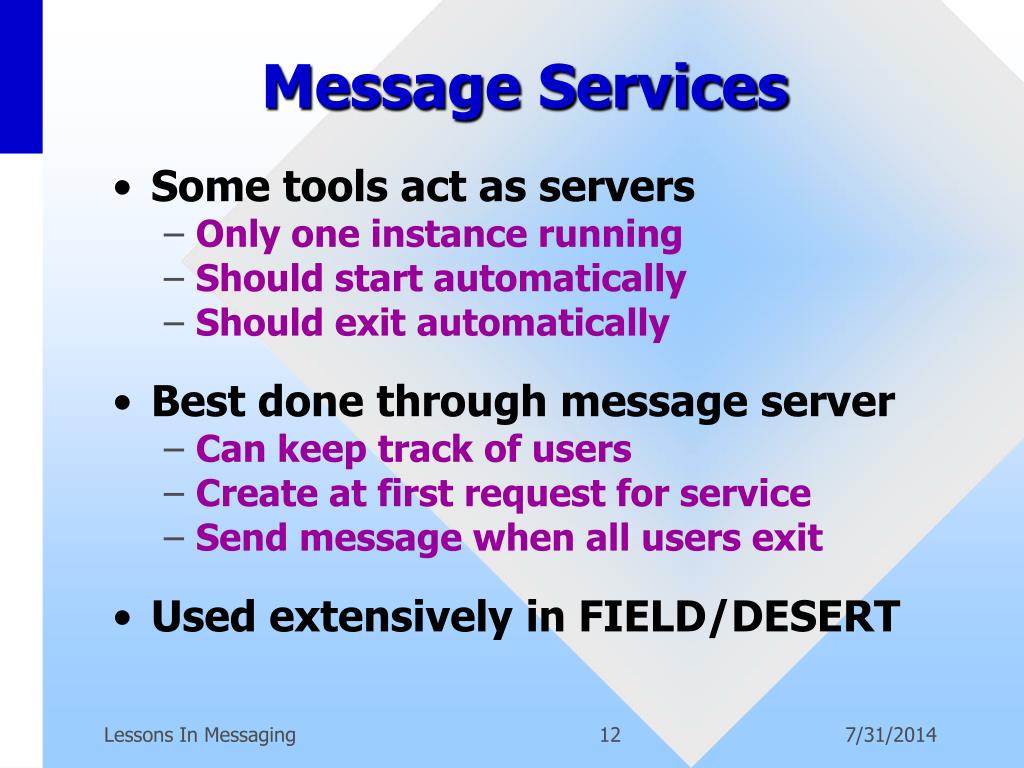

  12. Message Services • Some tools act as servers • Only one instance running • Should start automatically • Should exit automatically • Best done through message server • Can keep track of users • Create at first request for service • Send message when all users exit • Used extensively in FIELD/DESERT Lessons In Messaging

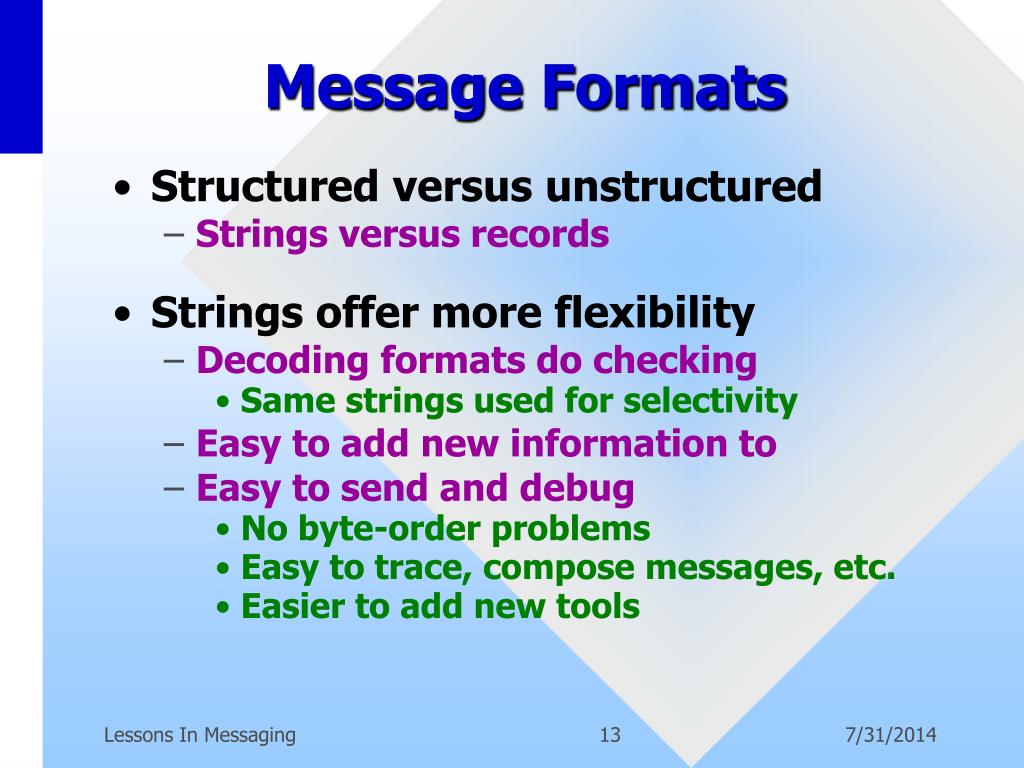

  13. Message Formats • Structured versus unstructured • Strings versus records • Strings offer more flexibility • Decoding formats do checking • Same strings used for selectivity • Easy to add new information to • Easy to send and debug • No byte-order problems • Easy to trace, compose messages, etc. • Easier to add new tools Lessons In Messaging

  14. Wide Area Messaging • Performance • Utility depends on number of messages • (100000,1000,10,1)/second • Handle all size messages • Multiple Servers • Allow multiple servers (logical or physical) • Server Integration • Provide interconnections to local servers Lessons In Messaging

  15. Wide Area Messaging • References • Develop vocabulary for applications • Standards are part of the specifications • Message Processing • Develop scheme for nested processing • Make it easy to use • Message Mapping • Provide hooks/facilities for mapping Lessons In Messaging

  16. Wide Area Messaging • Message Services • Provide service facilities • Provide server/client frameworks • Message Formats • Choose extensible and flexible formats • Make them easy to change Lessons In Messaging
