  1. Regression

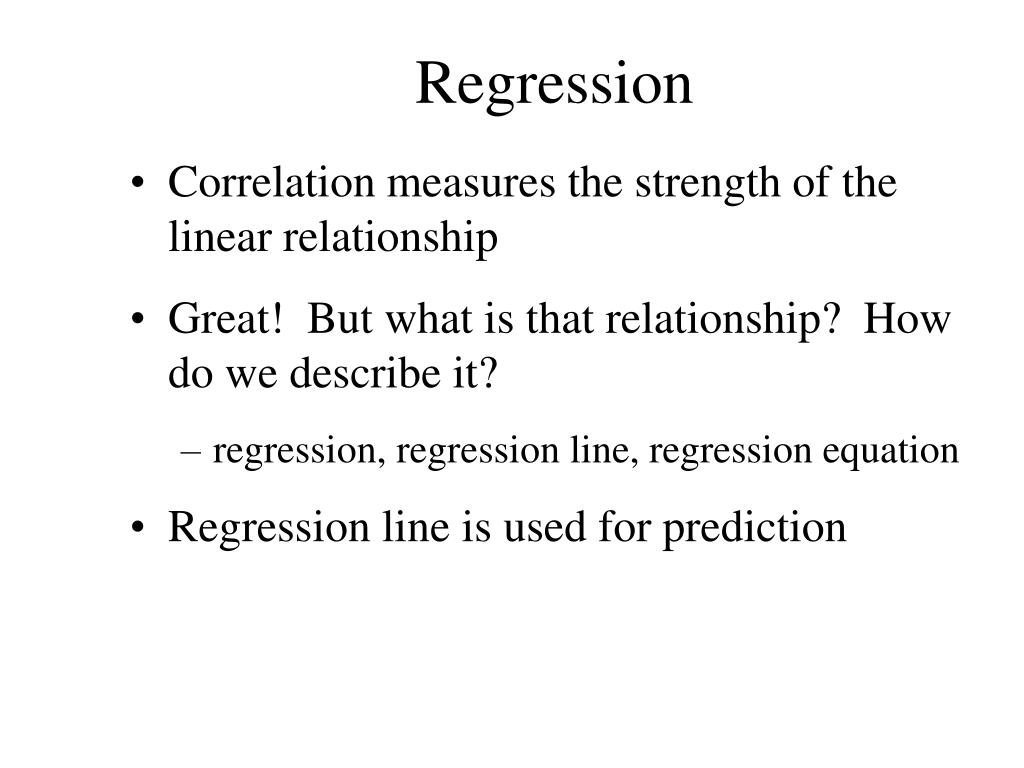

  2. Regression • Correlation measures the strength of the linear relationship • Great! But what is that relationship? How do we describe it? • regression, regression line, regression equation • Regression line is used for prediction

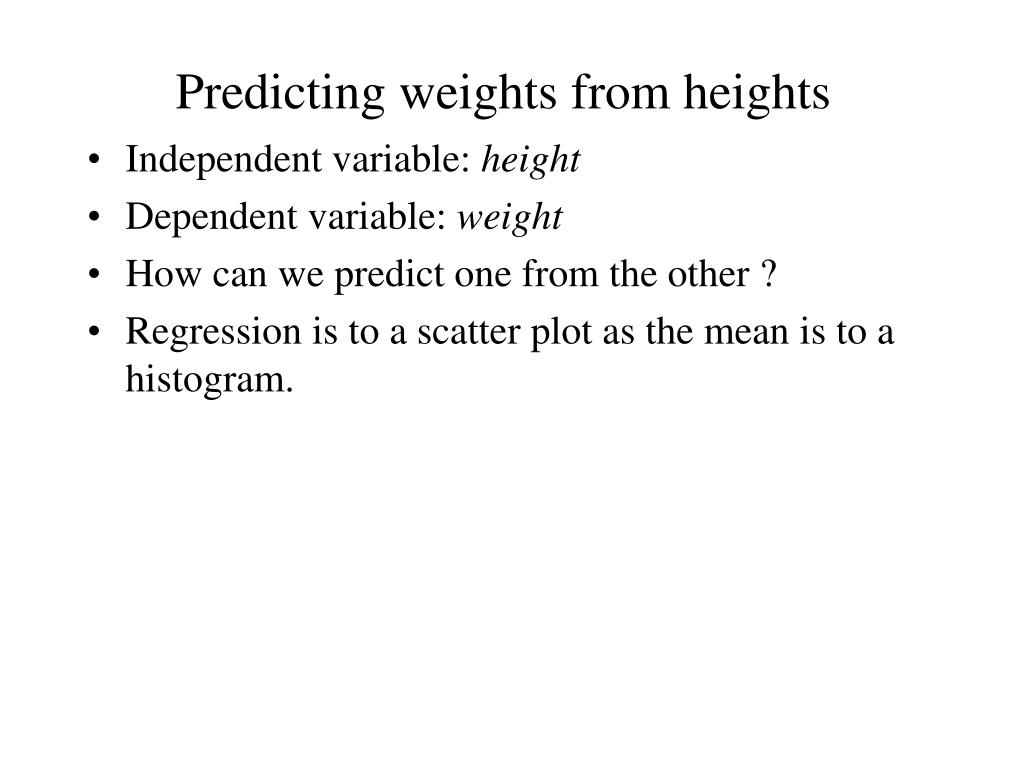

  3. Predicting weights from heights • Independent variable: height • Dependent variable: weight • How can we predict one from the other ? • Regression is to a scatter plot as the mean is to a histogram.

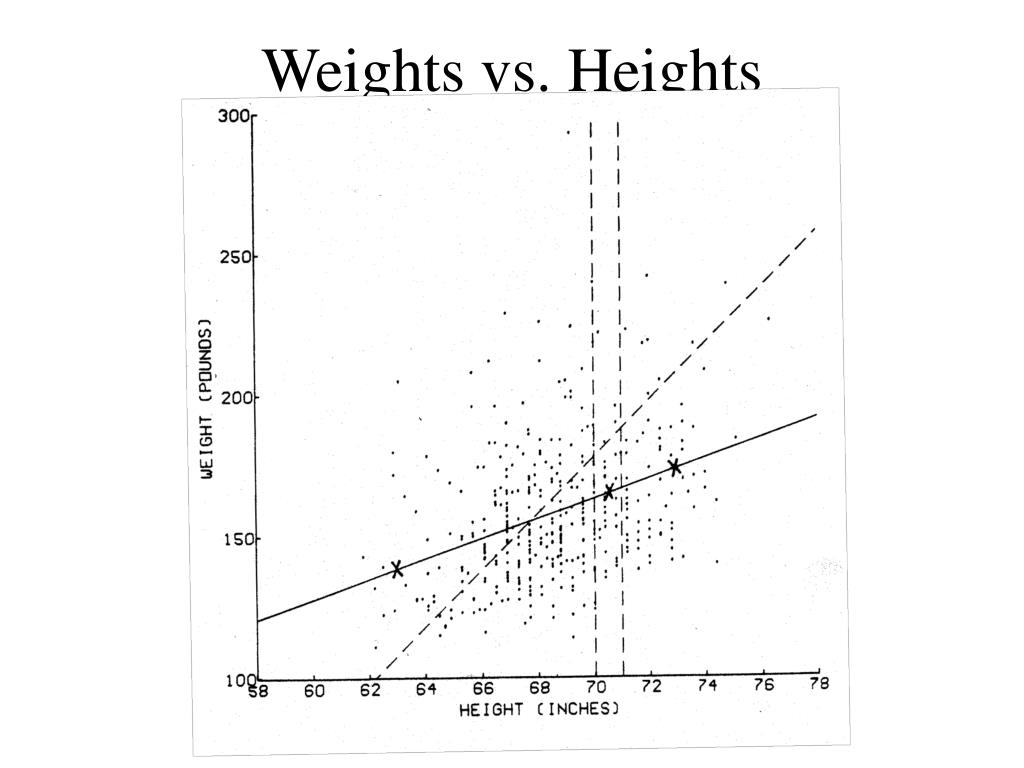

  4. Weights vs. Heights

  5. 70000 60000 50000 40000 30000 SALARY 20000 -5 0 5 10 15 20 25 30 YRS EM Salary by years employed

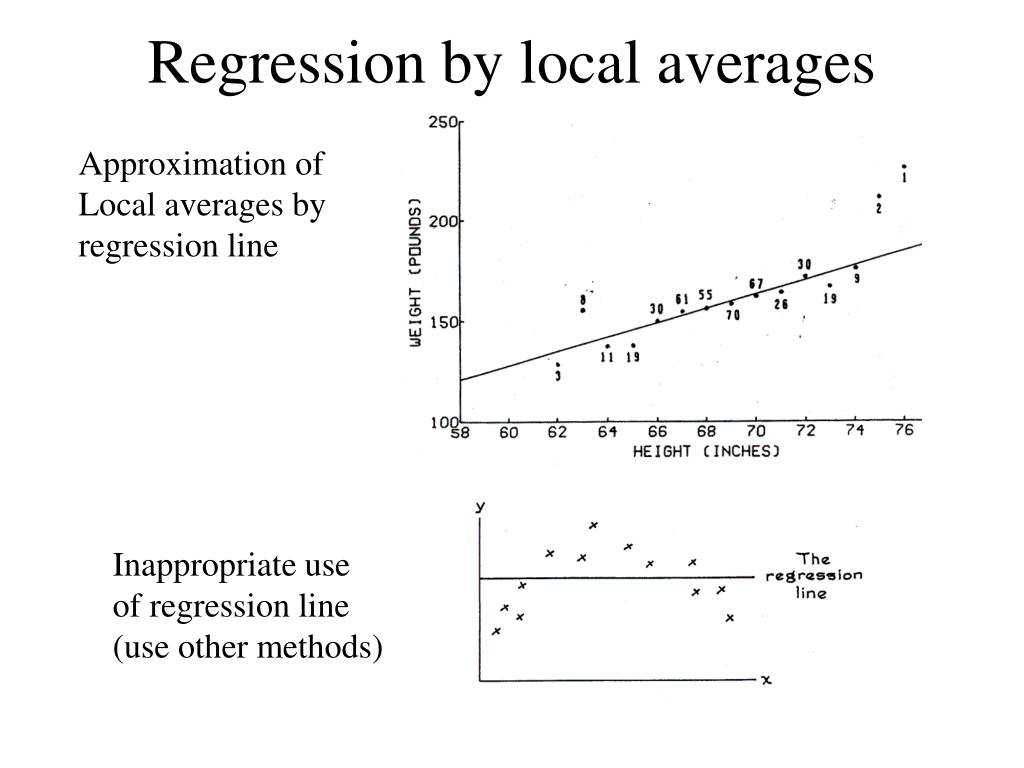

  6. Regression by local averages Approximation of Local averages by regression line Inappropriate use of regression line (use other methods)

  7. The equation of a line • a represents the y-intercept • when x equals zero, y equals a • Is this always meaningful in the context of a problem? • Is it always useful in defining a line? • b represents the slope of the line (rise/run) • for every unit change in x, y changes by b. • Does this mean that if we physically change x by one unit, y will change by b units? Say we gain another year of experience. Will our salary go up by 1107?

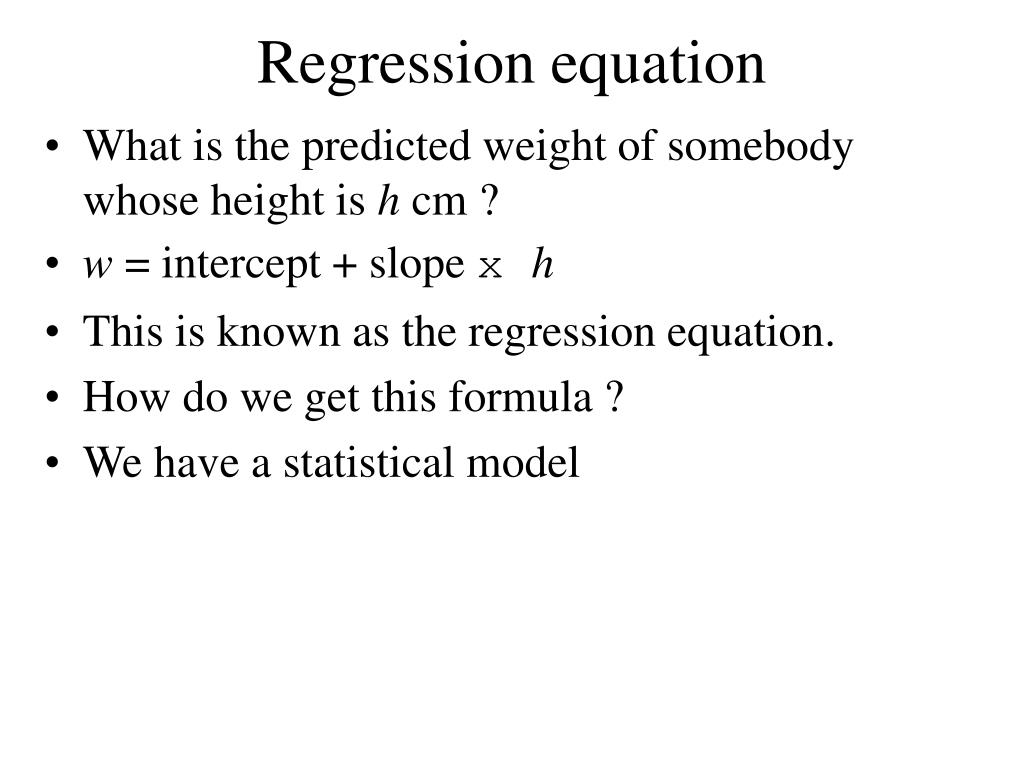

  8. Regression equation • What is the predicted weight of somebody whose height is h cm ? • w = intercept + slope x h • This is known as the regression equation. • How do we get this formula ? • We have a statistical model

  9. A residual Regression line by minimising residual errors • ei = error of i-th obs from • regression line • The best candidate line will • minimise these errors • No line can make all errors vanish (some +ve, some –ve)

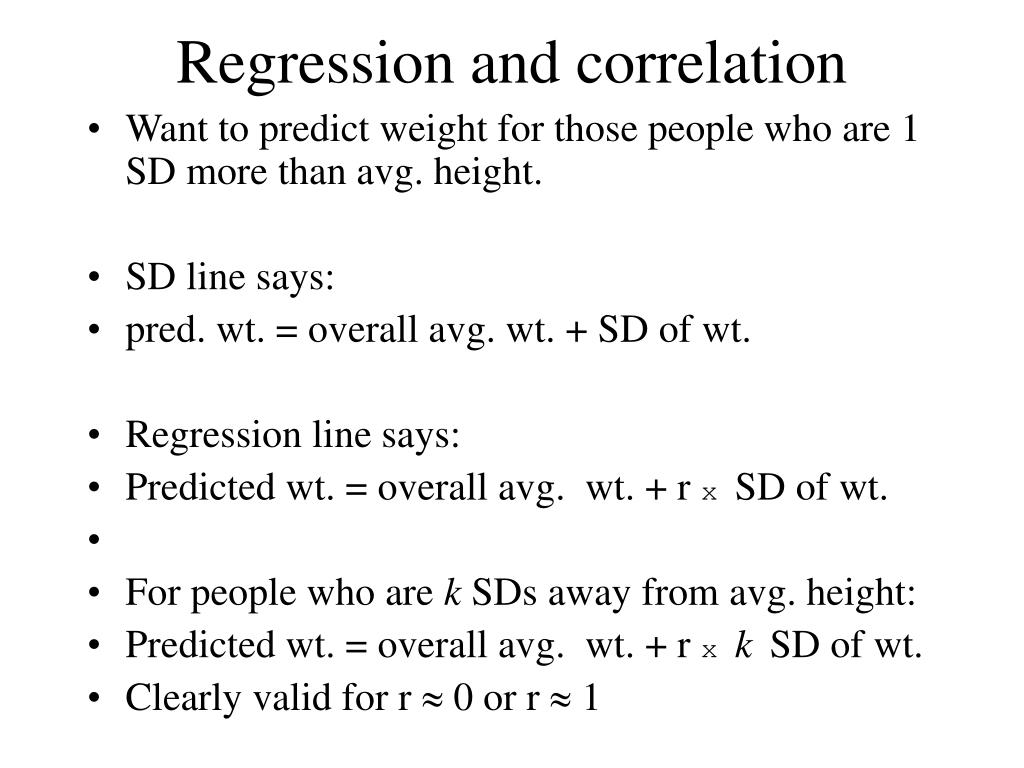

  10. Regression and correlation • Want to predict weight for those people who are 1 SD more than avg. height. • SD line says: • pred. wt. = overall avg. wt. + SD of wt. • Regression line says: • Predicted wt. = overall avg. wt. + r x SD of wt. • For people who are k SDs away from avg. height: • Predicted wt. = overall avg. wt. + r x kSD of wt. • Clearly valid for r  0 or r  1

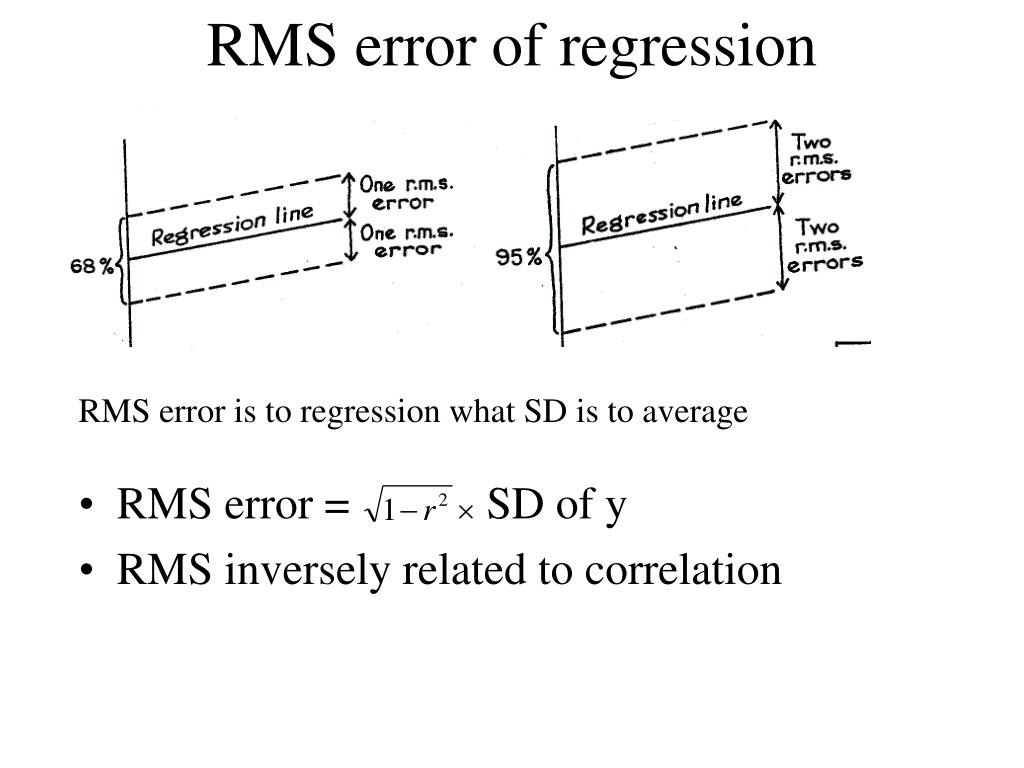

  11. RMS error of regression • RMS error = SD of y • RMS inversely related to correlation RMS error is to regression what SD is to average

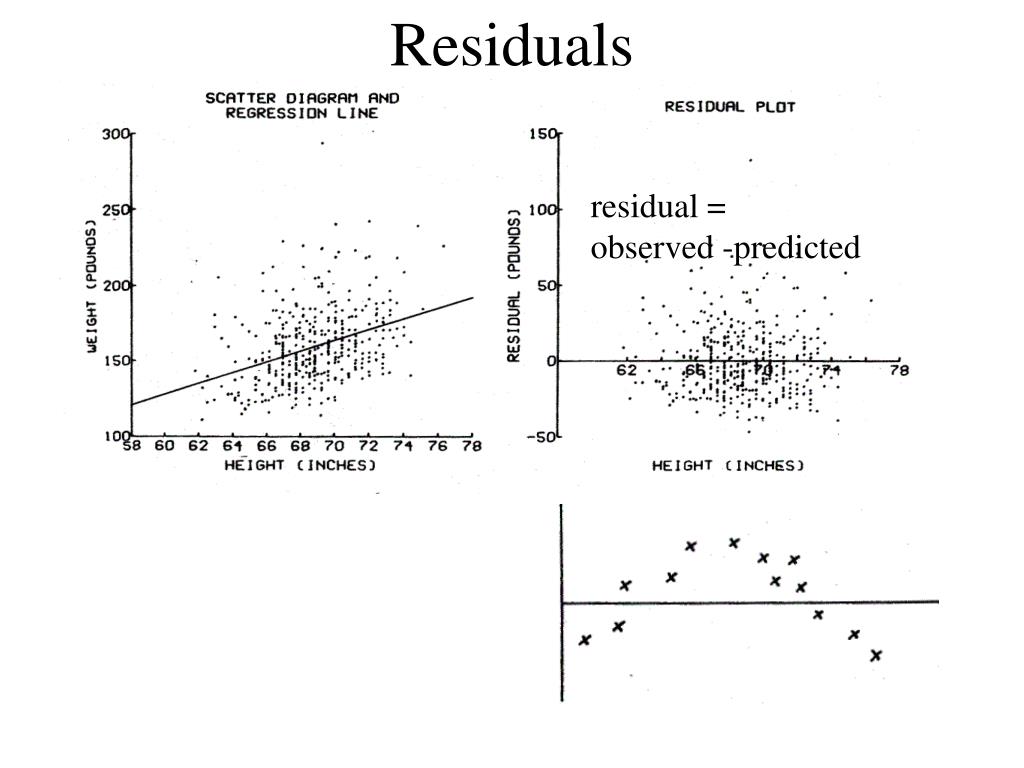

  12. Residuals residual = observed -predicted

  13. Example: ozone vs. temperature > air[,c(1,3)] ozone temperature 3.4567 3.30 72 2.2974 2.62 62 2.84 65 . . . > cor(ozone,temperature) [1] 0.7531038

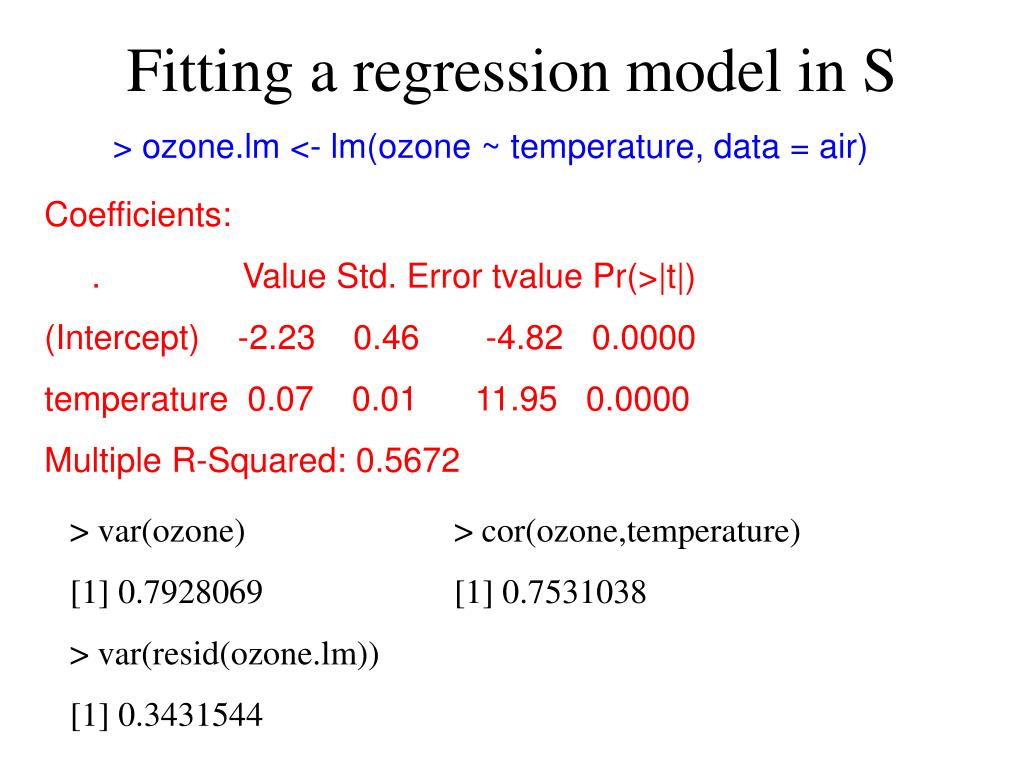

  14. Fitting a regression model in S > ozone.lm <- lm(ozone ~ temperature, data = air) Coefficients: . Value Std. Error tvalue Pr(>|t|) (Intercept) -2.230.46 -4.820.0000 temperature 0.070.0111.95 0.0000 Multiple R-Squared: 0.5672 > var(ozone) [1] 0.7928069 > var(resid(ozone.lm)) [1] 0.3431544 > cor(ozone,temperature) [1] 0.7531038

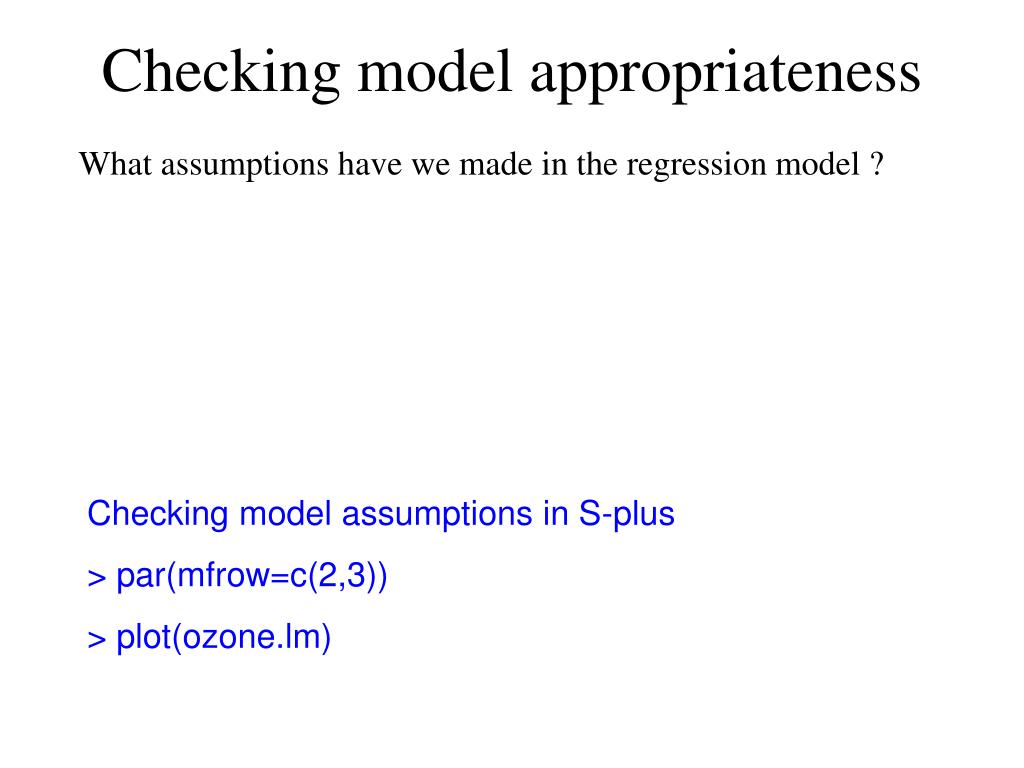

  15. Checking model appropriateness What assumptions have we made in the regression model ? Checking model assumptions in S-plus > par(mfrow=c(2,3)) > plot(ozone.lm)

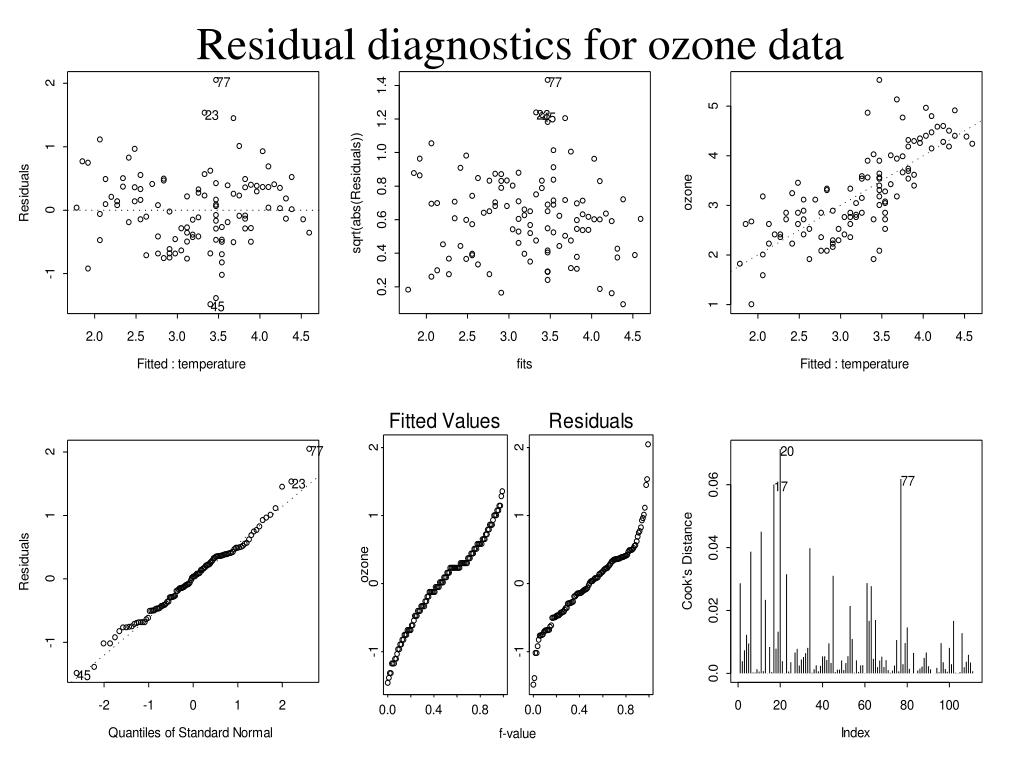

  16. Residual diagnostics for ozone data

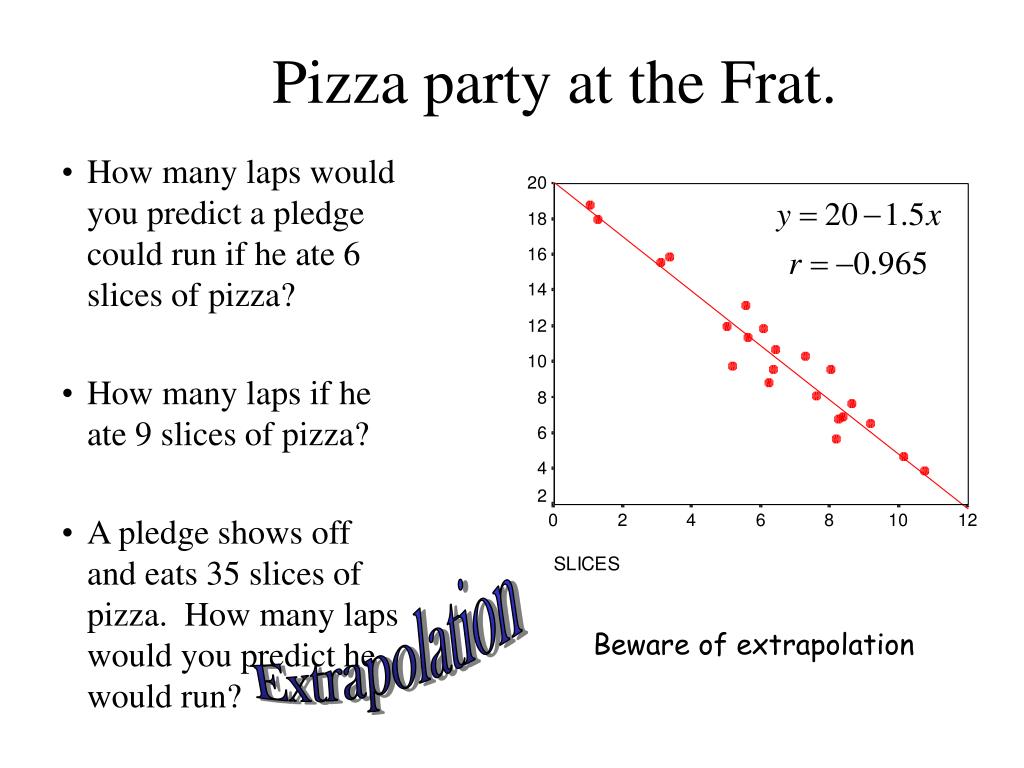

  17. Extrapolation Beware of extrapolation Pizza party at the Frat. • How many laps would you predict a pledge could run if he ate 6 slices of pizza? • How many laps if he ate 9 slices of pizza? • A pledge shows off and eats 35 slices of pizza. How many laps would you predict he would run?
