  1. Team 8: Grand River Rapids

  2. Team 8 Aaron Vanderhill Jim Barron Jeff Van Laar Tom Marshall

  3. Outline • Project Overview • Design Norms • Major Design Decisions • HEC-RAS Modeling • Entry and Exit Points • Future Work • Questions

  4. Project Overview • Return the Grand River to a more natural state • Replace beautification dams with rocks • Eliminate dangerous undertow at 4th street dam • Design entry and exit locations for kayakers

  5. Design Norms • Caring • Eliminate dangers associated with dams • Justice • Respect rights of fishermen and property owners • Stewardship • Naturalize river • Improve fish habitat

  6. Major Design Decisions • Flow Rate • River used between April and November • Low flow = 1,700 cfs • High flow = 50,000 cfs (100 year storm) • Design flow of 3,200 cfs

  7. Major Design Decisions • Modeling Accuracy • Rocks & boulders as series of weirs

  8. Project Location

  9. 4th Street Dam Safety Hazard

  10. Design Solution – Stairstep

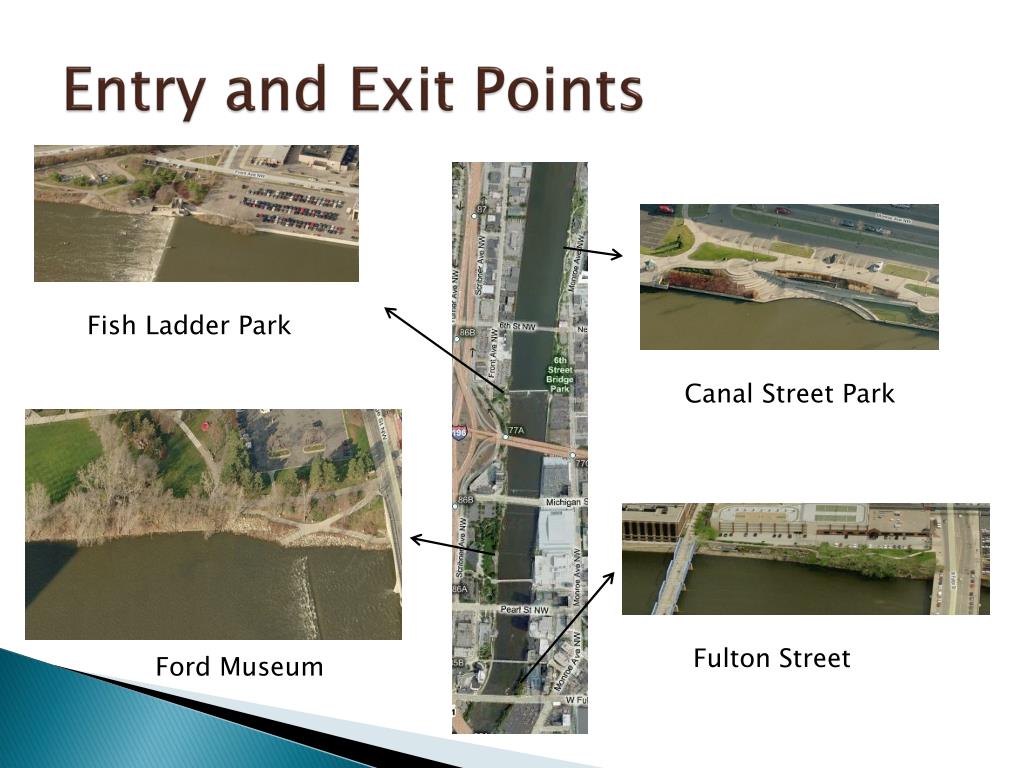

  11. Entry and Exit Points Fish Ladder Park Canal Street Park Fulton Street Ford Museum

  12. Future Work • Continued modeling of rocks • Maintaining water levels • Refine physical model

  13. Questions
