  1. The Integration of the Bundle Security Protocol Features into DTN2 Walter J. Scheirer and Prof. Mooi Choo Chuah Department of Computer Science and Engineering Lehigh University

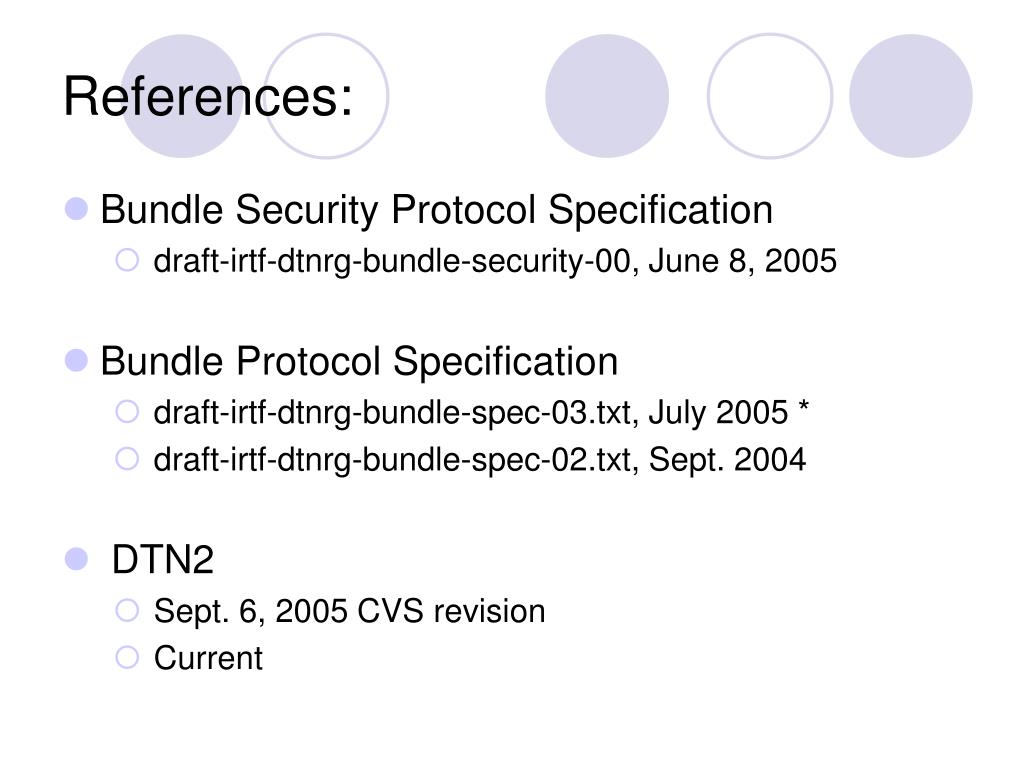

  2. References: • Bundle Security Protocol Specification • draft-irtf-dtnrg-bundle-security-00, June 8, 2005 • Bundle Protocol Specification • draft-irtf-dtnrg-bundle-spec-03.txt, July 2005 * • draft-irtf-dtnrg-bundle-spec-02.txt, Sept. 2004 • DTN2 • Sept. 6, 2005 CVS revision • Current

  3. Major Features • Bundle Authentication Header (BAH) • Payload Security Header (PSH) • Confidentiality Header (CH) • Bundle Fragmentation/Reassembly

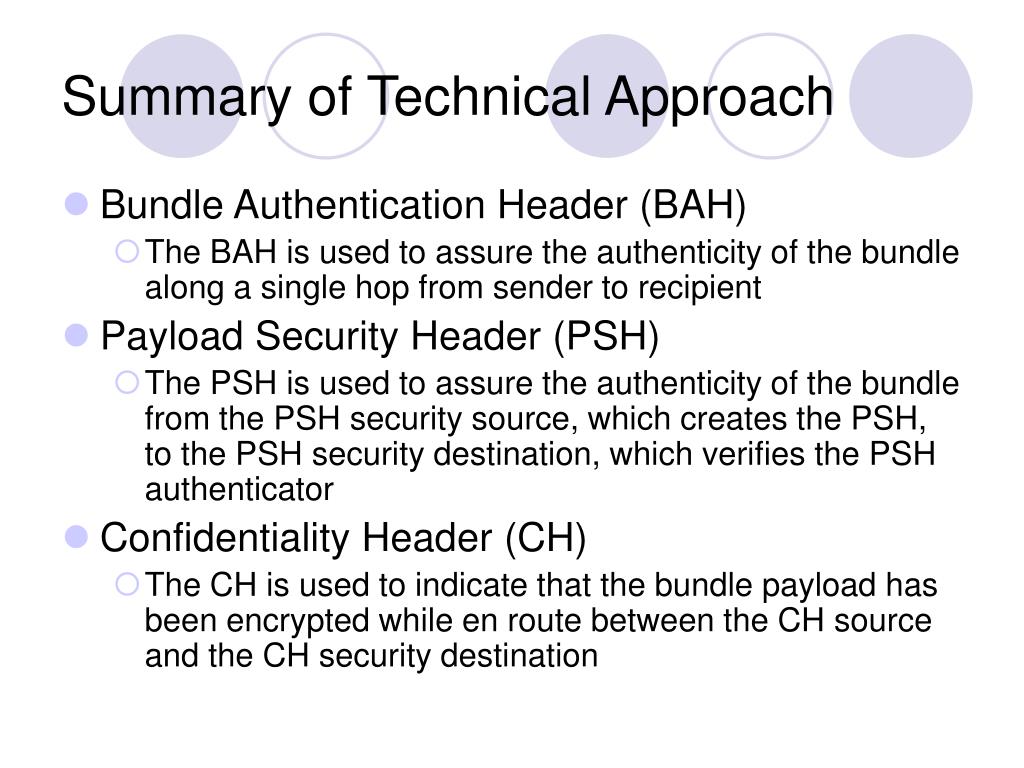

  4. Summary of Technical Approach • Bundle Authentication Header (BAH) • The BAH is used to assure the authenticity of the bundle along a single hop from sender to recipient • Payload Security Header (PSH) • The PSH is used to assure the authenticity of the bundle from the PSH security source, which creates the PSH, to the PSH security destination, which verifies the PSH authenticator • Confidentiality Header (CH) • The CH is used to indicate that the bundle payload has been encrypted while en route between the CH source and the CH security destination

  5. Summary of Technical Approach • Each node will turn on the optional security-related delivery option parameters if it desires certain security features - • if it desires confidentiality, then a CH header must be applied to the bundle • if it desires authentication, a PSH and/or a BAH must be applied and the relevant parts of the bundle digitally signed or MACed appropriately

  6. Primary Bundle Header All other Headers BAH (w/ signed Hash value PSH (w/ signed Hash value) Confid. Header Payload Class Len. Payload AE78F98D567BB32CAD5F4D BAH Primary Bundle Header Fragment Header (offset=0) All other Headers Next Hdr Len. Format flag Toilet Paper Ciphersuite ID Payload Segment Size Payload Hash Size Key ID (optional) 0 PSH (w/ signed Hash value) Confid. Header Payload Class Len. Payload AE78F98D Authent. of Hdr & payload segment PSH, confidentiality header and payload class field deleted from successive fragments BAH Primary Bundle Header Fragment Header (offset=9) All other Headers Next Hdr Len. Format flag Toilet Paper Ciphersuite ID Payload Segment Size Payload Hash Size Key ID (optional) 0 Len. 567BB32 Authent. of Hdr & payload segment CAD5F4D Authent. of Hdr & payload segment Bundle with security headers Challenges faced in fragmentation scenario:

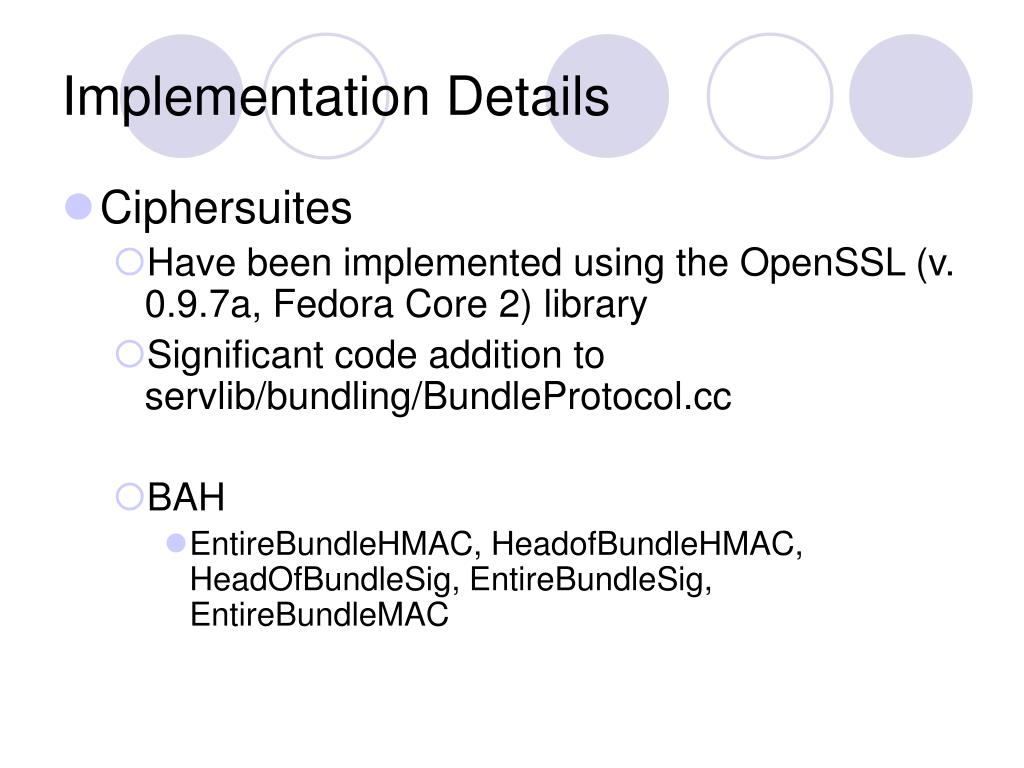

  7. Implementation Details • Ciphersuites • Have been implemented using the OpenSSL (v. 0.9.7a, Fedora Core 2) library • Significant code addition to servlib/bundling/BundleProtocol.cc • BAH • EntireBundleHMAC, HeadofBundleHMAC, HeadOfBundleSig, EntireBundleSig, EntireBundleMAC

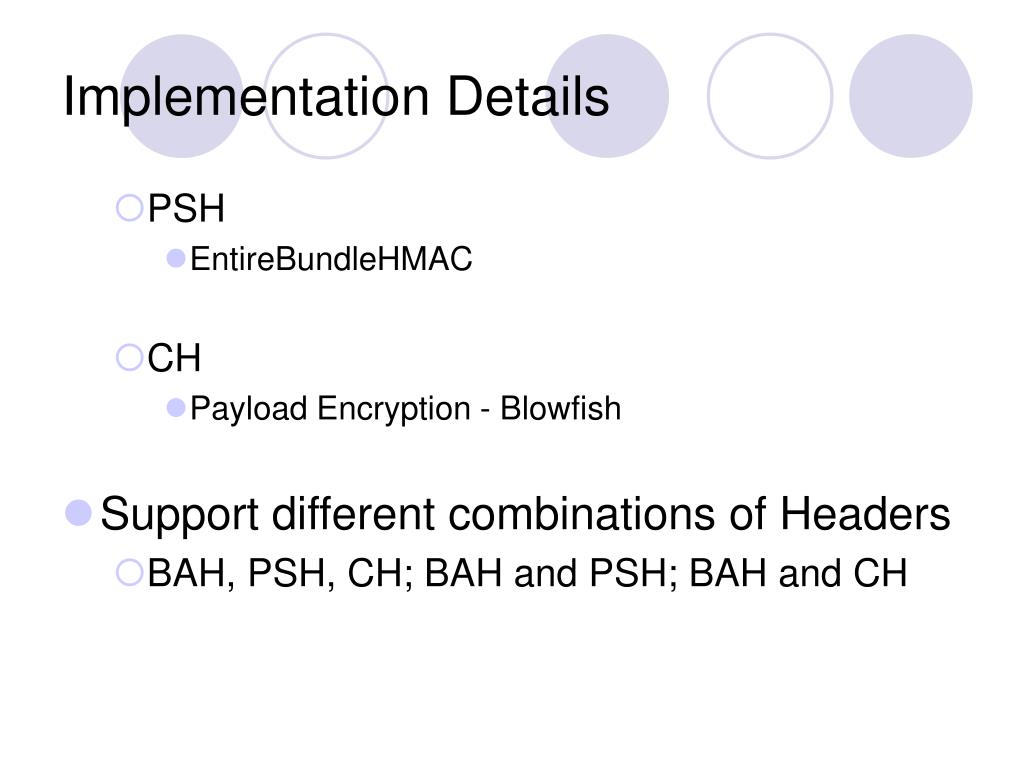

  8. Implementation Details • PSH • EntireBundleHMAC • CH • Payload Encryption - Blowfish • Support different combinations of Headers • BAH, PSH, CH; BAH and PSH; BAH and CH

  9. Implementation Details • Security Headers Sending Receiving populate header fields parse header fields apply ciphersuite apply ciphersuite append to bundle verify integrity

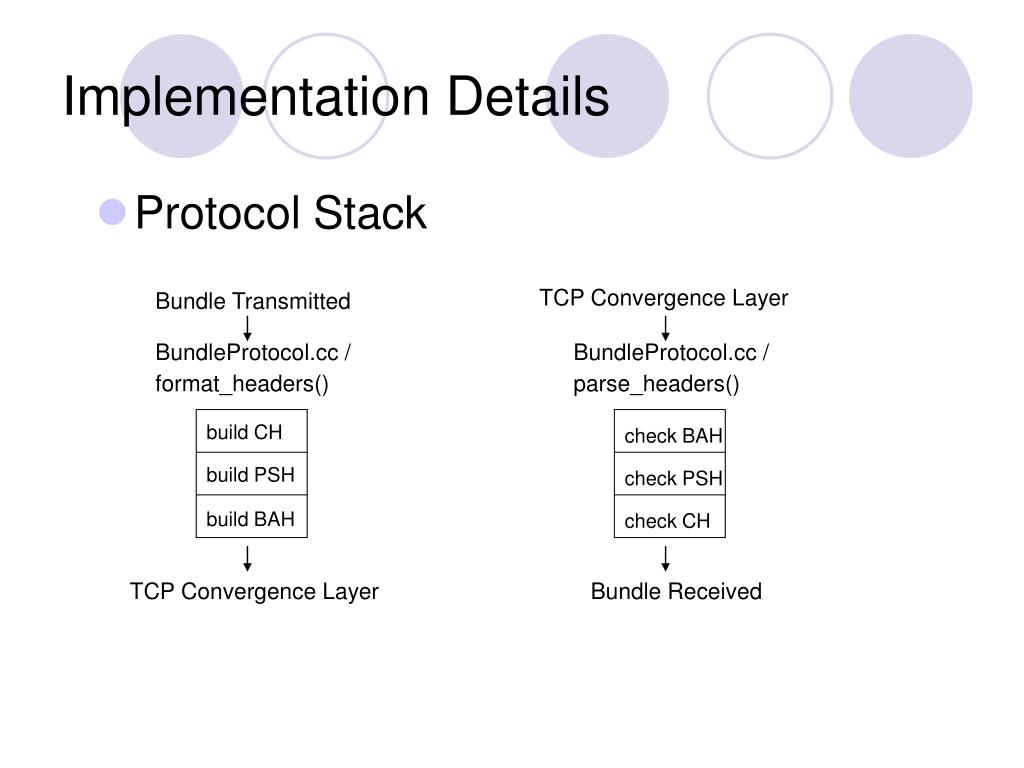

  10. Implementation Details • Protocol Stack TCP Convergence Layer Bundle Transmitted BundleProtocol.cc / format_headers() BundleProtocol.cc / parse_headers() build CH check BAH build PSH check PSH build BAH check CH TCP Convergence Layer Bundle Received

  11. Questions?
