  1. Bundle Protocol Version 6.0

  2. Outline • Motivation • Protocol • Terminology • Implementation architecture • SDNV • Addressing scheme • Bundle format • Primary block • Generic Block • Processing • Bundle • Administrative record • Convergence layer services • Security • Comparison between Our implementation and version 6

  3. Motivation • Opportunistic connections between nodes • Delay in packet delivery will be large • Node density is sparse • High bit error rates

  4. Terminology • Bundle, Payload, Fragment • Bundle node • Bundle protocol agent • Convergence layer adapters • Application agent • Bundle endpoint • Forwarding, Registration, Delivery • Deliverability/Abandonment • Deletion, Discard • Transmission • Custody

  5. Implementation architecture Source: "DTN: An Architectural Retrospective," Fall, K. Farrell, S., IEEE Journal on Selected Areas in Communications, Volume: 26, Issue: 5, pp: 828-836, June 2008.

  6. SDNV – Self Delimiting Numeric value Example 0xCBA : 1100 1011 1010 SDNV: [10011001] [00111010] = 10011001 00111010 • Advantages • Header format need not be changed when data type size increases • Reduces header size (how?)

  7. Addressing and Registration • Addressing • Late binding • URI scheme format - <scheme>:<scheme-specific-part> • Examples • ether://00-11-22-33-44-55 • dns://mobtorrent.ddns.comp.nus.edu.sg • dtn://*.nus.comp.nus.edu.sg • dtn:none • Registration • Active and passive state • Many-to-Many relationship

  8. Bundle Format – Primary block Source: "DTN: An Architectural Retrospective," Fall, K. Farrell, S., IEEE Journal on Selected Areas in Communications, Volume: 26, Issue: 5, pp: 828-836, June 2008.

  9. Bundle Format – Generic block Source: RFC 5050, Bundle protocol specification

  10. Processing - Bundle • Bundle transmission • Dispatching • Forwarding • Reception • Local bundle delivery • Fragmentation • Reassembly • Custody transfer • Bundle deletion • Bundle discard • Polling

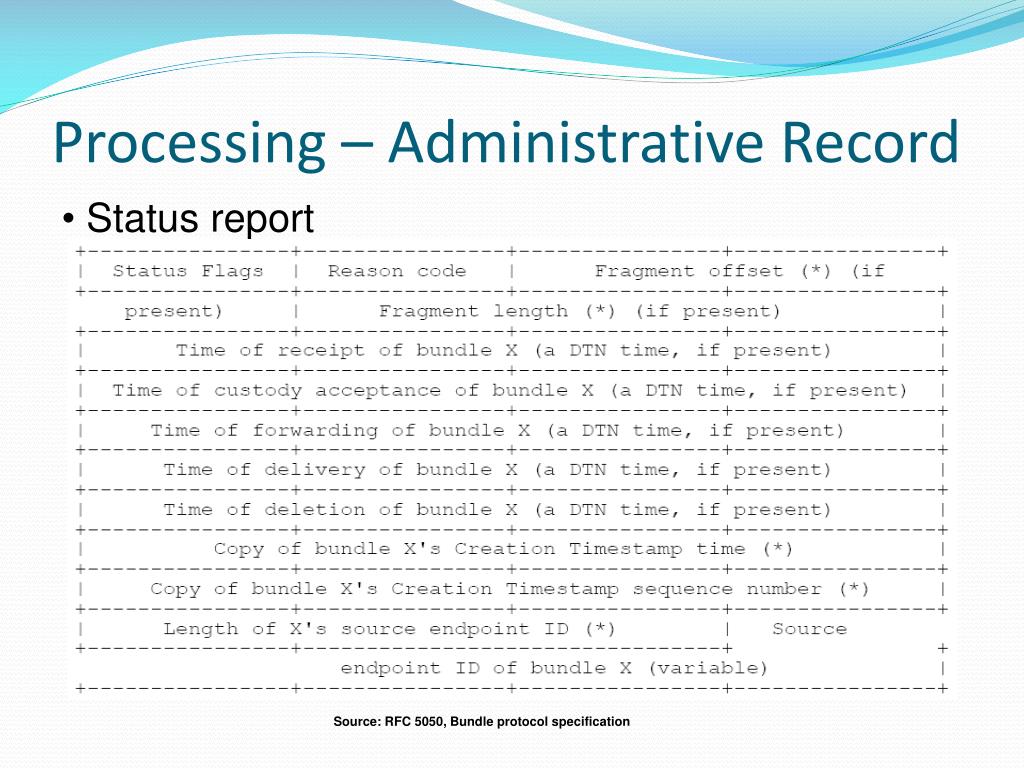

  11. Processing – Administrative Record • Status report Source: RFC 5050, Bundle protocol specification

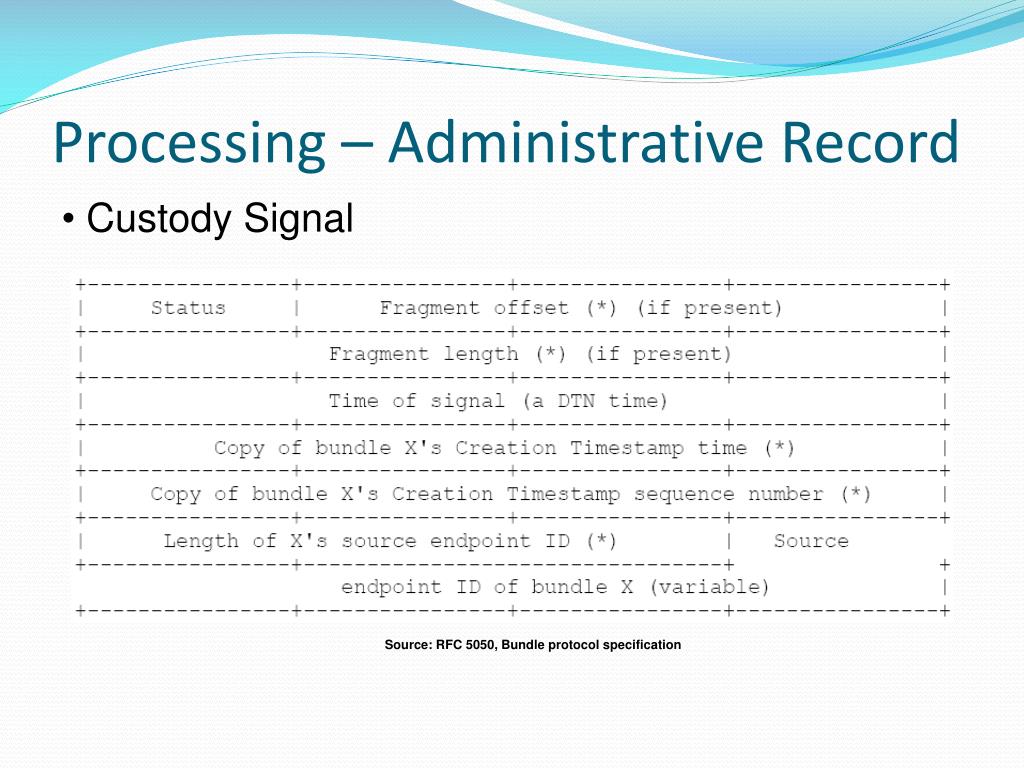

  12. Processing – Administrative Record • Custody Signal Source: RFC 5050, Bundle protocol specification

  13. Convergence layer services • Sending a bundle to minimum reception group • Delivery of received bundle

  14. Security • Dealt in Bundle Security protocol (draft-irtf-dtnrg-bundle-security-05) • Includes three optional services: • Bundle authentication and integrity – Hop-by-Hop • Bundle authentication and integrity – <security source> to <security destination> • Bundle confidentiality - <security source> to <security destination>

  15. Comparison • Bundle format • Addressing scheme • Acknowledgement scheme • Status report • custody signal • Custody transfer • Authentication and integrity

  16. THANK YOU
