Lecture 9. Newton’s Laws applied to systems with two or more accelerated bodies. Serway and Jewett : 5.7, 5.8. Problems with several accelerated objects:. Free-body diagram for each object. Relate forces by finding action-reaction pairs, etc.

mirra
Télécharger la présentation

Lecture 9

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

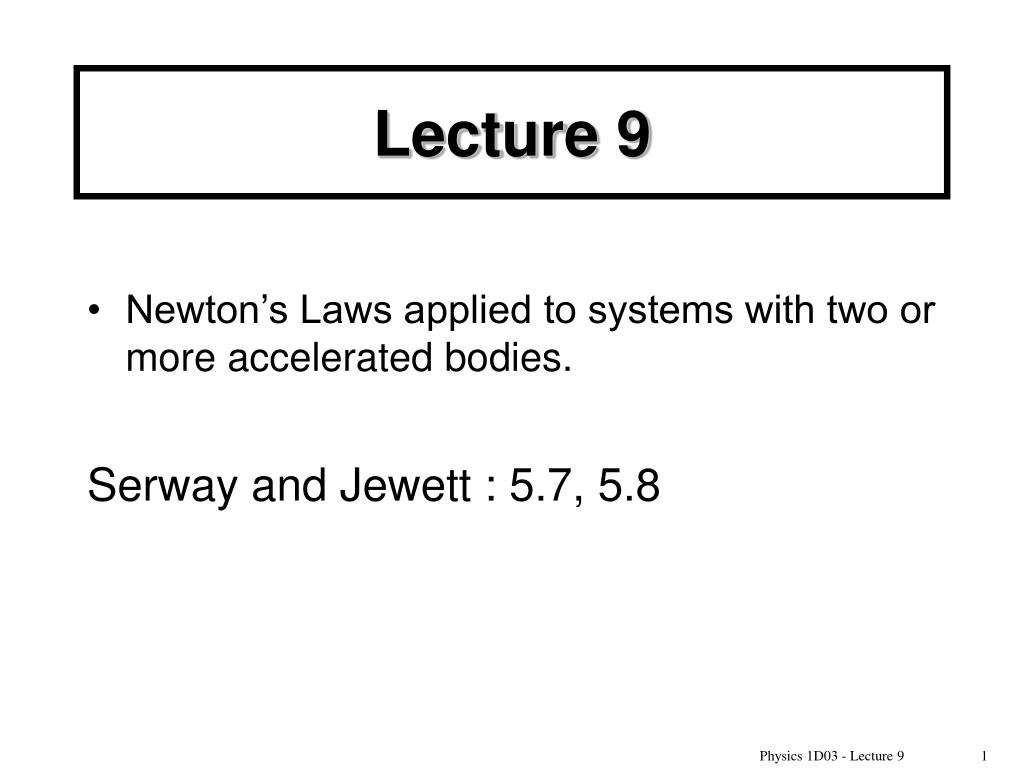

  1. Lecture 9 • Newton’s Laws applied to systems with two or more accelerated bodies. Serway and Jewett : 5.7, 5.8 Physics 1D03 - Lecture 9

  2. Problems with several accelerated objects: • Free-body diagram for each object. • Relate forces by finding action-reaction pairs, etc. • Look for constraints on the motion to relate accelerations. • “F=ma” for each diagram, break into components. • Count unknowns: do you have enough equations? • Use algebra to solve. Physics 1D03 - Lecture 9

  3. Two blocks connected by a rope are being pulled by a horizontal force FA. Given that F=60 N, m1=12kg and m2=18kg, and that μk=0.1, find the tension in the rope between them and the acceleration of the system. T m2 FA m1 Physics 1D03 - Lecture 9

  4. Atwood’s Machine Calculate the acceleration of the blocks. Assume : - no friction - massless rope and pulley - rope doesn’t stretch Plan:• free-body diagram for each mass • relate tensions, accelerations • use Newton’s second Law m2 m1 Physics 1D03 - Lecture 9

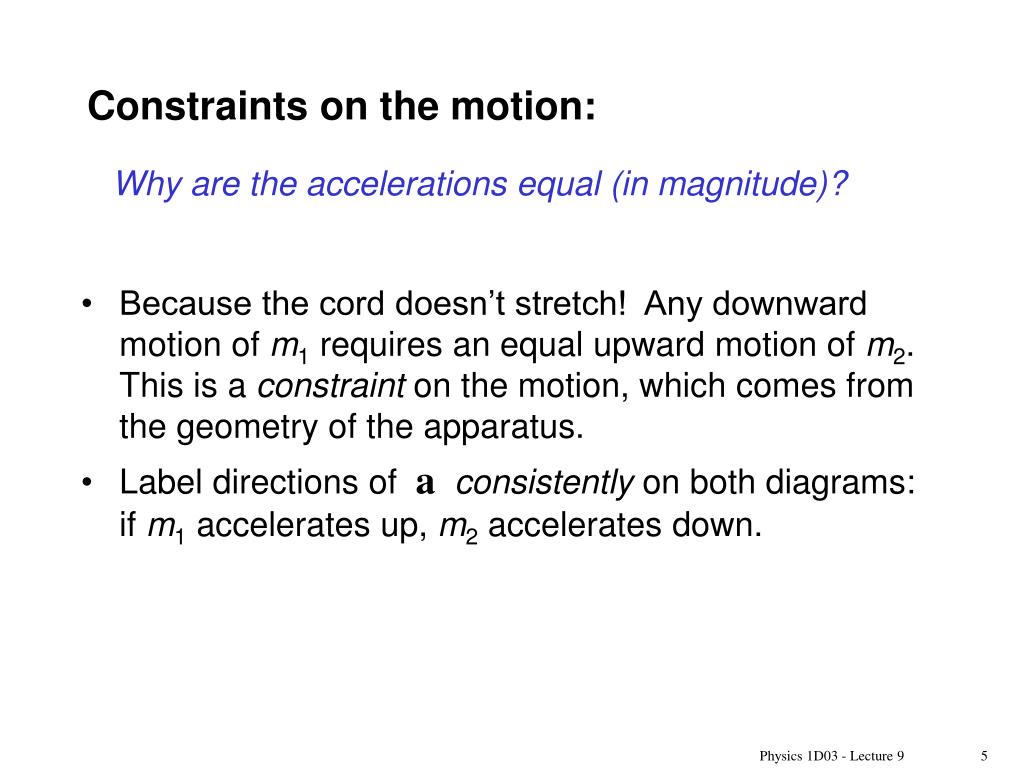

  5. Constraints on the motion: Why are the accelerations equal (in magnitude)? • Because the cord doesn’t stretch! Any downward motion of m1 requires an equal upward motion of m2. This is a constraint on the motion, which comes from the geometry of the apparatus. • Label directions of aconsistently on both diagrams: if m1 accelerates up, m2 accelerates down. Physics 1D03 - Lecture 9

  6. Forces on m2 Forces on m1 T1 T2 a2 a1 m2g m1g • Tensions are equal (“ideal” pulley, light rope) • Accelerations are equal in magnitude (why?), opposite in direction Physics 1D03 - Lecture 9

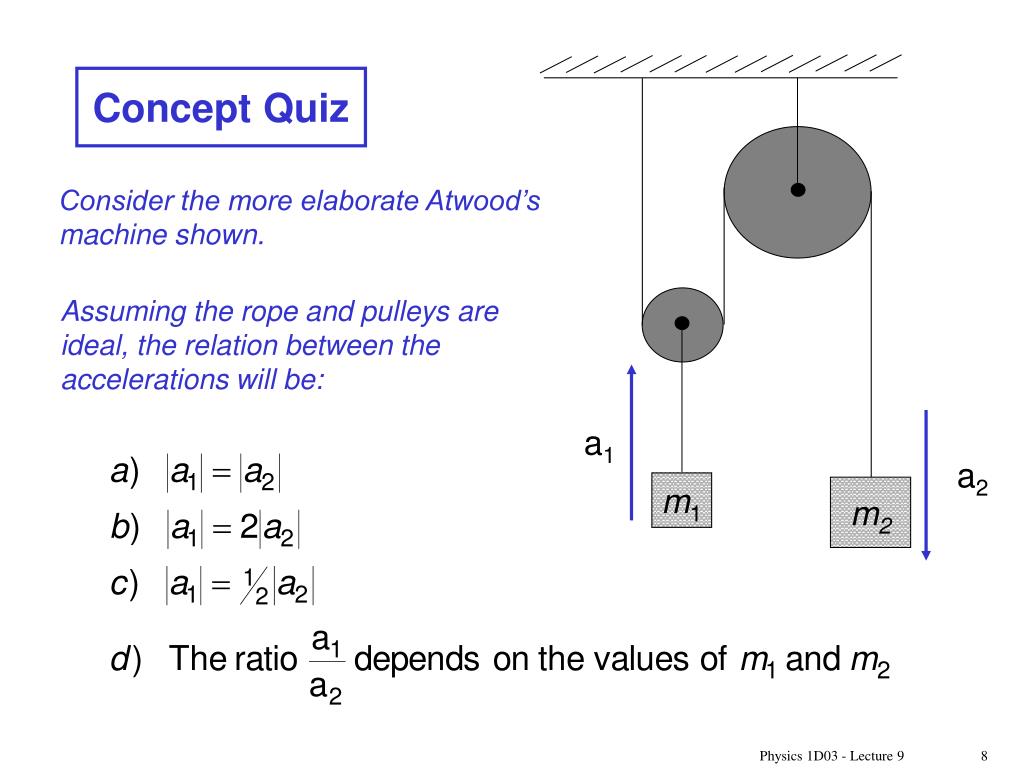

  7. a1 m1 m2 Concept Quiz Consider the more elaborate Atwood’s machine shown. Assuming the rope and pulleys are ideal, the relation between the accelerations will be: a2 Physics 1D03 - Lecture 9

  8. A block of mass m1 on a rough horizontal surface is pulled with a force FA at an angle θ to the horizontal. A ball of mass m2 is connected to the other side, hanging over a lightweight frictionless pulley. The coefficient of friction is given by μk. Determine the acceleration of the system. FA θ m1 m2 Physics 1D03 - Lecture 9

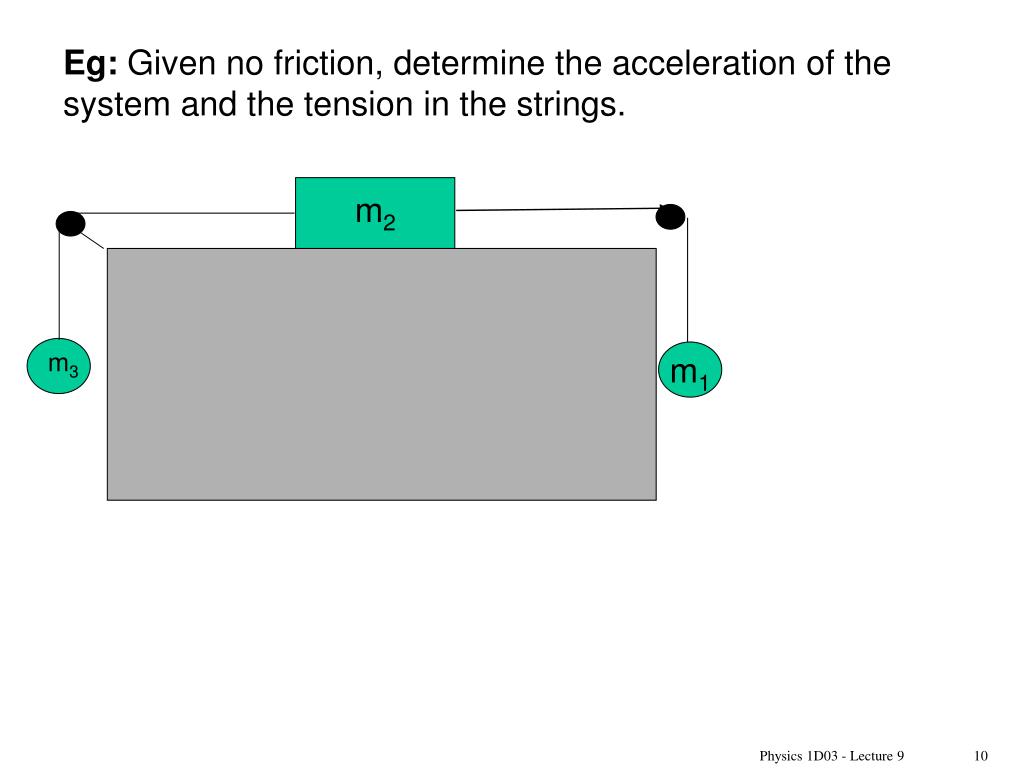

  9. m2 m3 m1 Eg: Given no friction, determine the acceleration of the system and the tension in the strings. Physics 1D03 - Lecture 9

  10. Example: How do you calculate the acceleration of each block: • if the upper block doesn’t slide? • if the upper block does slide? m = 1.0 kg M = 2.0 kg ms = 0.6 mk = 0.4 FP = 15 N m FP M Physics 1D03 - Lecture 9

  11. Suggested Problems Chapter 5: Problems 17, 25, 29, 43, 44, 62, Questions 19, 21 Physics 1D03 - Lecture 9
