  1. The Motion of Planets http://www.physics.northwestern.edu/ugrad/vpl/mechanics/planets.html Kepler’s laws Johannes Kepler(1570-1630)

  2. Sun b ae a Kepler’s 1st Law http://physics.syr.edu/courses/java/mc_html/kepler.html • Each planet moves in an elliptical orbit, with the sun at one focus of the ellipse. a = semi-major axis b = semi-minor axis e = eccentricity http://new.math.uiuc.edu/eggmath/Shape/pins.html

  3. Kepler's 2nd Law • A line from the sun to a given planet sweeps out equal areas in equal times.

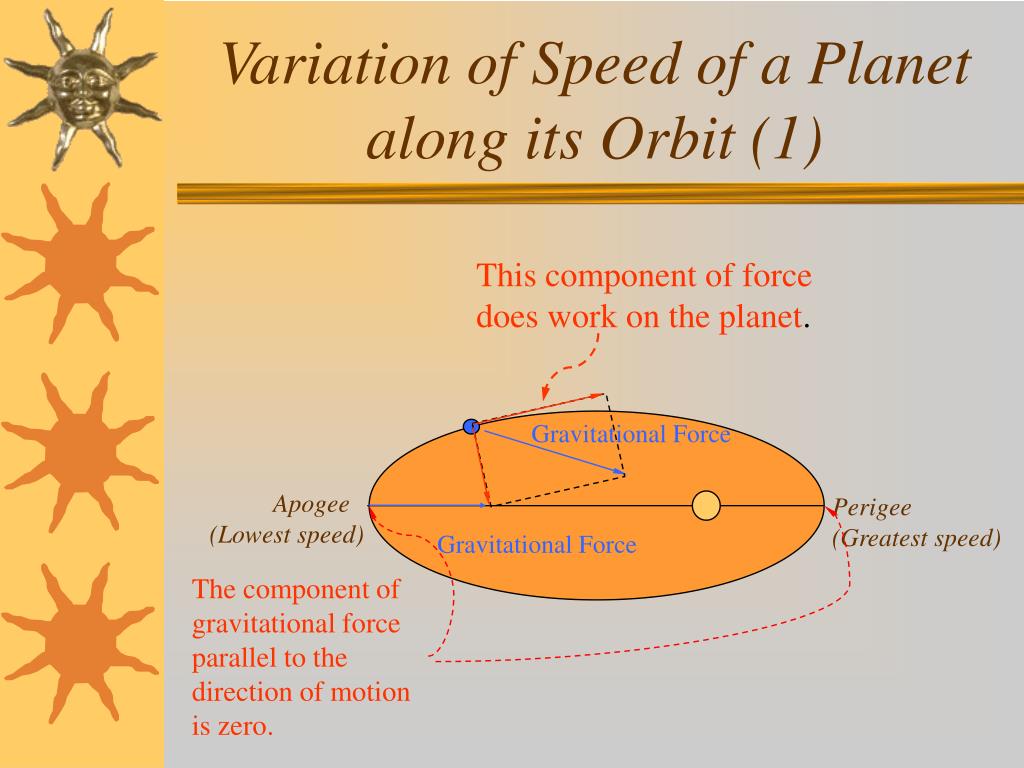

  4. This component of force does work on the planet. Gravitational Force Gravitational Force The component of gravitational force parallel to the direction of motion is zero. Variation of Speed of a Planet along its Orbit (1) Apogee (Lowest speed) Perigee (Greatest speed)

  5. Variation of Speed of a Planet along its Orbit (2) • At all points along the orbit, except at the apogee and perigee, there is a component of gravitational force parallel to the direction of motion of the planet. • The component of the force in the direction of motion does work to change the kinetic energy of the planet. So the speed of the planet also changes.

  6. r dθ dθ r Conservation of Angular Momentum The rate at which area is swept out : In fact, the angular momentum of the planet is: So we have constant

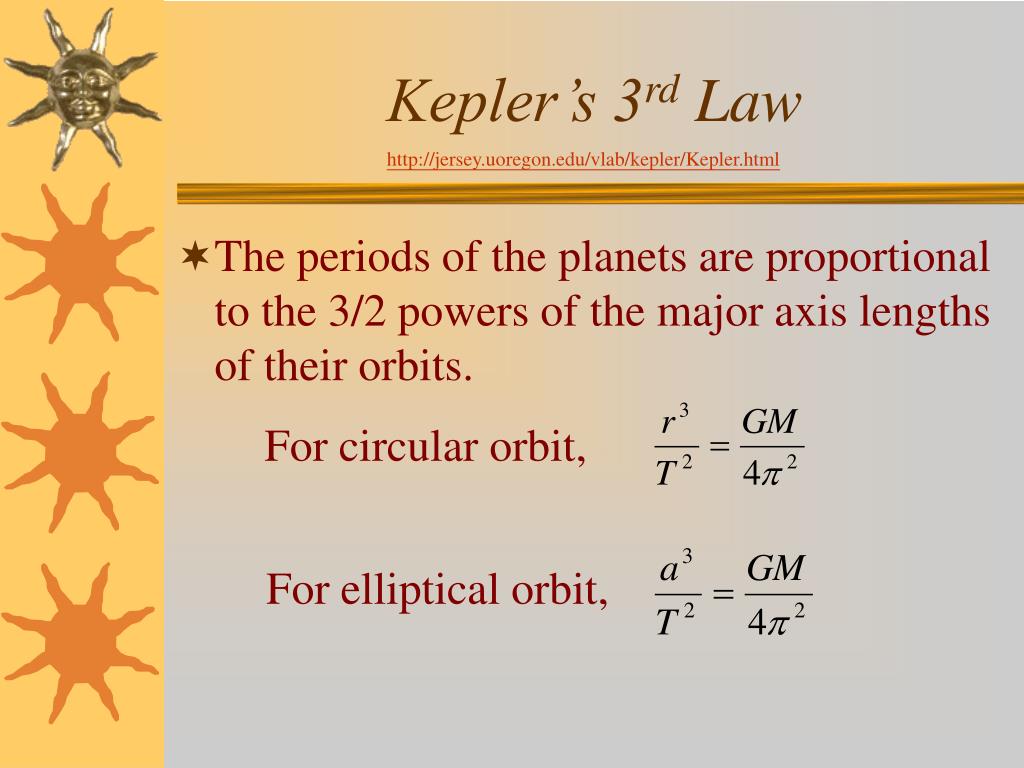

  7. Kepler’s 3rd Law http://jersey.uoregon.edu/vlab/kepler/Kepler.html • The periods of the planets are proportional to the 3/2 powers of the major axis lengths of their orbits. For circular orbit, For elliptical orbit,

  8. m v r Derivation of Kepler’s 3rd Law (1) • Consider a planet of mass m moving with velocity v in a circular orbit of radius r about the Sun. • Let M be the mass of the Sun. • Hence we get Thus

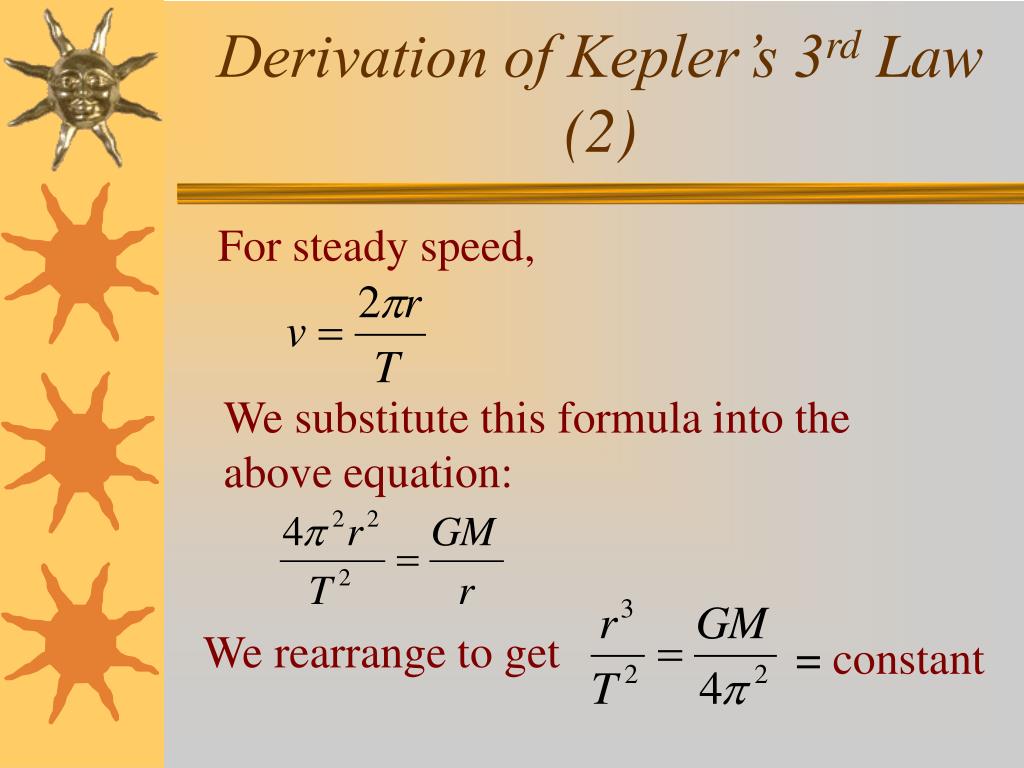

  9. Derivation of Kepler’s 3rd Law (2) For steady speed, We substitute this formula into the above equation: We rearrange to get =constant

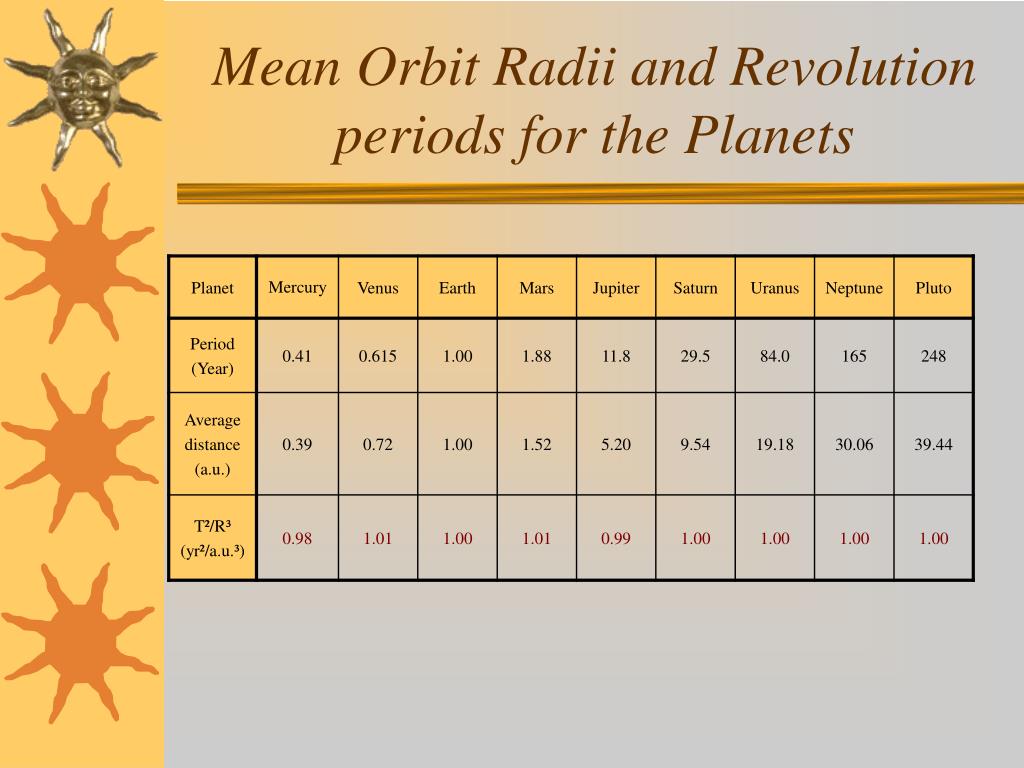

  10. Mean Orbit Radii and Revolution periods for the Planets

  11. Slope of the graph = The graph of r³ against T² where M is the mass of the Sun

  12. Conservation of Energy http://www.mta.ca/faculty/science/physics/suren/Kepler/KeplersLaws.html • Everywhere in its orbit, a planet has both kinetic energy and potential energy. • The sum of the KE and PE will be a constant all through the orbit. • PE is greatest when the planet is farthest away and least when it is closest to the sun.

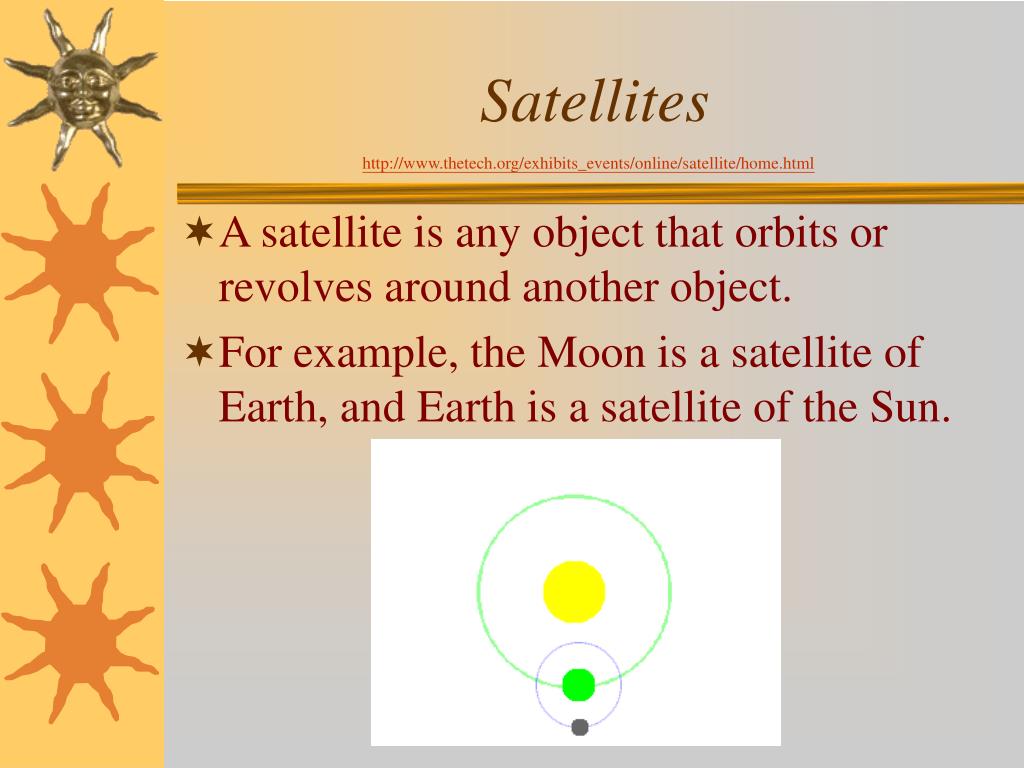

  13. Satellites http://www.thetech.org/exhibits_events/online/satellite/home.html • A satellite is any object that orbits or revolves around another object. • For example, the Moon is a satellite of Earth, and Earth is a satellite of the Sun.

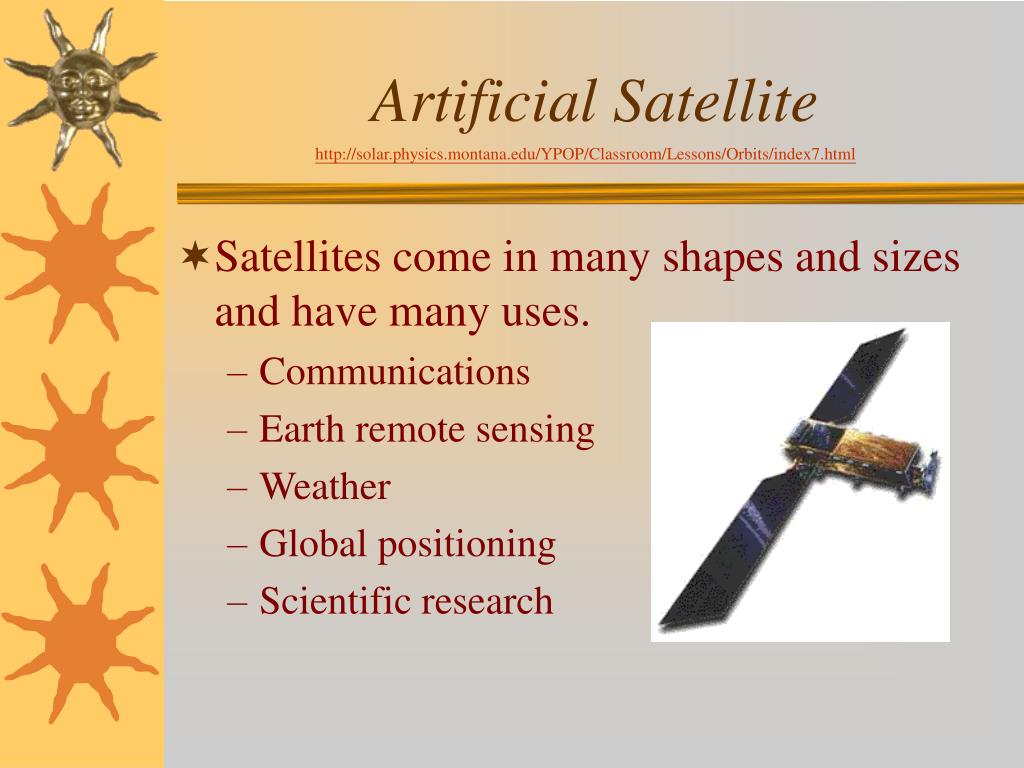

  14. Artificial Satellite http://solar.physics.montana.edu/YPOP/Classroom/Lessons/Orbits/index7.html • Satellites come in many shapes and sizes and have many uses. • Communications • Earth remote sensing • Weather • Global positioning • Scientific research

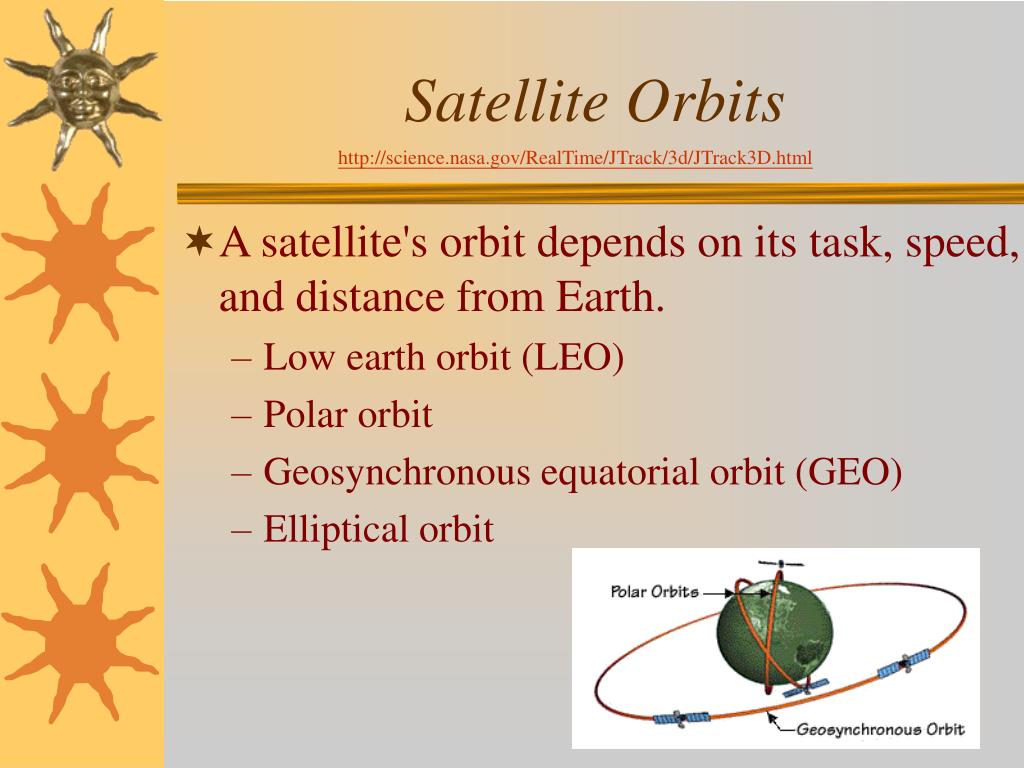

  15. Satellite Orbits http://science.nasa.gov/RealTime/JTrack/3d/JTrack3D.html • A satellite's orbit depends on its task, speed, and distance from Earth. • Low earth orbit (LEO) • Polar orbit • Geosynchronous equatorial orbit (GEO) • Elliptical orbit

  16. Geosynchronous Satellite (GEO) • If an orbiting satellite had a period of 24 hours, and you saw it overhead at, say 10.00 am, when would you next see it overhead? • Because both the Earth would have completed one rotation in the same time it took the satellite to complete one orbit, it would next be overhead at 10.00 am the next day. • Such a satellite is said to be geosynchronous.

  17. Geostationary Satellite (GSO) • The geostationary satellites orbit the equatorial plane of the Earth at a speed matching the Earth’s rotation. • a satellite in GSO always stays directly over the same spot on Earth.

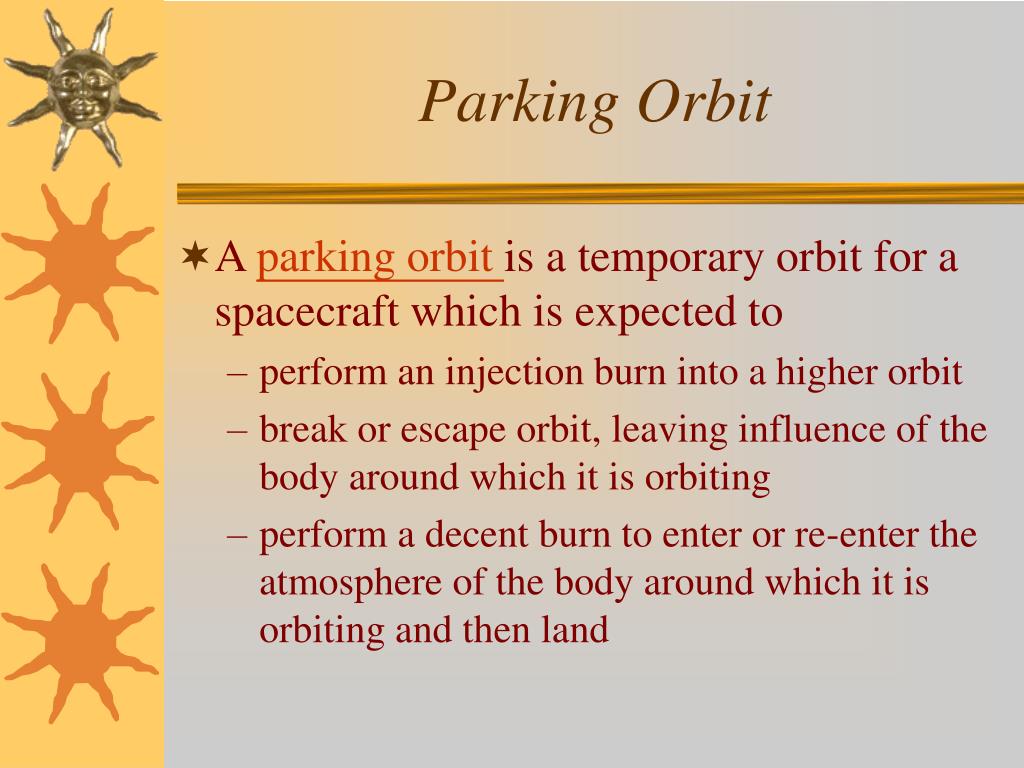

  18. Parking Orbit • A parking orbit is a temporary orbit for a spacecraft which is expected to • perform an injection burn into a higher orbit • break or escape orbit, leaving influence of the body around which it is orbiting • perform a decent burn to enter or re-enter the atmosphere of the body around which it is orbiting and then land

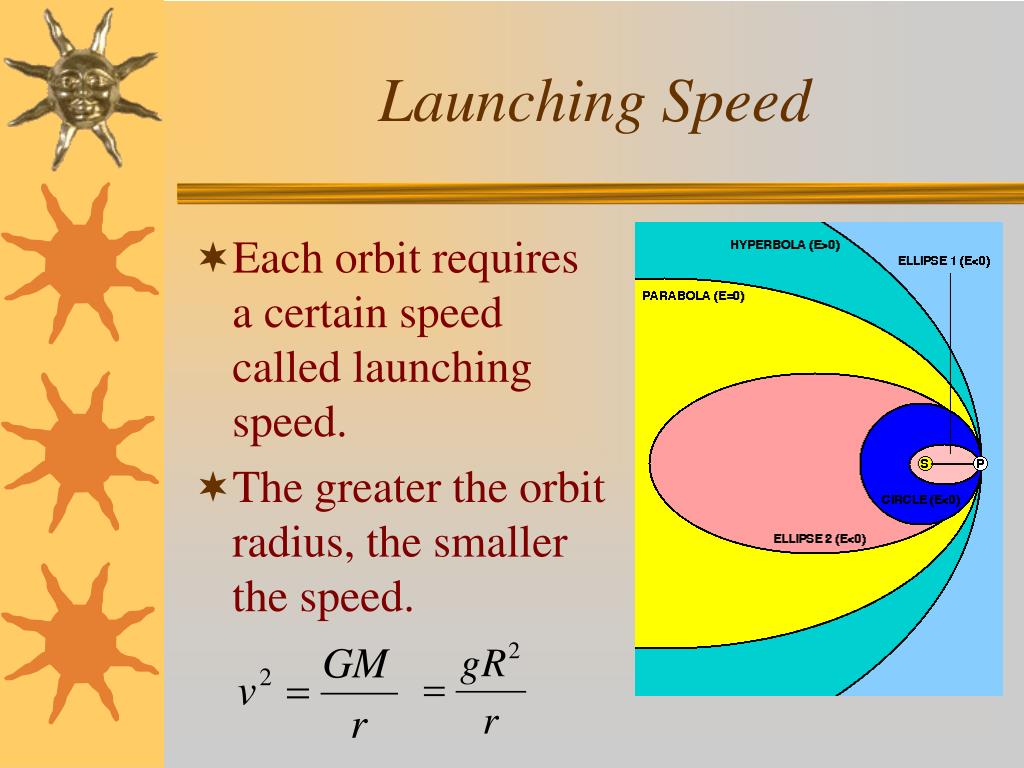

  19. Launching Speed • Each orbit requires a certain speed called launching speed. • The greater the orbit radius, the smaller the speed.

  20. Total Energy of a Satellite • The kinetic energy of a satellite is • The potential energy of a satellite is • The total energy of a satellite is

  21. Velocity of Escape(Second Cosmic Velocity) • Escape velocity is the minimum velocity with which an object must be fired from the Earth in order to escape completely from the gravitational attraction of the Earth. • To escape from the attraction of the Earth, the total energy of an object must exceed its potential energy at infinity. • That is

  22. Possible Path of a projectile http://www.phy.ntnu.edu.tw/java/projectileOrbit/projectileOrbit.html v part of ellipse hyperbola parabola circle ellipse

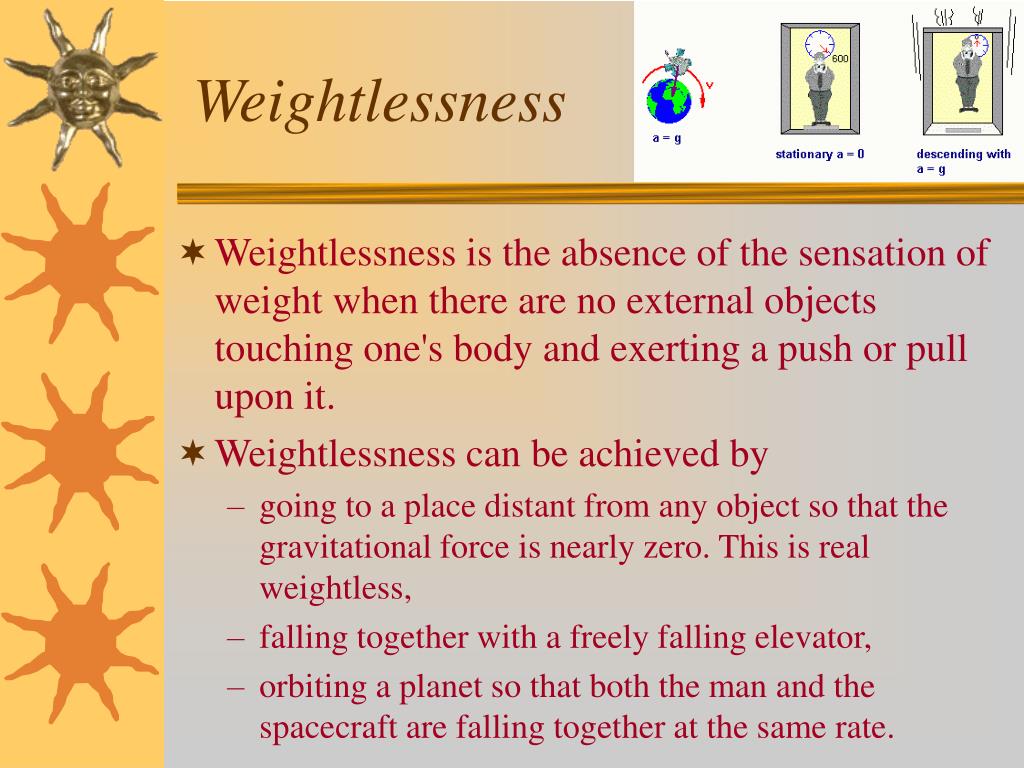

  23. Weightlessness • Weightlessness is the absence of the sensation of weight when there are no external objects touching one's body and exerting a push or pull upon it. • Weightlessness can be achieved by • going to a place distant from any object so that the gravitational force is nearly zero. This is real weightless, • falling together with a freely falling elevator, • orbiting a planet so that both the man and the spacecraft are falling together at the same rate.

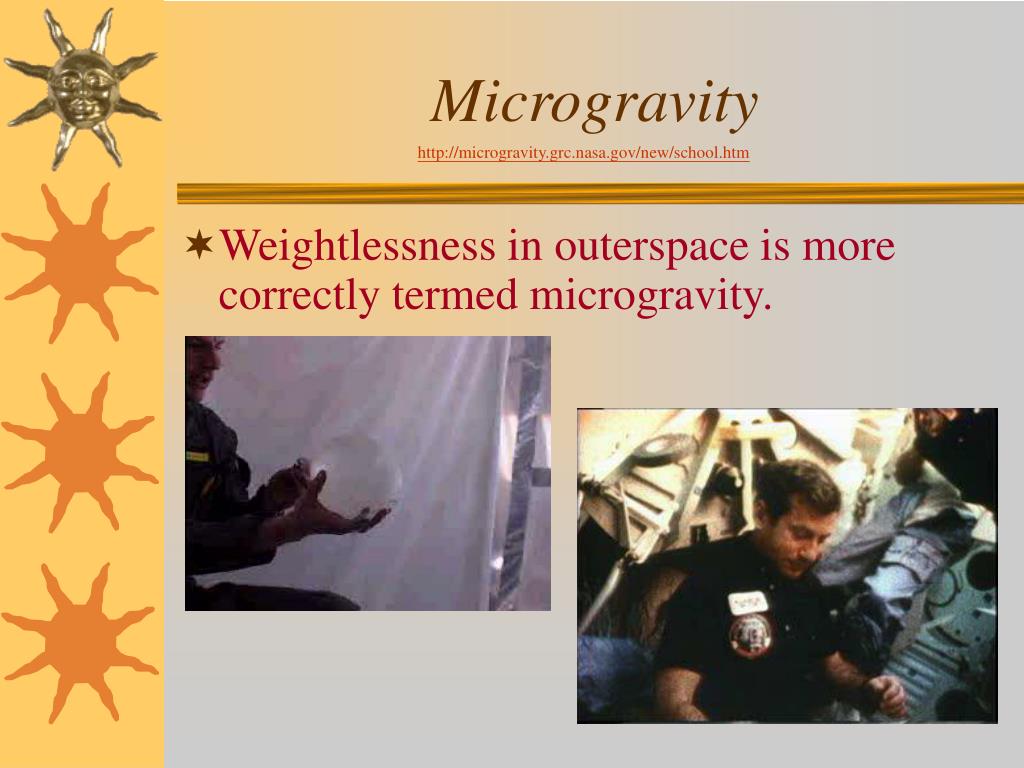

  24. Microgravity http://microgravity.grc.nasa.gov/new/school.htm • Weightlessness in outerspace is more correctly termed microgravity.

  25. Flying Laboratory http://www.nas.nasa.gov/About/Education/SpaceSettlement/Video/ • To achieve a short-term micro-gravity, the aircraft flies in a parabolic pattern (Kepler curve), rising to a height of about 20,000 feet, and then curving downward.

  26. Simulated Gravity with Centripetal Force • While the station is spinning, the wall of the space station would apply a centripetal force on the person to keep them travelling in a circular path. The acceleration felt by the person would be the centripetal acceleration. By adjusting the rotational velocity (v) of the space station we could literally adjust the amount of the simulated gravity.

  27. China Lunar Exploration Program
