Slurry Design

Slurry Design. Basic principle of handling solids : pump and motor are separated motor is filled with clean liquid

misty
Télécharger la présentation

Slurry Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

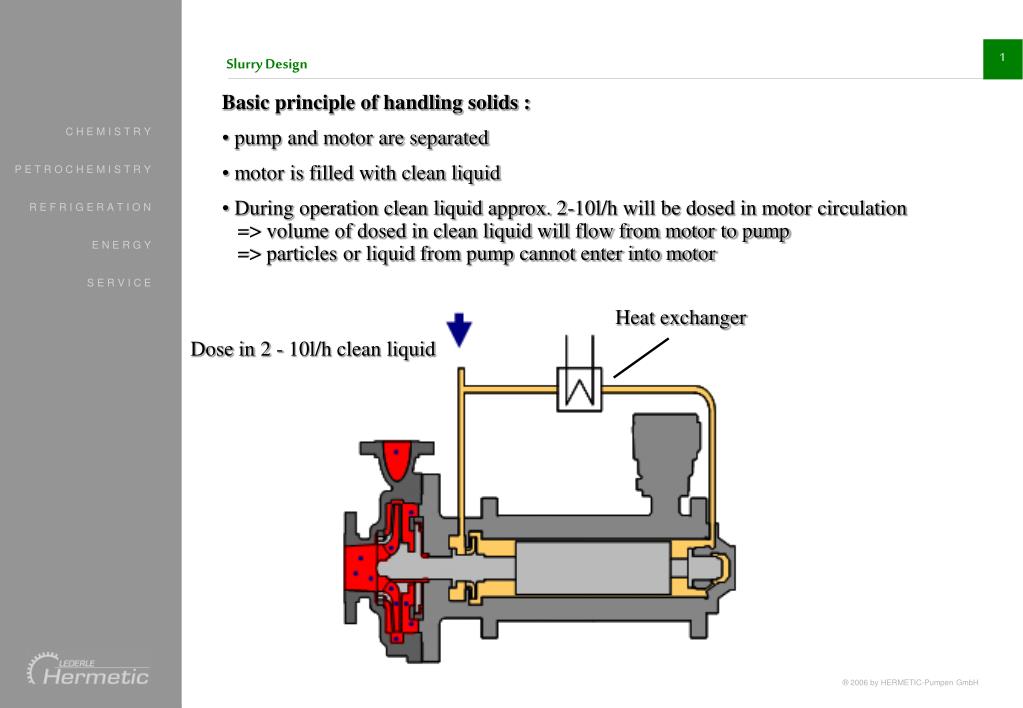

  1. Slurry Design • Basic principle of handling solids : • pump and motor are separated • motor is filled with clean liquid • During operation clean liquid approx. 2-10l/h will be dosed in motor circulation => volume of dosed in clean liquid will flow from motor to pump => particles or liquid from pump cannot enter into motor Heat exchanger Dose in 2 - 10l/h clean liquid

  2. Handling Solids with Slurry design • pump andmotorareseparated • motorisfilledwith clean liquid • Duringoperation clean liquid approx. 4-6l/h will bedosed in motorcirculation => volumeofdosed in clean liquid will flowfrommotorto pump => particlesor liquid from pump cannot enter intomotor Dosing pump, 4-6l/h

  3. Slurry Design / CNK type with dosing pump for dose in clean liquid in motor end
