  1. Geographic Isolation Scenarios

  2. Purpose • Understand which basins affect which areas of the bay and by how much

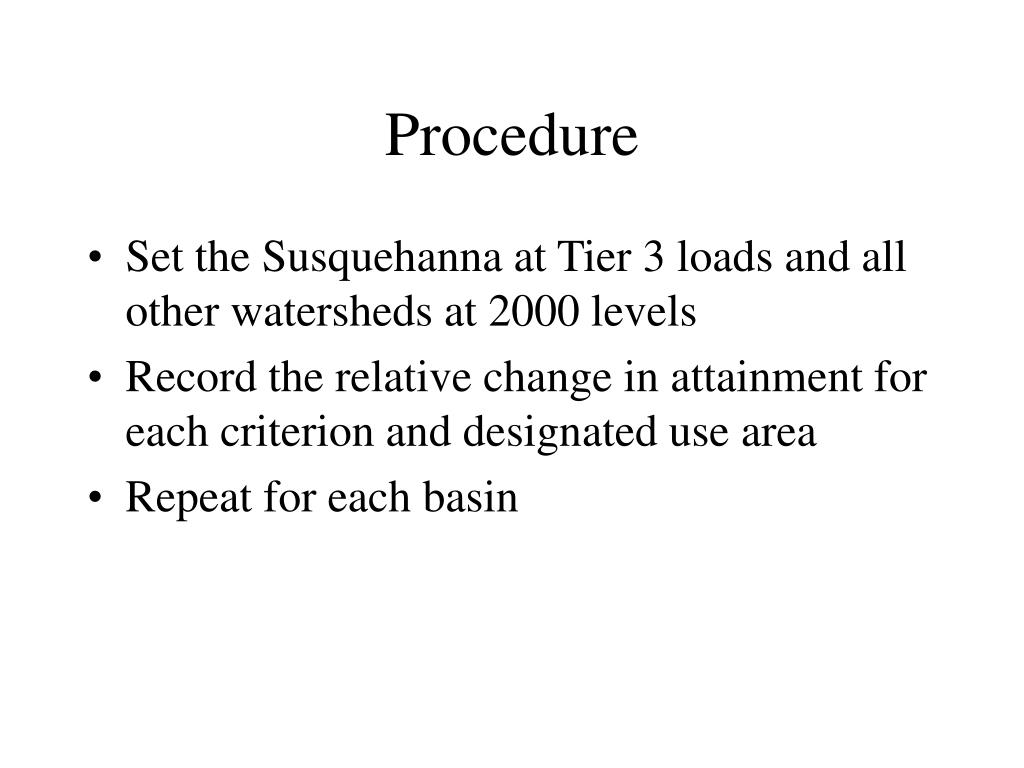

  3. Procedure • Set the Susquehanna at Tier 3 loads and all other watersheds at 2000 levels • Record the relative change in attainment for each criterion and designated use area • Repeat for each basin

  4. Progress • All basins completed • Results are provisional

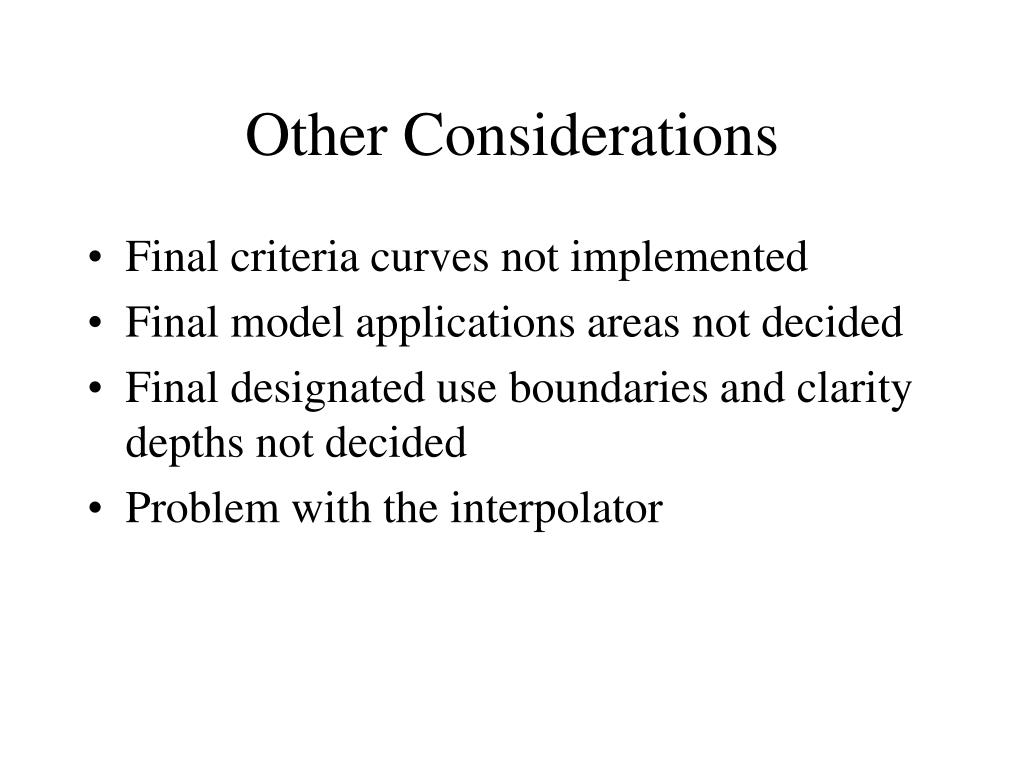

  5. Other Considerations • Final criteria curves not implemented • Final model applications areas not decided • Final designated use boundaries and clarity depths not decided • Problem with the interpolator

  6. Sample Output

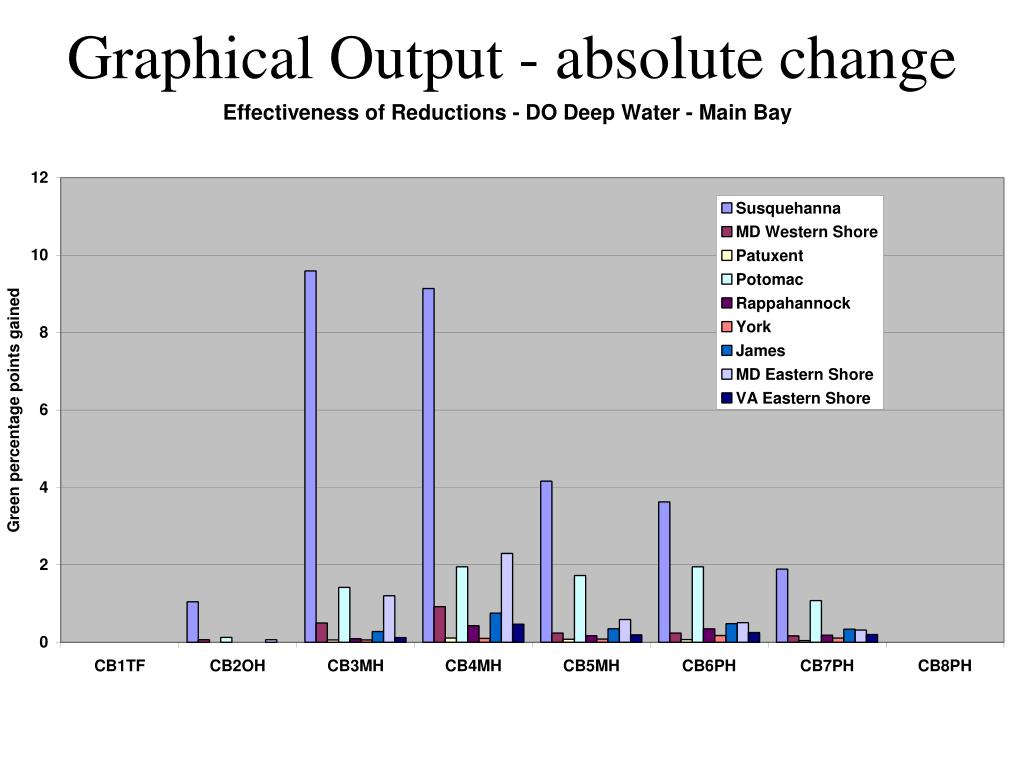

  7. Graphical Output - absolute change

  8. Normalized Output

  9. Graphical Output - Normalized

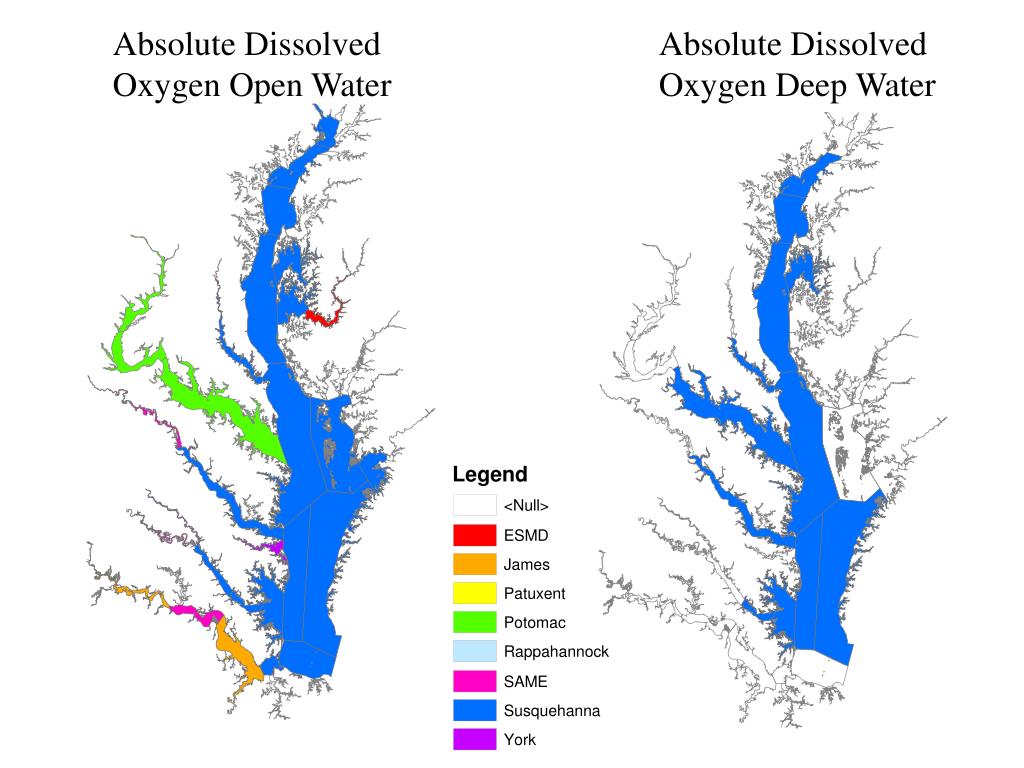

  10. Legend <Null> ESMD James Patuxent Potomac Rappahannock SAME Susquehanna York Absolute Dissolved Oxygen Open Water Absolute Dissolved Oxygen Deep Water

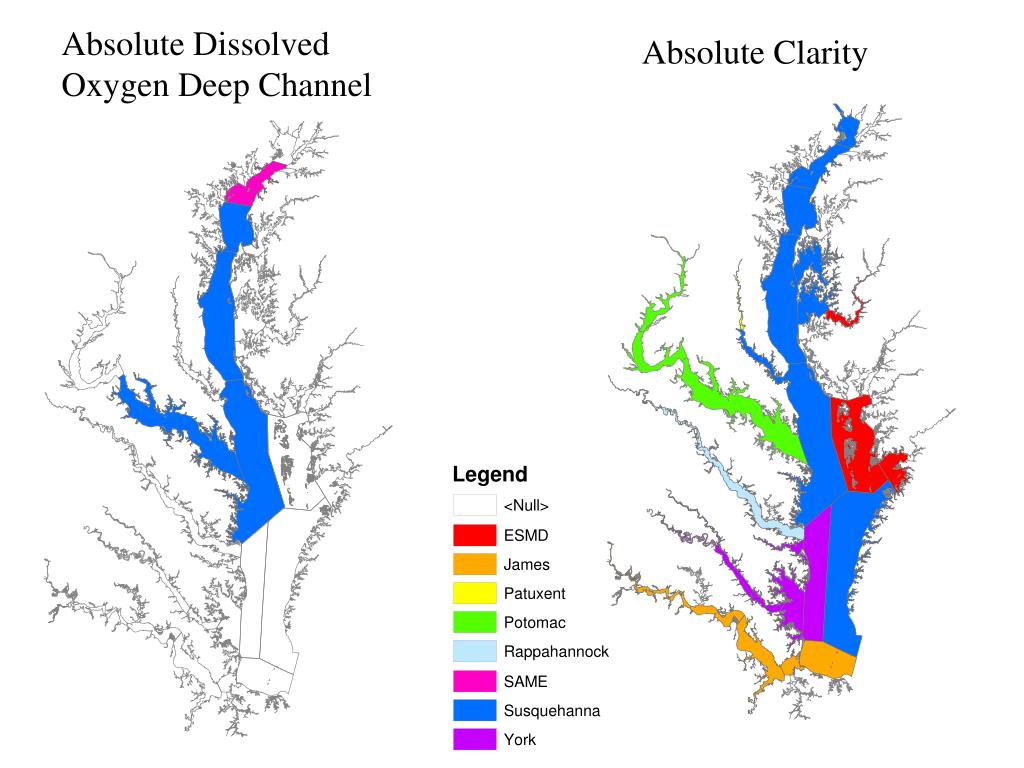

  11. Legend <Null> ESMD James Patuxent Potomac Rappahannock SAME Susquehanna York Absolute Dissolved Oxygen Deep Channel Absolute Clarity

  12. Legend <Null> ESMD James Patuxent Potomac Rappahannock SAME Susquehanna York Absolute Spring Chlorophyll Absolute Summer Chlorophyll

  13. Results • Problems (red areas) • Who has biggest impact • Who has biggest relative effectiveness
