  1. ZDC DCS status Francesca Poggio Università degli Studi di Torino INFN, sezione di Torino

  2. ZDC detectors Beam pipes ZP ZN two sets of calorimeters on both sides of the interaction point • made in Torino and Cagliari • 2 hadronic “spaghetti calorimeters” • 1 for spectator neutrons (ZN) 1 for spectator protons (ZP) • placed at 116 m from the IP neutron ZDC proton ZDC • 2 forward electromagnetic calorimeters (ZEM), placed at 7.5 m from the interaction point

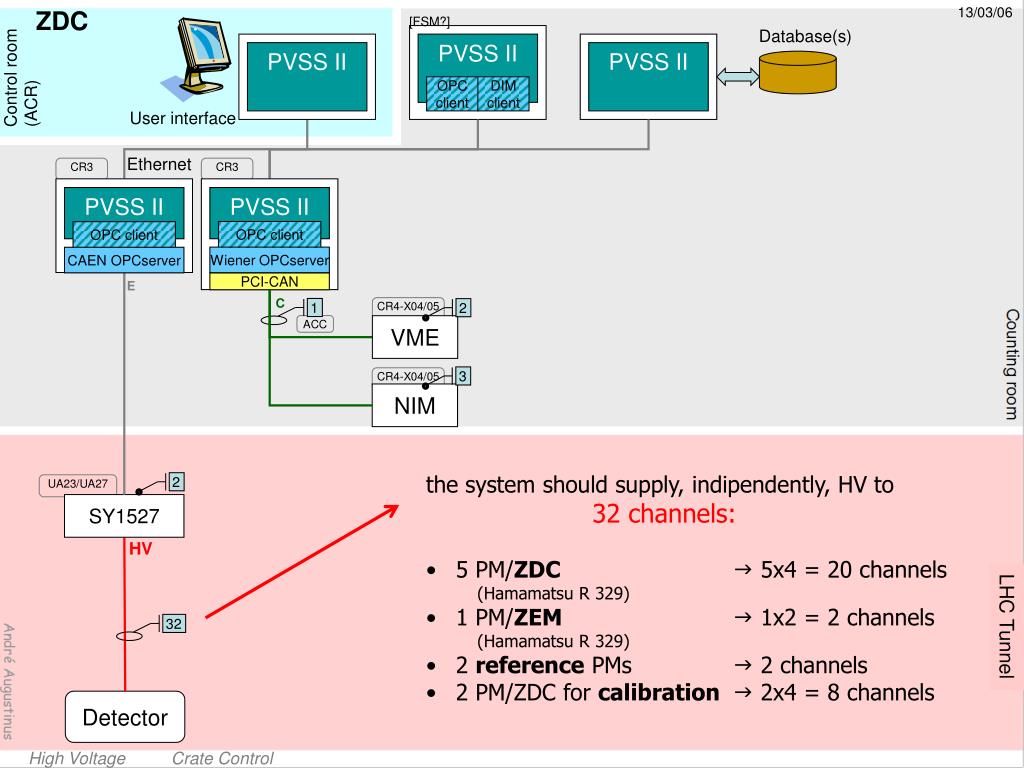

  3. ZDC 2 3 2 • the system should supply, indipendently, HV to • 32 channels: • 5 PM/ZDCg 5x4 = 20 channels • (Hamamatsu R 329) • 1 PM/ZEMg 1x2 = 2 channels • (Hamamatsu R 329) • 2 reference PMs g 2 channels • 2 PM/ZDC for calibrationg 2x4 = 8 channels 1 32 13/03/06 [FSM?] Database(s) PVSS II PVSS II PVSS II Control room (ACR) OPCclient DIMclient User interface Ethernet CR3 CR3 PVSS II PVSS II OPC client OPC client Wiener OPCserver CAEN OPCserver E PCI-CAN C CR4-X04/05 ACC VME CR4-X04/05 NIM UA23/UA27 SY1527 HV LHC Tunnel Detector High Voltage Crate Control

  4. ZDC DCS status HV and current should remain stable (apart from small correction due to light attenuation) no HV interlock is required at present we are starting the implementation of the DCS Project • for each PM we should write: • channel name • set voltage • maximum current • ramp UP • ramp DOWN • trip parameter • enable/disable power ON option • status • for each PM we should read: • channel name • set voltage • output voltage • output current • maximum current • ramp UP • ramp DOWN • trip parameter • enable/disable power ON option • status

  5. backup slides

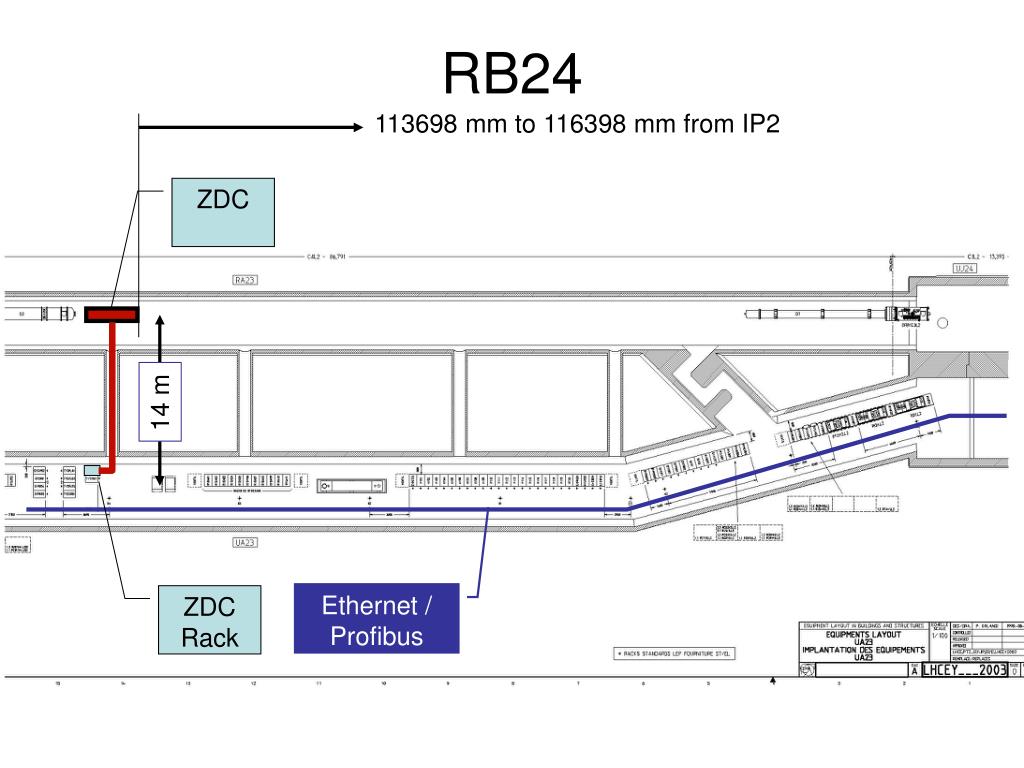

  6. 113698 mm to 116398 mm from IP2 ZDC 14 m Ethernet / Profibus ZDC Rack RB24

  7. 113698 mm to 116398 mm from IP2 ZDC 14 m 17 m ZDC Rack Ethernet / Profibus Ethernet / Profibus RB26
