Simulating the evolution of the Antarctic ice sheet using the SIA

This study explores the evolution of the Antarctic ice sheet utilizing the Shallow Ice Approximation (SIA). It focuses on the thickness evolution, diffusivity, and non-sliding ice flow, which impact the ice sheet's shape. A numerical model, tested against Halfar’s solutions, processes contemporary Antarctic data, including ice thickness and bed topography. A 1000-year simulation conserves mass, accounting for potential calving scenarios. The results demonstrate the SIA's efficacy in modeling shallow ice evolution but highlight limitations such as neglecting ice shelf formation and sliding dynamics.

moira
Télécharger la présentation

Simulating the evolution of the Antarctic ice sheet using the SIA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Simulating the evolution of the Antarctic ice sheet using the SIA Pierre Dutrieux Sue Cook Ward van Pelt

  2. The Shallow Ice Approximation (SIA) Thickness evolution: Diffusivity: “Shallow” ice sheet: L>>H Non-sliding ice flow diffuses the shape of the ice sheet

  3. Numerical properties • Explicit scheme • Advantage: H determined by quantities known at the previous time-step • Time-step determined by stability criterion: • Staggered grid (Mahaffy, 1976)

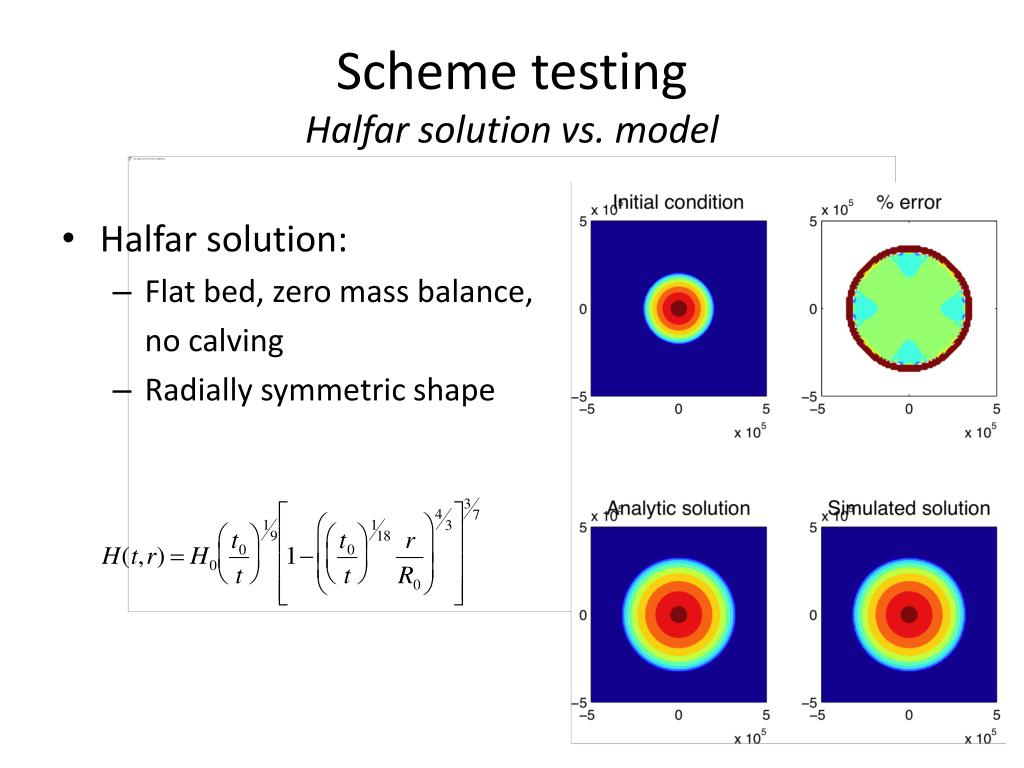

  4. Scheme testingHalfar solution vs. model • Halfar solution: • Flat bed, zero mass balance, no calving • Radially symmetric shape

  5. Data • Present day input data for Antarctica: • Ice thickness • Bed topography • Precipitation http://websrv.cs.umt.edu/isis/index.phpPresent_Day_Antarctica (SeaRISE)

  6. Model resultsAntarctic experiment • 1000-yr simulation • Mass is conserved to within 500 m3

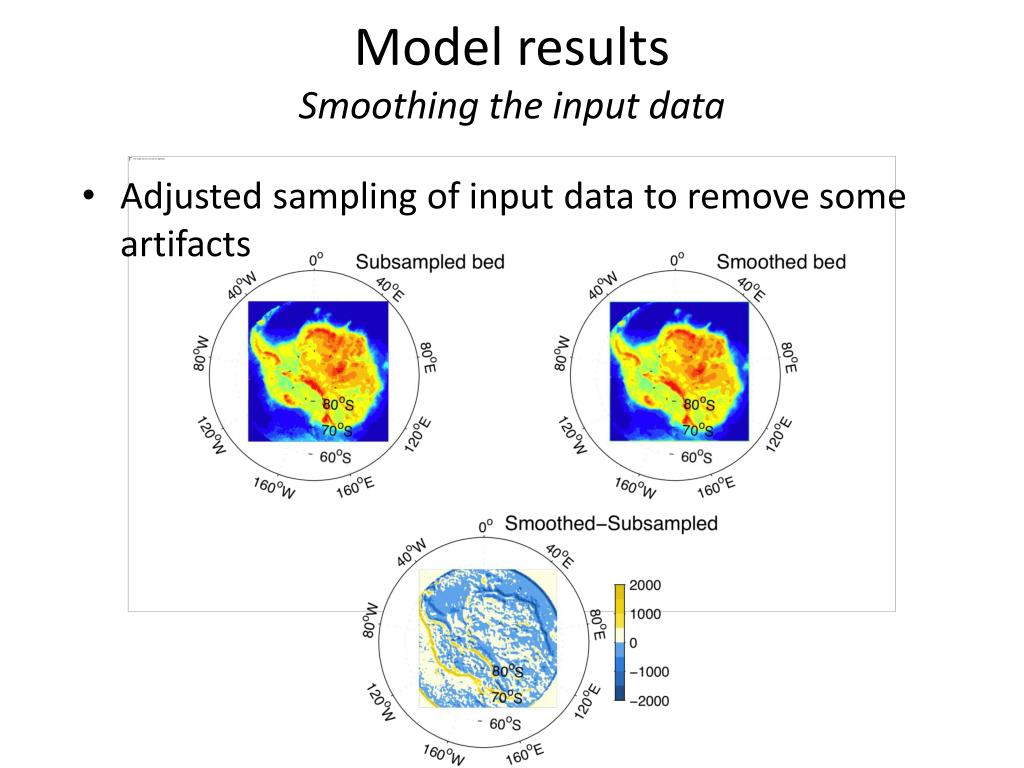

  7. Model resultsSmoothing the input data • Adjusted sampling of input data to remove some artifacts

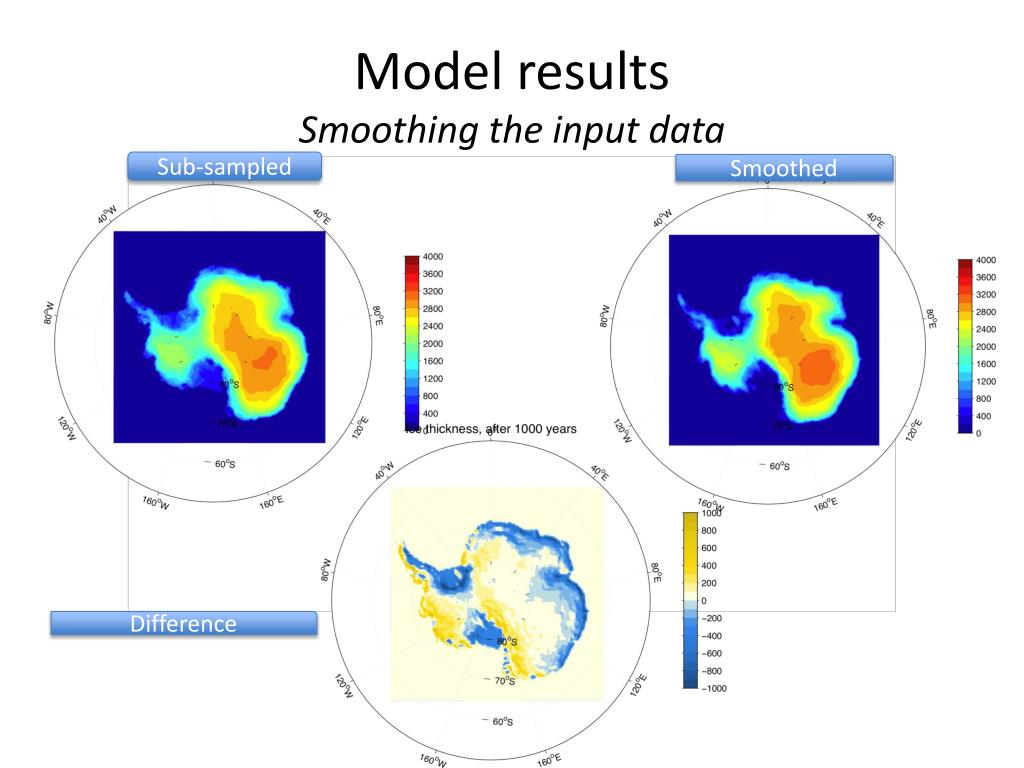

  8. Model resultsSmoothing the input data Sub-sampled Smoothed Difference

  9. Model resultsImplement calving • Add calving • Criterion 1: • Criterion 2: No calving within initial grounding line

  10. Model resultsImplement calving

  11. Discussion • The SIA is a good description of shallow ice sheet evolution given improved mass balance data • Shortcomings: • No ice shelf formation • No sliding • No ice streams (To list a few!)
