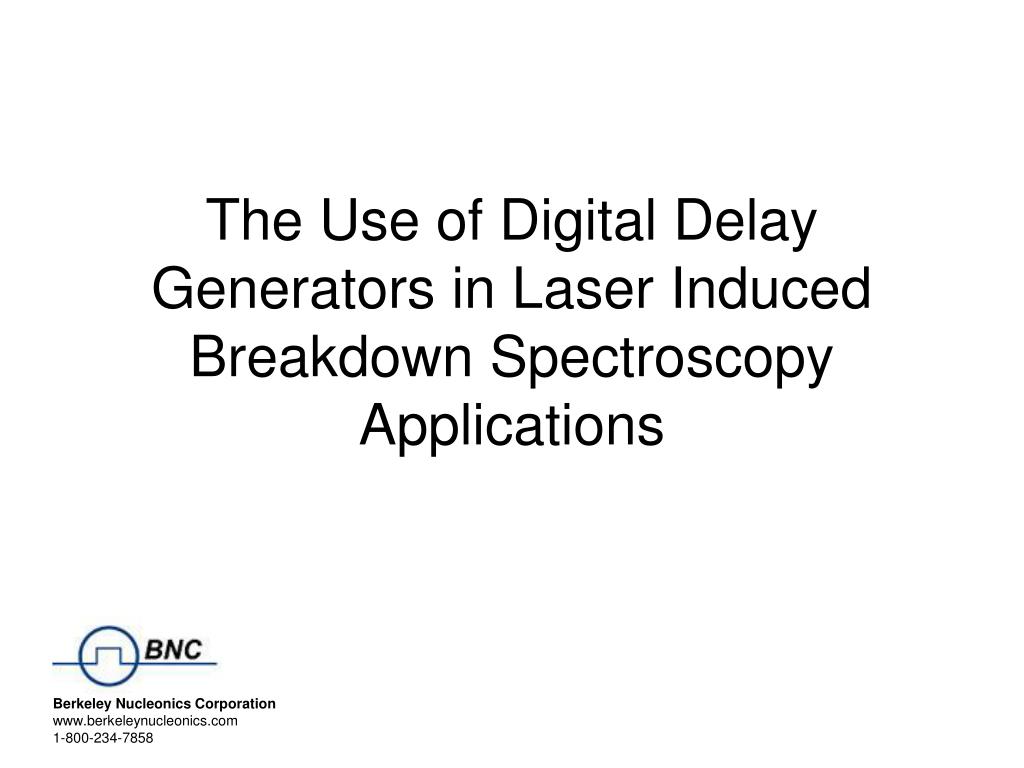

  1. The Use of Digital Delay Generators in Laser Induced Breakdown Spectroscopy Applications

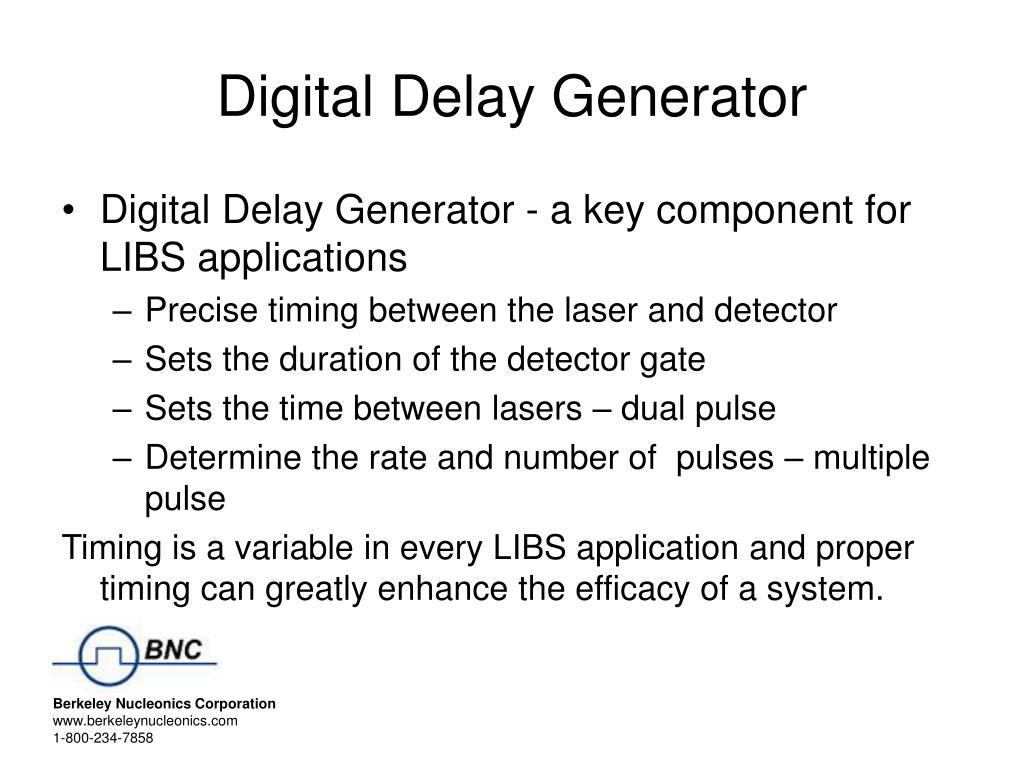

  2. Digital Delay Generator • Digital Delay Generator - a key component for LIBS applications • Precise timing between the laser and detector • Sets the duration of the detector gate • Sets the time between lasers – dual pulse • Determine the rate and number of pulses – multiple pulse Timing is a variable in every LIBS application and proper timing can greatly enhance the efficacy of a system.

  3. Digital Delay Generator – What Does It Do?

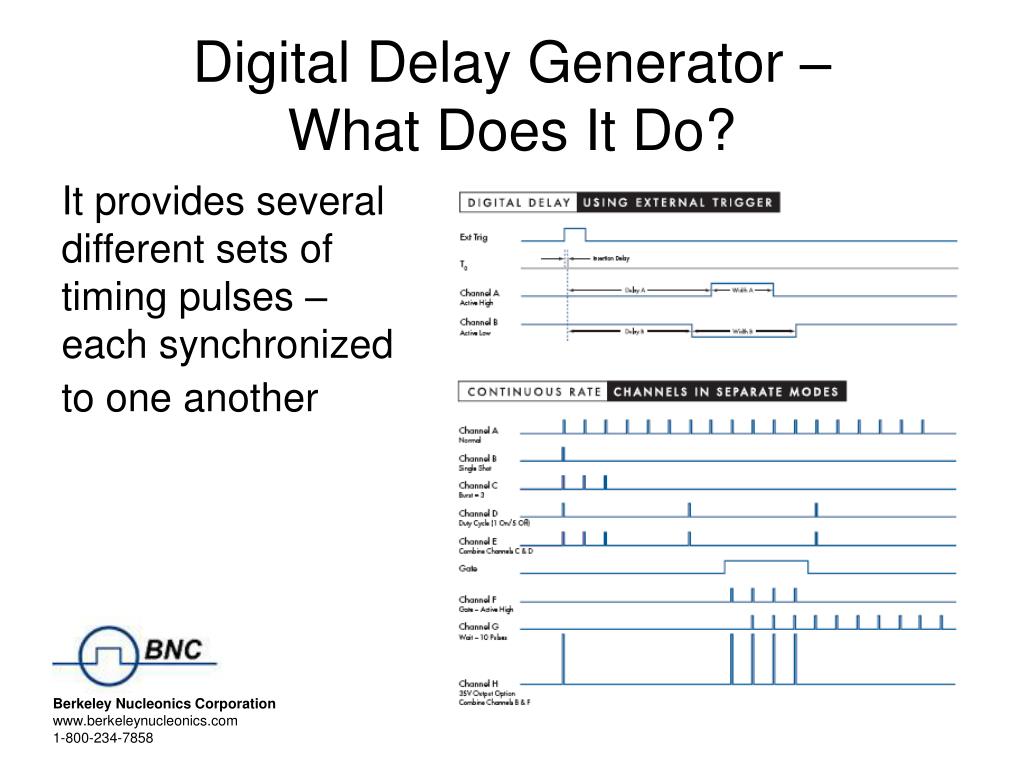

  4. Digital Delay Generator – What Does It Do? It provides several different sets of timing pulses – each synchronized to one another

  5. DDG Features • The pulses: • Trigger and synchronize lasers • Delay and gate ICCDs • Delay and gate cameras and imaging equipment

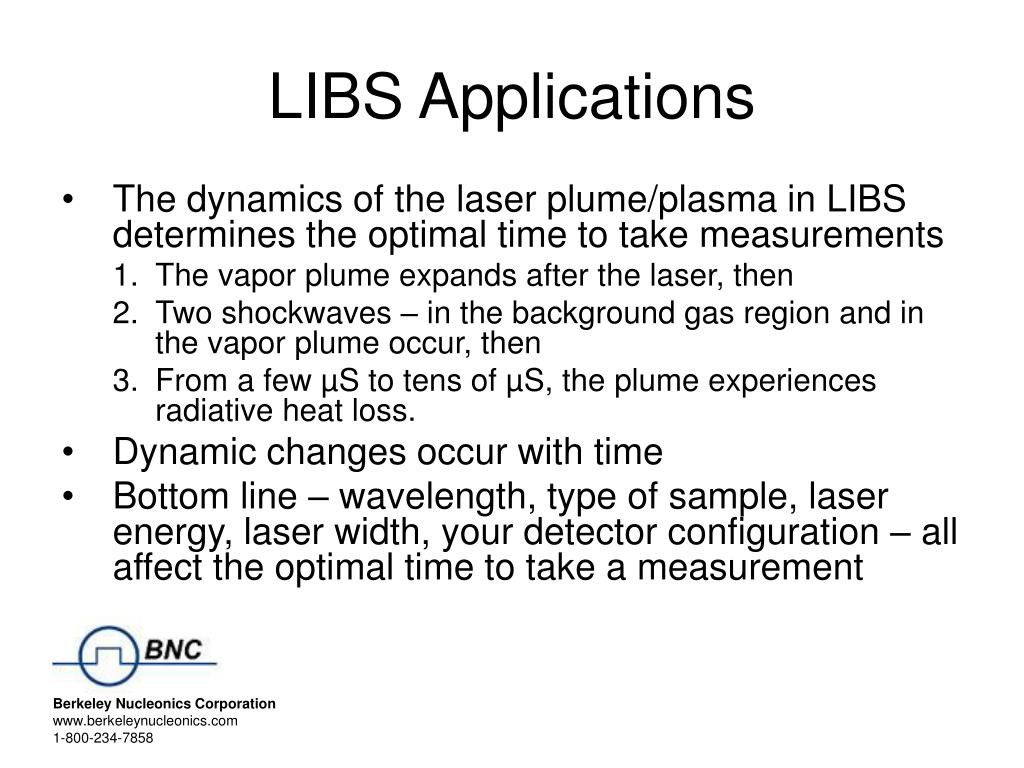

  6. LIBS Applications • The dynamics of the laser plume/plasma in LIBS determines the optimal time to take measurements • The vapor plume expands after the laser, then • Two shockwaves – in the background gas region and in the vapor plume occur, then • From a few µS to tens of µS, the plume experiences radiative heat loss. • Dynamic changes occur with time • Bottom line – wavelength, type of sample, laser energy, laser width, your detector configuration – all affect the optimal time to take a measurement

  7. LIBS Applications • One needs to adjust delays and gates to find the optimal settings – this is what a delay generator gives you

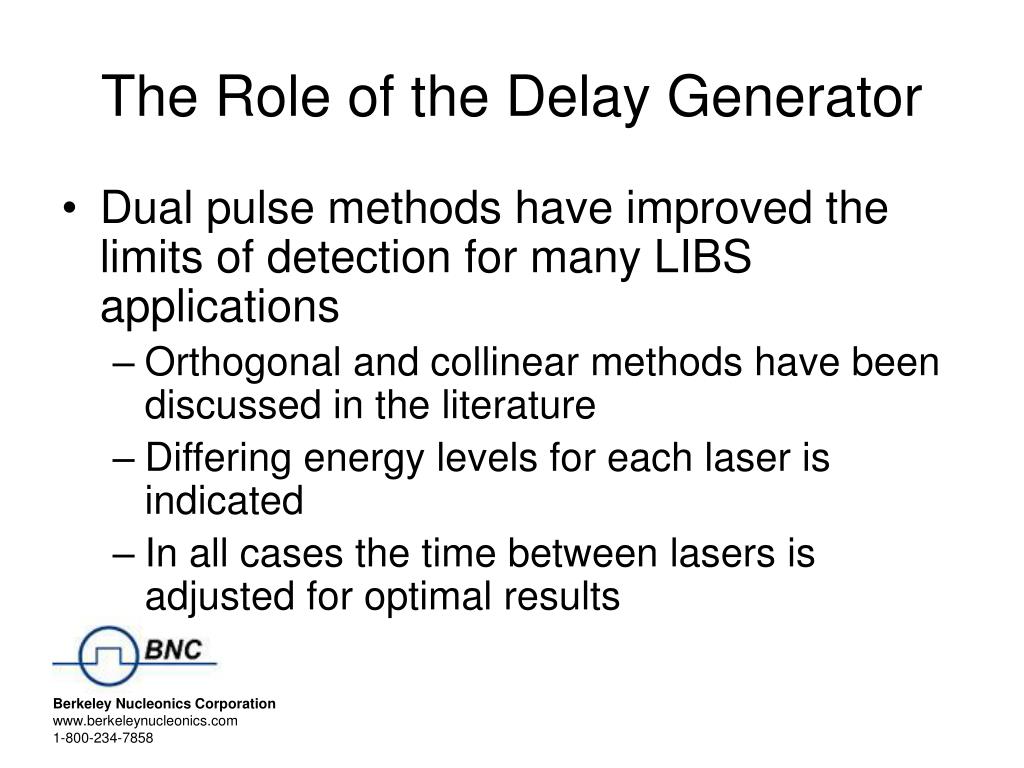

  8. The Role of the Delay Generator • Dual pulse methods have improved the limits of detection for many LIBS applications • Orthogonal and collinear methods have been discussed in the literature • Differing energy levels for each laser is indicated • In all cases the time between lasers is adjusted for optimal results

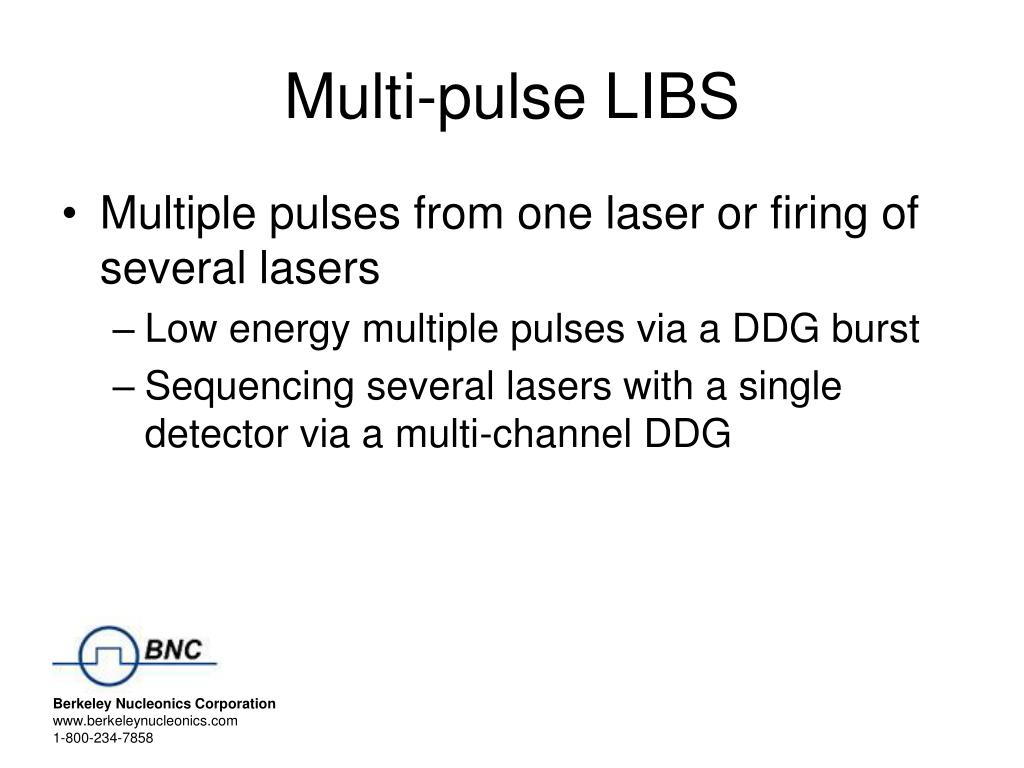

  9. Multi-pulse LIBS • Multiple pulses from one laser or firing of several lasers • Low energy multiple pulses via a DDG burst • Sequencing several lasers with a single detector via a multi-channel DDG
